Unravelling Guest Dynamics in Crystalline Molecular Organics Using 2H Solid-State NMR and Molecular Dynamics Simulation
Valentina Erastova, Ivana R. Evans, William N. Glossop, Songül Guryel, Paul Hodgkinson, Hannah E. Kerr, Vasily S. Oganesyan, Lorna K. Softley, Helen M. Wickins, Mark R. Wilson
TL;DR
This paper uses NMR and simulations to study how guest molecules move in crystalline organic structures.
Contribution
A novel approach combining 2H solid-state NMR and MD simulations to accurately interpret molecular dynamics in cocrystal solvates.
Findings
Traditional NMR interpretation methods fail to capture accurate molecular behavior in cocrystal solvates.
MD simulations reveal jump-type and libration-type motions that align with NMR data.
Time-independent component analysis provides insights into motions undetectable by NMR.
Abstract
2H solid-state NMR and atomistic molecular dynamics (MD) simulations are used to understand the disorder of guest solvent molecules in two cocrystal solvates of the pharmaceutical furosemide. Traditional approaches to interpreting the NMR data fail to provide a coherent model of molecular behavior and indeed give misleading kinetic data. In contrast, the direct prediction of the NMR properties from MD simulation trajectories allows the NMR data to be correctly interpreted in terms of combined jump-type and libration-type motions. Time-independent component analysis of the MD trajectories provides additional insights, particularly for motions that are invisible to NMR. This allows a coherent picture of the dynamics of molecules restricted in molecular-sized cavities to be determined.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

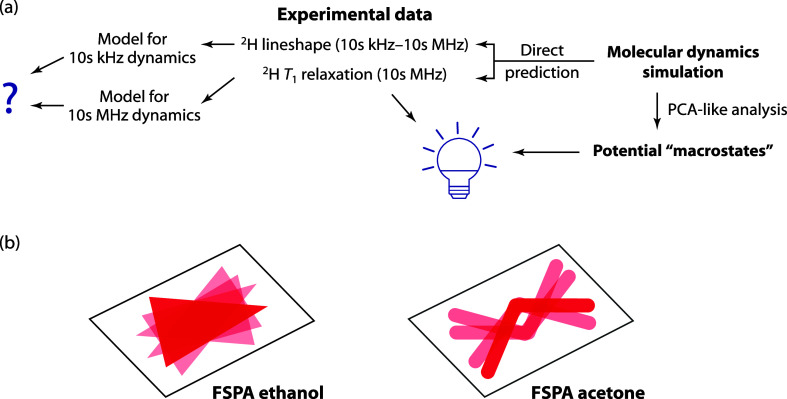

Figure 1

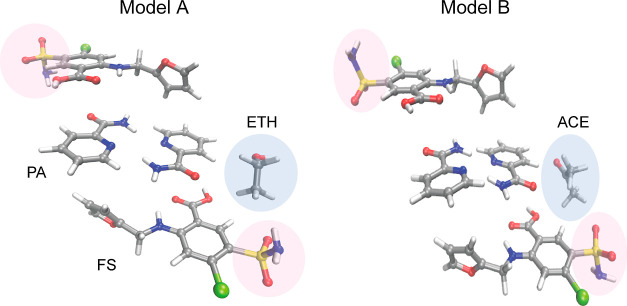

Figure 2

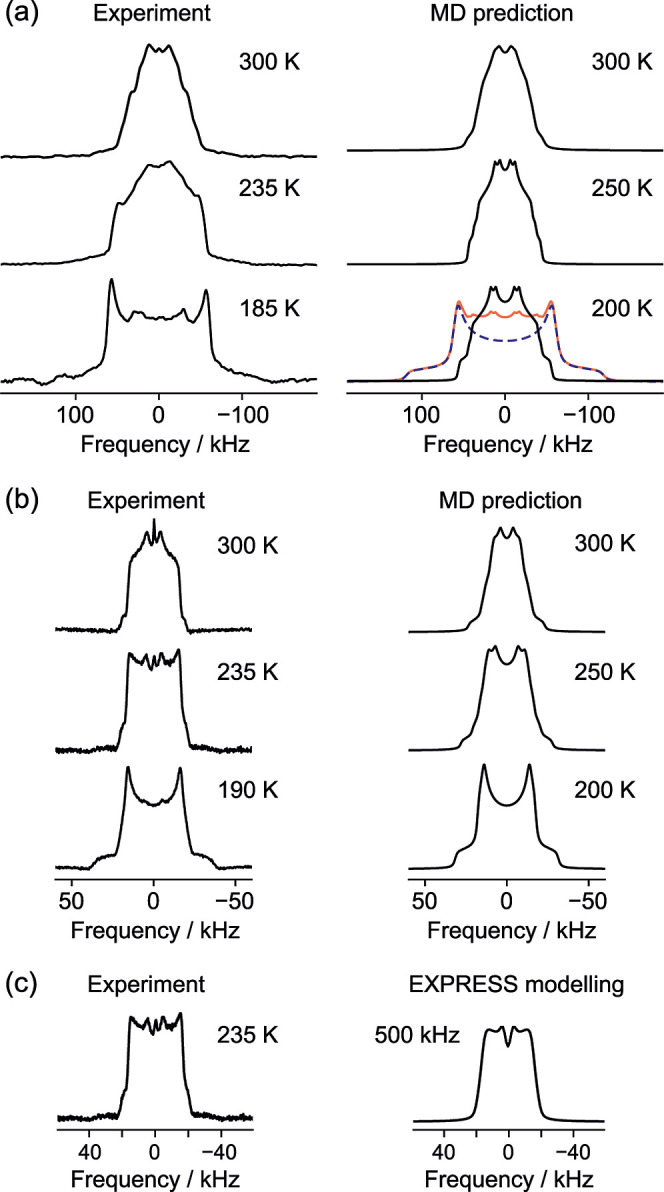

Figure 3

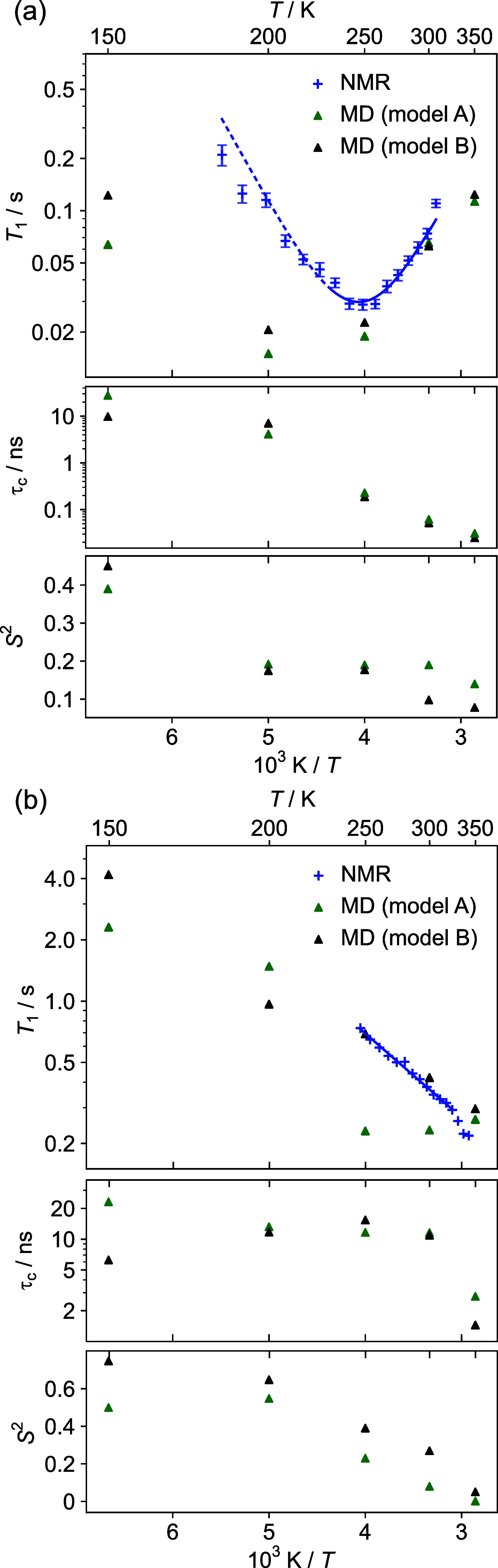

Figure 4

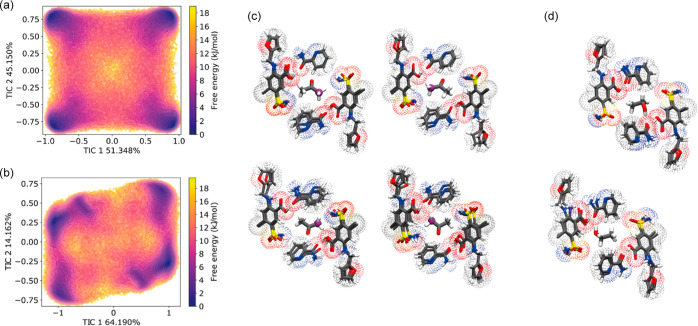

Figure 5

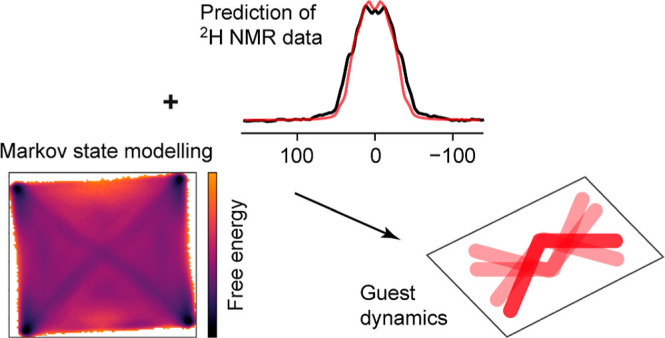

Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13Peer Reviews
