Estimate of the hydraulic force in the aging heart: a cardiovascular magnetic resonance imaging study

TL;DR

This study uses MRI to estimate hydraulic force between the heart's left ventricle and atrium, finding it decreases with age and correlates with diastolic function.

Contribution

A novel method to estimate hydraulic force using MRI feature tracking contours in healthy aging subjects.

Findings

HyF decreases significantly with age (R²=0.34, p < 0.0001).

HyF is strongly associated with diastolic function indices like E/A and LA strain.

Multivariate analysis confirms significant associations with E/A and LA conduit strain after adjusting for age, sex, and BMI.

Abstract

Coupling between left ventricle (LV) and left atrium (LA) plays a central role in the process of cardiac remodeling during aging and development of cardiac disease. The hydraulic force (HyF) is related to variation in size between LV and LA. The objectives of this study were to: (1) derive an estimate of left atrioventricular HyF using cine- Magnetic Resonance Imaging (MRI) in healthy subjects with a wide age range, and (2) study its relationship with age and conventional diastolic function parameters, as estimated by reference echocardiography.

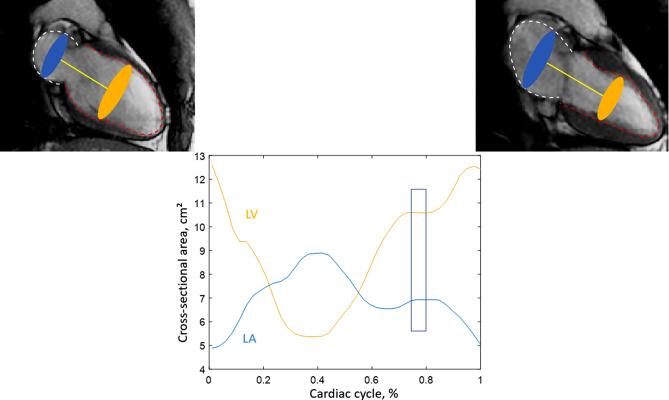

We studied 119 healthy volunteers (mean age 44 ± 17 years, 58 women) who underwent Doppler echocardiography and MRI on the same day. Conventional transmitral flow early (E) and late (A) LV filling peak velocities as well as mitral annulus diastolic longitudinal peak velocity (E’) were derived from echocardiography. MRI cine SSFP images in longitudinal two and four chamber views were acquired, and analyzed using feature tracking (FT) software. In addition to conventional LV and LA strain measurements, FT-derived LV and LA contours were further used to calculate chamber cross-sectional areas. HyF was approximated as the difference between the LV and LA maximal cross-sectional areas in the diastasis phase corresponding to the lowest LV-LA pressure gradient. Univariate and multivariate analyses while adjusting for appropriate variables were used to study the associations between HyF and age as well as diastolic function and strain indices.

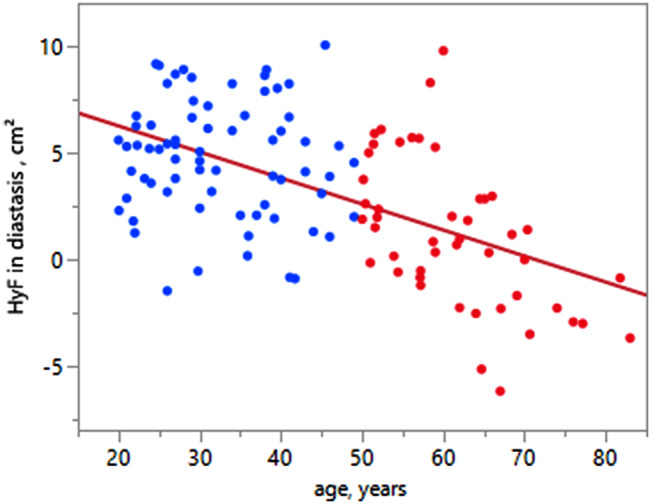

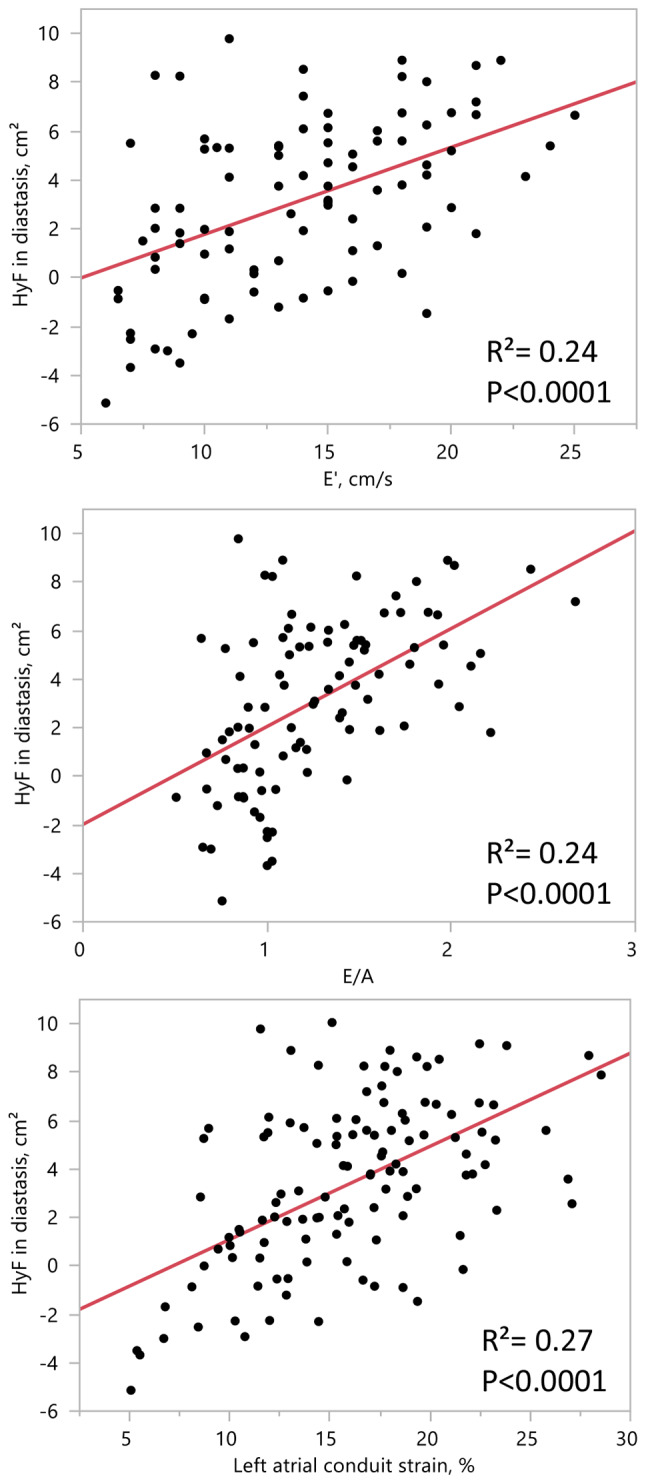

HyF decreased significantly with age (R²=0.34, p < 0.0001). In addition, HyF was significantly associated with conventional indices of diastolic function and LA strain: E/A: R²=0.24, p < 0.0001; E’: R²=0.24, p < 0.0001; E/E’: R²=0.12, p = 0.0004; LA conduit longitudinal strain: R²=0.27, p < 0.0001. In multivariate analysis, associations with E/A (R2 = 0.39, p = 0.03) and LA conduit strain (R2 = 0.37, p = 0.02) remained significant after adjustment for age, sex, and body mass index.

HyF, estimated using FT contours, which are primarily used to quantify LV/LA strain on standard cardiac cine MRI, varied significantly with age in association with subclinical changes in ventricular filling. Its usefulness in cohorts of patients with left heart disease to detect LV-LA uncoupling remains to be evaluated.

Figures
