Safety assessment of the process Fucine Film, based on the Reifenhäuser technology, used to recycle post‐consumer PET into food contact materials

TL;DR

The safety of a recycling process for food contact materials using post-consumer PET was assessed, but insufficient data made it impossible to confirm its safety.

Contribution

The study evaluates the safety of the Fucine Film recycling process using the Reifenhäuser technology for food contact materials.

Findings

The input material consists of washed and dried PET flakes from post-consumer sources.

The available data was insufficient to confirm the process reduces contamination to safe levels.

The process is intended for use in food contact materials excluding drinking water and beverages.

Abstract

The EFSA Panel on Food Contact Materials, Enzymes and Processing Aids (CEP) assessed the safety of the recycling process Fucine Film (EU register number RECYC322), which uses the Reifenhäuser technology. The input material consists of hot caustic washed and dried poly(ethylene terephthalate) (PET) flakes mainly originating from collected post‐consumer PET containers, including no more than 5% PET from non‐food consumer applications. The flakes are extruded under vacuum into sheets. The recycled sheets are intended to be used at up to 100% for the manufacture of materials and articles for contact with all types of foodstuffs, excluded drinking water and beverages, for long‐term storage at room temperature, with or without hotfill. Based on the limited data available, the Panel concluded that the information submitted to EFSA was inadequate to demonstrate that the recycling process Fucine Film is able to reduce potential unknown contamination of the input PET flakes to a concentration that does not pose a risk to human health.

Figures

General scheme of the Reifenhäuser technology (provided by the applicant).

Full text

INTRODUCTION

1

Background and Terms of Reference

1.1

Background

1.1.1

Recycled plastic materials and articles shall only be placed on the market if the recycled plastic is from an authorised recycling process. Before a recycling process is authorised, the European Food Safety Authority (EFSA)'s opinion on its safety is required. This procedure has been established in Article 5 of Regulation (EC) No 282/20081 ^,^ 2 on recycled plastic materials intended to come into contact with foods and Articles 8 and 9 of Regulation (EC) No 1935/20043 on materials and articles intended to come into contact with food.

According to this procedure, the industry submits applications to the competent authorities of Member States, which transmit the applications to EFSA for evaluation.

In this case, EFSA received an application from the Italian competent authority (Ministero della Salute) for evaluation of the recycling process Fucine Film, European Union (EU) register No RECYC322. The request has been registered in EFSA's register of received questions under the number EFSA‐Q‐2021‐00715. The dossier was submitted on behalf of Fucine Film S.p.A., Via dell'Artigianato n.6, 38,026 Fucine (TN), Italy (see ‘Documentation provided to EFSA’).

Terms of Reference

1.1.2

The Italian competent authority (Ministero della Salute) requested the safety evaluation of the recycling process Fucine Film, in accordance with Regulation (EC) No 282/2008 and Articles 9 and 10 of the Regulation (EC) 1935/2004.

Interpretation of the Terms of Reference

1.2

According to Article 5 of Regulation (EC) No 282/2008 on recycled plastic materials intended to come into contact with foods, EFSA is required to carry out risk assessments on the risks originating from the migration of substances from recycled food contact plastic materials and articles into food and deliver a scientific opinion on the recycling process examined.

According to Article 4 of Regulation (EC) No 282/2008, EFSA will evaluate whether it has been demonstrated in a challenge test, or by other appropriate scientific evidence, that the recycling process Fucine Film is able to reduce the contamination of the plastic input to a concentration that does not pose a risk to human health. The poly(ethylene terephthalate) (PET) materials and articles used as input of the process as well as the conditions of use of the recycled PET make part of this evaluation.

DATA AND METHODOLOGIES

2

Data

2.1

The applicant has submitted a confidential and a non‐confidential version of a dossier following the ‘EFSA guidelines for the submission of an application for the safety evaluation of a recycling process to produce recycled plastics intended to be used for the manufacture of materials and articles in contact with food, prior to its authorisation’ (EFSA, 2008) and the ‘Administrative guidance for the preparation of applications on recycling processes to produce recycled plastics intended to be used for manufacture of materials and articles in contact with food’ (EFSA, 2021).

Additional information was provided by the applicant during the assessment process in response to a request from EFSA sent on 17 October 2022 and 20 December 2023 and was subsequently provided (see ‘Documentation provided to EFSA’).

In accordance with Art. 38 of the Commission Regulation (EC) No 178/20024 and taking into account the protection of confidential information and of personal data in accordance with Articles 39 to 39e of the same Regulation, and of the Decision of the EFSA's Executive Director laying down practical arrangements concerning transparency and confidentiality,5 the non‐confidential version of the dossier is published on Open.EFSA.6

According to Art. 32c(2) of Regulation (EC) No 178/2002 and to the Decision of EFSA's Executive Director laying down the practical arrangements on pre‐submission phase and public consultations,7 EFSA carried out a public consultation on the non‐confidential version of the application from 25 July to 15 August 2023, for which no comments were received.

The following information on the recycling process was provided by the applicant and used for the evaluation:

• General information:

• –general description,

• –existing authorisations.

• Specific information:

• –recycling process,

• –characterisation of the input,

• –determination of the decontamination efficiency of the recycling process,

• –characterisation of the recycled plastic,

• –intended application in contact with food,

• –compliance with the relevant provisions on food contact materials and articles,

• –process analysis and evaluation,

• –operating parameters.

• –quality assurance system (QAS).

Methodologies

2.2

The risks associated with the use of recycled plastic materials and articles in contact with food come from the possible migration of chemicals into the food in amounts that would endanger human health. The quality of the input, the efficiency of the recycling process to remove contaminants as well as the intended use of the recycled plastic are crucial points for the risk assessment (EFSA, 2008).

The criteria for the safety evaluation of a mechanical recycling process to produce recycled PET intended to be used for the manufacture of materials and articles in contact with food are described in the scientific opinion developed by the EFSA Panel on Food Contact Materials, Enzymes, Flavourings and Processing Aids (EFSA CEF Panel, 2011). The principle of the evaluation is to apply the decontamination efficiency of a recycling technology or process, obtained from a challenge test with surrogate contaminants, to a reference contamination level for post‐consumer PET, conservatively set at 3 mg/kg PET for contaminants resulting from possible misuse. The resulting residual concentration of each surrogate contaminant in recycled PET (C_res_) is compared with a modelled concentration of the surrogate contaminants in PET (C_mod_). This C_mod_ is calculated using generally recognised conservative migration models so that the related migration does not give rise to a dietary exposure exceeding 0.0025 μg/kg body weight (bw) per day (i.e. the human exposure threshold value for chemicals with structural alerts for genotoxicity), below which the risk to human health would be negligible. If the C_res_ is not higher than the C_mod_, the recycled PET manufactured by such recycling process is not considered to be of safety concern for the defined conditions of use (EFSA CEF Panel, 2011).

The assessment was conducted in line with the principles described in the EFSA Guidance on transparency in the scientific aspects of risk assessment (EFSA, 2009) and considering the relevant guidance from the EFSA Scientific Committee.

ASSESSMENT

3

General information

8

3.1

According to the applicant, the recycling process Fucine Film is intended to recycle food grade PET containers using the Reifenhäuser technology. The recycled PET is intended to be used at up to 100% for the manufacture of materials and articles for direct contact with all kinds of foodstuffs, excluding drinking water and beverages, for long‐term storage at room temperature or below, with or without hotfill. The final articles are not intended to be used in microwave or conventional ovens.

Description of the process

3.2

General description

9

3.2.1

The recycling process Fucine Film produces recycled PET sheets from PET containers from post‐consumer collection systems (kerbside and deposit systems).

The recycling process comprises the two steps below.

Input

• In step 1, the post‐consumer PET containers are processed into hot caustic washed and dried flakes. This step is performed by third parties.

Decontamination and production of recycled PET material

• In step 2, the flakes are melted inside a ■■■■■ extruder, decontaminated under ■■■■■ and vacuum and finally transformed into sheets.

The operating conditions of the process have been provided to EFSA.

Sheets, the final product of the process, are checked against technical requirements, such as intrinsic viscosity, haze and tensile strength. Furthermore, the annual control plan includes chemical analyses on PET sheets to determine the overall and specific migration.

Characterisation of the input

10

3.2.2

According to the applicant, the input material for the recycling process Fucine Film consists of hot washed and dried flakes obtained from PET containers previously used for food packaging, from post‐consumer collection systems (kerbside and deposit systems). A small fraction may originate from non‐food applications. According to the applicant, the proportion of this non‐food container fraction depends on the collection system and will be no more than 5%.

Technical data on the hot washed and dried flakes were provided, such as on physical properties and residual contents of poly(vinyl chloride) (PVC), polyolefins, cellulose (paper, wood), metals and other substances.

Reifenhäuser technology

3.3

Description of the main steps

11

3.3.1

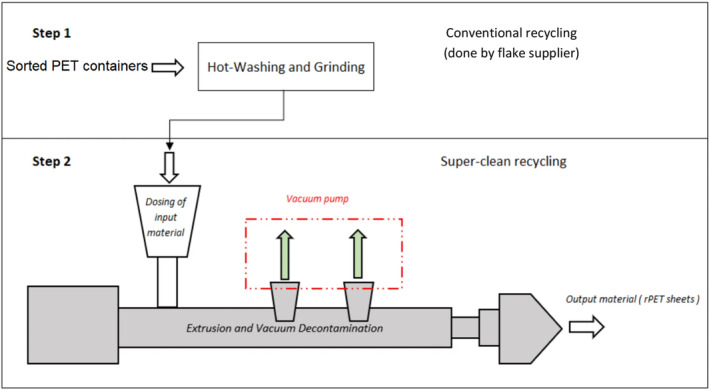

The general scheme of the Reifenhäuser technology, as provided by the applicant, is reported in Figure 1. The decontamination step is:

General scheme of the Reifenhäuser technology (provided by the applicant).

• Decontamination and extrusion (step 2):

The flakes are continuously fed into a ■■■■■ extruder running at predefined throughput under ■■■■■ and vacuum. Then, the melt is converted into sheets.

The process is run under defined operating parameters12 of temperature, pressure and throughput.

Decontamination efficiency of the recycling process

13

3.3.2

To demonstrate the decontamination efficiency of the recycling process Fucine Film, two challenge tests on step 2 were submitted to EFSA.

In the first challenge test, conventionally recycled post‐consumer14 PET flakes were contaminated with toluene, chlorobenzene, chloroform, methyl salicylate, phenylcyclohexane, benzophenone and methyl stearate, selected as surrogate contaminants in agreement with the EFSA guidelines (EFSA CEF Panel, 2011) and in accordance with the recommendations of the US Food and Drug Administration (FDA, 2006). Batches of contaminated PET were stored for 7 days at 50°C with periodical agitation, then washed with hot caustic water. Finally, the concentration of the surrogates in PET was determined. Step 2 of the Reifenhäuser technology was challenged at ■■■■■. The vacuum level applied represented the lower value of the range of vacuum that is intended to be applied in the industrial process. Samples taken at the exit of the extruder were analysed to determine the concentrations of the surrogates. However, the applicant did not provide the supporting raw data for the chemical analysis.

The decontamination efficiency of the process was calculated from the concentrations of the surrogates measured in the hot caustic washed contaminated flakes and in those exiting the Reifenhäuser extruder (step 2). The decontamination efficiency ranged from 68.7% for benzophenone up to 93.4% for toluene.

After a request for additional information, the applicant provided a second challenge test. In this challenge test, conventionally recycled15 post‐consumer PET was contaminated with toluene, chlorobenzene, methyl salicylate, phenylcyclohexane, benzophenone and methyl stearate. The amount of the contaminated material and its form (i.e. flakes or pellets) were not clearly indicated. Batches of contaminated PET were stored for 10 days at 35°C with periodical agitation. The Panel noted that these conditions are not sufficient to ensure the absorption of surrogates into PET to a level simulating the contamination after potential misuse of PET containers. The concentration of the surrogates in the contaminated PET was determined without a prior washing or rinsing step, hence without the removal of surrogates remaining on the PET surface. Step 2 of the Reifenhäuser technology was challenged at ■■■■■ at ■■■■■ used in the industrial process. Samples were taken at the exit of the extruder and then analysed to determine the residual concentrations of surrogates. The applicant did not provide all the necessary supporting data on the chemical analysis of the surrogates and on the validation of the method according to the EFSA guidelines. Moreover, the Panel did not consider the applied method enough performant to fully extract surrogates from PET.

The decontamination efficiency of the process was calculated from the concentrations of the surrogates measured in the contaminated PET material before extrusion and in the PET exiting the Reifenhäuser extruder (step 2). The decontamination efficiency of this second challenge test ranged from 98.2% for benzophenone up to >99.9% for toluene. The Panel noted that the decontamination efficiency resulting from this challenge test was far higher than that resulting from the first one despite applying less severe decontamination conditions.

DISCUSSION

4

Considering the ■■■■■ used during the process, the possibility of contamination by microorganisms can be discounted. Therefore, this evaluation focuses on the chemical safety of the final product.

Technical specifications, such as information on physical properties and residual contents of poly(vinyl chloride) (PVC), polyolefins, cellulose (paper, wood), metals and more, were provided for the input materials (i.e. hot caustic washed and dried flakes, step 1). These are produced from PET containers previously used for food packaging, collected through post‐consumer collection systems. However, a small fraction may originate from non‐food applications, such as bottles for soap, mouth wash or kitchen hygiene agents. According to the applicant, the collection system and the process are managed in such a way that, in the input stream, this fraction will be less than 5%, as recommended by the EFSA CEF Panel in its ‘Scientific Opinion on the criteria to be used for safety evaluation of a mechanical recycling process to produce recycled PET intended to be used for manufacture of materials and articles in contact with food’ (EFSA CEF Panel, 2011).

To demonstrate the decontamination efficiency of the process, two challenge tests were provided. The information provided on both challenge tests showed data gaps, inconsistencies and discrepancies that were not accounted for even after requests for clarification. Hence, the process was evaluated on the basis of the information provided. Based on this information, the Panel could not conclude on the safety of the process due to the following observations:

For the first challenge test:

• –The vacuum level applied represented the lower end of the range of vacuum levels that are intended to be applied in the industrial process. Therefore, the challenge test did not represent the worst‐case scenario with respect to decontamination efficiency.
• –The applicant did not provide all the necessary supporting data on the chemical analysis of the surrogates (as requested by the EFSA guidelines).

For the second challenge test:

• –The amount and the form of the material (i.e. flakes or pellets) used in the challenge test were not clearly specified.
• –The conditions at which the contamination was conducted cannot be considered sufficient to ensure the bulk absorption of the surrogates and the homogeneous contamination of the material.
• –The contaminated material was not rinsed or washed before the analysis of the initial contamination level.
• –The method applied to extract surrogates from PET prior to chemical analysis did not ensure the complete extraction of surrogates.
• –The applicant did not provide all the necessary supporting data on the chemical analysis of the surrogates and on the validation of the method (as requested by the EFSA guidelines, EFSA, 2008). Therefore, the results of the decontamination efficiency cannot be considered reliable.

The Panel noted that the decontamination efficiency resulting from the second challenge test was far higher than that resulting from the first challenge test despite applying less severe decontamination conditions. This is considered to be the result of the poor reliability of the second challenge test.

The Panel noted that the dossier does not satisfy the requirements of the EFSA guidelines (EFSA, 2008) and the criteria to be used for safety evaluation of a mechanical recycling process to produce recycled PET intended to be used for manufacture of materials and articles intended to come in contact with food (EFSA CEF Panel, 2011).

CONCLUSIONS

5

The Panel concluded that the information submitted to EFSA was inadequate to demonstrate that the recycling process is able to reduce a potential contamination of the input PET flakes to a concentration that does not pose a risk to human health.
