Modified Radiological Union Score of Tibia (RUST) Scores in Diaphyseal Fractures Treated by the Ilizarov Frame: A Retrospective Analysis Evaluating Reliability

TL;DR

This study evaluates the reliability of a modified scoring system for assessing tibia fracture healing using the Ilizarov frame, finding it dependable with substantial agreement among observers.

Contribution

The study introduces the modified RUST score's application for complex tibia fractures and validates its reliability across orthopaedicians and radiologists.

Findings

The m-RUST score showed substantial interobserver agreement with an ICC of 0.74.

Orthopaedicians had higher ICC (0.77) compared to radiologists (0.72).

The score proved effective in assessing healing in infective and bone grafting conditions.

Abstract

Introduction

The number of cases of tibia diaphyseal fractures treated by Ilizarov fixation is increasing. Fractures with infective etiology and altered bone biology due to the requirement of revision surgery or open wounds, which are often treated by the Ilizarov method, have challenges in ascertaining radiological signs of union. In this study, we aim to demonstrate the application of the modified Radiological Union Score of Tibia (m-RUST) scores in the assessment of fracture union in patients operated by the Ilizarov method. The secondary aim is to assess the interobserver and intraobserver variability of the m-RUST score validated by orthopaedicians and radiologists.

Methodology

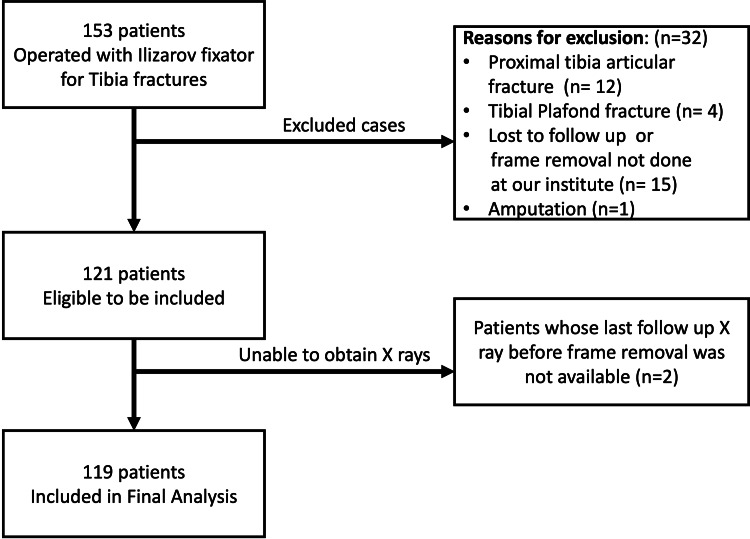

A total of 119 patients who were treated with an Ilizarov fixator from February 2017 to December 2023 were included in the study. Four observers (two orthopaedicians and two radiologists) independently applied the m-RUST score for the included patients. Clinical data were not disclosed to the observers who worked independently of each other. Intraclass correlation coefficients (ICC) with 95% confidence intervals (CI) were used to measure the reliability of the m-RUST score. Interobserver reliability was measured by examining the scores of four observers from the second assessment, and intra-observer variability was assessed by a repeat evaluation after two weeks following the first assessment.

Results

The m-RUST score of the 119 X-rays analysed ranged from 8 to 16. The mean score in the first assessment was 11.36±3.51, and in the second assessment was 11.42±3.39. The reliability between all the observers was “substantial agreement” (ICC: 0.74, 95% CI). The ICC among the orthopaedicians was 0.77 and that among the radiologists was 0.72.

Conclusion

The m-RUST score has potential in other long bone fractures such as femur or humerus. Assessment of the m-RUST score in the healing of infective sequel and bone grafting conditions has been found effective. The m-RUST score is a dependable score in evaluating union in tibia fractures treated by the Ilizarov frame.

Figures
