Genome-Wide Identification of SNARE Family Genes and Functional Characterization of an R-SNARE Gene BbSEC22 in a Fungal Insect Pathogen Beauveria bassiana

TL;DR

This study identifies SNARE genes in the fungus Beauveria bassiana and shows that the R-SNARE gene BbSEC22 is important for growth, stress tolerance, and insect pathogenicity.

Contribution

The first genome-wide identification and functional analysis of SNARE genes in an entomopathogenic fungus.

Findings

Twenty-two SNARE genes were identified and classified in Beauveria bassiana.

Disruption of BbSEC22 caused reduced conidial germination, stress sensitivity, and insecticidal virulence.

BbSEC22 is a multifunctional protein involved in growth, sporulation, and pathogenesis.

Abstract

Soluble N-ethylmaleimide-sensitive factor attachment protein receptors (SNAREs) are central components of the machinery mediating cell membrane fusion and intracellular vesicular trafficking in eukaryotic cells, and have been well-documented to play critical roles in growth, development, and pathogenesis in the filamentous fungal plant pathogens. However, little is known about the contributions of SNAREs to the physiology and biocontrol potential in entomopathogenic filamentous fungi. Here, a genome-wide analysis of SNARE genes was performed taking advantage of the available whole genome sequence of Beauveria bassiana, a classical entomopathogenic fungus. Based on the compared genomic method, 22 genes encoding putative SNAREs were identified from the whole genome of B. bassiana, and were classified into four groups (7 Qa-, 4 Qb-, 6 Qc-, and 5 R-SNAREs) according to the conserved structural features of their encoding proteins. An R-SNARE encoding gene BbSEC22 was further functionally characterized by gene disruption and complementation. The BbSEC22 null mutant showed a fluffy appearance in mycelial growth and an obvious lag in conidial germination. The null mutant also exhibited significantly increased sensitivity to oxidative stress and cell wall perturbing agents and reduced the yield of conidia production by 43.1% compared with the wild-type strain. Moreover, disruption of BbSEC22 caused a significant decrease in conidial virulence to Spodoptera litura larvae. Overall, our results provide an overview of vesicle trafficking in B. bassiana and revealed that BbSec22 was a multifunctional protein associated with mycelial growth, sporulation, conidial germination, stress tolerance, and insecticidal virulence.

Figures

Full text

1. Introduction

The soluble N-ethylmaleimide-sensitive factor attachment protein receptors (SNAREs) are important components of the vesicle trafficking machinery in eukaryotic cells, which is essential for many cellular processes including polarized growth and secretion of extracellular proteins in fungal organisms [1,2,3]. SNAREs form a superfamily of small proteins in yeast and filamentous fungi, for instance, there are 24 members in Saccharomyces cerevisiae, 21 in both Aspergillus oryzae and Fusarium graminearum, 35 in Phytophthora sojae and 22 in Verticillium dahlia [4,5,6,7,8]. Despite their differences in sizes among different organisms, the SNAREs are structurally characterized by a conserved segment of approximately 60–70 amino acids arranged in heptad repeats, termed the SNARE domain at the C-terminus [9,10]. In the process of vesicle trafficking, SNAREs anchored on different membranes interact through their SNARE domains to form a four-helix SNARE bundle which leads to a tight connection of the membranes that are destined to fuse and initiate the membrane merger [11]. Originally, SNAREs were functionally classified into v-SNAREs and t-SNAREs based on their localization to either vesicle membranes or target membranes [12]. However, many SNAREs were later found on both vesicle and target membranes, and SNAREs were reclassified into Q-SNAREs and R-SNAREs according to their sequence homology and the presence of an arginine (R) or glutamine (Q) residue at the zero layer in the four-helical bundles of SNARE domain [13]. In most cases, R-SNAREs act as v-SNAREs and Q-SNAREs act as t-SNAREs [14].

SNAREs-mediated vesicle trafficking was traditionally viewed as a housekeeping process and SNAREs have been well characterized in mammals, plants, and yeasts [15,16,17]. Excepting for the vital roles in membrane trafficking, recent findings in fungal cells show that SNAREs also play diverse roles in fungal growth and pathogenicity as well as asexual and sexual reproduction [18,19,20]. In Neurospora crassa, SNARE nsyn1 was found to be important for asexual conidiation and male mating, while SNARE nyn2 was revealed to be essential for hyphal branching and ascospore development [21]. Disruption of the orthologous genes (GzSYN1 and GzSYN2) in the plant pathogen fungus Gibberella zeae also seriously reduced hyphal extension and eliminated female fertility [22]. In Fusarium verticillioides, the FvSYN1 deletion mutant exhibited rough and hyper-branched, increased sensitivity to cell wall stress, and decreased conidial virulence [23]. Functionally characterization of several SNARE-encoding genes including MoSSO1, MoSYN8, MoTLG2, MoVAM7, and MoSEC22 in the rice blast fungus Magnaporthe oryzae revealed that SNAREs were not only essential for fungal growth, conidiation, and virulence, but also involved in stress tolerance and cell wall integrity maintenance [24,25,26,27,28]. The R-SNARE Sec22 was required for vegetative growth, pathogenicity, and deoxynivalenol (DON) toxin production in the wheat scab fungus F. graminearum [29]. Deletion of a Sec22 orthologous VdSec22 in the vascular wilt fungus V. dahlia resulted in reduced virulence and suppressed secretion of carbohydrate hydrolase [30]. Recent studies also reported that SNAREs (DdVam7 and AoSec22) were determinant to hyphal morphogenesis, sporulation capacity, vacuole assembly, and trap formation in the nematode-trapping fungi Drechslerella dactyloides and Arthrobotrys oligospora [19,31]. Although the SNAREs have been extensively investigated in budding yeast, phytopathogenic fungi, and nematode-trapping fungi, no effort has been made to investigate the roles of SNARE orthologs in the mediation of fungal growth, sporulation, virulence, and multi-stress tolerance in insect fungal pathogens.

Beauveria bassiana is one of the classic entomopathogenic fungi that has been developed as successful mycoinsecticides for insect pest control [32,33]. However, their slow kill speed and poor tolerance to adverse environmental factors have restrained their application and commercial development [34]. Since SNAREs are highly conserved among fungi and functionally versatile, it is essential to elucidate their contributions to the physiology and biocontrol potential for the insect pathogen. This study sought to identify the SNARE superfamily genes in whole genome sequences of B. bassiana. Moreover, we choose an R-SNARE BbSEC22, an ortholog of S. cerevisiae SEC22, for further functional characterization by constructing the disruption and complementation mutants.

2. Materials and Methods

2.1. Microbial Strains and Culture Conditions

The wild-type strain B. bassiana (CICC 41021) was cultured on the plates of Sabouraud dextrose agar plus 1% yeast extract (SDAY) (Solarbio, Beijing, China) at the regime of 25 °C and 12:12 h (light/dark cycle). Escherichia coli DH5α were cultured in Luria–Bertani medium (Solarbio, Beijing, China) at 37 °C and used for vector construction. Agrobacterium tumefaciens AGL-1 used for fungal transformation was cultured at 28 °C in YEB medium (Solarbio, Beijing, China).

2.2. Identification and Analysis of Predicted SNAREs Encoding Genes

Amino acid sequences of SNAREs in S. cerevisiae, A. oryzae, and P. sojae obtained from the GenBank database were used as queries to search for putative SNAREs-encoding genes in the complete genome of B. bassiana (GenBank Accession Number: ADAH00000000) via tBLASTN analysis [35]. The amino acid sequences of predicted B. bassiana proteins showing significant similarity to SNARE queries and their open-reading frame sequences were extracted. These sequences were subjected to conserved domain and motif analysis using the online tools CD-Search (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi, accessed on 5 January 2024), SMART (http://smart.embl-heidelberg.de/, accessed on 5 January 2024) and InterProScan (http://www.ebi.ac.uk/interpro/search/sequence/, accessed on 5 January 2024). For phylogenetic analysis of a conserved R-SNARE protein BbSec22, the Sec22 homologs in other fungi were downloaded from the GenBank database via BLASTp (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 5 January 2024). Protein sequence alignment was carried out using the software ClustalW (https://www.genome.jp/tools-bin/clustalw, accessed on 10 January 2024) with default settings [36]. The MEGA X software (https://www.megasoftware.net/, accessed on 10 January 2024) was applied to construct a phylogenetic tree using the neighbor-joining method with a bootstrap test of 1000 replicates [37].

2.3. Targeted Gene Deletion and Complement of BbSEC22

A conserved R-SNARE encoding gene BbSEC22 was disrupted from B. bassiana using an Agrobacterium-mediated homologous recombination method. The plasmids p0380-bar and p0380-sur-gateway were used as backbones to delete and complement the target gene [38]. Briefly, two fragments with the length of 2071 bp and 2284 bp corresponding to the 5′ and 3′ flanking regions of BbSEC22 were amplified by conventional PCR with pair primers listed in Table S1, respectively. The upstream and downstream fragments of BbSEC22 were separately digested by two pairs of restriction enzymes HindIII/SacI and BglII/SpeI (New England Biolabs, Hitchin, UK), and then successively cloned into the corresponding sites of the plasmid p0380-bar, which vectoring phosphinothricin (PPT) resistance gene BAR, the resultant plasmid p0380-bar-BbSec22 was used for target-gene disruption.

To construct plasmids for gene complementation, a 5197-bp PCR fragment containing the full-length BbSEC22 coding region, the 2519-bp upstream region, and the 1982-bp downstream regions was amplified from B. bassiana genomic DNA and ligated into p0380-sur-gateway to replace the gateway fragment. The new plasmid p0380-sur-BbSec22 vectoring the second marker SUR (M. grisea acetolactate synthase gene resisting sulfonylurea) was used for target gene complementation.

The plasmids p0380-bar-BbSec22 and p0380-sur-BbSec22 were separately transformed into A. tumefaciens AGL-1 for transformation into the wild-type strain and the corresponding deletion mutant, respectively. The mutants of ΔBbSEC22 and ΔBbSEC22/BbSEC22 were selected from Czapek’s plates containing PPT (200 µg mL^−1^) or chorimuron ethyl ammonium (10 µg mL^−1^) and identified by PCR, reverse transcription PCR (RT-PCR) and quantitative real-time PCR (qRT-PCR) with primers listed in Table S1.

2.4. qRT-PCR Analysis of Gene Expressions

The temporal transcript patterns of BbSEC22 in the wild-type cultures were assessed during 8-day growth at 25 °C and 12:12 h on cellophane overlaid on SDAY plates, on each of which 100 μL suspension with the concentration of 1 × 10^7^ conidia mL^−1^ (the same below unless mentioned otherwise) was spread to initiate the cultures. Total RNA was separately extracted using TRIzol^TM^ Plus Reagent (Takara, Shiga, Japan) and treated with DNase I (New England Biolabs, Hitchin, UK) following the manufacturer’s instructions. Every 5-μg RNA sample was reversely transcribed with a PrimeScript^TM^ RT reagent Kit (Takara, Tokyo, Japan). The transcript levels of BbSEC22 and 18S rRNA (used as internal standard) were assessed in the triplicate assays of qRT-PCR with Sec22q-F/R and 18S-F/R (Table S1). All qRT-PCR reactions were performed using an ABI Prism 7500 system (Thermo Fisher Scientific, Waltham, MA, USA) with SYBR^®^ Premix Ex Taq™ II (Takara, Japan). The relative expression level of BbSEC22 was estimated as the transcript ratio of a given culture day over the first day using the 2^−ΔΔCt^ method [39].

For assaying the expression level alteration of selected genes caused by BbSEC22 disruption, aliquots of 100 μL suspension of the wild-type strain and each mutant strain were spread onto the cellophane-attached plates of SDAY, followed by incubation of 3 days at the same regime. The selected genes were those possibly involved in fungal conidiation and responses to the stresses of oxidation and cell wall disturbance. Total RNA was extracted, transcribed, and subjected to qRT-PCR analysis with paired primers (Table S2) using the same protocol as described above. Relative expression levels of target genes were obtained by normalization to the transcript level of 18S rRNA. The transcript levels of the other four R-type SNARE genes (BbYKT6, BbNYV1, BbNYV2, and BbSNC1) in the wild-type strain, deletion, and complementation mutants grown for 3 days on SDAY at 25 °C were also assessed using the same protocol.

2.5. Assays for Vegetative Growth, Sporulation and Conidial Germination

To assess the effect of BbSEC22 disruption on the fungal mycelial growth, 1 µL conidial suspensions of the wild-type strain or each mutant were spotted centrally onto SDAY plates (9-cm diameter) and incubated at 25 °C. The diameter of each colony was then measured after incubation for 8 days. For biomass quantification, each of 100 µL conidial suspensions were pipeted into 100 mL SDB media (SDB: agar-free SDAY) and shaken at 25 °C and 160 rpm for 3 days, mycelia were then harvested by centrifugation, lyophilized overnight and weighed. For hyphal morphology examination, the mycelia of each strain were harvested after incubating in SDB media for 3 days and observed separately under a microscope. The cell wall and hyphal septum were visualized by calcofluor white (CFW) staining as described [40].

To assess the effect of BbSEC22 on conidium production, 100 μL conidial suspension of each strain was spread onto cellophane-attached SDAY plates, followed by 8-day incubation at 25 °C. Conidial yield was estimated as of the number of conidia/cm^2^ colony by washing off conidia into 1 mL of 0.02% Tween 80 from each of three colony discs (5-mm diameter) through supersonic vibration and determining conidial concentration in the suspension using microscopic counts with a hemocytometer.

To assess the effect of BbSEC22 on conidial germination, 50 µL conidial suspension of each strain was spread onto the plates of germination medium (GM: 2% sucrose and 0.5% peptone and 1.5% agar), followed by 24 h incubation at 25 °C and 12:12 h. From 6 h onwards, percent germination on each plate was assessed every 2 h using three microscopic counts (>100 conidia per count). All the above experiments were repeated three times each with three replicates.

2.6. Assays for Stress Tolerance of the Growing Colonies and Germling Conidia

To assess how of BbSEC22 deletion affected resistance to environmental stresses, fungal mass discs (5-mm diameter) were cut from the colony edge of each strain grown for 3 days on cellophane-attached SDAY plates at 25 °C and transferred onto the center of one-quarter SDAY plates alone (control) or supplemented with one of the stressful chemicals (treatments) as follows: hyper-oxidative agents (40 mM H_2_O_2_ and 3 mM menadione), hyper-osmotic agents (1 M of NaCl and KCl), cell wall biosynthesis inhibitors (0.1 mg mL^−1^ SDS, 2 mg mL^−1^ congo red and 5 mg mL^−1^ CFW) and fungicides (1 μg mL^−1^ carbendazim and 0.1 mg mL^−1^ dimetachlone). All the plates were incubated for 7 days at the same regime and the resultant colonies were cross-measured for their diameters (mm). For each strain, relative growth inhibition was calculated as (C − N)/(C − 5) × 100, where C is the control (not stressed) colony diameter and N is the colony diameter under a given stress.

Apart from the assays of colony responses, conidia were quantitatively assayed for their tolerances to thermal stress using the same method described in a previous study [41]. Briefly, each 1 mL conidial suspension in glass tubes was exposed to the wet-heat stress of 45 °C for up to 90 min. Aliquots with a volume of 100 µL from each tube were separately pipetted every 15 min and released into 1 mL germination broth (GB: agar-free GM). After 24 h incubation at 25 °C, percent germinations were determined with the microscopic counts, and median lethal times (LT_50_) were then estimated by the probit analysis using the software GraphPad Prism 8.

2.7. Assays for Fungal Virulence

The wild type and mutant strains were bioassayed for their virulence to the second-instar larvae of Spodoptera litura using a lotus leaf disc system [38]. In brief, aerial conidia from a 7-day growth fungal culture on SDAY plates of each strain were harvested by washing with 2 mL distilled water with 0.02% Tween 80 and adjusted to a final concentration of 1 × 10^8^ conidia mL^−1^. Batches of 35–40 larvae on lotus leaf discs (~10 cm diameter) were separately sprayed with an equal volume (1 mL) of conidial suspension or 0.02% Tween 80 (control) using a handheld micro sprayer. After spray treatment, all larvae were reared on the leaf discs in Petri dishes for 7 days at 25 °C and 12:12 h and examined daily for mortality records. Fresh leaf discs were supplied daily for their feeding during the period. Each treatment was replicated three times. The fitted time-mortality relationship was used to estimate the LT_50_ values of each fungal strain against S. litura larvae.

2.8. Statistical Analysis

DPS software 7.05 was used for statistical analysis [42]. All data from the repeated experiments were expressed as mean ± standard error. Significant differences between means were tested using one-way analysis of variance (ANOVA) with Tukey’s HSD post-hoc analysis. Differences were considered to be significant at p < 0.05.

3. Results

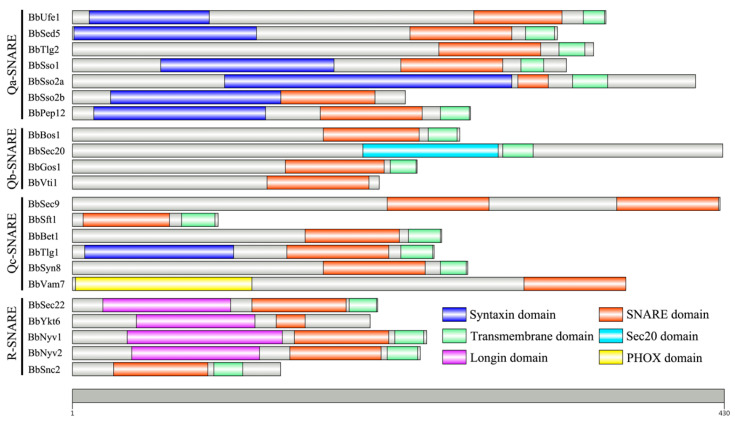

3.1. Identification of SNARE Family Genes in B. bassiana Genome

A total of 22 SNAREs were identified from the B. bassiana genome based on tBLASTN searches with representative SNAREs from well-characterized model organisms (Table 1). Each of them has one counterpart protein in S. cerevisiae, except for an unconventional SNARE-encoding protein Use1 which was not found ortholog in the B. bassiana genome. Additionally, B. bassiana possesses two orthologs for Sso2 while A. oryzae and S. cerevisiae have only one. In general, the deduced SNAREs share much higher identities when the entire amino acid sequences were compared with the SNAREs from A. oryzae than that from S. cerevisiae. Conserved domain analysis revealed that all of them have typical characteristic features of SNARE family proteins. One SNARE core motif and a transmembrane domain are generally conserved at the C-termini of each protein, although five SNAREs (BbSso2b, BbVti1, BbVam7, BbSec9, and BbYkt6) possess no transmembrane regions and one SNARE (BbSec20) have no SNARE motif instead of Sec20 motif. Two SNARE motifs existed in the BbSec9 sequence and one PHOX motif was presented in the N-terminus of BbVam7. Based on the highly conserved residues, the 22 SNAREs from B. bassiana were divided into Q- and R-types, and Q-types were further divided into three sub-types: Qa, Qb, and Qc (Figure 1). Remarkably, the glutamine residue (Q) conserved among Q-type SNAREs is replaced by an unconventional amino acid residue in three Qc-type SNAREs, that is an aspartic acid (D) in BbSft1, a histidine (H) in BbSyn8 and a serine (S) in BbBet1, respectively.

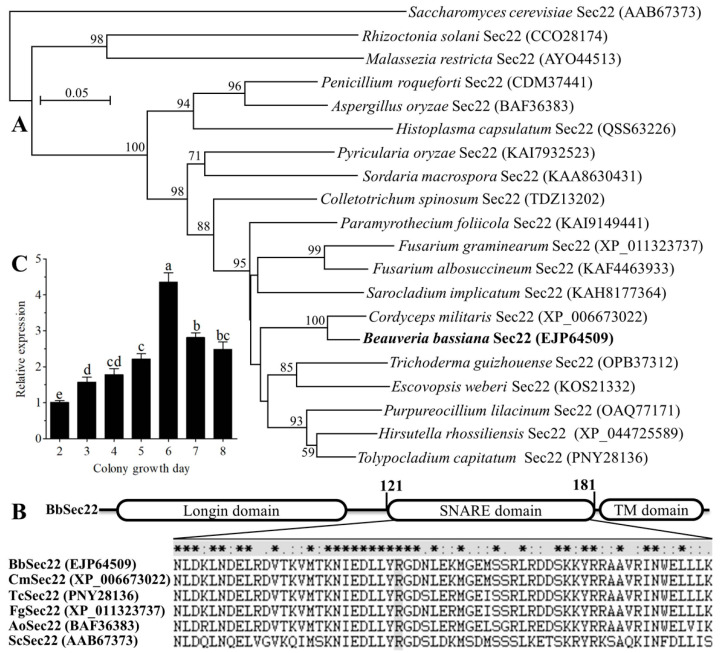

3.2. Structural and Expression Features of BbSec22

The gene encoding an R-SNARE (BbSec22) was obtained by PCR amplification and introns were confirmed by RT-PCR. A full-length sequence of the BbSEC22 gene consisted of a 696-bp ORF and an 87-bp intron, encoding a protein of 202 amino acids with molecular weights of 23.5 kDa. The protein sequence shows 82.7%, 66.0%, and 41.2% identities to Sec22 proteins from Fusarium albosuccineum, A. oryzae and S. cerevisiae, respectively. Phylogenetic analysis revealed that the BbSec22 is most closely related to the Sec22 protein of the insect pathogenic fungus Cordyceps militaris (Figure 2A). Domain prediction revealed that BbSec22 contains a conserved SNARE domain and a transmembrane motif located in the C-terminus. The conserved amino acid residue in the SNARE domain is R, indicating that BbSec22 belongs to the R-SNARE superfamily (Figure 2B).

The temporal transcript pattern of BbSEC22 in cultures of B. bassiana grown for 2–8 days on SDAY plates at 25 °C is illustrated in Figure 2C. As a result of qRT-PCR analysis, the transcript level of BbSEC22 was gradually increased with the incubation time on the previous 6 days but down-regulated during the following 2 days. The transcriptional expression of BbSEC22 on day 6 was 4.3-fold and 1.8-fold higher than that on day 2 and day 8, respectively.

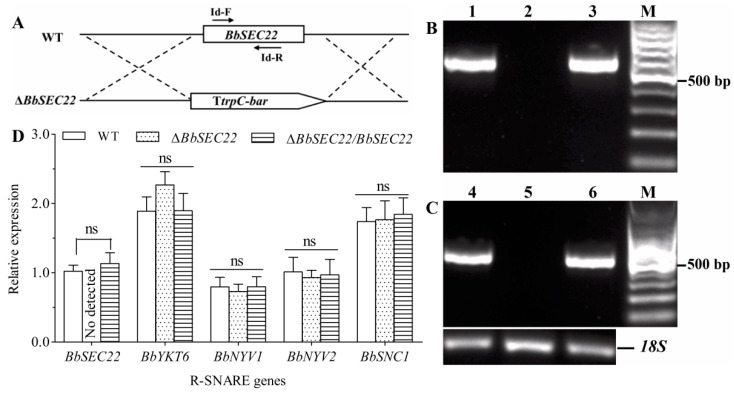

3.3. Targeted Deletion and Complementation of BbSEC22

The BbSEC22 gene was disrupted by replacing it with the bar-vectoring cassette via double homologous recombination (Figure 3A). The complemented mutant was constructed by inserting the full expression element of BbSEC22 with the sur marker through Agrobacterium-mediated transformation. The deletion and complementation mutants of BbSEC22 were first identified by PCR analysis using the specific primer pairs (Table S1, Figure 3B). RT-PCR experiments using primers targeted to the BbSEC22 cDNA sequence showed complete loss of the transcript in the deletion strain, as the targeted fragment (529 bp) of BbSEC22 was amplified from the control strains (wild type and complemented strains) but not from the deletion mutant (Figure 3C). Targeted gene deletion and complementation were further confirmed by qRT-PCR assays. Consequently, the transcript of BbSEC22 in the deletion mutant was undetectable but present in the control strains in qRT-PCR experiments, indicating again a success for gene deletion and complementation. Additionally, deletion of BbSEC22 had no significant effect on the expression levels of BbYKT6, BbNYV1, BbNYV2, and BbSNC1, the other four R-SNARE genes presented in the B. bassiana genome (Figure 3D). The obtained deletion mutant (ΔBbSEC22) and complemented mutant (ΔBbSEC22/BbSEC22) were assayed together with the wild-type strain for possible alterations of various phenotypes as follows.

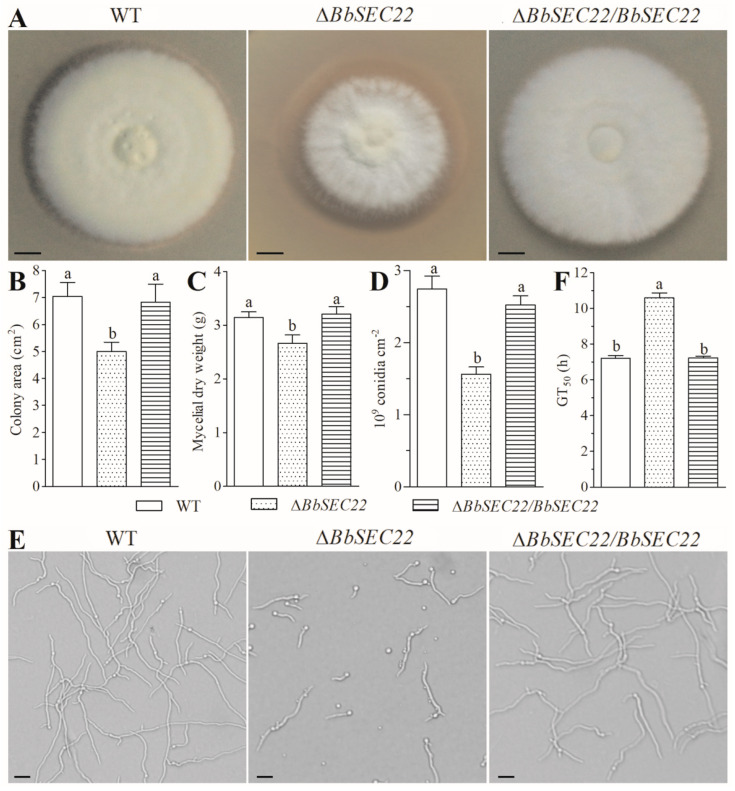

3.4. Effects of the BbSEC22 Deletion on Mycelial Growth

The deletion of BbSEC22 resulted in conspicuous changes in the colony morphology grown on SDAY at 25 °C. As shown in Figure 4A, the ΔBbSEC22 mutant showed a reduced colony size, thinner mycelial edge, and more fluffy appearance in comparison to the control strains (the wild-type strain and ΔBbSEC22/BbSEC22). The ΔBbSEC22 colony was 28.5% smaller than those of the control strains (~7.0 cm^2^) after 8-day growth on SDAY plates (Figure 4B). The dry weight of mycelia for the ΔBbSEC22 mutant cultured in SDB was also significantly decreased by 15.3% when compared to that of the control strains (Figure 4C).

3.5. Effects of the BbSEC22 Deletion on Sporulation and Conidial Germination

Conidial yields measured from the colonies differed significantly between the ΔBbSEC22 mutant and the control fungal strains during the incubation period. Both the wild-type strain and the complement strain started sporulation on day 3 and produced significantly more conidia than the deletion mutant on day 8. The final conidial yield of the ΔBbSEC22 mutant was severely reduced by 43.1% when compared with that measured from the control strains (Figure 4D). Additionally, the ΔBbSEC22 mutant exhibited an obvious lag in conidial germination (Figure 4E). In comparison to the control strains, in which the germination rate was nearly 100% at the end of 9 h, the ΔBbSEC22 strain had a germination rate of only 78.6% after 12 h. The time (GT_50_) required for 50% germination was delayed by 3.4 h compared with the mean GT_50_ (7.2 h) for the control strains (Figure 4F).

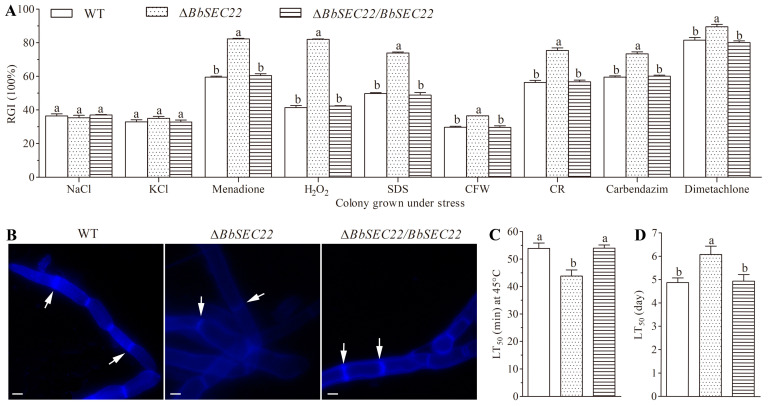

3.6. Effects of the BbSEC22 Deletion on Stress Tolerance

As a result of the BbSEC22 deletion, the capacity of mycelial stress tolerance was observed severely defective (Figure 5A). Based on the percent growth inhibition of the strains relative to unstressed controls, the ΔBbSEC22 mutant was significantly more sensitive to oxidative stress than the control strains. The relative growth inhibition of the ΔBbSEC22 colonies was significantly increased by 22.9% and 40.6% by adding 3 mM menadione and 40 mM H_2_O_2_ compared to the estimates from the wild type and ΔBbSEC22/BbSEC22 strains. However, the osmotic salts (1 M NaCl or KCl) had no effect on the ΔBbSEC22 mutant compared to its relative growth inhibition (RGI) values with the mean from the control strains. A pronounced decrease in colony size of the ΔBbSEC22 mutant was observed when grown on plates containing cell wall perturbing agents. In the presence of 0.1% SDS, the RGI of the ΔBbSEC22 colonies was drastically decreased by 48.6%. Colony tolerance was also significantly inhibited by CFW and CR, which caused a 23.1% and 33.8% tolerance decline, respectively. CFW staining was further used to probe the distribution of chitin, one of the main components of the fungal cell wall. In the wild type and ΔBbSEC22/BbSEC22 strains, CFW fluorescence was mostly distributed at the septa and tips, where chitin was actively synthesized, while in ΔBbSEC22, fluorescence was observed brighter on the lateral wall than the septum of the hyphae (Figure 5B). Moreover, the deletion of BbSEC22 caused significantly decreased tolerance to two fungicides, as the relative growth inhibition was increased by 19.1% and 9.8% for the ΔBbSEC22 colonies grown on the SDAY plates supplemented with 1 μg mL^−1^ carbendazim and 0.1 mg mL^−1^ dimetachlone, respectively. The effect of high temperature on the conidial survival of the deletion mutant and control strains after 24 h germination in GB was also examined. Compared with the LT_50_s from the control strains, conidial tolerances to heat stress of 45 °C were reduced by 18.7% in ΔBbSEC22 (Figure 5C).

3.7. Effects of the BbSEC22 Deletion on Pathogenicity

In the bioassays of S. litura larvae topically inoculated by the standardized spray of 1 mL conidial suspension, the final mortalities on day 7 were 66.7% for ΔBbSEC22 and about 88.9% for the control strains, respectively. As a result of the modeling analyses, the LT_50_ value for the ΔBbSEC22 mutant was 6.1 days, which was 24.5% longer than the estimate from the control strains (about 4.9 days) (Figure 5D).

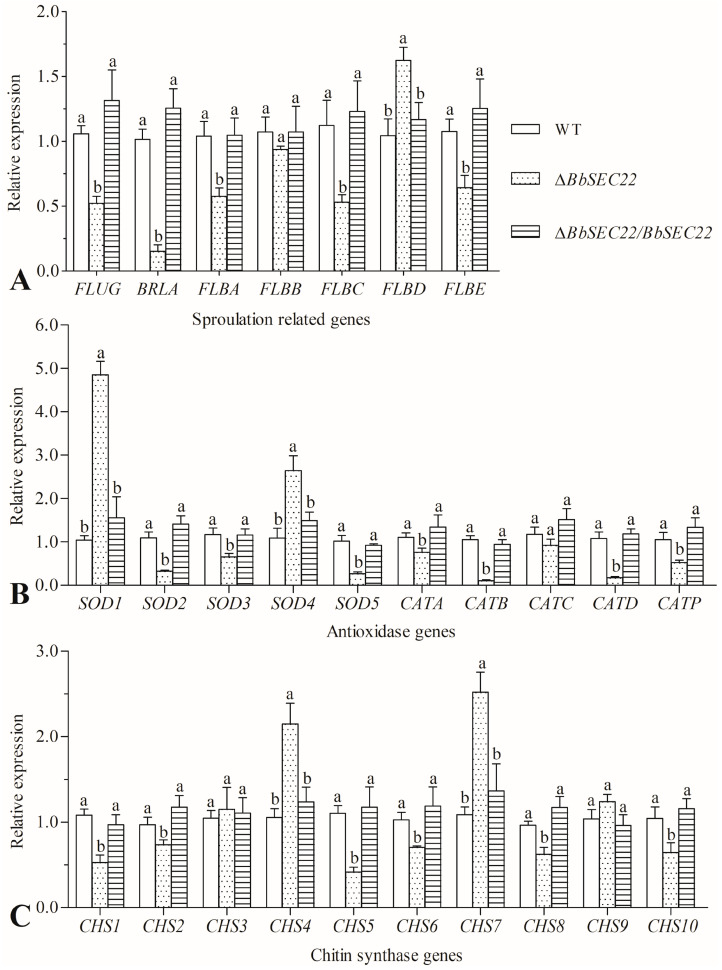

3.8. Transcript Changes of Phenotype-Associated Genes in the BbSEC22 Deletion Mutant

The transcript levels of 27 genes essential for conidiation and stress tolerance to oxidation and cell wall disturbance were assessed in the total RNAs from the 3-day SDAY colonies of the deletion mutant and control strains through qRT-PCR with paired primers (Table S2). As illustrated in Figure 6A, five out of seven genes required for conidiophore development and conidiation were all down-regulated in the ΔBbSEC22 mutant. Of those, the FLUG and BRLA were drastically suppressed by 50.6% and 85.0% compared with that in the control strains, respectively. Similar transcriptional changes were also observed for the genes involved in detoxification. Among five superoxide dismutases and five catalase-encoding genes, seven out of them were significantly suppressed by 31.3–89.7% (Figure 6B). Chitin synthases were key enzymes to synthesize chitin in the fungal cell wall. Interestingly, the results showed that exception of CHS3, CHS4, CHS7, and CHS9, six out of ten chitin synthase genes were significantly down-regulated in the ΔBbSEC22 mutant in comparison to the control strains. For instance, the expressions of CHS1 and CHS5 were significantly repressed by 51.1% and 62.4% in the BbSEC22 deletion mutant, respectively (Figure 6C). The transcript changes of the grouped genes in the deletion mutant were considerably in agreement with the phenotypic alterations in its sporulation capacity, responses to oxidants, and cell wall integrity.

4. Discussion

Insect fungal pathogens, including Beauveria spp. and Metarhizium spp., have been used successfully as biocontrol agents against plant-feeding and blood-sucking pests [32]. During the invasive and developmental processes of fungal entomopathogen, the fungal cells necessarily secrete a large and diverse set of cuticle-degradation enzymes such as chitinases, proteases, and lipases [43,44], soluble toxic components such as beauvericin, oosporein and destruxin [45,46], and other secreted compounds such as glycerol, trehalose and mannitol, that contribute to the pathogenicity and stress tolerance of the fungus [47,48]. Because of the potential importance of vesicle transport of these effectors secretion and the core function of SNAREs in cellular vesicle trafficking, we identified the SNARE families at the genome-wide level in B. bassiana and functionally characterized a conserved R-SNARE encoding gene BbSEC22. As presented above, BbSec22 plays important roles not only in regulating mycelial growth and conidiation but also in mediating fungal virulence and stress tolerance.

Our systematic analysis revealed the presence of 22 SNARE-encoding genes in the whole genome sequence of B. bassiana and will facilitate theidentification of SNARE orthologs in other filamentous fungi. Most of the SNAREs in S. cerevisiae could find their counterparts in B. bassiana, except forthe homologs of Use1 and Spo20 [4]. The number of B. bassiana SNAREs was comparable with that in other filamentous fungi, such as 20 SNAREs in N. crassa, 21 in F. graminearum, and 22 in V. dahlia but less than that from Phytophthora species, which possessing 34–37 SNAREs [2,5,6]. Although B. bassiana SNAREs showed relatively low sequence similarity to their counterparts in yeast, most of them still share the essential domain structures such as the conserved SNARE motif and the C-terminal transmembrane regions, and hence, it is highly conceivable that they act as SNAREs in B. bassiana. Typically, an arginine (R) or glutamine (Q) residue was conservatively located at the zero layer in the four-helical bundles of the SNARE domain, which was considered to be essential to neutralize the electric charge for the SNARE complex. However, residue substitutions were detected in a few B. bassiana SNAREs. For instance, the essential residue of BbSyn8 was a histidine (H) and BbBet1 was a serine (S), indicating that they might not act as conventional SNAREs [5]. These substitution events were also observed in protein structures of SNAREs from the filamentous fungus A. oryzae. Some Qa-SNAREs have two or more homologs in the genomic sequences of several fungi, such as Sso1 and Sso2 in S. cerevisiae that are functionally redundant [49], GzSyn1 and GzSyn2 in Gibberella zeae that are functionally different [22]. Similarly, three homologs BbSso1, BbSso2a, and BbSso2b were found in B. bassiana. BbSso2a and BbSso2b shared high sequence identities with each other and might be functionally redundant, whereas both of them showed low sequence similarity with BbSso1, suggesting that they might play a different role in fungi between 1 and 2 types. Besides BbSec22, the B. bassiana harbors other four R-type SNARE proteins (BbYkt6, BbNyv1, BbNyv2, and BbSnc1). Of those, BbNyv1 and BbNyv2 possess all three similar conserved domains with Bbsec22. Nevertheless, BbSec22 exhibited low sequence similarity (less than 25%) with these two R-type SNARE proteins. In addition, no obvious expression changes of these four R-SNARE genes were detected in the absence of BbSEC22. These results highly indicated that diverse roles were presented among the R-SNAREs in B. bassiana.

Deletion of BbSEC22 in B. bassiana resulted in a plethora of phenotypic defects, from mycelial growth to asexual sporulation. The ΔBbSEC22 mutant exhibited reduced colony size, thinner mycelial edge, and more fluffy appearance, in agreement with the observations in the SEC22-deletion mutants of M. oryzae, F. graminearum and A. oligospora [19,24,29]. Hyphal growth of filamentous fungi requires large amounts of metabolites that are usually delivered by vesicle trafficking [2]. The reduced growth rate and abnormal hyphal morphology of ΔBbSEC22 observed here indicated that BbSec22 might be involved in the trafficking processes required for fungal growth and development in B. bassiana. Apart from the involvement in the regulation of mycelial growth, Sec22 in M. oryzae, F. graminearum, and A. oligospora were also proven to be essential for asexual sporulation [19,24,29]. Similarly, the BbSEC22 deletion mutant reduced the conidial production as well as delayed the conidial germination. Significant impairment of mycelial growth could probably be responsible for the decreased sporulation capacity. Another factor that contributed to the conidiation defect could be the significant down-regulation of several sporulation-required genes, such as FLUG and BRLA that are essential for the conidiation of B. bassiana [50,51]. Like hyphal growth, conidia differentiation of filamentous fungi in particular requires the transfer of many matrix components within the fungal mycelia [52]. It is conceivable that BbSEC22 might be involved in the trafficking processes required for conidia maturation and germination in B. bassiana.

BbSec22 was also proven to be involved in cellular responses to multiple abiotic stresses in B. bassiana. Deletion of BbSEC22 resulted in increased sensitivity to extracellular oxidative stress (exposed to menadione or H_2_O_2_) during colony growth, in accordance with those observed from the Sec22-deletion mutants of other filamentous fungi [24,29]. Such defects in the antioxidant defense are likely associated with the transcription repression of several antioxidase-encoding genes, such as SOD-encoding genes SOD1, SOD2, and catalase-encoding gene CATP that crucial for the oxidative tolerance of B. bassiana [53]. Another possibility is that BbSec22 is required for the recruitment of these ROS (reactive oxygen species) scavenging enzymes to their proper destination. The ΔBbSEC22 mutant also exhibited higher sensitivity in cell tolerance to cell wall perturbing stress (treated with CFW and CR), coupled with an abnormal distribution of chitin, a key constituent of the fungal cell wall. It is well-documented that fungal chitin biosynthesis depends on the activity of chitin synthase [54,55]. In the present study, many chitin synthase encoding genes were significantly down-regulated in their transcriptional levels in the BbSEC22 deletion mutant. It has also been proved that cell wall synthesis requires the endocytic uptake and recycling of cell wall proteins [56]. Deletion of SEC22 in S. cerevisiae and M. oryzae caused endocytosis defects and reduced re-uptake of chitin synthases which impaired fungal growth [24,57]. In F. graminearum, deletion of FgSEC22 led to increased sensitivity to osmotic agents [29]. However, the cell tolerance to hyperosmotic stress was not affected by the BbSEC22 deletion in this study. Moreover, the ΔBbSEC22 mutant became more sensitive to carbendazim and dimetachlone during colony growth, indicating that BbSec22 was also functionally involved in the fungicide resistance in B. bassiana.

Several SNARE proteins have been proven to be involved in the fungal pathogenicity of plant pathogenic fungi, such as Syn8, Sec22, and Vam7 in M. oryzae and F. graminearum [8,20,24,25,26,29]. Consistently, in the present study, insecticidal virulence in the larvae of S. litura was found to be severely reduced in the ΔBbSEC22 mutant. In view of seriously impaired hyphal growth and delayed conidia germination in ΔBbSEC22 mutant, we could not eliminate that the reduced insecticidal activity might be due to these growth defects. However, in recent, several studies on fungal pathogens have provided evidence that processes required for secretion are essential for pathogenicity by controlling morphogenesis and delivery of important virulence-associated proteins [29,30,58]. Thus, it is possible that deletion of BbSEC22 resulted in impairment of secretion pathways of virulence factors, causing the attenuation of virulence. For example, protein toxins, cell wall degrading enzymes, extracellular proteases, stress-response-related enzymes, or some important signal receptors are key virulence factors in B. bassiana [38,45,59,60]. The direct or indirect relationship between the secretion of these factors and the SNAREs needs to be further studied in detail.

Overall, our results indicated that BbSEC22 encodes a putative SNARE that is classified into the R-SNAREs group by conserving sequence alignment. The BbSEC22 deletion mutant showed a fluffy appearance in mycelial growth, an obvious lag in conidial germination, significantly increased sensitivity to oxidative stress and cell wall perturbing agents, a remarkable loss of conidiation, and a significant decrease in conidial virulence to S. litura larvae. Such defects are likely associated with the transcription repression of several defense-related encoding genes.

5. Conclusions

The results presented here indicated that R-SNARE protein BbSec22 plays crucial roles in the regulation of vegetative growth, asexual sporulation, conidial germination, multi-stress tolerance, and insecticidal virulence in B. bassiana. Future works should focus on characterizing other SNAREs and target-proteins delivered by these SNARE complexes, which may easier to be illuminate the relationship between fungal development and vesicle trafficking mediated by SNAREs and potentially lead to new means to produce B. bassiana new strains with great potential in pest biocontrol.
