Raghib Syndrome and Pulmonary Arterial Hypertension in a Pediatric Patient: Case Report and Literature Review

TL;DR

This paper reports a rare case of Raghib syndrome in a child complicated by severe pulmonary hypertension and summarizes existing literature on the condition.

Contribution

The case is distinguished by severe pulmonary hypertension at a young age without other cardiac malformations.

Findings

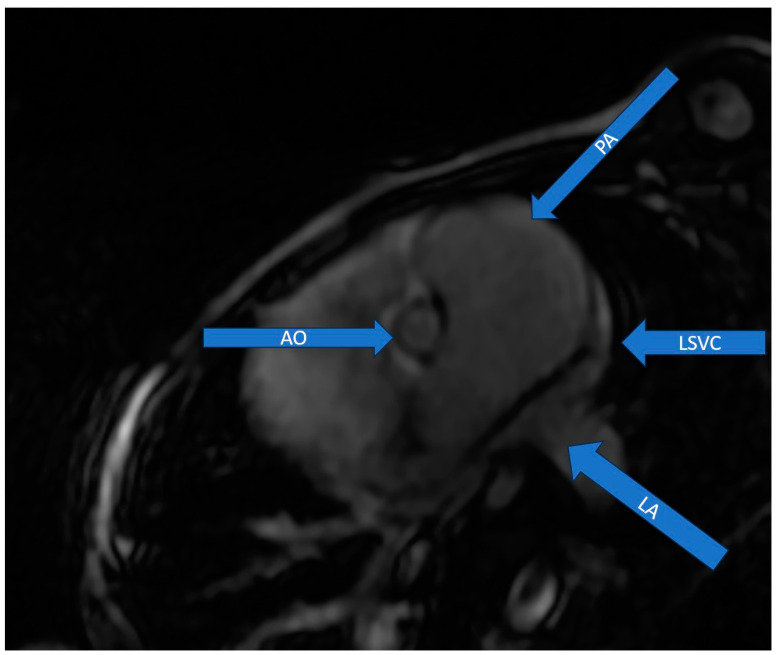

Raghib syndrome was diagnosed using MRI, which detected the absent coronary sinus.

The patient showed favorable clinical improvement after ASD closure but still had elevated pulmonary artery pressure.

Sildenafil therapy was initiated to manage persistent pulmonary hypertension.

Abstract

Background: Raghib syndrome is a rare malformation complex consisting of the drainage of the left superior vena cava (LSVC) into the left atrium, ostial atresia of the coronary sinus and an atrial septal defect (ASD). Case Report: This report aims to present the case of a child newly diagnosed with Raghib syndrome, complicated by pulmonary arterial hypertension, and to review previously published cases with the same diagnosis. A six-year-old female patient presented with signs and symptoms of heart failure (Ross III), reduced exercise tolerance and severe delay in stature and ponderal development. The imagistic work-up included echocardiography, followed by computer tomography (CT) and magnetic resonance imaging (MRI), through which a diagnosis of Raghib syndrome was established, complicated by pulmonary hypertension. As in other cases presented in the literature, MRI allowed for an accurate diagnosis, detecting the absent coronary sinus. The decision regarding the surgical closure of the ASD was made, with the patient having a favorable clinical evolution but with the persistence of elevated pulmonary artery pressure, for which Sildenafil therapy was instituted. Conclusions: The malformation complex consisting of an atrial septal defect, ostium atresia of the coronary sinus, uncovered coronary sinus, and persistent left superior vena cava, as identified through multiple imagistic investigations, was suggestive of the rare diagnosis of Raghib syndrome in this case. Among the limited number of cases of Raghib syndrome available in the literature, the present case is distinguished by the severity of the pulmonary artery hypertension at a very young age and in the absence of other concurrent cardiac malformations.

Figures
