Polydopamine Coating of Graphitic Carbon Nitride, g-C3N4, Improves Biomedical Application

TL;DR

Coating graphitic carbon nitride with polydopamine improves its biocompatibility and antioxidant properties, making it more suitable for biomedical applications.

Contribution

The study demonstrates that polydopamine coating enhances the biomedical potential of graphitic carbon nitride through improved biocompatibility and enzyme inhibition.

Findings

PDA coatings on g-C3N4 increased antioxidant potential and linearly raised total phenol content.

PDA@g-C3N4 showed enhanced blood compatibility and reduced hemolysis compared to pristine g-C3N4.

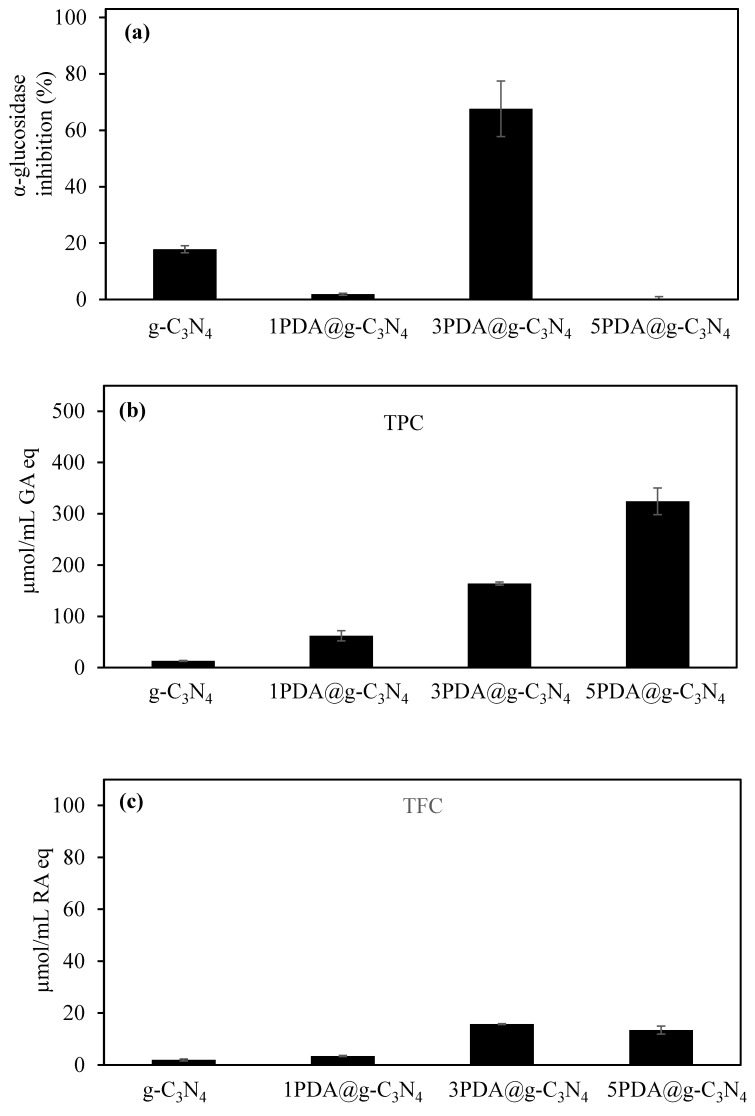

3PDA@g-C3N4 inhibited 67.6 + 9.8% of α-glucosidase activity, indicating potential for diabetes-related applications.

Abstract

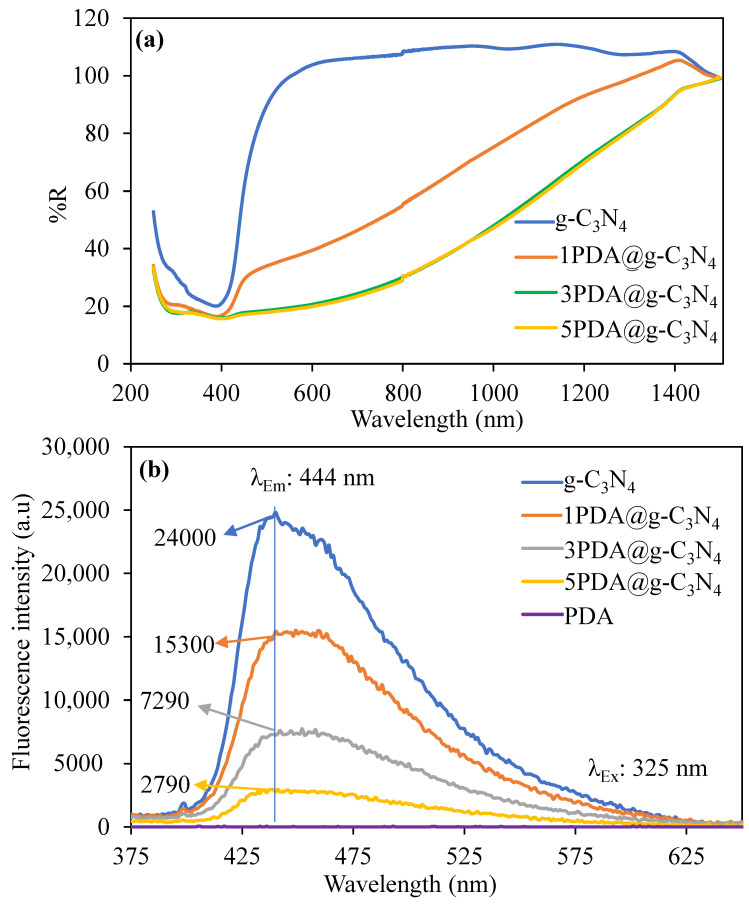

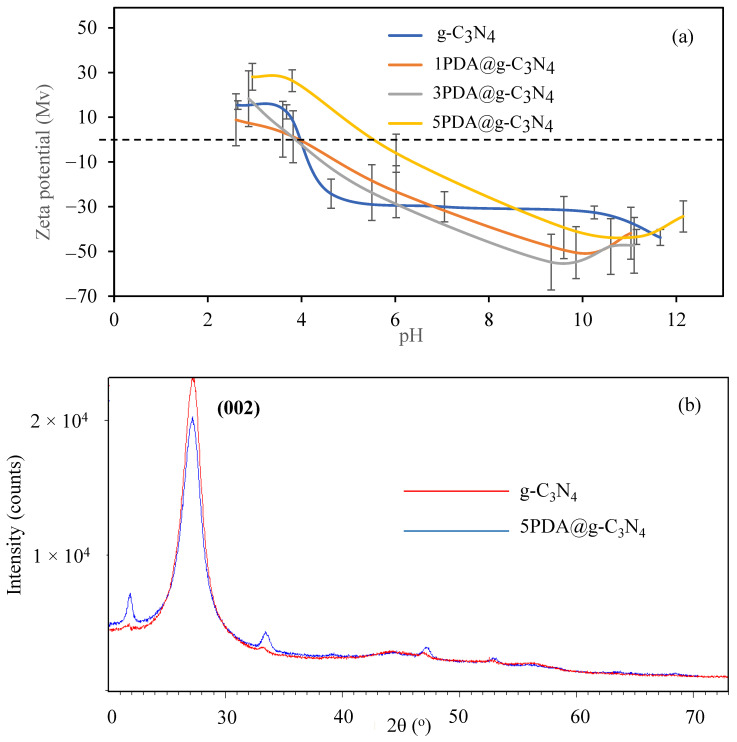

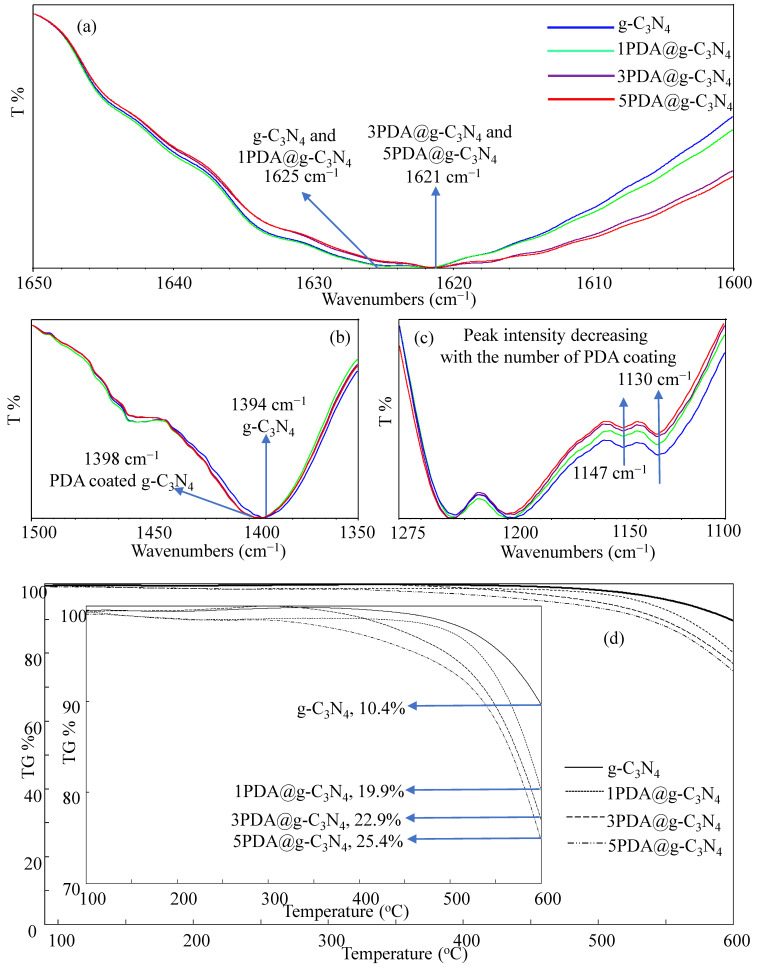

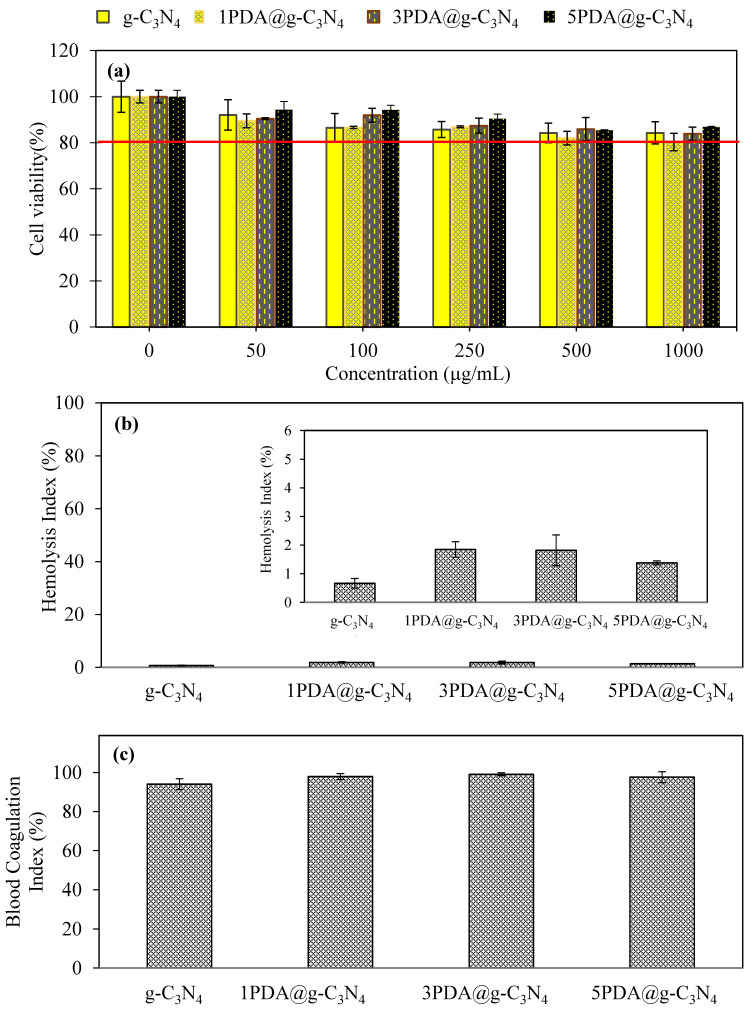

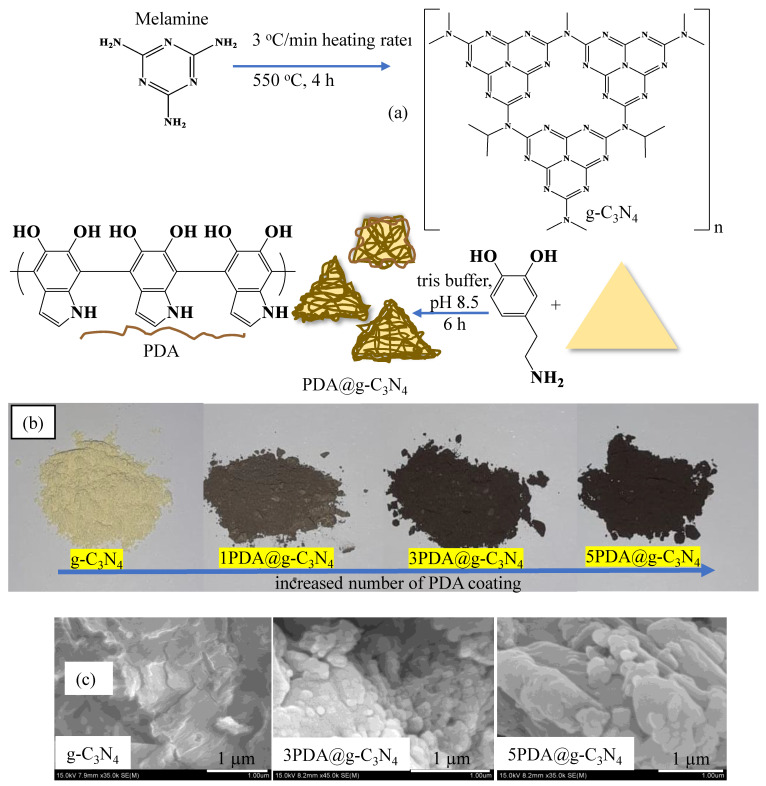

Graphitic carbon nitride (g-C3N4) is an intriguing nanomaterial that exhibits photoconductive fluorescence properties under UV–visible light. Dopamine (DA) coating of g-C3N4 prepared from melamine was accomplished via self-polymerization of DA as polydopamine (PDA). The g-C3N4 was coated with PDA 1, 3, and 5 times repeatedly as (PDA@g-C3N4) in tris buffer at pH 8.5. As the number of PDA coatings was increased on g-C3N4, the peak intensity at 1512 cm−1 for N–H bending increased. In addition, the increased weight loss values of PDA@g-C3N4 structures at 600 °C from TGA thermograms confirmed that the coating was accomplished. The band gap of g-C3N4, 2.72 eV, was reduced to 0.87 eV after five coatings with PDA. A pristine g-C3N4 was found to have an isoelectric point (IEP) of 4.0, whereas the isoelectric points of 1PDA@g-C3N4 and 3PDA@g-C3N4 are close to each other at 3.94 and 3.91, respectively. On the other hand, the IEP of 5PDA@g-C3N4 was determined at pH 5.75 assuming complete coating with g-C3N4. The biocompatibility of g-C3N4 and PDA@g-C3N4 against L929 fibroblast cell lines revealed that all PDA@g-C3N4 coatings were found to be biocompatible up to a 1000 mg/mL concentration, establishing that PDA coatings did not adversely affect the biocompatibility of the composite materials. In addition, PDA@g-C3N4 was screened for antioxidant potential via total phenol content (TPC) and total flavonoid content assays and it was found that PDA@g-C3N4 has recognizable TPC values and increased linearly with an increased number of PDA coatings. Furthermore, blood compatibility of pristine g-C3N4 is enhanced considerably upon PDA coating, affirmed by hemolysis and the blood clotting index%. Additionally, α-glucosidase inhibitory properties of PDA@g-C3N4 structures revealed that 67.6 + 9.8% of this enzyme was evenly inhibited by 3PDA@g-C3N4 structure.

Figures
