Prototype posterior chamber phakic IOL – 35 year follow up

TL;DR

A rare prototype intraocular lens implanted 35 years ago was successfully removed from a patient with cataract and high myopia, resulting in improved vision.

Contribution

This case highlights the long-term clinical outcomes and successful removal of a rarely seen prototype posterior chamber phakic IOL.

Findings

The PC-pIOL was easily extracted without complications.

The patient achieved 20/25 best corrected visual acuity one month after surgery.

Aphakia after vitrectomy was a viable option in this case.

Abstract

To present a case involving a rarely seen prototype posterior chamber phakic IOL (PC-pIOL) in a highly myopic patient with bilateral cataract.

A 64-year-old male presented to our clinic with poor vision in both eyes. Clinical examination revealed bilateral mature cataract, phacodonesis as well as a PC-pIOL implanted 35 years ago to address his high myopia. The visual acuity (VA) was 20/200 in the right eye and no light perception in the left eye. PC-pIOL extraction as well as 23G pars plana vitrectomy (PPV) and fragmentation surgery was scheduled for the right eye. The left eye was treated conservatively. Successful extraction of the PC-pIOL was performed while it was easy to remove. It was a bow-tie shaped lens with a collar-stud-like button in the middle which extended anteriorly into the anterior chamber through the pupil. PPV with lens fragmentation was successful and the patient was left aphakic in order to avoid the placement of a zero diopter IOL. Final best corrected VA was 20/25 one month post-surgery.

Removal of this rarely seen pIOL was performed without difficulty while excellent VA was achieved. Aphakia following complete vitrectomy represented a viable option in this case. Furthermore, we highlight the clinical manifestations associated with this IOL more than three decades after implantation.

Figures

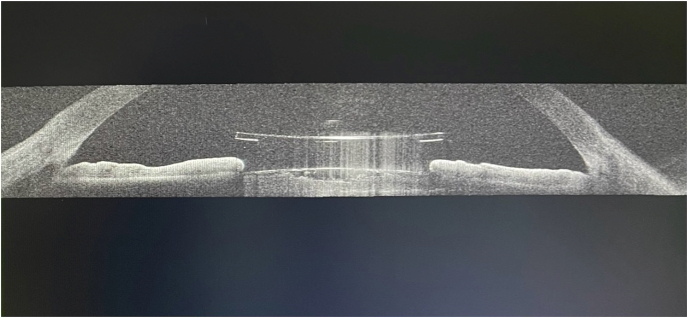

h)H). AS-OCT was performed as part of the pre-operative examination to evaluate the size and shape of this pIOL since it has been discontinued for over 30 years ([Fig. 1](#fig1g)G). The patient was left aphakic since a scleral fixated IOL of zero diopters was needed for emmetropia. The immediate post operative IOP was normal (13 mmHg) while there was no IOP spike. Fundoscopic findings were compatible with high myopia as well as a cup-disc (C/D) ratio of 0.6.Fig. 1GPreoperative AS-OCT of the right eye showing the central optic protruding through the pupil into the anterior chamber.Fig. 1GFig. 1

Full text

Introduction

1

Phakic intraocular lenses (pIOL) are intraocular devices which are implanted in order to correct high levels of ametropia and anisometropia while preserving the crystalline lens.1 There are two main categories of pIOLs, anterior (AC) and posterior chamber (PC) pIOLs. AC pIOLs are either iris or angle fixated.2^,^3

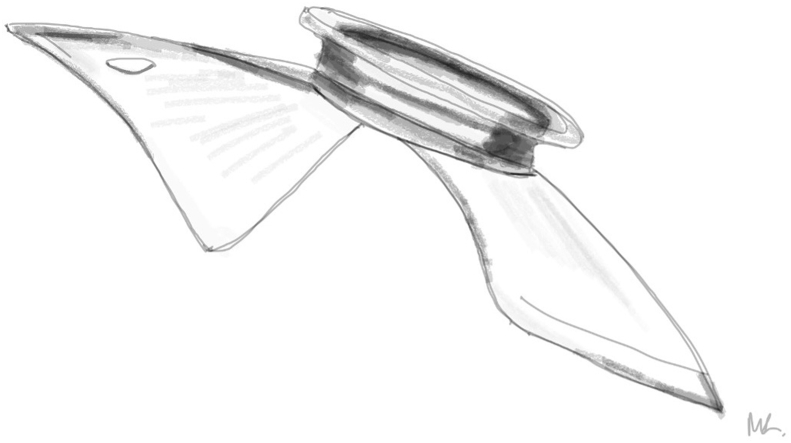

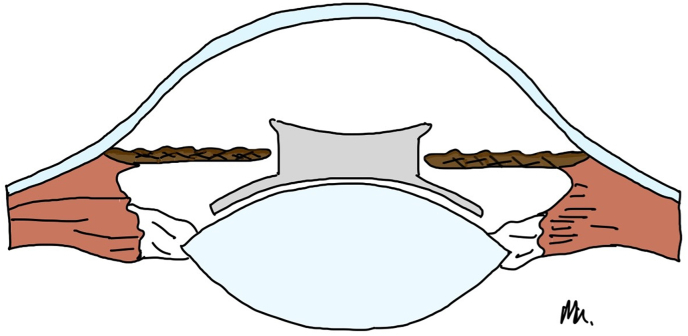

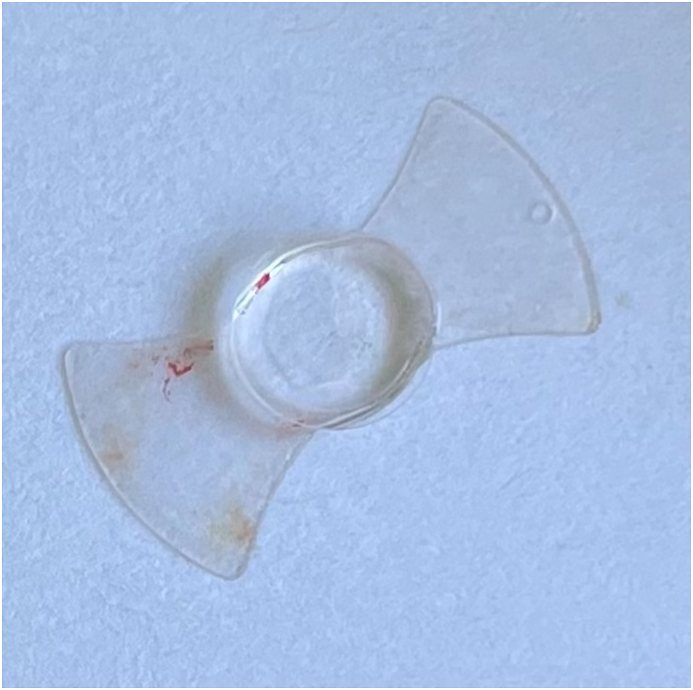

PC-pIOLs were designed to be placed between the iris and the anterior surface of the crystalline lens.1 In 1986 Svyatoslav Fyodorov et al. were the first to design and implant such a lens in the former Soviet Union.4 Specifically, they designed a prototype which was not purely a PC-pIOL but rather an AC-PC pIOL or pupil-fixated lens.4^,^5 It was a one-piece silicone (teflon-coated) lens that had a bow-tie shape with a 3.5mm collar-stud-like button (optic) in the middle which extended into the AC through the pupil when in situ (Fig. 1A, Fig. 1BA–B).1^,^4Fig. 1AIllustration of the prototype pIOL in situ (Side view-not to scale). Optic is in position within the anterior chamber while the haptics are positioned in the posterior chamber.Fig. 1AFig. 1BIllustration of the prototype pIOL. (Side view).Fig. 1B

We herein present a more than three decades follow up of such case with it's clinical manifestations and our surgical approach to the patient's management.

Case report

2

A 64-year-old male presented to our clinic complaining of progressively deteriorating vision bilaterally while he neglected to seek ophthalmic care for the past few years. Clinical examination revealed a bilateral mature cataract as well as a PC-pIOL implanted in both eyes. According to the patient this pIOL was implanted 35 years ago in order correct his high degree myopia (−19.0sph). He had a history of glaucoma and was under maximum medical treatment (Latanoprost, Dorzolamide-Timolol and Brimonidine) in both eyes. As reported by the patient the glaucoma treatment started many years after his refractive surgery.

The corrected distance VA (CDVA) of the right eye was 20/200 on the Snellen chart, while the slit lamp examination revealed a deep anterior chamber, a nuclear sclerotic and anterior sub-capsular mature cataract, phacodonesis, a patent peripheral iridotomy and an IOP measurement of 16 mmHg. There was no perception of light (NPL) of the left eye and the slit lamp examination demonstrated a deep anterior chamber, neovascularization of the iris, a patent peripheral iridotomy, nuclear sclerotic mature cataract, phacodonesis and an IOP of 36 mmHg without pain (Fig. 1C, Fig. 1D, Fig. 1E, Fig. 1FC–F). B-scan examination of both eyes was unremarkable. The axial length of the right eye was 30.32mm, the anterior chamber depth was 3.09mm and the endothelial cell density (ECD) was 1556 cells/mm^2^.Fig. 1CPreoperative picture of the right eye which is in mid-dilation showing the haptic-optic junction as well as the anterior sub capsular opacities.Fig. 1CFig. 1DPreoperative picture of the right eye in mid-dilation shown under slit-lamp examination indicating a deep anterior chamber, an anterior subcapsular and nuclear cataract.Fig. 1DFig. 1EPreoperative picture of the right eye showing the central optic fixated at the pupil as well as the patent iridotomy at the upper quadrant.Fig. 1EFig. 1FPreoperative picture of the left eye showing the central optic fixated at the pupil, the patent iridotomy as well as neovascularization of the iris.Fig. 1F

After obtaining informed consent, extraction of the PC-pIOL as well as pars plana vitrectomy and lens fragmentation was scheduled for the right eye, see attached video (Video 1) (Fig. 1H). AS-OCT was performed as part of the pre-operative examination to evaluate the size and shape of this pIOL since it has been discontinued for over 30 years (Fig. 1G). The patient was left aphakic since a scleral fixated IOL of zero diopters was needed for emmetropia. The immediate post operative IOP was normal (13 mmHg) while there was no IOP spike. Fundoscopic findings were compatible with high myopia as well as a cup-disc (C/D) ratio of 0.6.Fig. 1GPreoperative AS-OCT of the right eye showing the central optic protruding through the pupil into the anterior chamber.Fig. 1GFig. 1HPrototype “Bow-tie” Fyodorov PC-pIOL removed from our patient.Fig. 1H

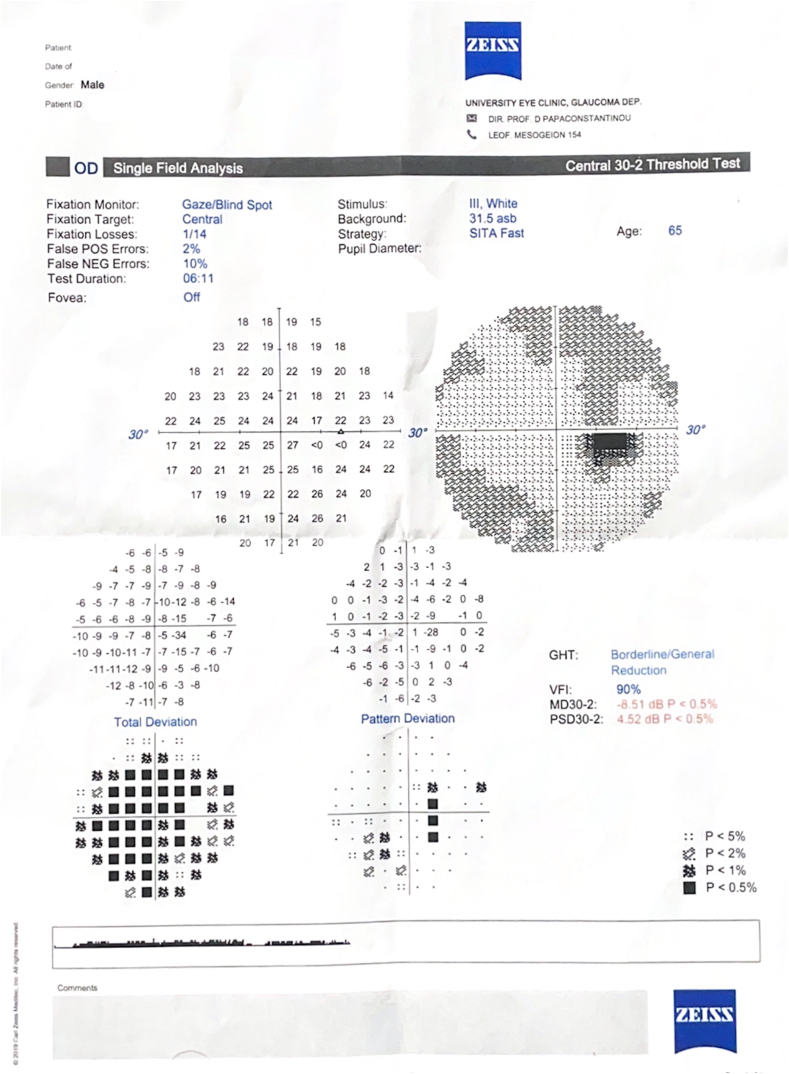

The six months post-operative follow-up showed a CDVA of 20/25 with clear cornea (Fig. 1I). The rest of the examination was unremarkable. The anti-glaucoma drops eventually reached the same maximum regiment post operatively to be able to maintain an IOP of 12 mmHg. The postoperative visual fields of the right eye are shown in Fig. 2.Fig. 1IPostoperative picture of the right eye after removal of the pIOL showing aphakia.Fig. 1IFig. 2Visual fields of the right eye after surgery.Fig. 2
