Effectiveness of two-dimensional shear-wave sonoelastography in the diagnosis and follow-up of infantile hypertrophic pyloric stenosis
Sabri Demir, Havva Akmaz Unlu, Gulsah Kiris Uzun, Can Ihsan Oztorun, Ahmet Erturk, Mujdem Nur Azili, Emrah Senel
TL;DR
This study shows that 2D shear-wave sonoelastography helps diagnose and monitor infantile pyloric stenosis by measuring tissue stiffness and recovery after surgery.
Contribution
The study introduces 2D-SW-SE as a novel diagnostic and follow-up tool for infantile hypertrophic pyloric stenosis.
Findings
IHPS pylorus was four times stiffer than controls (27.4 kPa vs. 7.66 kPa).
Shear-wave speed was higher in IHPS (1.34 m/s vs. 2.69 m/s).
Stiffness and speed normalized by the third month post-surgery.
Abstract
We sought to determine the effectiveness and utility of two-dimensional shear-wave sonoelastography (2D-SW-SE) in the diagnosis and postoperative follow-up of infantile hypertrophic pyloric stenosis (IHPS). Twenty-three infants were included in the study, 13 in the IHPS group and 10 in the control group (CG). Preoperative B-mode ultrasonography measurements (longitudinal length and single-wall thickness of the pylorus) and 2D-SW-SE measurements (pylorus tissue stiffness and shear-wave propagation speed) were compared between the groups. The infants with IHPS then underwent Ramstedt pyloromyotomy and were invited for follow-ups on the tenth day and the first, third, and sixth months postoperatively. Measurements taken at the follow-ups were compared with the preoperative values. No differences were found between the groups regarding age, gender, body weight, or week of birth. The…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

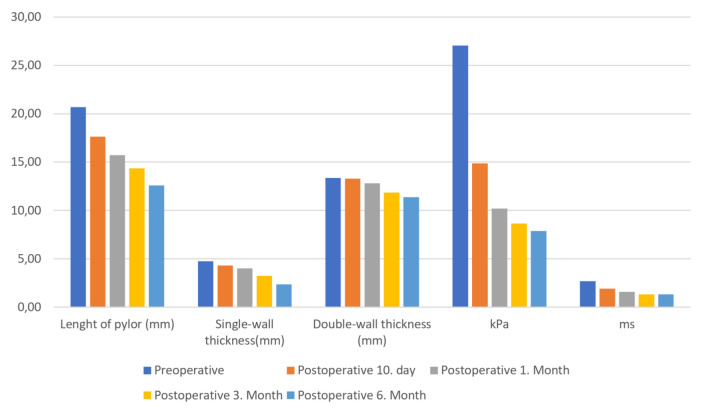

Figure 1

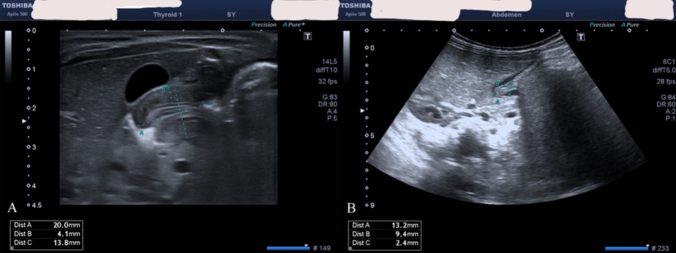

Figure 2
Figure 3- —University of Health Sciences
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsIntestinal Malrotation and Obstruction Disorders · Congenital Diaphragmatic Hernia Studies · Gastrointestinal disorders and treatments
Introduction
Infantile hypertrophic pyloric stenosis (IHPS) is the most common reason for surgical intervention in the first month of life [1]. The pyloric canal narrows and the wall thickness increases due to hyperplasia and hypertrophy of the pyloric muscles, which is accompanied by projectile, non-bilious vomiting due to obstruction of the gastric outlet; this occurs suddenly in previously healthy infants [2, 3], and diagnosis is most commonly made 3–5 weeks after birth [1]. IHPS occurs in 2–4 of every 1000 live births in Caucasians but is less common in other ethnicities, and it is 4–6 times more common in boys than girls [4, 5]. Its etiology is not fully elucidated, but genetic and environmental factors are thought to play a role in its etiopathogenesis [4].
A diagnosis of IHPS is made by palpation of the hypertrophic pylorus on physical examination (olive sign) and/or by B-mode ultrasonography (US) imaging. Although palpation of the pylorus is diagnostic, its detection rate at the time of diagnosis has decreased to 13.6% due to the increasing use of B-mode US [6], which is now the gold standard diagnostic method. A diagnosis is made when the single-wall thickness of the pylorus is greater than 3 mm in transverse measurement and its length is longer than 15 mm longitudinally [7, 8]. Ramstedt pyloromyotomy (open or laparoscopic) has been the treatment of choice since it was described by Ramstedt in 1911 [9].
Elasticity is the ability of tissues to deform with external pressure and return to their original shape when the pressure is removed and ultrasound elastography (USE) is an assistive ultrasound technology used to evaluate the elasticity of tissues [10]. The data obtained are similar to manual palpation but with higher sensitivity, and interest in the technique has steadily increased since it was first introduced in the 1990s, with two techniques currently used: strain elastography (SE) and shear-wave USE (SW-USE) [11, 12]. In SE, the elasticity of the tissues—usually superficial tissues—is evaluated by a compression force applied externally, whereas in SW-USE, short-term, high-power acoustic impulse waves are sent to the tissue with US probes, which cause small displacements in the tissues (1–10 µm). These displacements in the horizontal plane are called “shear waves,” and the velocity of the waves in the tissue is directly proportional to the tissue’s stiffness. The velocity values obtained thus show the objective elasticity of the tissues, with the shear-wave propagation velocity measured in meters per second (m/s) and the stiffness in kilopascals (kPa) [13].
In the two-dimensional shear-wave sonoelastography (2D-SW-SE) technique, the force of sonic radiation displaces the tissue at multiple points, which allows the simultaneous measurement of elasticity at more than one point. In readouts, the tissues are colored according to their hardness—hard tissues in red, soft tissues in blue, and intermediate in green [14]. We hypothesized that 2D-SW-SE used in conjunction with conventional B-mode US in the diagnosis of IHPS and postoperative follow-up would provide higher diagnostic accuracy, and the aim of this study was to test this hypothesis. In a literature search conducted in both English and Turkish, no studies were found regarding the use of USE in the diagnosis of IHPS, and we, therefore, believe that this is the first study on the topic.
Materials and methods
The study was designed prospectively, and infants who were diagnosed with IHPS and treated in our pediatric surgery clinic between June 2019 and June 2021 were included. The necessary ethical approval was obtained from the local ethics committee (Date: May 9, 2019; No: 2019-132). Patients who underwent surgery for IHPS were enrolled in the IHPS group, and a control group (CG) was formed from healthy infants of similar ages who were treated in the clinic for inguinal hernia repair, circumcision, or umbilical granuloma during the same period. The parents of infants in both groups were given detailed information about the study, and infants were included only after the parents agreed and provided signed informed consent.
Data description
For all subjects, the single-wall thickness and longitudinal length of the pylorus were measured using gray-scale B-mode US and the tissue stiffness and shear-wave propagation velocity using 2D-SW-SE. For patients who were hospitalized for vomiting and suspected IHPS, the B-mode US was performed preoperatively after physical examination for diagnostic purposes, with 2D-SW-SE measurements made at the same time. The sex, age (in weeks), weeks of birth, and body weight (g) of all subjects were also recorded, together with the duration of vomiting (in days) of the subjects in the IHPS group. Ramstedt pyloromyotomy was then performed with the open technique for all subjects in the IHPS group.
Postoperative follow-up
The patients were discharged after tolerating oral feeding and were invited for follow-up at 10 days and at 1, 3, and 6 months postoperatively. B-mode US and 2D-SW-SE were performed on patients who returned for follow-up.
B-mode US and 2D-SW-SE assessments
All B-mode US and 2D-SW-SE evaluations were performed using a Canon–Toshiba Aplio 500 Platinum US device (Canon Medical Systems Co. Ltd.) with a high-frequency linear probe set to the small-parts preset (frequency range: 5–14 MHz) by the same experienced pediatric radiologist. Patients with a single-wall thickness greater than 3 mm and a longitudinal length greater than 15 mm, as measured by the B-mode US, were diagnosed with IHPS (Fig. 1 A, B).Fig. 1B-Mode US images of IHPS. Patients with a single-wall thickness greater than 3 mm and a longitudinal length greater than 15 mm were diagnosed with IHPS. A the single wall thickness of the pylorus of the patient diagnosed with IHPS was 4.1 mm, the double wall thickness was 13.8 mm, and the longitudinal length was measured as 20 mm. B in the 3rd month post-operative B-Mode US image of the same patient, it was seen that the longitudinal length decreased to 13.2 mm, the single wall thickness decreased to 2.4 mm, and the double wall thickness decreased to 9.4 mm

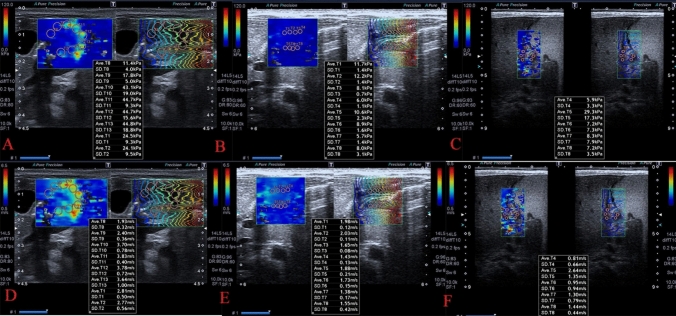

2D-SW-SE measurements of tissue stiffness were made at 5–8 points of the pylorus, and the mean values were calculated. The same evaluations were performed at each follow-up (Fig. 2 A–F) and for the infants in the CG.Fig. 2.2D-SW-SE images of IHPS. Measurements were taken from 5 to 8 adjacent points to evaluate the pyloric tissue stiffness. The images in the upper row show kPa values and those in the lower row show m/s values. Figure 2A and D. The patient’s preoperative values. Figure 2B and E. Postoperative 1st month values are shown. Figure 2C and F. The values decreased to normal by the 3rd postoperative month, and the pyloric tissue softened
