Brachial Plexus Rupture: A Neglected Trauma, Is There Any Hope?
Ibtissam El Ouali, Mohamed Jiddane, Firdaous Touarsa
TL;DR
MRI improves diagnosis and treatment of brachial plexus injuries, offering hope for better recovery.
Contribution
MRI is shown to enhance evaluation and microsurgical repair of brachial plexus injuries.
Findings
MRI provides better evaluation of brachial plexus injuries.
MRI contributes to improved functional prognosis through microsurgical repair.
Abstract
Teaching point: Magnetic resonance imaging (MRI) has significantly improved the evaluation of brachial plexus injuries, offering new possibilities for microsurgical repair and contributing to the functional prognosis.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsNerve Injury and Rehabilitation · Trauma Management and Diagnosis · Vascular Procedures and Complications
Case Report
We report the case of a 26-year-old male presenting with neglected weakness of the left upper limb associated with dysesthesia and advanced atrophy following a motor vehicle accident 3 years ago (Figure 1).
A 26-year-old male presenting with neglected weakness of the left upper limb associated with dysesthesia and advanced atrophy following a motor vehicle accident 3 years ago.

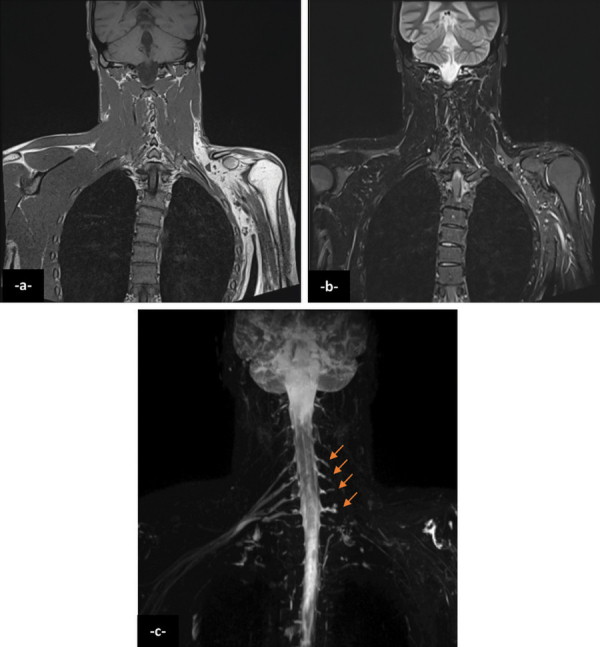

Coronal T1 and T2 FAT SAT magnetic resonance imaging (MRI) of the brachial plexus were performed, showing fatty infiltration of the left shoulder and upper limb muscles (Figure 2a and 2b).
Coronal T1 and T2 FAT SAT magnetic resonance imaging (MRI) of the brachial plexus were performed, showing fatty infiltration of the left shoulder and upper limb muscles (a,b). Contrast-enhanced coronal 3D SPACE STIR showed complete discontinuity of the left brachial plexus from C4 to C7 at the level of post-ganglionic segments with retraction of distal branches (c, arrows).
Contrast-enhanced coronal 3D SPACE STIR showed complete discontinuity of the left brachial plexus from C4 to C7 at the level of post-ganglionic segments with retraction of distal branches (Figure 2C, arrows). Surgical grafting was performed, however, with an incomplete functional recovery.
Comments
The brachial plexus originates in the posterior cervical triangle by the union of the ventral rami of the 5th, 6th, 7th, and 8th cervical nerve roots and the 1st thoracic nerve root, thus innervating the upper extremity.
A global increase in the incidence of traumatic brachial plexus injuries has been reported with a significant predominance in males. Motorcycle accidents with major traction injuries are the cause of 70% of traumatic cases [1].
The level of the injury determines the surgical prognosis. Lesions proximal to the dorsal root ganglion and preganglionic avulsion decrease the likelihood of nerve grafting success. Post-ganglionic injuries have a somewhat better prognosis.
Identification of pre-ganglionic lesions requires a dedicated MRI, preferably at 3T.
Coronal T2 FS imaging contributes to the assessment of edema and nerve contusions, and axial T2WI enable to evaluate the integrity of the plexus from the root ganglion to the distal ends in order to assess nerve root avulsion and pseudomeningocele. Stretching (incomplete avulsion) presents as differential enhancement of the rootlets.
Post-ganglionic injuries occur proximally at the scalene triangle and may involve the trunks or distal branches in a variable way. Distal nerve retraction is observed in complete ruptures.
In the acute setting, CT visualizes skeletal lesions and hematomas, and CT-angiography is indicated when vascular lesions are suspected.
Pre-ganglionic injuries may require early (<3 months) reconstruction, whereas postganglionic injuries may be repaired after a longer period of observation.
Current surgical options include nerve transfers (neurotization, nerve grafting, and neurolysis), tendon or muscle transfers with a better functional result for post-ganglionic injuries even after 9 months of the traumatic event.
Conclusion
Brachial plexus injuries have become increasingly frequent in the young population, and dedicated MRI protocols have contributed to improve the prognosis for functional recovery by early and accurate assessment of nerve lesions. Accurate interpretation and detailed reporting of the nerve injuries are crucial for therapeutic management.
