A meta-analysis: elucidating diagnostic thresholds of peak systolic flow velocities in thyroid arteries for the discrimination of Graves’ disease and destructive thyrotoxicosis

TL;DR

This study finds that peak systolic flow velocities in thyroid arteries can help distinguish between two thyroid disorders, with specific velocity thresholds improving diagnostic accuracy.

Contribution

The study establishes specific peak systolic velocity thresholds for diagnosing Graves’ disease with high diagnostic efficacy.

Findings

A peak systolic velocity above 68.63 cm/s in thyroid arteries significantly improves the diagnosis of Graves’ disease with up to 91% efficacy.

No significant differences were found between superior and inferior thyroid arteries in distinguishing Graves’ disease from destructive thyrotoxicosis.

The meta-analysis identified cut-off values of 20.33 cm/s for inferior thyroid artery and 25.61 cm/s for superior thyroid artery in normal subjects.

Abstract

This meta-analysis examines peak systolic velocities (PSVs) in thyroid arteries as potential biomarkers for thyroid disorders, which includes treated and untreated Graves’ disease(GD) and destructive thyrotoxicosis(DT).

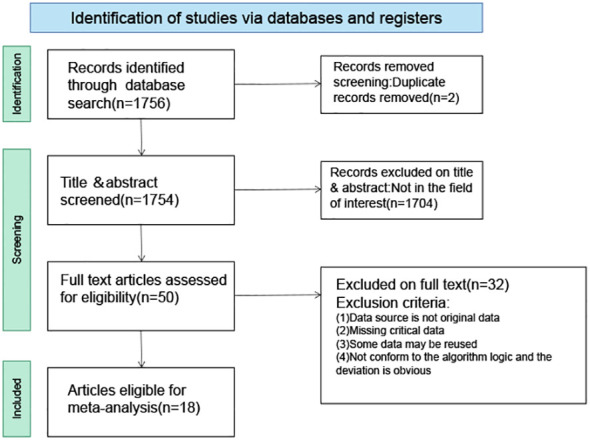

A search across databases including PubMed, Google Scholar, Embase, and Web of Science identified studies assessing peak systolic flow velocity in the inferior thyroid artery (ITA-PSV) and superior thyroid artery (STA-PSV) diagnostic efficacy in GD and DT.And the search was restricted to publications in the English language.The analysis compared STA-PSV and ITA-PSV across patient groups, evaluating intra-group variances and synthesizing sensitivity and specificity data.

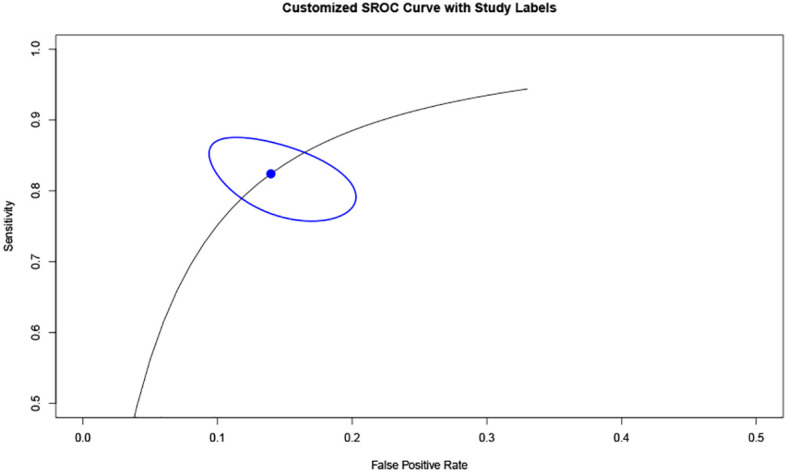

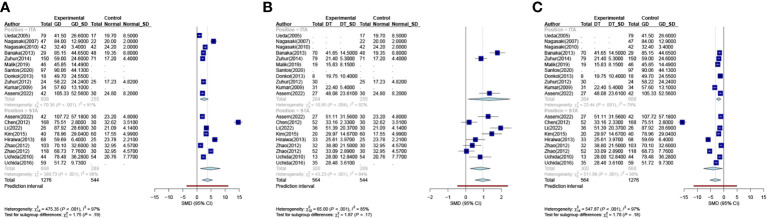

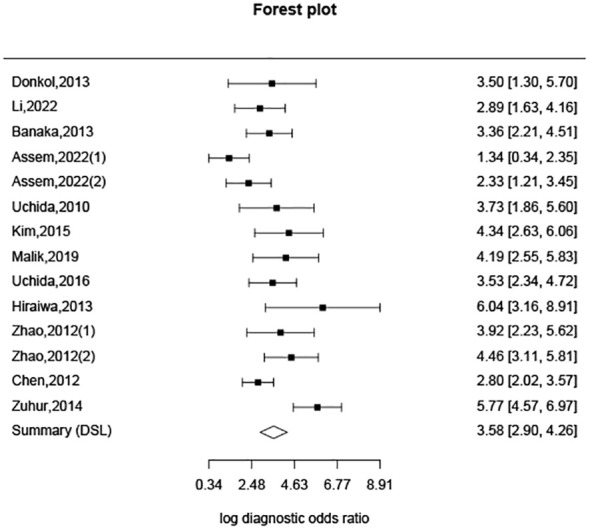

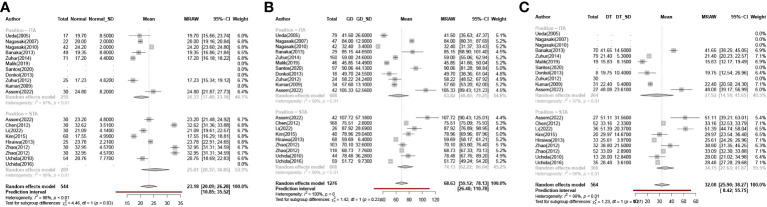

The analysis covered 18 studies with 1276 GD, 564 DT patients, and 544 controls. The difference of STA-PSV between GD group, DT group and normal group and the difference of ITA-PSV were analyzed in subgroups, and there was no statistical significance between subgroups when comparing any two groups. Normal subjects displayed intra-group ITA-PSV and STA-PSV differences with established cut-off values of 20.33 cm/s (95% CI, 17.48-23.18) for ITA-PSV and 25.61 cm/s (95% CI, 20.37-30.85) for STA-PSV. However, no significant intra-group differences were observed in the STA-PSV and ITA-PSV cut-off values among groups with GD or DT. The combined cut-off values for these patient groups and normal subjects were 68.63 cm/s (95% CI, 59.12-78.13), 32.08 cm/s (95% CI, 25.90-38.27), and 23.18 cm/s (95% CI, 20.09-26.28), respectively. The diagnostic odds ratio(DOR) for these values was 35.86 (95% CI, 18.21-70.60), and the area under the summary receiver operating characteristic (SROC) curve was 0.91, with a sensitivity estimate of 0.842 (95% CI, 0.772-0.866).

PSVs in thyroid arteries are useful diagnostic tools in distinguishing DT from GD. A PSV above 68.63 cm/s significantly improves GD diagnosis with up to 91% efficacy. No notable differences were found between superior and inferior thyroid arteries in these conditions.
