A do it yourself (DIY) point-of-care wrist ultrasound phantom for joint access training

TL;DR

This paper introduces a low-cost, reusable DIY wrist ultrasound phantom for training joint access procedures, which is compatible with ultrasound imaging and can be remade after each use.

Contribution

The novel contribution is a sustainable, ultrasound-compatible, and easily replicable wrist joint model for training.

Findings

The model successfully represents key anatomical structures and their ultrasound profiles.

The phantom is reusable and can be remade after each session, reducing costs and environmental impact.

Experts confirmed the model's effectiveness for training joint access procedures.

Abstract

Joint access is essential for arthrocentesis, or joint aspiration of fluids. Joint treatments that are not performed properly can result in avoidable patient issues such as damage to the muscles, tendons, and blood vessels surrounding the joint. The use of ultrasound has become the gold standard for this procedure and proven to be a support in the skill learning process. However, success with this equipment, particularly in small joints like the wrist, depends on a clinician's capacity to recognize the crucial landmarks that guide these procedures. Prior to executing on a real patient, task trainers have proven to be an effective way for doctors to practice and prepare for procedures. However, shortcomings of current solutions include high purchase costs, incompatibility with ultrasound imaging, and low reusability. In addition, since this is a procedure that is not performed frequently, there may not be space or resources available in healthcare facilities to accommodate one at the point of care. This study aimed to close the existing gap by developing a DIY ultrasound compatible task trainer for wrist joint access training.

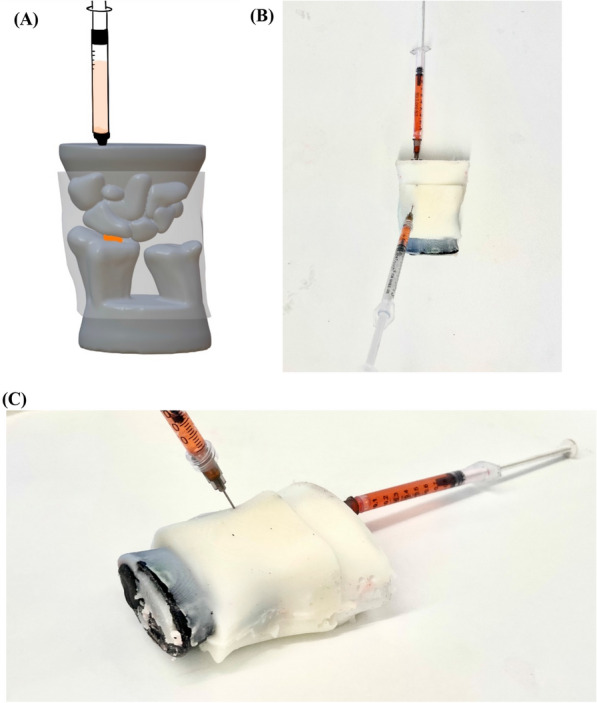

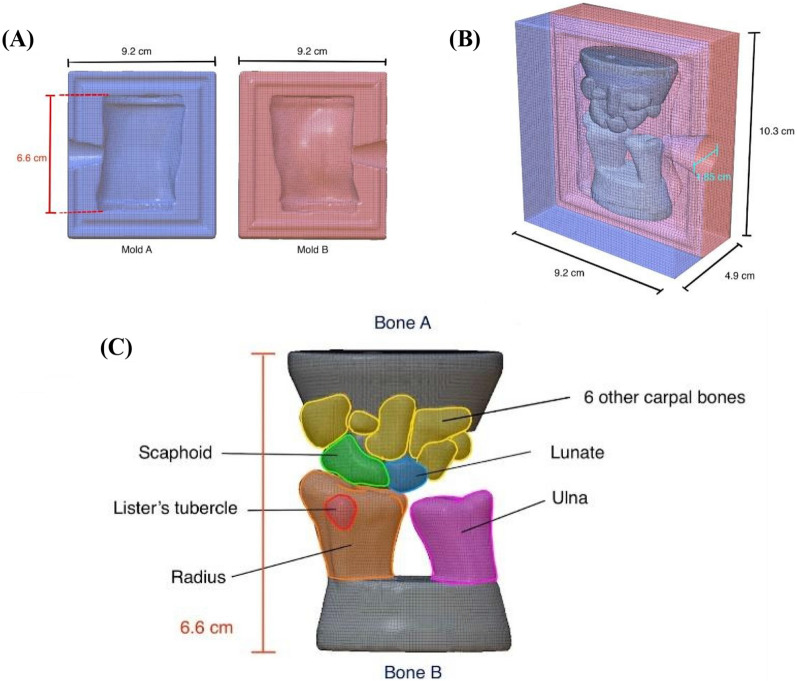

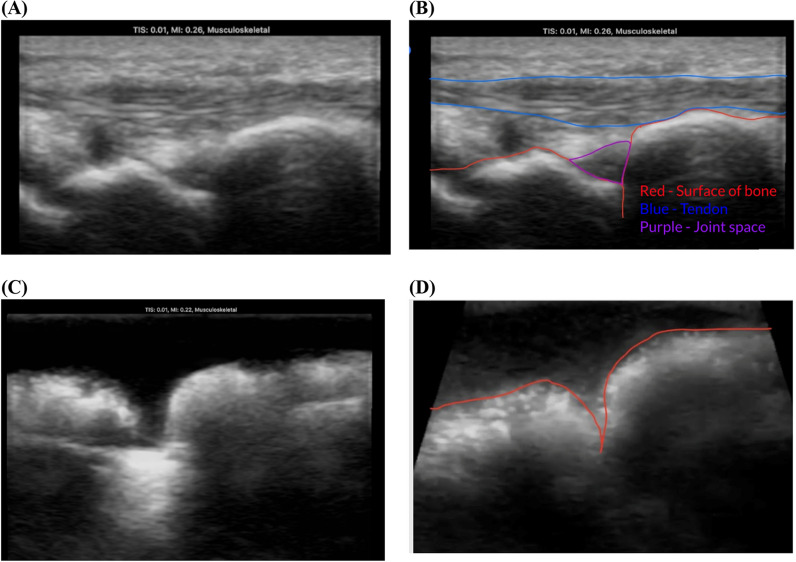

We developed a novel ultrasound compatible wrist joint model that can be made from sustainable materials and reusable parts, thus reducing the costs for acquisition and environmental impact. Our model, which was produced utilizing small-batch production methods, is made up of 3D-printed bones enclosed in an ultrasound-compatible gelatin mixture. It can be easily remade after each practice session, removing needle tracks that are visible under ultrasound for conventional phantoms. The ultrasonic properties of this model were tested through pixel brightness analysis and visual inspection of simulated anatomical structures.

Our results report the advantages and limitations of the proposed model regarding production, practice, and ultrasound compatibility. While future work entails the transfer to patients of the same skill, this reusable and replicable model has proven, when presented to experts, to be successful in representing the physical characteristics and ultrasound profile of significant anatomical structures. This novel DIY product could be an effective alternative to teach procedures in the context of resource-restrained clinical simulation centers.

The online version contains supplementary material available at 10.1186/s13089-024-00374-5.
