Semi-Kinematic Coupling Design and Analysis for Giant Steerable Science Mirror Prototype of Thirty Meter Telescope

TL;DR

This paper introduces a new coupling design for a large telescope mirror to ensure high precision under heavy loads.

Contribution

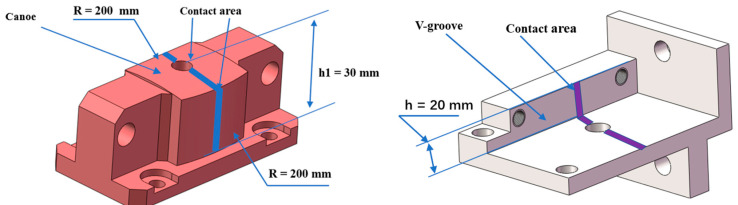

A novel semi-kinematic coupling design using V-grooves and canoe-like components is proposed and validated.

Findings

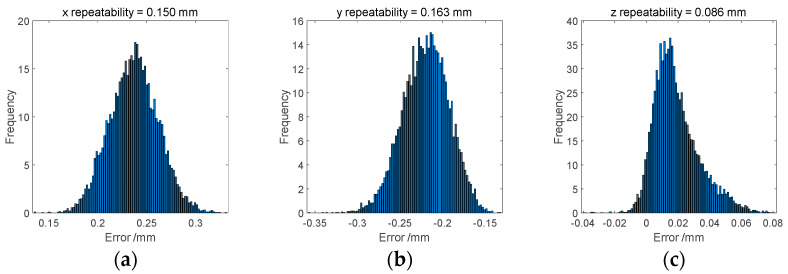

The mathematical model accurately predicted the repeatability of the coupling design.

Experimental results confirmed the model's predictions and met the required precision standards.

Abstract

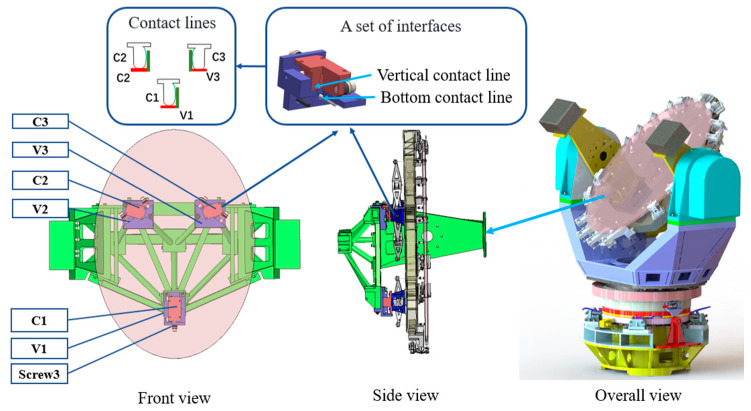

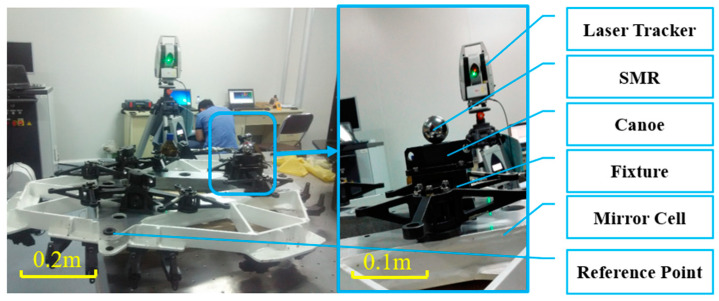

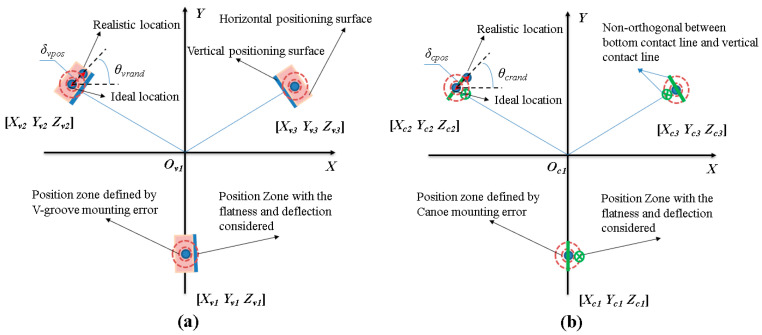

The Giant Steerable Science Mirror prototype is being developed to assess the tertiary mirror system of the Thirty Meter Telescope. In this study, a new semi-kinematic coupling design is proposed for the prototype based on three pairs of V-grooves and canoe-like components to allow for high repeatability accuracy under heavy loads. A mathematical model was constructed to estimate the repeatability accuracy using the corresponding measurement results and machining errors. The proposed design was verified by an experiment, and the results were consistent with the mathematical model. Furthermore, the results indicate that the repeatability of the semi-kinematic coupling is sufficient for the requirement.
