Development of an Optical System for Strain Drop Measurement of Osteosarcoma Cells on Substrates with Different Stiffness

TL;DR

This paper introduces a new optical system to measure how osteosarcoma cells respond to different substrate stiffnesses, revealing differences in their strain drop behavior.

Contribution

A novel optical system was developed to measure strain drop in adherent cells under varying substrate stiffness, enabling insights into cell elasticity and disease progression.

Findings

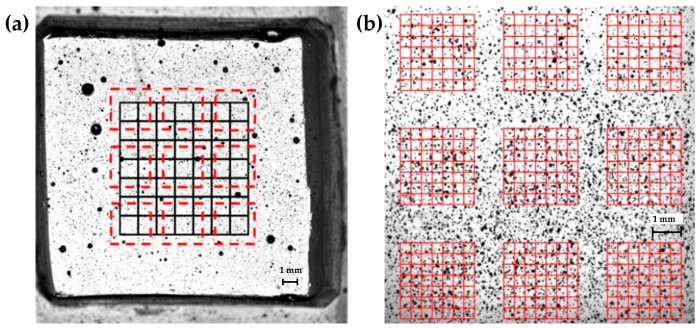

The system demonstrated good substrate homogeneity and accurate image centering.

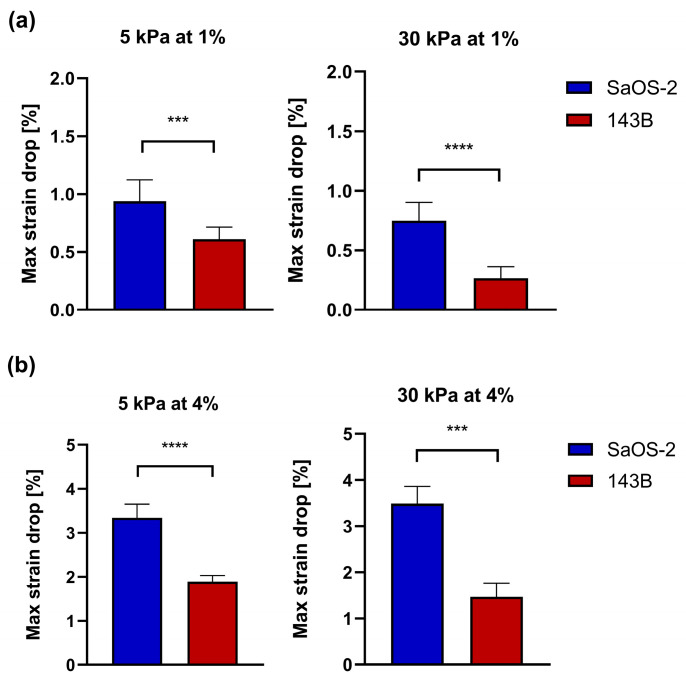

143B cells showed a lower average strain drop compared to SaOS-2 cells across all tested conditions.

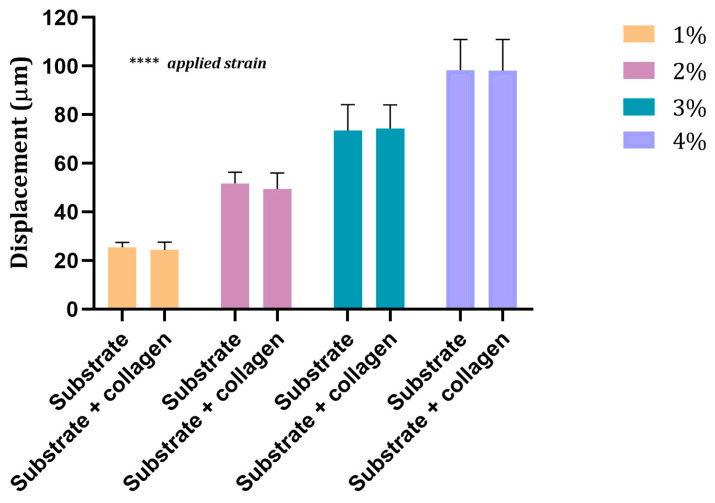

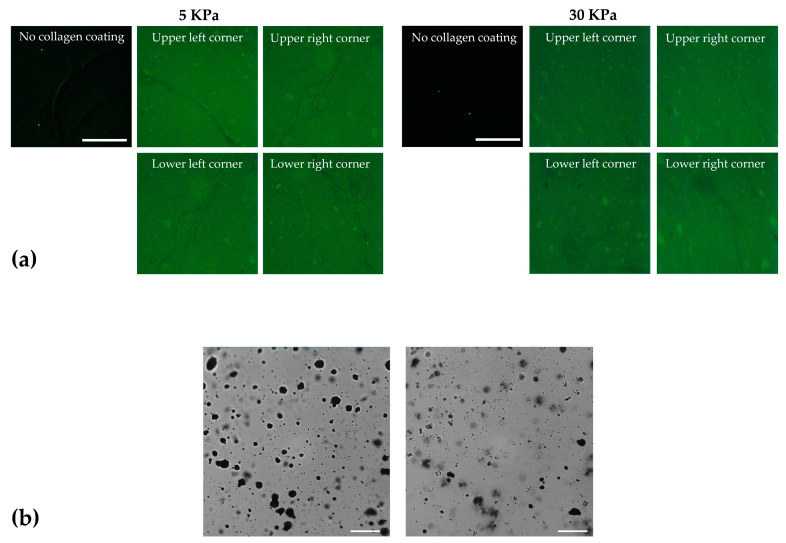

Collagen coating had a negligible effect on strain drop measurements.

Abstract

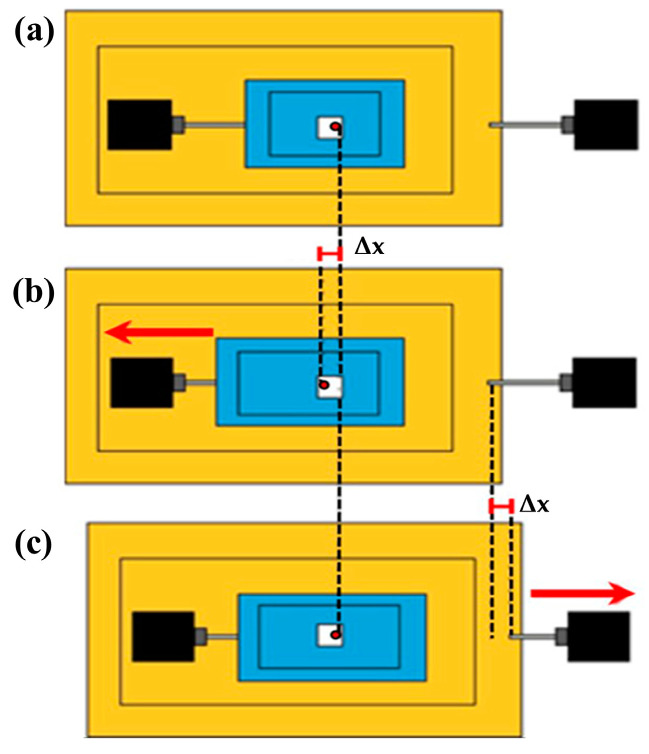

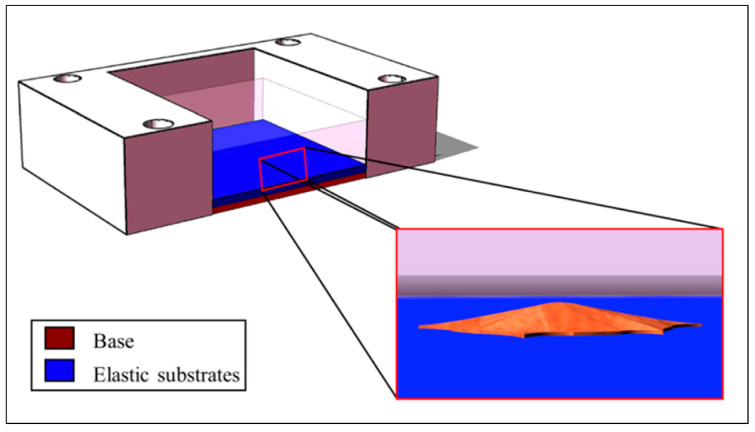

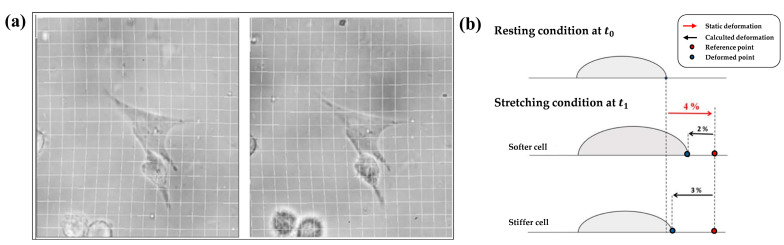

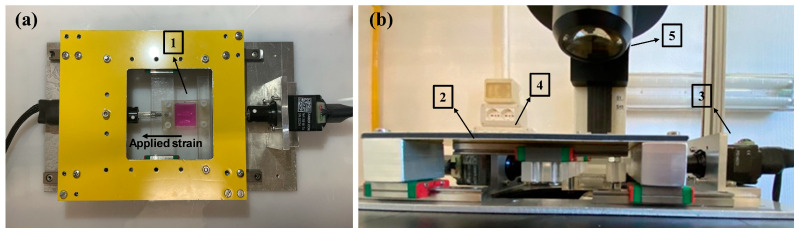

Adherent cells perceive mechanical feedback from the underlying matrix and convert it into biochemical signals through a process known as mechanotransduction. The response to changes in the microenvironment relies on the cell’s mechanical properties, including elasticity, which was recently identified as a biomarker for various diseases. Here, we propose the design, development, and characterization of a new system for the measurement of adherent cells’ strain drop, a parameter correlated with cells’ elasticity. To consider the interplay between adherent cells and the host extracellular matrix, cell stretching was combined with adhesion on substrates with different stiffnesses. The technique is based on the linear stretching of silicone chambers, high-speed image acquisition, and feedback for image centering. The system was characterized in terms of the strain homogeneity, impact of collagen coating, centering capability, and sensitivity. Subsequently, it was employed to measure the strain drop of two osteosarcoma cell lines, low-aggressive osteoblast-like SaOS-2 and high-aggressive 143B, cultured on two different substrates to recall the stiffness of the bone and lung extracellular matrices. Results demonstrated good substrate homogeneity, a negligible effect of the collagen coating, and an accurate image centering. Finally, the experimental results showed an average strain drop that was lower in the 143B cells in comparison with the SaOS-2 cells in all the tested conditions.
