Mitigating Trunk Compensatory Movements in Post-Stroke Survivors through Visual Feedback during Robotic-Assisted Arm Reaching Exercises

TL;DR

Visual feedback during robotic arm exercises helps reduce unwanted trunk movements in stroke survivors, improving rehabilitation effectiveness.

Contribution

The study introduces a novel visual feedback method using RGB-D cameras to reduce trunk compensatory movements during arm rehabilitation.

Findings

Trunk compensation decreased when visual feedback matched or doubled trunk motion speed.

Stroke survivors reported higher task difficulty and exertion with visual feedback.

Visual feedback integration shows potential for improving robotic-assisted rehabilitation outcomes.

Abstract

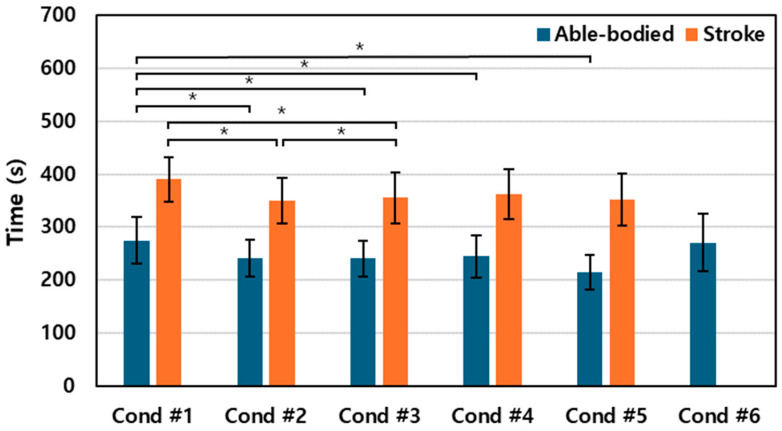

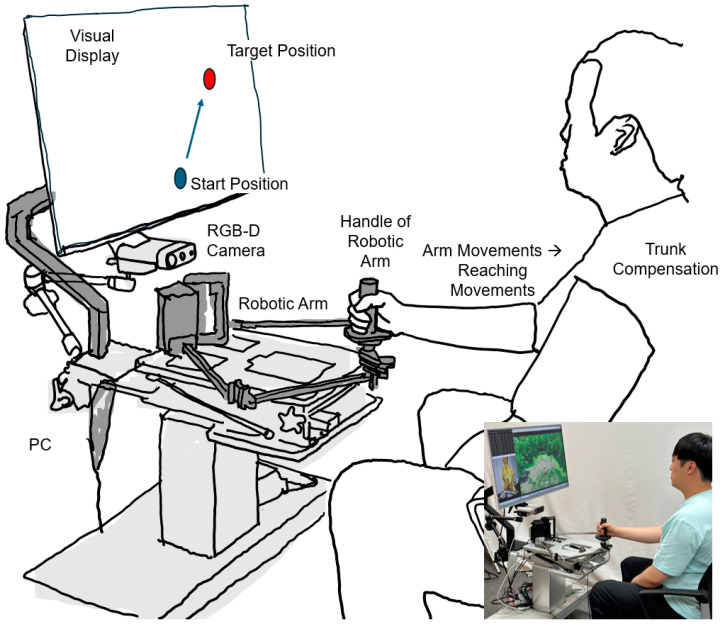

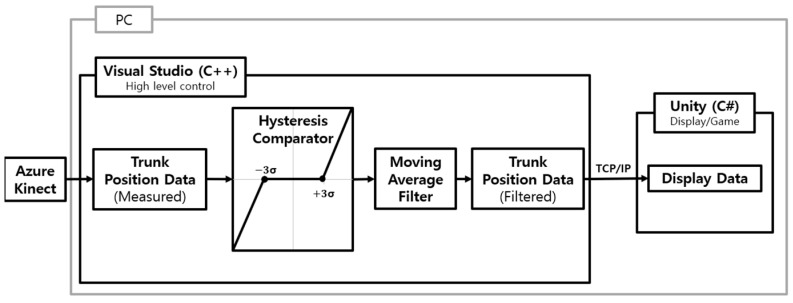

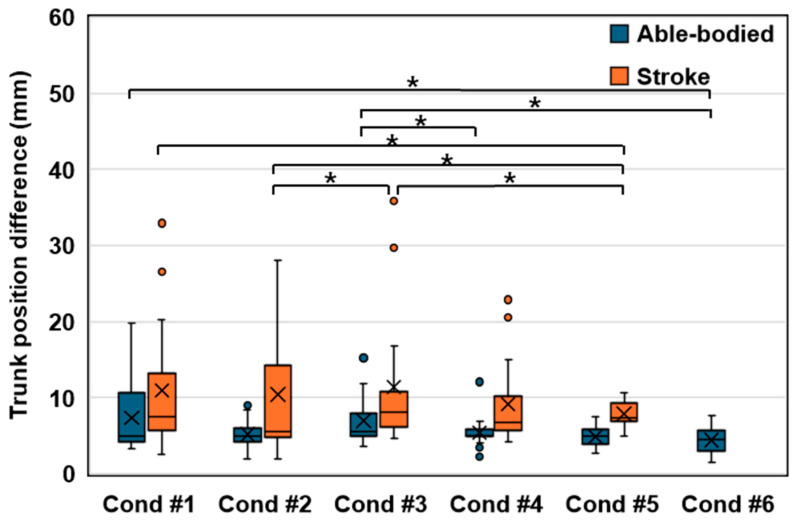

Trunk compensatory movements frequently manifest during robotic-assisted arm reaching exercises for upper limb rehabilitation following a stroke, potentially impeding functional recovery. These aberrant movements are prevalent among stroke survivors and can hinder their progress in rehabilitation, making it crucial to address this issue. This study evaluated the efficacy of visual feedback, facilitated by an RGB-D camera, in reducing trunk compensation. In total, 17 able-bodied individuals and 18 stroke survivors performed reaching tasks under unrestricted trunk conditions and visual feedback conditions. In the visual feedback modalities, the target position was synchronized with trunk movement at ratios where the target moved at the same speed, double, and triple the trunk’s motion speed, providing real-time feedback to the participants. Notably, trunk compensatory movements were significantly diminished when the target moved at the same speed and double the trunk’s motion speed. Furthermore, these conditions exhibited an increase in the task completion time and perceived exertion among stroke survivors. This outcome suggests that visual feedback effectively heightened the task difficulty, thereby discouraging unnecessary trunk motion. The findings underscore the pivotal role of customized visual feedback in correcting aberrant upper limb movements among stroke survivors, potentially contributing to the advancement of robotic-assisted rehabilitation strategies. These insights advocate for the integration of visual feedback into rehabilitation exercises, highlighting its potential to foster more effective recovery pathways for post-stroke individuals by minimizing undesired compensatory motions.
