The genome sequence of the Notch-wing Button, Acleris emargana (Fabricius, 1775)

TL;DR

This paper provides the genome sequence of the Notch-wing Button moth, including chromosomal scaffolding and gene annotations.

Contribution

The novel contribution is the first genome assembly of Acleris emargana, including chromosomal pseudomolecules and mitochondrial DNA.

Findings

The genome assembly spans 691.4 megabases with 30 chromosomal pseudomolecules.

Gene annotation identified 21,886 protein-coding genes using Ensembl.

The mitochondrial genome is 16.34 kilobases in length.

Abstract

We present a genome assembly from an individual male
Acleris emargana (the Notch-wing Button; Arthropoda; Insecta; Lepidoptera; Tortricidae). The genome sequence is 691.4 megabases in span. Most of the assembly is scaffolded into 30 chromosomal pseudomolecules, including the Z sex chromosome. The mitochondrial genome has also been assembled and is 16.34 kilobases in length. Gene annotation of this assembly on Ensembl identified 21,886 protein coding genes.

Figures

Photograph of the Acleris emargana (ilAclEmar1) specimen used for genome sequencing.

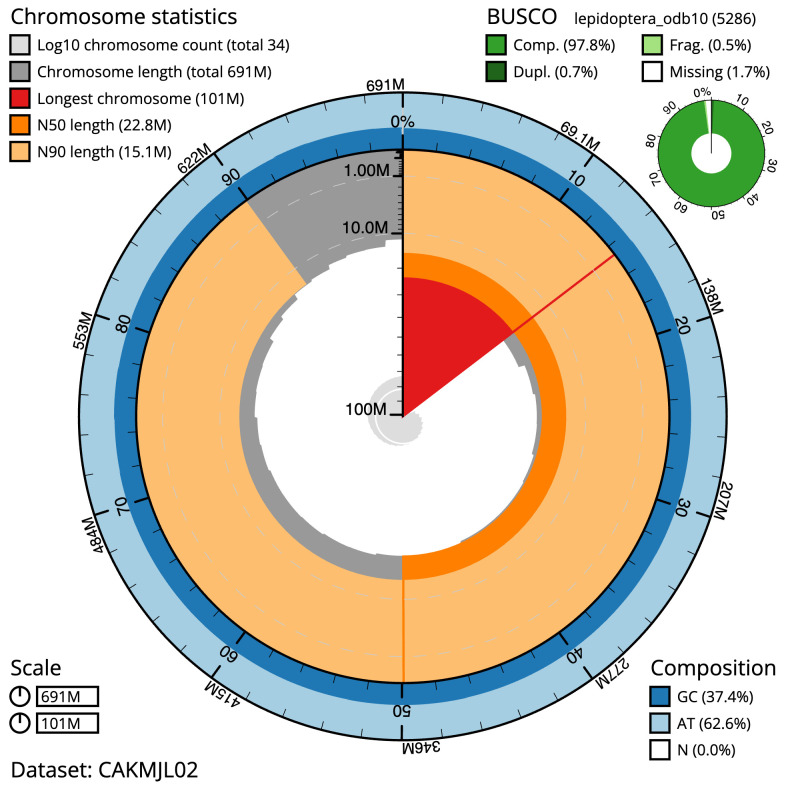

Genome assembly of Acleris emargana, ilAclEmar1.2: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 691,448,267 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (101,224,011 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (22,775,158 and 15,148,969 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the lepidoptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAclEmar1.2/dataset/CAKMJL02/snail.

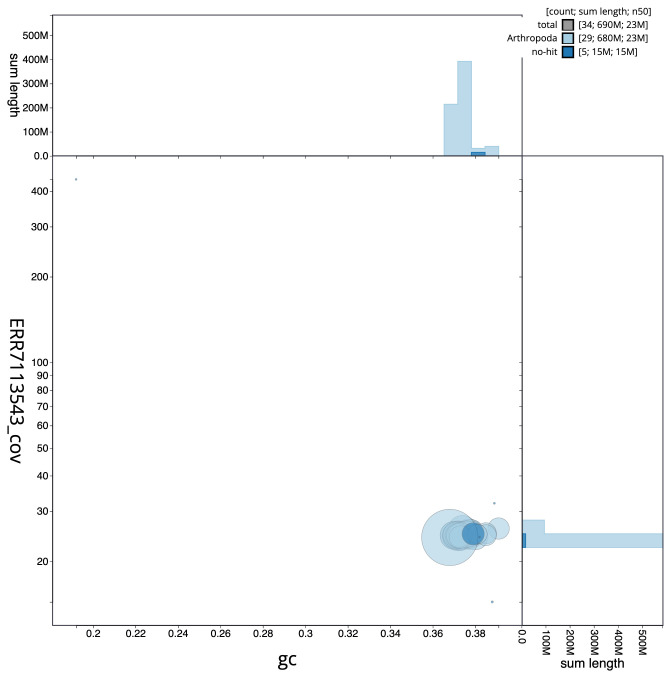

Genome assembly of Acleris emargana, ilAclEmar1.2: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAclEmar1.2/dataset/CAKMJL02/blob.

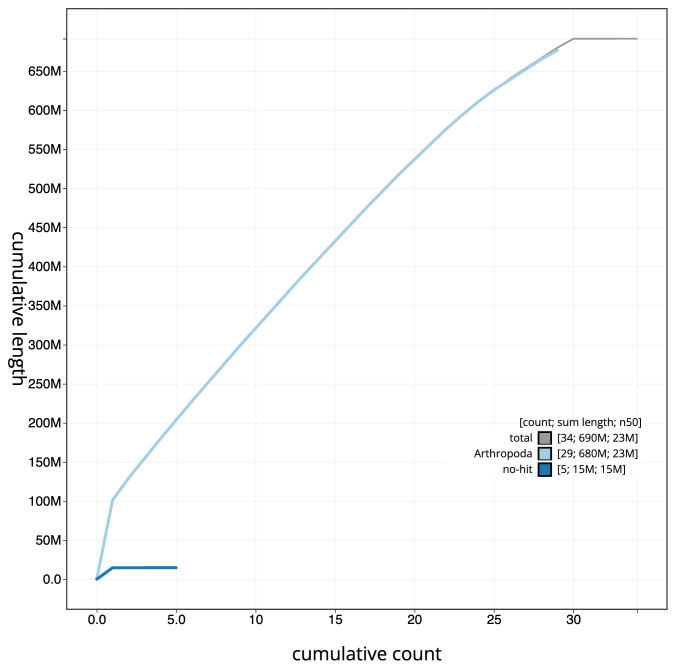

Genome assembly of Acleris emargana, ilAclEmar1.2: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAclEmar1.2/dataset/CAKMJL02/cumulative.

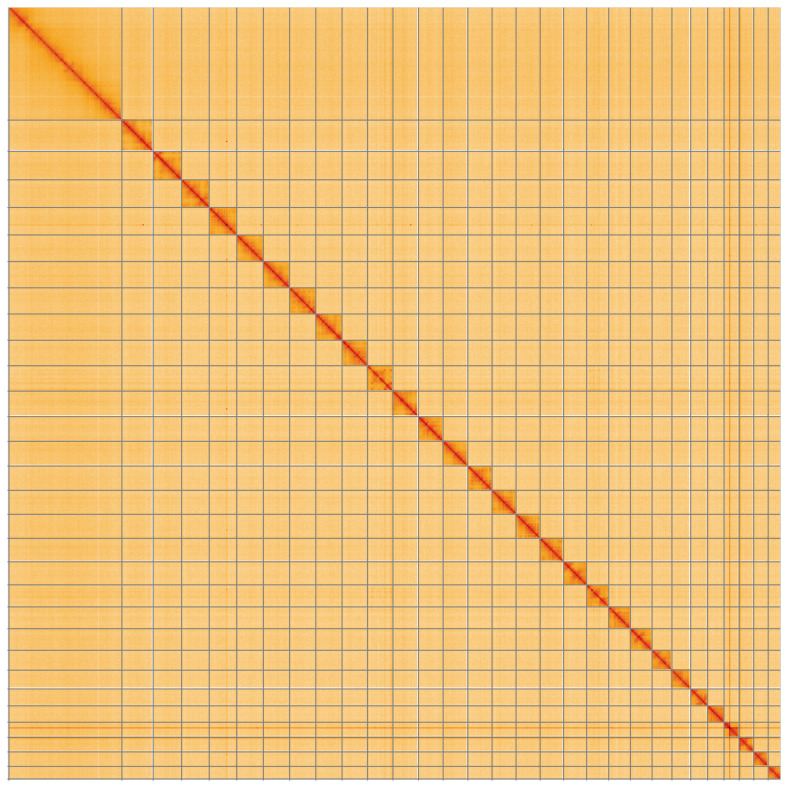

Genome assembly of Acleris emargana, ilAclEmar1.2: Hi-C contact map of the ilAclEmar1.2 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=CxX2ql3pQpegkujExGkbMw.

Tables

Table 1.. Genome data for Acleris emargana, ilAclEmar1.2.

Project accession data
Assembly identifier	ilAclEmar1.2
Species	Acleris emargana
Specimen	ilAclEmar1
NCBI taxonomy ID	758706
BioProject	PRJEB48047
BioSample ID	SAMEA7746613
Isolate information	ilAclEmar1, male: whole organism (DNA sequencing) ilAclEmar2: whole organism (Hi-C scaffolding)
Assembly metrics *		Benchmark
Consensus quality (QV)	58.5	≥ 50
k-mer completeness	99.99%	≥ 95%
BUSCO **	C:97.8%[S:97.1%,D:0.7%], F:0.5%,M:1.7%,n:5,286	C ≥ 95%
Percentage of assembly mapped to chromosomes	99.98%	≥ 95%
Sex chromosomes	Z chromosome	localised homologous pairs
Organelles	Mitochondrial genome assembled	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL IIe	ERR7123967
10X Genomics Illumina	ERR7113542, ERR7113544, ERR7113543, ERR7113545
Hi-C Illumina	ERR7167663
Genome assembly
Assembly accession	GCA_927399475.2
Accession of alternate haplotype	GCA_927399445.1
Span (Mb)	691.4
Number of contigs	72
Contig N50 length (Mb)	16.7
Number of scaffolds	33
Scaffold N50 length (Mb)	22.8
Longest scaffold (Mb)	101.2
Genome annotation
Number of protein-coding genes	21,886
Number of gene transcripts	22,022

Table 2.. Chromosomal pseudomolecules in the genome assembly of Acleris emargana, ilAclEmar1.

INSDC accession	Chromosome	Length (Mb)	GC%
OV656836.1	1	27.92	37.5
OV656837.1	2	25.53	37.5
OV656838.1	3	24.76	37.0
OV656839.1	4	24.64	37.5
OV656840.1	5	23.84	37.5
OV656841.1	6	23.5	37.0
OV656842.1	7	23.48	37.0
OV656843.1	8	23.47	37.0
OV656844.1	9	22.83	37.0
OV656845.1	10	22.78	37.5
OV656846.1	11	22.78	37.5
OV656847.1	12	22.19	37.0
OV656848.1	13	22.12	37.0
OV656849.1	14	21.72	37.5
OV656850.1	15	21.54	37.5
OV656851.1	16	21.51	37.5
OV656852.1	17	21.0	38.0
OV656853.1	18	20.65	37.0
OV656854.1	19	19.74	38.0
OV656855.1	20	19.52	37.0
OV656856.1	21	19.33	38.0
OV656857.1	22	17.83	37.5
OV656858.1	23	16.79	37.0
OV656859.1	24	15.15	37.5
OV656860.1	25	14.71	38.0
OV656861.1	26	13.54	39.0
OV656862.1	27	13.03	38.5
OV656863.1	28	12.96	38.5
OV656864.1	29	11.29	38.0
OV656835.1	Z	101.22	37.0
OV656865.2	MT	0.02	19.5

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	4.1.7	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
FreeBayes	1.3.1-17- gaa2ace8	https://github.com/freebayes/freebayes
gEVAL	N/A	https://geval.org.uk/
Hifiasm	0.12	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Long Ranger ALIGN	2.2.2	https://support.10xgenomics.com/genome-exome/software/pipelines/latest/advanced/other-pipelines
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
MitoHiFi	2	https://github.com/marcelauliano/MitoHiFi
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
sanger-tol/ genomenote	v1.0	https://github.com/sanger-tol/genomenote
sanger-tol/ readmapping	1.1.0	https://github.com/sanger-tol/readmapping/tree/1.1.0
YaHS	1	https://github.com/c-zhou/yahs

Full text

Species taxonomy

Eukaryota; Metazoa; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Amphiesmenoptera; Lepidoptera; Glossata; Neolepidoptera; Heteroneura; Ditrysia; Apoditrysia; Tortricoidea; Tortricidae; Tortricinae; Tortricini; Acleris; Acleris emargana (Fabricius, 1775) (NCBI:txid758706).

Background

The Notch-wing Button Acleris emargana (Fabricius, 1775) is a moth in the Tortricidae family. The species’ vernacular name is a reference to the remarkable shape of the forewings, which show a large inward ‘notch’ along their leading edge. As in other members of its genus, the species is polymorphic ( Bradley et al., 1973). Acleris emargana has a Palearctic distribution, being found across northern Eurasia east to at least northern China and Altai and Buryatia in Russia ( Karsholt et al., 2005). The species’ distribution at the eastern boundary of its range is poorly known due to confusion with its recently split sister taxon Acleris effractana, which has a Holarctic distribution ( Karsholt et al., 2005). Acleris emargana is widespread across the British Isles except in the Outer Hebrides where it appears to be replaced by effractana ( Elliott et al., 2018).

The species overwinters as an egg, with the larva feeding between May and July on Salix or Populus, and less commonly, Betula, Corylus or Alnus ( Bradley et al., 1973; Elliott et al., 2018). The larva feeds from within a folded leaf or between spun leaves ( Bradley et al., 1973; Elliott et al., 2018). Pupation occurs in the larval habitation or amongst moss. Adults occur between July and September, often found in damp areas where sallow ( Salix ssp.) is established ( Bradley et al., 1973; Elliott et al., 2018).

The genome of Acleris emargana was sequenced as part of the Darwin Tree of Life Project, a collaborative effort to sequence all named eukaryotic species in the Atlantic Archipelago of Britain and Ireland. Here we present a complete, chromosome-level genome sequence for Acleris emargana, based on one male specimen from Wytham Woods, Oxfordshire, UK.

Genome sequence report

The genome was sequenced from one male Acleris emargana ( Figure 1) collected from Wytham Woods, Oxfordshire (51.77, –1.34). A total of 25-fold coverage in Pacific Biosciences single-molecule HiFi long reads and 67-fold coverage in 10X Genomics read clouds was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 27 missing joins or mis-joins and removed three haplotypic duplications, reducing the assembly length by 0.99% and the scaffold number by 10.53%, and decreasing the scaffold N50 by 1.34%.

Photograph of the Acleris emargana (ilAclEmar1) specimen used for genome sequencing.

The final assembly has a total length of 691.4 Mb in 33 sequence scaffolds with a scaffold N50 of 22.8 Mb ( Table 1). Most (99.98%) of the assembly sequence was assigned to 30 chromosomal-level scaffolds, representing 29 autosomes and the Z sex chromosome. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 2– Figure 5; Table 2). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

Table 1.: Genome data for Acleris emargana, ilAclEmar1.2.

Genome assembly of Acleris emargana, ilAclEmar1.2: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 691,448,267 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (101,224,011 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (22,775,158 and 15,148,969 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the lepidoptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAclEmar1.2/dataset/CAKMJL02/snail.

Genome assembly of Acleris emargana, ilAclEmar1.2: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAclEmar1.2/dataset/CAKMJL02/blob.

Genome assembly of Acleris emargana, ilAclEmar1.2: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/ilAclEmar1.2/dataset/CAKMJL02/cumulative.

Genome assembly of Acleris emargana, ilAclEmar1.2: Hi-C contact map of the ilAclEmar1.2 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=CxX2ql3pQpegkujExGkbMw.

Table 2.: Chromosomal pseudomolecules in the genome assembly of Acleris emargana, ilAclEmar1.

The estimated Quality Value (QV) of the final assembly is 58.5 with k-mer completeness of 99.99%, and the assembly has a BUSCO v5.3.2 completeness of 97.8% (single = 97.1%, duplicated = 0.7%), using the lepidoptera_odb10 reference set ( n = 5,286).

Metadata for specimens, spectral estimates, sequencing runs, contaminants and pre-curation assembly statistics can be found at https://links.tol.sanger.ac.uk/species/758706.

Genome annotation report

The Acleris emargana genome assembly (GCA_927399475.2) was annotated using the Ensembl rapid annotation pipeline ( Table 1; https://rapid.ensembl.org/Acleris_emargana_GCA_927399445.1/Info/Index). The resulting annotation includes 22,022 transcribed mRNAs from 21,886 protein-coding genes.

Methods

Sample acquisition and nucleic acid extraction

The specimen used for DNA sequencing was a male Acleris emargana (specimen ID Ox000806, individual ilAclEmar1), collected from Wytham Woods, Oxfordshire (biological vice-county Berkshire), UK (latitude 51.77, longitude –1.34) on 2020-08-01 using a light trap. The specimen used for Hi-C sequencing (specimen ID Ox000951, individual ilAclEmar2) was collected from the same location on 2020-09-08. Both specimens were collected and identified by Douglas Boyes (University of Oxford) and preserved on dry ice.

DNA was extracted at the Tree of Life laboratory, Wellcome Sanger Institute (WSI). The ilAclEmar1 sample was weighed and dissected on dry ice with tissue set aside for Hi-C sequencing. Tissue from the whole organism was disrupted using a Nippi Powermasher fitted with a BioMasher pestle. High molecular weight (HMW) DNA was extracted using the Qiagen MagAttract HMW DNA extraction kit. HMW DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30. Sheared DNA was purified by solid-phase reversible immobilisation using AMPure PB beads with a 1.8X ratio of beads to sample to remove the shorter fragments and concentrate the DNA sample. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

Sequencing

Pacific Biosciences HiFi circular consensus and 10X Genomics read cloud DNA sequencing libraries were constructed according to the manufacturers’ instructions. DNA sequencing was performed by the Scientific Operations core at the WSI on Pacific Biosciences SEQUEL II (HiFi) and Illumina NovaSeq 6000 (10X) instruments. Hi-C data were also generated from whole organism tissue of ilAclEmar2 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). One round of polishing was performed by aligning 10X Genomics read data to the assembly with Long Ranger ALIGN, calling variants with FreeBayes ( Garrison & Marth, 2012). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.

Genome annotation

The BRAKER2 pipeline ( Brůna et al., 2021) was used in the default protein mode to generate annotation for the Acleris emargana assembly (GCA_927399475.2) in Ensembl Rapid Release.

Wellcome Sanger Institute – Legal and Governance

The materials that have contributed to this genome note have been supplied by a Darwin Tree of Life Partner. The submission of materials by a Darwin Tree of Life Partner is subject to the ‘Darwin Tree of Life Project Sampling Code of Practice’, which can be found in full on the Darwin Tree of Life website here. By agreeing with and signing up to the Sampling Code of Practice, the Darwin Tree of Life Partner agrees they will meet the legal and ethical requirements and standards set out within this document in respect of all samples acquired for, and supplied to, the Darwin Tree of Life Project.

Further, the Wellcome Sanger Institute employs a process whereby due diligence is carried out proportionate to the nature of the materials themselves, and the circumstances under which they have been/are to be collected and provided for use. The purpose of this is to address and mitigate any potential legal and/or ethical implications of receipt and use of the materials as part of the research project, and to ensure that in doing so we align with best practice wherever possible. The overarching areas of consideration are:

•    Ethical review of provenance and sourcing of the material

•    Legality of collection, transfer and use (national and international)

Each transfer of samples is further undertaken according to a Research Collaboration Agreement or Material Transfer Agreement entered into by the Darwin Tree of Life Partner, Genome Research Limited (operating as the Wellcome Sanger Institute), and in some circumstances other Darwin Tree of Life collaborators.
