Cinematic rendering of 18F‐DCFPyL PET/CT fusion data in a patient with metastatic clear cell renal cell carcinoma

Abstract

Figures

Full text

Three‐dimensional visualizations of volumetric data are utilized for a variety of applications in medical imaging.1 Recently, a method known as cinematic rendering has been applied to standard acquisitions of medical image data to create photorealistic visualizations with high levels of surface detail.2, 3 The technique is based on complex path tracing that models the movement of millions of photons through a volume and includes information on how those photons interact with the matter in the volume.4 Generally, each type of tissue is assigned a colour and transparency based on a voxel histogram, and those characteristics of the tissue are then summed across the volume to create the rendering.5 This method has been most commonly applied to X‐ray computed tomography (CT), where it has been found to improve medical student education6 and the speed of surgical anatomic understanding.7

When working with fused dataset, such as CT in combination with position emission tomography (PET), the task of cinematic rendering is more complex, as there is nothing intrinsic to distinguish between the two image types within the visualization. To solve this, our group recently developed a method to include internal lighting for PET data so that it has a visually distinct signature from that of the CT data.8 This approach allows both datasets to be displayed as a combined rendering and provides a global overview of both abnormal PET uptake and its anatomic location.8

Prostate‐specific membrane antigen (PSMA) is a type II, transmembrane glycoprotein that is highly expressed on prostate cancer epithelial cells as well as the endothelium of tumour‐associated neovasculature in non‐prostate cancers.9 To date, PET agents targeting PSMA have primarily been used to image patients with prostate cancer at the time of initial staging10 and upon biochemical recurrence.11 However, PSMA PET radiotracers also have high sensitivity and specificity for identifying sites of other cancers, such as clear cell renal cell carcinoma.12, 13, 14

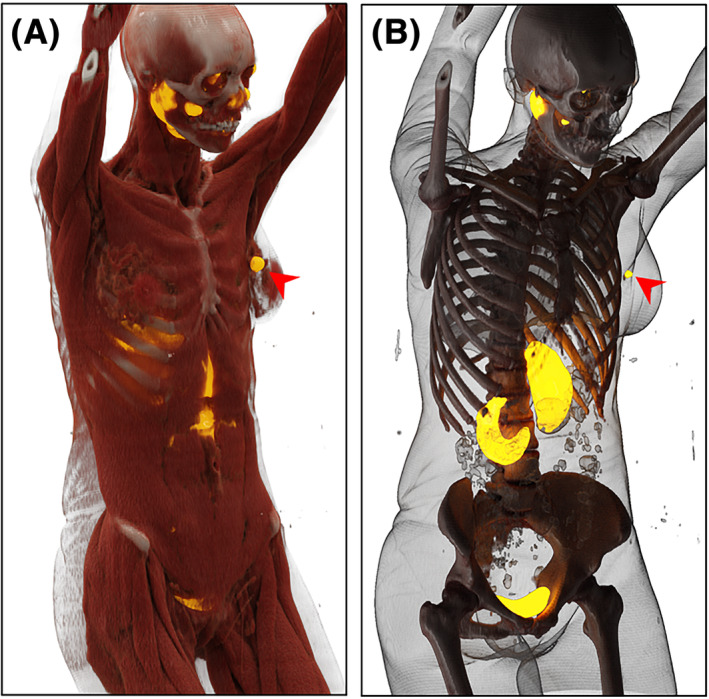

We performed cinematic rendering of a PET/CT performed with the PSMA‐targeted radiotracer ^18^F‐DCFPyL of a woman with oligometastatic clear cell renal cell carcinoma (Figure 1). The patient had radiotracer uptake in a discrete lesion in the left breast, which was highly conspicuous on the rendered images. In this case, the use of cinematic rendering allowed for the rapid identification and precise anatomical localization of the patient's site of disease. Although demonstrative of the potential of this reconstructive method for visualizing PET/CT data, further efforts are needed to define the role of cinematic rendering in clinical practice.

AUTHOR CONTRIBUTIONS

SPR wrote the original draft and assisted with image analysis. SK developed the software application that was used. MAG led patient accrual and assisted with image analysis. EKF led image analysis and created the cinematic rendered images. SK, MAF, and EKF all critically revised the manuscript.
