Numerical Simulation of Mold Filling of Polymeric Materials with Friction Effect during Hot Embossing Process at Micro Scale
Faleh Rabhi, Gang Cheng, Thierry Barriere
TL;DR
This paper studies how to improve the filling of micro cavities during hot embossing of polymers by simulating the process with a new viscoplastic model and optimizing parameters.
Contribution
The study introduces a two-layer viscoplastic model and optimizes processing parameters to enhance micro-scale hot embossing.
Findings
Viscoplastic parameters were characterized from stress–strain curves of two polymers at different temperatures.
Optimized processing parameters achieved complete filling of micro cavities in simulations and experiments.
Friction and temperature significantly influence mold filling behavior at the micro scale.
Abstract
The filling efficiency during the hot embossing process at micro scale is essential for micro-component replication. The presence of the unfilled area is often due to the inadequate behavior law applied to the embossed materials. This research consists of the identification of viscoplastic law (two-layer viscoplastic model) of polymers and the optimization of processing parameters. Mechanical tests have been performed for two polymers at 20 °C and 30 °C above their glass transition temperature. The viscoplastic parameters are characterized based on stress–strain curves from the compression tests. The influences of imposed displacement, temperature, and friction on mold filling are investigated. The processing parameters are optimized to achieving the complete filling of micro cavities. The replication of a micro-structured cavity has been effectuated using this process and the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

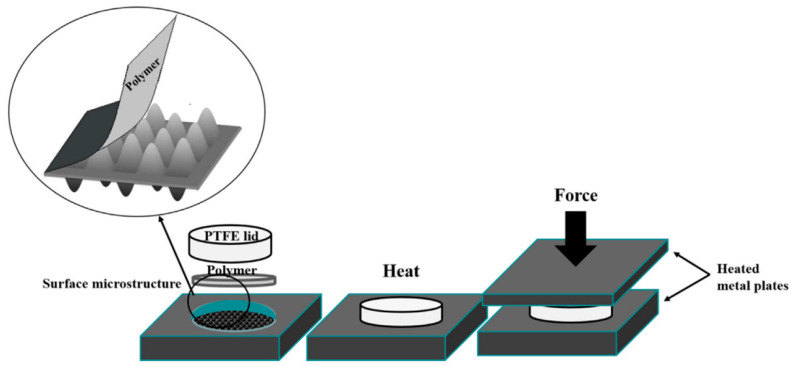

Figure 1

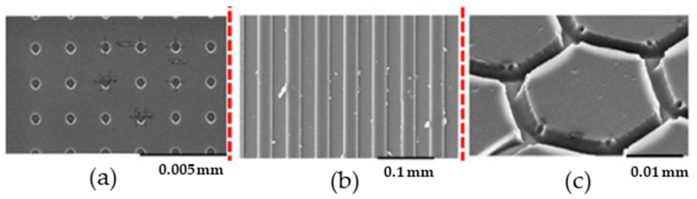

Figure 2

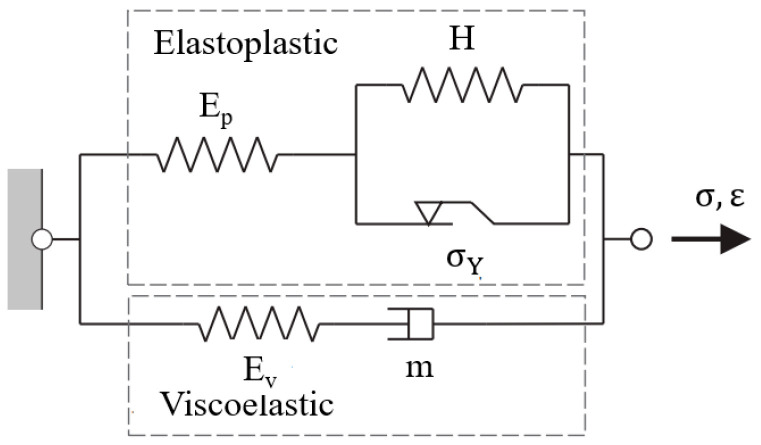

Figure 3

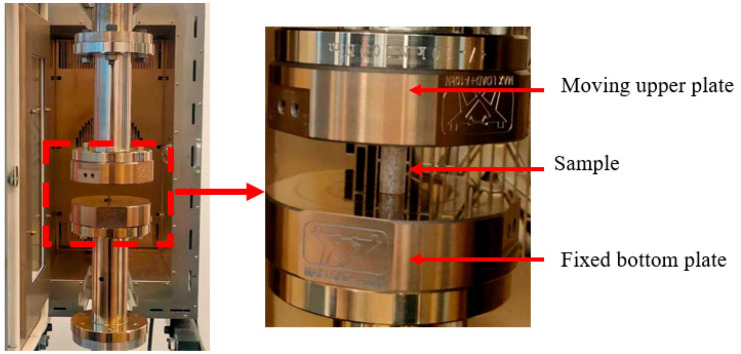

Figure 4
Figure 5

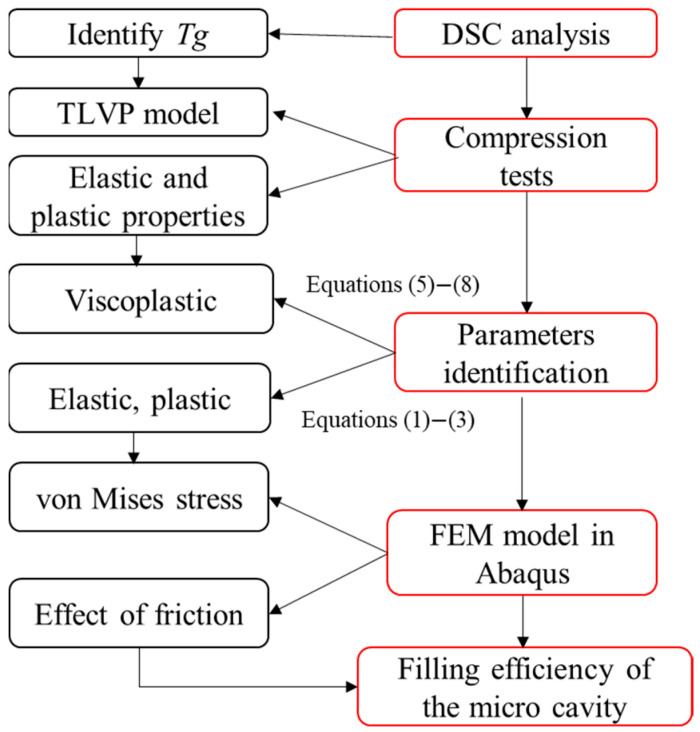

Figure 6

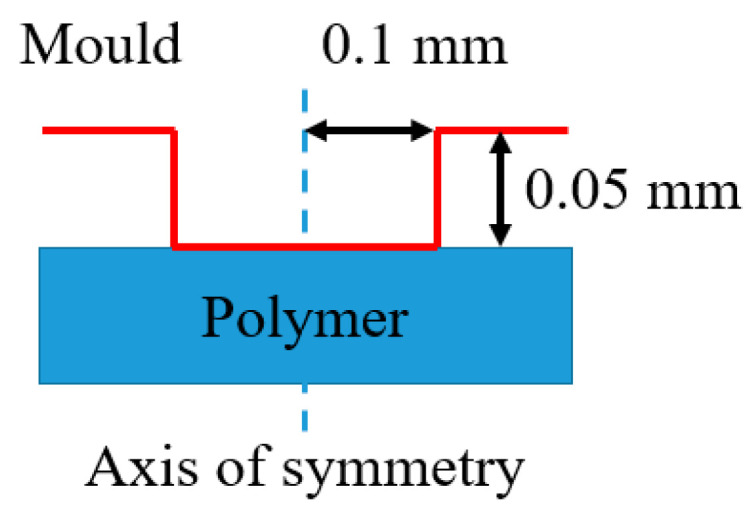

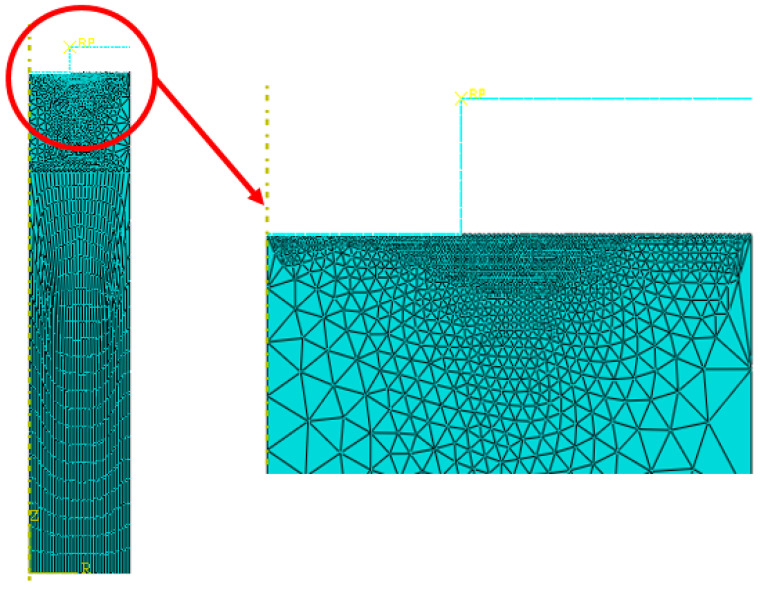

Figure 7

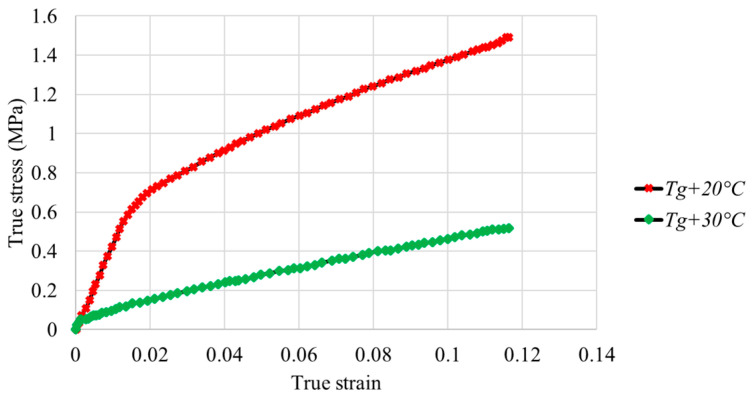

Figure 8

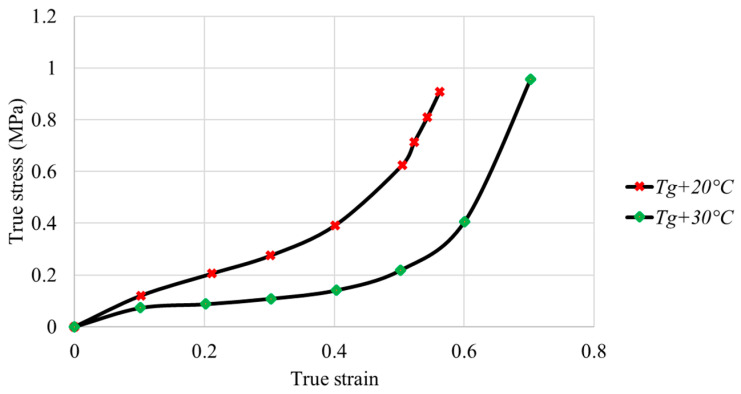

Figure 9

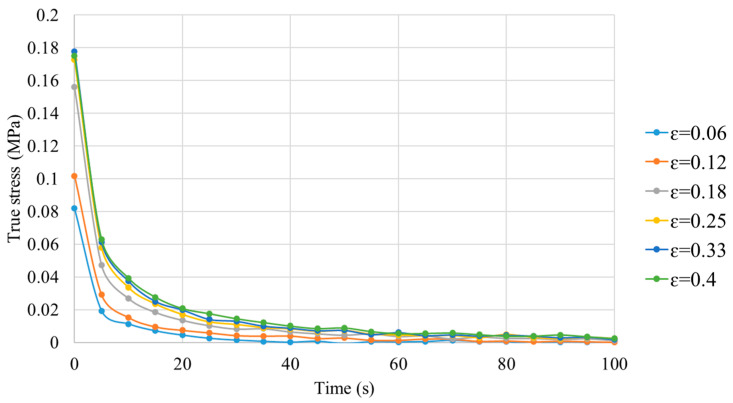

Figure 10

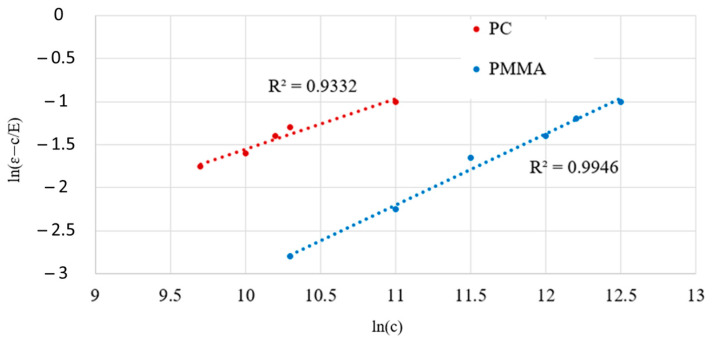

Figure 11

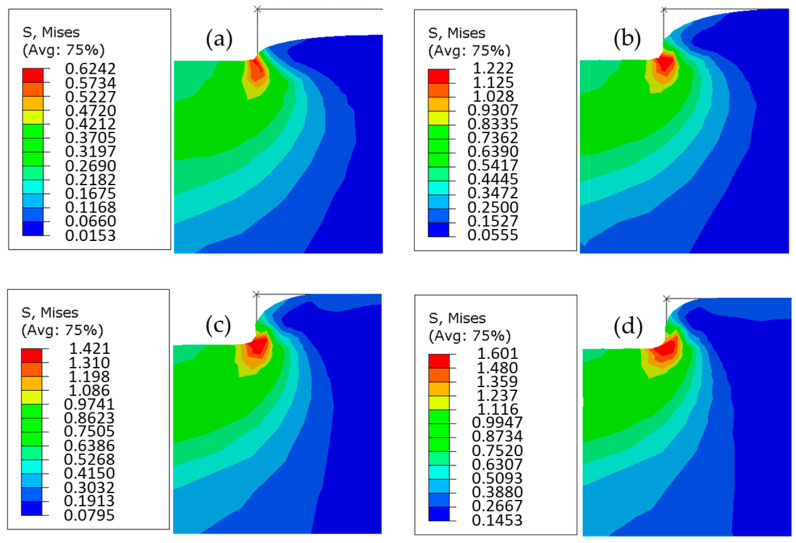

Figure 12

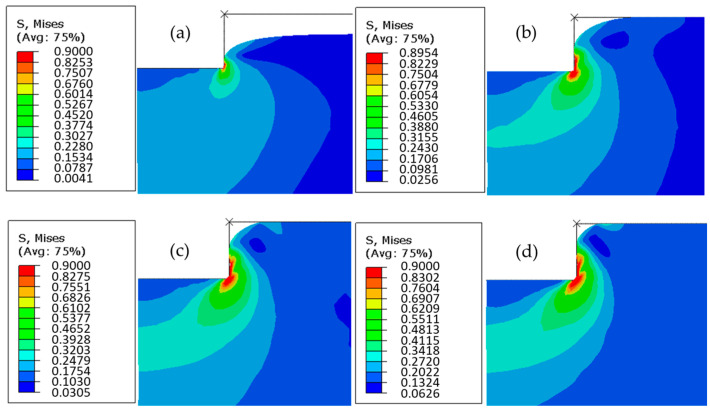

Figure 13

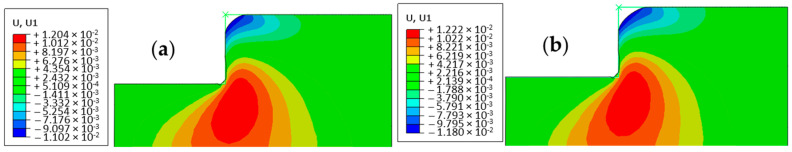

Figure 14

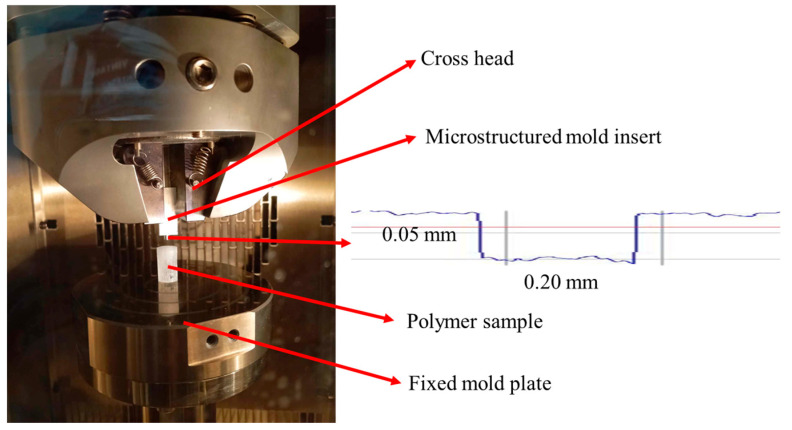

Figure 15

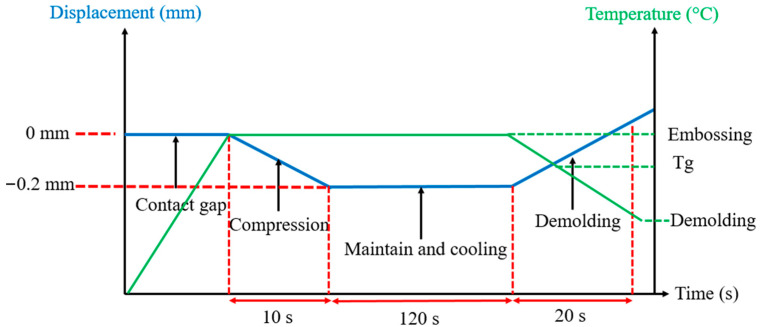

Figure 16

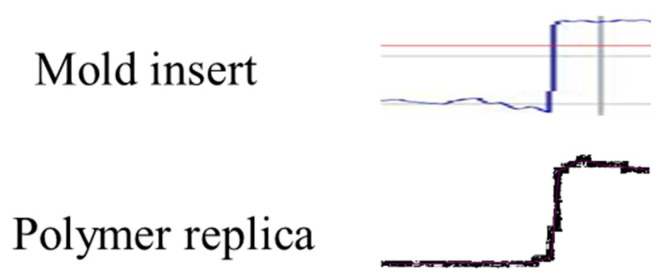

Figure 17Peer Reviews
