Influence of Heart Rate and Change in Wavefront Direction through Pacing on Conduction Velocity and Voltage Amplitude in a Porcine Model: A High-Density Mapping Study

TL;DR

This study explores how heart rate and pacing affect electrical conduction and voltage in pig hearts using detailed mapping.

Contribution

The study introduces a high-density mapping approach to assess regional variations in conduction velocity and voltage amplitude in response to pacing and heart rate changes.

Findings

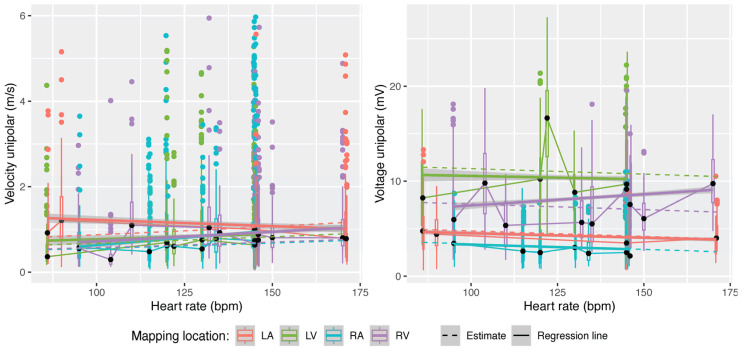

Higher heart rates correlate with increased conduction velocity and decreased voltage amplitude.

Pacing from the right atrium reduces conduction velocity across all heart cavities.

Subregion analysis reveals significant variability in conduction and voltage changes not captured in whole-heart analysis.

Abstract

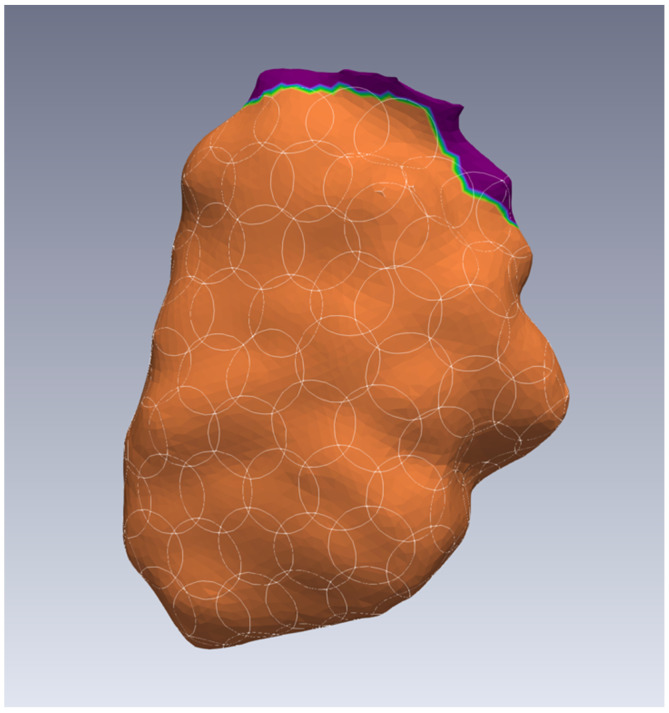

Background: Understanding the dynamics of conduction velocity (CV) and voltage amplitude (VA) is crucial in cardiac electrophysiology, particularly for substrate-based catheter ablations targeting slow conduction zones and low voltage areas. This study utilizes ultra-high-density mapping to investigate the impact of heart rate and pacing location on changes in the wavefront direction, CV, and VA of healthy pig hearts. Methods: We conducted in vivo electrophysiological studies on four healthy juvenile pigs, involving various pacing locations and heart rates. High-resolution electroanatomic mapping was performed during intrinsic normal sinus rhythm (NSR) and electrical pacing. The study encompassed detailed analyses at three levels: entire heart cavities, subregions, and localized 5-mm-diameter circular areas. Linear mixed-effects models were used to analyze the influence of heart rate and pacing location on CV and VA in different regions. Results: An increase in heart rate correlated with an increase in conduction velocity and a decrease in voltage amplitude. Pacing influenced conduction velocity and voltage amplitude. Pacing also influenced conduction velocity and voltage amplitude, with varying effects observed based on the pacing location within different heart cavities. Pacing from the right atrium (RA) decreased CV in all heart cavities. The overall CV and VA changes in the whole heart cavities were not uniformly reflected in all subregions and subregional CV and VA changes were not always reflected in the overall analysis. Overall, there was a notable variability in absolute CV and VA changes attributed to pacing. Conclusions: Heart rate and pacing location influence CV and VA within healthy juvenile pig hearts. Subregion analysis suggests that specific regions of the heart cavities are more susceptible to pacing. High-resolution mapping aids in detecting regional changes, emphasizing the substantial physiological variations in CV and VA.
