Use of the Naturally Occurring Bacteriophage Grouping Model for the Design of Potent Therapeutic Cocktails

TL;DR

This study explores how naturally occurring phage groups can be used to create effective therapeutic cocktails for treating antibiotic-resistant bacterial infections.

Contribution

The study introduces a new method for designing phage cocktails by mimicking natural phage groupings and evaluating their therapeutic potential.

Findings

Natural phage cocktails inhibited the growth of phage-resistant mutants in bacterial cultures.

Phage cocktails showed synergistic or proto-cooperative effects in inhibiting bacterial growth.

The study identified 13 P. aeruginosa and 11 K. pneumoniae phages from 18 different genera for therapeutic use.

Abstract

The specificity of phages and their ability to evolve and overcome bacterial resistance make them potentially useful as adjuncts in the treatment of antibiotic-resistant bacterial infections. The goal of this study was to mimic a natural grouping of phages of interest and to evaluate the nature of their proliferation dynamics with bacteria. We have, for the first time, transferred naturally occurring phage groups directly from their sources of isolation to in vitro and identified 13 P. aeruginosa and 11 K. pneumoniae phages of 18 different genera, whose host range was grouped as 1.2–17%, 28–48% and 60–87%, using a large collection of P. aeruginosa (n = 102) and K. pneumoniae (n = 155) strains carrying different virulence factors and phage binding receptors. We introduced the interpretation model curve for phage liquid culturing, which allows easy and quick analysis of bacterial and phage co-proliferation and growth of phage-resistant mutants (PRM) based on qualitative and partially quantitative evaluations. We assayed phage lytic activities both individually and in 14 different cocktails on planktonic bacterial cultures, including three resistotypes of P. aeruginosa (PAO1, PA14 and PA7) and seven K. pneumoniae strains of different capsular serotypes. Based on the results, the natural phage cocktails designed and tested in this study largely performed well and inhibited PRM growth either synergistically or in proto-cooperation. This study contributes to the knowledge of phage behavior in cocktails and the formulation of therapeutic phage preparations. The paper also provides a detailed description of the methods of working with phages.

Figures

Full text

1. Introduction

Developing control mechanisms to prevent the spread of antimicrobial resistance (AMR) is one of the greatest challenges of the modern world [1]. Each year, antibiotic-resistant bacteria cause more than 670,000 infections and 33,000 deaths [2]. Pseudomonas aeruginosa and Klebsiella pneumoniae are the pathogens most commonly associated with drug-resistant nosocomial infections. Carbapenem-resistant P. aeruginosa and K. pneumoniae carry resistance genes in a mobile genetic element that can be rapidly transferred between bacteria [3].

Therefore, there is a need to develop new treatments and approaches to control these bacteria. Bacteriophages, which have a narrow spectrum of activity, are considered to be very promising therapeutics in combination with antibiotics [4,5]. A phage cocktail expands the number of strains that the phages can infect and overcomes phage resistance that can occur when using single phages [1,6]. In recent years, successful in vitro and in vivo use of phage cocktails has been reported in the literature, including a variety of infections caused by P. aeruginosa, K. pneumoniae, E. coli, A. baumannii and M. tuberculosis [1,7,8,9,10,11]. It has often been shown that the phages are able to kill bacteria regardless of their Multidrug-resistant (MDR) phenotype [7]. These studies support the potential of phage cocktails in the control of MDR pathogens.

Fixed phage cocktails are likely to be the first bacteriophage therapeutics approved for widespread use in Western countries [4]. It is suggested that ready-to-use phage cocktails composed of a diverse genetic profile [7,12] be designed to support the improvement of host range and suppress the emergence of phage-resistant mutants (PRM). The host range of the phage defines the “depth and breadth” of the spectrum of activity of a phage cocktail [1,13]. Consequently, the optimal activity of phage cocktails could be predicted by considering host range overlap and could be used as screens to prevent PRM emergence and growth. Therefore, it is important to study phage host range, EOP (efficiency of plating) and lytic activity of phages in single and in cocktails in liquid to observe the mode of interplay of phages [1,10]. It is also very important to use a large panel of bacteria with different virulence factors, and MDRs are very important to design relevant cocktails to target other AMR bacterial strains to ensure their effectiveness against clinically significant pathogens. This was the primary goal of our study in the context of demonstrating whether naturally occurring phage groups (cocktails) have a broad spectrum of antimicrobial activity and to help differentiate the activity of individual phages from each other.

Although PRM growth is a major risk factor that must be considered and mitigated when planning the use of phage alone or with other antimicrobials to control bacterial infections, the emergence of PRMs could be beneficial in therapy, considering cases in which bacterial mutants with slow growth rates [14], minimal nutrient requirements and reduced antibiotic resistance are found. For example, resensitization to ceftazidime with evolved phage resistance was confirmed in the P. aeruginosa strain isolated from the fistula discharge [6]. Antibiotic resistance reduces bacterial virulence [6,14]. This is also an important consideration in favor of phage therapy.

This work aims to mimic the natural grouping of phages of interest and demonstrate the mode of their proliferation dynamics with bacteria: synergy, proto-cooperation, or antagonism. Moreover, we introduced the interpretation model curve for phage liquid culturing, which allows easy and quick analysis of bacterial and phage co-proliferation and growth of phage-resistant mutants (PRM) based on qualitative and partially quantitative evaluations. The data demonstrated the advantage of phage bi- and tri-cocktails composed of the different genera over single phages in controlling PRM growth in vitro, and we found that phages are better “trained” in natural river water than in urban/hospital sewage water. The approach of using a bacterial panel of relevant diversity to assess phage virulence with respect to antibiotic-resistant strains and PRM emergence was again shown to facilitate the evaluation and differentiation of the therapeutic potential of individual phages and phage cocktails. In addition, the paper gives a detailed description of methods for working with phages.

2. Results

2.1. Isolation of Phages

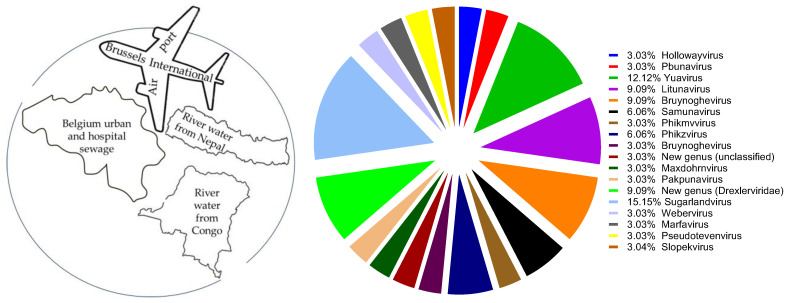

A total of 13 P. aeruginosa and 11 K. pneumoniae phages were newly isolated from urban (the international terminal of Brussels (Zaventem airport)) and hospital sewage and environmental waters (Figure 1 and Table 1 and Table 2). The bacterial matrix included 102 P. aeruginosa strains with different genetic backgrounds and 155 K. pneumoniae strains representing 36 Klebsiella capsular serotypes (Tables S1 and S2). In total, the newly isolated phages belonged to 18 different genera, according to genome analysis.

2.2. Phage Plaque Purification and Morphology Characterization

Plaque purification of the newly isolated phages was performed on their isolating host strains (PAO1K, CN573 and PAV237 for P. aeruginosa and LabMCT0682, ATCC 27736, NCTC 13438 and SB4385 for K. pneumoniae), which is important to maintain a standardized manner of morphological differentiation of characteristics of plaques in each round of passages and to minimize phage mutation as much as possible. Phage plaque diameters in soft (0.7%) agar ranged from 1 to 7 mm. The detailed description of the phage plaque morphology, genome size, bacterial strains of isolation and their reference numbers are given in Table 1 and Table 2.

One P. aeruginosa phage (Atpa007) and four K. pneumoniae phages (Atkp002, Atkp003, Atkp011 and Atkp013) were excluded from further experiments as they did not give reproducible results after the plaque purification steps.

2.3. Phage Host Range Study

Plaque-purified phages were propagated using the web pattern plate method to generate the phage stock lysates for downstream experiments. Host range and efficiency of plating (EOP) were determined in triplicate using a large collection of P. aeruginosa (n = 102) and K. pneumoniae (n = 155) strains carrying different virulence factors and phage binding receptors. Figure 2 shows that the host coverage of P. aeruginosa is in the range of 12–87% (including three different resistotypes PAO1, PA14 and MDR PA7) [15,16,17,18] and K. pneumonia is in the range of 1.2–70.03% (including 36 Klebsiella capsular serotypes). P. aeruginosa phage Atpa014 and K. pneumoniae phage Atkp016 showed the highest host range.

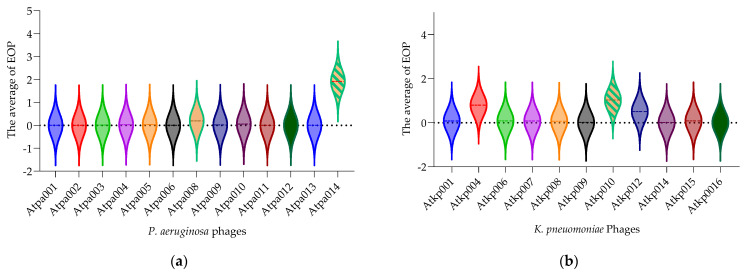

Figure 3 (each violon plot) shows the average of each phage EOP (efficiency of plating) on the tested bacterial panel (P. aeruginosa (n = 102) and K. pneumoniae (n = 155)). The EOP value is in the range of 0.0005–1.9 for P. aeruginosa and 0.01–1.0 for K. pneumoniae phages. Figure 3 shows only the phages isolated in this study. The relevant EOP results (the ratio of the titer (cfu/mL) produced on a test bacterial strain to the phage titer of a propagating bacterial host strain) for all P. aeruginosa and K. pneumoniae phages, separately, are given in the Supplementary Materials (Figures S1–S25).

2.4. Appelmans Assay

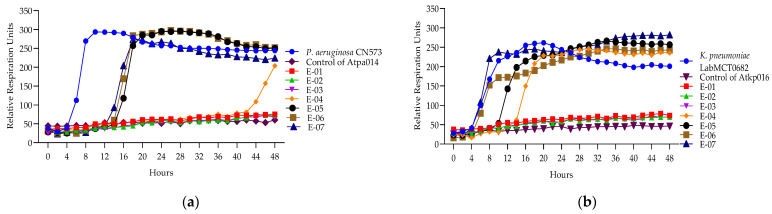

The Appelmans assay was performed in triplicate on the 16 P. aeruginosa 11 K. pneumoniae phages (Figures S26–S50). Figure 4 shows only the proliferation of P. aeruginosa phage Atpa014 proliferation on strain CN573 and phage K. pneumoniae phage Atkp016 on strain LabMCT0682, as these phages almost repeat the “classic picture” of Appelmans’ dilutions (clear–less; clear–turbid). Most of the phages had a clearing effect (cleared well content with no colony-forming cells) at phage −bacteria (P:B) ratios of 10, 100 and 1000. However, clearing does not mean that the phage has reached its maximum capacity in that particular case, and conversely, turbidity does not mean that the phage has not been replicated. Therefore, all test samples were subjected to bacterial and phage enumeration tests after 24 h of incubation in the OmniLog system. The results confirmed that the bacterial culture sampled in clear wells with up to 60 rru (relative respiration units) was not reproducible and showed that most of the phages again gave the highest titers at P:B of 100 and 1000 (dilutions E-02 and E-03) (Figure 5).

2.5. Lytic Activity of Phages and Phage Cocktails

2.5.1. Design of Phage Cocktails

The lytic activity study included single phages and phage cocktails. Seven different cocktails were assembled for both P. aeruginosa and K. pneumoniae phages.

The cocktails were largely designed based on the phage isolation sources (Table 3 and Table 4) to mimic the natural grouping of the phages. However, due to the loss of some phages that were considered to be temperate ones, several cocktails were assembled (in bi- or tri-cocktails where possible) according to the phages’ EOPs, Appelmans results and tracking a diversity of phage receptors. Based on the Appelmans results, a P:B ratio of 100 was selected from two (1:100, 1:1000) to be used in lytic activity studies for all phages in the interest of standardization. The cocktails were developed by mixing the same volume and pfu/mL of each phage component, and the total pfu/mL was considered in the activity test to achieve a P:B ratio of 100.

2.5.2. Selection of Bacterial Strains for Testing the Activity of Single Phages and Cocktails

The evaluation of the lytic activity of single phages and cocktails was performed on a total of 16 strains; in particular, 8 P. aeruginosa strains with different virulence (PAO1K, CN573, PAV237, A11, Is573 and Is580, including three resistotypes of PAO1, PA14 and PA7) and seven K. pneumoniae strains (LabMCT0682, atcc 2736, nctc 13438, 10394, VPKP389, SB4385, 70165) of the different capsular serotypes, as we aimed to evaluate the extent of lytic activity of the cocktails in terms of host range to address MDR/virulent strains and to differentiate them from each other. The virulence characteristics/capsular types of these strains and their lytic activity are shown in Table 5 and Table 6.

2.5.3. Developing a Model to Interpret Bacterial Proliferation and Phage Activity Curves

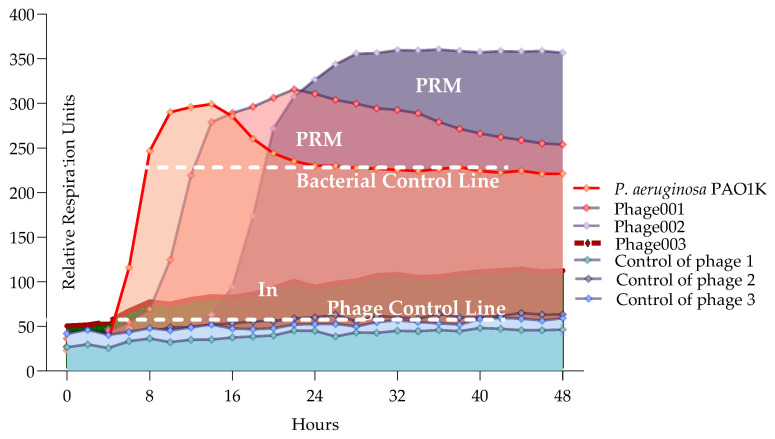

Here, we developed the interpretation model curve for PLC (phage liquid culturing) experiments (Figure 6). OmniLog Data Analysis Software (v1.7) was used for data collection and visualization of kinetic assay results. The interpretation of the generated bacterial proliferation curves was performed as follows (Figure 6): 1. A relative respiration unit (rru) in the range of 0–60 was considered to be as indicative of the phage clearing (CL) effect (absolute lysis) based on the experimental results averaged for phage controls. 2. Bacteria–phage growth curve that did not have the same shape as the control bacterial growth curve and resulted in a higher rru was considered as phage-resistant mutant (PRM) growth. 3. Bacterial proliferation curve with shorter exponential phase and reduced and constant rru maintained up to 48 h compared to bacterial control was evaluated as an indication of bacterial inhibition (In) effect by phage.

The type of interaction between phage components in a cocktail, where the combination of phages produces a more potent effect over the course of the experiment than the individual phages, was evaluated as synergistic activity.

The type of interaction between phage components in a cocktail, where the combination of phages produces the same potent effect as the individual phages, and they do not need to interact with each other to enhance the effect over the course of the experiment, was evaluated as proto-cooperation.

The type of interaction between phage components in a cocktail, where the combination of phages produces a less potent effect than the individual phages over the course of the experiment, was evaluated as antagonism.

2.5.4. Lytic Activity of Individual Phages and Phage Cocktails

The results of phage and cocktail lytic activities are shown in Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, Figure 13 and Figure 14 and Figures S51–S57. The evaluation of the types of interactions of the phage components in the cocktails is given in Table 5 and Table 6. All PLC experiments were performed in at least triplicate.

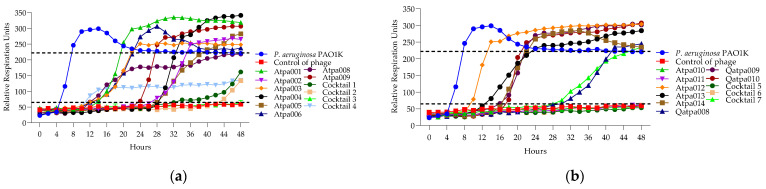

Looking at Figure 7, in the case of cocktails 1, 2, 3 and 6 on P. aeruginosa PAO1K (used mainly as a propagation strain), we see the prolongation of the clearing (absolute lysis) time up to 32 h, 42 h, 48 h, respectively, and the relatively reduced rru at the endpoint when comparing the individual phage components, which mostly show PRM (phage-resistant mutant) growth. For example, in the case of cocktail 1, the clearing effect is maintained for 32 h (in the case of individual phages, it is for 12–24 h), and at the endpoint of 48 h the rru is reduced to 161 (in the case of individual phages, rru is 248, 265, 319, respectively). Accordingly, the interaction between individual phages in cocktails of P. aeruginosa (1, 2, 3 and 6) on PAO1K was evaluated as synergistic (Table 5). Cocktails 5 and 7 showed the same clearing time for 48 h and 30 h, respectively, as all or at least one of the individual phage components. For example, the clearing time (30 h) of cocktail 7 and a phage component of Qapta008 is the same, but the rru is reduced in the case of the cocktail (Figure 7). Based on this, the interaction between the individual phages in cocktails 5 and 7 was evaluated as a proto-cooperation (Table 5). Cocktail 4 showed inhibition of PAO1K growth for 48 h (constant reduction in rru to 135 compared to the control curve rru of 221). In this case, however, the interaction between the phage components was evaluated as antagonism since the individual phage components (Atpa008 and Atpa009) showed a longer clearing effect (for 10 h and 24 h, respectively) compared to cocktail 4.conclusion, we propose the following

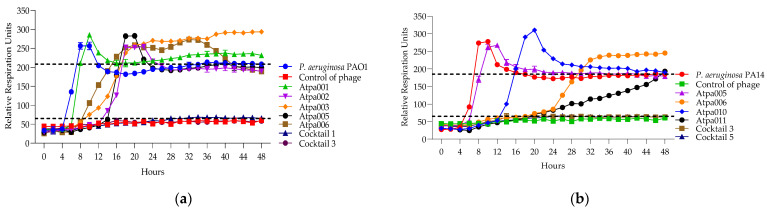

Figure 8 shows that only cocktails 1, 3 and 3, 5 are active on PAO1 and PA14 strains, developing synergistic interaction. And in the case of the individual phages of Atpa003 and Atpa006, PRMs are grown.

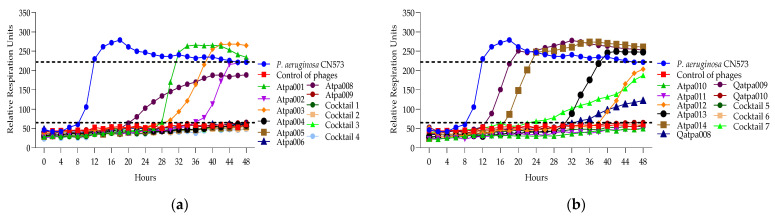

In Figure 9, we can see that cocktails 1 and 6 are active on P. aeruginosa CN573 for a longer time of 48 h than the individual phage components (synergy), while cocktails 2–5 show proto-cooperation as there is no improved effect after the experimental time of 48 h compared to the individual phage components or at least one of them. The individual phage proliferation curves of Atpa003, Atpa013 and Qatpa009 show the growth of PRMs.

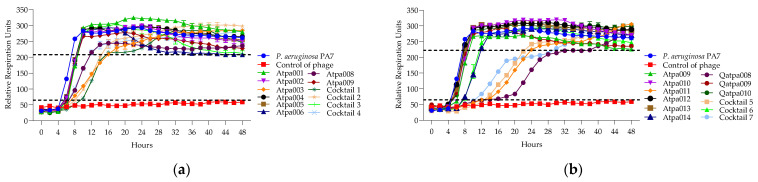

In Figure 10, we can see that cocktail 1 shows synergistic activity; cocktails 5 and 6—proto-cooperation; and cocktails 2, 4 and 7—antagonistic activity on P. aeruginosa strain PA7. The individual phage proliferation curves of Atpa003, Atpa013, Atpa010, Atpa011 (after 32 h) and Qatpa008 (after 40 h) show the growth of PRMs.

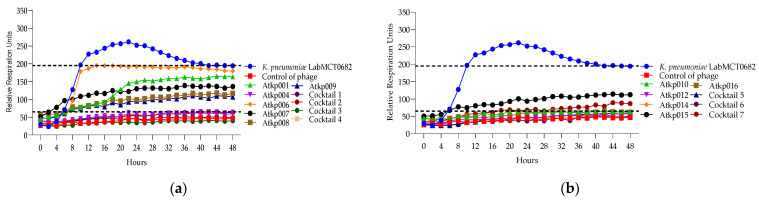

In Figure 11, we can see that K. pneumoniae phage Atkp004, Atkp012 and Atkp016 give a clearing effect, and the rest of Atkp001, Atkp006, Atkp007, Atkp008, Atkp009, Atkp010 and Atkp015 phages give inhibitory effect individually, but in all cocktails, they develop synergy (cocktails 1, 2 and 4) and proto-cooperation (cocktails 3, 5, 6 and 7) (Table 6).

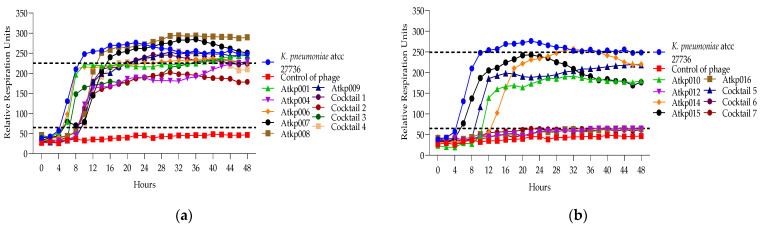

In Figure 12, we can see that K. pneumoniae phage Atkp001 and Atkp009 do not individually give clearing effects, but in cocktail 2, they show clearing not for a long time but for 8 h; therefore, it was evaluated as synergistic activity. Cocktails 6 and 7 show proto-cooperation.

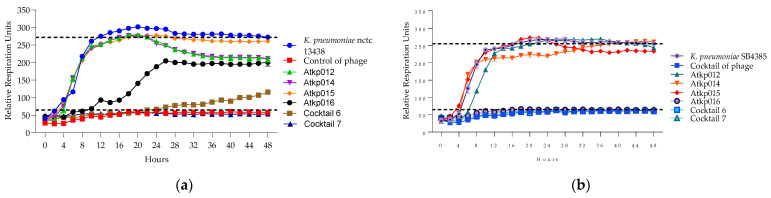

In Figure 13, we see a clear picture of the synergy of cocktails 6 and 7 on the different strains of K. pneumoniae nctc 13438 and SB4385 as they prolong the clearing effect for 48 h compared to the single phage component of Atkp016, where the clearing effect lasts for 16 h.

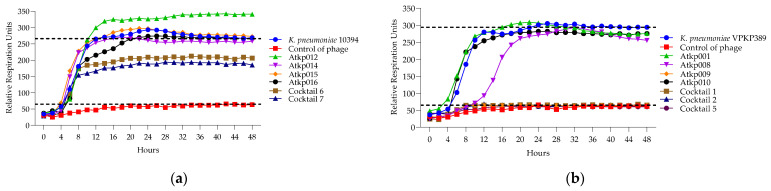

In Figure 14a, we see that the single phage components Atkp012, Atkp014, Atkp015 and Atkp016 do not give any clearing effect on K. pneumoniae strain 10394, but in cocktails 6 and 7, they show an inhibitory effect with reduced rru of 206 and 185, respectively, compared to the control bacterial rru of 265. In Figure 14b, we see a clear synergistic activity of cocktail 1 and 2 on K. pneumoniae strain VKPKP389, as cocktail 1 prolongs the clearing effect from 12 h to 48 h, and cocktail 2 gives clearing effect for 28 h, while the component phage Atkp001 does not show any clearing and Atkp009 gives inhibitory effect for 48 h.

2.5.5. Bacteria and Phage Enumeration

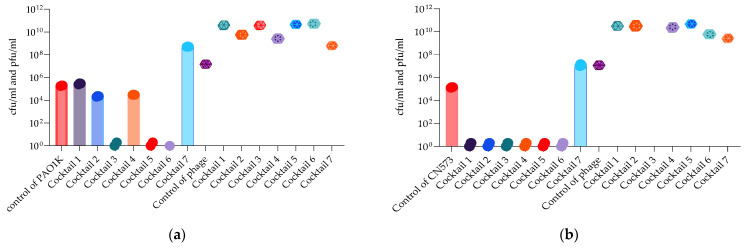

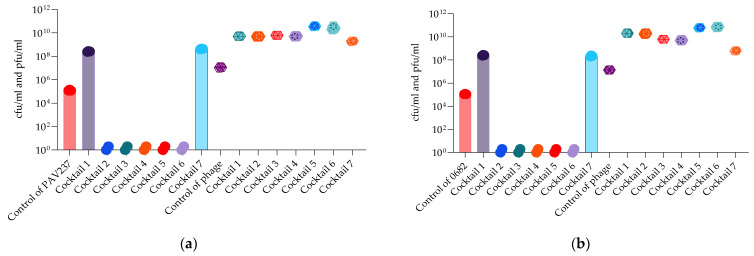

Bacterial and phage enumeration assays were performed on the phage propagating host strains after 48 h of incubation (endpoint) in the OmniLog system. The purpose of this study was to confirm that phage and cocktail activity in the liquid (OmniLog System) was correlated with the results obtained on agar (MD/SP DAL method). Figure 15 and Figure 16 show that three P. aeruginosa phage cocktails (3, 5, 6) lyse PAO1K, while almost all cocktails (except 7) lyse CN573 and five cocktails (2, 3, 4, 5, 6) lyse PAV237. For K. pneumoniae, five cocktails (2, 3, 4, 5, 6) lyse LabMCT0682.

3. Discussion

In this study, we isolated 13 P. aeruginosa and 11 K. pneumoniae phages and evaluated the lytic activity of the natural grouping of P. aeruginosa and K. pneumoniae phages on planktonic bacterial cultures. Collectively, the results show that phages isolated from the same environmental source (urban and hospital sewage or rivers) can be quite different. Based on genome sequence analysis, 6/7 phage cocktails in P. aeruginosa were composed of phages from different genera, while 3/7 phage cocktails in K. pneumoniae were composed of phages from different genera (Figure 1, Table 1). This mixed bouquet of phages is the result of our isolation approach using large panels of host bacteria with different genetic backgrounds and geographical origins.

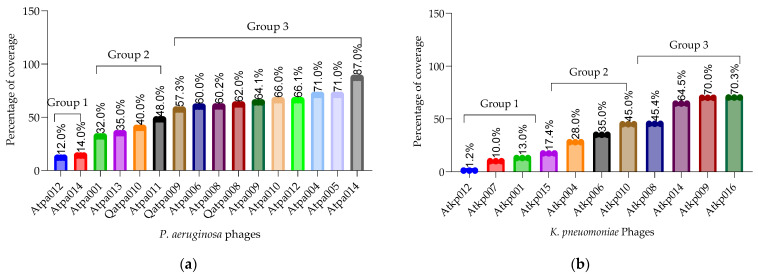

According to the results of the EOP, the phages of both species could be divided into three groups based on the percentage of the host coverage: (1) 10–17%, (2) 28–48% and (3) 60–87% (Figure 2). In general, P. aeruginosa phages have a slightly broader host range than K. pneumoniae phages. However, on average, K. pneumoniae phages have a higher EOP (one log less reduction in the test bacterial strain) than P. aeruginosa phages. It is important to emphasize that the phage isolated and studied here were not trained or adapted to the different strains to extend the host range and EOP, as we wanted to preserve them as wild. However, P. aeruginosa phages Atpa014 and Qatpa008 and K. pneumoniae phage Atkp010 have relatively high average EOPs of 1.9, 7.8 and 1.02, respectively. But if we compare them with the lytic activity in cocktails, we do not see the advantage because phage cocktails with lower average EOP show better performance in PLC experiments.

The interpretation model developed in this study (Figure 6) allows for easy and quick analysis of bacterial and phage co-proliferation based on qualitative (changes in the shape of different phases of the bacterial growth curve) and partially quantitative (changes in relative respiration units (rru)) evaluations. Specifically, a bacterial culture in a favorable and stable condition typically goes through four phases (lag, exponential, stationary and death) and produces a constant curve shape, whereas a bacterial culture with phage(s) either repeats the same growth curve shape or differs from it. Using the OmniLog system, which generates high-throughput kinetic readouts based on the metabolic activity of bacterial cells, we were able to directly compare these differences and assess how the phages (at different P:B ratios and in different combinations) affect bacterial growth and classify the bacteria–phage relationship as synergistic, proto-cooperation or antagonistic.

Phage virulence, the emergence of PRMs and their correlation with bacterial virulence and antibiotic resistance are of great importance for the therapeutic use of phages. Therefore, we used a very diverse bacterial panel (including three different resistotypes of P. aeruginosa PAO1, PA14 and MDR PA7: PAO1 and PA14 are characterized by possessing the T3SS (type III secretion system) and the corresponding effector toxins (exoS and exoU, respectively), whereas PA7 uses the TPS (two-partner secretion system), secreting the ExlA exolysin to the damaged surrounding tissue cells [19]; the exoU genes are correlated with resistance to aminoglycosides and fluoroquinolones [20,21]) and six K. pneumoniae strains with different capsular serotypes of K1, K2, K27, K30, K62, K81 and one strain ST258 producing the KPC-3 carbapenemase (nctc 13438).

Overall, our interpretation of the PLC results (Table 5 and Table 6) shows that both P. aeruginosa and K. pneumoniae phage cocktails have a greater lytic effect over 48 h than their individual phage components. They showed either synergistic activity when the combination of phages gives a higher potent effect expressed in a prolonged clearing (absolute lysis) over 48 h, or proto-cooperation when the combination of phages gives the same potent effect as in single mode, and they do not need to interact with each other to improve clearance over 48 h. The propagating strains of P. aeruginosa (PAO1K, CN573 and PAV237) were lysed by 6/7 cocktails, while the propagating strain of K. pneumoniae (LabMCT0682) was lysed by all 7 cocktails. For non-propagating strains, mostly two cocktails of each species showed lytic activity for 48 h, with some exceptions; P. aeruginosa PA7 was cleared by three cocktails (1, 5, 6), but for 10 h, 14 h and 8 h, respectively; K. pneumoniae strain 10394 of capsular serotype 62 was cleared by cocktail 4 for 10 h; strain 70165 of capsular serotype 2 was not cleared by any phage/cocktails, only cocktails 6 and 7 showed the inhibitory effect, and it was evaluated as synergy as rru in the case for both cocktails were reduced by 48 h compared to the component phages.

We observed that individual P. aeruginosa phages induced more PRM (phage-resistant mutant) growth than K. pneumoniae (Table 5 and Table 6), and the reason for this may be that P. aeruginosa generally grows faster [22] than K. pneumoniae. This assumption is supported by the fact that all phages show PRM growth on the PAO1K propagating strain, i.e., they multiply faster on the adapted strain, and consequently, the PRM emergence rate is increased. In addition to that, we identified several antagonistic activities only in the case of P. aeruginosa cocktails, in particular, cocktail 4 on PAO1K; cocktail 7 on CN573 and PAV237; and cocktails 2, 4 and 7 on PA7. In all cases, the antagonism is accompanied by PRM growth. Based on this, we can assume that antagonism is somehow related to PRM growth, as we did not observe it in cases of K. pneumoniae cocktails.

Using the bacterial panels of bacterial strains with the different virulence factors, we can conclude that P. aeruginosa and K. pneumoniae cocktails have overall very diverse infection patterns, but K. pneumoniae cocktails show a less diverse lytic effect pattern compared to P. aeruginosa (Table 5 and Table 6).

Furthermore, no correlation was observed between the virulence factor or capsular serotype of the bacterial strains and the activity of the cocktails. For example, P. aeruginosa strains PAO1 (O5-serotype, T3SS, ExoS, ExoY), PA14 (O10-serotype, T3SS, ExoU, ExoY) and Is573 (O11-serotype, ExoU) with the different virulence factors are lysed by the different phage cocktails of 1, 5 and cocktails 6 and 7, respectively. Strain PAO1 [23] is lysed by two cocktails of 1 and 3, while PAO1K [24] is lysed by all seven cocktails (Table 5). Four out of seven K. pneumoniae strains belonging to the different capsular serotypes of 30, KPC-3, K27 and K2 are inactivated for 48 h by the same cocktails of 6 and 7 (Table 6). This fact allows us to conclude that the cocktails have broad lytic activity in terms of bacterial virulence.

Some K. pneumoniae cocktails in PLC showed the bacterial inhibition effect; this occurs when the exponential phase of the bacteria–phage growth curve plot is shorter, and the rru is constant and reduced compared to those for the bacterium alone. We did not consider this phenomenon as PRM growth, which would result in a more skewed shape of the exponential slope, resulting in a delayed plateau due to the slow growth of PRM [14]. There is no correlation between the capsule type and this inhibitory effect, e.g., strains belonging to capsular serotypes K30, K62 and K2 are inhibited by cocktails 2, 6 and 7 and 2, 3 and 5, respectively (Table 6). In these cases, the inhibitory effect was evaluated as a synergistic activity, as the cocktails resulted in a reduction in rru at the endpoint (48 h) compared to the individual components (Table 6). Certainly, the inhibiting effect cannot be considered a perfect option like clearing, but it still results in a reduction in infection units. Moreover, considering that this type of event occurs in parallel with the PRM growth in vivo treatment process, which triggers resensitization [6,14], it could eventually have a potential clinical effect. In the case of P. aeruginosa, cocktail 4 showed an inhibitory effect on the propagating host strain of PAO1K. However, the inhibition was evaluated as an antagonistic activity as the individual phage components resulted in a clearing effect for quite some time; e.g., the phage Atpa009 alone resulted in a clearing effect for 20 h, in contrast to cocktail 4, which resulted in a constant inhibitory effect for 48 h (Table 5).

Finally, we found “the interpretation model curve for phage liquid culturing” developed here to be very useful and timeless in analyzing/evaluating bacterial and phage co-proliferation and growth of phage-resistant mutants PRM in liquid. The most promising cocktails were P. aeruginosa cocktails 3 (urban source) and 5 (river water from Nepal) and K. pneumoniae cocktails 6 (river water from Nepal and Congo) and 7 (river water from Congo) (Table 5 and Table 6). All of these cocktails are bi-cocktails composed of the different phage genera, and three of them were isolated from rivers, suggesting that phages are better ”trained” in natural river water than in urban/hospital sewage water. In addition, the use of a relevant bacterial panel to assess in vitro or in vivo phage virulence and PRM emergence facilitates the evaluation and differentiation of the therapeutic potential of individual phages and phage cocktails.

In the future, we plan to perform deep genomic analyses of the newly isolated phages presented in this study to better characterize each phage in terms of therapeutic safety issues and to better understand phage–bacteria interaction mechanisms during their co-proliferation, particularly the inhibitory effect by phage, antagonism and their correlation with PRM emergence. Furthermore, our goal is to test the selected phages and relevant MDR strains with the different virulence factors in vivo using a Galleria mellonella larvae infection model, to interpret and evaluate all in vitro and in vivo data and to predict/translate them to support the therapeutic use of the tested phages.

In conclusion, we propose the following:

• The natural groups (cocktails) of phages isolated from the same environmental source (urban and hospital sewage or rivers) are quite different. For P. aeruginosa, 6/7 phage cocktails were composed of phages belonging to different genera, while for K. pneumoniae, this was the case for 3/7 phage cocktails.

• The natural groups (cocktails) of phages have relatively broad host range, as at least two of them showed in vitro clearing effect on P. aeruginosa strains of PAO1K, CN573, PAV237, PAO1, A11, Is573 and Is580 with the different virulence factors, including three resistotypes of PAO1, PA7 and PA14 and on K. pneumoniae strains with five different capsular serotypes and one with KPC-3.

• The natural groups (cocktails) of phages largely performed well, inhibiting PRM growth either in synergy or in proto-cooperation. Each cocktail showed a killing effect against at least two non-propagating strains.

• —P. aeruginosa phages largely suppress in vitro PRM (phage-resistant mutant) growth, either synergistically or in proto-cooperation.

• —K. pneumoniae phages overcome the inhibitory effect of single phages, resulting in synergy or proto-cooperation.

This study adds to the existing knowledge of phage behavior in cocktails and the formulation of therapeutic phage preparations. In order to evaluate the therapeutic potential of phages and properly address the current need, experimental evidence and scientific practices need to be used, translated in vivo and communicated.

4. Materials and Methods

4.1. Bacterial growth

4.1.1. Bacterial Growth Media

For P. aeruginosa and K. pneumoniae bacterial and phage culture, Lysogeny Broth (LB) (Lennox, L3022-1KG; Sigma-Aldrich, Burlington, MA, USA) and Tryptic Soy Broth (TSB) No. 2 (Millipore, Molsheim, France, 51228-500G-F) were used, respectively, with or without the addition of bacteriological agar (VWR Chemicals, Suwanee, GA, USA, # 9002-18-0).

4.1.2. Bacterial Growth Methods and Conditions

Bacterial stocks were maintained in TSB broth with 15% glycerol at −80 °C. Bacterial cultures were routinely prepared on LB or TSB agar and incubated overnight at 32 °C. Bacterial suspensions were prepared in DPBS (Lonza™ BE17-512F, Walkersville, MD, USA) and diluted to an optical density (OD600, PerkinElmer Lambda 12 UV/VIS spectrometer, PerkinElmer, Macquarie Park, Australia) corresponding to the desired colony forming units cfu/mL (colony forming unit). For high-throughput screening, bacterial strains were cultured in 96-microtiter plates with LB or TSB, and OD was measured using a Spectra Thermo microplate reader (Tecan A-5082, Tecan, Grödig, Austria).

4.1.3. Biological Materials

In total, 102 P. aeruginosa and 155 K. pneumoniae strains were used in this work. P. aeruginosa strains originated from the bacterial strain collection of the Laboratory for Molecular and Cellular Technology (LabMCT) of the Queen Astrid Military Hospital (Brussels, Belgium); K. pneumoniae strains from LabMCT, the laboratory of Gene Technology of KU Leuven (Heverlee, Belgium); the Fundamental and Applied Research for Animals & Health unit (FARAH, Liège, Belgium); the Faculty of Veterinary Medicine of Liege (Liège, Belgium); the Universitätsklinikum Jena (Jena, Germany); and the University of Jyväskylä (Jyväskylä, Finland). A detailed list of bacterial strains is provided in the Supplementary Materials (Tables S3 and S4). P. aeruginosa strains PAO1K (Ref.: ATCC 15692) [22], CN573 (Eliava IBMV collection), and PAV237 [25] and K. pneumoniae strains LabMCT0682, ATCC 27736, NCTC 13438, and SB4385 (Liege) were used as phage propagation hosts. P. aeruginosa strains PAO1 (Ref.: #16444); PA14 (Ref.: #8365); PA7 (Ref.: #6393), Is573; and A11, Is580 (all from LabMCT) and K. pneumoniae strains 10394 (Jena, Germany), 70165 (Jyväskylä, Finland) and VPKP389 (Jyväskylä, Finland) were used for phage lytic activity evaluation tests.

The phages used for P. aeruginosa were Atpa001, Atpa002, Atpa003, Atpa004, Atpa005, Atpa006, Atpa008, Atpa009, Atpa010, Atpa011, Atpa012, Atpa013, Atpa014. For K. pneumoniae, phages Atkp001, Atkp004, Atkp006, Atkp007, Atkp008, Atkp009, Atkp010, Atkp012, Atkp014, Atkp015, Atkp016 were used. All these phages were isolated for this study. P. aeruginosa phages Qatpa008, Qatpa009 and Qatpa010 were also included, isolated by the military hospital as part of the Inteliphages (BioWin) project.

4.2. Bacterial Enumeration (cfu) and Adjustment to OD

Bacterial enumeration was performed according to the standard procedure [26] with the following modifications: 10-fold se./rial dilutions of the bacterial suspension were made in a 96-microtiter plate with DPBS (180 µL + of 20 µL) diluted to 10^−7^. The OD was first measured using a microplate reader. These dilutions (20 µL) were pipetted with a multichannel pipette (4 drops in a row) on the solid agar surface across the column of the plate grid (3 + 3 columns on a square Petri dish). Three replicates were made for each test bacterium. Plates were incubated upside down at 32 °C for 18 h. The average number of individual colonies for different dilutions carried out in triplicate was calculated to obtain cfu/mL.

4.3. Phage Isolation

The phage enrichment (PE) method was used for new phage isolations, as previously described [26].

4.4. Phage Detection—Preliminary Test

The direct spot test on bacterial streaks (spot on streak) and the direct spot test on bacterial spots (spot on spot) were used to detect new phages in the lysates, as was previously described [18].

4.5. Phage Activity Detection—Phage Plaque Formation and Enumeration

The newly isolated phages were studied using the “Multiple Dilutions of phage(s) on a Single Plate (MD/SP)” technique, as previously described [27]. Briefly, ten-fold serial dilutions of phage lysates were made in 96-well microplates up to a dilution factor of 10^−8^. Three hundred microliters of bacterial suspensions with an OD600 of 0.3 (P. aeruginosa) or 0.2 (K. pneumoniae), corresponding to 10^8^ cfu/mL, were added to 8 mL melted (46 °C) soft agar (0.7%) in a 15 mL tube, and the mixture was spread on solid agar (1.5%) pre-prepared on square Petri dishes (Greiner, Noida, India, #688161). After drying (in a laminar flow), 2 µL of each phage dilution was spotted onto a soft agar surface across the column of the plate grid (six columns on a square Petri dish) using a multichannel pipette. Three replicates of each test phage were made. After all spots were completely absorbed into the top layer of agar (in a Biosafety Cabinet (BSC)), the test plates were incubated upside down at 32 °C for 18 h. The average number of plaques (plaque forming units, pfu) for the different dilutions and replicates was calculated and multiplied by 500 to obtain the number of plaques in 1 mL. This number was then multiplied by the reciprocal of the dilution to obtain the phage titer in pfu/mL.

4.6. Confirmatory Test for Phage Plaque Formation and Enumeration

For phage titer (cfu/mL) determination, the single dilutions on multiple plates (SD/MP) method was used [27]. Briefly, 10- or 100-fold serial dilutions of phage lysates were made in 96-well microplates up to a 10–10 dilution factor. One hundred microliters of bacterial suspensions with an OD600 of 0.3 (P. aeruginosa) or 0.2 (K. pneumoniae), corresponding to 10^+08^ cfu/mL, were added to a 5 mL tube containing 100 µL of a phage dilution. After 5 min (adsorption time), 3 mL of melted (46 °C) soft agar (0.7%) was added to the phage–bacteria mixture, and the tube contents were spread onto a solid agar (1.5%) plate (Greiner, #633181). One plate was prepared per phage dilution. After the top agar layer had solidified, the test plates were incubated upside down at 32 °C for 18 h. The average number of plaques for the different dilutions and replicates was calculated and multiplied by 10 to obtain the number of plaques in 1 mL. This number was then multiplied by the reciprocal of the dilution to obtain the phage titer in pfu/mL.

4.7. Phage Host Range and Efficiency of Plating (EOP)

EOP was studied using the MD/SP DAL method in triplicate. The average titer (pfu/mL) of a phage given on the test bacterial strain was compared to the average titer given on the propagating host bacterial strain. The average of EOP for each phage on a panel of different bacterial strains was then calculated.

4.8. Phage Plaque Purification

To differentiate individual plaques, a combination of three methods was used at different stages of purification. First, 1–2 rounds of the MD/SP method were used to pick up individual phage plaques. Then, the T-streaking technique [27] was used for individual plaque passaging (3 rounds). Briefly, 150 µL of bacterial suspension (10^+08^ cfu/mL) was mixed with 3 mL of melted (46 °C) soft agar (0.7%) and spread on a solid agar (1.5%) plate. After drying in a BSC for 15 min, the phage lysate was spotted in one corner of an upper agar layer, and the phage inoculum was then streaked sequentially across the upper agar surface in three segments using a sterile cotton swab. This reduced the number of phages in each segment, resulting in the formation of individual phage plaques that were separated and distanced from each other. At the final stage of plaque purification, the SD/MP method (5 rounds) was used as a confirmatory/validation test.

4.9. Preparation of High Concentrated Phage Using Web Pattern Plates [27,28]

First, the phage/bacteria ratio that produces a “web-pattern agar top” was determined for each phage using the MD/SP method. Typically, plates with low phage dilutions display a “clear pattern agar top”, indicating that all inoculated bacteria have been readily lysed and that, as a result, the maximum phage amplification capacity was not used up. In contrast, plates with high phage dilutions typically display a “spotted pattern agar top” with countable phage plaques, indicating that the phage amplification rate could not keep up with the bacterial growth rate. In between the last “clear pattern agar top” plate and the “spotted pattern agar top” plate is typically the optimal phage dilution (and phage/bacteria ratio), producing a “web pattern agar plate”, indicating that the phages have reached their maximum propagation efficiency.

After identifying the web pattern plate for each phage, a number of copies were made (depending on need and the plate size used (94 × 16 mm or 120 × 120 mm). The freshly made solid agar plates (solidified but not dried out, which is essential) were used to keep the plate contents moist during incubation and also easy to scrape off. First, the “web pattern mixture” was prepared based on the previously determined phage–bacteria ratio: 100 µL or 250 µL (depending on the plate size) of a phage suspension (corresponding to the “web pattern dilution”) was added to 100 µL or 250 µL of 10^+08^ cfu/mL bacteria and up to 3 mL or 8 mL of overlay agar (0.7%). The mixture was then shaken manually and spread over a solid agar surface. Once the top layer of agar had solidified, the plates were incubated at 32 °C for 18 h. The plates were not inverted to allow water to condense on the top layer of agar. After incubation, the top layer of agar was scraped from each plate separately using disposable L-shaped scrapers (VWR, 612-1561) and collected in 50 mL centrifuge tubes (Greiner 227261-N). These tubes were then centrifuged at 6000× g for 20 min and then filtered through 0.22 µm membrane filters (Millex^®^, SLGPR33RB, Sigma-Aldrich, Burlington, MA, USA). The resulting phage lysates were partially purified by ultracentrifugation (T-647.5 Fixed Angle Rotor, Thermo Scientific, Norristown, PA, USA) at 25,500 rpm (K factor 418). After centrifugation, the supernatants were discarded, and the pellets were resuspended in 3 mL DPBS (Lonza™ BE17-512F) and stored at 4 °C until further use.

4.10. Phage DNA Isolation

The Invitrogen™ PureLink™ Viral RNA/DNA Mini Kit (REF: 12280-050, Fisher Scientific, Waltham, MA, USA) was used for phage DNA isolation, according to the supplier’s protocol. Samples were first pre-treated with DNase I and RNase to remove the residual DNA and RNA from the bacterial host cells [29]. Specifically, 450 µL of phage lysate was mixed with 50 µL DNase I 10 × buffer, 8 µL DNase I (1 U/µL, Thermo Scientific™, EN0525) and 4 µL RNase A (10 mg/mL, Thermo Scientific™, EN0531) and incubated at 37° C for 40 min. Then, 20 µL of 50 mM EDTA (Thermo Scientific™, EN0525) was added to neutralize DNase I and RNase A.

4.11. Phage Genome Sequencing

Phage genome sequencing was performed on an Illumina MiniSeq machine (Illumina, San Diego, CA, USA) using a paired-end approach (2 × 150 bp), as described in Eskenazi et al., 2022. Quality of the sequencing and trimming prior to assembly were performed as described in [30]. For assembly, the genomes were constructed using Unicycler (v0.4.8). Assemblies were inspected using Bandage (v0.8.1).

4.12. Phage Liquid Culturing (PLC)

4.12.1. Appelmans’ Method

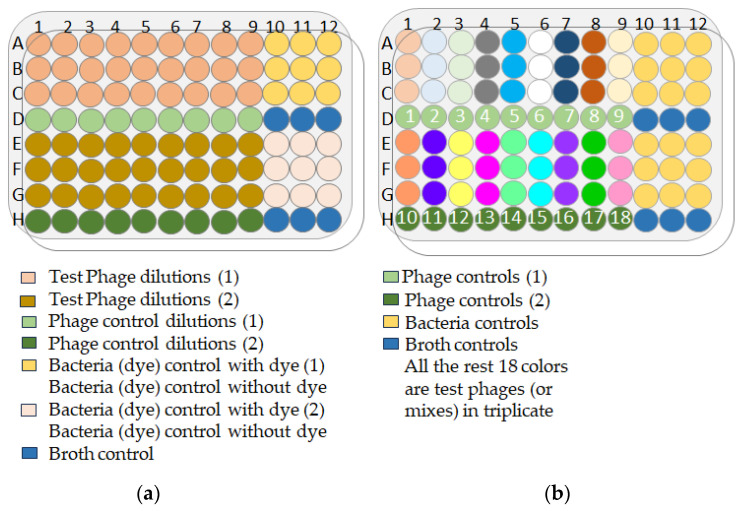

Ninety-six-well microtiter plates were prepared as follows: 180 µL of LB was added to each test well. Ten-fold serial dilutions of phage samples were made to a dilution factor of 10-9. Twenty microliters of bacterial suspension with an OD600 of 0.003 (P. aeruginosa) or 0.002 (K. pneumoniae), corresponding to 2.10 + 6 cfu/mL, was added to each test well (except the “phage only” and “LB only” control wells). Finally, 100% v/v Redox Dye Mix H (100X) (Biolog #74228) was added to all wells at a final concentration of 1%. The plate layout (Figure 17a) included “phage only”, “bacteria only” and “LB only” controls, and all experiments and controls were performed in triplicate wells. Test plates were immediately incubated in the OmniLog system (Biolog, Hayward, CA, USA) at 37 °C for 24 h or 48 h. A possible reduction (causing a color change) in the tetrazolium dye due to bacterial respiration was monitored and recorded every 15 min by the OmniLog system. Bacterial growth is expressed in relative respiration units (rru).

4.12.2. Phage (or Mixture) Lytic Activity Evaluation Using Phage Liquid Culturing (PLC)

The optimal phage–bacteria ratio was determined according to the Appelmans protocol. A 96-well microtiter plate was used for one bacterial strain at a particular dilution. The plates were prepared as follows (Figure 17b): 180 µL of bacterial suspension in LB was added to each well (except the “phage only” and “LB only” wells). Then, 20 µL of phage (or phage mixture) suspension at a given dilution was added to each test and “phage only” control well. The remainder of the protocol was identical to that described in the Appelmans method protocol (Section 4.12.1).

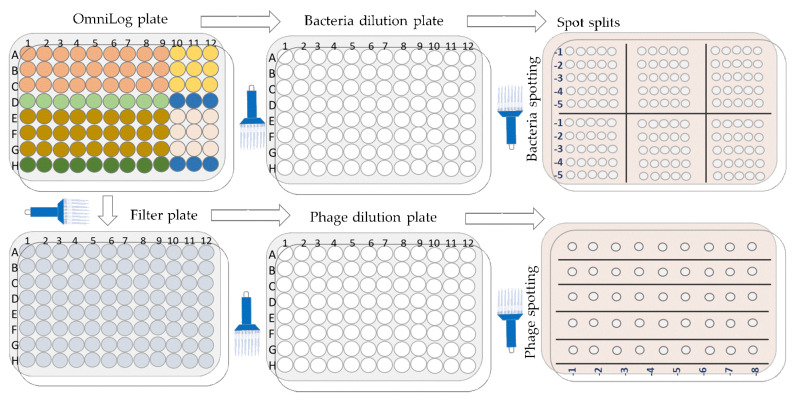

4.12.3. Enumeration of Bacteria and Phage upon Completion of the OmniLog Experiments (Figure 18)

Enumeration of bacteria (cfu/mL) and phage (pfu/mL) was performed after 48 h of incubation (endpoint) in the OmniLog system. Initially, 20 µL were aspirated from each test well (triplicate) using a multichannel pipette and transferred to a 96-well microtiter plate with DPBS (180 µL) to obtain a 10-fold dilution. Further dilutions and counts (cfu/mL) were performed as described above (Section 2.2). Second, the remaining contents of the wells in the OmniLog plates were filtered using 96-well filter plates (MultiScreen-GV Filter Plate, Millipore, Molsheim, France, 0.22 µm, clear, sterile, #MSGVS2210), which were centrifuged (Eppendorf centrifuge 5810, A-4-62 swing bucket rotor, Eppendorf, Hamburg, Germany) at 4000 rpm for two minutes. The supernatants were collected in a new 96-microtiter plate, and the contents of each well were subjected to the MD/SP method to determine phage activity (pfu/mL).

4.13. Statistical Analyses

Statistical analyses were performed using Prism 10.0.0. (GraphPad Software). The results are shown as mean ± SEM, and p < 0.05 was considered statistically significant.
