The potential of posterior cruciate ligament buckling phenomenon as a sign for partial anterior cruciate ligament tears

TL;DR

This study explores using the posterior cruciate ligament buckling phenomenon on MRI to improve diagnosis of partial anterior cruciate ligament tears.

Contribution

The study introduces PCLA and PCL-PCA as novel MRI-based methods for diagnosing partial ACL tears.

Findings

PCLA and PCL-PCA measurements showed high sensitivity and specificity for identifying partial ACL tears.

PCLA values between 113°-123° and PCL-PCA values between 16°-24° indicate partial ACL tears.

These methods can differentiate partial tears from complete tears and intact ligaments.

Abstract

Diagnosis of a partial tear of the anterior cruciate ligament (ACL) can be challenging with physical examination and imaging techniques. Although magnetic resonance imaging (MRI) has high sensitivity and specificity for diagnosing complete ACL tears, its effectiveness may be limited when it is used to diagnose for partial tears. The hypothesis of the present study is that the posterior cruciate ligament (PCL) buckling phenomenon, which is a secondary sign of complete ACL tears on MRI, may be a useful method for diagnosing partial ACL tears.

The data of 239 patients who underwent knee arthroscopy in a single institution between 2016 and 2022 were analyzed retrospectively. Patients were divided into three groups based on the condition of their ligaments: partial tears, complete tears and intact ligaments. To evaluate the buckling phenomenon on sagittal T2-weighted MRI, measurements of the posterior cruciate ligament angle (PCLA) and the posterior cruciate ligament-posterior cortex angle (PCL-PCA) were conducted in each group. Subsequently, the ability of these two measurement methods to distinguish partial tears from the other groups was assessed.

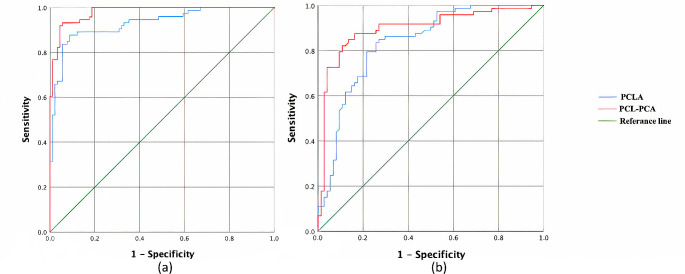

Both methods provided significantly different results in all three groups. Partial tears could be distinguished from intact ligaments with 86.8% sensitivity, 89.9% specificity when PCLA < 123.13° and 94.5% sensitivity, 93.2% specificity when PCL-PCA < 23.77°. Partial tears could be distinguished from complete tears with 79.5% sensitivity, 78.4% specificity when PCLA > 113.88° and with 86.1% sensitivity, 85.3% specificity when PCL-PCA > 16.39°.

The main finding of the present study is that the PCLA and PCL-PCA methods are useful on MRI for diagnosing partial ACL tears. PCLA value between 113°-123° and PCL-PCA value between 16°-24° could indicate a partial ACL tear. With these methods, it is possible to distinguish partial tears from healthy knees and reduce missed diagnoses. In addition, the differentiation of partial and complete tears by these methods may prevent unnecessary surgical interventions.

Level III.

The online version contains supplementary material available at 10.1007/s00402-024-05270-0.
