Transparent and Efficient Wood-Based Triboelectric Nanogenerators for Energy Harvesting and Self-Powered Sensing

TL;DR

Researchers developed a transparent, wood-based energy-harvesting device that is efficient, durable, and aesthetically pleasing.

Contribution

The novel transparent wood-based TENG combines high triboelectric performance with optical transparency and wood aesthetics.

Findings

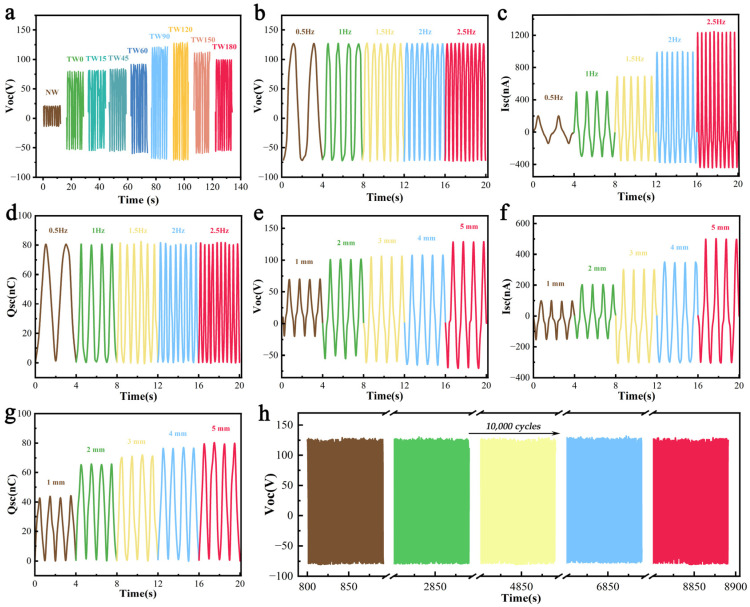

The TW-TENG achieved an open-circuit voltage of ~127 V, a 530% improvement over natural wood.

The device demonstrated durability with stable performance over 10,000 working cycles.

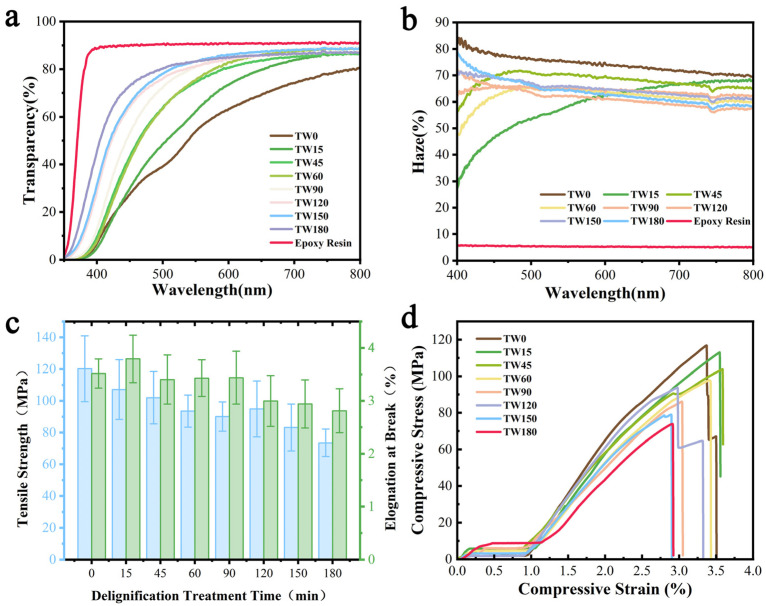

It achieved an optical transmittance of 88.8% while preserving wood's natural texture.

Abstract

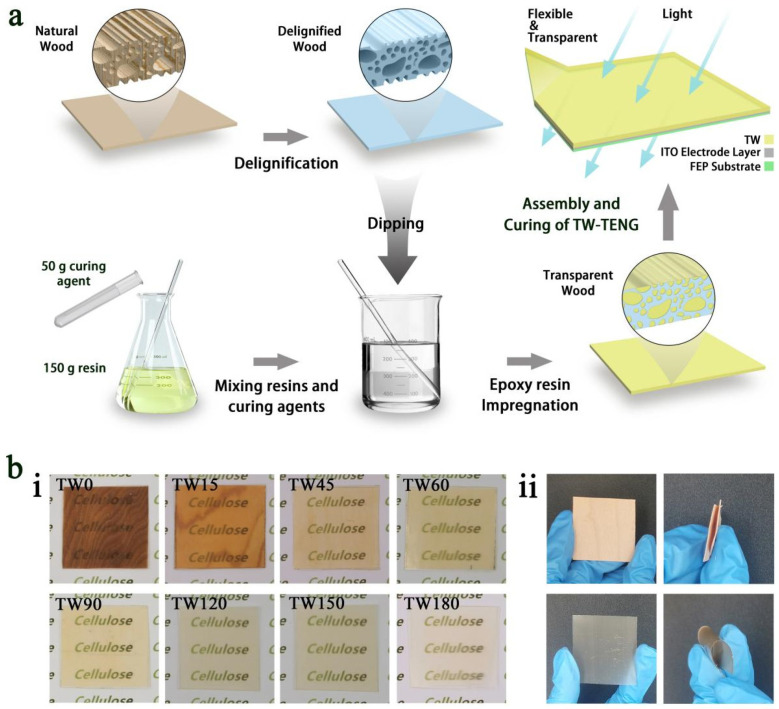

Wood possesses several advantageous qualities including innocuity, low cost, aesthetic appeal, and excellent biocompatibility, and its naturally abundant functional groups and diverse structural forms facilitate functionalization modification. As the most sustainable bio-based material, the combination of wood with triboelectric nanogenerators (TENGs) stands poised to significantly advance the cause of green sustainable production while mitigating the escalating challenges of energy consumption. However, the inherent weak polarizability of natural wood limits its development for TENGs. Herein, we present the pioneering development of a flexible transparent wood-based triboelectric nanogenerator (TW-TENG) combining excellent triboelectrical properties, optical properties, and wood aesthetics through sodium chlorite delignification and epoxy resin impregnation. Thanks to the strong electron-donating groups in the epoxy resin, the TW-TENG obtained an open-circuit voltage of up to ~127 V, marking a remarkable 530% enhancement compared to the original wood. Furthermore, durability and stability were substantiated through 10,000 working cycles. In addition, the introduction of epoxy resin and lignin removal endowed the TW-TENG with excellent optical characteristics, with optical transmittance of up to 88.8%, while preserving the unique texture and aesthetics of the wood completely. Finally, we show the application prospects of TW-TENGs in the fields of self-power supply, motion sensing, and smart home through the demonstration of a TW-TENG in the charging and discharging of capacitors and the output of electrical signals in different scenarios.

Figures
