A nomogram to predict severe COVID-19 patients with increased pulmonary lesions in early days

TL;DR

A new model using CT scans and blood markers helps predict which early-stage COVID-19 patients will develop severe lung issues.

Contribution

A novel nomogram combining AI-based CT features and NLR to predict severe COVID-19 progression in early-stage patients.

Findings

The nomogram achieved an AUC of 0.961 in predicting severe illness.

Key predictors included age, NLR, and changes in lesion volumes from CT scans.

The model showed strong clinical utility via decision curve analysis.

Abstract

This study aimed to predict severe coronavirus disease 2019 (COVID-19) progression in patients with increased pneumonia lesions in the early days. A simplified nomogram was developed utilizing artificial intelligence (AI)-based quantified computed tomography (CT).

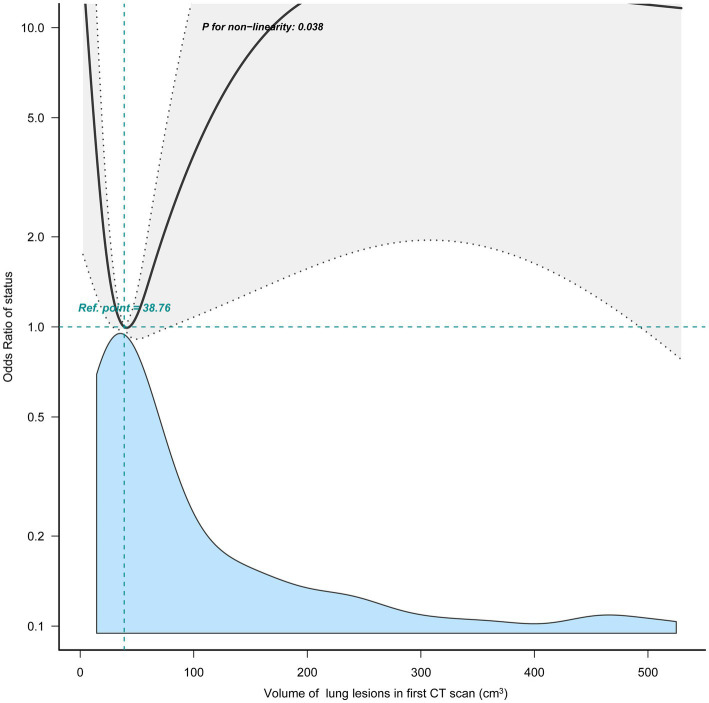

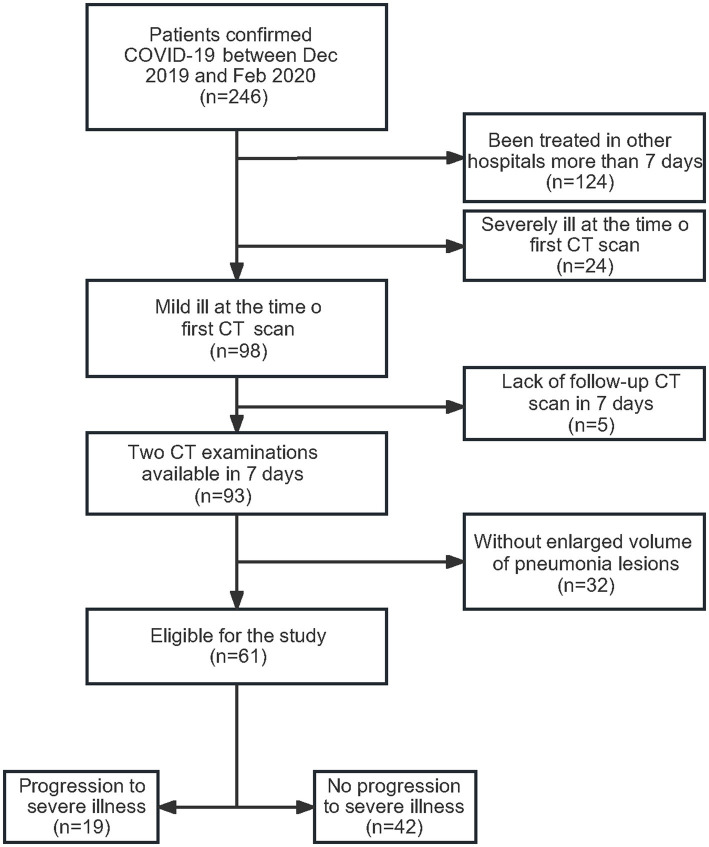

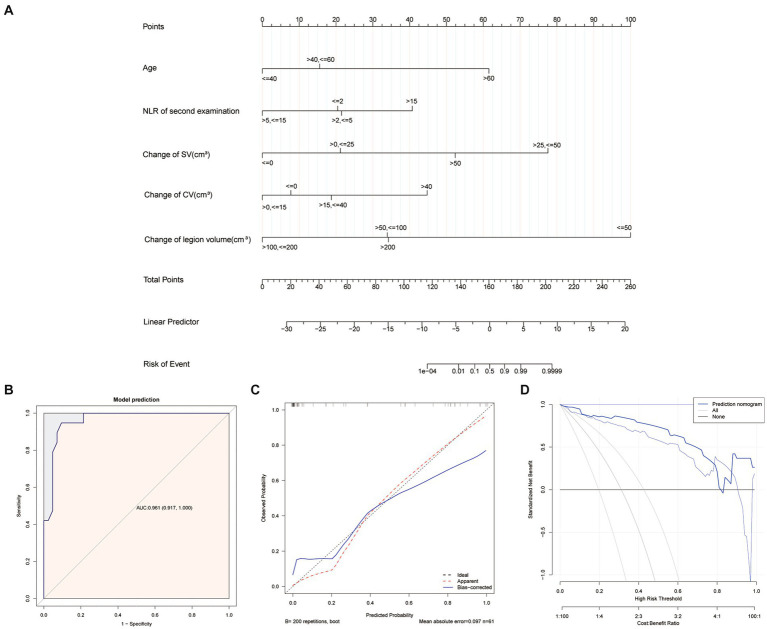

From 17 December 2019 to 20 February 2020, a total of 246 patients were confirmed COVID-19 infected in Jingzhou Central Hospital, Hubei Province, China. Of these patients, 93 were mildly ill and had follow-up examinations in 7 days, and 61 of them had enlarged lesions on CT scans. We collected the neutrophil-to-lymphocyte ratio (NLR) and three quantitative CT features from two examinations within 7 days. The three quantitative CT features of pneumonia lesions, including ground-glass opacity volume (GV), semi-consolidation volume (SV), and consolidation volume (CV), were automatically calculated using AI. Additionally, the variation volumes of the lesions were also computed. Finally, a nomogram was developed using a multivariable logistic regression model. To simplify the model, we classified all the lesion volumes based on quartiles and curve fitting results.

Among the 93 patients, 61 patients showed enlarged lesions on CT within 7 days, of whom 19 (31.1%) developed any severe illness. The multivariable logistic regression model included age, NLR on the second time, an increase in lesion volume, and changes in SV and CV in 7 days. The personalized prediction nomogram demonstrated strong discrimination in the sample, with an area under curve (AUC) and the receiver operating characteristic curve (ROC) of 0.961 and a 95% confidence interval (CI) of 0.917–1.000. Decision curve analysis illustrated that a nomogram based on quantitative AI was clinically useful.

The integration of CT quantitative changes, NLR, and age in this model exhibits promising performance in predicting the progression to severe illness in COVID-19 patients with early-stage pneumonia lesions. This comprehensive approach holds the potential to assist clinical decision-making.

Figures
