The genome sequence of the Northern Summer Mayfly, Siphlonurus alternatus (Say, 1824)

TL;DR

This paper presents the genome sequence of the Northern Summer Mayfly, including a detailed assembly of its chromosomes and mitochondrial DNA.

Contribution

The paper provides the first genome assembly for Siphlonurus alternatus, including scaffolded chromosomal pseudomolecules and the mitochondrial genome.

Findings

The genome assembly spans 455.8 megabases and is scaffolded into 11 chromosomal pseudomolecules.

The mitochondrial genome is 19.36 kilobases in length and has been fully assembled.

Abstract

We present a genome assembly from an individual male
Siphlonurus alternatus (the Northern Summer Mayfly; Arthropoda; Insecta; Ephemeroptera; Siphlonuridae). The genome sequence is 455.8 megabases in span. Most of the assembly is scaffolded into 11 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled and is 19.36 kilobases in length.

Figures

Photograph of the Siphlonurus alternatus specimen used for RNA sequencing.

Genome assembly of Siphlonurus alternatus, ieSipAlte2.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 455,861,235 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (70,536,023 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (50,231,148 and 22,999,722 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the insecta_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Siphlonurus%20alternatus/dataset/CATKWE01/snail.

Genome assembly of Siphlonurus alternatus, ieSipAlte2.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Siphlonurus%20alternatus/dataset/CATKWE01/blob.

Genome assembly of Siphlonurus alternatus, ieSipAlte2.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Siphlonurus%20alternatus/dataset/CATKWE01/cumulative.

Genome assembly of Siphlonurus alternatus, ieSipAlte2.1: Hi-C contact map of the ieSipAlte2.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=MXAHm5u1RPiiYHsY51vQdQ.

Tables

Table 1.. Genome data for Siphlonurus alternatus, ieSipAlte2.1.

Project accession data
Assembly identifier	ieSipAlte2.1
Species	Siphlonurus alternatus
Specimen	ieSipAlte2
NCBI taxonomy ID	248243
BioProject	PRJEB59085
BioSample ID	SAMEA110034127
Isolate information	ieSipAlte2, male: whole organism (DNA sequencing and Hi-C scaffolding) ieSipAlte3: whole organism (RNA sequencing)
Assembly metrics *		Benchmark
Consensus quality (QV)	54.3	≥ 50
k-mer completeness	99.99%	≥ 95%
BUSCO **	C:97.0%[S:95.5%,D:1.5%],F:1.2%,M:1.8%,n:1,367	C ≥ 95%
Percentage of assembly mapped to chromosomes	97.87%	≥ 95%
Sex chromosomes	X chromosome	localised homologous pairs
Organelles	Mitochondrial genome assembled	complete single alleles
Raw data accessions
PacificBiosciences SEQUEL II	ERR10798434
Hi-C Illumina	ERR10802458, ERR10802457
PolyA RNA-Seq Illumina	ERR11837461
Genome assembly
Assembly accession	GCA_949825025.1
Accession of alternate haplotype	GCA_947579545.1
Span (Mb)	455.8
Number of contigs	518
Contig N50 length (Mb)	1.8
Number of scaffolds	107
Scaffold N50 length (Mb)	50.2
Longest scaffold (Mb)	70.5

Table 2.. Chromosomal pseudomolecules in the genome assembly of Siphlonurus alternatus, ieSipAlte2.

INSDC accession	Chromosome	Length (Mb)	GC%
OX463778.1	1	55.02	33.0
OX463779.1	2	52.19	32.5
OX463780.1	3	50.23	32.0
OX463781.1	4	49.93	32.0
OX463782.1	5	40.73	32.0
OX463783.1	6	29.9	31.5
OX463784.1	7	27.39	31.5
OX463785.1	8	25.62	31.5
OX463786.1	9	23.0	31.5
OX463787.1	10	21.63	31.5
OX463788.1	X	70.54	32.5
OX463789.1	MT	0.02	31.0

Table 3.. Software tools: versions and sources.

Software tool	Version	Source
BlobToolKit	4.0.7	https://github.com/blobtoolkit/blobtoolkit
BUSCO	5.3.2	https://gitlab.com/ezlab/busco
gEVAL	N/A	https://geval.org.uk/
Hifiasm	0.16.1-r375	https://github.com/chhylp123/hifiasm
HiGlass	1.11.6	https://github.com/higlass/higlass
Merqury	MerquryFK	https://github.com/thegenemyers/MERQURY.FK
MitoHiFi	2	https://github.com/marcelauliano/MitoHiFi
PretextView	0.2	https://github.com/wtsi-hpag/PretextView
purge_dups	1.2.3	https://github.com/dfguan/purge_dups
sanger-tol/genomenote	v1.0	https://github.com/sanger-tol/genomenote
sanger-tol/readmapping	1.1.0	https://github.com/sanger-tol/readmapping/tree/1.1.0
YaHS	yahs-1.1.91eebc2	https://github.com/c-zhou/yahs

Full text

Species taxonomy

Eukaryota; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Palaeoptera; Ephemeroptera; Pisciforma; Siphlonuridae; Siphlonurus; Siphlonurus alternatus (Say, 1824) (NCBI:txid248243).

Background

Siphlonurus alternatus ( Figure 1) is a Holarctic species found in Canada and the northern United States, and across Northern Europe, particularly Fennoscandia ( GBIF Secretariat, 2023). In Britain and Ireland, it is a northern species with a highly localised distribution. It is anticipated that future surveys in south-west Scotland will turn up further records of this species ( Macadam, 2019).

Photograph of the Siphlonurus alternatus specimen used for RNA sequencing.

This species is likely to be a eurytherm and is typically found in the middle reaches of watercourses ( Buffagni et al., 2009). It is found at a range of altitudes, from the foothills to lowland watercourses. Larvae of this species typically live in deep pools in rivers and streams, but can also be found in calcareous lakes ( Bratton, 1990; Kimmins, 1932). The large nymphs are good swimmers and typically swim in short, darting bursts ( Elliott et al., 1988).

Siphlonurus alternatus is univoltine, overwintering as eggs and emerging as adults between May and August ( Elliott et al., 1988; Landa, 1968). Emergence of the adults typically takes place during daylight hours ( Hirvenoja, 1964), and males of this species can be found swarming at dawn and dusk over light patches of substrate on the bed of the water body or floating plants such as water-lilies ( Savolainen, 1978). The larvae feed by gathering or collecting fine particulate organic detritus from the sediment ( Elliott et al., 1988).

The genome sequence for Siphlonurus alternatus will aid in understanding the biology, physiology and ecology of the species.

Genome sequence report

The genome was sequenced from one male Siphlonurus alternatus collected from Drumpail Burn, Scotland (54.92, –4.77). A total of 53-fold coverage in Pacific Biosciences single-molecule HiFi long reads was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 31 missing joins or mis-joins and removed 10 haplotypic duplications, reducing the assembly length by 0.69% and the scaffold number by 12.9%, and increasing the scaffold N50 by 2.06%.

The final assembly has a total length of 455.8 Mb in 107 sequence scaffolds with a scaffold N50 of 50.2 Mb ( Table 1). The snailplot in Figure 2 summarises the assembly statistics is shown in Figure 2, while the distribution of assembly scaffolds on GC proportion and coverage is shown in Figure 3. The cumulative assembly plot in Figure 4 shows curves for subsets of scaffolds assigned to different phyla. Most (97.87%) of the assembly sequence was assigned to 11 chromosomal-level scaffolds, representing 10 autosomes and the X sex chromosome. The X chromosome was identified by homology to Sympetrum striolatum (GCA_947579665.1) ( Crowley et al., 2023) and coverage. The Y chromosome could not be uniquely identified in the unlocalised scaffolds. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 5; Table 2). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

Table 1.: Genome data for Siphlonurus alternatus, ieSipAlte2.1.

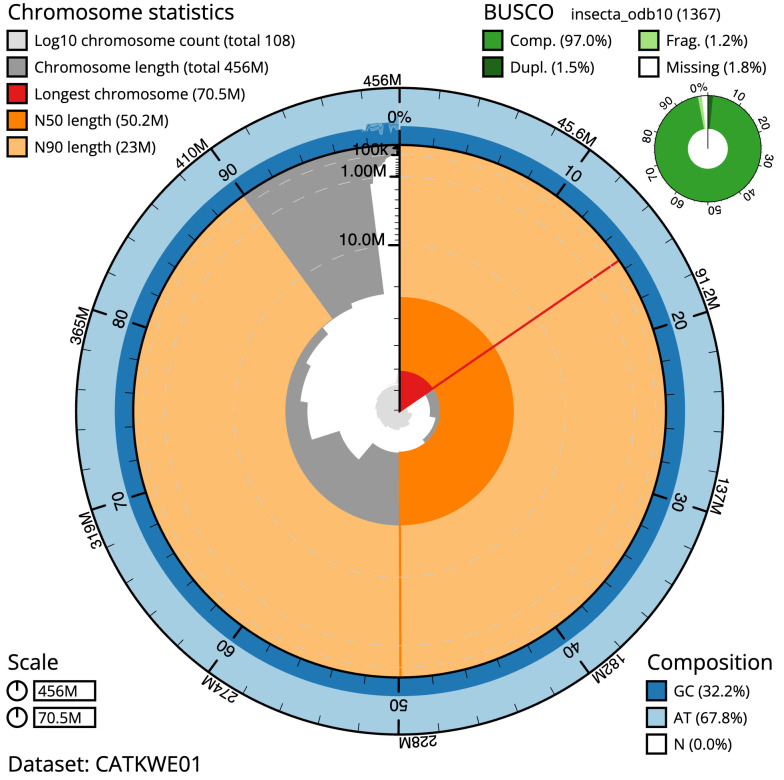

Genome assembly of Siphlonurus alternatus, ieSipAlte2.1: metrics.The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 455,861,235 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (70,536,023 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (50,231,148 and 22,999,722 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the insecta_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Siphlonurus%20alternatus/dataset/CATKWE01/snail.

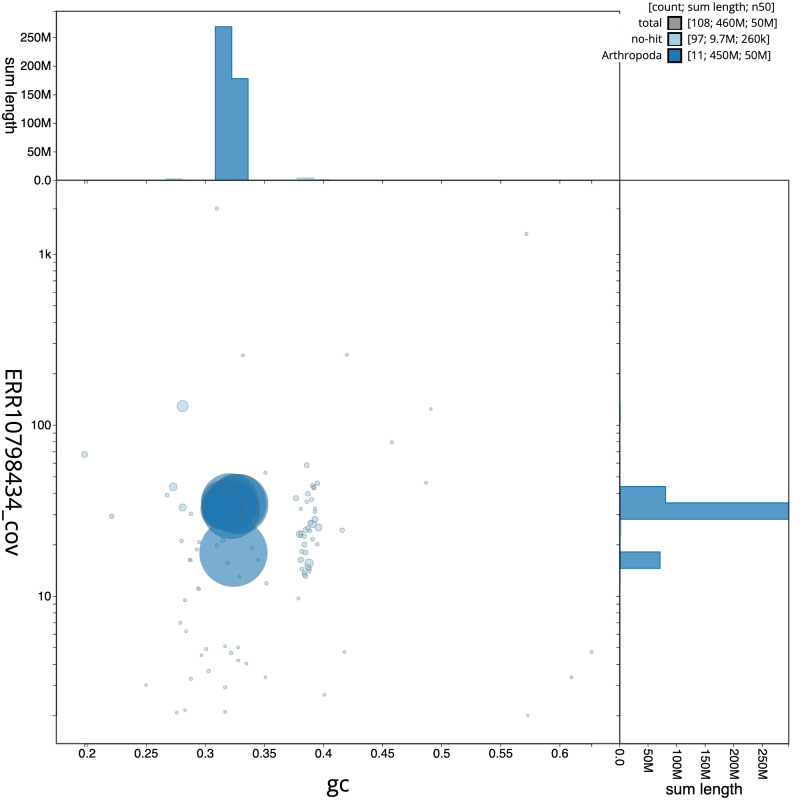

Genome assembly of Siphlonurus alternatus, ieSipAlte2.1: BlobToolKit GC-coverage plot.Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Siphlonurus%20alternatus/dataset/CATKWE01/blob.

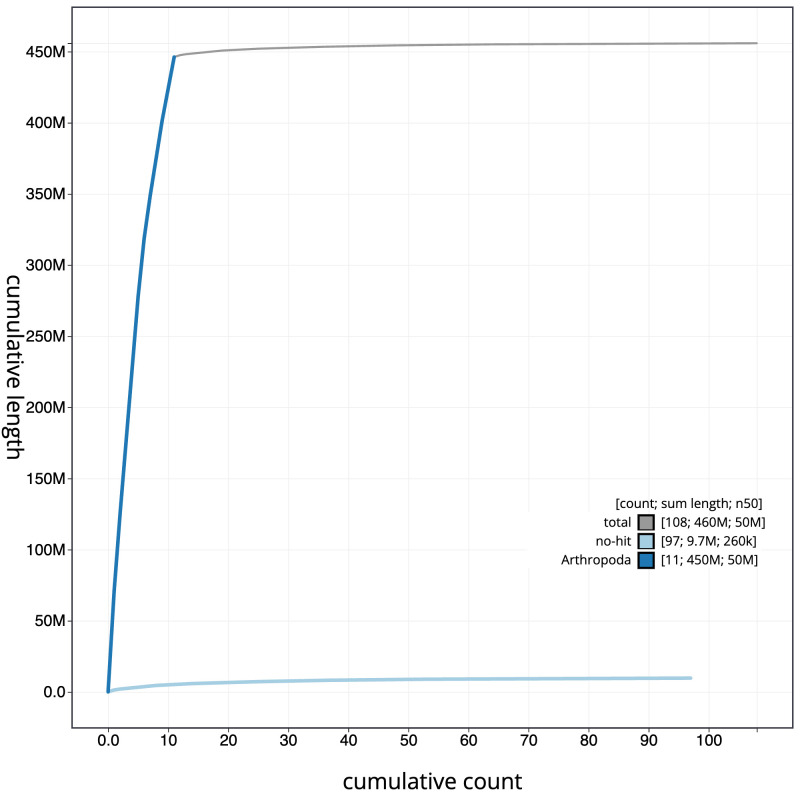

Genome assembly of Siphlonurus alternatus, ieSipAlte2.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Siphlonurus%20alternatus/dataset/CATKWE01/cumulative.

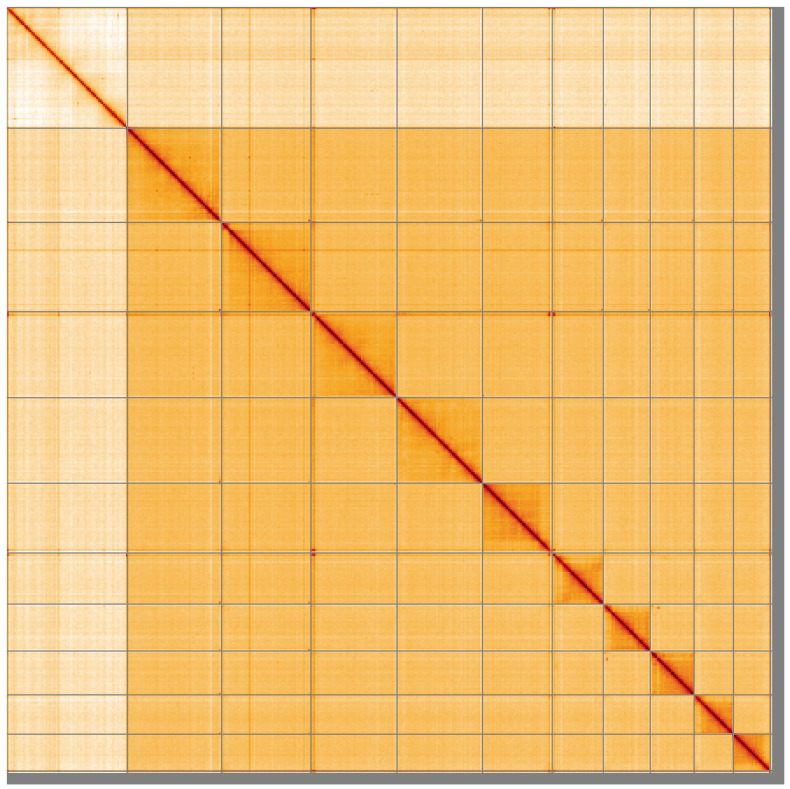

Genome assembly of Siphlonurus alternatus, ieSipAlte2.1: Hi-C contact map of the ieSipAlte2.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=MXAHm5u1RPiiYHsY51vQdQ.

Table 2.: Chromosomal pseudomolecules in the genome assembly of Siphlonurus alternatus, ieSipAlte2.

The estimated Quality Value (QV) of the final assembly is 54.3 with k-mer completeness of 99.99%, and the assembly has a BUSCO v5.3.2 completeness of 97.0% (single = 95.5%, duplicated = 1.5%), using the insecta_odb10 reference set ( n = 1,367).

Metadata for specimens, spectra estimates, sequencing runs, contaminants and pre-curation assembly statistics can be found at https://links.tol.sanger.ac.uk/species/248243.

Methods

Sample acquisition and nucleic acid extraction

Specimens of Siphlonurus alternatus were collected from Drumpail Burn, Scotland, UK (latitude 54.92, longitude –4.77) on 2021-07-28. The specimens were collected and identified by Andrew Farr (independent researcher) and dry frozen at –80°C. One specimen (specimen ID NHMUK014543936, ToLID ieSipAlte2) was used for DNA sequencing and Hi-C data, and a second specimen (specimen ID NHMUK014543933, ToLID ieSipAlte3) was used for RNA sequencing.

DNA was extracted at the Tree of Life laboratory, Wellcome Sanger Institute (WSI). The ieSipAlte2 sample was weighed and dissected on dry ice with tissue set aside for Hi-C sequencing. Tissue from the whole organism was disrupted using a Nippi Powermasher fitted with a BioMasher pestle. High molecular weight (HMW) DNA was extracted using the Qiagen MagAttract HMW DNA extraction kit. HMW DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30. Sheared DNA was purified by solid-phase reversible immobilisation using AMPure PB beads with a 1.8X ratio of beads to sample to remove the shorter fragments and concentrate the DNA sample. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

RNA was extracted from whole organism tissue of ieSipAlte3 in the Tree of Life Laboratory at the WSI using TRIzol, according to the manufacturer’s instructions. RNA was then eluted in 50 μl RNAse-free water and its concentration assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit RNA Broad-Range (BR) Assay kit. Analysis of the integrity of the RNA was done using Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.

Sequencing

Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. Poly(A) RNA-Seq libraries were constructed using the NEB Ultra II RNA Library Prep kit. DNA and RNA sequencing was performed by the Scientific Operations core at the WSI on Pacific Biosciences SEQUEL II (HiFi) and Illumina NovaSeq 6000 (RNA-Seq) instruments. Hi-C data were also generated from remaining tissue of ieSipAlte2 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.

Genome assembly, curation and evaluation

Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected using the gEVAL system ( Chow et al., 2016) as described previously ( Howe et al., 2021). Manual curation was performed using gEVAL, HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.

Table 3 contains a list of relevant software tool versions and sources.
