Research on the method of determining the block size for an open-pit mine integrating mining parameters and shovel-truck’s operation efficiency

TL;DR

This paper introduces a new method for determining block sizes in open-pit mines by integrating geological and operational factors for better production planning.

Contribution

A novel method for block size determination using a 3D geological model and shovel-truck efficiency.

Findings

The proposed method uses a closed shell model instead of regular block models for better accuracy.

Bench height, slope angle, and shovel width determine the block dimensions effectively.

The new method outperforms traditional block models in production plan optimization.

Abstract

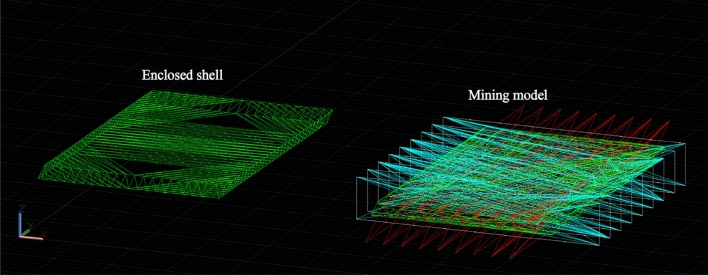

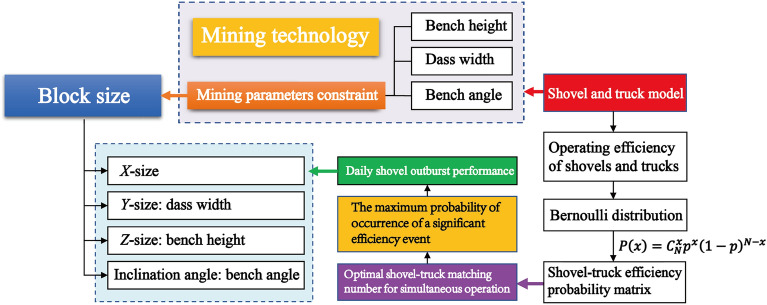

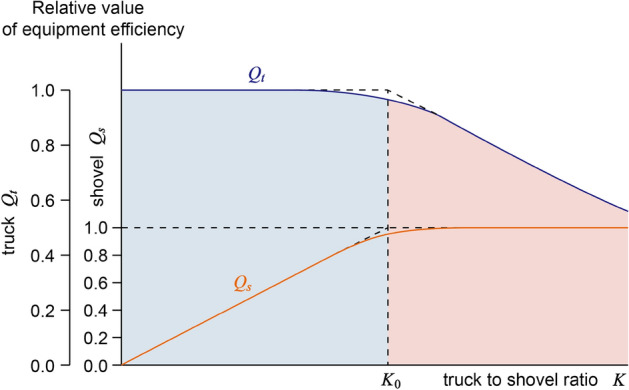

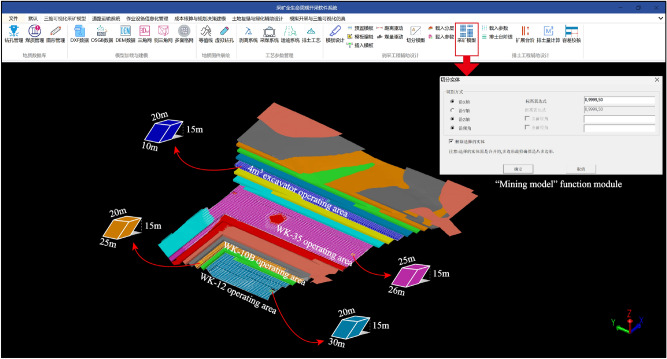

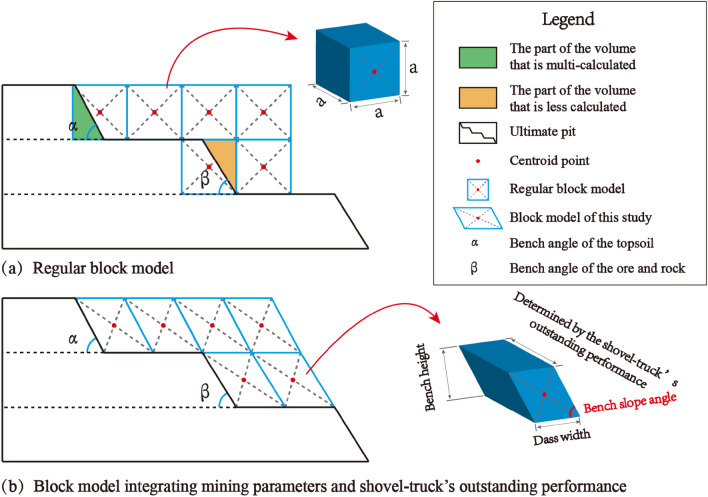

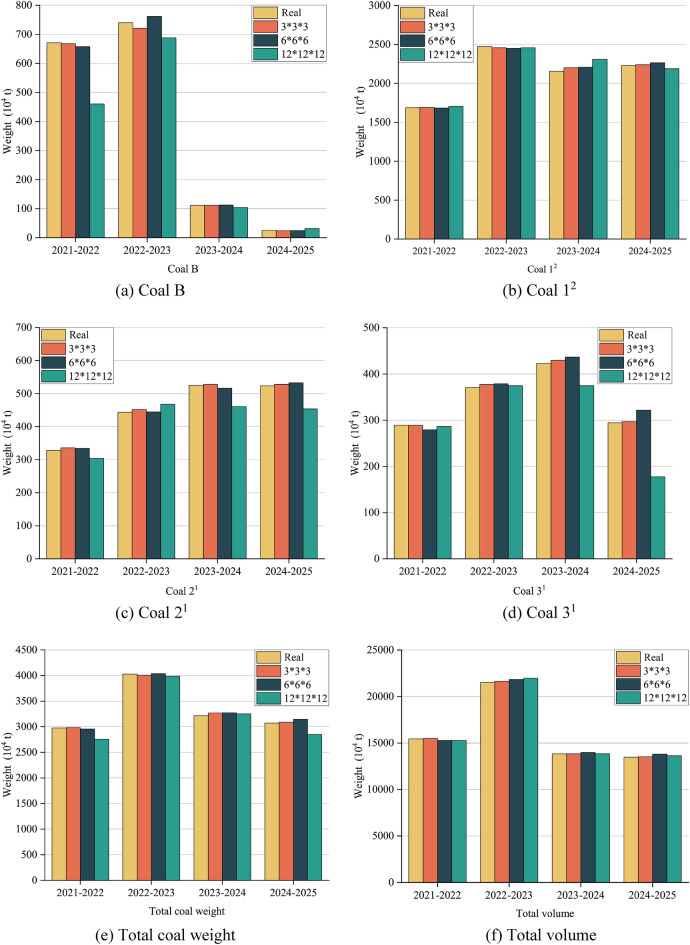

The production plan of an open-pit mine depends on the block model, so it's crucial to determine the appropriate method and size for partitioning it. This study proposes a new method based on a closed shell three-dimensional geological model for determining block model size in open-pit mines. Instead of using regular block models, the shell model is directly cut, and the discrete geological body is referred to as the "mining model." Mining parameters and the shovel-truck's performance are integrated into the method. Bench height determines the Z-axis size, bench slope angle determines the inclination angle, and shovel width determines the X-axis size of the block model. The operation efficiency of the shovel-truck considers the probability distribution of simultaneous operations, allowing the determination of the Y-axis size of block models for different types of shovels. The developed "Mining Model" module in the software "Life Cycle Mining System" is used for practical implementation. By comparing the results with traditional block models, the superiority of the proposed method is demonstrated. This study provides a more accurate model for optimizing the production plan of open-pit mines throughout their life cycle.
