A versatilely high fidelity electric machines emulator for rapid testing of motor controller
Yifeng Guo, Limin Huang, Min Zhang, Min He, Bin Zhong, Dakun Fan, Dhanamjayulu C, Dhanamjayulu C, Dhanamjayulu C
TL;DR
This paper introduces a high-fidelity electric machine emulator using hardware-in-the-loop simulation to test motor controllers efficiently.
Contribution
A novel HIL-based emulator using FEA-derived models for accurate IPM motor behavior simulation.
Findings
The inverse magnetization motor model effectively replicates nonlinear motor features.
The emulator's accuracy is improved with a simple and reliable motor controller.
Typhoon HIL is successfully used to develop the real-time simulation platform.
Abstract

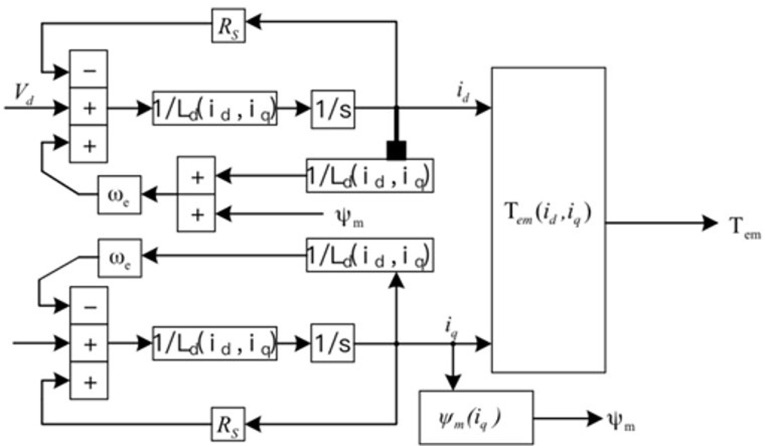

Electric machines emulators (EMEs) based on hardware-in-the-loop (HIL), which effectively act as emulators to mimic the actual motor behavior of Interior Permanent Magnet (IPM) machines. EME is frequently used to evaluate motor controller and motor control methodologies prior to development. The inverse magnetization motor model, which is used as the basis for real-time simulation in this paper’s proposal for an electric machine emulator system based on HIL, uses FEA to create the motor model data. The nonlinear features of the motor may be successfully replicated with this motor model, and the accuracy of the electric machine emulator can be enhanced by using a straightforward and trustworthy motor controller. The real-time simulation tool typhoon HIL is used in the study to develop a hardware-in-the-loop simulation platform for an IPM electric machines emulator.
