Innovative inbuilt moving bed biofilm reactor for nitrogen removal applied in household aquarium

TL;DR

A new inbuilt biofilm reactor effectively removes harmful nitrogen compounds in household aquariums, keeping fish safe.

Contribution

The study introduces an efficient inbuilt moving bed biofilm reactor for household aquariums with detailed microbial mechanism analysis.

Findings

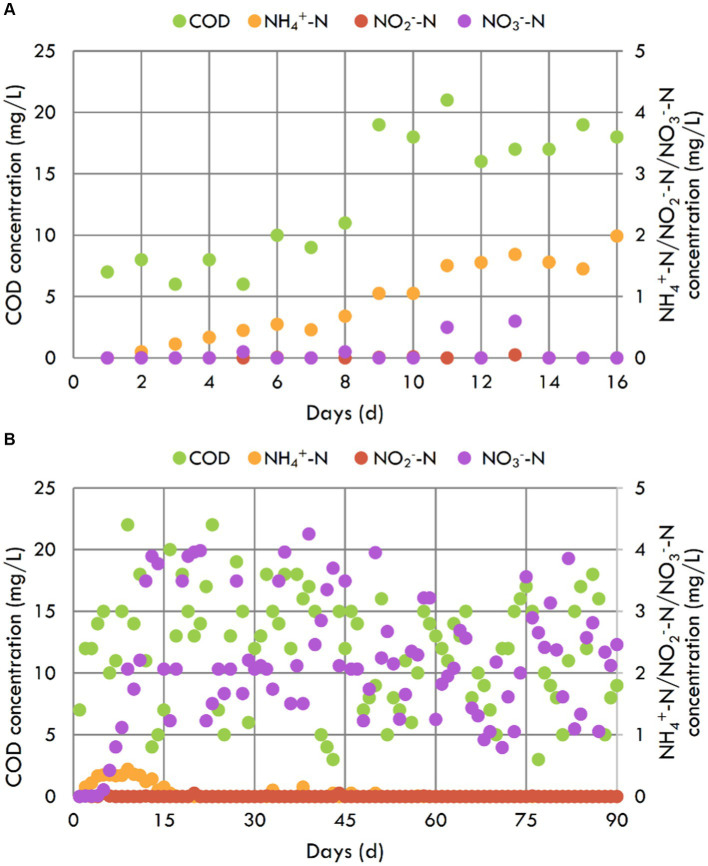

The inbuilt MBBR maintained ammonia nitrogen below 0.5 mg/L, preventing fish harm.

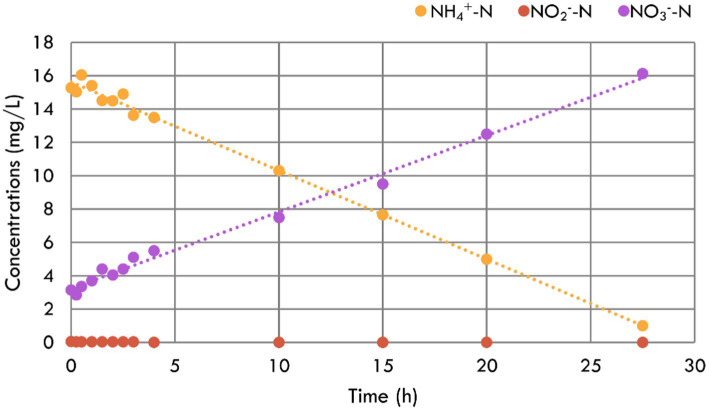

Suspended biofilms achieved a high NH4+-N removal rate of 45.43 g/m3/d.

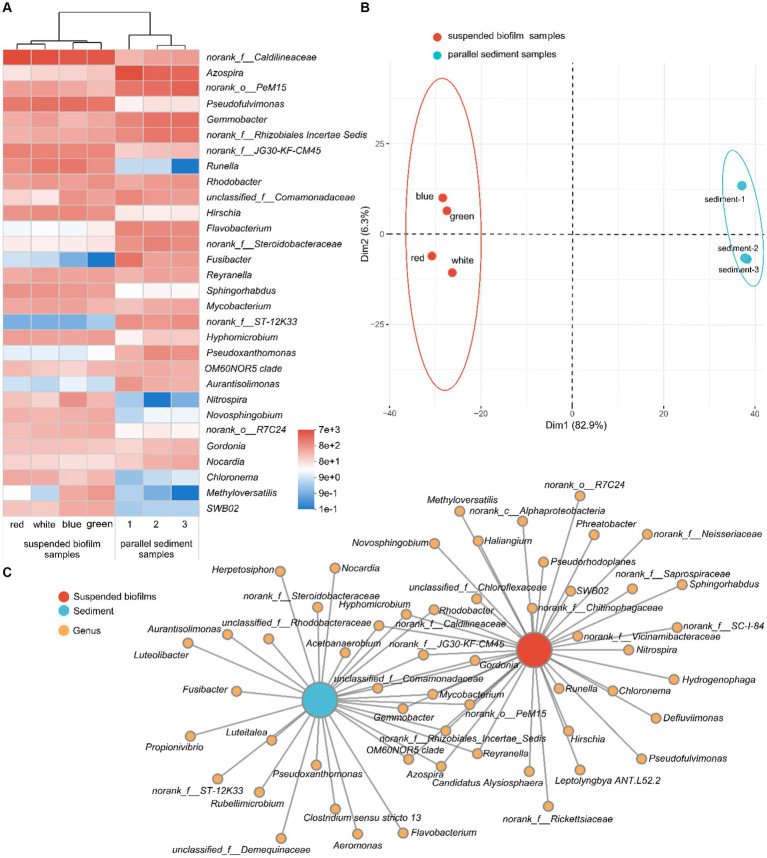

Biofilm bacterial communities differed significantly from sediment, with higher nitrifying bacteria abundance.

Abstract

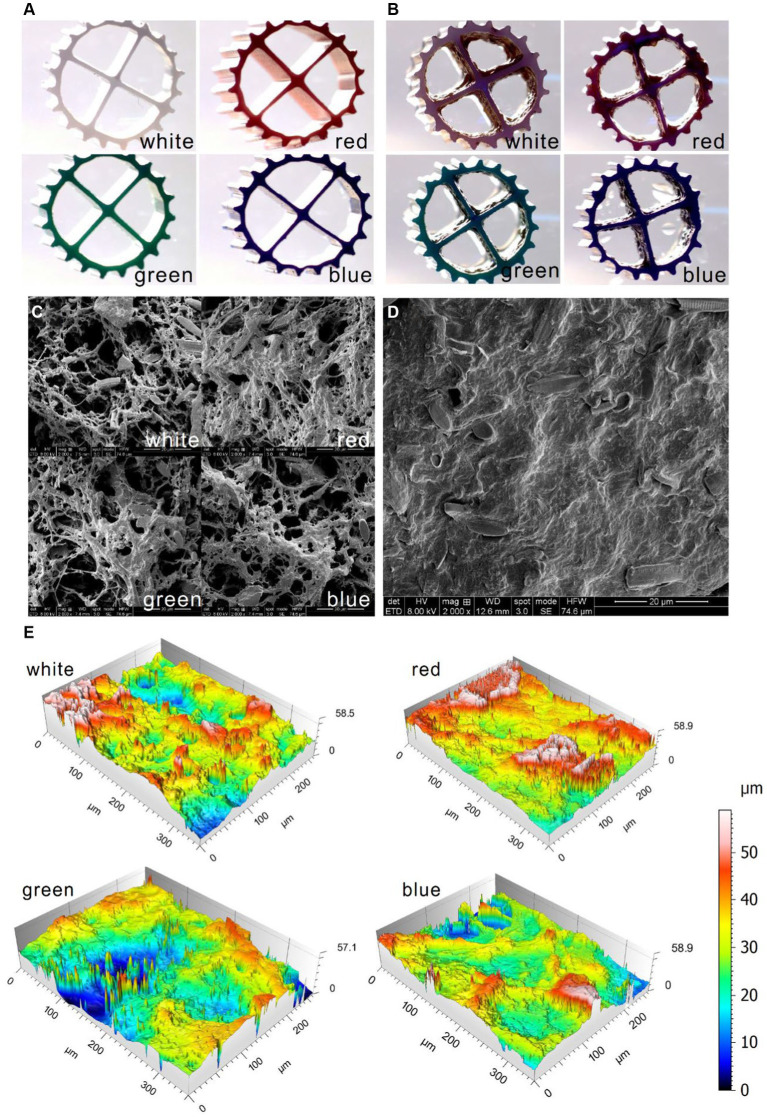

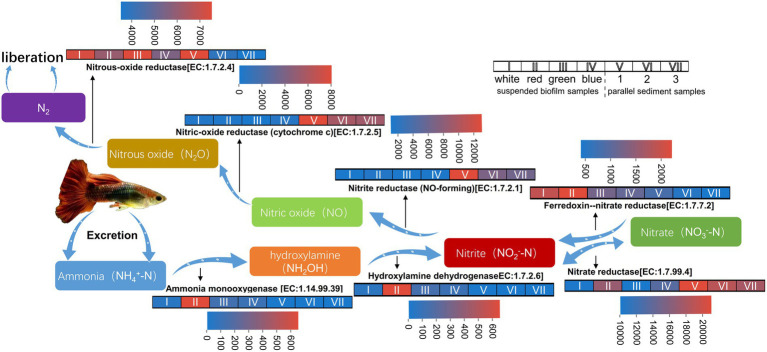

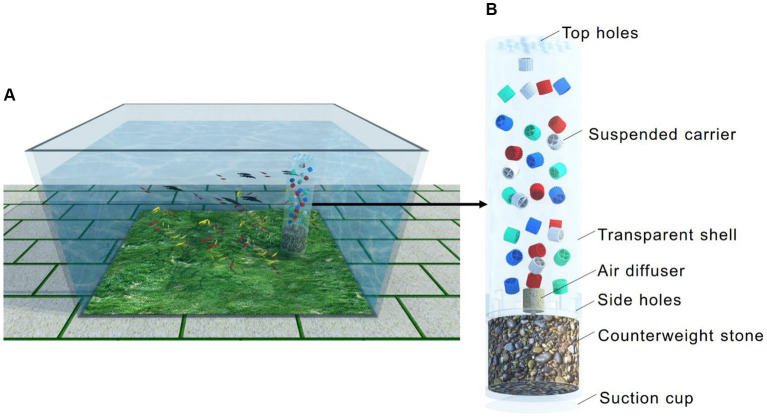

An innovative inbuilt moving bed biofilm reactor (MBBR) was created to protect fish from nitrogen in a household aquarium. During the 90 experimental days, the ammonia nitrogen (NH4+-N) concentration in the aquarium with the inbuilt MBBR was always below 0.5 mg/L, which would not threaten the fish. Concurrently, nitrite and nitrate nitrogen concentrations were always below 0.05 mg/L and 4.5 mg/L, respectively. However, the blank contrast aquarium accumulated 1.985 mg/L NH4+-N on the 16th day, which caused the fish to die. The suspended biofilms could achieve the specific NH4+-N removal rate of 45.43 g/m3/d. Biofilms presented sparsely with filamentous structures and showed certain degrees of roughness. The bacterial communities of the suspended biofilms and the sediment were statistically different (p < 0.05), reflected in denitrifying and nitrifying bacteria. In particular, the relative abundance of Nitrospira reached 1.4%, while the genus was barely found in sediments. The suspended biofilms showed potentials for nitrification function with the predicted sequence numbers of ammonia monooxygenase [1.14.99.39] and hydroxylamine dehydrogenase [EC:1.7.2.6] of 220 and 221, while the values of the sediment were only 5 and 1. This study created an efficient NH4+-N removal inbuilt MBBR for household aquariums and explored its mechanism to afford a basis for its utilization.

Figures
