Microstructural Characteristics and Properties of Laser-Welded Diamond Saw Blade with 30CrMo Steel
Qiang Xu, Chen Shu, Yibo Liu, Shengzhong Kou, Rui Cao, Xiaodie Cao, Jiajun Wu
TL;DR
This paper explores how laser-welding parameters affect the strength and microstructure of diamond saw blades made with 30CrMo steel.
Contribution
The study introduces a novel Cu-Co-Fe and Ni-Cr-Cu transition layer for laser welding diamond composites to metal substrates.
Findings

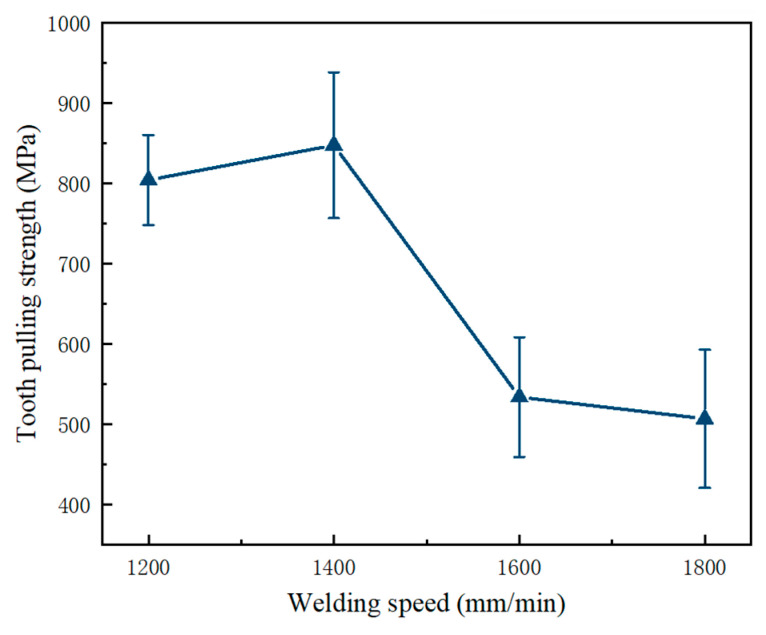

Optimal welding performance was achieved at 1600 W laser power and 1400 mm/min speed, yielding a tooth engagement strength of 819 MPa.
The fusion zone microstructure consists of Cu-rich and Fe-rich regions with coarse grains and no preferred orientation.

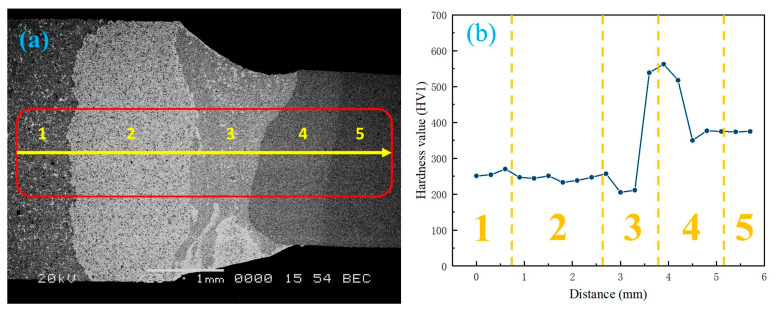

Fracture occurred at the fusion zone boundary due to stress concentration, with the heat-affected zone showing high microhardness.
Abstract
In order to enhance the quality of diamond composite materials, this work employs a Cu-Co-Fe and Ni-Cr-Cu pre-alloyed powder mixture as a transition layer, and utilizes laser-welding technology for saw blade fabrication. By adjusting the laser-welding process parameters, including welding speed and welding power, well-formed welded joints were achieved, and the microstructure and mechanical properties of the welded joints were investigated. The results demonstrate that the best welding performance was achieved at a laser power of 1600 W and a welding speed of 1400 mm/min, with a remarkable tooth engagement strength of up to 819 MPa. The fusion zone can be divided into rich Cu phase and rich Fe phase regions, characterized by coarse grains without apparent preferred orientation. The microstructure of the heat-affected zone primarily consists of high-hardness brittle quenched needle-like…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

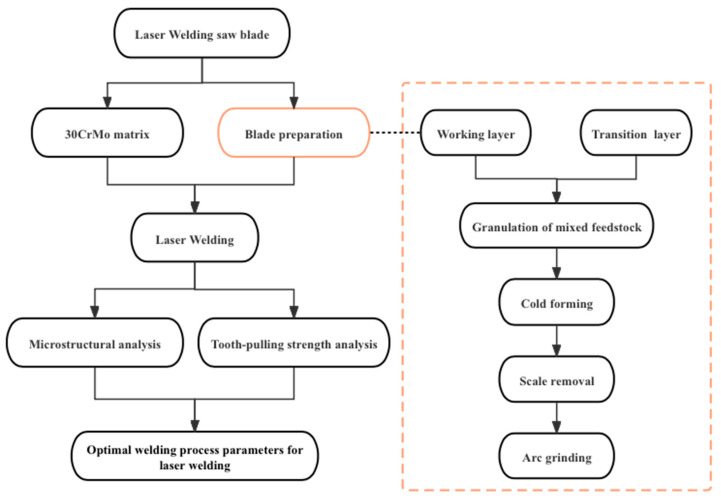

Figure 1

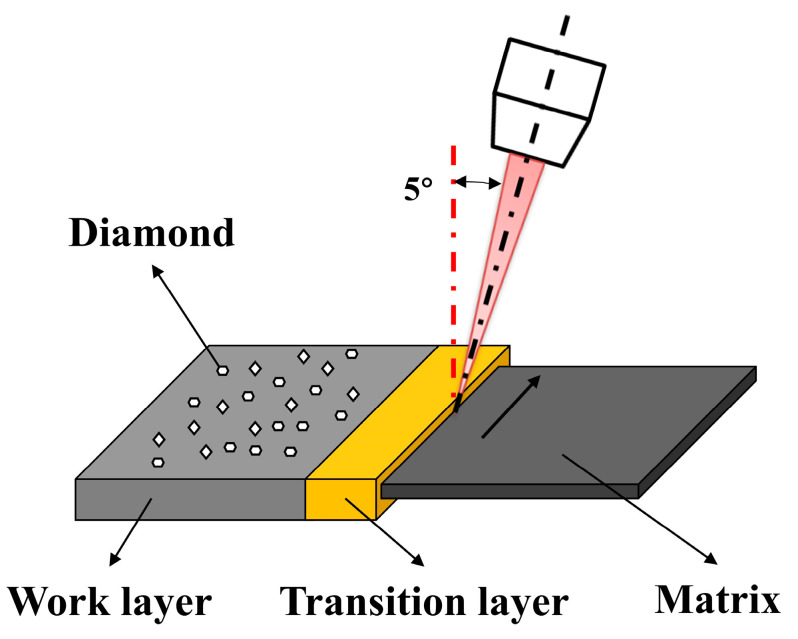

Figure 2
Figure 3

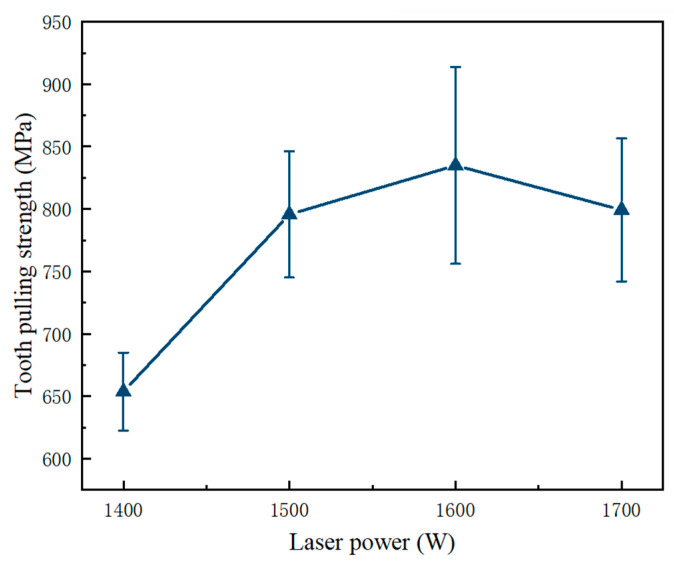

Figure 4

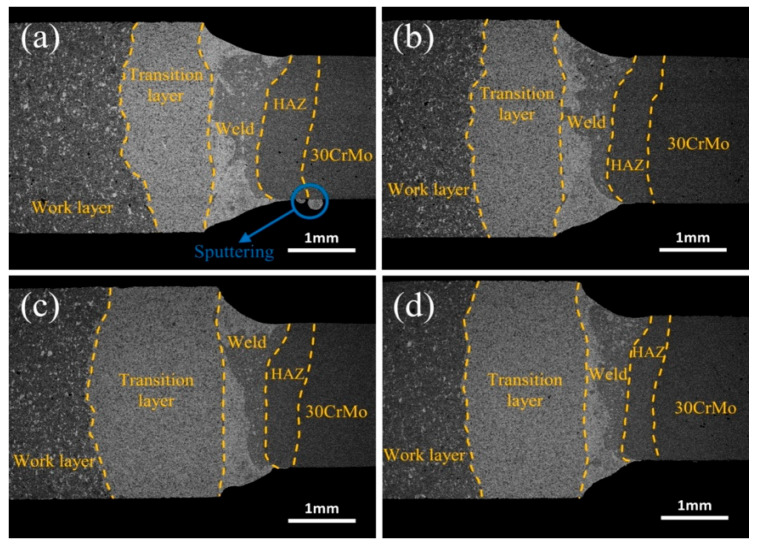

Figure 5
Figure 6

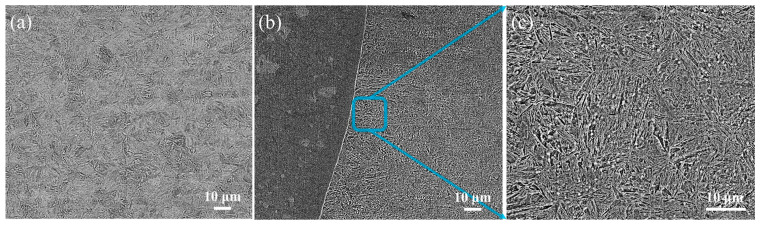

Figure 7
Figure 8
Figure 9

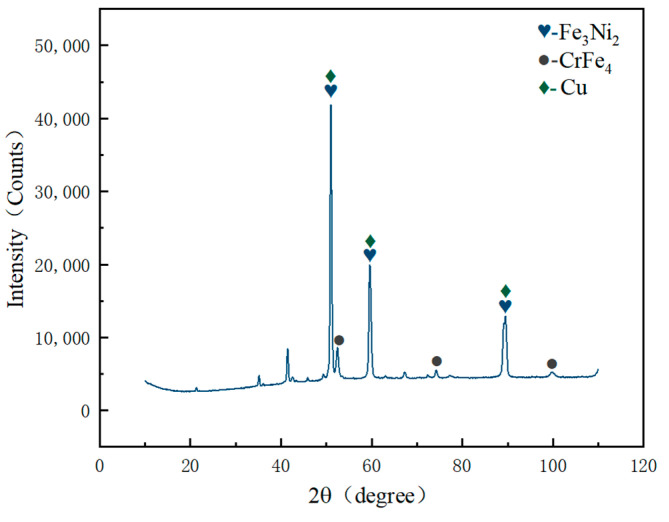

Figure 10

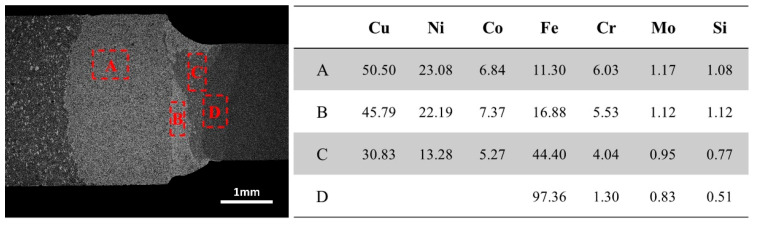

Figure 11

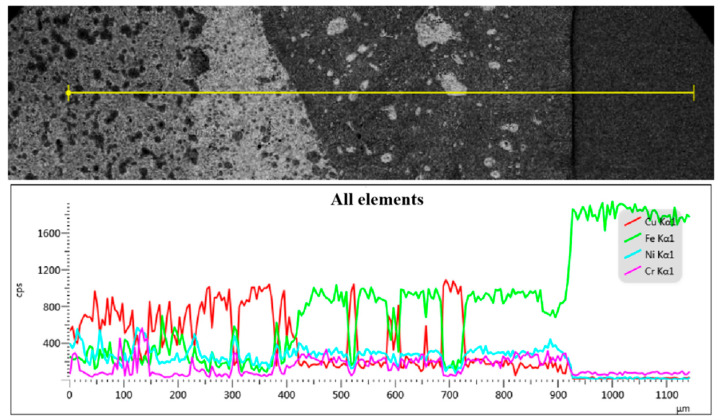

Figure 12
Figure 13

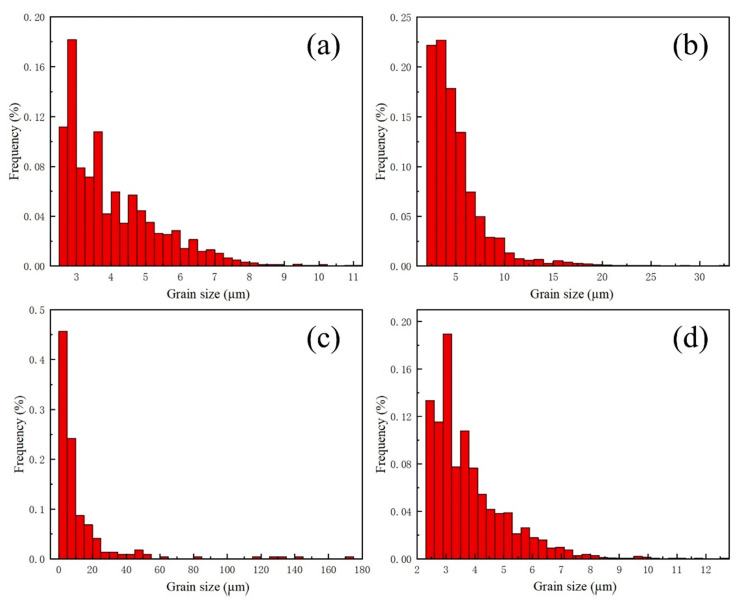

Figure 14

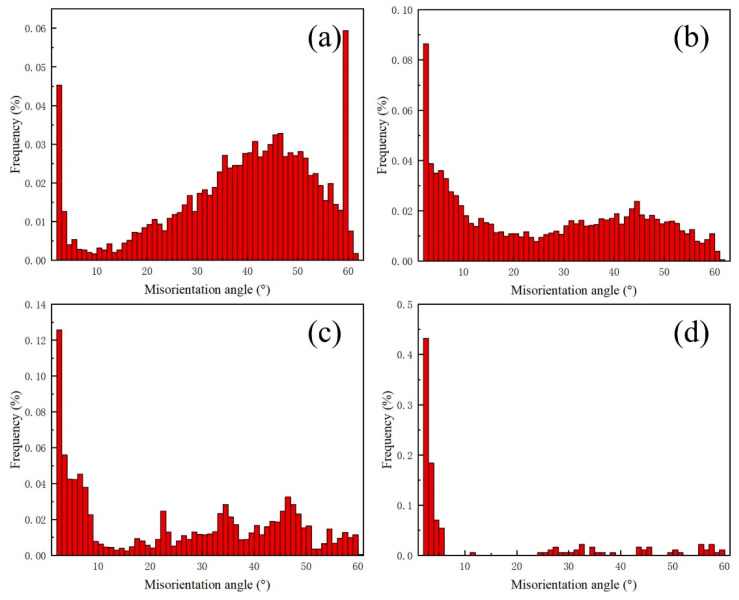

Figure 15
Figure 16
Figure 17
