Limb Volume Measurements: A Comparison of Circumferential Techniques and Optoelectronic Systems against Water Displacement

TL;DR

This study compares different methods for measuring limb volume against a gold standard, finding that centimetric and IGOODI techniques are highly accurate.

Contribution

The paper introduces a comparative evaluation of centimetric and optoelectronic methods against water displacement for limb volume measurement accuracy.

Findings

Centimetric and IGOODI methods showed less than 2% error compared to water displacement.

Optoelectronic plethysmography had a significantly higher mean error of 16%.

Regression analysis confirmed high correlation for centimetric and IGOODI methods.

Abstract

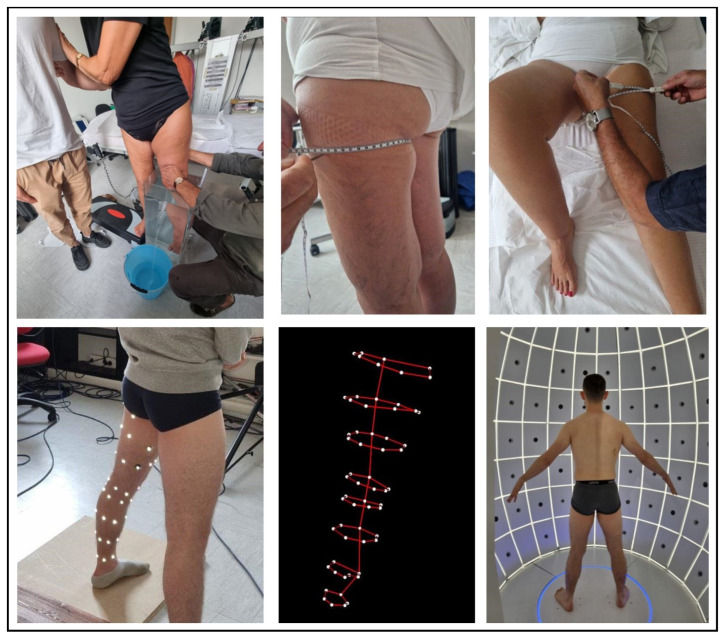

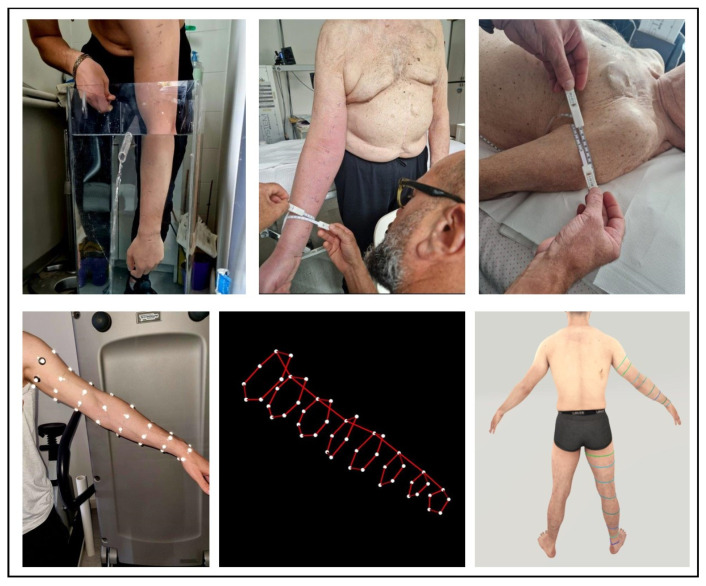

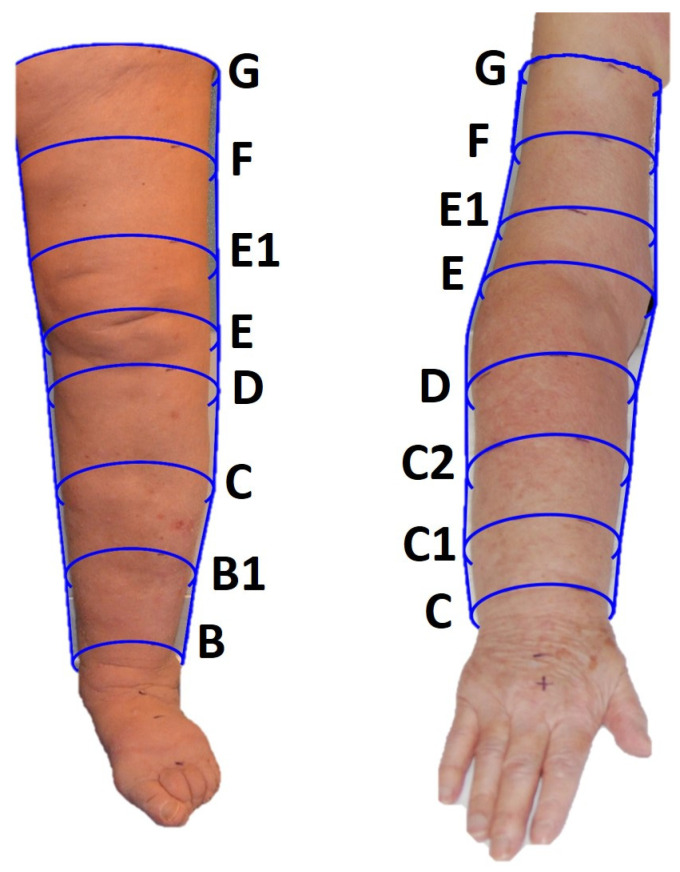

Background. Accurate measurements of limb volumes are important for clinical reasons. We aimed to assess the reliability and validity of two centimetric and two optoelectronic techniques for limb volume measurements against water volumetry, defined as the gold standard. Methods. Five different measurement methods were executed on the same day for each participant, namely water displacement, fixed-height (circumferences measured every 5 (10) cm for the upper (lower limb) centimetric technique, segmental centimetric technique (circumferences measured according to proportional height), optoelectronic plethysmography (OEP, based on a motion analysis system), and IGOODI Gate body scanner technology (which creates an accurate 3D avatar). Results. A population of 22 (15 lower limbs, 11 upper limbs, 8 unilateral upper limb lymphoedema, and 6 unilateral lower limb lymphoedema) participants was selected. Compared to water displacement, the fixed-height centimetric method, the segmental centimetric method, the OEP, and the IGOODI technique resulted in mean errors of 1.2, 0.86, −16.0, and 0.71%, respectively. The corresponding slopes (and regression coefficients) of the linear regression lines were 1.0002 (0.98), 1.0047 (0.99), 0.874 (0.94) and 0.9966 (0.99). Conclusion. The centimetric methods and the IGOODI system are accurate in measuring limb volume with an error of <2%. It is important to evaluate new objective and reliable techniques to improve diagnostic and follow-up possibilities.
