Electron plasma diagnostics in ELTRAP by electron cyclotron resonance heating method
Faisal Khan, Muhammad Ikram, Mostafa Rashdan, Fahmi Elsayed, Pervaiz Ahmad, Mayeen Uddin Khandaker
TL;DR
This paper uses simulations to study electron plasma behavior in ELTRAP using electron cyclotron resonance heating with hydrogen and helium gases.
Contribution
The study introduces new insights into electron plasma diagnostics using RF drive variations and self-consistent electric field analysis in ELTRAP.
Findings

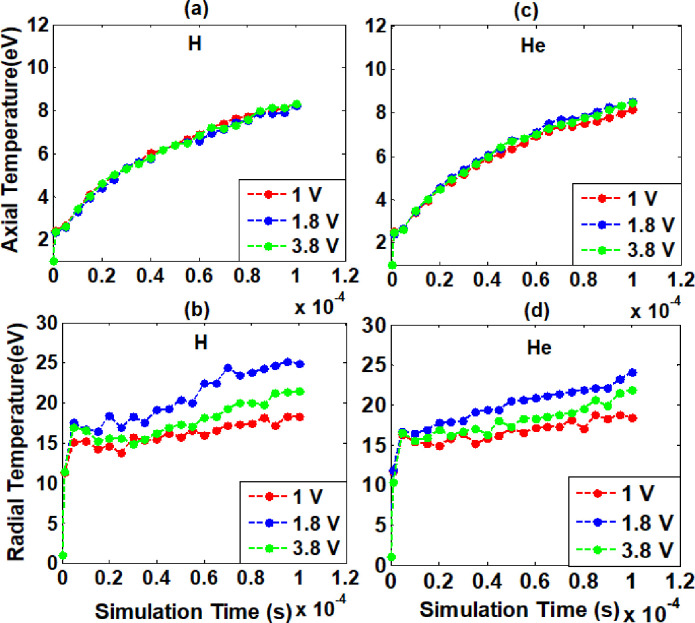

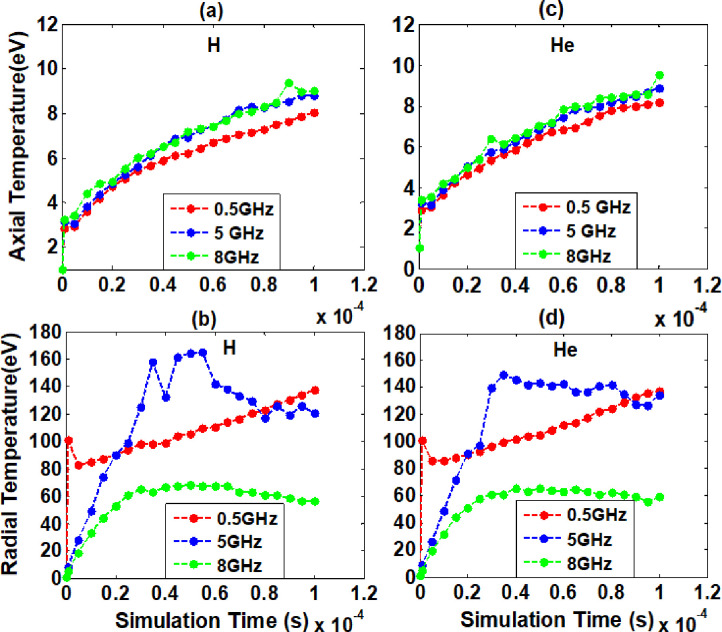

Maximum axial and radial temperatures occurred at 1.8 V and 5 GHz for both hydrogen and helium gases.
Higher excitation and ionization rates were observed radially in helium compared to hydrogen.

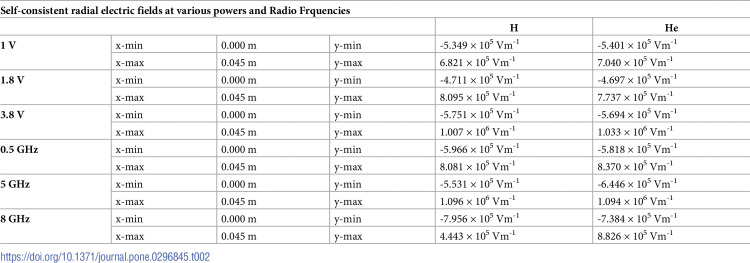

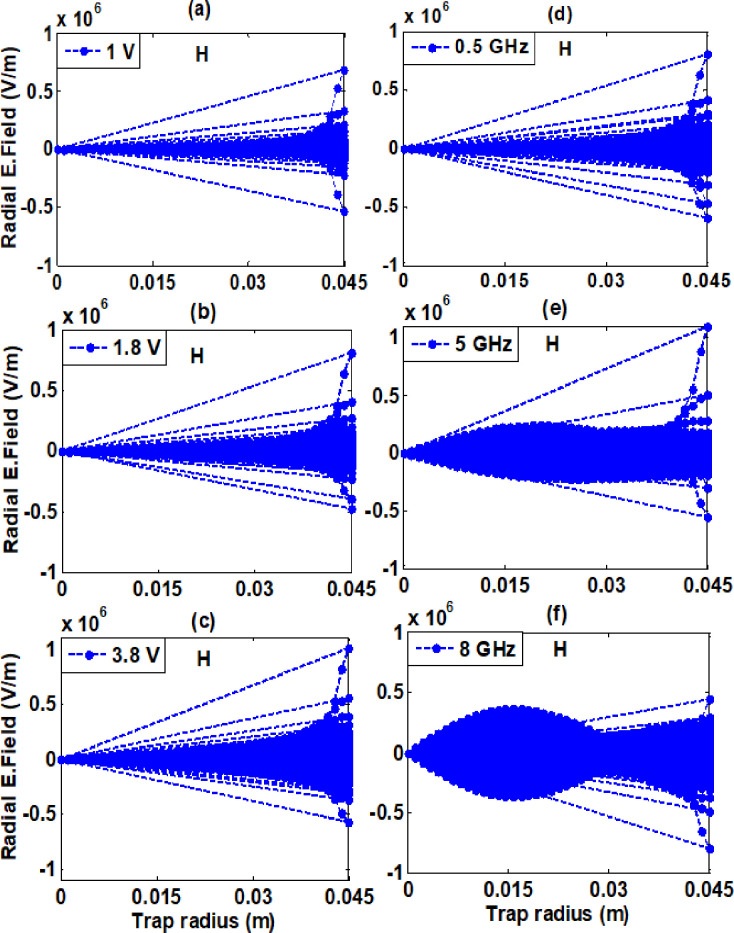

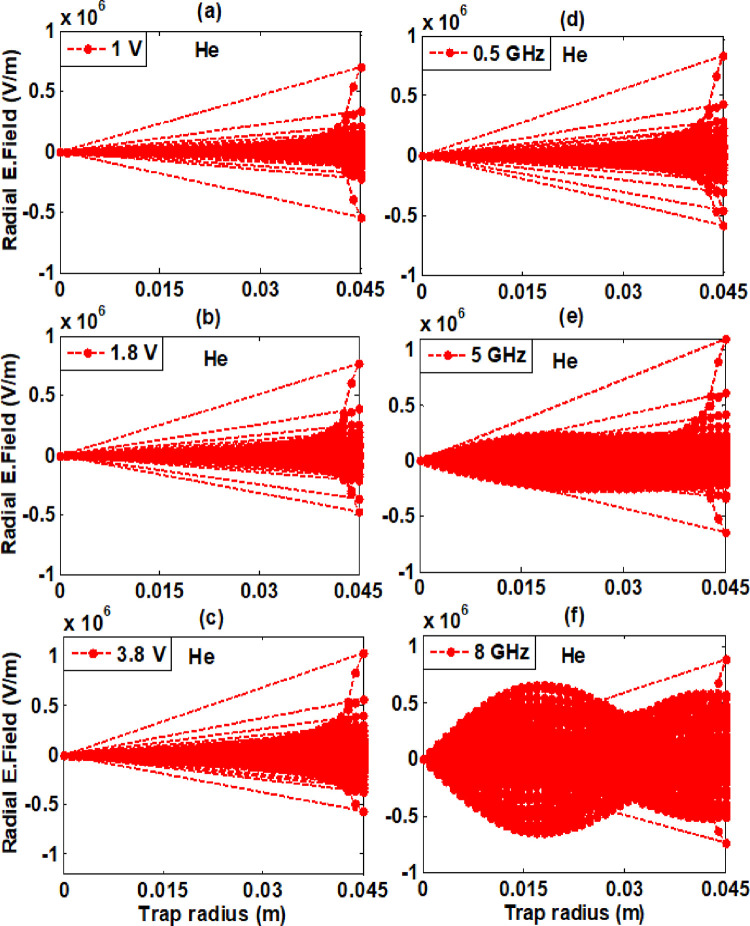

Self-consistent electric fields were strongest in helium at 5 GHz RF.
Abstract

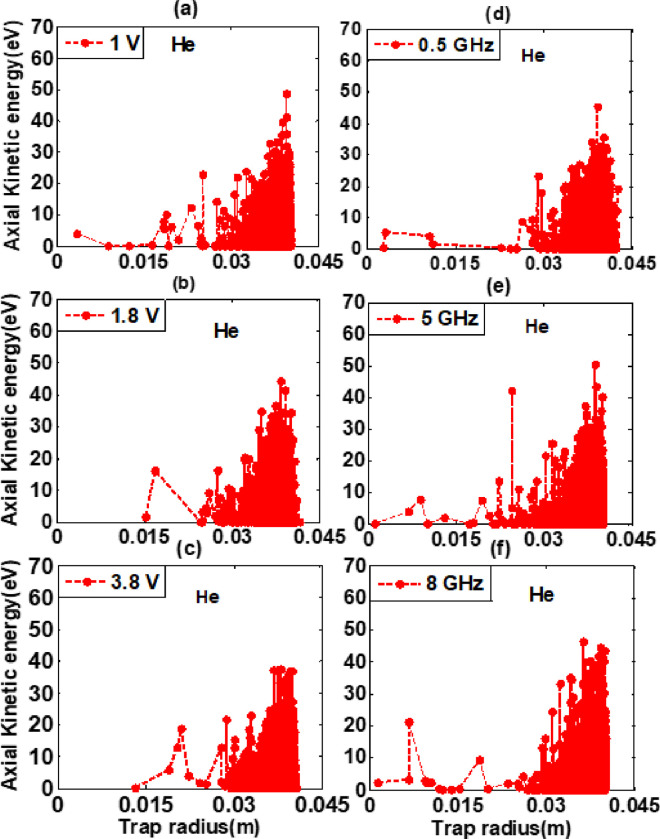

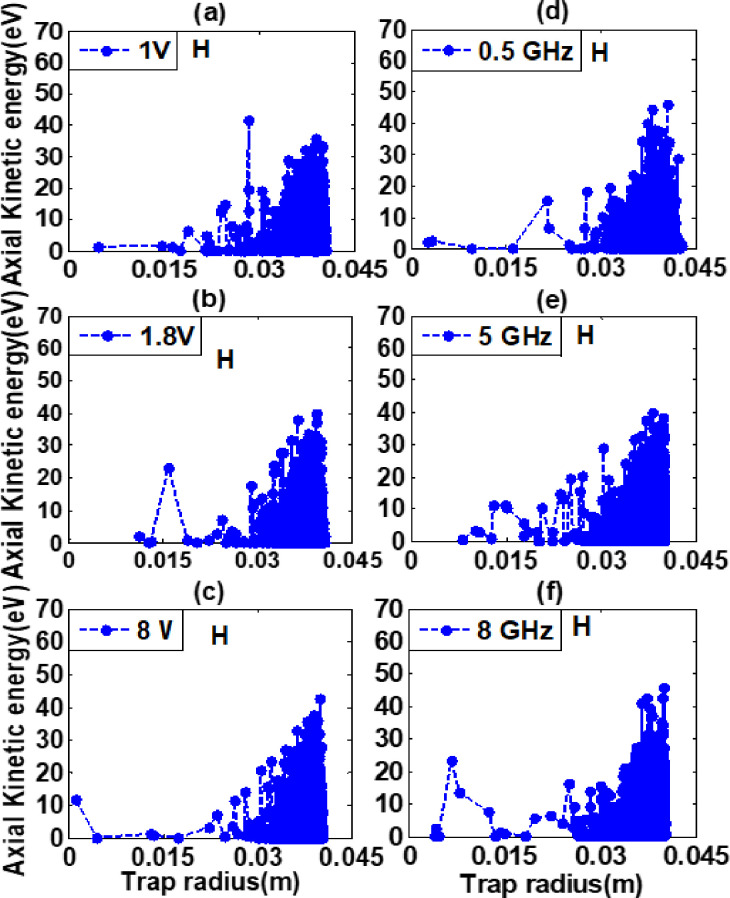

Electron cyclotron resonance heating method of Particle-in-Cell code was used to analyze heating phenomena, axial kinetic energy, and self-consistent electric field of confined electron plasma in ELTRAP device by hydrogen and helium background gases. The electromagnetic simulations were performed at a constant power of 3.8 V for different RF drives (0.5 GHz– 8 GHz), as well as for 1 GHz constant frequency at these varying amplitudes (1 V—3.8 V). The impacts of axial and radial temperatures were found maximum at 1.8 V and 5 GHz as compared to other amplitudes and frequencies for both background gases. These effects are higher at varying radio frequencies due to more ionization and secondary electrons production and maximum recorded radial temperature for hydrogen background gas was 170.41 eV. The axial kinetic energy impacts were found more effective in the outer radial part (between…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26
Figure 27
Figure 28
Figure 29
Figure 30Peer Reviews
