3Dmapper: a command line tool for BioBank-scale mapping of variants to protein structures

TL;DR

3Dmapper is a new command-line tool that efficiently maps genetic variants to protein structures, making large-scale genomic analysis easier.

Contribution

3Dmapper introduces a standalone command-line solution for mapping variants to protein structures at scale.

Findings

3Dmapper provides an efficient and reliable way to map annotated positions and variants to protein structures.

The tool is designed for BioBank-scale genomic data analysis and is implemented in Python and R.

It addresses the limitations of web-based tools by offering a scalable and automated solution.

Abstract

The interpretation of genomic data is crucial to understand the molecular mechanisms of biological processes. Protein structures play a vital role in facilitating this interpretation by providing functional context to genetic coding variants. However, mapping genes to proteins is a tedious and error-prone task due to inconsistencies in data formats. Over the past two decades, numerous tools and databases have been developed to automatically map annotated positions and variants to protein structures. However, most of these tools are web-based and not well-suited for large-scale genomic data analysis.

To address this issue, we introduce 3Dmapper, a stand-alone command-line tool developed in Python and R. It systematically maps annotated protein positions and variants to protein structures, providing a solution that is both efficient and reliable.

https://github.com/vicruiser/3Dmapper

Figures

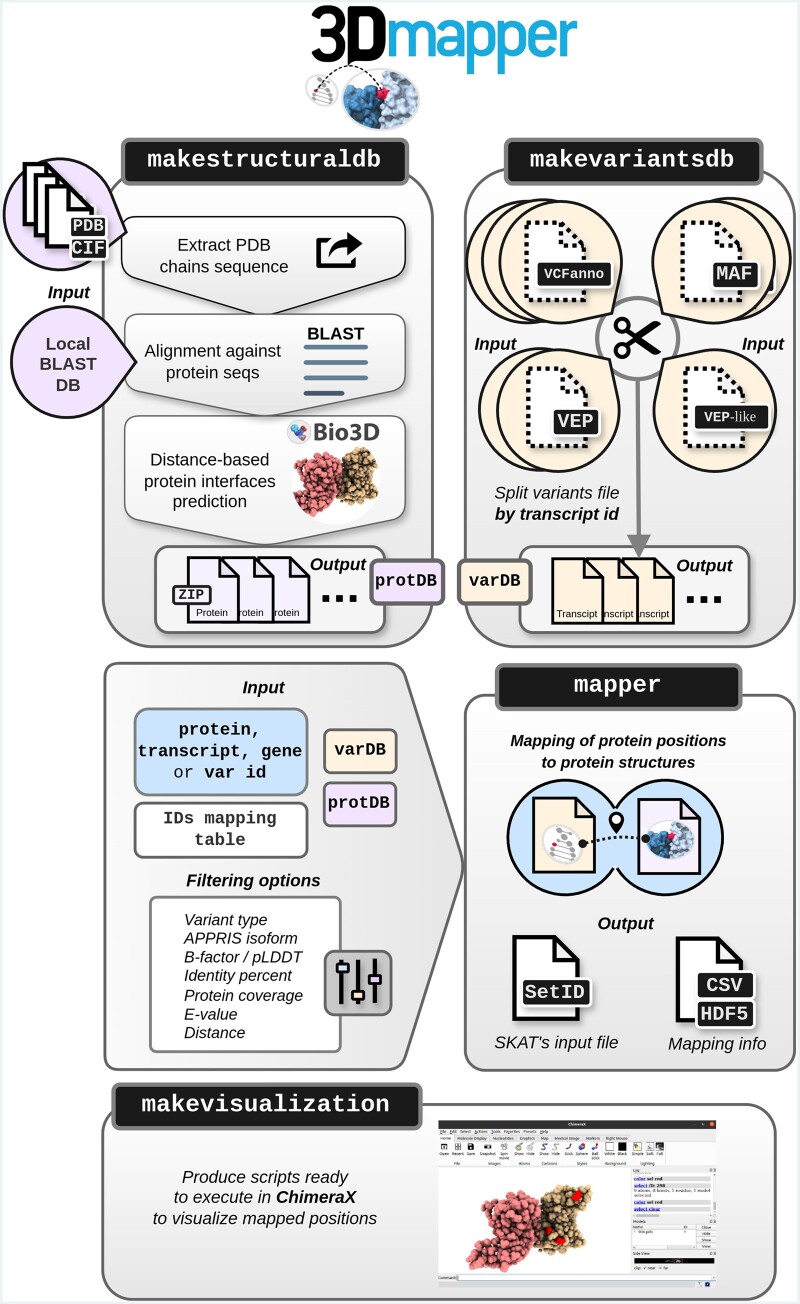

The workflow of 3Dmapper. The pipeline begins with the generation of a structural dataset using makestructuraldb, which is then utilized to map genetic variants or protein positions using mapper. To facilitate the mapping process, variants are first split into smaller files using makevariantsdb. Additionally, ChimeraX visualization scripts of the mapped positions can be generated automatically using makevisualization. VCFanno: VCF type of annotation; MAF: Mutation Annotation Format; VEP: Variant Effect Predictor output file; VEP-like: similar to VEP output but with extra or missing columns compared to the original one; varDB: variants database; protDB: protein database.

Full text

1 Introduction

Mutations in protein-coding regions are particularly significant as they can cause functional damage to proteins. This is clearly evidenced by the fact that most Mendelian diseases and the vast majority of highly penetrant disease-associated variants are located in protein-coding regions (Bamshad et al., 2011). However, while we have made significant progress in predicting the consequences of many types of different mutations, understanding the degree of damage of coding genetic variants remains a particularly challenging task.

To that end, there are now dozens of different tools that aim to help researchers either predict or understand the consequences of such genetic variants. Some of these rely solely on the linear sequence information of the protein and the variant (Peterson et al., 2010, Yang et al., 2015, Porta-Pardo and Godzik 2016). While these have the advantage of being able to be applied to virtually any genetic variant, the accuracy and precision of their output tend to be lower compared to tools that exploit the three-dimensional structure of the proteins (Bailey et al. 2018). The reason is that the structural context of genetic variants provides more information about the potential function of the affected residues and the likely consequences of the variants. This has been proven to be key to, among others, distinguishing between driver and passenger mutations in cancer genes or identifying germline pathogenic variants (Bailey et al. 2018).

One significant limitation of methods that exploit three-dimensional structure, however, is that we currently only have experimental structures for a subset of the human proteome (Porta-Pardo et al. 2022). Furthermore, the mapping between genomic coordinates and three-dimensional structures is not trivial. For example, oftentimes there are mismatches between amino acid positions in Protein Data Bank (PDB) (Berman et al., 2000) structure files and those in protein sequences from databases like UniProt (The UniProt Consortium 2023) or Ensembl (Hubbard et al., 2002). Furthermore, discrepancies can arise when the protein used for the structural studies does not match the reference protein in the databases or in the genome sequences due to mutations introduced to facilitate the structural studies.

Over the past two decades, there has been significant progress in developing tools and databases to automatically map annotated positions or variants to protein structures (see Supplementary Table S1). However, many of these tools suffer from limitations including being outdated or not actively maintained. Furthermore, keeping up with data updates, including new variants and the latest protein structures, can be a challenge. These limitations hinder the widespread application of these methods in the current era of large-scale genomics projects, where researchers routinely face the analysis of thousands of genomes or exomes at once.

Fortunately, there is ongoing development and the periodic release of new tools to address these issues. However, it is important to note that some tools are focused solely on human data, while others only map mutations without considering genomic or protein positions of interest in the broader proteome or other organisms’ proteomes. Additionally, many of the available tools are web-based, which is convenient for non-expert users lacking programming skills but may not be suitable for large-scale genomic data analysis.

Here we introduce 3Dmapper, a versatile stand-alone command-line tool in Python and R that maps annotated protein positions or variants to protein structures. 3Dmapper accepts PDB format files (.pdb and .cif) for any organism and allows users to control the data version. Our tool implements a homology sequence search approach to find structural templates when a protein structure is unavailable. It also provides functional annotation of protein–protein, protein–ligand, and protein–nucleic interfaces by determining inter-residue distances, facilitating the functional interpretation of mapped positions. Additionally, 3Dmapper includes associated B-factors for each mapped residue, corresponding to the pLDDT model quality metric in AlphaFold2 models (Jumper et al., 2021), providing valuable information should the user want to exploit AlphaFold2 models.

2 Methods

2.1 Installation and dependencies

To download and install 3Dmapper, please visit the following link: https://github.com/vicruiser/3Dmapper. A detailed tutorial on how to use the tool with examples is available at the same link as well as in the Supplementary Information. 3Dmapper depends on R ≥ 3.5, Python ≥ 3.6, and BLAST≥2.6.

2.2 3Dmapper pipeline

The 3Dmapper pipeline (Fig. 1) consists of four command-line tools:

The workflow of 3Dmapper. The pipeline begins with the generation of a structural dataset using makestructuraldb, which is then utilized to map genetic variants or protein positions using mapper. To facilitate the mapping process, variants are first split into smaller files using makevariantsdb. Additionally, ChimeraX visualization scripts of the mapped positions can be generated automatically using makevisualization. VCFanno: VCF type of annotation; MAF: Mutation Annotation Format; VEP: Variant Effect Predictor output file; VEP-like: similar to VEP output but with extra or missing columns compared to the original one; varDB: variants database; protDB: protein database.

makestructuraldb: it generates a structurally annotated protein database by aligning user-defined protein sequences and structures with BLAST. It offers the option to customize the sequence identity cutoff (Pident) to maximize the inclusion of structural homologs. Then, it calculates inter-chain interfaces based on user-defined spatial proximity and generates individual output files with detailed structural information per protein ID. Please note that the use of protein IDs containing the ‘|’ symbol, such as those used in UniProt, might induce errors when generating output files, and the use of alternative IDs is recommended. makevariantsdb: takes variants or annotated position files in .vcf, .vep or .maf format and simply splits them by transcript ID. This process is useful for speeding up the subsequent mapping process. mapper: maps variants or protein positions to protein structures using the precomputed structural and variants files from makestructuraldb and makevariantsdb respectively. It generates a table in .csv or .hdf5 along with a SetID file, the latter useful for rare-variant association testing (Wu et al. 2011). The quick brown fox jumps over the lazy dog. The quick brown fox jumps over the lazy dog. makevisualization: generates ChimeraX (Goddard et al. 2018) scripts for automatic visualizations of the mapped variants/positions using mapper’s output.

More details about how to run each of the commands, input and output formats and examples are provided in Supplementary Information and in the GitHub wiki.

2.3 3Dmapper performance

We evaluated the performance of 3Dmapper to analyze its time and memory usage using Python's ‘memory profiler’ module (https://pypi.org/project/memory-profiler/). This evaluation offers insights into the efficiency and resource requirements of the mapping workflow process.

2.4 Structural database

A comprehensive human protein structural database was generated using makestructuraldb. This database incorporated the human proteome from UniProt (https://www.uniprot.org/proteomes/UP000005640) and the full PDB, comprising 194 551 files in .cif format as of 30 August 2022. We used default input parameters and set Pident to 50% and e-value cutoff of ≤10^–5^ to ensure reliable structural templates for human proteins.

2.5 Coding genetic variants

To map to the human protein structural database, variants were sourced from publicly available repositories, including TCGA (https://api.gdc.cancer.gov/data/1c8cfe5f-e52d-41ba-94da-f15ea1337efc), gnomAD v2.1.1 (Karczewski et al. 2020) (https://storage.googleapis.com/gcp-public-data—gnomad/release/2.1.1/vcf/exomes/gnomad.exomes.r2.1.1.sites.vcf.bgz), and ClinVar (Landrum et al. 2018) (https://ftp.ncbi.nlm.nih.gov/pub/clinvar/vcf_GRCh38/clinvar.vcf.gz). Additionally, the UK BioBank 50 000 whole-exomes dataset from March 2019 (UKBB) was included. When protein locations of variants were not available, Ensembl Variant Effect Predictor (VEP; version 98.3) was used to predict them, particularly for variants in .vcf format. Clinical interpretation data for ClinVar and TCGA variants were sourced from https://ftp.ncbi.nlm.nih.gov/pub/clinvar/tab_delimited/variant_summary.txt.gz and the referenced file, respectively.

2.6 Comparison between 3Dmapper with interactome3D interfaces

We used the human Interactome3D dataset (Mosca et al. 2013) v2020_05 to benchmark the interfaces predicted by 3Dmapper.

2.7 Removal of protein interface redundancy

To eliminate protein interfaces’ redundancy, we filter out interfaces that exhibit <80% Pident between the PDB and the UniProt sequences. When multiple PDB structures exist for a given protein, we prioritize the PDB structure with the highest Pident for each type of interface, including protein, ligand, and nucleic interfaces. This approach enables us to capture interface regions spanning the entire protein. For ligands, we treat each individual ligand as a distinct interface.

2.8 AlphaFold models of human protein complexes

We obtained predicted protein-protein complexes from the hu. MAP (Drew et al. 2021) and HuRI (Luck et al. 2020) databases, as described in a recent publication (Burke et al. 2023). The data were downloaded from https://archive.bioinfo.se/huintaf2/ and processed using the command to create a structurally annotated protein database (available at Zenodo; Ruiz 2023). Subsequently, variants were mapped to the AlphaFold complexes using the mapper command (available at https://zenodo.org/records/8414687). We considered the available pDockQ scores as a proxy for the quality of the models, as they take into account both pLDDT and inter-residue distance (Bryant et al. 2022). Thus, residues with pDockQ scores greater than 0.23, indicating acceptable models based on experimental validation, were included in the analysis (Burke et al. 2023).

2.9 Software

Graphical plots were done using R 3.6.3 with the package ggplot2 (Wickham 2009). All the PDBs handling in makestructuraldb is done with the Bio3D R package (Grant et al. 2021). Parallelization of jobs in the computer cluster MareNostrum4 was managed with Greasy 2.2.4 (https://github.com/jonarbo/GREASY).

3 Results

To evaluate the efficiency and performance of 3Dmapper, we conducted comprehensive tests to assess its ability to handle large numbers of variants (ClinVar, gnomAD, TCGA and 50.000 whole-exomes from the UK BioBank) and map them to the full PDB database (see Section 2). This evaluation not only provides insights into the time and memory requirements of the tool but also serves as a practical guide to map a biobank-scale set of variants to PDB structures.

We first used the 3Dmapper’s makestructuraldb command to generate a structural database for the human proteome in UniProt and related PDB files. We executed the process using 672 CPUs in parallel (Supplementary Fig. S1). The task was completed within 13 h, resulting in a 13 GB structural database accessible at Zenodo. Results of makestructuraldb performance can be found in Supplementary Fig. S1 and Section 2. Supplementary Fig. S2 shows an overview of the database content in terms of structural coverage for residues and proteins in PDBs and the significance of considering different levels of percent identity (Pident) for comprehensive protein structure homology analysis. Overall, approximately 10% of all residues have structural coverage, which increases by around 30% when considering 50% Pident. At Pident = 100%, around 35% of human proteins have structural coverage, increasing to nearly 70% at Pident = 50%.

To evaluate the quality of interfaces calculated by 3Dmapper, we compared the predicted protein interactions from makestructuraldb with those from interactome3D15 (see Section 2), a database integrating data from nine major public protein-interaction databases. We were able to identify 92% of the interactions described in interactome3D (n = 10 361, Supplementary Fig. S3), along with over 350 000 additional protein–protein interactions based on distance, increasing the structural coverage of PPIs more than 30 times.

To explore how different types of genetic variants are distributed across the different structural features, we used the makevariantsdb command to split the VEP files containing variants from the four selected datasets. We conducted repeated tests for each variant database (TCGA, ClinVar, gnomAD, and UKBB) using different node configurations: 4, 8, and 16 CPUs. Each configuration was executed 10 times, with varying processing times proportional to the number of variants in the input file (Supplementary Fig. S4).

Next, we mapped the variants to the previously generated structural database using the mapper command (available at https://zenodo.org/records/8414687). Considering one isoform per gene of UniProt IDs that could be mapped to Ensembl transcript IDs, a total of 19 263 transcript IDs were processed. The command mapper was executed in parallel with the option enabled for categorizing variants into interface, structure, unmapped, and non-coding classes and without filtering per type of variant. It utilized 96 CPUs in parallel, with 2 CPUs assigned to each task and 2GB of available RAM memory per CPU. The entire process took approximately 13 h, with specific processing times for ClinVar (∼2 h and 30 min), gnomAD (6 h and 15 min), TCGA (∼2 h), and UKBB (∼2 h and 30 min) (Supplementary Fig. S5). The output sizes, considering interface and structure variants only, were ClinVar 14.8GB, gnomAD 220GB, TCGA 58GB, and UKBB 44GB. The computational times mentioned, along with the resulting file sizes, are reasonable and aligned with the demands of handling large-scale genetic data analysis.

Quantitative assessment of structural coverage based on Pident revealed that ClinVar, TCGA, and UKBB datasets had greater coverage compared to gnomAD when compared to the human proteome (Supplementary Fig. S6A). Disease-associated variants are strongly enriched in protein interfaces, when compared to non-disease-associated variants (∼10% versus 1%) in terms of interfaces (Supplementary Fig. S6B). This is consistent with previous studies showing a strong enrichment of missense pathogenic variants at protein interfaces (Cheng et al. 2021).

Next, we compared mapping results across the four selected studies, focusing on missense variant coverage and their mapping to the structure or interfaces. Despite differences in the total number of variants considered, protein coverage was comparable in TCGA, UKBB, and gnomAD (Supplementary Fig. S7A). Integrating AlphaFold protein complex models of acceptable and high quality (pDockQ > 0.23; see Section 2) resulted in an approximate 30% increase in missense variants mapping for structure and interfaces in TCGA, UKBB, and gnomAD, and a 16% increase for Clinvar (Supplementary Fig. S7B). We attribute this effect to the total number of variants considered, the type of variants studied (clinical relevance), and the protein complexes considered in HuMap and HuRI.

As an example of how AlphaFold models and 3Dmapper can be useful, we studied mutations in the DNA repair protein XRCC2, which interacts with RAD51D to repair DNA double-strand breaks (Baldock et al. 2019) and is associated with cancer-related mutations (https://www.mycancergenome.org/content/gene/xrcc2/). This interaction lacked experimental structure or homology models in the considered PDB version. Among the ClinVar variants mapped to XRCC2, 90% were classified as VUS, with 16% of these variants localized within the protein interface (Supplementary Fig. S8A), providing improved interpretation possibilities. Additionally, TCGA variants like H86N and E97Q within the complex interface were predicted to have a damaging effect (Supplementary Fig. S8B). These alterations, involving a change from a basic to a polar amino acid at position 86 and from an acidic to a polar amino acid at position 97, could have the potential to disrupt the proper protein interaction, highlighting a possible functional significance. Other analyses highlighting the potential of 3Dmapper in different contexts can be found in recent publications, such as the analysis of somatic mutations in interfaces and their effects in disrupting protein interactions using data from the Clinical Proteomics Tumor Analysis Consortium (CPTAC) (Li et al. 2023), or the analysis of evolutionary relevant positions across protein families mapped onto reference structures to analyze their local energetics, known as ‘frustration’, adding a layer of understanding to protein evolution dynamics (Freiberger et al. 2023).
