Carding Behavior and Bearing Capacity of a Newly Developed Cylinder Card-Clothing Compatible with Cotton and Terylene Fibers by Nb Alloying of AISI 1090 Steel
Weihua Gu, Fuguo Li, Youchang Cao, Qinchao Gao, Chengzhi Zhuo
TL;DR
A new cylinder card clothing made from Nb alloyed steel can handle both cotton and terylene fibers without needing replacement.
Contribution
A novel Nb alloyed AISI 1090 steel card clothing is developed for compatibility with multiple fibers.
Findings
Nb alloying of AISI 1090 steel improved wear resistance and hardness for carding applications.
The new card clothing performed well with cotton and terylene fibers in real spinning mill tests.
The fine grain structure of the alloy increased by 25% compared to conventional materials.
Abstract
Changing the metallic card clothing on a carding machine is costly when the spinning mills want to card different fibers from cotton to terylene or vice versa. This article proposes a newly developed cylinder card clothing compatible with cotton and terylene fibers by Nb alloying of AISI 1090 steel so that the spinning mills can change the type of fiber without changing the card clothing. Based on an idea developed from classical carding balance theory to study the adaptability of the cylinder card clothing for cotton and terylene fibers, the wall shear stress was used as the basis for compatibility analysis of carding behavior and bearing capacity with cotton and terylene fibers and as the focus of this study. Nb alloying of AISI 1090 steel showed good wear resistance in carding areas after heat treatment with high hardness above 840 Hv0.2 and extremely fine grain grade of 13.5 class,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

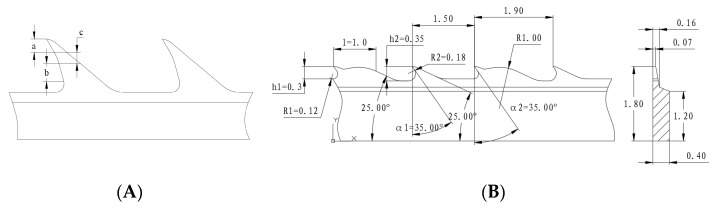

Figure 1

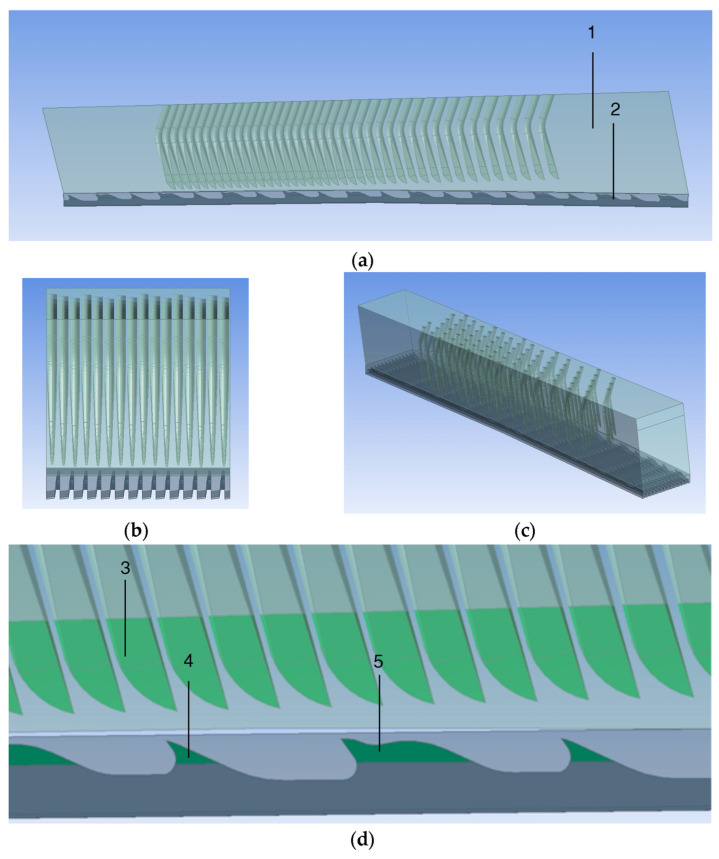

Figure 2

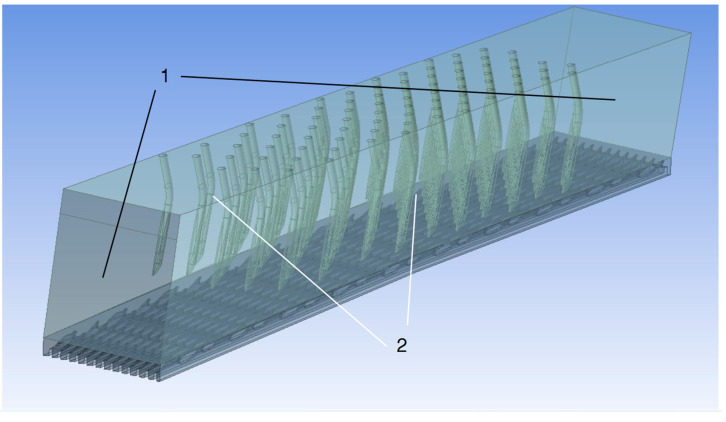

Figure 3

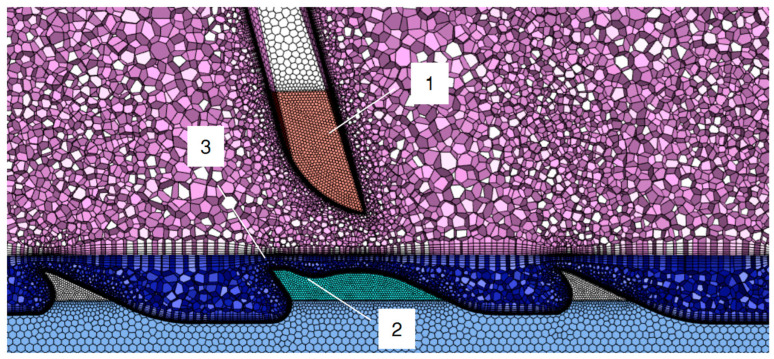

Figure 4

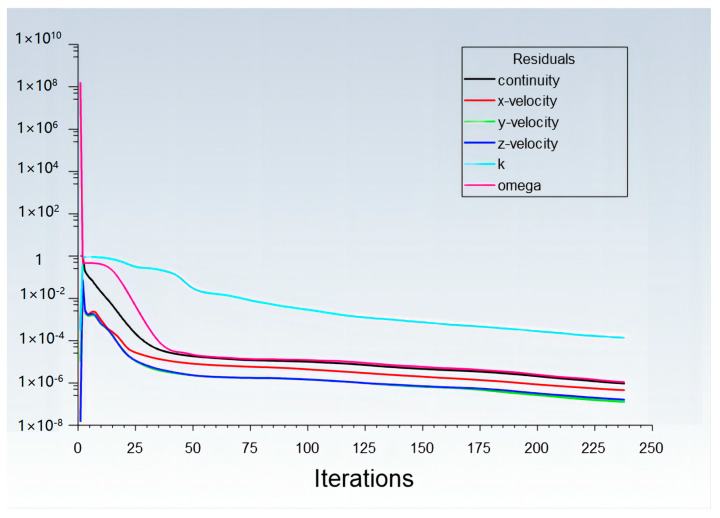

Figure 5
Figure 6

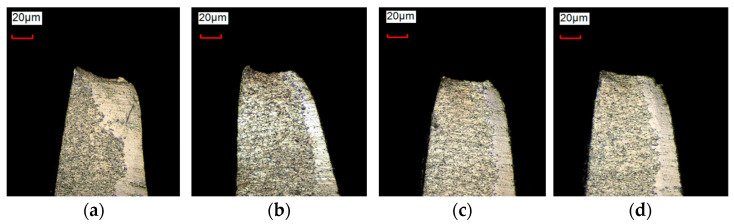

Figure 7

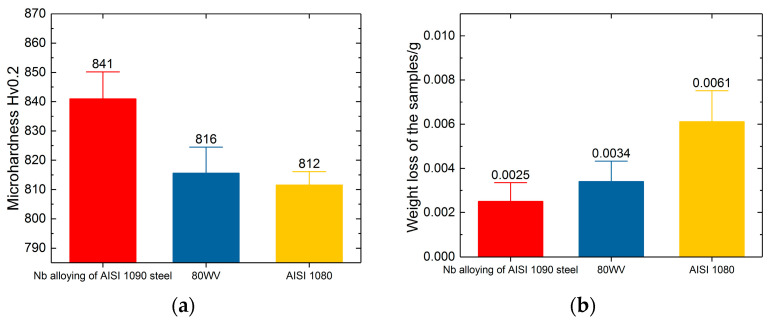

Figure 8

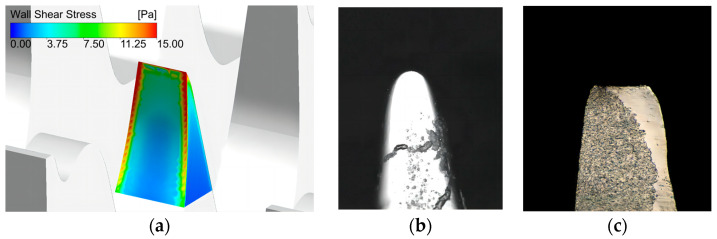

Figure 9

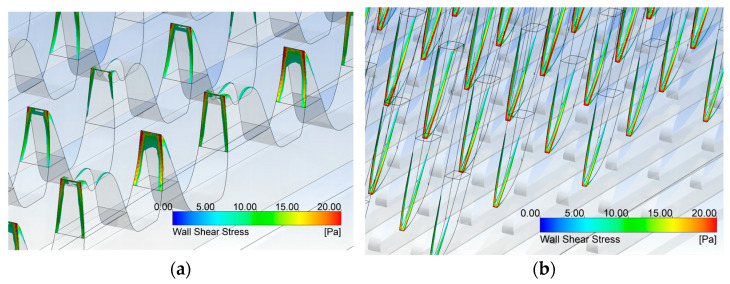

Figure 10

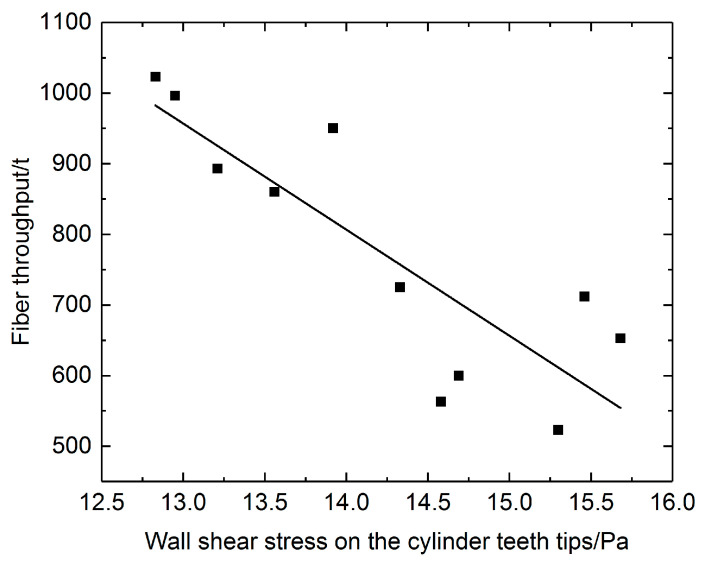

Figure 11Peer Reviews
