Modulated critical currents of spin-transfer torque-induced resistance changes in NiCu/Cu multilayered nanowires
Mengqi Fu, Roman Hartmann, Julian Braun, Sergej Andreev, Torsten Pietsch, Elke Scheer
TL;DR
A new method fabricates magnetic nanowires that show controllable resistance changes when exposed to spin-polarized currents and magnetic fields.
Contribution
A novel fabrication method for 3D spin valve devices using nanowires with modulated critical currents under magnetic fields.
Findings
NiCu/Cu multilayered nanowires exhibit magnetic switching and excitation driven by spin-polarized currents.
Critical currents for switching and excitation oscillate with applied magnetic fields in the nanowire devices.
Abstract
We present a novel method combining anodic aluminum oxide template synthesis and nanolithography to selectively deposit vertically patterned magnetic nanowires on a Si substrate. With this approach we fabricated three-dimensional nanowire-based spin valve devices without the need of complex etching processes or additional spacer coating. Through this method, we successfully obtained NiCu/Cu multilayered nanowire arrays with a controlled sequence along the long axis of the nanowires. Both magnetic switching and excitation phenomena driven by spin-polarized currents were clearly demonstrated in our NiCu/Cu multilayered nanowires. Moreover, the critical currents for switching and excitation were observed to be modulated in an oscillatory manner by the magnetic field in the nanowire-based devices. We present a toy model to qualitatively explain these observations.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

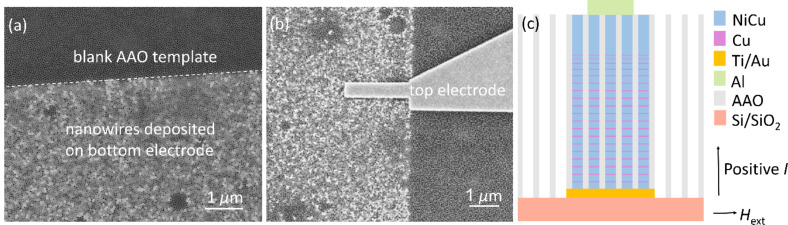

Figure 1

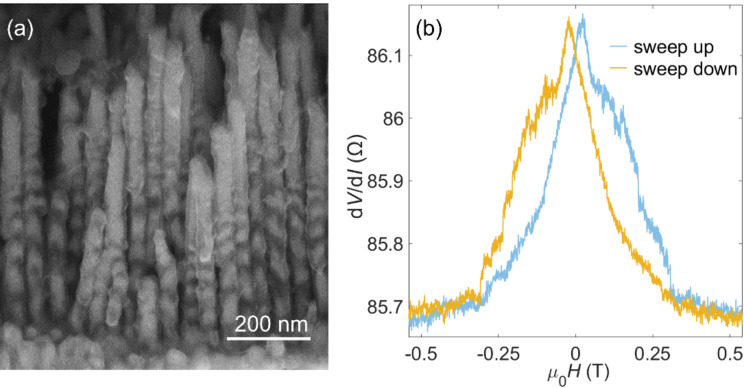

Figure 2

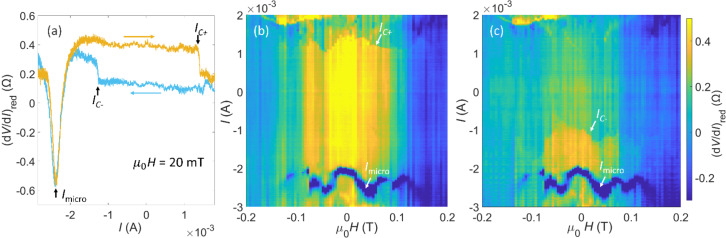

Figure 3

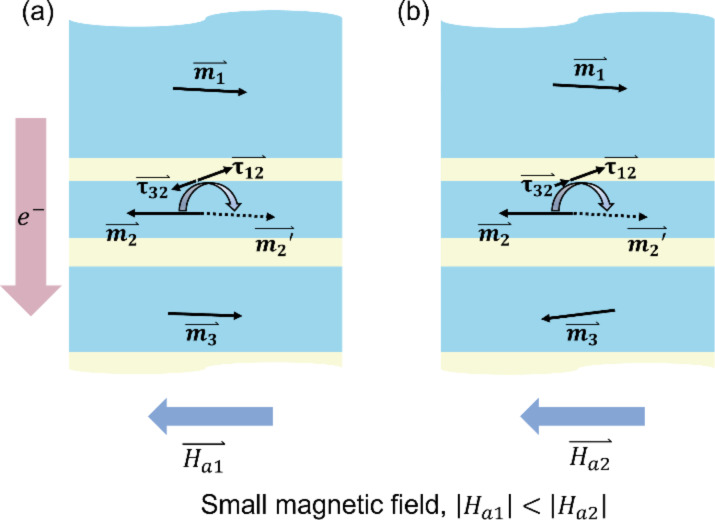

Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11Peer Reviews
