An optimized design for motivated broadband LPDA antenna
Islam M. Ibrahim, Mohamed I. Ahmed, Hala M. Abdelkader, M. M. Elsherbini
TL;DR
This paper introduces a high-gain, wideband LPDA antenna optimized for millimeter-wave applications like wireless personal area networks.
Contribution
The novel design achieves a 3 dBi gain improvement and operates efficiently in the 40-70 GHz range using a four-arm structure and circular director units.
Findings
The antenna achieves a maximum realized gain of 14.97 dBi at 60 GHz.
The design resonates effectively in the 40-70 GHz millimeter-wave band.
Simulation and testing results align well, showing improved performance over prior designs.
Abstract
This paper presents a super wideband and high-gain log periodic dipole array (LPDA) antenna. The overall structure of the antenna was constructed using microwave studio computer simulation technology. The optimal sizes of the planned antenna are 39 × 10× 0.254 mm3. The engineered antenna arrangement is implemented on an RT5880 substrate as a dielectric medium. The LPDA is arranged in four arms that are equally spaced on both lines. The main 50Ω feeder line is partially grounded at the back of the substrate. A combination of circular director units is being studied and tuned in a regular pattern at a predefined distance from the antenna. An improvement in gain of 3 dBi is the response of the director units. The Conformist LPDA is adjusted to achieve a wide range of millimeter wave bands ranging from 40 to over 70 GHz. The antenna resonates at 60 GHz, where the maximum realized gain of…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

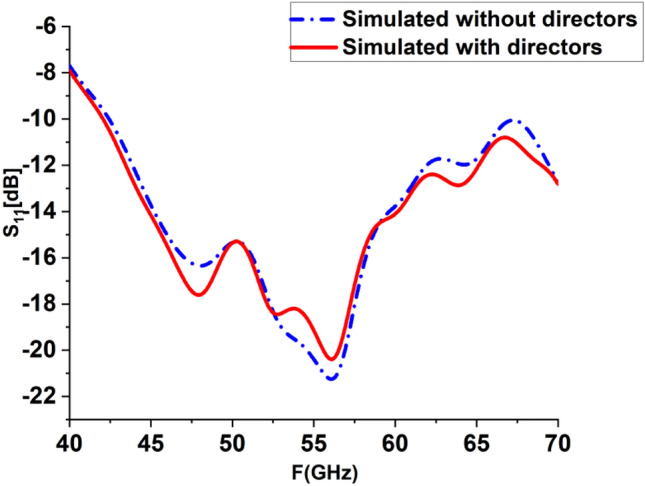

Figure 10

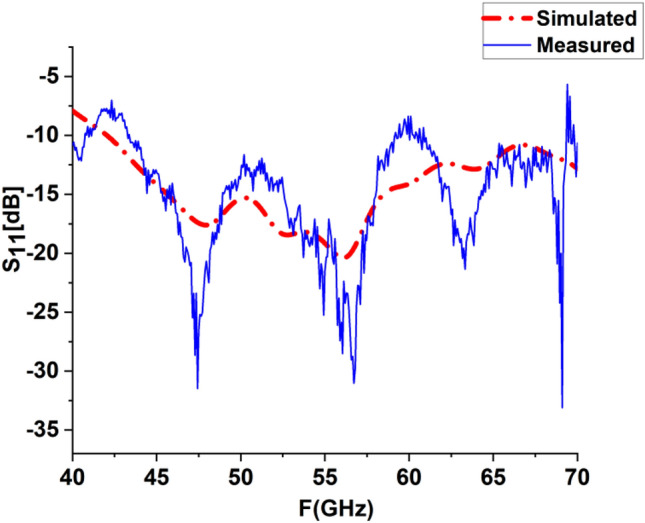

Figure 11

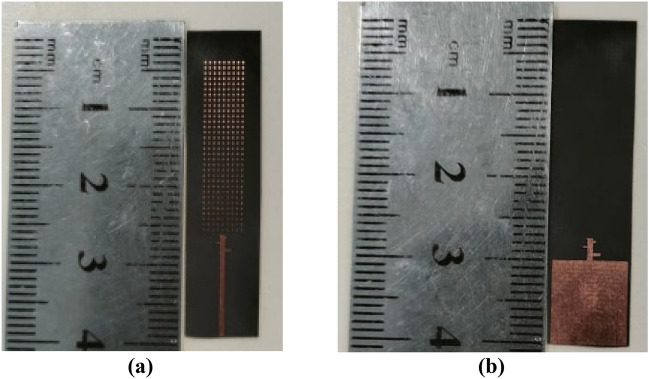

Figure 12

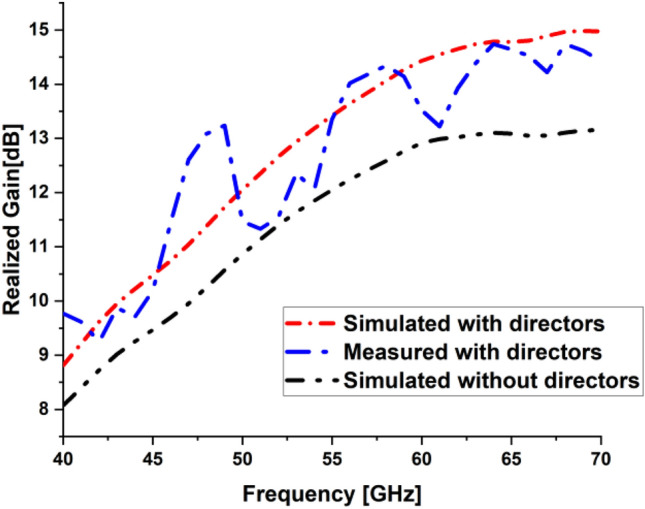

Figure 13

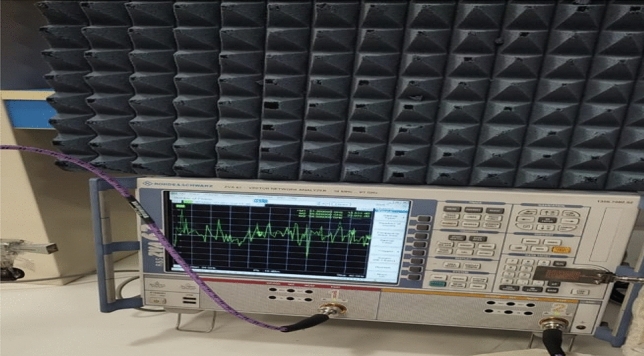

Figure 14

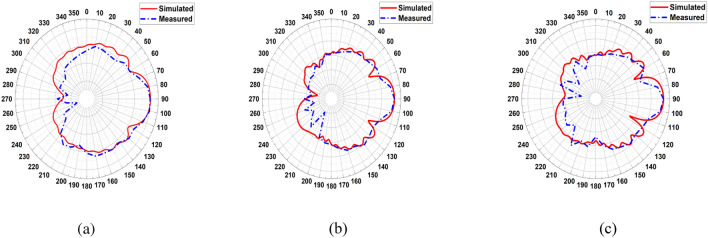

Figure 15

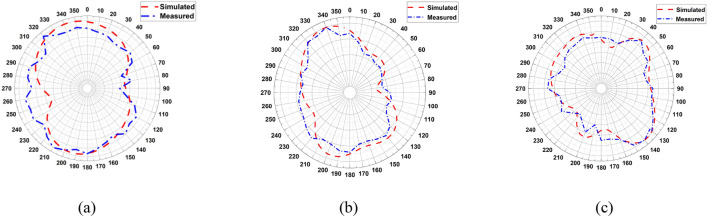

Figure 16

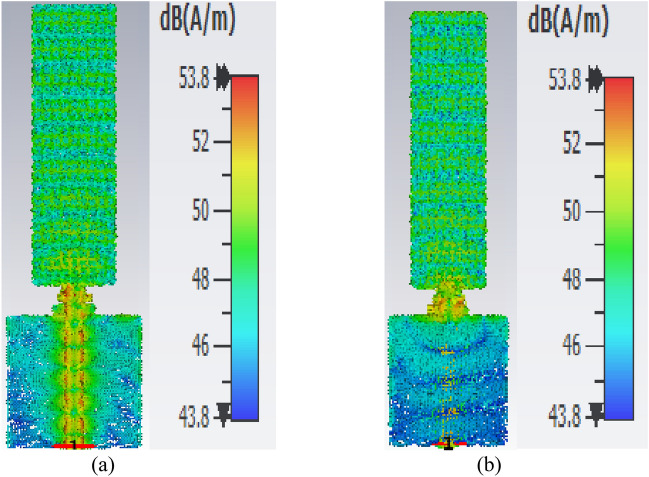

Figure 17

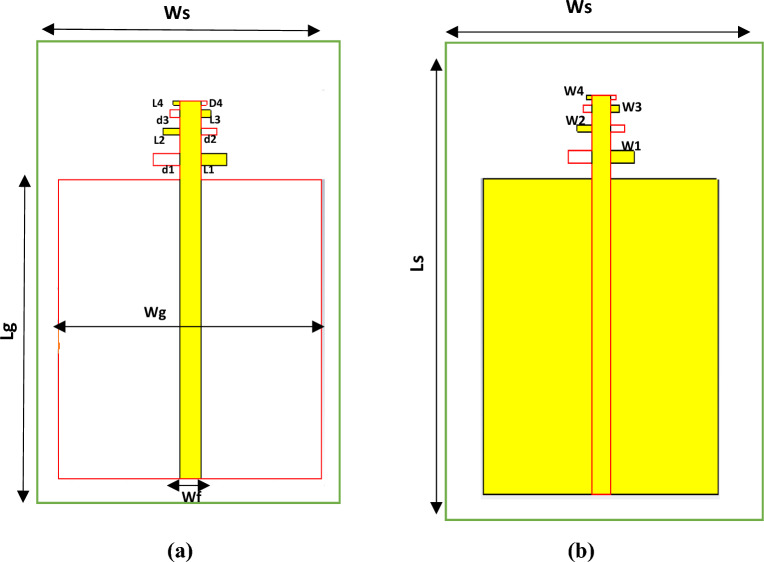

Figure 1

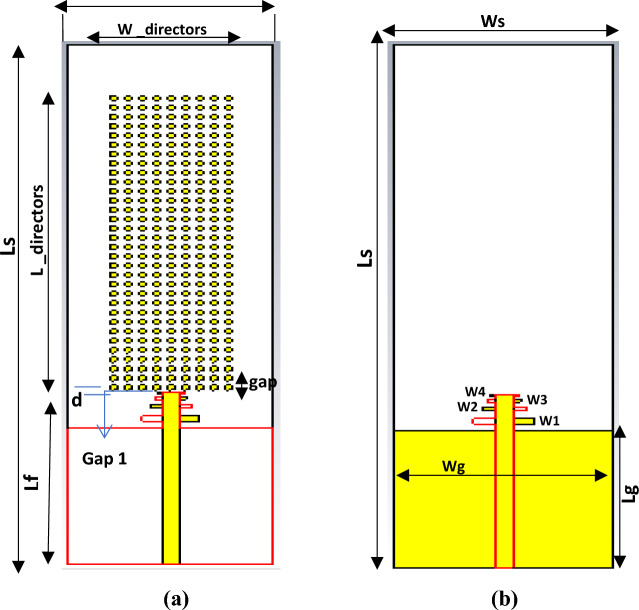

Figure 2

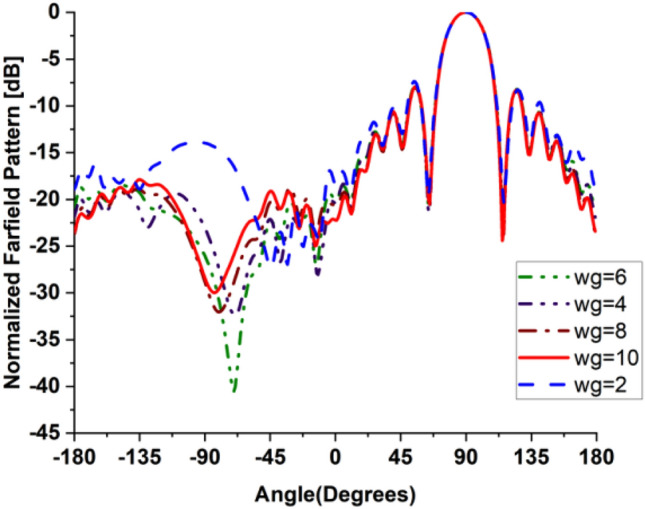

Figure 3

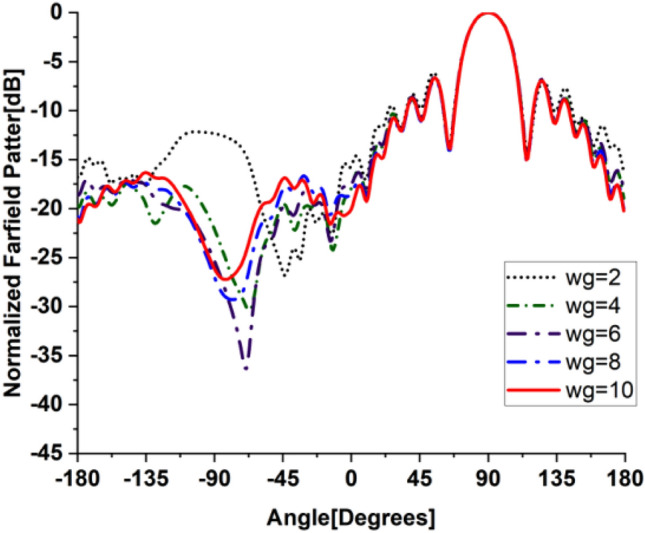

Figure 4

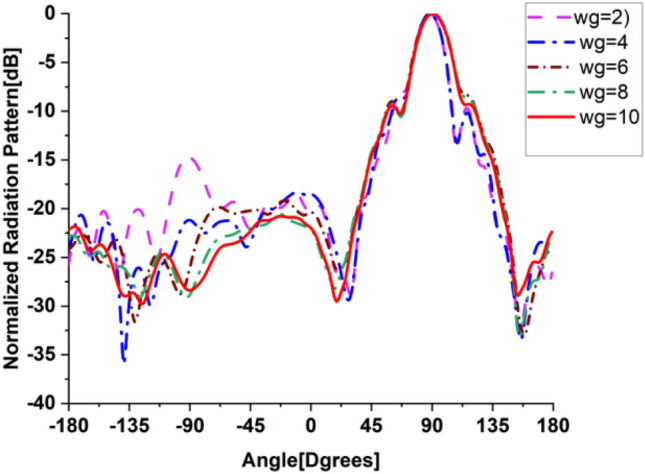

Figure 5

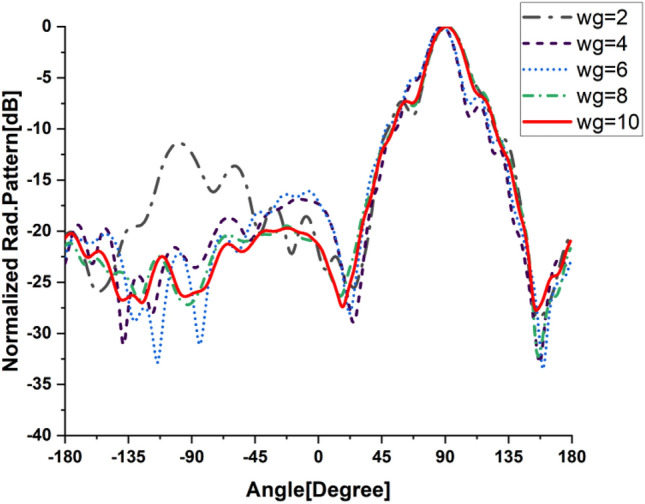

Figure 6

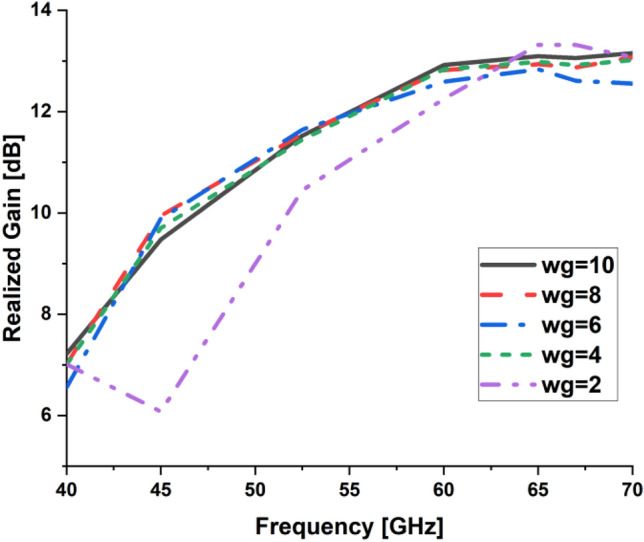

Figure 7

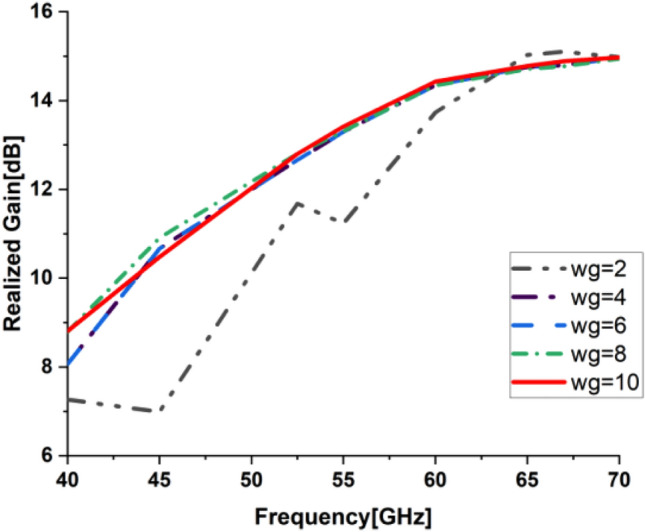

Figure 8

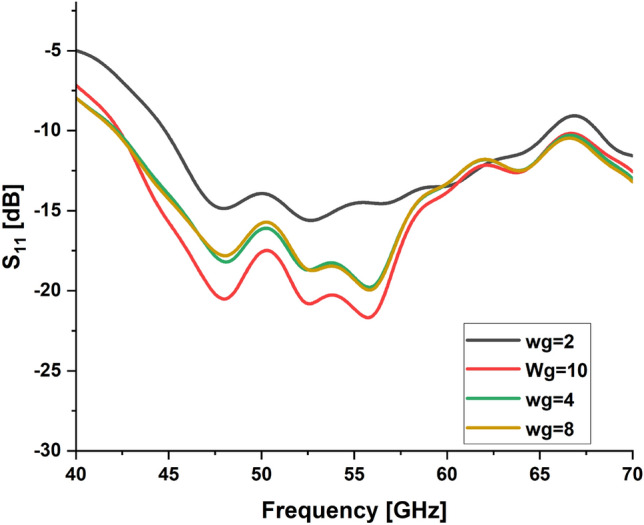

Figure 9Peer Reviews
