Three-Dimensional Virtual Reconstruction of External Nasal Defects Based on Facial Mesh Generation Network

TL;DR

This paper introduces a new method for reconstructing nasal defects using a facial mesh generation network, improving automation and personalization in virtual nasal reconstruction.

Contribution

The novel FMGen-Net model enables automated and personalized 3D reconstruction of nasal defects with high accuracy.

Findings

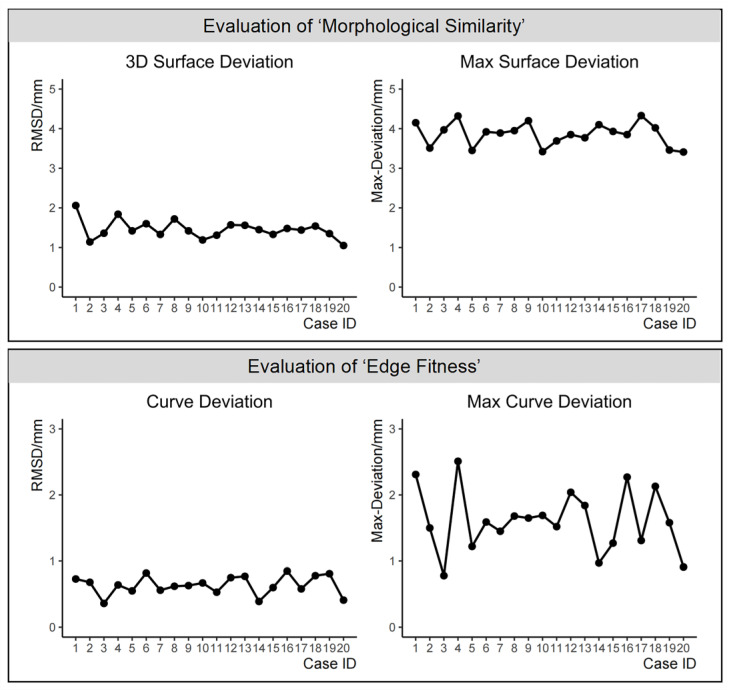

The 3D surface deviation between reconstructed and original nasal data was 1.45 ± 0.24 mm in 20 simulated cases.

The method accurately reconstructs anatomical nasal morphology using personalized 3D target reference faces.

Abstract

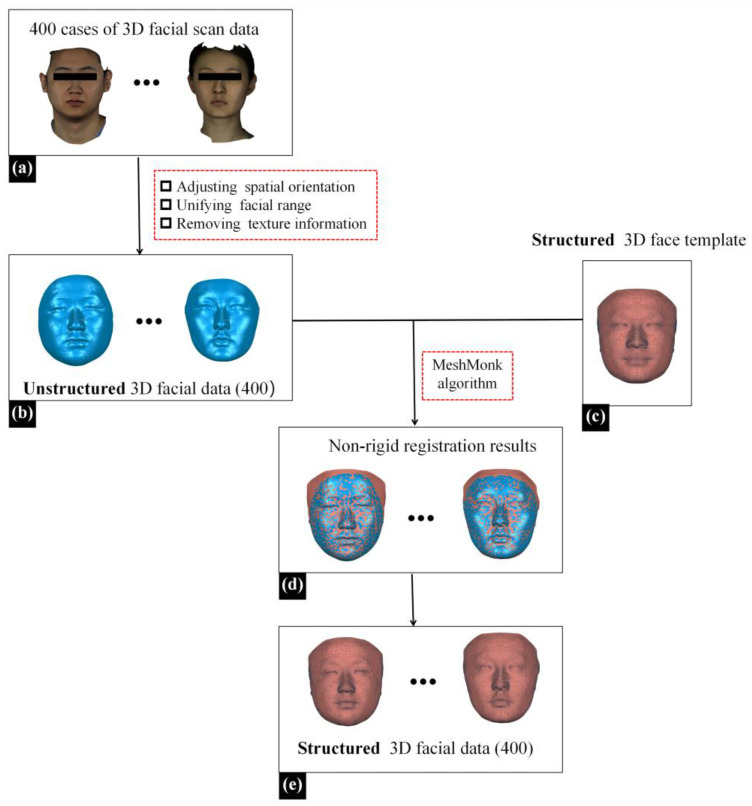

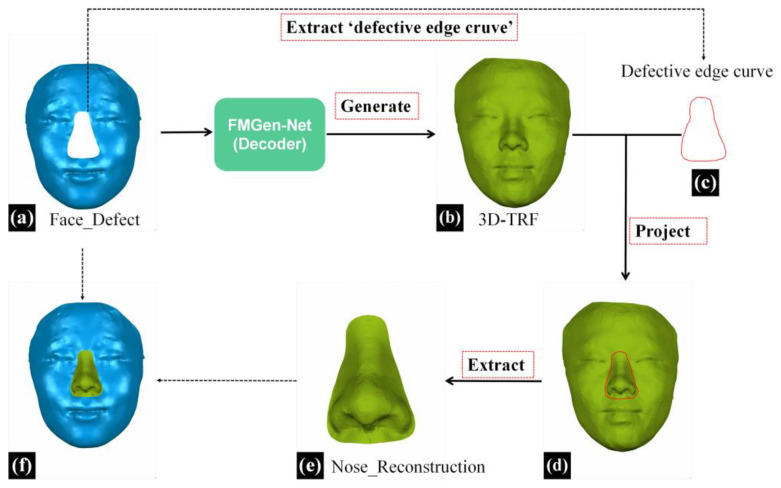

(1) Background: In digital-technology-assisted nasal defect reconstruction methods, a crucial step involves utilizing computer-aided design to virtually reconstruct the nasal defect’s complete morphology. However, current digital methods for virtual nasal defect reconstruction have yet to achieve efficient, precise, and personalized outcomes. In this research paper, we propose a novel approach for reconstructing external nasal defects based on the Facial Mesh Generation Network (FMGen-Net), aiming to enhance the levels of automation and personalization in virtual reconstruction. (2) Methods: We collected data from 400 3D scans of faces with normal morphology and combined the structured 3D face template and the Meshmonk non-rigid registration algorithm to construct a structured 3D facial dataset for training FMGen-Net. Guided by defective facial data, the trained FMGen-Net automatically generated an intact 3D face that was similar to the defective face, and maintained a consistent spatial position. This intact 3D face served as the 3D target reference face (3D-TRF) for nasal defect reconstruction. The reconstructed nasal data were extracted from the 3D-TRF based on the defective area using reverse engineering software. The ‘3D surface deviation’ between the reconstructed nose and the original nose was calculated to evaluate the effect of 3D morphological restoration of the nasal defects. (3) Results: In the simulation experiment of 20 cases involving full nasal defect reconstruction, the ‘3D surface deviation’ between the reconstructed nasal data and the original nasal data was 1.45 ± 0.24 mm. The reconstructed nasal data, constructed from the personalized 3D-TRF, accurately reconstructed the anatomical morphology of nasal defects. (4) Conclusions: This paper proposes a novel method for the virtual reconstruction of external nasal defects based on the FMGen-Net model, achieving the automated and personalized construction of the 3D-TRF and preliminarily demonstrating promising clinical application potential.
