Absence of Anti-Babesia microti antibody in commercial intravenous immunoglobulin (IVIG)

TL;DR

Commercial IVIG does not contain antibodies against Babesia microti, suggesting it may not help treat babesiosis.

Contribution

This study is the first to test commercial IVIG for anti-Babesia microti antibodies and finds them absent.

Findings

No commercial IVIG samples tested positive for anti-Babesia microti antibodies using IFA or ELISA.

Commercial IVIG may not provide therapeutic benefit for babesiosis patients.

Patients with impaired antibody production may not benefit from IVIG as an adjunct therapy.

Abstract

Babesiosis is a worldwide emerging protozoan infection that is associated with a spectrum of disease severity from asymptomatic infection to severe organ damage and death. While effective treatment strategies are available, some immunocompromised patients experience severe acute and prolonged/relapsing illness due in part to an impaired host antibody response. Intravenous immunoglobulin (IVIG) has been used as an adjunctive therapy in some immunocompromised babesiosis patients, but its therapeutic effect is uncertain. We evaluated the presence of Babesia microti antibodies in commercial samples of IVIG.

The presence of B. microti antibodies in commercial samples of IVIG were tested using an immunofluorescence assay. A subset of samples was then tested for B. microti antibodies using an enzyme linked immunosorbent assay.

Out of 57 commercial IVIG samples tested using IFA, and 52 samples tested using ELISA, none were positive for B. microti antibodies.

Commercially available IVIG may not be of therapeutic benefit for babesiosis patients. Additional sampling of IVIG for B. microti antibody and a clinical trial of babesiosis patients given IVIG compared with controls would provide further insight into the use of IVIG for the treatment of babesiosis.

Human babesiosis is usually a mild to moderate illness that clears with a standard course of atovaquone and azithromycin. The disease is often severe in immunocompromised patients, including those over 50 years of age, those with asplenia, malignancy, HIV/AIDS, or on immunosuppressive therapy. Patients with multiple immunosuppressive conditions that usually result in low or absent antibody production may experience severe acute disease followed by persistent relapsing disease that can last for months or even years. Intravenous immunoglobulin (IVIG) has been used as adjunct therapy in patients with severe babesiosis, although controlled therapeutic trials have not been carried out. This prompted us to evaluate Babesia microti antibody concentrations in IVIG samples from different commercial sources. We tested commercially available IVIG for antibodies against B. microti using IFA and ELISA assays. None of the IVIG samples contained detectable antibody against B. microti. Our results suggest that commercially available IVIG may be of limited therapeutic benefit for babesiosis patients.

Figures

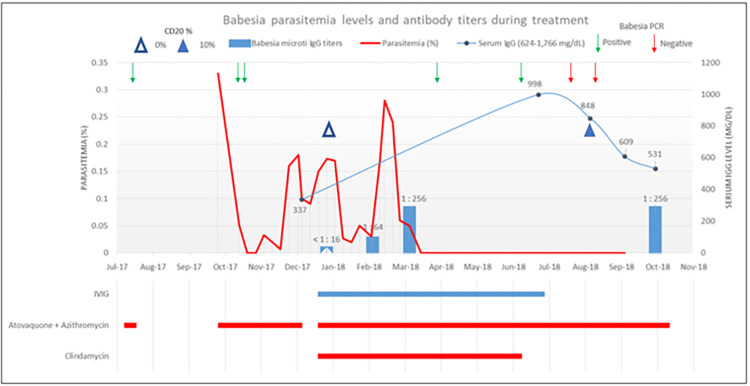

Babesia parasitemia levels and antibody titers during treatment.Timeline of Babesia microti parasitemia, amplifiable B. microti DNA in blood by PCR, percentage of CD20 cells (B cells), and antibody level in an immunocompromised host.

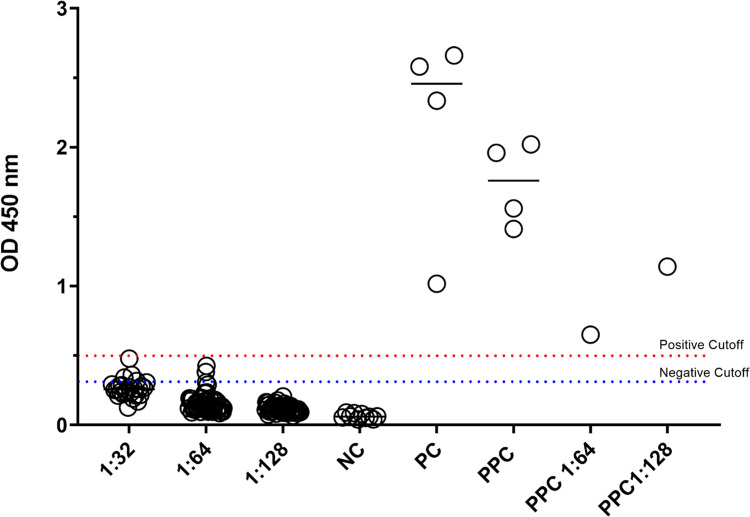

Babesia microti antibody titers by ELISA in IVIG.Babesia microti antibody concentrations in IVIG and human serum samples using InBios ELISA kit. Positive human serum specimens and 28 IVIG products from three commercial sources were diluted to 1:32 and 52 IVIG products were further diluted to 1:64, and 1:128. The dashed blue line represents the negative cutoff of OD450 0.300 and the red line represents the positive cutoff of OD450 0.500. PC: manufacturer positive B. microti antibody control; NC: no IVIG control; PPC: positive human serum B. microti antibody control.

Full text

Introduction

Babesiosis is a worldwide emerging protozoan infection that is endemic in the northeastern and northern Midwestern United States. A total of 16,456 US cases were reported to the CDC between 2011–2019 [1]. The disease is caused by a number of Babesia spp., with Babesia microti the most common cause of human infection [2]. B. microti is transmitted to humans via Ixodid (hard bodied) ticks, primarily by Ixodes scapularis in the United States. Humans also rarely may become infected with Babesia spp. through blood transfusion, organ transplantation, or congenital transmission [2,3]. Symptoms typically include fever, fatigue, chills, sweats, anorexia, headache, myalgias, and malaise. Severe disease requires hospital admission and can lead to multiorgan complications and death [2]. Prompt diagnosis is important, especially in immunocompromised patients, and consists of identification of Babesia spp. on peripheral blood smear(s) and/or PCR testing. Current treatment recommendations include a combination of azithromycin and atovaquone, with clindamycin and quinine being second-line therapy [4]. Exchange transfusion may be used in severe disease with parasitemia >10% and/or patients with end-organ impairment [5].

Most babesiosis patients respond well to atovaquone and azithromycin but some highly immunocompromised patients experience relapsing illness despite prolonged antimicrobial therapy [6]. The majority of these patients have B-cell lymphoma or autoimmune disease and have been treated with rituximab, a monoclonal antibody that targets B cells [6,7]. These patients often have low plasma anti-B. microti antibody concentrations. Those immunosuppressed patients who have difficulty clearing the infection require prolonged therapy and this leads to the emergence of antimicrobial resistant strains that are even more difficult to eradicate.

Rituximab, an anti-CD20 monoclonal antibody is used predominantly in non-Hodgkin lymphoma (NHL) and autoimmune conditions [8,9]. It was the first monoclonal antibody (mAb) used for oncology patients and is typically used in combination with chemotherapeutic agents but can also be used as monotherapy [8]. Rituximab leads to B-cell depletion and decreased production of antibody within 72-hours and lasts for approximately six to 12 months [8,10–11]. During this time, patients have diminished antibody and are at increased risk of infections.

Consequently, intravenous immunoglobulin (IVIG) has been used to provide anti-B. microti antibody even though the concentration of B. microti antibody in IVIG and its therapeutic efficacy are unknown. We treated a babesiosis patient with IVIG with uncertain benefit, prompting us to evaluate B. microti antibody concentrations in IVIG samples from different commercial sources.

Methods

Ethics statement

Human subjects research determinations were sought from the UConn Health Institutional Review Board and the United State Food and Drug Administration. The project was determined by each to not constitute human subjects research, therefore there is no associated approval number.

Case report

A 66-year-old male patient with B cell lymphoma developed fever and was diagnosed with babesiosis using PCR. He received a total of six cycles of EPOCH therapy, including Rituximab, every three weeks. His last dose was administered approximately four months prior to the development of babesiosis. The initial babesiosis symptoms resolved after a 10-day course of azithromycin (1000 mg daily) and atovaquone (750 mg twice daily). They recurred approximately two months later and a blood smear revealed 0.33% parasitemia while B. microti PCR remained positive. He was again placed on azithromycin 1000 mg daily and atovaquone 750 mg twice daily but 10 weeks later continued to exhibit persistent symptoms and low level parasitemia. Clindamycin (600 mg every 8 hours) was added to his regimen. A negative IFA titer to Babesia spp, absence of B cells on peripheral blood flow cytometry and low plasma levels of IgG1 and IgG2 were noted at that time (Fig 1). Accordingly, IVIG (Privigen, 65g/dose given monthly) was initiated after written informed consent was obtained per hospital protocol, in addition to clindamycin (600 mg every 8 hours), azithromycin (1000 mg daily), atovaquone (750 mg twice daily). Three months later, symptoms had resolved, blood smears were negative, and an IFA IgG titer to B. microti was positive at 1:256 (Fig 1). B. microti PCR subsequently reverted to negative after 8 months of therapy, coinciding with recovery of B cells as demonstrated by peripheral flow cytometry. The patient received an additional 3 months of azithromycin and atovaquone and has not experienced a clinical relapse over the past five years. In order to determine whether IVIG might have contributed to the clearance of infection, we evaluated 57 lots of IVIG from 4 commercial products for B. microti antibody using indirect fluorescent antibody (IFA) and enzyme linked immunosorbent assay (ELISA).

Babesia parasitemia levels and antibody titers during treatment.Timeline of Babesia microti parasitemia, amplifiable B. microti DNA in blood by PCR, percentage of CD20 cells (B cells), and antibody level in an immunocompromised host.

IVIG preparations: Unused IVIG obtained from clinical infusions at the University of Connecticut Infusion Clinic were evaluated in this study (S1 Table). After dose preparation and clinical infusion, tubing and product bottles were allowed to settle for approximately 20 minutes to allow pooling of liquid IVIG in the discard materials. Remnant liquid was drawn off and stored in ~0.5 ml aliquots at -80°C. Each patient infusion typically yielded 1 to 3 aliquots for subsequent antibody testing.

Babesia microti immunofluorescence assay

We first determined the presence of B. microti antibody using a modification of the standard B. microti immunofluorescence assay (IFA) [8,9]. Babesia microti–infected red blood cells (iRBCs) grown in BALB/cJ mice were used as the antigen source. Slides were prepared using a diluted suspension of 5 × 10^6^ B. microti iRBCs/10μL, dried overnight, and stored at –70°C until use. Test IVIG samples were then diluted to 1:64 and 1:128 in 1× PBS/bovine serum albumin and added in 20-μL increments to each well on a 12-well slide. Two positive and one negative control sera were included for each test. Slides were processed as previously described [12,13]. A total of 57 samples were tested including 34 Privigen, 19 Gammagard S/D, 2 Gamunex-C, and 2 Gammagard Liquid.

Babesia microti ELISA assay

In order to further determine the presence or absence of B. microti antibody, a subset of samples were tested using an ELISA (InBios International, Inc., Seattle, WA). A total of 52 samples were tested, including 30 Privigen, 18 Gammagard S/D, 2 Gammagard Liquid and 2 Gamunex-C. Assuming a physiological extracellular concentration of IVIG at 8.8 mg/mL in a 70 kg (800 mg/kg) patient, IVIG samples were diluted to 1:32, 1:64, and 1:128 concentrations for antibody testing. To test the 1:32 dilution, 82.5 μL of 100 mg/mL IVIG was aliquoted into 217.5 μL of human serum. Four μL of this dilution mixture was then aliquoted into 396 μL of ELISA sample dilution buffer as indicated in the manufacturer’s instructions (InBios International, Inc., Seattle, WA). A negative control without IVIG was prepared by aliquoting 82.5 μL of 0.9% saline (Baxter, Deerfield, IL) with 217.5 μL of human serum (Sigma, St. Louis, MO). For 1:64 and 1:128 dilutions, 41.4 μL and 20.6 μL of 100 mg/mL IVIG were aliquoted into 258.6 μL and 279.4 μL of human serum, respectively. These dilution mixtures were then further diluted with ELISA sample dilution buffer as described above. Control samples consisted of no IVIG control (saline with human sera; Sigma), the manufacturers’ positive and negative controls, and serum from one patient with previously documented B. microti infection (undiluted, 1:64 and 1:128 dilutions). Three different concentrations of IVIG, a no IVIG control, and a B. microti positive patient serum sample were prepared as described above. The undiluted patient positive control and manufacturer positive control were run in duplicate. Samples were then incubated in B. microti coated recombinant protein-based ELISA plate wells according to the manufacturers’ instructions. The procedure for incubation, washing, and detection were all carried out as described in the manufacturer’s instructions. The manufacturer defines an OD450 ≤ 0.30 as negative and ≥ 0.50 as positive.

Results

IFA

We measured the anti-B. microti IgG titers against blood-form parasites in the IVIG samples using infected mouse red cells as antigen source by IFA. We first determined the optimal IgG concentration in the IVIG lots that would not give a non-specific reactivity against mouse RBC in IFA. We found that IgG concentration of ≤ 200 μg/ml allowed a clear B. microti parasite staining without a background signal. Therefore, each IVIG sample was tested at four IgG concentrations of 200 μg/ml, 100 μg/ml, 50 μg/ml, and 25 μg/ml by IFA. Results showed none of the IVIG samples tested positive by IFA.

ELISA

Using the ELISA manufacturer’s cutoff values for positive and negative results, the manufacturer positive controls and patient sample positive controls were positive, while the negative controls samples tested negative for B. microti antibodies (Fig 2). Each of the IVIG samples from different manufacturers diluted in serum at 1:32 (n = 26), 1:64 (n = 52), and 1:128 (n = 52) tested negative for B. microti antibodies (Fig 2). Twenty-one of the IVIG samples diluted 1:32 had an OD450 of <0.30, and five had an OD450 of <0.50. For those diluted at 1:64, forty-nine had an OD450 of <0.30, and three had an OD450 of <0.50. All 52 samples diluted at 1:128 had an OD450 of <0.30.

Babesia microti antibody titers by ELISA in IVIG.Babesia microti antibody concentrations in IVIG and human serum samples using InBios ELISA kit. Positive human serum specimens and 28 IVIG products from three commercial sources were diluted to 1:32 and 52 IVIG products were further diluted to 1:64, and 1:128. The dashed blue line represents the negative cutoff of OD450 0.300 and the red line represents the positive cutoff of OD450 0.500. PC: manufacturer positive B. microti antibody control; NC: no IVIG control; PPC: positive human serum B. microti antibody control.

Discussion

To our knowledge, this is the first study that has assessed the B. microti antibody content of IVIG. IVIG is derived from pooled plasma donors [14]. It provides passive immunity and has been used for various infectious, autoimmune, and immunodeficiency disorders with varying success [14]. For example, IVIG is effective treatment for Guillain Barre syndrome, ITP, and Kawasaki’s disease, but has inconsistent effect on chronic hepatitis B. It is occasionally used for treatment of patients experiencing persistent babesiosis but there are no clinical trial studies that demonstrate efficacy. Antibody is thought to play an important role in clearing B. microti infection because persistently infected patients have B cell lymphoma and/or rituximab therapy or other conditions with low or absent B. microti antibody blood concentrations [6,15]. The Fab region of rituximab binds to a sequence of CD20 on B cells that is four amino acids in length [9]. In so doing, it depletes B-cells and the production of antibody, although it is thought that there are other mechanisms by which rituximab leads to B-cell depletion [9]. Rituximab-induced signaling may act synergistically with chemotherapeutics to induce cell death [16]. Furthermore, rituximab leads to complement mediated cytotoxicity and rapid B cell death [16]. Antibody-dependent cellular cytotoxicity is induced by rituximab through effector cells [16,10]. As such, patients who received rituximab may be unable to mount an effective antibody response to B. microti.

IVIG might be expected to have at least some anti-B. microti antibody if plasma donors were residents of Babesia-endemic areas. Roughly 4–14% of plasma collection sites from IVIG companies used in our study (Grifols/Gamunex-C, CSL Plasma/Privigen, BioLife/Gammagard) are located in B. microti-endemic areas (Table 1) [17–19]. Even in highly endemic locales, only 1.1–1.4% of blood donors are B. microti antibody positive [20]. In broader general populations, B. microti antibody varies but can be as high as 10% [13,21]. Although the exact degree of B. microti antibody-positive donors associated with the IVIG samples is unknown, it is likely to be low based on the location of collection sites in both endemic and non-endemic areas, and low baseline seropositivity found in blood donors in endemic sites. Furthermore, pooling of plasma samples in the large IVIG lots would significantly dilute antibody level from donor(s) who may have been positive for B. microti antibody. None of the IVIG samples that we tested were positive for B. microti antibody against whole parasite by IFA or against recombinantly produced antigens by ELISA, suggesting that commercially available IVIG may not be effective therapy for babesiosis patients.

Table 1: Number and percent of plasma collection sites located in Babesia microti-endemic states in the US.

Despite our findings, anti- B.microti antibodies (1:64 titer) appeared within a month of initiation of IVIG and increased (1:256 titer) over the following month. A repeat antibody test 7 months later was also positive (1:256 titer). Although commercial lots of IVIG appear to lack B. microti antibody, IVIG may act indirectly to stimulate antibody production. Low doses of IVIG have been shown to induce proliferation and immunoglobulin synthesis in Common Variable Immunodeficiency patients [22]. In contrast, IVIG may lead to B-cell apoptosis via interaction with the CD22-receptor protein on the B cell membrane, which disrupts cell signaling pathways [23,24]. IVIG has been shown to down-regulate CD21, which also increases B-cell apoptosis [24]. Overall, at least five IVIG-induced mechanisms have been described to affect B-cells, including (i) sustained activation of Erk1/2 (extracellular kinase) which leads to apoptosis, (ii) inhibition of B-cell receptor-induced calcium signals and cellular proliferation, (iii) anti-idiotypic binding of IVIG that modulates the production of pathogenic autoantibody, (iv) B-cell activation, and (v) suppression of proinflammatory cytokine production [24]. It is also possible that the rise in antibody at the time of IVIG infusion was due to a decreased rituximab effect rather than IVIG infusion. The emergence of antibody occurred 9 months after the last dose of rituximab and coincides with the expected timing of B-cell recovery [10–11]. In addition, IVIG was administered concurrently with the addition of clindamycin to azithromycin and atovaquone. A three-drug regimen is one of the therapeutic measures recommended by experts in immunocompromised patients who fail to respond to initial therapy and may have also contributed to the patient’s recovery [4].

In conclusion, our data raises uncertainty whether commercially available IVIG may not be an effective adjunct therapy in immunosuppressed patients who responded poorly to anti-Babesia treatment. None of the IVIG samples that we tested contained B. microti antibodies as measured by IFA (n = 57) or ELISA (n = 52). Clinical studies using IVIG products specifically sourced from donors screened for B. microti antibody may provide further insight into their potential therapeutic benefits. Additionally, monoclonal antibodies directed against immunodominant B. microti proteins with proven protective efficacy in preclinical studies may be an attractive alternative in treatment of B. microti-infected immunocompromised patients, but clinical trials are needed to confirm this possibility [25].

Supporting information

S1 TableCommercial IVIG Samples.Table with listed commercial IVIG samples used for ELISA and IFA testing, including collection date, product, lot number and ELISA results(s).(DOCX)

S2 TableNumerical values corresponding to Fig 1.Table with values of Babesia microti IgG, serum IgG, CD 20% and parasitemia %.(DOCX)
