Multi-well plate lid for single-step pooling of 96 samples for high-throughput barcode-based sequencing

TL;DR

A new lid for multi-well plates enables quick and efficient pooling of 96 samples for high-throughput RNA sequencing.

Contribution

A novel pooling lid design for 96-well plates that simplifies and accelerates sample preparation for barcode-based RNA sequencing.

Findings

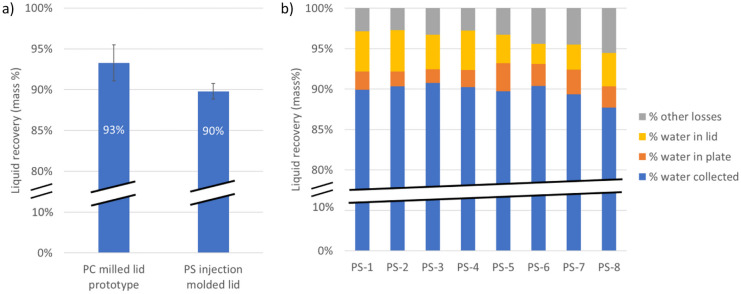

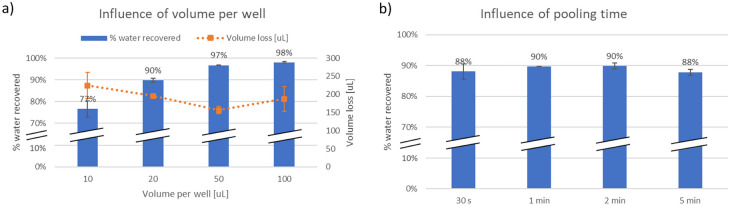

The pooling lid achieves over 90% liquid recovery in under a minute using standard equipment.

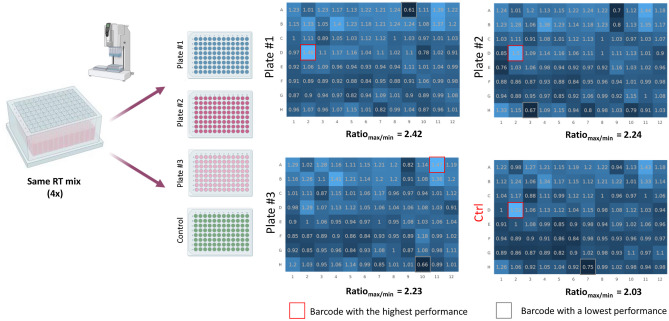

The lid successfully pooled 96 DNA barcodes from a standard 96-well plate into a single sample pool.

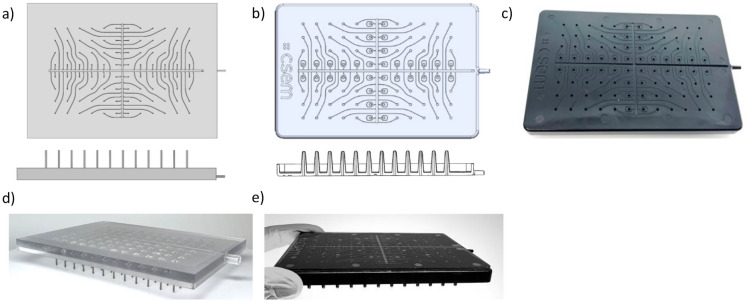

The lid was manufactured at scale using injection molded polystyrene for practical use.

Abstract

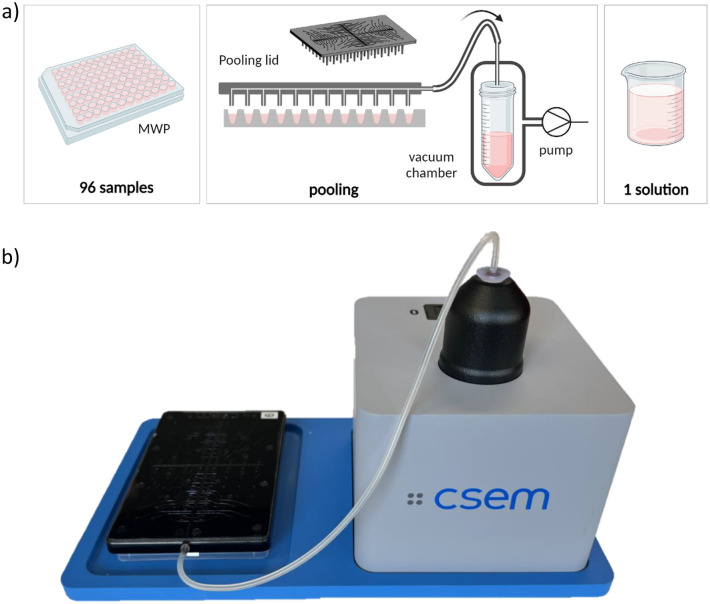

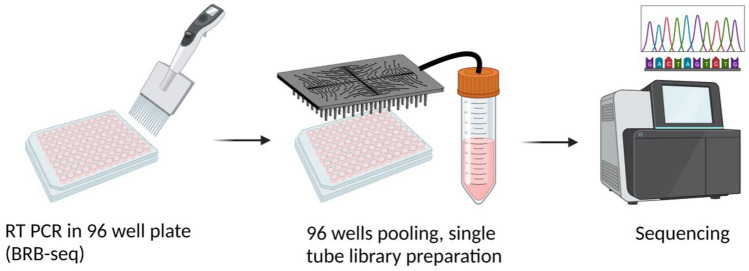

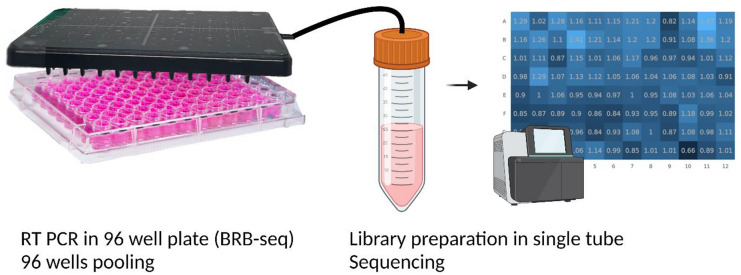

High-throughput transcriptomics is of increasing fundamental biological and clinical interest. The generation of molecular data from large collections of samples, such as biobanks and drug libraries, is boosting the development of new biomarkers and treatments. Focusing on gene expression, the transcriptomic market exploits the benefits of next-generation sequencing (NGS), leveraging RNA sequencing (RNA-seq) as standard for measuring genome-wide gene expression in biological samples. The cumbersome sample preparation, including RNA extraction, conversion to cDNA and amplification, prevents high-throughput translation of RNA-seq technologies. Bulk RNA barcoding and sequencing (BRB-seq) addresses this limitation by enabling sample preparation in multi-well plate format. Sample multiplexing combined with early pooling into a single tube reduces reagents consumption and manual steps. Enabling simultaneous pooling of all samples from the multi-well plate into one tube, our technology relies on smart labware: a pooling lid comprising fluidic features and small pins to transport the liquid, adapted to standard 96-well plates. Operated with standard fluidic tubes and pump, the system enables over 90% recovery of liquid in a single step in less than a minute. Large scale manufacturing of the lid is demonstrated with the transition from a milled polycarbonate/steel prototype into an injection molded polystyrene lid. The pooling lid demonstrated its value in supporting high-throughput barcode-based sequencing by pooling 96 different DNA barcodes directly from a standard 96-well plate, followed by processing within the single sample pool. This new pooling technology shows great potential to address medium throughput needs in the BRB-seq workflow, thereby addressing the challenge of large-scale and cost-efficient sample preparation for RNA-seq.

The online version contains supplementary material available at 10.1007/s10544-024-00702-5.
