Evaluation of a head rest prototype for rotational corrections in three degrees of freedom

TL;DR

A prototype head rest device was tested for its ability to correct rotational misalignments in cranial radiotherapy setups, showing high accuracy and stability.

Contribution

The prototype device enables accurate correction of rotational offsets in three degrees of freedom during image-guided radiotherapy.

Findings

The device achieved a mean residual angular difference of 0.0° ± 0.1° and translational offsets under 1 mm.

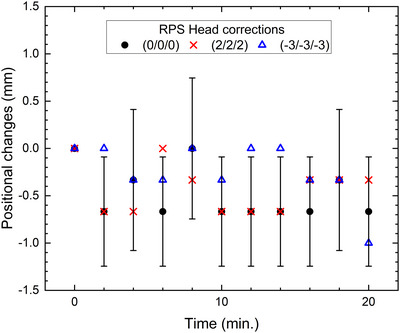

The device remained stable for 20 minutes with position changes less than 0.7 mm.

High-density materials in the device can be avoided during treatment planning without compromising plan quality.

Abstract

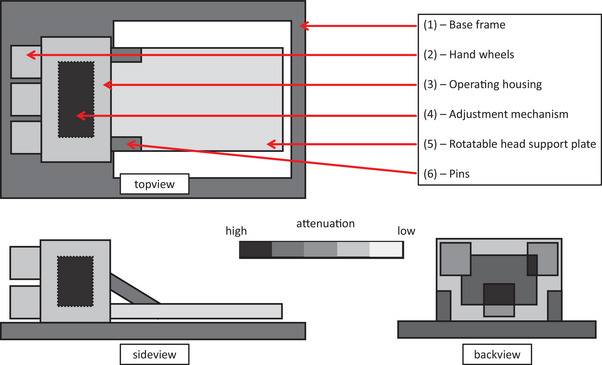

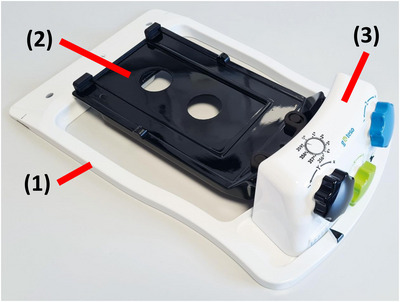

Cranial stereotactic irradiations require accurate reproduction of the planning CT patient position at the time of treatment, including removal of rotational offsets. A device prototype was evaluated for potential clinical use to correct rotational positional offsets in image‐guided radiotherapy workflow. Analysis was carried out with a prototype device “RPS head” by gKteso GmbH, rotatable up to 4° in three dimensions by hand wheels. A software tool accounts for the nonrectangular rotation axes and also indicates translational motions to be performed with the standard couch to correct the initial offset and translational shifts introduced by the rotational motion. The accuracy of angular corrections and positioning of an Alderson RANDO head phantom using the prototype device was evaluated for nine treatment plans for cranial targets. Corrections were obtained from cone beam computed tomography (CBCT) imaging. The phantom position was adjusted and the final position was then verified by another CBCT. The long‐term stability of the prototype device was evaluated. Attenuation by the device along its three main axes was assessed. A planning study was performed to evaluate if regions of high‐density material can be avoided during plan generation. The device enabled the accurate correction of rotational offsets in a clinical setup with a mean residual angular difference of (0.0 ± 0.1)° and a maximum deviation of 0.2°. Translational offsets were less than 1 mm. The device was stable over a period of 20 min, not changing the head support plate position by more than (0.7 ± 0.6) mm. The device contains high‐density material in the adjustment mechanism and slightly higher density in the support structures. These can be avoided during planning generation maintaining comparable plan quality. The head positioning device can be used to correct rotational offsets in a clinical setting.
