Oral administration of a recombinant modified RBD antigen of SARS-CoV-2 as a possible immunostimulant for the care of COVID-19
Norma A. Valdez‑Cruz, Diego Rosiles-Becerril, Constanza E. Martínez-Olivares, Enrique García‑Hernández, Laura Cobos-Marín, Daniel Garzón, Francisco E. López-Salas, Guadalupe Zavala, Axel Luviano, Alejandro Olvera, Alejandro Alagón, Octavio T. Ramírez, Mauricio A. Trujillo‑Roldán
TL;DR
This paper explores using an oral recombinant RBD antigen to stimulate immunity against SARS-CoV-2, showing it can effectively produce antibodies in mice.
Contribution
A novel peptide-fused RBD antigen is developed for oral administration, enhancing immunostimulation and antibody production.
Findings
The peptide-fused RBD induced robust IgG production in mice.
The formulation generated neutralizing antibodies in mice sera.
The oral formulation was safe with no adverse reactions observed.
Abstract
Developing effective vaccines against SARS-CoV-2 that consider manufacturing limitations, equitable access, and acceptance is necessary for developing platforms to produce antigens that can be efficiently presented for generating neutralizing antibodies and as a model for new vaccines. This work presents the development of an applicable technology through the oral administration of the SARS-CoV-2 RBD antigen fused with a peptide to improve its antigenic presentation. We focused on the development and production of the recombinant receptor binding domain (RBD) produced in E. coli modified with the addition of amino acids extension designed to improve antigen presentation. The production was carried out in shake flask and bioreactor cultures, obtaining around 200 mg/L of the antigen. The peptide-fused RBD and peptide-free RBD proteins were characterized and compared using SDS-PAGE gel,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

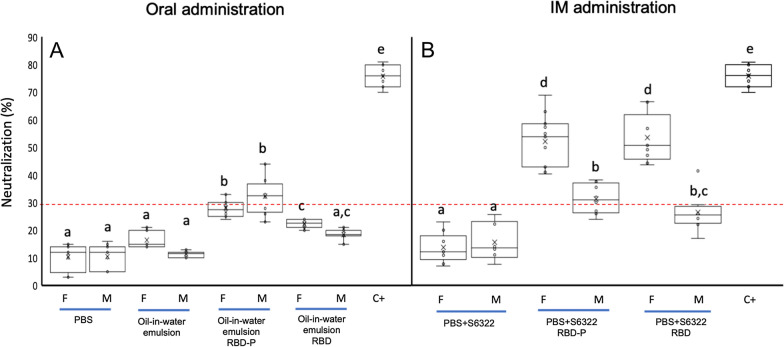

Figure 10

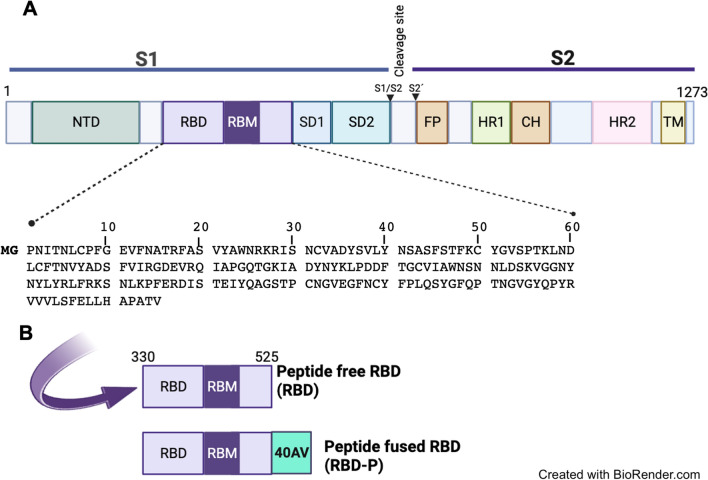

Figure 1
Figure 2

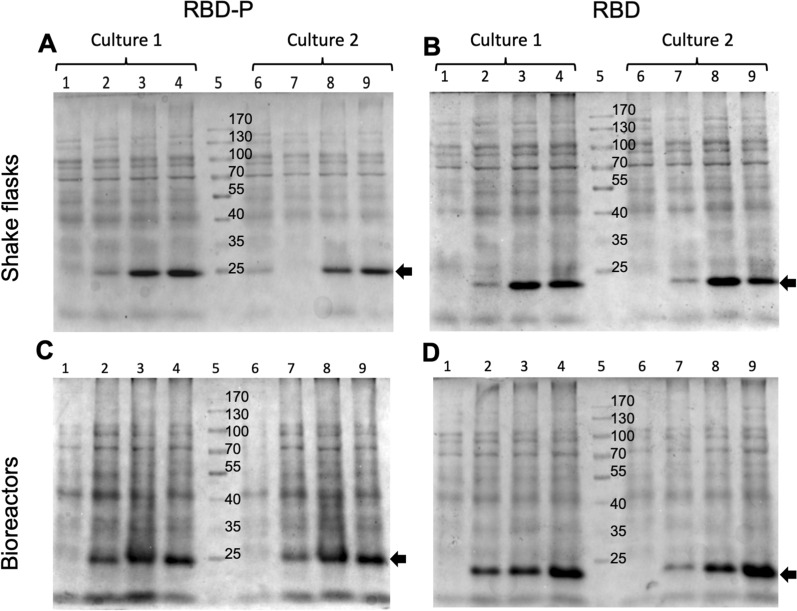

Figure 3
Figure 4

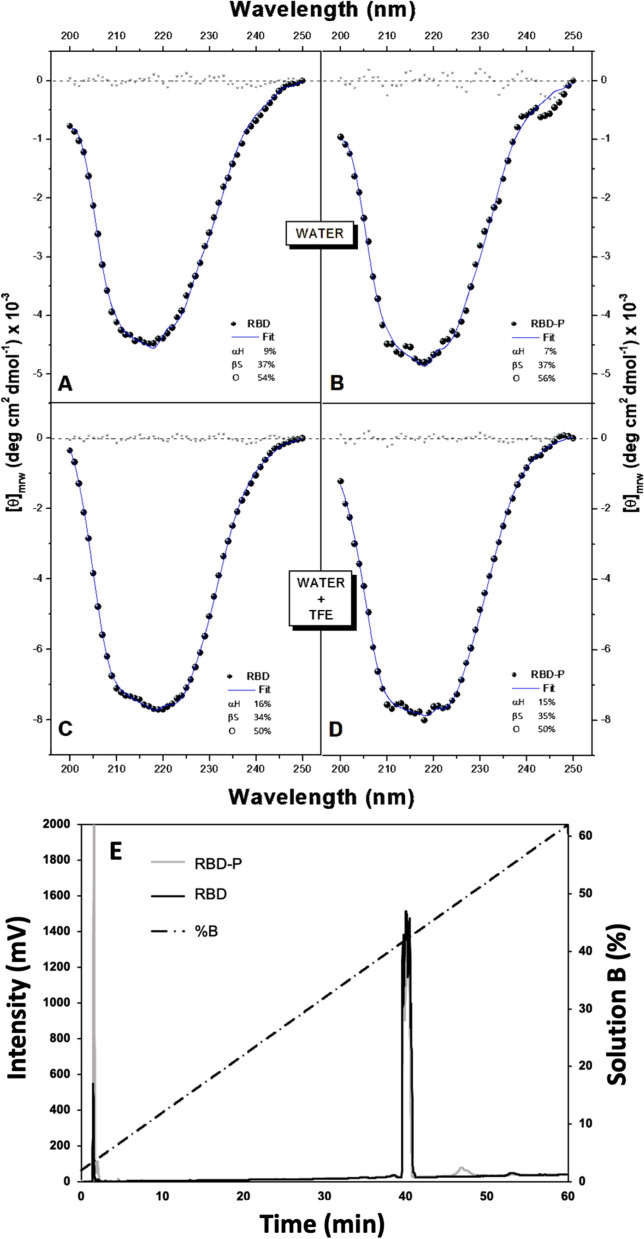

Figure 5
Figure 6

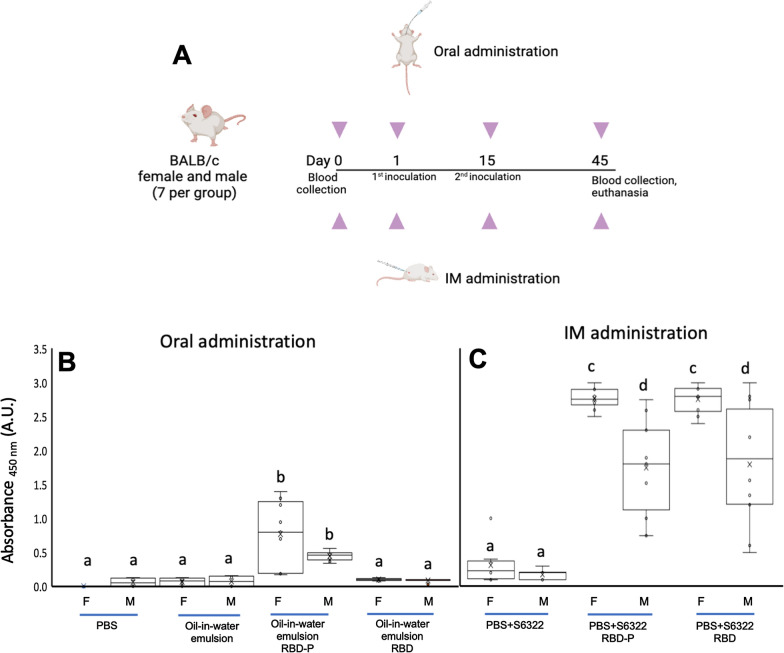

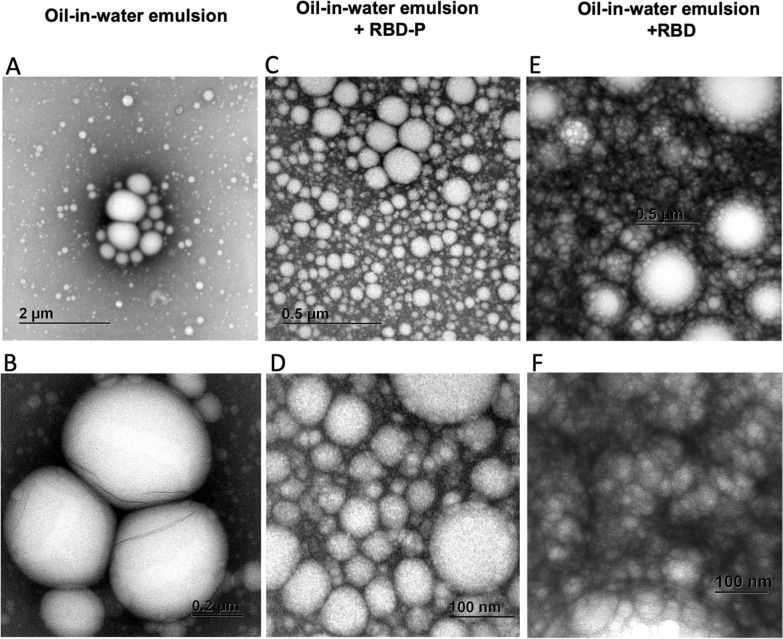

Figure 7
Figure 8

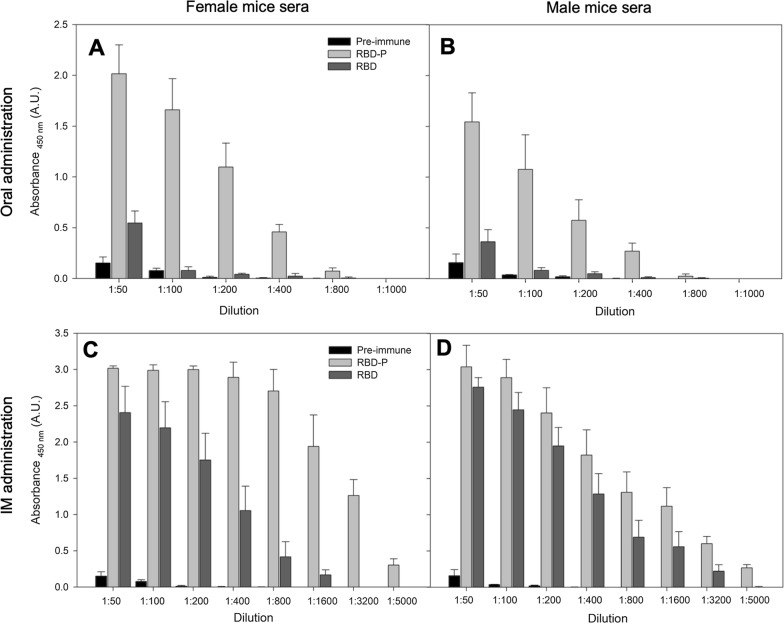

Figure 9

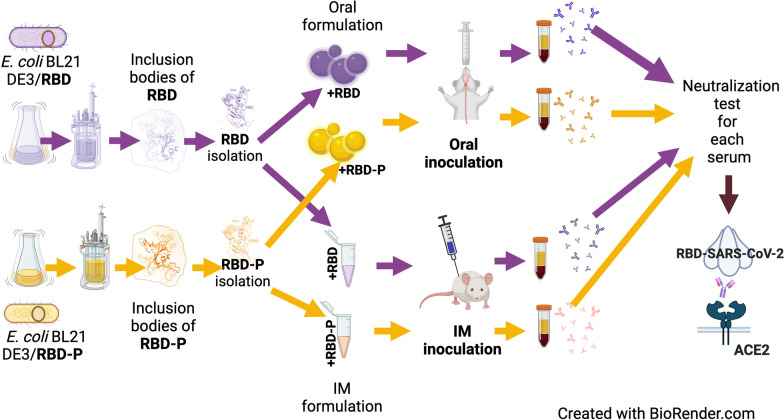

Figure 11- —Programa de Apoyo a Proyectos de Investigación e Innovación Tecnológica (PAPIIT) of the Universidad Nacional Autónoma de México UNAM
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsSARS-CoV-2 and COVID-19 Research · Viral gastroenteritis research and epidemiology · Immunotherapy and Immune Responses
Introduction
COVID-19 is a severe acute respiratory syndrome caused by coronavirus 2 (SARS-CoV-2), affecting public health and the economy for at least three years. The World Health Organization (WHO) described the SARS-CoV-2 virus as having affected more than 671 million people, causing almost 7 million deaths, by September 2023 [1]. In general, the symptoms of COVID-19 are fever, cough, and shortness of breath, although they can vary depending on the variant [2, 3]. Shortly after the disease spread rapidly worldwide, the first recombinant vaccines and antibodies were generated and authorized for emergency use. The fast-developed vaccines based on DNA plasmids, messenger RNA, recombinant proteins, and nanoparticles have reached more than 13.3 billion doses administrated in around 2 years [4–6]. However, research is still needed to develop secure and effective vaccines and corresponding efficient bioprocesses for their production, coupled with translational and clinical studies for anticipating possible new pandemics.
By March 2023, more than 380 candidate vaccines were in development or approved for clinical evaluation (183 vaccines in clinical development and 199 vaccine candidates in preclinical development) [7]. Most of the approved emergency vaccines were designed based on the viral sequence identified in Wuhan, China, incorporating strategies such as adenoviral vector (ChAdOx1 nCoV-19, AstraZeneca), mRNA [BNT162b2 (BNT), Pfizer-BioNTech, and mRNA-1273 (m1273), Moderna], and recombinant proteins incorporated in nanoparticles [NVX-CoV2373 (NVX), Novavax]. Some vaccines still show effectiveness on different variants of the virus. However, a decrease in effectiveness has been detected against some variants such as B.1.1.248 and B.1.351 [8] and omicron [9–11].
The appearance of new variants of concern (VOC) causes changes in the effectiveness of the vaccines in use [12–16]. For example, vaccine efficacy against the B.1.351 variant was reduced by 30 to 40% for lNVX-CoV2373 (Novavax), JNJ-78436735 (Johnson & Johnson), and Oxford-AstraZeneca ChAdOx1 [17]. While the efficacy of the lNVX-CoV2373 (Novavax) vaccine was reduced from 96% with Wuhan to 51% against the B.1.351 variant [18], and the Oxford-AstraZeneca ChAdOx1 vaccine decreased from 62 to 10% [17] against the same variant. Accordingly, better vaccines that can control future SARS viruses and vaccine boosters with better effectiveness are needed. Therefore, the development of specific, effective, and safe vaccines and evaluation of their administration routes are necessary to reach the long-term effectiveness of vaccines that could be administered annually according to seasonal variations [19, 20].
The SARS-CoV-2 is a positive-sense, single-stranded RNA virus [21], composed of the main structural proteins Spike (S), Membrane (M), Envelope (E), and Nucleocapsid (N). The glycoprotein S (180-kDa) is a homotrimer that protrudes from the viral surface and mediates the entry of the coronavirus into host cells through the receptor-binding domain (RBD), which binds the human angiotensin-converting enzyme 2 (hACE2) receptor [22, 23]. Each S monomer comprises the subunits S1 and S2 connected by a furin cleavage sequence [24, 25], and the RBD is localized in S1. Many anti-SARS-CoV2 vaccines have been directed towards the RBD and the N-terminal domain (NTD), described as preferentially antigenic sites, consistent with the development of neutralizing antibodies by COVID-19 patients [2, 26]. RBD (residues 319–541) composed of five-stranded antiparallel β-Sheets (β1–4 and β7) linked to three helices (α1–α3) by loops, contains the receptor binding motif (RBM) that interacts with the segments 446–505 of the hACE2 [2, 27].
The SARS-CoV-2 infection causes local immunity involving immunoglobulins, such as IgA and IgG, and stimulates cells that can secrete antibodies in the mucosa of the respiratory tract, nose, lungs, and others [28]. Since RBD is a strategic antigenic site, different unglycosylated and soluble receptor binding domains have been produced in E. coli. The different RBD has been formulated with a variety of adjuvants, which, when inoculated intramuscularly or subcutaneously, usually induce polyclonal antibodies that evoke a strong immune response and that inhibit the association of the RBD with ACE2, producing, in some cases, neutralizing antibodies [29, 30]. Usually, oral vaccines are not invasive, safe, and can generate immunity against infectious diseases [31–33]. Oral attenuated vaccines often lead to long-term mucosal and systemic immunity due to the intensified immunity of T-cells at the intestinal epithelial, the inflammatory or anti-inflammatory cytokines, and the elicitation of systemic neutralizing antibodies [32, 34–39]. An essential advantage of oral vaccines is their stability, simplifying logistics and storage conditions [40, 41]. Oral vaccine approaches to treat influenza, dengue, tetanus, diphtheria, and MERS-CoV have been published [42–46]. Until now, oral administration requires more studies for its approval because it usually presents a suboptimal induction of cellular immune responses and neutralizing antibodies.
Nowadays, at least six recombinant oral vaccines against SARS-CoV-2 prototypes have been reported. One system expressed the full-length spike protein receptor (RBD) of SARS-CoV-2 on the surface of Saccharomyces cerevisiae, which, after oral administration without adjuvant to mice, produced significant humoral and mucosal responses [47]. Three prototypes expressed SARS-CoV-2 regions in Lactobacillus [41, 48, 49]. Particularly, the epitopes expressed on the surface of Lactiplantibacillus plantarum, when administered orally, caused immunoregulatory effects, suggesting its ability to induce humoral and mucosal immune responses [41]. An adenovirus-based vaccine containing S and N proteins, administered orally, could confer protection in Male Syrian Hamsters against SARS-CoV-2 [50]. Furthermore, an orally administered SARS-CoV-2 subunit-based vaccine combined with the adjuvant non-toxic B subunit of the heat-labile enterotoxin (LT) of E. coli induced systemic neutralizing by IgG and cellular immune responses in mice [51].
The present study took advantage of a strategy that has effectively improved the presentation of some antigens. Here, we engineered a non-glycosylated form of SARS-CoV-2 RBD fused to a 40-residue peptide to improve the protein presentation through oral administration. This strategy resulted in the generation of antibodies capable of neutralizing the RBD interaction with hACE2. We developed an orally administrated oil-in-water emulsion containing the designed fused RBD antigen produced in E. coli in a methodology capable of being produced on a large scale. This peptide-fused RBD immunostimulates mice, generating neutralizing antibodies after administration without toxicity, compared with the unglycosylated RBD lacking the peptide tag. Demonstrating that RBD fused protein in oil-in-water emulsions is a powerful biotechnological strategy for improving RBD antigen presentation orally, allowing the production of binding and neutralizing IgG in immunized mice.
Materials and methods
Generation of the RBD proteins of the Wuhan and Omicron BA.1 variant belonging to the SARS-CoV-2 virus
We designed a peptide of 40 amino acids (40AV, unpublished) to be fused to the RBD domain of SARS-CoV-2 (named RBD-P) to improve the antigen presentation through an oil-in-water emulsion that could be administered orally and compared with the RBD domain without any tag (named RBD). The plasmids encoding the RBD with peptide 40AV (717 bp) and without peptide (597 bp) genes were synthesized by GenScript Biotech Corporation (USA) and cloned in the plasmid pET15b (Novagen, USA). The RBD sequence (amino acid 330–525) was based on the sequence of the S gene of SARS-CoV-2 WA1/2020 (GenBank: MN908947). Constructed plasmids were purified and used to transform E. coli TOP10 and subsequently to transform E. coli BL21 (DE3) production cells. Confirmation of each construction was determined by enzyme restriction analysis.
RBD from Omicron BA.1 was produced and named RBD-o. The Omicron BA.1 coding gene was obtained in the vector pcDNA3.1 (donated by Dr. Jesús Hernández; Centro de Investigación en Alimentación y Desarrollo, Sonora, México). The plasmid was used as templates to amplify the coding sequence, using primers (5ʹ-GGATCCCAACCTACAGAGAGCATCGTGCGGTTC-3ʹ), (5ʹ-AAGCTTCTAGAAGTTCAC GCACTTGTTCTTCAC-3ʹ). The product was cloned in the TOPO 2.1 (InvitrogenⓇ) plasmid and amplified in Chemocompetent XL1-Blue cells [52]. Region digested with BamHI and Hind III was subcloned into a pQE30 vector (Qiagen, Germany) and used to transform E. coli Shuffle strain (New England Biolabs, USA). The RBD-o produced contains a 6X-His tag. The DNA was sequenced in the Sequencing Unit at the Institute of Biotechnology, UNAM (Cuernavaca, Mexico).
Shake flasks and bioreactor production of RBD and RBD fused to the peptide (RBD-P)
The Luria–Bertani (LB) medium was used to grow the E. coli transformants. The inoculum was carried out in 250 mL conventional Erlenmeyer shake flasks containing 50 mL of medium (Duran Erlenmeyer flask, USA). The inoculum was grown at 37 °C and 200 rpm for 12 h (orbital shaking diameter of 25 mm). Bioreactors were inoculated from shake flasks cultures to an optical density (OD_600nm_) of 0.1 A.U. (Spectronic Genesys 20, Thermo, USA) and kept at 37 °C, with air injection at 1 volume of air per volume of culture medium (vvm). The dissolved oxygen tension (DOT) was controlled at 30% through an agitation cascade via a proportional-integral-derivative (PID) strategy [53]. Production cultures were performed in triplicate in a 1.2 L nominal volume Applikon Bioreactor with 0.8 L of working volume at pH 7.5, controlled by NaOH or HCl (2.5 N) addition. Bioreactors were equipped with temperature, pH, and DOT AppliSens sensors connected to the ADI-1010 biocontroller (Getinge—Applikon Biotechnology, The Netherlands). Recombinant RBD-P and RBD expression was induced by adding isopropyl-β-d-1-thiogalactopyranoside (IPTG, 0.1 mM, Merck-Sigma-Aldrich, USA) after 6 h of culture. The composition of the mineral media used was described by Restrepo-Pineda et al. [54]. The growth of E. coli cultures was followed by optical density and converted to dry cell weight (DCW) by a linear-correlation standard curve, where 1 A.U. was equivalent to 0.35 ± 0.02 (g DCW)/L. Culture samples were centrifuged at 7000×g for 10 min and then filtered (0.2 μm mixed cellulose ester membrane filter, Merck-Millipore, USA). Glucose was measured in the supernatant using the Y15 automatized analyzer (Biosystems, Barcelona, Spain).
RBD-o clones were cultured in shake flasks of 1 L with 200 mL of LB in the presence of 80 µg/mL of ampicillin at 30 °C and 140 rpm (Duran Erlenmeyer flask, USA, orbital shaking diameter of 25 mm). The recombinant RBD-o production was induced with 0.2 mM IPTG after 10 h of culture. These cultures were harvested at 11,300×g in a centrifuge (Beckman J2-21, USA) for 10 min at 8 °C.
Recovery and quantification of total and insoluble protein
To quantify total cellular protein, biomass was centrifuged at 8000×g for 10 min, separated, and suspended in lysis buffer (50 mM Tris–HCl, 1 mM EDTA, 100 mM NaCl, pH 7.5) with 0.1 mM phenylmethylsulfonyl fluoride (PMSF). The biomass suspension was sonicated on a SoniPrep150 (Sanyo-Gallen-Kamp, United Kingdom) using an amplitude of 10 μm and 8 steps of 30 s with intervals of 30 s at 4 °C. Total cellular protein was treated with solubilization buffer IEF (7 M urea, 2 M thiourea, 2% CHAPS w/v, and 40 mM DTT; all from Merck-Sigma-Aldrich, USA) for 3 h for solubilization. Bradford method (Bio-Rad Protein Assay Kit II, Bio-Rad, USA) was used to determine protein concentration. A calibration curve was constructed using bovine serum albumin (BSA, GE Healthcare Bio-Sciences, USA) as standard, and optical density at 600 nm was measured in a 96-well microtiter plate reader (Stat Fax® 4200, Awareness Technology, Inc., USA). Samples and standards were evaluated in triplicate. The total cell protein pattern, solubilized with IEF, was observed by gel electrophoresis (SDS-PAGE) in a 12% gel stained with Coomassie Brilliant Blue G-250 (Merck-Sigma-Aldrich, USA), using the Image-LabTM software on a Gel DocTM EZ System (Bio-Rad, USA). Soluble protein was obtained directly from cell sonication, and insoluble protein was recovered by centrifugation. The pellets were suspended in a lysis solution (Tris–HCl 50 mM, EDTA 1 mM, NaCl 100 mM, pH 7.5 with 0.1 mM Phenylmethyl sulfonyl fluoride, Merck-Sigma-Aldrich, USA). The precipitates were washed in 1% (v/v) Nonidet-P40 (Merck-Sigma-Aldrich, USA), and the samples were shaken. The precipitates, containing the inclusion bodies (IBs) were washed seven times with low-conductivity deionized water to remove traces of detergent and DNA. The percentage of recombinant RBD and RBD-P obtained in IBs was estimated from three biological samples by densitometry on a SDS-PAGE gel at 12%, preceded by an IBs solubilization step using IEF for 8 h, using Image-Lab™ software on a Gel Doc™ EZ System (Bio-Rad, USA). Soluble and insoluble protein concentration was determined by the Bradford method in the 96-well microplate format using Dye Reagent Concentrate (Bio-Rad, USA), and BSA (GE Healthcare Bio-Sciences, USA) was used as standard.
Recombinant RBD purification
Recombinant RBD and RBD-P in IBs obtained from bioreactor cultures of E. coli BL21 (DE3) were subjected to solubilization in denaturing solution for 8 h, for subsequent separation by gel chromatography and electroelution, and dialysis in Milli-Q water filtered by 0.22 μm (Merck-Millipore, USA). Quantification was performed by densitometry on SDS-PAGE using Image-Lab™ and Gel Doc™ EZ Imager software (Bio-Rad, Hercules, CA, USA). The purification of RBD and RBD-P was performed by reverse-phase high-performance liquid chromatography (RP-HPLC, Shimadzu, Kyoto, Japan), using a PROTO300 Semi-Prep C4 column (10 μm, 250 × 10 mm) and the Xbridge Protein BEH C4 column (300 Å, 3.5 mm, 4.6 mm × 150 mm, Waters, USA). Recombinant proteins were eluted with a 0% to 60% acetonitrile gradient. Eluted proteins were identified at 220 nm.
RBD-o cell pellets were lysed, and IBs were obtained by centrifugation (11,300×g) and solubilized by 12 h at 20 °C under 2% N-lauryl sarcosine in 40 mM Tris–HCl buffer (pH 8). The solutions were centrifuged at 20,400×g for 20 min, and the supernatants were dialyzed (6–8 kDa MWCO Spectra Por membranes, Repligen, USA) with ten volumes of phosphate buffered saline solution (PBS) pH 7.2 by 96 h. RBD-o was purified in an agarose-NiNTA column (NovagenⓇ, Germany), eluted with 250 mM imidazole, and dialyzed against PBS.
TEM analysis of inclusion bodies and droplets of oil in water emulsion of RBD-P and RBD
The morphology and size of the IBs inside cells were analyzed under transmission electron microscopy. Cell samples were taken after 5 h of induction. Briefly, samples were washed three times with 0.16 M sodium cacodylate buffer at pH 7.2 at 4 °C, fixed with 4% paraformaldehyde and 2.5% glutaraldehyde in sodium cacodylate buffer pH 7.4 by 2 h at 4 °C. Samples were post-fixed with 1% osmium tetraoxide for 90 min at 4 °C, and were rinsed twice in chilled buffer and six times in cold distilled water. Then, samples were dehydrated in ethanol series and embedded in Epon/Araldita [55]. Uranyl acetate and lead in citrate were used to stain thin sections and observed with a ZEISS Libra 120 plus electron microscope [56]. At least 100 cells were analyzed for each sample. The TEM images of the droplets of oil-in-water emulsions were obtained using 10 µL of each diluted solution applied to a 400-mesh copper grid (carbon 400 mesh). The grid was kept under ambient conditions for 1 min, and the excess sample was eliminated using Whatman 41 filter paper. As a negative staining agent, we used 1% of staining uranyl acetate filtrated by 0.22 μm membrane (Merck-Millipore, USA), applied to the grid, and left to dry before obtention of the TEM images [28].
Circular dichroism spectroscopy
Far-UV CD spectra of RBD and RBD-P were recorded at 37 °C with a JASCO J-720 spectropolarimeter (Jasco Inc, USA), as previously described [54]. Protein solutions containing ca. 0.1 mg/mL in pure water were loaded in a quartz cell with a path length of 1.0 mm. Spectra were recorded at 10 nm/min with a response time of 16 s. Each spectrum was corrected by buffer signal, corresponding to the average of three repetitive scans. Spectra are reported as mean residue ellipticity, [θ]mrw. Secondary structure content was estimated from CD spectra using the BeStSel deconvolution webserver [57].
Recombinant RBD and RBD-P mass spectrometry analysis
The molecular mass of RBD and RBD-P was determined by MALDI-TOF, using a Bruker Microflex instrument equipped with a 20 Hz nitrogen laser at I = 337 nm. Approximately 500 fmol of solutions of RBD and RBD-P and α-cyano-4-hydroxycinnamic acid (10 mg/ml) (1:1 v/v) were mixed and applied on stainless steel plates. Samples were analyzed in linear and positive ion detection mode; 70 laser shots were integrated into a single mass spectrum.
Western blot anti-RBD and anti-RBD-P
Proteins from the gel were transferred to a polyvinylidene difluoride (PVDF) membrane (Merck-Millipore, USA) using a semi-wet system (Bio-Rad, USA). The membrane was blocked with 5% (w/v) nonfat dry milk (Svelty, Nestle Mexico) and incubated with 1:2000 anti-S monoclonal antibody (Cat: 40591-MM43, Sino Biological, China). Three washes were carried out, followed by incubation with 1:5000 peroxide-conjugated affinipure goat anti-mouse IgG (H+L) (115-035-003, Jackson ImmunoResearch Labs, USA). Bands were detected by chemiluminescence with Super Signal West Pico chemiluminescent substrate (Thermo Fisher Scientific, USA) and visualized with the C-DIGIT blot scanner (LI-COR, USA). A homemade luminescent strip on top of the PVDF membrane was used to detect immunoreactive proteins placed in the same place as the SDS-PAGE molecular weight marker (ThermoFisher, USA).
Recombinant RBD and RBD-P oil-in-water emulsion formulation
Water-solubilized proteins were incorporated into an oil-in-water emulsion for RBD and RBD-P oral dose administration to a final concentration of 0.1 mg/mL. The emulsion was formed by mixing edible safflower oil with saponin and tween 80 (Merk-Sigma-Aldrich, USA) using a sonicator. The emulsion was homogenized for 10 s on ice, during two homogenizer cycles (SoniPrepr150, Sanyo-Gallen-Kamp, United Kingdom) using an amplitude of 8 μm, with 30-s pauses on ice between each pulse.
Animal, immunizations, and sample collection
To evaluate the in vivo activity of the proteins produced, a BALB/c mice model was used, employed in similar evaluations [58]. Mice were obtained from the Biological Models Unit at the Instituto de Investigaciones Biomédicas of the Universidad Nacional Autónoma de Mexico (IIB-UNAM). Animals were housed in groups of seven (males or females, independently) and were fed with standard diets. All animal studies were approved by the Institutional Committee for the Care and Use of Laboratory Animals (CICUAL at IIB-UNAM) in charge of ethical and responsible animal management (ID 7352).
Eight groups of seven mice were immunized orally, as previously described [47, 59–62]. BALB/c mice, females, and males were orally immunized with 100 µL of each oil-in-water RBD and RBD-P emulsion independently, using a soft adapted cannula that does not disturb the animal. The dose was administered two times, separated by fifteen days each, and compared with control mice (administered with 0.1 mL of PBS or the oil-in-water emulsion without proteins). Blood samples were collected before the first immunization and on day 45. Then, the animals were euthanized [63]. Furthermore, two intramuscular immunizations were performed at the same time as oral administration on six groups of BALB/c mice (n = 7). We used 0.1 mg/mL of each recombinant antigen purified in PBS, containing 10 μg/mouse of the adjuvant S6322-1VL (Monophosphoryl-lipid A + Trehalose dicorynomycolae, from Merck Sigma-Aldrich, USA), which is a stable oil-in-water emulsion widely used as a substitute to Freund′s adjuvants.
Detection of recombinant RBD and RBD-P proteins
Enzyme-linked immunosorbent assays (ELISA) were used to detect polyclonal antibodies in sera from mice immunized with recombinant RBD and RBD-P. From each study group (females 7; males 7), 10 µL of serum was taken from each mouse. Each evaluation was performed by duplicate. The recombinant RBD was coated in flat bottom 96 well plates (Santa Cruz, USA) using 0.5 µg of protein in 100 µL of 1X PBS and incubated for 18 h at 4 °C. After washing by three times the plate with PBS + 0.05% Tween-20 (Merck, Germany) (PBST) for 5 min, a 2 h block was performed with PBS—0.05% tween—1% gelatin, followed by 2 h incubation with murine serum placed at a dilution 1:200 for intramuscular groups, and at a dilution 1:100 for oral groups, in 100 μL of PBS—0.1% gelatin. After being washed again in triplicate with PBST for 5 min, the secondary antibody peroxide-conjugated affinipure goat anti-mouse IgG (H+L) antibody (HRP) (115-035-003; Jackson ImmunoResearch Labs, USA) was used at 1:5000 for 1 h, and developed using 3,3ʹ,5,5ʹ-Tetramethylbenzidine (TMB; SigmaFast Cat: P9187-50Set, Merck-Sigma-Aldrich, USA) for 30 min. Nonspecific binding wells were incubated with 1xPBS and treated in the same way (negative control). The TMB reaction was stopped with 0.5 M H_2_SO_4_. The absorbance reading was performed at 450 nm (StatFax 4200, Awareness Technology Inc., USA).
Furthermore, an ELISA was performed to evaluate whether IgG antibodies from sera of convalescent SARS-CoV-2 patients recognized the RBD and RBD-P proteins. Also, twelve human sera obtained before the COVID-19 pandemic were used as control. The plate was coated with 0.5 µg of recombinant RBD or RBD-P protein. Subsequently, blocking was performed with PBST—2% gelatin, followed by the addition of human serum in a 1:100 dilution, and for detection, the secondary antibody HRP-conjugated goat anti-human IgG, Fc Fragment (A80-104P, Bethyl Laboratories. USA) at 1:100,000 dilution (done by sequential 1:100 and 1:1000, dilutions) was used. The reaction was developed using TMB. The TMB reaction was stopped with 0.5 M H_2_SO_4_. The plate was read at 450 nm (StatFax 4200, Awareness Technology Inc., USA). The control of each sample was PBS—blocking solution—human serum—secondary antibody—TMB. Twenty serum samples from no hospitalized individuals convalescing from coronavirus disease 2019 (COVID-19) (median age around 40 years) and after two months of SARS-CoV-2 infection were tested. Sample material was anonymized and integrated into a biobank using a protocol approved by the local ethics committee at the Biomedical Research Institute. Infection with SARS-CoV-2 was confirmed by RT-PCR from nasopharyngeal swabs performed in clinics.
Sera recognition from mice immunized with RBD and RBD-P against recombinant RBD Wuhan and Omicron
The recognition of sera from animals immunized with oil-in-water emulsions containing RBD and RBD-P was tested against recombinant Wuhan (RBD-P) and Omicron (RBD-o) produced in E. coli. Briefly, 0.5 µg of recombinant RBD-P or RBD-o in 100 μL of PBS 1X was coated in an ELISA plate overnight at 4 ºC. Then, plates were washed three times with PBST (Merck, Darmstadt, Germany). Subsequently, blocking was performed with PBTS—1% Gelatin, followed by incubation with murine serum at a 1:100 dilution in 100 μL of PBS—0.1% gelatin. The secondary antibody used was peroxide-conjugated affinipure goat anti-mouse IgG (H+L) (115-035-003; Jackson ImmunoResearch Labs, USA) at a 1:5000 dilution and was revealed with TMB (ES001, Merck, USA). Control wells were treated in the same way but without RBD protein attached and only incubated with 1X PBS. The TMB reaction was stopped with 0.5 M H_2_SO_4_. The absorbance reading was performed at 450 nm (StatFax 4200, Awareness Technology Inc., USA).
In vitro serum neutralization test
An ELISA was performed to identify the neutralizing antibodies in murine sera immunized orally with oil-in-water emulsions containing recombinant RBD and RBD-P. Ten microliters of mouse serum diluted with sample dilution buffer were incubated for 30 min at 37 °C with HRP-conjugated RBD protein produced in human cells, as indicated by the supplier (Catalog Z03594, Genscript, Ryswick, The Netherlands). 100 µL of the sample were placed on a capture plate with hACE2 protein from the cPass SARS-CoV-2 Surrogate virus neutralization test kit (Catalog L00847-A, Genscript, Ryswick, The Netherlands) for 15 min at 37 °C. Four washes were performed, and the reaction was revealed with 100 µL of TMB, incubated for 15 min in the dark. The reaction was stopped and read at 450 nm (StatFax 4200, Awareness Technology Inc., USA) [64, 65].
IgG titer determination
ELISAs were performed to assess the production of antibodies. Ultra-Cruz ELISA Plates (Santa Cruz Biotechnology, USA) were coated with 0.5 μg of RBD recombinant protein from E. coli, in 100 μL of PBS 1X. The coating solution was incubated overnight at 4 °C. The plate was washed three times with PBST (Merck, Germany). Next, 200 μL of PBS 1X—1% gelatin from cold water fish skin (Merck-Sigma-Aldrich, USA) was used for blocking and incubated for 1 h. The plate was washed three times with PBST by 5 min. Using serum from mice, the following dilutions were made: 1:50, 1:100, 1:200, 1:400, 1:800, and in 100 μL of PBS 1X—0.1% gelatin and incubated for 2 h. Each dilution was placed in duplicate on the plate. The plate was washed three times with PBST by 5 min. Then, 100 μL of peroxide-conjugated affinipure goat anti-mouse IgG (H+L) (115-035-003; Jackson ImmunoResearch Labs, USA) at a dilution of 1:5000 was added and incubated for 1 h. The plate was washed three times with PBST. TMB substrate (Merck-Sigma-Aldrich, USA) was used and incubated for 30 min in the dark to reveal the ELISA reaction. The TMB reaction was stopped with 0.5 M H_2_SO_4_. The absorbance was measured on a microplate reader (Stat Fax® 4200, Awareness Technology, Inc. Palm City, FL, USA) at 450 nm. The antibody titer was calculated using the EC50 of the absorbance obtained with different dilutions used.
Statistical analyses
All the data for kinetic parameters are represented as the mean of triplicates ± standard deviation. One-way ANOVA for independent and samples and, when needed, pair-wise comparisons using Tukey HSD (Test for Post-ANOVA) were carried out.
Statistical significance between groups in the antibody reactivity assay was determined using sera from mice and compared with PBS as the control. Dunn´s test was used for all pairwise comparisons and comparisons against a control group (PBS) following rank-based ANOVA based on the treatment of unequal group sizes. Differences were considered statistically significant if the p < 0.05.
Results
Production of RBD and RBD-P in shake flasks and bioreactor
We design a peptide for fusion with the RBD domain of SARS-CoV-2, aiming to enhance antigen presentation that can be orally administered in an oil-in-water emulsion. The gene sequence encoding the RBD (597 bp) region contained in the S gene of SARS-CoV-2 (GenBank: MN908947) was synthesized using the preferential codon usage in E. coli [66]. Codons for the amino acids MGKL were added at the 5ʹ of the sequence, whereas codons for the peptide of 40 amino acids were added at the 3ʹ of the sequence (Fig. 1). The peptide named 40AV was fused with the RBD region and compared with the RBD without fusion peptide. Both plasmids coding for each construction were cloned in the plasmid pET15b and used to transform E. coli BL21 (DE3) (Merck-Novagen, USA). Constructions with and without the peptide were named as RBD-P and RBD, respectively. The constructed plasmids were verified by PCR and sequencing. Ampicillin was used to select recombinant bacteria, and master and working cell banks were produced from each strain.Fig. 1. Scheme of Spike (S) protein architecture of the SARS-CoV-2 (A): NTD N-terminal domain, RBD receptor-binding domain (330–525 WA1/2020), RBD-P receptor-binding domain fused to 40AV peptide, RBM receptor binding motif, SD1 subdomain 1, SD2 subdomain 2, S1/S2 protease cleavage site, S2' protease cleavage site, FP fusion peptide, HR1 heptad repeat 1, CH central helix, HR2 heptad repeat 2, TM transmembrane domain. Representative scheme of the peptide fused RBD and peptide free RBD (B)

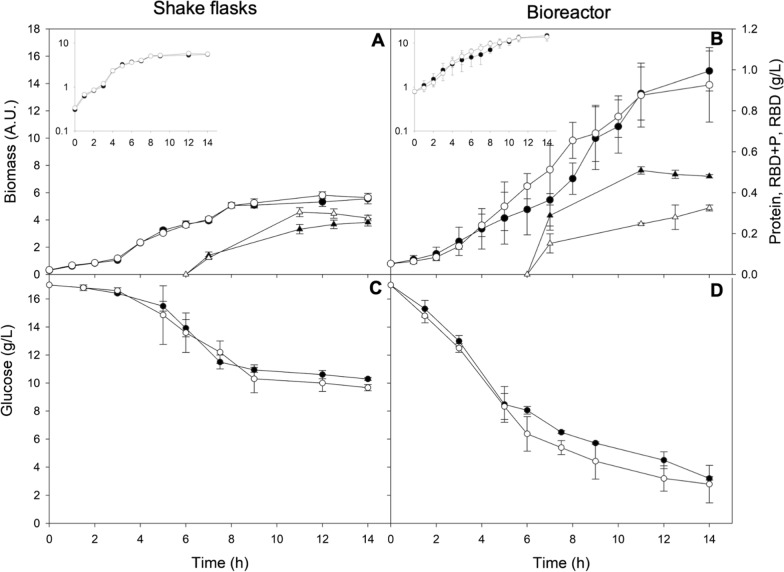

Selected clones were grown in Erlenmeyer flasks in triplicate. The cultures producers of RBD-P and RBD reached similar maximum biomass (5.56 ± 0.39 A.U. and 5.81 ± 0.25 A.U., respectively). However, there were significant differences in the specific growth rate (µ) of E. coli BL21 (DE3) producing RBD-P (0.49 ± 0.01 h^−1^) and RBD (0.45 ± 0.01 h^−1^) (Fig. 2A, Table 1).Fig. 2. Kinetics of biomass growth (circles) and recombinant protein production (triangles) of RBD-P (filled symbols) and RBD (open symbols) from SARS-CoV-2 by E. coli BL21 (DE3), in shake flasks (A) and in bioreactors (B). Data presents the average and standard deviation of the cultures carried out at least in triplicate. Induction with IPTG started after 6 h of culture. Inset figures are logarithmic biomass growth. Glucose consumption was also presented for shake flasks (C) and bioreactors (D) culturesTable 1Stoichiometric and kinetic growth parameters of E. coli BL21 (DE3) producer of RBD-P and RBD growing in shake flasks and bioreactorParameterShake flasksBioreactorRBDRBD + PRBDRBD + P^A^µ (h^−1^)0.45 ± 0.01^a^0.49 ± 0.01^b^0.41 ± 0.03^c^0.42 ± 0.01^c^^B^X_max_ (A.U.)5.81 ± 0.25^a^5.56 ± 0.39^a^13.90 ± 2.73^b^14.91 ± 1.46^b^^C^Glucose consumed (g/L)7.3 ± 0.2^a^6.7 ± 0.1^b^14.2 ± 1.7^c^13.8 ± 0.2^d^^D^Y_X/S_ (g/g)0.21 ± 0.02^a^0.20 ± 0.01^a^0.26 ± 0.01^b^0.24 ± 0.02^b^Soluble protein (g/L)0.066 ± 0.028^a^0.087 ± 0.027^a^0.113 ± 0.014^b^0.169 ± 0.034^c^Insoluble protein (g/L)1.088 ± 0.112^a^1.039 ± 0.092^a^0.871 ± 0.288^b^1.651 ± 0.371^c^Total protein (g/L)1.154 ± 0.132^a^1.126 ± 0.116^a^0.930 ± 0.323^b^1.819 ± 0.413^c^^E^RBD (g/L)0.28 ± 0.01^a^0.26 ± 0.02^a^0.33 ± 0.01^b^0.46 ± 0.01^c^^F^RBD in total protein (%)24 ± 4^a^23 ± 5^a^35 ± 5^b^25 ± 4^a^^D^Y_P/X_ (g/g)0.14 ± 0.02^a^0.13 ± 0.02^a^0.07 ± 0.02^b^0.09 ± 0.01^b^The values represent the mean and standard deviation for three biological replicates per condition. The statistical differences are indicated with different letters (p < 0.05)A: The specific growth rate was calculated from the slope of growth in the exponential growth phaseB: The maximum biomass was obtained where the biomass was the maxima, regardless of the culture timeC: Glucose consumed is the initial glucose calculation subtracted from the residual glucose from Fig. 2C and DD: Y_X/S_ and Y_P/X_ were calculated from glucose consumption until the X_max_ in each conditionE, F: Obtained from densitometric analysis of SDS-PAGE gels of at least three biological replicates per condition
E. coli BL21 (DE3) clones producing RBD-P and the RBD were also characterized in bioreactor cultures (Fig. 2B). The µ of E. coli BL21 (DE3) cultures, either producing the RBD-P or RBD, was 0.42 ± 0.01 h^−1^, whereas maximum biomass of 14.91 ± 0.10 A.U. and 13.9 ± 2.73 A.U. was reached for cultures producing the RBD-P or RBD, respectively (Fig. 2B, Table 1). At the end of the cultures, the maximal biomass reached in the bioreactors was more than twice in both cultures, producing RBD-P and RBD, compared to those in shake flasks (Table 1). In shake flasks, only about 40% of the glucose was consumed in all cultures (Fig. 2C, Table 1), while in bioreactors, the carbon source was almost completely consumed (Fig. 2B, Table 1). No significant differences were observed in the biomass per glucose yields (Y_X/S_) between cultures of RBD-P and RBD. Instead of, Y_X/S_ was higher in bioreactor cultures than in shake flasks (Table 1).
RBD and RBD-P identification, quantification, and secondary structure analysis
Final total protein (TP) content, after IEF solubilization, was 1.154 ± 0.132 g/L and 1.126 ± 0.116 g/L in shake flasks producers of RBD and RBD-P, respectively, and 0.930 ± 0.323 g/L and 1.819 ± 0.413 g/L, in bioreactors cultures producing RBD or RBD-P, respectively (Table 1). RBD and RBD-P concentrations were determined by densitometry in total protein fractions analyzed on 15% SDS-PAGE. Samples at 1 h, 5 h, and 10 h post-induction times collected from shake flasks and bioreactors were loaded in gels and compared with a sample harvested before induction and used as a negative control (Fig. 3). In agreement with the theoretical molecular weights, RBD and RBD-P were observed at around 22 and 26 KDa, respectively (Fig. 3), and confirmed by intact mass analysis (22,738.12 and 26,490.03 u.m.a., respectively), with around 3 to 5 Da higher than the theoretical mass (Additional file 1: Figure S1A).Fig. 3. Kinetic comparison in SDS-PAGE (12%) of total protein (TP) produced in cultures of E. coli BL21 (DE3) grow up in shake flasks (A, B) and bioreactors (C, D). RBD-P producing cultures are shown in (A) and (C) and RBD in (B) and (D). In all gels, lanes 1 and 6 correspond to PT before induction. Lanes 2, 3, and 4 (7,8, and 9) show samples taken from cultures at 1, 5, and 10 h after induction, respectively. Lane 5 corresponds to the molecular weight marker (MWM). Lanes 6 to 9 are samples from replica experiments. Recombinant proteins are marked by a black arrow
As has been described for many bioprocesses, a higher accumulation of recombinant proteins was observed in bioreactors (RBD: 330 ± 10 mg/L and RBD-P: 460 ± 10 mg/L) compared to shake flasks (RBD: 280 ± 10 mg/L and RBD-P 260 ± 20 mg/L) (Table 1). Almost all the recombinant proteins were accumulated in the insoluble fraction, particularly forming protein aggregates or inclusion bodies (IBs). After cell rupture, IBs were isolated and solubilized, and proteins were separated by gel electrophoresis. RBD and RBD-P from a shake flask and bioreactor showed a high accumulation of proteins with 22 and 26 KDa, respectively (Fig. 4A and B). The identity of RBD and RBD-P was verified by immunodetection in Western blots using a specific anti-Spike antibody (Fig. 4C). The content of recombinant proteins in IBs, estimated by densitometry, corresponded to around 24% for both (RBD and RBD-P) accumulated in shake flasks, while in bioreactors, it corresponded to around 35% for RBD and 25% for RBD-P (Table 1). In addition, the composition of IBs containing RBD or RBD-P was different, as inferred by the band patterns (Fig. 4). Intracellular IBs, produced after 5 h induction with IPTG, measured up to 800 nm and had pseudo-spheric and irregular shapes (Additional file 1: Figure S2). At least 40% of the cell population contained IBs, and around 25% of cells contained two or more IBs.Fig. 4. Coomassie blue stained 12% acrylamide gel electrophoresis of the IBs obtained at the end of E. coli BL21 (DE3) cultures producers of RBD-P and RBD. IBs from cultures in shake flasks (A); lane 1: molecular weight marker (MWM), lane 2: IBs of RBD-P, and lane 3: IBs of RBD. IBs from two independent bioreactor cultures (B); lanes 1 and 4 are IBs from cultures producers of RBD-P, lane 3 is the MWM, and lanes 2 and 5 are IBs from cultures producers of RBD. Immunodetection by Western Blot of purified RBD-P and RBD (C) recombinantly produced in E. coli BL21 (DE3) in bioreactor and detected with anti-Spike antibody (Sino Biological 40,591-MM43); lane 1: RBD-P, and lane 2: RBD, and lanes 3 and 4: molecular weight marker (MWM)

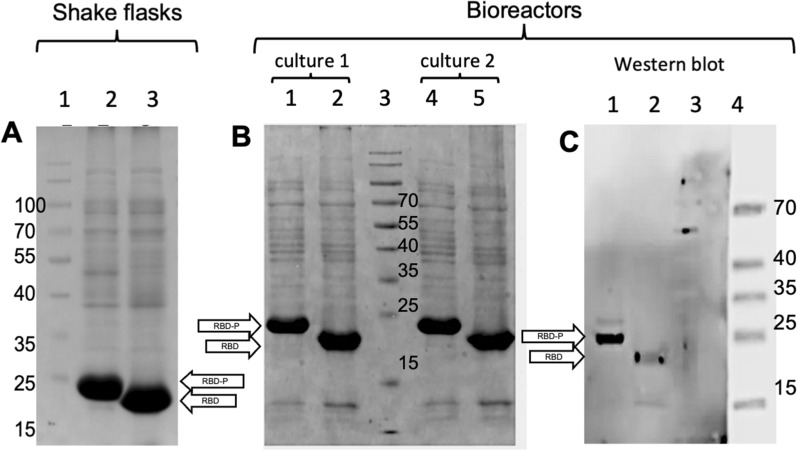

The recombinant proteins produced in the bioreactor and isolated from IBs were solubilized, separated by gel chromatography, and recovered in MQ water by electro-elution [54]. Around 50% of the recombinant proteins were recovered. Then, 25 µg of RBD and RBD-P were separated by high-resolution chromatography. The resultant components had a purity of 90 and 85% for RBD and RBD-P, respectively, and were eluted at 39.6 min, in a 0 to 60% gradient of acetonitrile in 60 min, with a flow rate of 0.8 mL/min (Fig. 5A).Fig. 5. Secondary structure characterization of RBD forms by CD spectroscopy. The spectra were recorded in pure water A RBD and B RBD-P and in a 50% (v/v) TFE aqueous mixture, C RBD and D RBD-P. Secondary structure contents (αH, α helix; βS, β strand; O, other) were calculated from a deconvolution analysis of the CD spectra with the BeStSel webserver. Black circles are experimental spectra, lines correspond to the best-fit spectra, and residuals between calculated and experimental data are shown with asterisks. High-resolution chromatography of the RBD-P and RBD antigens on an Xbridge Protein BEH C4 reverse phase column (E). The interest components were eluted at 39.6 min, in a gradient from 0 to 60% acetonitrile in 60 min, with a flow of 0.8 mL/min, and injected 25 μg
RBD and RBD-P were characterized by CD spectroscopy to determine their conformational properties. RBD and RBD-P showed basically the same spectrum, indicating that the fusion peptide does not affect RBD conformation, at least in terms of secondary structure (Fig. 5). The shapes of these spectra mirrored that reported for RBD also produced in E. coli, although those obtained with eukaryotic cells are markedly different [67]. A deconvolution analysis indicated that the spectra are consistent with the presence of 7–9% α helix and 37% β strands (Fig. 5B and C). Since the optical properties of the oil-in-water emulsion did not allow the spectra to be determined, RBD and RBD-P were solubilized in 50% TFE (Tetrafluoroethylene, Merck-Sigma-Aldrich, USA) / water (v/v) solution, a cosolute used to mimic the environment composed of lipids. In the presence of TFE, the two proteins also exhibited similar spectra to each other. In agreement with what was observed in pure water, these results again indicated that the peptide does not interfere with the conformation adopted by RBD. Under these conditions, the two RBD forms presented a moderate enrichment of α helix (15–16%) without significant detriment of the β-strand content (34–35%). The composition in TFE/water was closer to that observed in the native structure of RBD (20% α helix and 23% β strand), although still different from the biologically active conformation [27].
Immunization of RBD-P and RBD via oral and intramuscular

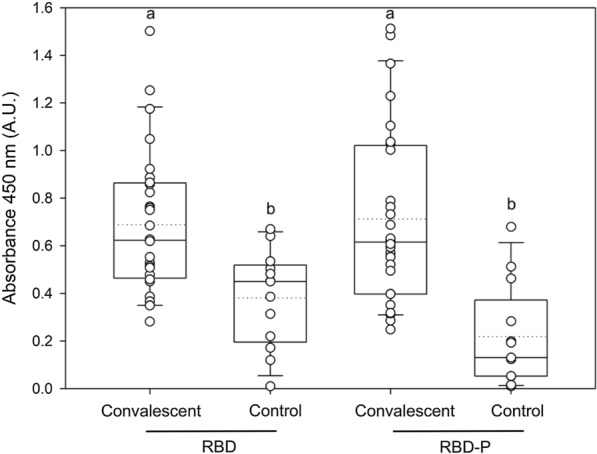

To analyze the nature of the recombinant RBD and RBD-P antigens, recognition by IgG from sera from COVID-19 patients, which present anti-SARS-CoV-2 antibodies, was evaluated, a comparison was made with human sera obtained before the COVID-19 pandemic. 71% and 78% of sera showed a signal greater than 0.5 A.U. in recognition of RBP and RBD-P, respectively (Fig. 6). No significant differences in recognition were found between the recombinant RBD-P and RBD (Fig. 6), but with controls. No neutralization was found from human sera obtained before the COVID-19 pandemic (data not shown).Fig. 6. Recognition of recombinant RBD and RBD-P by human IgG polyclonal antibodies. The ELISA was performed using sera samples from no hospitalized individuals convalescing from COVID-19 (median age around 40 years). Also, twelve human sera obtained before the COVID-19 pandemic were used as control. Infection with SARS-CoV-2 was confirmed by RT-PCR from nasopharyngeal swabs performed in clinics. In boxplots, each data point is the mean and its deviation of replica per serum. Also, each boxplot presents the mean in a dotted line, the median as the middle line, the interquartile range as box limits, and the 2.5th and 97.5th percentiles as the whiskers. For all variables with the same letter, the difference between the means is not statistically significant. If two variables have different letters, they are significantly different (p < 0.05)
