Going deeper and further: a range and depth extension for the deep-sea feather star Paratelecrinuscubensis (Carpenter, 1881) (Comatulida, Atelecrinidae), first record from the Western Pacific

Abstract

Figures

Location of the new record of Paratelecrinuscubensisa map showing the Magellan Seamounts (red dot) b map showing the collection location (green dot) and the Kocebu Guyot (red dot).

Paratelecrinuscubensis from Kocebu Guyot, showing the original color. The first “cirri” from the left is a broken part of a distal arm.

Paratelecrinuscubensis from Kocebu Guyot: Centrodorsal and ray base.

Paratelecrinuscubensis from Kocebu Guyot a apical cirrus b peripheral cirrus.

Paratelecrinuscubensis from Kocebu Guyot a tips of apical cirrus b tips of peripheral cirrus c two middle cirrals (upper) and tips of two cirri (middle, lower) (modified from Messing 2013).

Paratelecrinuscubensis from Kocebu Guyot a IBr and IIBr flanges b distal arm part c basals and radials.

Maximum-likelihood (ML) and Bayesian-inference (BI) trees of Bourgueticrinina using combined COI, 16S, 18S, and 28S sequences. The number at each node represents bootstrap values (BP) (left) and Bayesian posterior probability (BPP) (right). Paratelecrinuscubensis is highlighted in red

Tables

Table 1.. The genetic distance of COI gene (K2P) within Bourgueticrinina species.

	1	2	3	4	5	6
1 Paratelecrinuscubensis
2 Paratelecrinuswyvilli	0.06
3 Adelatelecrinusvallatus	0.07	0.088
4 Phrynocrinusnudus	0.146	0.157	0.159
5 Porphyrocrinusverrucosus	0.148	0.159	0.161	0.120
6 Monachocrinus sp. BATHY91	0.148	0.157	0.144	0.157	0.181

Full text

Introduction

In April 2018, the Institute of Oceanology of the Chinese Academy of Sciences (IOCAS) conducted a biodiversity survey in the Kocebu Guyot. Several echinoderms were collected, including crinoids. After examination and identification, one individual was found to be referable to Paratelecrinuscubensis (Carpenter, 1881), the type species of Paratelecrinus. This species was previously recorded only in deep-sea off the Bahamas and Cuba, and not recorded in the Western Pacific.

The family Atelecrinidae Bather, 1899 is widespread in the Atlantic, Indian, and tropical Pacific Oceans (Messing 2013). The Atelecrinidae have some unique and interesting morphology compared to other feather stars; for example, the basals form an externally visible ring, the cirrus sockets are in 10 or 15 columns, and the ray’s distal part without pinnules is known as the long filament (Messing 2013). According to WoRMS (Messing et al. 2023), this family includes four genera and 12 species.

Bather (1990) established a new family, Atelecrinidae (including Atelecrinus Carpenter, 1881). Jaekelometra Gislén, 1924 and Sibogacrinus A.H. Clark (in A.H. Clark & A.M. Clark), 1967 were removed from this family by Messing (2003) because of their tall basals. Hess and Messing (2011) placed Atopocrinus A.H. Clark, 1912 in a new family, Atopocrinidae, but left Sibogacrinus in Atelecrinidae, although its centrodorsal cavity is small in comparison.

Messing (2013) revised Atelecrinidae, based on existing and newly collected specimens, and established two new genera, Adelatelecrinus Messing, 2013 and Paratelecrinus Messing, 2013, and five new species. Atelecrinuswyvilli Carpenter, 1882, A.conifer A.H. Clark, 1908, and A.cubensis Carpenter, 1881 were moved to Paratelecrinus, to join with four newly described species in this genus. Paratelecrinus has a distinct ligamentous bundle between the centrodorsal and basals. The exterior visible portion of the basals form a shallow chevron- or inverted V-shape. The cirrus sockets have fulcral tubercles similar to Atelecrinus and Adelatelecrinus, but these tubercles are more developed. Furthermore, in contrast to Atelecrinus and Adelatelecrinus, the aboral surface of the basals in Paratelecrinus bears a more strongly and intricately sculpted interradial depression. The basals of Paratelecrinus and Adelatelecrinus are connected to centrodorsal by ligament bundles, whereas Atelecrinus differs from them in the absence of distinct ligament bundles and is restricted to the Atlantic Ocean.

Our study is the first report of P.cubensis from Kocebu Guyot, Western Pacific. In addition, we conducted molecular phylogenetic analyses to assess the systematic position of P.cubensis. Our study will provide an important for exploring the geographic distribution of P.cubensis.

Materials and methods

Sampling and preservation

A single specimen of Paratelecrinuscubensis was collected by the submersible remotely operated vehicle (ROV) FaXian carried by the R/V KeXue during the deep-sea biological survey of Magellan Seamounts by the Institute of Oceanology, Chinese Academy of Sciences (IOCAS). The specimen was collected in April 2018 at a depth of 1294 m at the station FX-Dive177 (17°21′14″N, 153°08′35″E) (Fig. 1a). The specimen is preserved in 70% ethanol, assigned the voucher number M1233, and maintained at the Museum of Marine Biology, Chinese Academy of Sciences (MBMCAS).

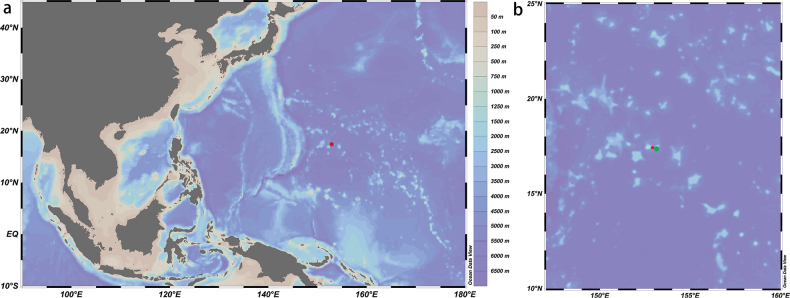

Location of the new record of Paratelecrinuscubensisa map showing the Magellan Seamounts (red dot) b map showing the collection location (green dot) and the Kocebu Guyot (red dot).

Morphology observation

We examined the specimen using a stereo-dissecting microscope (Zeiss SteREO Discovery V12). We traced photographs to make line drawings, which were completed in Adobe Photoshop 2021 using a graphics tablet. Linear structural features (≥1 mm) of the specimen were measured with digital vernier calipers. For the curvilinear structures which were difficult to measure, a ZEISS Axiocam 506 microscope camera was used to take photographs, and the Leica LAS Image Analysis software was used to conduct the measurements. All measurements were rounded to the nearest 0.1 mm.

See Messing (1997) and Hess and Messing (2011) for general morphology of comatulids and Messing (2013) for morphology of Atelecrinidae. Our methods of measurements, and mode of description, and nomenclature used follow Messing (2013).

DNA extraction, sequencing and phylogenetic analyses

All genomic DNA was obtained from pinnules using E.Z.N.A. Tissue DNA Kit according to the manufacturer’s instructions. The TruSeq Nano DNA Sample Prep Kit (Illumina, San Diego, CA, USA) was used to construct the paired-end library with an insert size of 450 bp. The library was sequenced by an Illumina (San Diego, California, USA) HiSeq 4000 platform (2 × 150 bp paired-end reads). The raw sequences were trimmed using Trimmomatic v. 0.39 (Bolger et al. 2014) to obtain about 10 G clean reads. The clean reads were assembled de novo by SPAdes v. 3.10.1 (k-mer = 21–77) (http://bioinf.spbau.ru/spades). The obtained contigs was 504,782 kb. Four mitochondrial gene fragments with GenBank accession numbers OR345518, OR350562, OR660692, and OR660694 (COI, ~1536 bp; 16S, ~1536 bp; 28S, ~738 bp; 18S, ~2064 bp) were extracted from the contigs assembled from the clean reads, which were obtained through Illumina sequencing. Four sequences of P.wyvilli were used as reference sequences (COI, KC626573; 16S, KC626665; 28S, KC626853; 18S, KC626759) .

Before phylogenetic analysis, we estimated the intergeneric genetic distance based on the available COI barcoding sequences of two species of Paratelecrinus and some genera of the suborder Bourgueticrinina. Kimura-2 parameter (K2P) genetic distances were calculated using MEGA v. 6 (Tamura et al. 2013). For the phylogenetic analysis, the concatenated sequences of COI, 16S, 18S, and 28S fragments of seven species (four families) from Bourgueticrinina and one outgroup from Asterometridae were used (Suppl. material 1, download from NCBI). The nucleotide sequences for COI, 16S, 18S, and 28S genes were all aligned with MEGA v. 6 (Tamura et al. 2013).

Phylogenetic trees were constructed by maximum-likelihood (ML) and Bayesian-inference (BI) analysis. PartitionFinder (Lanfear et al. 2017) was used to select the best partition model. ML analysis was conducted by IQ-TREE web server (Nguyen et al. 2015) under the model automatically with 5000 ultra-fast bootstrap replications (Minh et al. 2013), as well as the Shimodaira-Hasegawa-like approximate likelihood-ratio test (Minh et al. 2013). BI analyses were performed using MrBayes v. 3.2.6 software (Ronquist et al. 2012) under the best-partition model (COI, GTR+G; 16S, GTR+G; 18S, HKY+I; 28S, GTR+G) (2 parallel runs, 5 million generations), in which the initial 25% of sampled data were discarded as burn-in, with a sampling frequency of 100 generations to allow sufficient time for convergence (the standard deviation of split frequencies less than 0.01). The effective sample size (ESS) values for all sampling parameters were checked with Tracer v. 1.7 (Rambaut et al. 2018). The first 12,500 trees were discarded as burn-in, and the remaining trees were used to compute the 50% majority-rule consensus tree and the posterior probabilities (PP).

Results

Systematics

Class Crinoidea Miller, 1821

Order Comatulida AH Clark, 1908

Family Atelecrinidae Bather, 1899

Paratelecrinus

Taxon classificationAnimaliaComatulidaAtelecrinidae

Genus

Messing, 2013

35F16CC7-8CCC-5309-9BDC-234CF04102B2

Paratelecrinus cubensis (Carpenter, 1881). Antedon cubensis : Pourtalès 1869: 356 (in part); 1878: 214–215 (in part). Atelecrinus cubensis Carpenter, 1881: 15–19, pl. 1 fig. 7; 1882: 491–492; 1888: 70–72. A.H. Clark 1907: 155. Hartlaub 1912: 281, 386, 484, pl. 14, figs 3, 8, 9. Atelecrinus pourtalesi : A.H. Clark 1907: 4. H.L. Clark 1941: 13. Atelecrinus balanoides : A.H. Clark and A.M Clark 1967: 819, 823–831 (in part). Paratelecrinus cubensis : C.G. Messing 2013: 22–24, figs 9, 10.

Material examined.

MBM287771, 1 specimen; Western Pacific, Kocebu Guyot, R/V KeXue station FX-Dive177; 17°21′14″N, 153°08′35″E; 1294 m depth, 11 April 2018, hard substrate.

Description.

The middle and distal parts of the rays of the specimen are missing, broken off at IIbr3, IIbr6, and IIbr9 (Fig. 2).

Paratelecrinuscubensis from Kocebu Guyot, showing the original color. The first “cirri” from the left is a broken part of a distal arm.

Centrodorsal conical, base diameter 3.0 mm, H/D 1.3; interradial margin with U-shaped depression (Fig. 3). Cirrus sockets distributed in 10 columns, with strong fulcral tubercles. Cirri XL, only one complete peripheral cirrus (Fig. 4b) 69.1 mm long and with 31 segments; c1–3 short and cirrals gradually increasing in length, with expanded distal ends; c8–c13 longest, L/W 6.7; penultimate cirral squarish, with opposing spine weak or absent, terminal claw curled (Fig. 5b). Apical cirrus of 22 segments, 15.0 mm long; c5–c7 longest, L/W 3.4 (Fig. 4a).

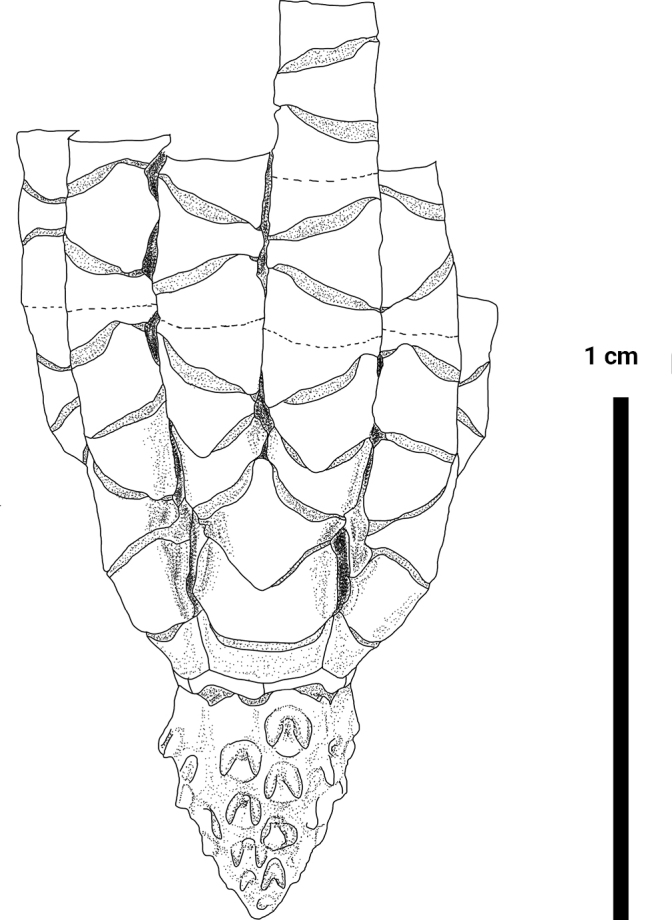

Paratelecrinuscubensis from Kocebu Guyot: Centrodorsal and ray base.

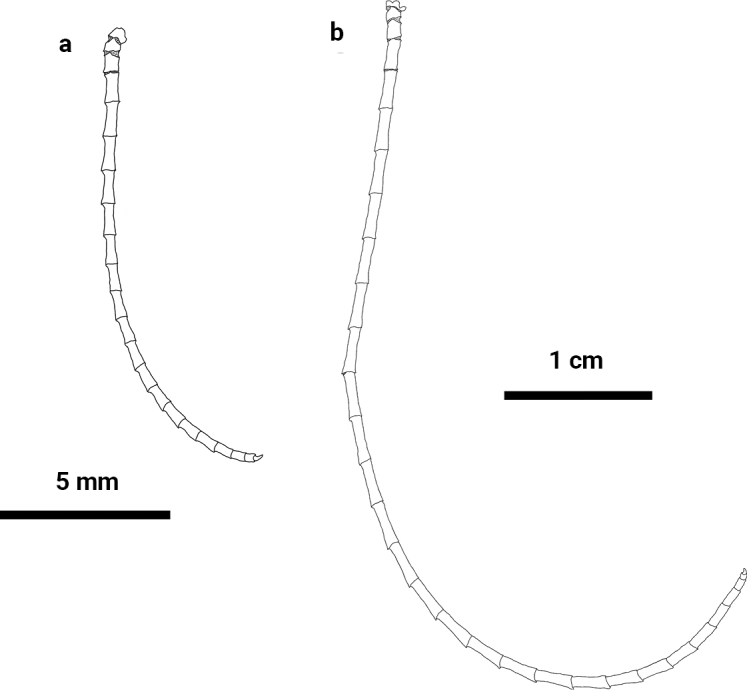

Paratelecrinuscubensis from Kocebu Guyot a apical cirrus b peripheral cirrus.

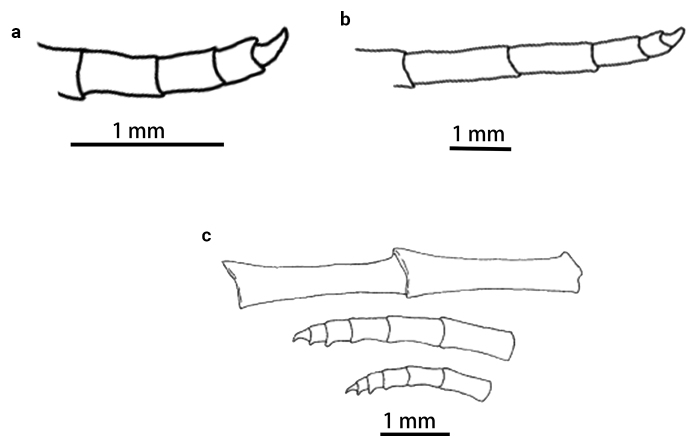

Paratelecrinuscubensis from Kocebu Guyot a tips of apical cirrus b tips of peripheral cirrus c two middle cirrals (upper) and tips of two cirri (middle, lower) (modified from Messing 2013).

Basals form a complete ring, separated from centrodorsal by distinct ligamentous bundles, especially interradially; externally visible portion of basals swollen interradially and then narrowing laterally, with a concave lower edge interradially and an overall inverted V-shape (Fig. 6c). Radials are very short, W/L 3.2. Lateral margin of radials clearly visible, separating adjacent brachitaxes (Fig. 6c).

Paratelecrinuscubensis from Kocebu Guyot a IBr and IIBr flanges b distal arm part c basals and radials.

Arms 10, 2.9–8.3 mm long (Fig. 3). First brachitaxes and proximal rays with moderately developed synarthrial tubercles. Ibr1 rectangular, with V-shaped distal margin and thin projections on lateral margins, W/L 2.5. Iax2 rhombic, laterally margin with wing-like flange, lower edge distinctly convex, W/L 1.1. IIbr1, W/L 2.7, outer lateral margin longer and slightly curled inward (Fig. 6a). IIbr2, W/L 1.3, irregularly square, outer lateral margin longer, distal margin wider, proximal margin V shaped, with sufficient clearance from adjacent IIbr2. IIbr_3+4_ longer interiorly, W/L 1.2, 1.7 mm across. Middle brachials wedge-shaped, W/L 1.8. Distal brachials wedge-shaped and longer than wide, with distal ends slightly raised, W/L 0.6 (Fig. 6b). Syzygies at (3+4), (6+7), (9+10).

Distribution.

Previous records of P.cubensis have been only collected in the deep sea off the Bahamas and Cuba (567–892 m) (Messing 2013). The current study is the first report of P.cubensis from Kocebu Guyot, which extends the known geographical distribution of this species to the Western Pacific Ocean (Fig. 1). Furthermore, the new record is the deepest known observation of P.cubensis; at 1294 m, this observation extends the depth of this feather star beyond 1000 m.

McClain and Hardy (2010) have suggested that bathymetric gradients may impose limitations on the range of species compared to horizontal distances, and that the geographic distribution of species may be more frequent where water depths are deeper. Based on this hypothesis, the large gap in the geographic distribution of P.cubensis seems reasonable. Furthermore, biodiversity correlates with latitude, showing patterns of tropical peaks and polar declines in species richness (Mannion et al. 2014). The collection site is consistent with the latitudinal distribution of previous records, which supports the very large geographic distribution of P.cubensis.

Barcoding, phylogenetic relationships and taxonomic implication

The intergeneric genetic distance (K2P) of the suborder Bourgueticrinina is established based on the COI gene (Table 1). The intergeneric distances within Bourgueticrinina range from 6.0% to 18.1%. Paratelecrinuscubensis most closely related to P.wyvilli, with a p-distance of 6.0%; this supports our morphological identification of our Kocebu Guyot specimen.

The phylogenetic tree derived from BI and ML analyses shows essentially the same results (Fig. 7). Paratelecrinusnudus and P.verrucosus are sister to each other, suggesting that Phrynocrinidae is monophyletic. Atelecrinidae, which groups with Monachocrinus sp. BATHY91 and Phrynocrinidae, clusters into a single branch. Within Atelecrinidae, P.cubensis and P.wyvilli formed the sister group, and then clustered together with Adelatelecrinusvallatus.

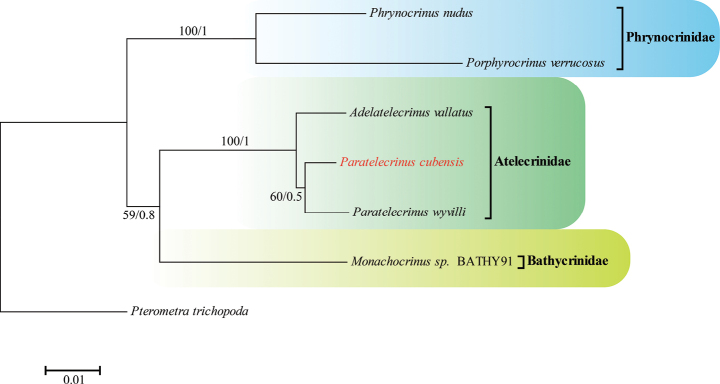

Maximum-likelihood (ML) and Bayesian-inference (BI) trees of Bourgueticrinina using combined COI, 16S, 18S, and 28S sequences. The number at each node represents bootstrap values (BP) (left) and Bayesian posterior probability (BPP) (right). Paratelecrinuscubensis is highlighted in red

Discussion

In summary, the spoon-shaped aboral fossa in the basals of Paratelecrinus species is unique from other genera of Atelecrinidae. The main morphological features of our Western Pacific specimen collected in the Western Pacific are consistent with the neotype (Messing 2013). However, one difference is apparent; the distal three cirrals of the neotype have weak dorsal spines, whereas our specimen has very weak, if not altogether absent, dorsal spines on the distal cirrals (Fig. 5).

Paratelecrinuscubensis (10 columns) differs from P.orthotriremis, P.laticonulus, P.conifer and P.telo (15 columns) in the number of cirri arrangements. In contrast to other Paratelecrinus species, P.amenouzume has the weak synarthrial swelling between Ibr1 and Iax2, as well as IBr2 being proportionately more elongate. Consequently, P.cubensis is more similar to P.wyvilli, but the basal of P.wyvilli forms an almost highly coherent narrow band rather than narrowing laterally and expanding at the end; more conspicuous is the absence of wing-like lateral flanges in Iax2 (Messing 2013).

This is the first time for P.cubensis recorded in the Western Pacific, as the species was previously known from only the Bahamas and Cuba.

Although there is a lack of molecular information for Atelecrinidae, the relationship between Atelecrinidae, Phrynocrinidae, and Bathycrinidae, as shown in our phylogenetic analysis, is consistent with the study by Hemery et al. (2013). Despite low-level support, P.cubensis and P.wyvilli clustered together. In conclusion, the taxonomic status of P.cubensis from Kocebu Guyot in the Western Pacific, is well established, and the results of our phylogenetic analysis are consistent with our morphological identification.
