Activity-driven sorting, approach to criticality and turbulent flows in dense persistent active fluids

TL;DR

This paper investigates dense active fluids with persistent self-propulsion, revealing a critical state characterized by velocity and force sorting, large-scale correlations, and turbulence driven by macroscopic void dynamics.

Contribution

It introduces a novel understanding of non-equilibrium steady states in dense active fluids, highlighting criticality, spatial correlations, and turbulence mechanisms.

Findings

Velocity and force sorting in steady states

Growth of spatial correlation lengths with system size

Emergence of turbulence driven by macroscopic voids

Abstract

We show that dense active fluids comprising interacting particles with persistent self-propulsion are driven to a non-equilibrium steady state consisting of co-moving particles with co-aligned active forces. This velocity and force sorting appears to be associated with a critical state where the length scales associated with spatial correlations of the velocity and the propulsive force grow with system size. At large system sizes, these growing velocity domains are accompanied by the appearance of dynamic macroscopic voids in the steady state, associated with large density fluctuations. The dynamics of the macroscopic voids drives a new kind of turbulent state.

Figures

Equations

$$m\ddot{{\mathbf{r}}_{\mathbf{i}}}=-\Gamma \dot{{\mathbf{r}}_{\mathbf{i}}}+\sum _{j\ne i=1}^N{\mathbf{f}}_{\mathbf{ij}}+{\mathbf{f}}_{\mathbf{i}}$$

$$V_{\alpha \beta }^{(i,j)}(r)=4{ϵ}_{\alpha \beta }\left[{\left(\frac{{\sigma }_{\alpha \beta }}{r}\right)}^{12}-{\left(\frac{{\sigma }_{\alpha \beta }}{r}\right)}^6\right]$$

$$g^{\alpha \beta }(r)=\frac{A}{N^{\alpha }{N}^{\beta }}<\sum _{i=1}^{N^{\alpha }}\sum _{j=1}^{N^{\beta }}\delta (r-r_{ij}^{\alpha \beta })>.$$

$$C_{\mu \nu }(r)=\frac{{\sum }_{i=1}^{N-1}{\sum }_{j=i+1}^N({\mu }_i\cdot {\nu }_j)\delta (|{\mathbf{r}}_i-{\mathbf{r}}_j|-r)}{{\sum }_{i=1}^{N-1}{\sum }_{j=i+1}^N\delta (|{\mathbf{r}}_i-{\mathbf{r}}_j|-r)}$$

Full text

In this paper, we report on the unusual liquid state properties of persistently driven active athermal fluids in the dense state. It is recognized that many of the unconventional features of active matter are consequences of microscopic time reversal symmetry (TRS) breaking trs1 ; trs2 ; active-review1 ; active-review2 . There have been several recent studies on the collective dynamics of dense active particles as a function of activity and persistence time dam1 ; ni2013 ; dam3 ; berthier2014 ; berthier2017 ; mandal2016 ; mandal2017 ; dam5 ; dam7 . Dense active matter at large persistence time and intermediate forcing dam8 shows intermittent stress build-up and sudden relaxation through plastic events leading to turbulence  dam8 ; keta2022 ; keta2023 ; keta2024 . In the limit of infinite persistence time, the particles show a jamming transition dam8 ; liao2018 ; yang2022 with forces channeled along chains or rays dam9 . Here, we study the unjammed state of the persistent active fluid at higher forcing, using large-scale simulations.

Our main result is that persistent activity generically drives the liquid to a non-equilibrium critical state with correlations that grow with system size $L$. Starting from initial conditions where the particle velocities and propulsion forces are randomly assigned whilst maintaining isotropy, the system evolves into domains of co-moving particles with co-aligned propulsive forces, separated by regions of high vorticity. For small system sizes, the size of these velocity domains scales with system size. This velocity and force sorting is a consequence of TRS-breaking arising from collisions and self-propulsion and implies that in contrast to equilibrium liquids, the joint distribution of positions and velocities do not decouple. At larger system sizes, the system also exhibits strong density inhomogeneity with macroscopic voids and anomalous density fluctuations. This is accompanied by giant number fluctuations where the standard deviation of the number of particles $N_{\Omega}$ in a sub-region of size $\Omega$ scales as $\Delta N_{\Omega}\propto{N_{\Omega}}^{\frac{1}{2}+\beta}$, where $\beta\simeq 0.5$. The motion of the macroscopic voids appear to drive a kind of large-scale turbulence, characterized by strong dynamical heterogeneity.

Our results follow from extensive computer simulations of a 2-dimensional athermal system of binary Lennard-Jones particles koboriginal of mass $m$, each of which is subjected to a propulsion force ${\bf f}_{i}=f{\hat{n}}_{i}\equiv f(\sin{\theta_{i}},\cos{\theta_{i}})$ dam8 ; rituporno2 , using LAMMPS, lammps following an equation of motion for an active particle at position $\bf r_{i}$, within a medium of damping $\Gamma$: $m{\ddot{\bf r}}_{i}=-\Gamma{\dot{\bf r}}_{i}+\sum^{N}_{j\neq i=1}{\bf f}_{ij}+{\bf f}_{i}\,$ where, initially, the active forces are assigned randomly maintaining isotropy, $\langle{\bf f}_{i}\rangle=N^{-1}\sum_{i=1}^{N}{\bf f}_{i}=0$, at the complete absence of thermal fluctuation. In our persistently active system, the initially assigned propulsive forces are not allowed to change and isotropy is maintained at all times. This is equivalent to having particles endowed with an exponentially correlated noise with infinite persistence time active-saikat . Details of the model parameters and simulations can be found in the Supplementary Information (SI) Note 1.

Our athermal simulations are carried out in a regime where the propulsive forces are large enough, $f\gg f_{c}\approx 1.65$ (for $N=10^{3}$) dam8 , to ensure that the system is an unjammed fluid. Close to and below this threshold force, the system shows intermittent jamming and stress release via plastic events that are highly sensitive to system size. Here we focus on liquid state properties. We thus choose $f=3$ for particle numbers ranging between $N=10^{2}-10^{6}$. In a later publication we will address the physics of jamming as one quenches the propulsion force $f$ suman0 .

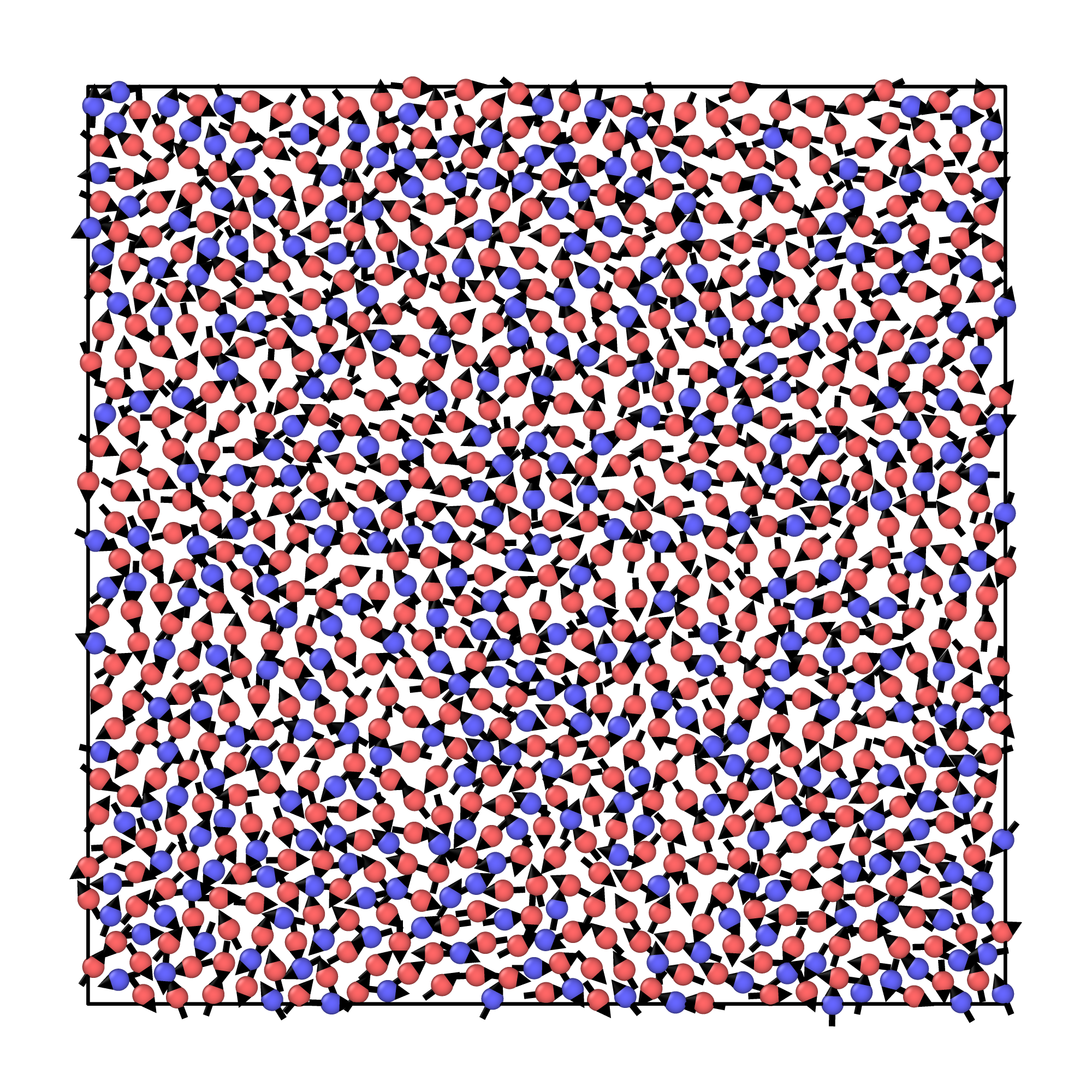

For small system sizes $N\leq 10^{3}$, a static snapshot of the structure of the persistently driven liquid at the steady state is indistinguishable from the passive dense liquid (SI Fig.(1)). This is reflected in the radial distribution function $g(r)$ (SI Fig.(2)). The probability distribution of the density, $P(\rho)$ however, show a multi-modal distribution (SI Fig.(2)).

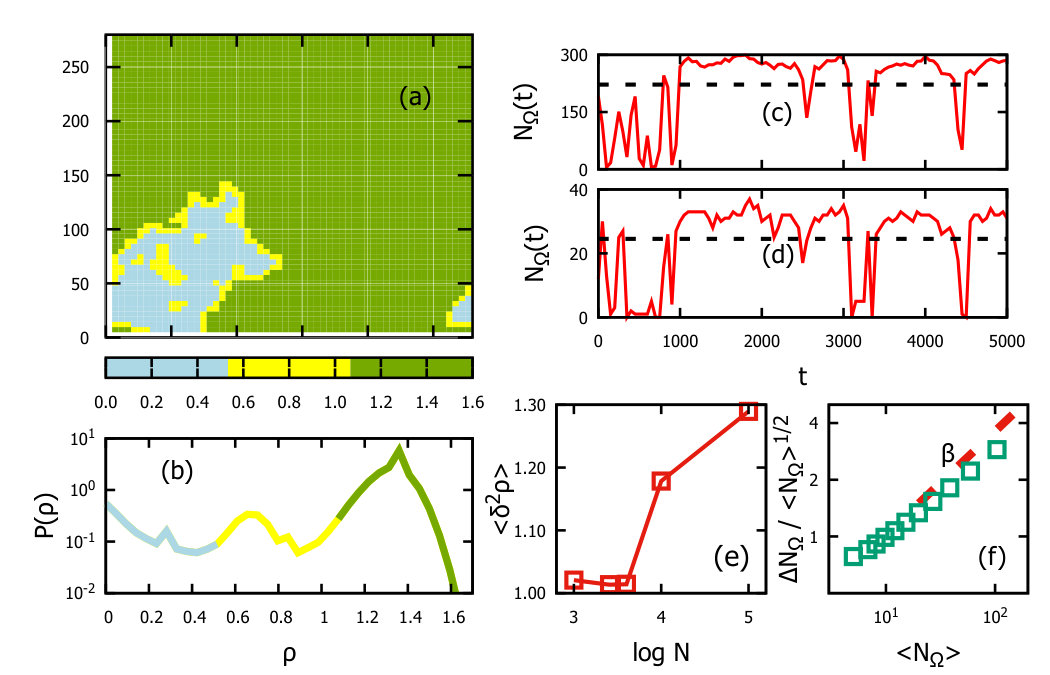

On increasing $N(\geq 10^{4})$, the system surprisingly show the appearance of large voids (Fig.1(a)), suggesting cavitation or a gas-liquid coexistence, in the form of motility-induced phase separation, even in persistent states  cates2015 in which the density in the “gas” phase is close to zero. This is reflected in the steady state density distribution $P(\rho)$ which shows non-Gaussian features and multi-modality (Fig.1(b)) with the additional peak at $\rho=0$ representing the void regions. SI Movie 1 shows that the large density inhomogeneities are dynamic and grow with system size (SI Fig.(3)). The steady state density variance grows with the appearances of larger cavities, beyond a limit (Fig.1(d)). Concomitantly, the system exhibits anomalously large number fluctuations, as seen from the time series of the number of particles computed within boxes of different sizes $\Omega$ (Fig.1(c)). We also note the sudden drops and rises as the void sweeps through the sampling box $\Omega$. The standard deviation of the number of particles for each $\Omega$, is related to the mean number by $\Delta N_{\Omega}\sim\langle N_{\Omega}\rangle^{\frac{1}{2}+\beta}$, where $\beta\simeq 0.5$ (Fig.1(e)). This is a simple consequence of the large variations of $N_{\Omega}(t)$ (Fig.1(c)) which fluctuates between a large value corresponding to the local density close to the third peak in Fig. 1(b) and a value close to zero. We note that a computation of $\Delta N_{\Omega}$ versus $\langle N_{\Omega}\rangle$ for fixed $\Omega$ but varying $N$ shows a different trend owing to the absence of voids at smaller $N$; nevertheless the asymptotic behavior at large $N$ is similar to Fig.1(e) (see SI Fig. (4)). The giant number fluctuations found here are likely to have a different microscopic origin than that described in Ref. adititonersriram which are generated by large particle currents induced by Goldstone fluctuations of the polarization field in a nematically ordered active fluid.

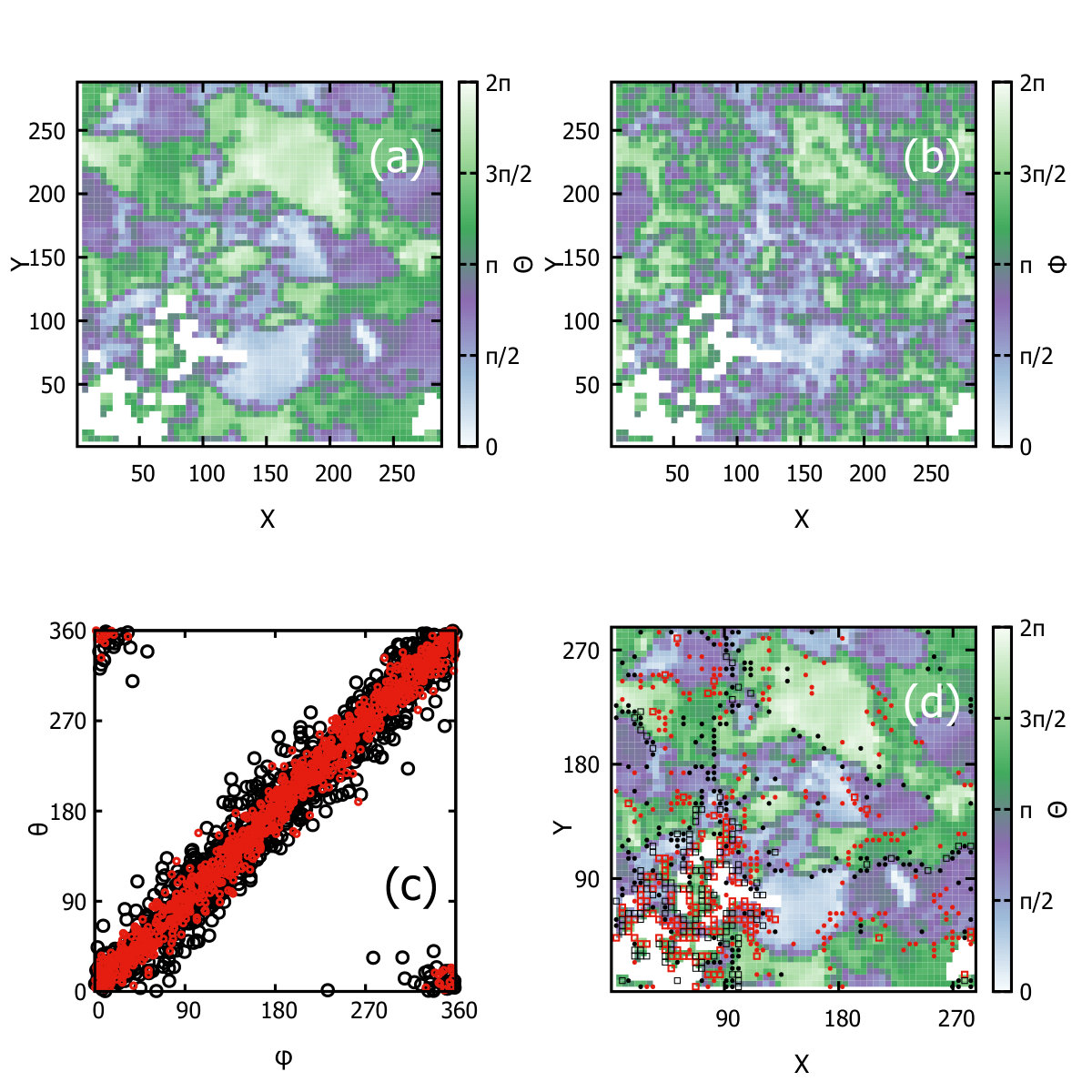

This persistently driven active fluid exhibits an interesting self-organization of the particle velocities and propulsion forces. Analysis of the spatial maps of the orientations of the coarse-grained velocity and propulsive force, $\Theta=\tan^{-1}v_{y}/v_{x}$ and $\Phi=\tan^{-1}f_{y}/f_{x}$, respectively (Fig.2 (a) and (b)), shows that the system reorganizes into domains of co-moving particles with co-aligned propulsion forces. Figs. 2 (a-c) reveal that the velocity and propulsion force maps show appreciable correlations. As shown in Fig. 2(c), the orientation $\theta$ of the time-averaged velocity of a particle in the steady state is close to the orientation $\phi$ of the propulsion force acting on it, indicating that each particle acquires a non-zero average velocity in the direction of the constant propulsion force. Note that the propulsion forces show a weaker co-alignment than the velocities in a given domain. We find that the velocity domains are separated by regions of high vorticity (Fig. 2(d)).

This sorting of the velocity and the propulsion force is a consequence of clustering and co-alignment following low-angle collisions of particles whose propulsion forces are nearly co-aligned. Velocity sorting implies strong correlations between position and velocity – the joint distribution of the two does not decouple.

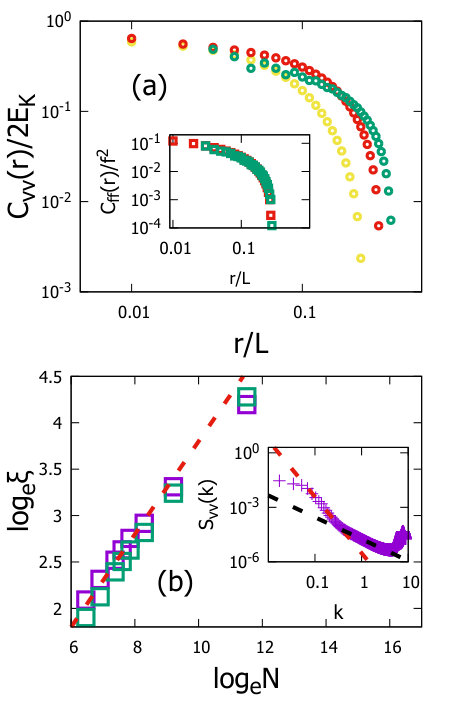

The size $\xi$ of the domains of co-moving and co-aligned particles can be obtained from the equal-time velocity-velocity $C_{vv}$ and force-force $C_{ff}$ correlation functions in the steady state (Fig. 3(a), also see SI Note 4). These length scales, obtained as the values of $r$ at which the correlation functions cross zero, grow as $\sqrt{N}$ for small $N$ indicating growing critical correlation lengths (Fig. 3(b)) that would diverge in the thermodynamic limit. The data for the largest system ($N=10^{5}$) fall below the $\xi\propto\sqrt{N}$ line obtained from a fit to the data for smaller $N$. This suggests that the presence of prominent voids in large systems may lead to an eventual saturation of $\xi$ as $N\to\infty$. However, we cannot confirm this possibility from the present data. The occurrence of strong velocity correlations in dense active systems with large persistence time has been observed in several studies henkes2020 ; szamel2021 ; caprini2020a ; caprini2020b ; kuroda2023 . In these studies, the length scale of velocity correlations is found to increase with increasing persistence time, suggesting a divergence in the limit of infinite persistence time considered here. However, the presence of voids found in our simulations for large $N$ was not considered in these studies. To our knowledge, the presence of long-range spatial correlations of the propulsion forces has not been reported earlier. These correlations require a higher degree of self-organization in which particles with similar directions of propulsion forces, which may be separated by large distances in the initial random state, come close to one another to form large clusters in which all the particles have similar directions of propulsion forces. The alignment of velocities can occur via local collisions without involving motion of particles over large distances. The mean kinetic energy per particle $<E_{K}>$ saturates to a finite value (SI Fig. (7)), with a distribution $P(E_{K})$ that is non-Gaussian with a positive skewness(SI Fig. (7), inset).

We have also calculated the velocity structure factor, $S_{vv}({\bf{k}})=\langle{\bf{v}}({{\bf{k}}})\cdot{\bf{v}}(-{\bf{k}})\rangle$ where $\langle\cdots\rangle$ represents an average over different times in the steady state and different runs, and ${\bf{v}}({\bf{k}})=\frac{1}{N}\sum_{j=1}^{N}\exp[i{\bf{k}}\cdot{\bf{r}_{j}}]{\bf{v}}_{j}$. We circularly average $S_{vv}({\bf{k}})$ over $\bf{k}$ to obtain $S_{vv}(k)$ where $k=|{\bf{k}}|$. Fig. 2 Inset. shows a plot of $S_{vv}(k)$ versus $k$ in logarithmic scale. There are two ranges of $k$-values in which the $k$-dependence of $S_{vv}(k)$ can be represented by power laws, $S_{vv}(k)\propto k^{\alpha}$. We find that $\alpha\simeq 3$ in the smaller $k$ region. This is in agreement with Porod’s law porod83 of domain growth, $S(k)\propto k^{d+1}$ where $d$ is the spatial dimension, which signifies the occurrence of sharp domain boundaries. The origin of the exponent found in the larger-$k$ range, $\alpha\simeq 1.2$, is not clear. It may be related to the turbulent behavior discussed below.

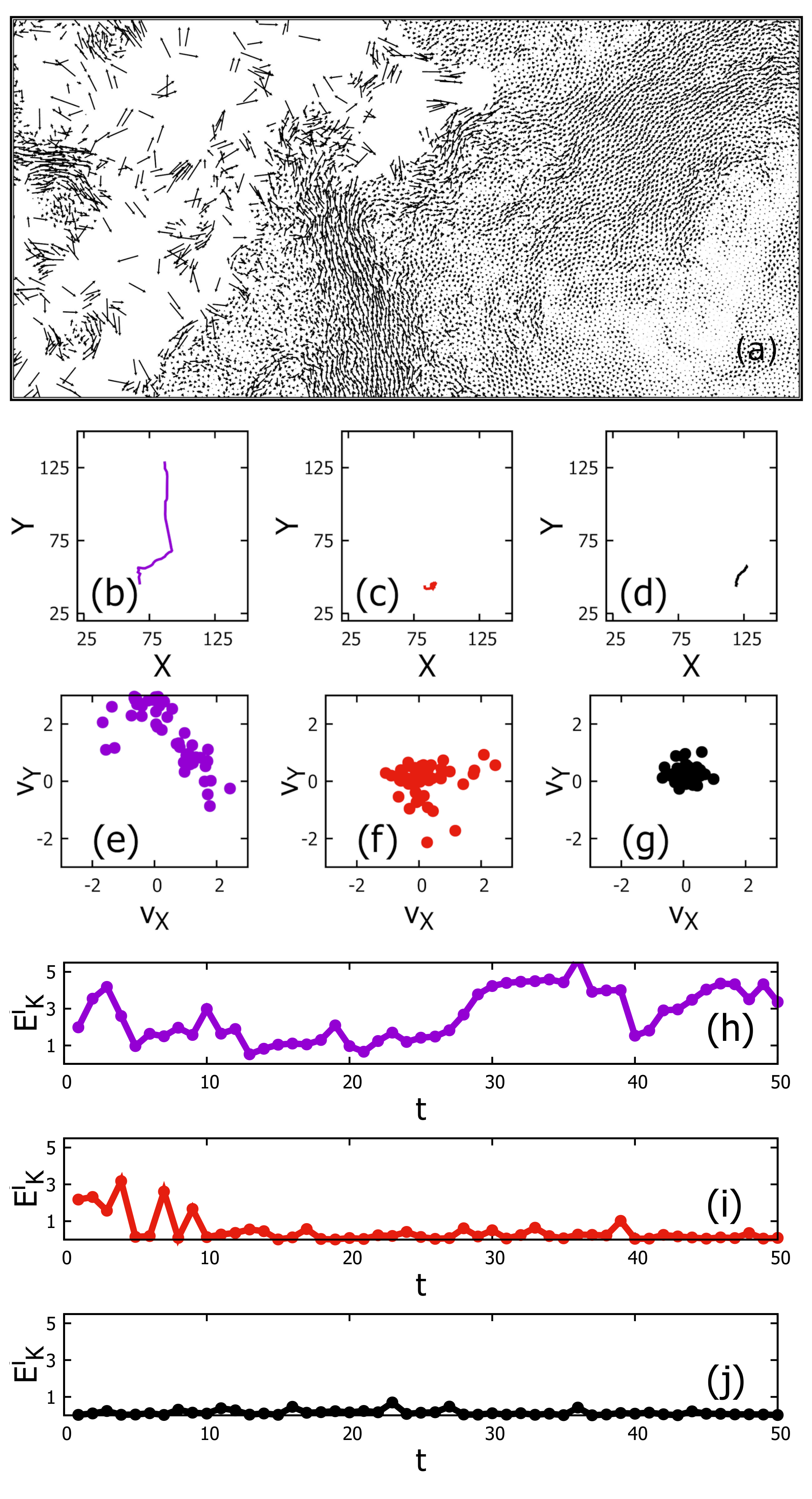

The sorting into velocity domains is accompanied by significant dynamical heterogeneity (Fig.4(a)). Particles in the low density regions move ballistically over fairly long time windows and those in the high density bulk move with substantially lower speeds, while some are kinetically arrested (Fig. 4(b-j) (also see SI Figs. (8) and (9).

At late times, the movie of the particle dynamics in the $N=10^{5}$ system, suggests a kind of turbulence, whose origin is different from the usual low-Reynolds number turbulence reported in active nematics alert ; giomi ; yeomans . Here, turbulence in this low-Reynolds number compressible active fluid is driven by the motion of the large dynamic voids or cavitation bubbles. The turbulence is reflected in the time series of the displacement or the kinetic energy of a typical particle which shows intermittent behavior, facilitated by cascade of plastic rearrangements, due to topological stress build-up and its redistribution at the neighboring regions footnote1 ; suman2 .

In conclusion, we have shown that a persistently active fluid at high forcing displays unusual properties compared to its passive counterpart. The development of velocity and force sorting across all system sizes studied is the most striking aspect of our study. The velocity sorting is likely to be due to a tendency to reduce the power dissipation $\frac{\eta}{2}\int|\nabla{\bf v}|^{2}\,d^{2}x$, where $\eta$ is the kinematic viscosity of the fluid geigenfeind2020 . This will be investigated in a later study, where we will analyze the time development of these co-moving and co-aligned domains using a coarsening picture chandan2 . The growth of the correlation length of these domains with system size is possibly cutoff by the formation and motion of macroscopic voids that drive a novel turbulence, with an elasto-plastic origin suman3 .

I Acknowledgements

S. D. acknowledges the support by the Department of Atomic Energy, Govt. of India Projects No. RTI4001 and RTI4006. All the simulations were carried out in the Tetris cluster of the HPC Unit at the ICTS-TIFR. S. D. also acknowledges the Indian Institute of Science (IISc) for a visiting fellowship and support of Institute of Mathematical Sciences (IMSc). We acknowledge insightful discussion with L. Berthier, S. Ramaswamy and P. Sollich. M. R. acknowledges support from the Department of Atomic Energy (India) under project no. RTI4006, the Simons Foundation (Grant No. 287975), and DST (India) for a J.C. Bose Fellowship. C.D. acknowledges support from SERB (India) for a SERB Distinguished Fellowship.

Research Contributions.— C. D.: Conceptualization (Part), Discussion, Comments, Validation, Presentation, Review and Editing; M. R.: Conceptualization (Part), Discussion, Data Interpretation (Part), Review and Editing; P. C.: Discussion and Review; S.D.: Conceptualization (Part), Framework development, Simulations and Analysis of Data, Visualizations, Data Interpretation (Part), Presentation, Preparation of the First draft, Review and Editing, Project Coordination.

Appendix A 1. Details of Model and Simulations

This work is based on Langevin simulations of an athermal binary mixture of Lennard-Jones particles koboriginal of mass $m$, subjected to random persistent self-propulsion forces at particle scale in two spatial dimensions, rituporno2 ; dam8 :

[TABLE]

with ${\bf{f}_{i}}=f\hat{n}_{i}$ where $\hat{n}_{i}\equiv(\sin{\theta}_{i},\cos{\theta}_{i})$ assigns the direction of the random persistent self-propulsion force for a particle $i$ at position ${\bf{r}}_{i}$ with $\sum_{i=1}^{N}{\bf{f}}_{i}=0$, in a medium with damping $\Gamma$. Simulations are performed using LAMMPS lammps . The binary mixture consists of two different types of particles $A$, $B$ with a proportionality of $65:35$. Any pair of such particles of mass $m(=1)$, $i$ and $j$ of types $\alpha(\in[A,B])$, $\beta(\in[A,B])$ at a separation $r$ $(=|{\bf{r}_{i}-\bf{r}_{j}}|<r^{\alpha\beta}_{C})$ interact at a constant density $\rho(=1.2)$ via the Lennard-Jones potential given by

[TABLE]

We use $\sigma_{AB}=\sigma_{BA}=0.8\sigma_{AA}$, $\sigma_{BB}=0.88\sigma_{AA}$, $\epsilon_{AB}=\epsilon_{BA}=1.5\epsilon_{AA}$, $\epsilon_{BB}=0.5\epsilon_{AA}$, truncated at a threshold $r={r}^{\alpha\beta}_{C}(=2.5{\sigma}_{\alpha\beta})$ ensuring that the potential and its first derivative continuously goes to zero at the cutoff lammps . $\sigma_{AA}$ is used as the unit of length and the unit of time is set at $\tau_{LJ}=\sqrt{m\sigma^{2}_{AA}/\epsilon_{AA}}$. We use system sizes between $N=L^{2}=10^{2}-10^{5}$. A typical configuration in the steady state for $N=10^{3}$ is shown in Fig.1 of the SI.

Appendix B 2. Static Structure

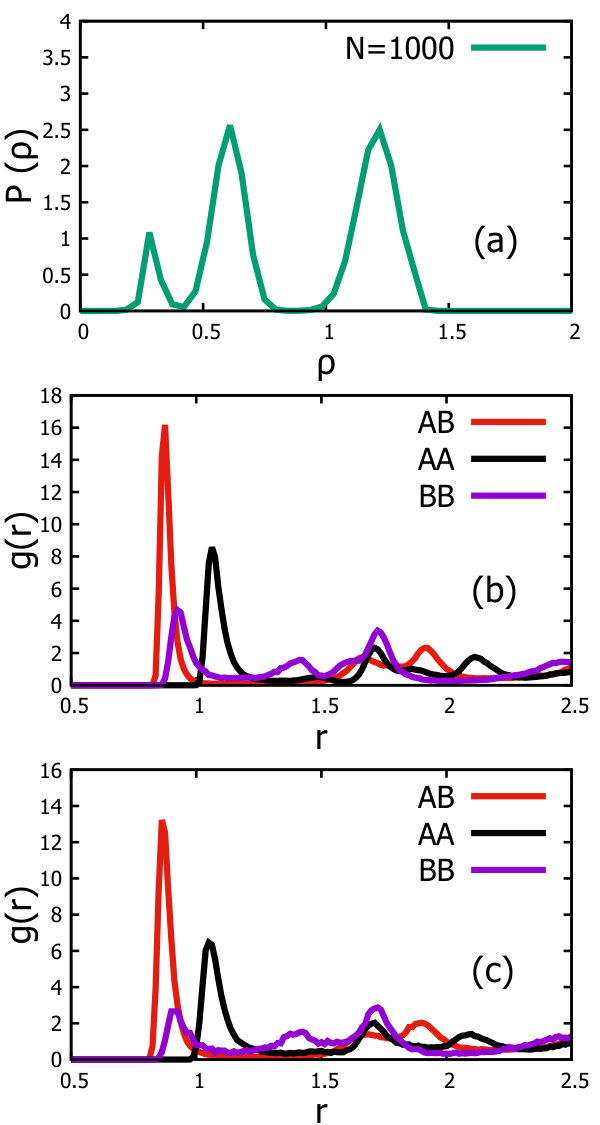

Fig.2, panel (a) shows the distribution of the local density $\rho$ in the steady state of a system with $N=10^{3}$. The distribution shows 3 peaks, as in panel (b) of Fig. 1 of the main text which shows the distribution of $\rho$ for a larger system with $N=10^{5}$. However, the positions of the peaks for the two values of $N$ are different. In particular, the first peak appears at a non-zero value of $\rho$ for the smaller system, indicating the absence of voids.

We investigate the structures of such liquid states by computing the partial radial distribution functions in real-space. For any two particles of species $\alpha$ and $\beta$, separated at a distance $r_{ij}^{\alpha\beta}$, such partial radial distribution functions are given by

[TABLE]

where $A$ is chosen to ensure that $g^{\alpha\beta}(r)\to 1$ for large $r$. In Fig. 2, we show $g^{\alpha\beta}(r)$ for $N=10^{3}$ and $f=3$. The partial structures are neither significantly different from the structures obtained in the passive athermal limit nor very different for different $N$ (Data not shown). With increasing $N$, we only note some marginal changes, such as small shifts of the second and third peaks towards smaller values of $r$.

Appendix C 3. Number Fluctuations

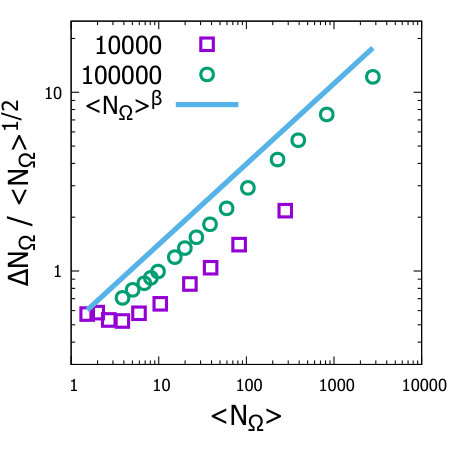

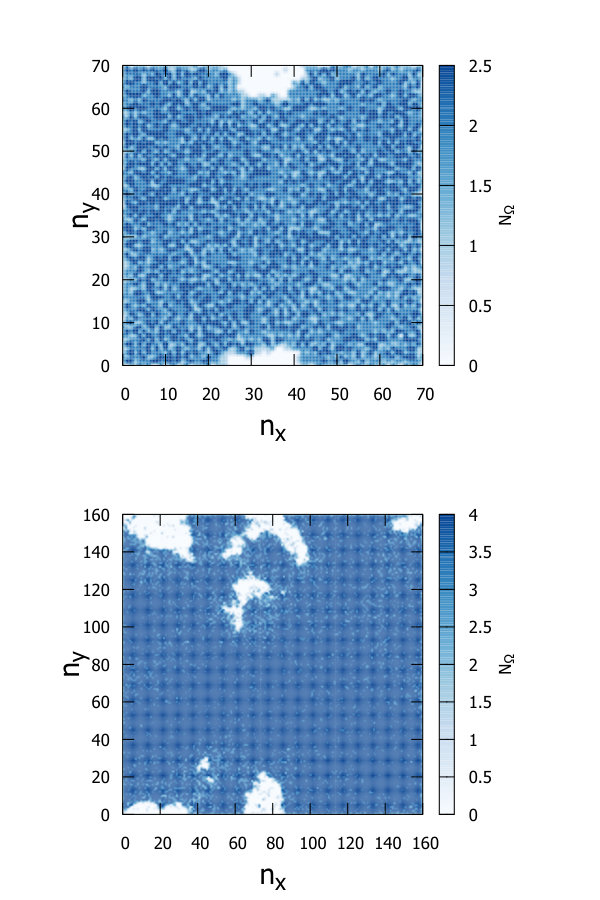

We divide the system into multiple boxes of size $\Omega$. In every such box, we track the evolving number of particles, $N_{\Omega}(t)$ in the steady state. We calculate the steady-state mean, $<N_{\Omega}>$, and the standard deviation with respect to it, $\Delta N_{\Omega}=\sqrt{<N_{\Omega}^{2}>-<N_{\Omega}>^{2}}$ for a given $\Omega$, using the time series, $N_{\Omega}(t)$. The number fluctuation is given by $\Delta N_{\Omega}/{\sqrt{<N_{\Omega}>}}$. We average it over different spatial regions and also over different independent trajectories. We show typical maps of the local number density in SI Fig.3. Respective data for the number fluctuation is shown in SI Fig.4. They show that the slope of the $\Delta N_{\Omega}/{\sqrt{<N_{\Omega}}>}$ vs. $<N_{\Omega}>$ plot at the large-$N_{\Omega}$ limit is similar for the two values of $N$, whereas the dependence for smaller values of $<N_{\Omega}>$ seems to have some differences between $N=10^{4}$ and $N=10^{5}$.

Appendix D 4. Correlation Functions

We compute the correlation functions between the velocities and self propulsion forces at single particle level for any two particles $i$ and $j$ located at ${\bf r}_{i}$ and ${\bf r}_{j}$ respectively, defined as:

[TABLE]

with ${\bf\mu}_{k},{\bf\nu}_{k}\in({\bf v}_{k},{\bf f}_{k})$ where $k\in(1,N)$. We also average $C_{\mu\nu}(r)$ over independent trajectories.

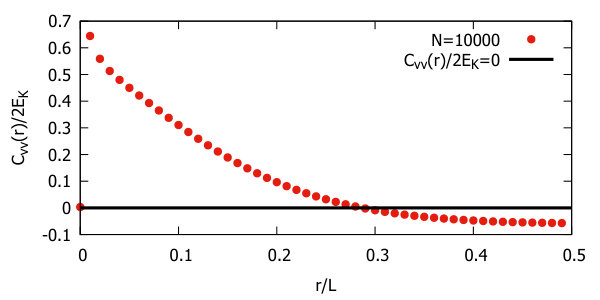

We calculate the correlation length ($\xi$), by identifying the first zero of $C_{\mu\nu}(r)$, that satisfies $C_{\mu\nu}(r=\xi)=0$. This is illustrated in SI Fig. 5.

Appendix E 5. Energetics of the Steady State

We compute the kinetic energy at single particle level from the single particle velocities, ${\bf v}_{i}$, obtained by integrating the equation of motions with time step $\delta t=0.005\tau_{LJ}$. We compute the mean kinetic energy per particle from a single configuration by computing, $E_{K}=\frac{1}{2N}\sum_{i=1}^{N}|{\bf v}_{i}|^{2}$. We then calculate $<E_{K}>$ where $<\ldots>$ implies an average over both configurations in the steady states in a trajectory, and over multiple trajectories obtained from different origins.

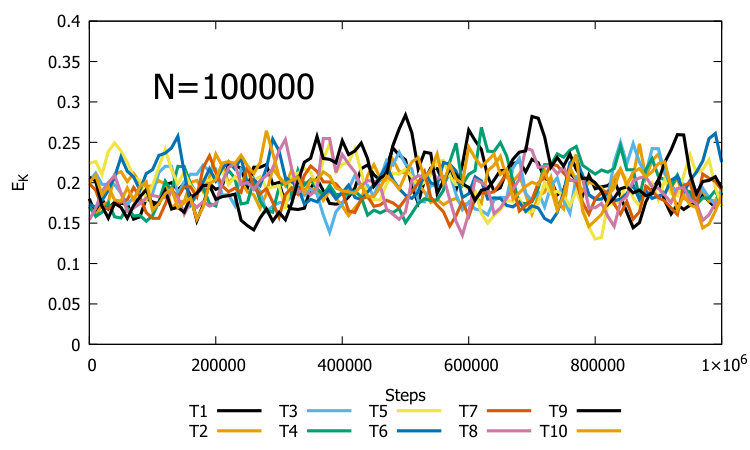

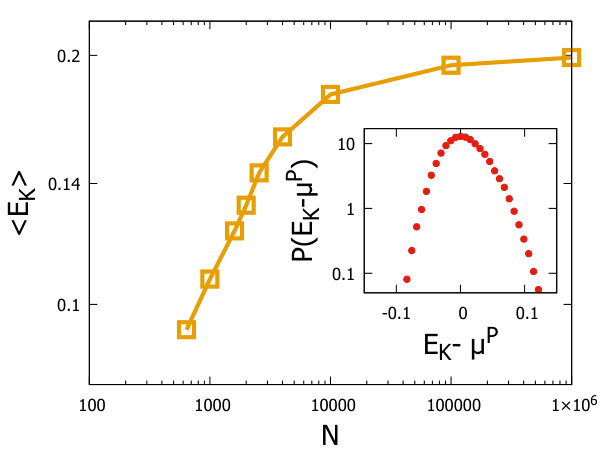

Typical time-series for $E_{K}$ are shown in SI Fig. 6. The dependence of the mean kinetic energy $<E_{K}>$ on $N$ is shown in SI Fig. 7. From the data of $E_{K}$, we compute the probability distribution of the system to have a kinetic energy $E_{K}$, $P(E_{K})$, and we identify the mode, $\mu^{P}=\max_{E_{K}}P(E_{K})$. The peak of the distribution of $P(E_{K})$ is shifted to zero, to obtain the rescaled distribution, $P(E_{K}-\mu_{P})$. We observe that $P(E_{K}-\mu_{P})$ is non-Gaussian and has extended tail with positive skewness (Inset of SI Fig. 7).

Appendix F 6. Dynamic Heterogeneity

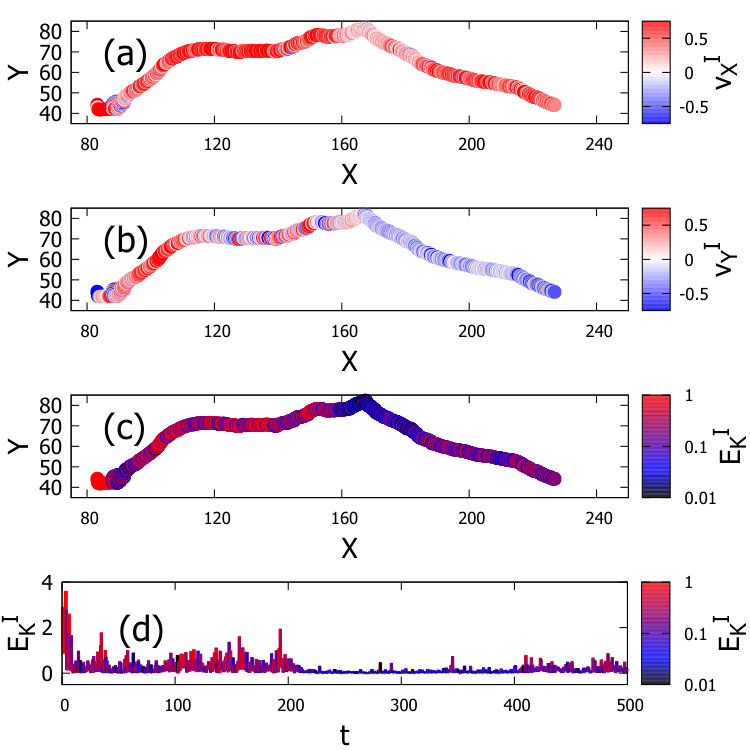

In order to probe the presence of heterogeneity within the particle dynamics, we show the dynamical behavior of a single particle over a sufficiently long interval that shows distinct behavior in the course of its motion. This we illustrate in SI Fig. 8 (a-d). The particle shows large $E_{K}$ in the initial period while it slows down with time and remains caged for a long interval after which it becomes fast again.

The particle dynamics in Fig. 8 falls in one of the 3 classes — I. fast II. intermittent and III. Slow, depending on the spatiotemporal environment it explores in the course of its dynamics.

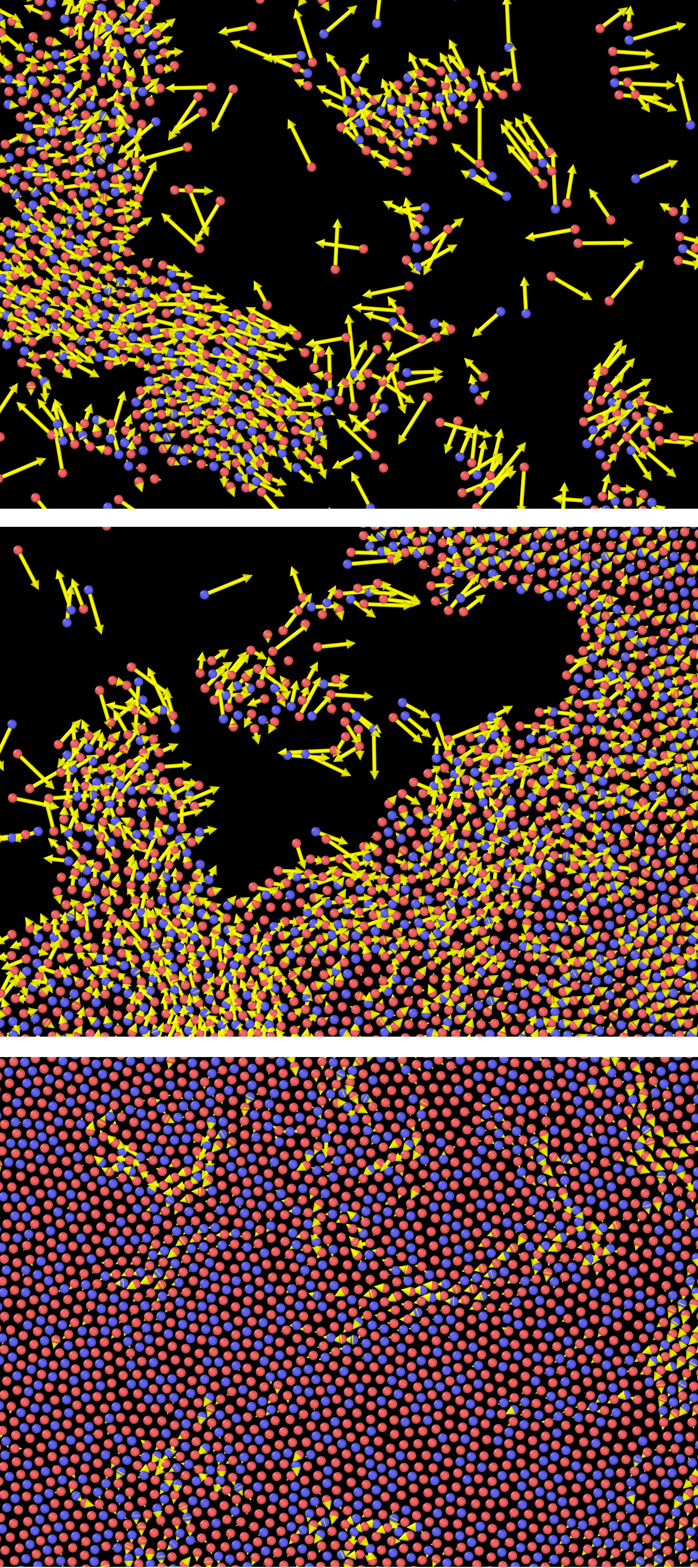

We further illustrate the spatial dynamics in Figs. 9 in which we show that these three distinct classes appear in the dynamics because of the presence of I. co-moving clusters, II. interfacial dynamics and III. localized motion.

Appendix G 7. Velocity Relaxation

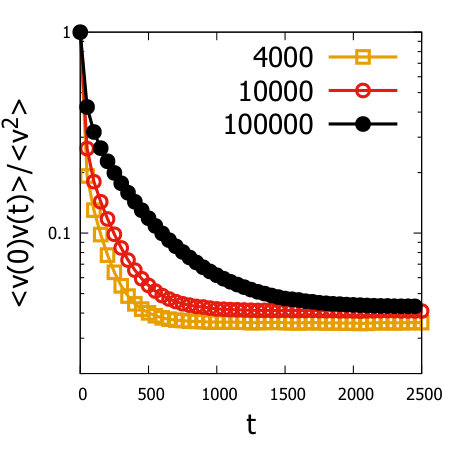

We compute the velocity autocorrelation function (VACF), $\langle{\bf v}_{i}(0)\cdot{\bf v}_{i}(t)\rangle$ where ${\bf v}_{i}$ is the velocity of the $i^{th}$ particle, and average it over the time origin and all the particles. As shown in Fig. (10)) for $N=10^{5}$, the VACF saturates to a finite value at large $t$. This is an indication of a finite time-average of the velocity which, as shown in Fig. 2(c) of the main text, points in the direction of the self-propulsion force acting on the particle. The time averaged velocity increases with $N$ and appears to saturate for large $N$. This can be understood from considering the motion of a single particle under the action of the constant self-propulsion force acting on it. Interactions of this particle with the other particles in the system provide a bath with friction and a random noise. The motion of this particle can then be modeled by that of the Brownian particle in the presence of a constant external force, which leads to a constant average velocity in the direction of the external force.
