A Bayesian Optimal Phase II Design for Randomized Immunotherapy Trials with Delayed Treatment Effects

TL;DR

This paper introduces a Bayesian phase II trial design tailored for immunotherapy, effectively handling delayed treatment effects and controlling type I error, with demonstrated improved power and smaller sample sizes.

Contribution

It develops a novel Bayesian design (DTE-BOP2) that models treatment delay timing, enhancing trial efficiency and error control compared to existing methods.

Findings

DTE-BOP2 controls type I error across delay scenarios.

Power decreases as the treatment effect separation time increases.

The design achieves higher power with smaller sample sizes.

Abstract

Immunotherapy has transformed cancer treatment, yet its delayed therapeutic effects often lead to non-proportional hazards, rendering many conventional phase II designs underpowered and prone to type I error inflation. To address this issue, we propose a novel Bayesian Optimal Phase II design (DTE-BOP2) that explicitly models the uncertainty in the separation timing of treatment effect. The treatment separation timepoint (denoted by S) is endowed with a truncated-Gamma prior, whose parameters can be elicited from experts or inferred from historical data, with default settings available when prior knowledge is scarce. Built upon the BOP2 framework (Zhou et al. 2017, 2020), our design retains operational simplicity while incorporating type I error control and maintaining the power. Extensive simulations demonstrate that DTE-BOP2 uniformly controls type I error at the nominal level across a wide range of treatment effect separation timepoint S. We further observe that the power decreases monotonically as S increases. Importantly, we find that the power is primarily driven by the relative magnitude of treatment benefit before and after the separation time, i.e., the ratio of medians, rather than their absolute values. Compared to the original BOP2, the piecewise weighted log-rank, and the conventional log-rank tests, DTE-BOP2 achieves higher power with smaller sample sizes while preserving type I error robustness across plausible delay scenarios. An open-source R package, DTEBOP2 (CRAN), with detailed vignettes, enables investigators to implement the design and analyse phase-II trials exhibiting delayed treatment effects.

Figures

Tables

Table 1. Table 1: Operating characteristics of the two-stage DTE-BOP2 design for six true separation times S S (units: months). Sample size is the per-arm expected accrual patients and trial duration is reported in months.

True $S$	Scenario	PRN (%)	PET (%)	Sample size	Duration†
2.0	$H_0$	8.4	29.6	36.5	10.3
	$H_1$	88.0	7.1	39.1	12.1
2.1	$H_0$	8.9	28.3	36.6	10.4
	$H_1$	87.2	7.4	39.1	12.1
2.2	$H_0$	8.7	27.1	36.7	10.5
	$H_1$	87.1	7.1	39.1	12.1
2.3	$H_0$	8.7	26.3	36.8	10.6
	$H_1$	86.6	7.1	39.1	12.1
2.4	$H_0$	8.8	25.0	37.0	10.7
	$H_1$	86.2	7.3	39.1	12.1
2.5	$H_0$	8.7	23.8	37.1	10.8
	$H_1$	85.5	7.6	39.1	12.1

Table 2. Table 2: Type I error, power, average sample size under H 1 H_{1} , and trial duration under H 1 H_{1} with sample size (44, 63) per arm.

Scenario		Type I Error(%)	Power(%)	Average Sample Size (H1)	Duration† (H1)
$S_{\text{likely}}=2$	$S=2$	7.8	89.1	61.9	16.0
	$S=2.1$	8.1	88.3	61.9	16.0
	$S=2.2$	8.3	88.3	61.8	15.9
	$S=2.3$	8.3	87.6	61.8	15.9
	$S=2.4$	8.0	87.3	61.8	15.9
	$S=2.5$	8.2	86.9	61.8	15.9
$S_{\text{likely}}=2.25$	$S=2$	7.8	96.4	62.5	16.3
	$S=2.1$	8.1	96.2	62.5	16.3
	$S=2.2$	8.3	96.0	62.4	16.2
	$S=2.3$	8.3	95.9	62.5	16.2
	$S=2.4$	8.0	95.5	62.4	16.2
	$S=2.5$	8.2	95.3	62.4	16.2
$S_{\text{likely}}=2.5$	$S=2$	7.8	99.5	62.9	16.4
	$S=2.1$	8.1	99.6	62.9	16.5
	$S=2.2$	8.3	99.5	62.9	16.4
	$S=2.3$	8.3	99.3	62.9	16.4
	$S=2.4$	8.3	99.1	62.8	16.4
	$S=2.5$	8.2	99.1	62.8	16.4

Table 3. Table 3: Empirical power (10 000 simulations, N = 40 N=40 per arm, percentage) for three tests under six true separation times.

Method	$S=2.0$	$2.1$	$2.2$	$2.3$	$2.4$	$2.5$
DTE-BOP2	0.94	0.93	0.93	0.93	0.93	0.92
PW log-rank	0.77	0.75	0.75	0.73	0.72	0.71
Log-rank	0.51	0.49	0.48	0.46	0.42	0.40

Table 4. Table 4: Per-arm sample size required to achieve two-sided α = 0.10 \alpha=0.10 and power 0.85 0.85 under six true separation times.

Method	$S=2.0$	2.1	2.2	2.3	2.4	2.5
DTE-BOP2	64	64	64	64	64	64
Wu (2019)	98	101	104	108	111	115
Xu (2017)	97	100	103	107	110	114
Log-rank	166	174	182	192	202	212

Table 5. Table 5: Comparison of key performance metrics (PRN, PET, average sample size, and trial duration) between DTE-BOP2 and BOP2 designs under various scenarios of delayed treatment effects. Each metric is averaged across 10,000 simulated trials. Sample size and trial duration are reported per arm and in months, respectively.

	${({\overline{\mu }}_0,{\overline{\mu }}_1)}^{\text{c}}$	Method	PRN (%)	PET (%)	Sample size	Trial duration${}^{\text{c}}$
$S=0$	(3,3)${}^{\text{a}}$	BOP2	9.7	58.4	34.2	14.1
		DTE-BOP2	7.7	55.7	34.4	14.3
	(3,6)${}^{\text{b}}$	BOP2	91.0	5.2	39.5	18.8
		DTE-BOP2	90.0	4.4	39.6	18.9
$S=1$	(3,3)${}^{\text{a}}$	BOP2	8.5	62.2	33.8	13.7
		DTE-BOP2	7.8	52.2	34.8	14.6
	(3,5)${}^{\text{b}}$	BOP2	55.9	26.8	37.3	16.9
		DTE-BOP2	87.7	5.6	39.4	18.9
$S=2.25$	(3,3)${}^{\text{a}}$	BOP2	9.8	70.0	33.0	13.0
		DTE-BOP2	8.0	47.4	35.3	15.1
	(3,3.75)${}^{\text{b}}$	BOP2	41.9	48.1	35.2	15.0
		DTE-BOP2	82.5	7.7	39.2	18.6

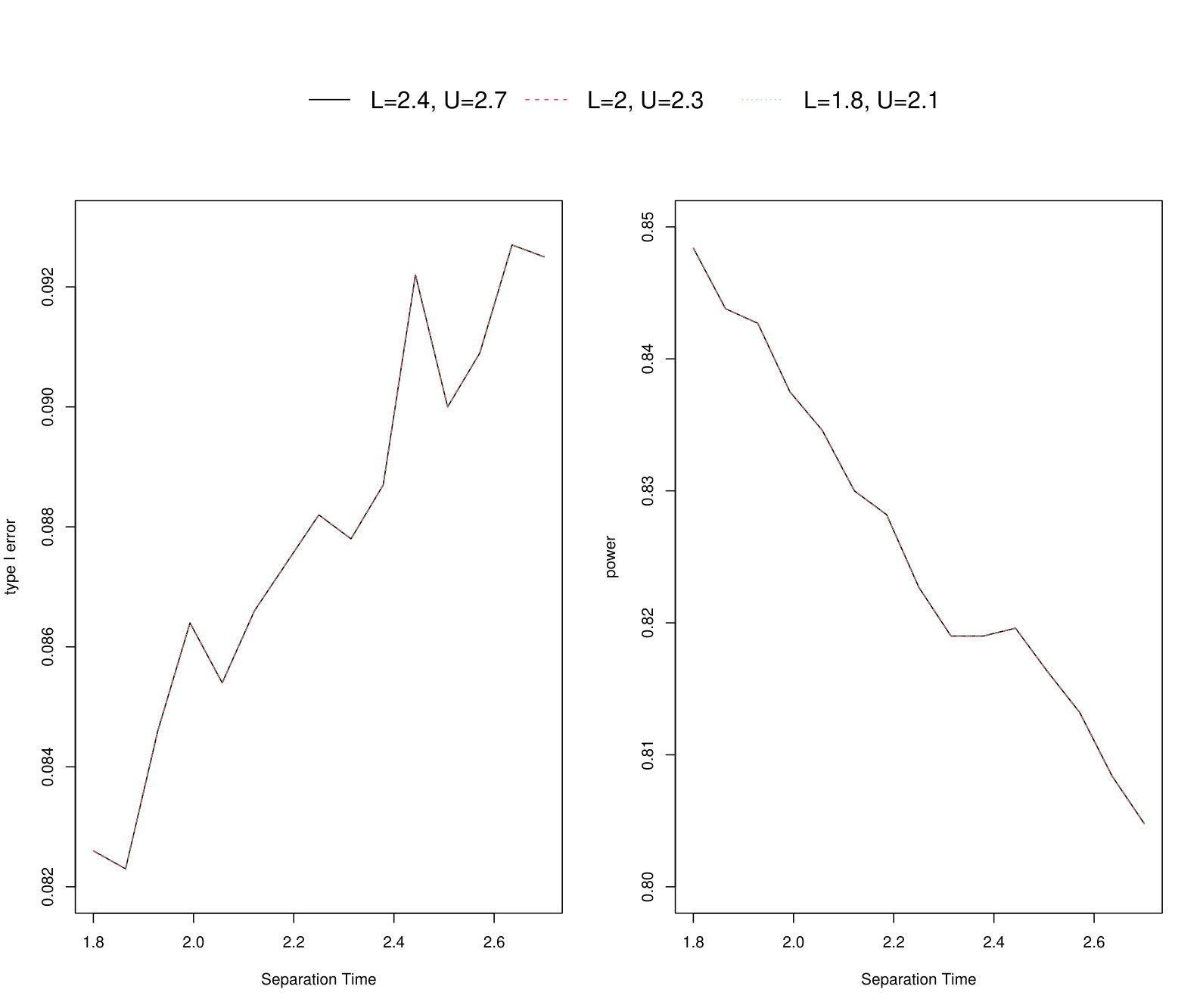

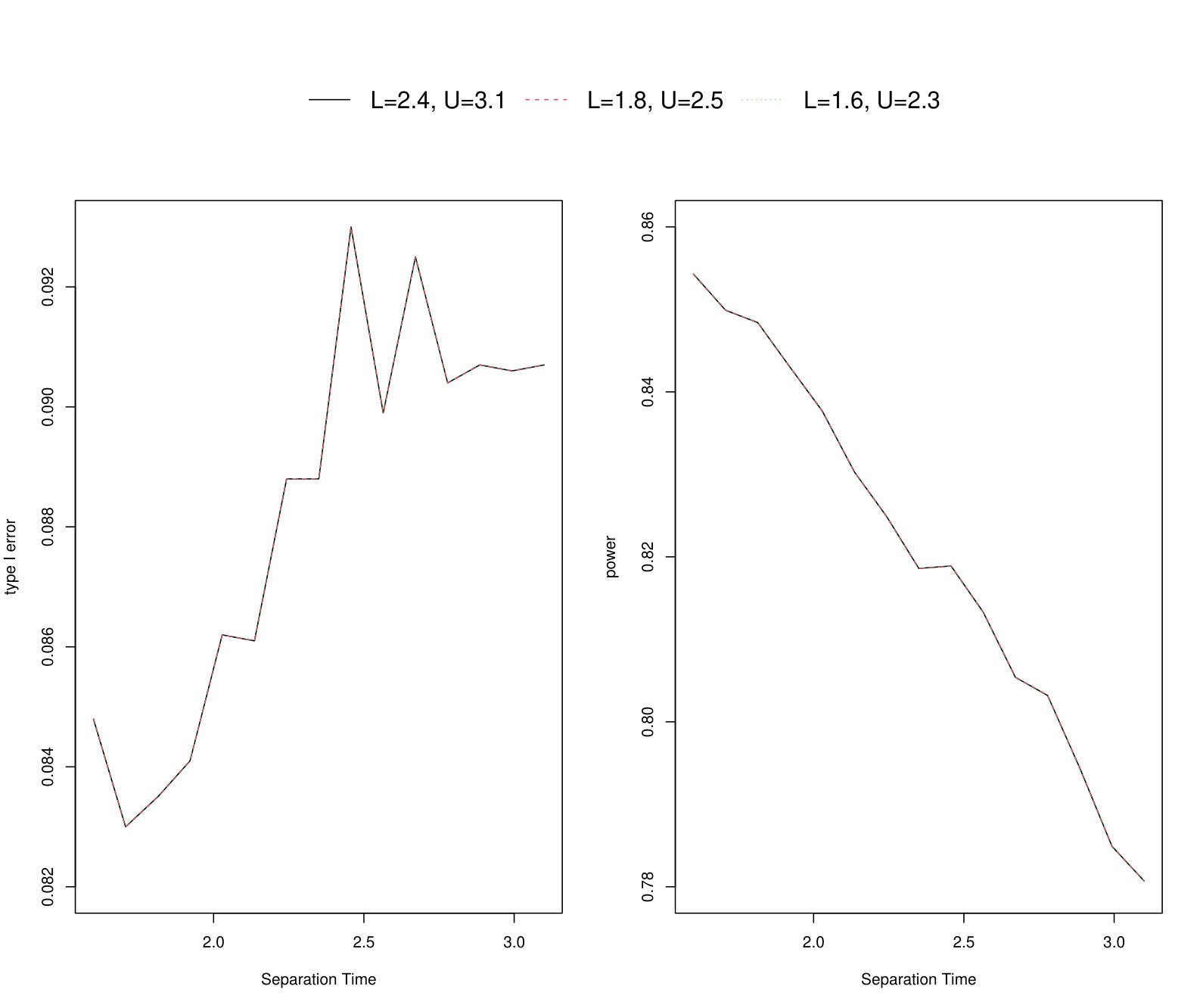

Table 6. Table 6: Optimal tuning parameters and average operating characteristics under different prior intervals ( L , U ) (L,U) . Values in parentheses are (average type-I error, average power) averaged over S ∼ Gamma ​ ( 1 , 1 ) ​ I ​ ( L , U ) S\sim\text{Gamma}(1,1)\,I(L,U) . Notably, the same pair ( λ , γ ) = ( 0.95 , 1 ) (\lambda,\gamma)=(0.95,1) is optimal for all scenarios, illustrating robustness to the choice of L L and U U . μ ~ 0 = 3 \tilde{\mu}_{0}=3  months.

$U-L$	$(L,U)$	$(\lambda ,\gamma )$	(AvgtypeI, AvgPower)
0.3	(2.4, 2.7)	(0.95, 1)	(0.087, 0.81)
	(2.0, 2.3)	(0.95, 1)	(0.088, 0.83)
	(1.8, 2.1)	(0.95, 1)	(0.084, 0.84)
0.5	(2.4, 2.9)	(0.95, 1)	(0.089, 0.81)
	(1.8, 2.3)	(0.95, 1)	(0.081, 0.83)
	(1.6, 2.1)	(0.95, 1)	(0.079, 0.85)
0.7	(2.4, 3.1)	(0.95, 1)	(0.084, 0.80)
	(1.8, 2.5)	(0.95, 1)	(0.085, 0.84)
	(1.6, 2.3)	(0.95, 1)	(0.086, 0.84)

Table 7. Table 7: Quantile results of ( 21 ) under H 0 H_{0} and H 1 H_{1} across [ Q 25 , Q 75 ] [Q_{25},Q_{75}] and [ Q 10 , Q 90 ] [Q_{10},Q_{90}] intervals for varying n r n_{r} and B B values.

Under $H_0$
$n_r$	$B$	$[Q_{25},Q_{75}]$				$[Q_{10},Q_{90}]$
		min	max	max-min	Spearman $\rho$	min	max	max-min	Spearman $\rho$
40	0.025	0.039	0.049	0.01	0.17	0.049	0.038	0.012	0.067
	0.05	0.08	0.09	0.01	0.62	0.08	0.09	0.01	0.79
	0.1	0.16	0.19	0.03	0.81	0.15	0.20	0.05	0.92
50	0.025	0.037	0.047	0.01	0.44	0.037	0.047	0.01	0.42
	0.05	0.079	0.091	0.012	0.49	0.076	0.094	0.018	0.72
	0.1	0.15	0.18	0.03	0.9	0.14	0.19	0.05	0.92
60	0.025	0.037	0.047	0.01	0.52	0.036	0.047	0.012	0.59
	0.05	0.075	0.091	0.016	0.65	0.073	0.093	0.02	0.77
	0.1	0.15	0.17	0.02	0.84	0.14	0.19	0.05	0.94
70	0.025	0.037	0.049	0.02	0.57	0.037	0.049	0.02	0.55
	0.05	0.074	0.06	0.014	0.60	0.071	0.092	0.021	0.81
	0.1	0.14	0.17	0.03	0.78	0.14	0.18	0.04	0.91
Under $H_1$
40	0.025	0.78	0.97	0.19	-0.99	0.49	0.98	0.48	-0.99
	0.05	0.86	0.98	0.12	-0.99	0.61	0.99	0.38	-0.99
	0.1	0.92	0.99	0.07	-0.99	0.75	0.99	0.24	-0.99
50	0.025	0.86	0.99	0.13	-0.99	0.56	0.99	0.44	-0.99
	0.05	0.91	0.99	0.08	-0.99	0.67	0.99	0.32	-0.99
	0.1	0.95	0.99	0.04	-0.98	0.80	0.99	0.19	-0.99
60	0.025	0.90	0.99	0.09	-0.99	0.63	0.99	0.36	-0.99
	0.05	0.94	0.99	0.05	-0.99	0.73	0.99	0.26	-0.99
	0.1	0.97	0.99	0.02	-0.98	0.84	1	0.16	-0.98
70	0.025	0.94	0.99	0.05	-0.99	0.69	0.99	0.3	-0.99
	0.05	0.96	0.99	0.03	-0.99	0.78	1	0.22	-0.99
	0.1	0.98	1	0.02	-0.98	0.88	1	0.12	-0.98

Equations

$$f_{T_{i1}}(t)=\{\begin{array}{ll}\frac{1}{{\mu }_0}\exp (-\frac{t}{{\mu }_0}),& 0<t<S,\\ \frac{1}{{\mu }_1}\exp (-\frac{t}{{\mu }_1}-(\frac{1}{{\mu }_0}-\frac{1}{{\mu }_1})S),& t\ge S,\end{array}$$

$$\pi (S)\propto \text{Gamma}(s_1,s_2)I(L,U),$$

$$w_1\sum _{i=1}^n(\text{mean}(S)-\text{mean from Expert }i{)}^2+w_2\sum _{i=1}^n(\text{median}(S)-\text{median from Expert }i{)}^2+$$

$$w_3\sum _{i=1}^n(\text{sd}(S)-\text{sd from Expert }i{)}^2+w_4\sum _{i=1}^n(\text{quantile}(S,0.025)-\text{0.025 quantile from Expert }i{)}^2+$$

$$w_5\sum _{i=1}^n(\text{quantile}(S,0.975)-\text{0.975 quantile from Expert }i{)}^2,$$

$$\text{TTOT}(t_1,t_2)=\sum _{i=1}^n\max (0,\min (Z_{i1},t_2)-t_1).$$

$$f(z_{10},\cdots ,z_{n0},z_{11},\cdots ,z_{n1}|{\mu }_0,{\mu }_1)=$$

$${\mu }_0^{-d_0}\exp \left(-\frac{{\sum }_{i=1}^n{z}_{i0}}{{\mu }_0}\right)\cdot {\mu }_0^{-d_{01}}\exp \left(-\frac{\text{TTOT}(I_0,I_1)}{{\mu }_0}\right)\cdot {\mu }_1^{-d_{11}}\exp \left(-\frac{\text{TTOT}(I_1,I_2)}{{\mu }_1}\right),$$

$$\pi ({\mu }_0)\sim \text{Inv-Gamma}(a_0,b_0),\pi ({\mu }_1)\sim \text{Inv-Gamma}(a_1,b_1),$$

$$\pi ({\mu }_0|{\mathcal{D}}_n,S)$$

$$\pi ({\mu }_1|{\mathcal{D}}_n,S)$$

$$\pi ({\tilde{\mu }}_0|{\mathcal{D}}_n,S)$$

$$\pi ({\tilde{\mu }}_1|{\mathcal{D}}_n,S)$$

$${\bar{\mu }}_1=\{\begin{array}{ll}{\tilde{\mu }}_0& \text{if }{\tilde{\mu }}_0<S,\\ \left(1-\frac{{\tilde{\mu }}_1}{{\tilde{\mu }}_0}\right)S+{\tilde{\mu }}_1& \text{if }{\tilde{\mu }}_0\ge S,\end{array}$$

$$\left(1-\frac{{\tilde{\mu }}_1}{4}\right)\cdot 2+{\tilde{\mu }}_1=7,$$

$$A(S,n_r)=\mathbb{I}\left(P({\tilde{\mu }}_1<{\tilde{\mu }}_0\mid {\mathcal{D}}_{n_r},S)>C(n_r)\right),$$

$$P({\tilde{\mu }}_1<{\tilde{\mu }}_0\mid {\mathcal{D}}_{n_r},S)=P\left(K<\frac{b_0+\text{TTOT}(I_0,I_1)+{\sum }_{i=1}^{n_r}{z}_{i0}}{b_0+b_1+{\sum }_{i=1}^{n_r}{Z}_{i0}+\text{TTOT}(I_0,I_2)}\right),$$

$$\begin{array}{rl}P({\tilde{\mu }}_1<{\tilde{\mu }}_0\mid {\mathcal{D}}_{n_r},S)& =P({\mu }_1^{-1}>{\mu }_0^{-1}\mid {\mathcal{D}}_{n_r},S)\\ & =P(\text{Gamma}(a_1+d_{11},b_1+\text{TTOT}(I_1,I_2))\\ & >\text{Gamma}\left(a_0+d_0+d_{01},b_0+\text{TTOT}(I_0,I_1)+\sum _{i=1}^{n_r}{z}_{i0})\right)\\ & =P(\frac{\text{Gamma}(a_0+d_0+d_{01},1)}{\text{Gamma}(a_0+d_0+d_{01},1)+\text{Gamma}(a_1+d_{11},1)}\\ & <\frac{b_0+\text{TTOT}(I_0,I_1)+{\sum }_{i=1}^{n_r}{z}_{i0}}{b_0+b_1+{\sum }_{i=1}^{n_r}{z}_{i0}+\text{TTOT}(I_0,I_2)}).\end{array}$$

$$\frac{\text{Gamma}(a_0+d_0+d_{01},1)}{\text{Gamma}(a_0+d_0+d_{01},1)+\text{Gamma}(a_1+d_{11},1)}\sim \text{Beta}(a_0+d_0+d_{01},a_1+d_{11}).$$

$$=\int \prod _{r=1}^{R+1}(1-A(S,n_r))\pi (S)dS,\text{when H0 is true}$$

$$=\int \prod _{r=1}^{R+1}(1-A(S,n_r))\pi (S)dS,\text{when H1 is true}$$

$$EN=w\frac{P{S}_{H_0}\times n_1+(1-P{S}_{H_0})(n-n_1)}{n}+(1-w)\left(1-\frac{P{S}_{H_1}\times n_1+(1-P{S}_{H_1})(n-n_1)}{n}\right)$$

$$EN=E(N|H_0)=\frac{P{S}_{H_0}\times n_1+(1-P{S}_{H_0})(n-n_1)}{n}$$

$$EN=1-E(N|H_1)=1-\frac{P{S}_{H_1}\times n_1+(1-P{S}_{H_1})(n-n_1)}{n}$$

$$\text{nmax}=\frac{4(z_{1-\alpha /2}+z_{1-\beta }{)}^2}{P(\log ({\tilde{\mu }}_1/{\tilde{\mu }}_0){)}^2}\cdot \frac{{\tilde{\mu }}_0+{\tilde{\mu }}_1}{{\tilde{\mu }}_0+{\bar{\mu }}_1}$$

$$S\sim \text{Gamma}(s_1,s_2)I(L,U),$$

$$\frac{4(z_{0.95}+z_{0.85}{)}^2}{{\left(\log \left(\frac{2.8}{3.5}\right)\right)}^2}=578,$$

$${\mu }_0\sim \mathrm{Inv}\text{-}\mathrm{Gamma}(a_0=4,b_0=12.12),{\mu }_1\sim \mathrm{Inv}\text{-}\mathrm{Gamma}(a_1=4,b_1=24.24).$$

$$\text{Mean}({\mu }_0)=\frac{12.12}{3}=4.04\text{months},\text{Mean}({\mu }_1)=\frac{24.24}{3}=8.08\text{months},$$

$$\frac{{\sum }_{j\in D}(d_{1j}-e_{1j})}{\sqrt{{\sum }_{j\in D}\frac{n_{1j}{n}_{2j}{d}_j(n_j-d_j)}{n_j^2(n_j-1)}}},$$

$$L=\frac{{\sum }_{j\in D_2}(d_{1j}-e_{1j})}{{\left\{{\sum }_{j\in D_2}\frac{n_{1j}{n}_{2j}{d}_j(n_j-d_j)}{n_j^2(n_j-1)}\right\}}^{1/2}},$$

$${\lambda }_0=\frac{\log 2}{2.8}(\text{SOC, all time}),{\lambda }_1(t)=\{\begin{array}{ll}\log 2/2.8,& t<S,\\ \log 2/6.57,& t\ge S.\end{array}$$

$$H_0:{\bar{\mu }}_0=a\text{ months},H_1:{\bar{\mu }}_1=b\text{ months},(a<b).$$

Full text

Keywords —

Bayesian adaptive design; Bayesian decision theory; phase-II clinical trials; immunotherapy; delayed treatment effect; non-proportional hazards; truncated-Gamma prior

1 Introduction

Delayed treatment effects (DTEs) present major challenges in the design and analysis of randomized clinical trials, particularly in immuno-oncology. In studies evaluating agents such as immune checkpoint inhibitors or therapeutic cancer vaccines, clinical benefits often do not appear immediately but emerge only after a latency period. For example, in the phase III CheckMate 017 trial (Brahmer et al., 2015), which assessed nivolumab in patients with squamous-cell non-small-cell lung cancer (NSCLC), the progression-free survival (PFS) curves for the treatment and control groups overlapped for approximately 2.5 months before beginning to diverge. A similar delayed separation was observed in another phase III NSCLC trial, complicating interim analyses and futility decisions (Paz-Ares et al., 2019). Likewise, in a phase III study of ipilimumab for advanced melanoma, an overall survival (OS) benefit did not become apparent until about four months after randomization (Hodi et al., 2010).

These delays are biologically plausible, as immunotherapies typically require time to stimulate the host immune system before producing measurable clinical effects. As a result, early survival curves for the treatment and control arms often overlap before eventual separation. This temporal shift in treatment effect can undermine the performance of conventional trial designs and analysis methods–such as those relying on Kaplan-Meier estimates and log-rank tests–by reducing statistical power and increasing the risk of false-negative conclusions. Collectively, these examples underscore the clinical relevance and growing prevalence of DTEs in oncology, emphasizing the need for alternative design and analysis strategies that appropriately account for delayed effects.

To accommodate delayed treatment effects (DTEs), a number of frequentist methods have been proposed to modify trial design and analysis, particularly in time-to-event settings. For instance, Zhang and Quan (2009) introduced a lag-time model where the treatment effect is assumed to initiate after a prespecified time threshold. Depending on whether treatment discontinuation is treated as censoring (Non-ITT) or all patients are followed regardless of adherence (ITT), they derived distinct sample size formulas, improving upon standard approaches such as Schoenfeld’s method. Sit et al. (2016) later extended this framework by rescaling time using the control arm’s cumulative hazard, enabling more accurate and computationally efficient power calculations under fixed delays.

Subsequent work further refined hypothesis testing strategies to improve power under delayed effects. Xu et al. (2017) proposed a piecewise weighted log-rank test that upweights later events—more likely to reflect true treatment benefit—and introduced sample size formulas based on both analytical (APPLE) and simulation-based (SEPPLE) methods. While these methods can be effective when the delay duration is well-characterized, their performance declines when prior knowledge is uncertain or miscalibrated. Wu and Wei (2019) addressed some of these concerns by revising sample size formulas under a fixed alternative hypothesis, improving accuracy in cases with small effect sizes or unbalanced arms.

To further address uncertainty in delay duration, robust testing strategies have been developed. The Maximin Efficiency Robust Test (MERT) proposed by Ye and Yu (2019) optimizes power across a range of plausible delays, while Xu et al. (2018) introduced the GPW-log-rank test to account for subject-specific lag variability, offering asymptotically optimal weighting. These approaches have also been extended to group sequential designs, where standard interim monitoring can be biased under delayed effects if proportional hazards are assumed (Zhang and Pulkstenis, 2016).

Despite these advances, frequentist methods often rely on strong assumptions–such as fixed or known delay durations, proportional hazards, or homogeneous treatment effects–that may not hold in early-phase immunotherapy trials where uncertainty is high. This is especially problematic in early-phase trials, where limited patient numbers, short accrual windows, and evolving treatment paradigms make rigid assumptions about effect timing particularly risky. Moreover, many of these approaches offer limited flexibility for adaptive decision-making during the course of a trial. These limitations underscore the potential value of Bayesian methods, which naturally incorporate uncertainty in key parameters and support a probabilistic framework for trial planning and analysis.

From a Bayesian perspective, relatively few methodological developments have addressed phase II trial designs that explicitly accommodate delayed treatment effects (DTEs). A notable exception is the work of Salsbury et al. (2024), who propose a Bayesian framework specifically tailored for clinical trial planning in settings where DTEs are expected, such as immuno-oncology. Their approach centers on the use of assurance, a Bayesian counterpart to conventional power calculations. Unlike traditional power, which assumes fixed parameter values (e.g., a specific treatment effect size), assurance incorporates uncertainty by averaging the power over a prior distribution, thus quantifying the probability of trial success under the current state of knowledge. This makes assurance–also known as average power or predictive power–particularly well-suited for realistic trial evaluations. In their model, survival times in both treatment and control arms follow Weibull distributions, with the hazard functions assumed identical up to a delay time $T$, after which the treatment arm begins to show a potential benefit. They further develop a simulation-based algorithm to compute assurance under such a delayed effect scenario.

While this framework provides valuable insight for trial planning, it does not offer a fully operational design for conducting trials with interim monitoring and decision-making under DTE. One widely adopted design in phase II settings is the Bayesian Optimal Phase II (BOP2) design, proposed by Zhou et al. (2020), which is appreciated for its simplicity, efficiency, and ability to control type I error while maximizing power. However, the original BOP2 formulation assumes the proportional hazards—assumption that may not hold in trials involving immunotherapies or other agents with delayed onset of action. Applying standard BOP2 to such settings may therefore lead to underpowered or miscalibrated decisions, especially at interim looks.

To address this methodological gap, we propose the Delayed Treatment Effect BOP2 (DTE-BOP2) design, which extends the BOP2 framework by explicitly modeling the unknown delay time using a truncated gamma prior. This prior is incorporated into the Bayesian decision-making process, allowing the design to dynamically adapt to uncertainty in the separation timing of treatment effects. DTE-BOP2 preserves rigorous control of type I and II error rates, improves power when delays are present, and can reduce the required sample size–making it a practical and robust tool for phase II immunotherapy trials. To facilitate implementation, we provide an open-source R package, DTEBOP2, which includes all necessary functions for design calibration, operating characteristic evaluation, and decision rule generation.

The remainder of this paper is organized as follows. Section 2 formalizes the DTE-BOP2 model and the decision framework, including an algorithm for two-stage sample size calculation. Section 3 demonstrates the application of our method using a motivating trial example and illustrates its implementation using the DTEBOP2 package. Section 4 presents a comprehensive simulation study comparing DTE-BOP2 with existing methods under varying delay scenarios and prior choices. Section 5 concludes with a discussion of practical implications and future extensions.

2 Method

2.1 Prior Specification for the Delay Time $S$

Suppose that in an interim analysis, $2n$ patients have been enrolled and an equal allocation ratio between the treatment arm and the control arm. For the $i$-th patient, let $T_{ij}$ denote the time to event, where $j=0$ corresponds to the control arm and $j=1$ corresponds to the treatment arm. The observed time, $Z_{ij}$, is defined as $Z_{ij}=\min(T_{ij},C_{ij})$, where $C_{ij}$ represents the administrative censoring time. The event indicator is given by $\delta_{ij}=I(T_{ij}\leq C_{ij})$ for $i=1,\dots,n$, and $d_{j}=\sum_{i=1}^{n}\delta_{ij}$ is the number of events in the control and treatment arms, respectively.

For patients in the control arm, we assume $T_{i0}\sim\text{Exp}(\mu_{0})$ with mean $\mu_{0}$ and probability density function $f_{T_{i0}}(t|\mu_{0})=\mu_{0}^{-1}\exp(-t/\mu_{0})$. In the treatment arm, the event time $T_{i1}$ follows a piecewise exponential distribution with a delayed treatment effect. Specifically, given a separation timepoint $S$, the probability density function (p.d.f.) of $T_{i1}$ is:

[TABLE]

Here, $\mu_{0}^{-1}$ represents the hazard rate for the interval $(0,S)$, while $\mu_{1}^{-1}$ represents the hazard rate for the interval $[S,+\infty)$.

To construct the prior distribution of $S$, we assume that it is bounded between $L$ and $U$. A truncated Gamma prior is employed for $S$:

[TABLE]

where $I(L,U)$ indicates that $S$ is restricted to the interval $[L,U]$. The values for $L$ and $U$, and the shape and rate parameters $s_{1}$ and $s_{2}$ in (2), can be specified in a default manner or guided by expert opinion. If elicitation is preferred, we may construct the prior distribution of $S$ by posing the following questions to domain experts:

”Based on your knowledge, what are reasonable lower and upper bounds for the delay time $S$ in the population survival curves?” 2. 2.

”Based on your clinical experience or intuition, are you able to estimate one or two typical characteristics of $S$ (e.g., its median, expected value, or a likely range where 95% of values might fall)?”

Typically, the first question is relatively straightforward for domain experts to answer. Eliciting plausible lower and upper bounds for the delay time $S$ is often relatively straightforward for domain experts. For the second question, even rough or qualitative approximations can be valuable. For example, an expert might suggest that the benefit of treatment tends to appear around the third or fourth cycle, or that it is unlikely to occur before two months or after six months. Such impressions can be interpreted into approximate statistical summaries (e.g., mean, median, or quantiles) to guide prior specification. When such information is available, we fit the truncated Gamma prior by minimizing the discrepancy between the elicited and theoretical values of the summary statistics.

To calibrate the truncated Gamma prior for $S$, we estimate the parameters $s_{1}$ and $s_{2}$ by minimizing a weighted least squares (WLS) criterion that measures the discrepancy between the theoretical summaries of the prior and the elicited quantities from domain experts. This approach accommodates multiple types of summary statistics and allows each to be weighted according to its perceived reliability or importance.

[TABLE]

where $S\sim\text{Gamma}(s_{1},s_{2})I(L,U)$, and $w_{1},\dots,w_{5}$ denote user-specified weights reflecting the relative importance of each elicited quantity.

This procedure is flexible in that not all experts need to provide every summary statistic; the WLS criterion can be computed using whichever quantities are available. Once the prior is fitted, its implied distribution can be visualized and compared against the elicited values to facilitate feedback and potential refinement.

2.2 Likelihood and Posterior Inference

Once the prior for the delay time $S$ is specified, the next step is to derive the likelihood function and the posterior distributions for the key model parameters, conditional on $S$. This involves handling a piecewise exponential model in the treatment arm due to the delayed effect. To simplify the likelihood formulation, we follow Han et al. (2014) and define the total time-on-test (TTOT) over any interval $(t_{1},t_{2}]$ as the total observed follow-up time for patients within this interval in the treatment arm:

[TABLE]

Piecewise Event Counts and Interval Partitioning.

Let $d_{01}$ and $d_{11}$ denote the number of events observed in the intervals $(0,S]$ and $(S,\tau]$, respectively, where $\tau=\max_{i}Z_{i1}$. We denote $I_{0}=0$, $I_{1}=S$, and $I_{2}=\tau$ for notational convenience.

Joint Likelihood Function.

Assuming exponential distributions with rates $\mu_{0}^{-1}$ and $\mu_{1}^{-1}$, the likelihood function based on all observed data is:

[TABLE]

Prior Specification and Posterior Updates.

We assume independent conjugate inverse-Gamma priors for $\mu_{0}$ and $\mu_{1}$:

[TABLE]

Then, conditional on $S$, the posterior distributions for $\mu_{0}$ and $\mu_{1}$ are:

[TABLE]

Posterior Distribution for Median Survival Time.

Although the model is parameterized using the mean survival time $\mu_{j}$ ($j=0,1$), it is standard practice in oncology and clinical literature to report survival outcomes using the median survival time, denoted by $\tilde{\mu}_{j}$. This is largely due to convention: most clinical studies present median survival estimates, as they are easily interpretable from Kaplan-Meier curves and commonly used in regulatory and medical reporting.

Under the exponential distribution, the median and mean survival times are related by $\tilde{\mu}_{j}=\mu_{j}\log 2$. This relationship, combined with the scaling property of the inverse-gamma distribution–namely, if $X\sim\text{Inv-Gamma}(a,b)$, then $cX\sim\text{Inv-Gamma}(a,cb)$—allows us to derive posterior distributions for $\tilde{\mu}_{0}$ and $\tilde{\mu}_{1}$ directly.

If we assign the prior $\tilde{\mu}_{j}\sim\text{Inv-Gamma}(a_{j},b_{j}\log 2)$ for $j=0,1$, then the posterior distributions are given by:

[TABLE]

and the two posterior distributions are conditionally independent given $S$.

The above conditional independence arises from the model structure. Although the treatment arm data contribute to both $\tilde{\mu}_{0}$ and $\tilde{\mu}_{1}$, the contributions are disjoint once $S$ is fixed: the early part $(0,S]$ informs $\tilde{\mu}_{0}$, and the later part $(S,\tau]$ informs $\tilde{\mu}_{1}$, where $\tau=\max_{i}Z_{i1}$. The control arm data are entirely used to inform $\tilde{\mu}_{0}$. Since the priors for $\tilde{\mu}_{0}$ and $\tilde{\mu}_{1}$ are specified independently and the data components influencing each parameter are non-overlapping, the resulting posterior distributions are conditionally independent given $S$.

This structure simplifies posterior computation: samples of $\tilde{\mu}_{0}$ and $\tilde{\mu}_{1}$ can be drawn independently, and quantities such as $P(\tilde{\mu}_{1}>\tilde{\mu}_{0})$ can be efficiently estimated from independent posterior draws.

Connecting Clinical and Model-Specific Survival Times.

To operationalize the proposed Bayesian framework using clinically meaningful parameters, it is necessary to establish a mapping between model-based median survival $\tilde{\mu}_{j}$ and the overall clinical median survival $\bar{\mu}_{j}$. We now introduce this conversion relationship.

Specifically, when delayed treatment effect is assumed as in Equation (1), the relationship between $\bar{\mu}_{1}$ and $\tilde{\mu}_{1}$ becomes:

[TABLE]

where $S$ is the prespecified separation timepoint of the delayed treatment effect.

For example, suppose the standard-of-care has a median survival of $\bar{\mu}_{0}=4$ months, and the expected improvement under treatment is $\bar{\mu}_{1}=7$ months, with $S=2$ months. Solving the equation:

[TABLE]

yields the implied $\tilde{\mu}_{1}=10$ months. This conversion ensures that the Bayesian model operates on consistent parameters, while aligning with clinically meaningful quantities.

2.3 Bayesian Group Sequential Design

We consider a Bayesian group sequential design that includes $R$ interim analyses and one final analysis, conducted at increasing total sample sizes $2n_{1}<\cdots<2n_{R}<2n_{R+1}=2N$, where $2N$ is the maximum total number of patients. At each interim look $r=1,\dots,R$, the decision to continue or terminate the trial is based on the posterior comparison between the median survival times $\tilde{\mu}_{0}$ and $\tilde{\mu}_{1}$.

Specifically, given a fixed separation timepoint $S$ and data $\mathcal{D}_{n_{r}}$ from $2n_{r}$ enrolled patients (with equal allocation), we define a futility stopping rule as:

[TABLE]

where $\mathbb{I}(\cdot)$ is the indicator function, and $C(n_{r})$ is a pre-specified threshold function that depends on the interim sample size $n_{r}$. That is, the trial stops for futility at interim analysis $r$ if the posterior probability that the treatment median survival is worse than the control exceeds the threshold $C(n_{r})$.

Although early stopping for efficacy could also be considered, we focus here on futility stopping only. At the final analysis ($r=R+1$), if the trial has not been stopped early (i.e., $A(S,n_{i})=0,i=1,\cdots,R+1$), we reject the null hypothesis.

The calculation of $P(\tilde{\mu}_{1}<\tilde{\mu}_{0}\mid\mathcal{D}_{n_{r}},S)$, based on the posterior distribution in equation (5), involves a double integral, which may pose computational challenges. To simplify this calculation, we introduce the following lemma:

Lemma 1

[TABLE]

where $K\sim\text{Beta}(a_{0}+d_{0}+d_{01},a_{1}+d_{11})$.

**Proof. **

[TABLE]

By the properties of the Gamma distribution, we know that

[TABLE]

This completes the proof.

Lemma 1 implies that under the null hypothesis ($H_{0}$), the proposed decision rule is explicitly dependent on the value of $S$, and as a result, the type I error rate becomes a function of $S$. This stands in contrast to the traditional BOP2 design, in which the type I error rate is fixed and does not vary with $S$. This dependence necessitates additional care in controlling the type I error across the plausible range of $S$.

Controlling Average Type I Error and Power under Uncertain $S$.

Given that the separation timepoint $S$ is uncertain and modeled as a random variable within a pre-specified range, it is more appropriate to control the average type I error and average power, rather than these metrics at a fixed $S$. This marginal approach naturally accounts for the variability in $S$, offering robust operating characteristics across a plausible range of clinical scenarios.

Specifically, let $A(S,n_{r})=1$ denote early termination for futility at interim sample size $n_{r}$. Then, the average type I error and average power are defined as follows:

[TABLE]

This formulation ensures that the decision criteria are averaged over the possible realizations of $S$, rather than being conditional on a single value. In fact, the concept of average error rates has been closely linked to the notion of “assurance” in prior literature (e.g., Salsbury et al. (2024)), and has been advocated as a practically meaningful criterion when dealing with design uncertainty.

Selection of Tuning Parameters via Simulation

Having defined the average type I error and power metrics, we now describe how the tuning parameters $(\lambda,\gamma)$ are selected to meet these design criteria.

Following the BOP2 framework Zhou et al. (2017), the adaptive threshold function $C(n_{r})=1-\lambda\left(\frac{n_{r}}{N}\right)^{\gamma}$ becomes progressively more stringent as the trial advances. This design prevents premature termination due to sparse early data by using a lenient threshold initially, and later enforces stricter futility stopping as more information accumulates. The parameters $\lambda$ and $\gamma$ define the shape of this function and are calibrated to control the average type I error at a pre-specified level while maximizing average power.

We determine the optimal values of $(\lambda,\gamma)$ through a simulation-based algorithm as detailed in Algorithm 1.

Remark 1

While the tuning parameters $(\lambda,\gamma)$ are optimized to control the average type I error across the delay interval $S\in[L,U]$, a common concern arises from the fact that the true value of $S$ is unknown in practice. Consequently, there is a possibility that the type I error may slightly exceed the nominal level $\alpha$ at certain values of $S$, particularly near the boundaries.

To mitigate this, our design explicitly imposes type I error control not only in expectation but also at the endpoints $S=L$ and $S=U$. This dual-calibration strategy enhances robustness by ensuring both local (boundary) and global (average) control, as formalized in Equation (9).

As demonstrated in the type I error trajectory shown in Figure 6 (Appendix A), the error rate exhibits only modest variation across the plausible range of $S$. This validates the practical effectiveness of enforcing control at the boundaries as a surrogate for uniform control across the entire interval. Although this constraint may lead to a slight reduction in statistical power, our simulation results indicate that the loss is minimal and remains well within acceptable operational margins.

Specifying the Most Likely Delay Time.

In addition to calibrating decision rules based on the distribution of $S$, it is often useful to specify a representative or most likely value of the delay time in practice. This quantity is denoted as $S_{\text{likely}}$, and can be used to define $\tilde{\mu}_{1}$ corresponding to a target clinical median survival via Equation (8).

This value can be elicited in several ways. One option is to define $S_{\text{likely}}$ as the mean of the truncated Gamma prior for $S$, or as a simple midpoint of the elicited interval $[L,U]$, i.e., $S_{\text{likely}}=(L+U)/2$. Alternatively, when historical survival data are available, $S_{\text{likely}}$ may be estimated empirically as the time point at which the Kaplan–Meier curves for the treatment and control arms begin to separate. This estimate provides a clinically grounded basis for calibrating the design under realistic delay scenarios.

2.4 Sample Size Determination in Two-Stage Design

While the original BOP2 framework provides practical decision rules, they do not include procedures for determining the necessary sample size to achieve desired operating characteristics, even in the two-stage setting. In this subsection, we introduce a novel method for determining both the interim and final sample sizes when the design consists of two stages, filling an important gap in the current literature. We focus on the two-stage setting in this section due to its balance between computational tractability and practical utility. Extending the proposed sample size methodology to multiple interim looks would require high-dimensional integration over nested stopping boundaries, which is computationally intensive and beyond the scope of this paper.

The sample size for a two-stage design is determined by minimizing the following weighted expected sample size function, while ensuring that the power is at least $1-\beta$ when $S\in[L,U]$. This design aims to balance the need to minimize patient exposure to futile treatments and to maximize access to effective therapies.

[TABLE]

Here, $PS_{H_{i}},i=0,1$ is the probability of stopping the trial under $H_{i}$, $n_{1}$ is the interim sample size per arm, $n$ is the final sample size per arm and $w\in[0,1]$ is a tuning parameter representing the trade-off between two goals:

• •

When $w=1$: Equation (14) simplifies to

[TABLE]

This expression reflects the expected sample size under the null hypothesis. Minimizing this value emphasizes early stopping when the treatment is futile, thereby reducing unnecessary patient exposure to ineffective therapies.

• •

When $w=0$: Equation (14) becomes

[TABLE]

This reflects an emphasis on maximizing the number of patients who can access a truly effective treatment. By minimizing $1-E(N|H_{1})$, the design encourages continuation when the treatment is promising, avoiding premature termination.

• •

By varying $w$, the design allows flexible prioritization between safety (minimizing exposure to ineffective treatment) and efficacy (maximizing access to effective treatment), while ensuring adequate statistical power when the true signal is weak.

The sample size computation algorithm is summarized below in Algorithm 2.

From Algorithm 2, two optimization strategies are considered for determining the final sample size and decision boundaries: optimal and suboptimal.

Optimal Strategy: Under the optimal method, the design parameters – including the interim and maximum sample sizes as well as the Bayesian decision boundaries – are iteratively optimized. At each step where the maximum sample size is incremented, the decision boundaries (e.g., posterior cutoff thresholds such as $C(n_{r})$) are re-estimated by searching over a predefined grid of tuning parameters (e.g., $(\lambda,\gamma)$ in Algorithm 1). This ensures that the decision rule remains optimal with respect to the updated trial configuration.

This approach guarantees that the final design is fully optimized in both dimensions–sample size and decision thresholds–often resulting in a more efficient trial with smaller expected sample size under $H_{0}$ and improved power under $H_{1}$. However, this strategy is computationally intensive due to the repeated boundary optimization required at each candidate value of the maximum sample size.

Pragmatic Strategy

Under the pragmatic method, boundary optimization is performed only once, based on an initial estimate of the sample size. As the sample size is adjusted iteratively to achieve the desired statistical power, the originally estimated decision boundaries are retained throughout. Only after the sample size satisfies the power requirement are the boundaries re-optimized one final time. This strategy substantially reduces computational burden while still producing a design that performs comparably to the fully optimized approach. The trade-off lies in potentially slightly lower efficiency compared to the optimal strategy, but the reduced computational cost makes it particularly appealing for use in practice.

These two strategies represent a balance between computational feasibility and statistical efficiency, allowing users to choose based on their design priorities and available resources.

The procedure described above is implemented in the function Two_stage_sample_size($\cdot$) from the R package DTEBOP2. The two strategies described earlier can be selected by setting method = "optimal" for the fully optimized approach and method = "suboptimal" for the pragmatic strategy. Although labeled as ”suboptimal” in the function interface, this setting corresponds to the pragmatic strategy discussed above.

Design Optimization with Early Stopping Constraint

In some applications, the default algorithm may yield a relatively low probability of early stopping under the null hypothesis (e.g., $PS_{H_{0}}=25\%$), which may be undesirable in phase II trials where ethical considerations and resource efficiency are important.

To address this issue, our method allows users to impose a lower bound constraint on $PS_{H_{0}}$. When this constraint is specified, the algorithm no longer seeks to minimize the expected sample size $EN$ defined in Equation (14).Instead, it searches for the interim and final sample sizes that jointly satisfy (i) the desired power requirement (i.e., at least $1-\beta$ when $S\in[L,U]$), and (ii) the early stopping probability under the null hypothesis exceeding the user-defined minimum. Because $PS_{H_{0}}$ generally increases with the interim sample size $n_{1}$ (for fixed $n$), the algorithm restricts the ratio $n_{1}/n$ to be below 0.75 by default. This limit prevents designs that allocate an excessively high proportion of the total sample to the interim stage, which could reduce the remaining sample size and thereby compromise the overall statistical power.

This functionality is implemented in the function Two_stage_sample_size($\cdot$). For example, to ensure that $PS_{H_{0}}\geq 0.4$, the user may set earlystop_prob = 0.4 in the function call.

3 Real Data Example

3.1 Example with R Code Demonstration

In this section, we demonstrate the software implementation of the DTE-BOP2 design using data from a real clinical trial.

We reconsider the CheckMate 017 study, a randomized, open-label, international phase 3 trial that evaluated the efficacy of nivolumab—a PD-1 immune checkpoint inhibitor—compared to docetaxel in patients with squamous-cell non-small-cell lung cancer (NSCLC) after prior platinum-based chemotherapy. In this example, we focus on the progression-free survival (PFS) endpoint, which exhibited delayed treatment effects.

To illustrate the DTE-BOP2 framework, we use the DTEBOP2 R package to redesign the trial with PFS as the primary endpoint. The Kaplan-Meier (KM) curves were reconstructed using the PlotDigitizer software and the reconstructKM R package. The curves for docetaxel and nivolumab are nearly identical up to approximately 2.5 months before they begin to separate, indicating a delayed treatment effect. According to the original publication, the hazard ratio of nivolumab versus docetaxel was 0.62 (95% CI, 0.47–0.81), showing a statistically significant benefit for nivolumab.

Below are the steps to implement DTE-BOP2 in practice:

1. Step 1.

Specify the overall median survival times under standard-of-care and treatment arms, denoted as $\bar{\mu}_{0}$ and $\bar{\mu}_{1}$, respectively. These values define the null and alternative hypotheses. For instance, 2.8 months vs. 3.5 months. 2. Step 2.

Define the prior distribution for the delay time $S$ using a truncated Gamma distribution:

[TABLE]

and specify a best-guess value for the most likely delay time. 3. Step 3.

Determine sample size and optimal parameters:

• •

If the study is a two-stage design, use the function Two_stage_sample_size($\cdot$) to compute interim and final sample sizes, as well as the optimal tuning parameters $\lambda$ and $\gamma$, such that Equation (12) is controlled below $\alpha$ and Equation (13) is maximized.

• •

If the study involves more than two stages, the user must provide interim and final stage sample sizes. Then use get.optimal_2arm_piecewise($\cdot$) to estimate $\lambda$ and $\gamma$ that optimize the design. 4. Step 4.

Once data become available, the conduct($\cdot$) function can be used to perform interim or final analyses based on the design parameters obtained from Step 3.

Based on published results, we assume the *overall *median progression-free survival times to be $\bar{\mu}_{0}=2.8$ months for the standard of care (SOC) arm and $\bar{\mu}_{1}=3.5$ months for the experimental arm. Suppose that type I error is controlled at $\alpha=10\%$ and type II error is controlled at $\beta=15\%$ (e.g., power is 85%). Applying the conventional log-rank test, which does not account for potential delayed treatment effects, the required number of events is calculated as follows:

[TABLE]

This required events is relatively large and can not be afforded in real practice.

In this example, we fix the follow-up window at 6 months. The interim analysis will be conducted once the target sample size is accrued in both treatment and control arms, and the final analysis will occur after the last patient has completed the 6-month follow-up. We assume a constant accrual rate of 6 patients per month per arm.

Specifying the Prior for Delayed Separation Timepoint

To specify the prior distribution for the delayed separation timepoint $S$, we incorporate expert opinion. Based on clinical experience and supporting literature, suppose that the clinical team identified a plausible range with a lower bound $L=2$ months and an upper bound $U=2.5$ months.

When experts can provide more specific estimates for $S$, such as mean and median values, these can be used to fit a truncated Gamma prior distribution. For instance:

• •

Expert A: Mean = 2.2, Median = 2.27

• •

Expert B: Mean = 2.1, Median = 2.3

• •

Expert C: Mean = 2.3, Median = 2.31

We assume $S\sim\text{Gamma}(s_{1},s_{2})I(L,U)$, and use the function trunc_gamma_para() in the DTEBOP2 package to estimate the parameters $s_{1}$ and $s_{2}$. In the example below, weights = c(4,4,2,1,1) assigns greater emphasis to the mean and median while the other three positions correspond to standard deviation, 25th percentile, and 97.5th percentile, which are set to NULL in this case.

⬇

library(DTEBOP2)

expert_data_correct <- list(

list(mean = 2.2, median = 2.27, sd = NULL, q25 = NULL, q975 = NULL),

list(mean = 2.1, median = 2.3, sd = NULL, q25 = NULL, q975 = NULL),

list(mean = 2.3, median = 2.31, sd = NULL, q25 = NULL, q975 = NULL)

)

param <- truncgammapara(L = 2, U = 2.5, expertdata = expertdata_correct,

weights = c(4,4,2,1,1), num_cores = 4)

print(param)

$shape

[1] 12.85641

$scale

[1] 0.1931649

The estimated shape and scale parameters are $s_{1}=12.86$ and $s_{2}=0.19$, respectively. Figure 1 displays the prior density plot, which is approximately uniform over $[2,2.5]$, indicating strong agreement among experts.

Identifying the Best-Guessed Separation Time Point

For the best-guessed most likely value of the separation timepoint $S$, denoted $S_{\text{likely}}$, a simple default strategy is to use the mean of the truncated Gamma prior or the midpoint of the plausible range $[L,U]$, that is, $(L+U)/2$.

Alternatively, when historical data are available that resemble the current study population and setting, they can be used to inform the choice of $S_{\text{likely}}$. In such cases, we propose a convenient and practical approach: identify the timepoint at which the Kaplan-Meier curves for the experimental and control arms begin to diverge significantly. This divergence often signals the onset of delayed treatment effect.

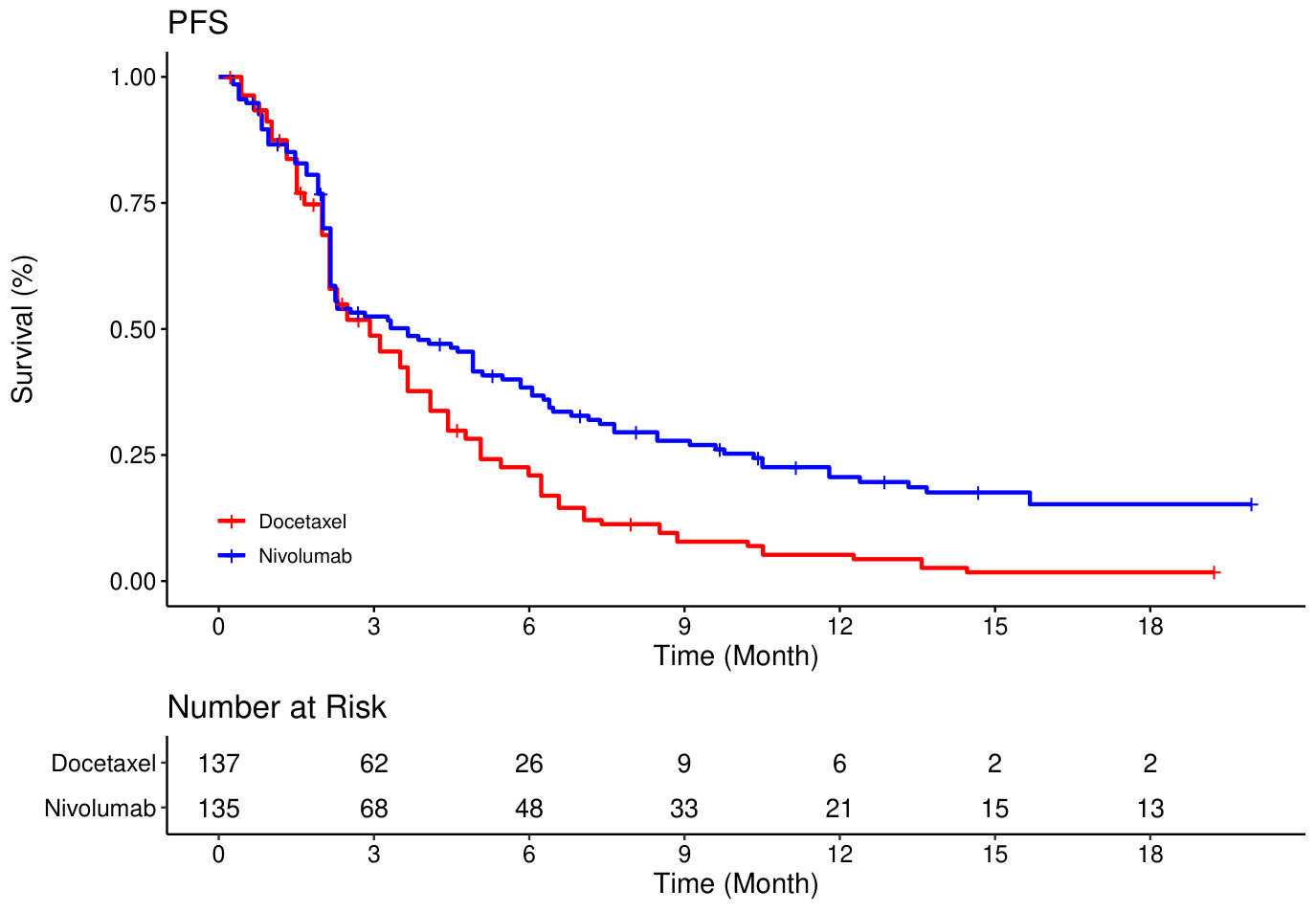

In our motivating example based on the CheckMate 017 study, we treat the published data as a form of historical dataset. By visually inspecting the reconstructed Kaplan-Meier curves, we identify that the two survival curves begin to noticeably separate at approximately 2.3 months. To quantify $S_{\text{likely}}$, we provide illustrative R code that examines the timepoints at which the survival probabilities reach predefined thresholds (e.g., 0.54, 0.53, 0.52, 0.51) in each treatment arm. By comparing these time values between arms, one can verify the earliest signs of divergence.

⬇

# Define target survival probabilities for evaluation

y_prob <- c(0.54, 0.53, 0.52, 0.51)

# Obtain summary of KM object

summary_fit <- summary(KM_fit)

arm_times <- list()

# Loop over treatment arms and find corresponding timepoints

for (i in 1:length(KM_fit$strata)) {

time_points <- summary_fit$**time**[**summary**_fit$strata == names(KM_fit$strata)[i]]

survival_probs <- summary_fit$surv[**summary**_fit$strata == names(KM_fit$strata)[i]]

# Identify closest timepoints for each target probability

closest_times <- sapply(y_prob, function(p) {

closest_index <- which.min(abs(survival_probs - p))

return(timepoints[closestindex])

})

arm_times[[names(KM_fit$strata)[i]]] <- setNames(closest_times, y_prob)

}

print(arm_times)

$‘arm=0‘

0.54 0.53 0.52 0.51

2.28803 2.48276 2.48276 2.48276

$‘arm=1‘

0.54 0.53 0.52 0.51

2.28923 2.54769 3.26769 3.26769

In our CheckMate 017 example, the output shows the time at which survival probabilities reach certain levels for each arm. Based on the difference in timepoints between arms, the separation is observed to begin around 2.28 months, which is used as $S_{\text{likely}}$ in our design.

Prior Specification for $\mu_{0}$ and $\mu_{1}$

Given the best-guess separation timepoint $S_{\text{likely}}=2.28$ months, Equation (8) yields the median survival times $\tilde{\mu}_{0}=2.8$ and $\tilde{\mu}_{1}=6.57$ months.

Following the recommendation of Zhou et al. (2020), we assign weakly-informative inverse-gamma priors centred at the null values. Specifically, we set

[TABLE]

With shape parameter $a=4$, the prior mean is $b/(a-1)$. Hence

[TABLE]

so the prior for $\mu_{1}$ is centred at twice the prior mean of $\mu_{0}$, reflecting the anticipated treatment benefit. The prior variance of $\mu_{0}$ is $b_{0}^{2}/[(a_{0}-1)^{2}(a_{0}-2)]=8.16$, giving a relatively diffuse (non-informative) spread.

These hyper-parameters are used as the DTEBOP2 default when the user leaves the gprior.E_1 and gprior.E_2 arguments set to NULL. Extensive simulation indicates that this default choice yields stable operating characteristics across a wide range of scenarios, while allowing advanced users to input more informative priors if desired.

Designing a Two-Stage Study with DTEBOP2

We now combine the inputs established above to obtain a two-stage DTE-BOP2 design. The working hypotheses are an overall median PFS of $\bar{\mu}_{0}=2.8$ months for SOC and $\bar{\mu}_{1}=3.5$ months for the experimental arm. The best-guess separation timepoint is $S_{\text{likely}}=2.28$ months, within the expert-elicited range $L=2$ to $U=2.5$ months. We further assume a constant accrual rate of 6 patients per month per arm and a fixed follow-up of 6 months for the last-enrolled patient. Type I and II error thresholds are set to $\alpha=0.10$ and $\beta=0.15$ (power = 85%).

⬇

library(DTEBOP2)

## — User inputs ————————————————-

median.1 <- 2.8 # SOC median (bar mu_0)

median.2 <- 3.5 # EXP median (bar mu_1)

L <- 2 # lower bound for S

U <- 2.5 # upper bound for S

S_likely <- 2.28 # best-guess separation time

trunc.para <- c(12.86, 0.19) # shape & scale of truncated Gamma prior

rate <- 6 # accrual per month per arm

FUP <- 6 # follow-up (months) for last patient

err1 <- 0.10 # type I error

err2 <- 0.15 # type II error

## —————————————————————–

Two_stage_sample_size(median.1 = median.1, median.2 = median.2,

L = L, U = U, S_likely = S_likely,

err1 = err1, err2 = err2, trunc.para = trunc.para,

FUP = FUP, rate = rate, weight = 0.5,

earlystop_prob = NULL, seed = 123)

#> $sample_size # per-arm n at interim and final

#> [1] 28 40

#> $optimal # lambda, gamma, avg type I error, avg power

#> [1] 0.9500 1.0000 0.0871 0.8667

The function returns a two-stage schedule with 28 patients per arm at the interim look and 40 per arm at the final analysis. With an accrual rate of 6 patients/month/arm, the first analysis is expected ≈ 4.7 months after study start. The optimal decision parameters are $\lambda=0.95$ and $\gamma=1.0$, giving an average type I error of 0.087 and power of 0.867 under the assumed distribution of $S$.

If one wishes to know the corresponding expected number of events at each stage, the helper function event_fun() can be used:

⬇

event_fun(median.1 = 2.8, median.2 = 3.5, S_likely = 2.28,

n.interim = c(28, 40), rate = 6, FUP = 6,

n.sim = 1000, seed = 123)

#> Events

#> 1st interim 23

#> Final stage 68

Thus, we expect roughly 23 PFS events at the interim analysis and a total of 68 events by the final analysis under the assumed accrual and follow-up scheme.

3.2 Sensitivity Analyses

Sensitivity Analysis I: Varying the True Separation Time $S$

We keep the design fixed at $S_{\text{likely}}=2.28$ months, $\tilde{\mu}_{0}=2.8$ months, $\tilde{\mu}_{1}=6.57$ months, $(n_{1},n)=(28,40)$ per arm, and the optimal decision parameters $\lambda=0.95,\;\gamma=1.0$. We vary the true but unknown separation time $S\in\{2.0,2.1,\dots,2.5\}$ to evaluate the following operating characteristics: (i) percentage of rejecting the null (PRN), which is type I error under $H_{0}$ or power under $H_{1}$; (ii) percentage of early termination (PET); (iii) average sample size (each arm); (iv) average trial duration (months).

The function getoc_2arm_piecewise() computes these OCs. Below is an example for $S=2.0$ months under $H_{0}$:

⬇

getoc_2arm_piecewise(

median.true = c(2.8, 2.8), # H0

lambda = 0.95,

gamma = 1,

n.interim = c(28, 40),

L = 2, U = 2, # true S = 2.0

S_likely = 2.28,

FUP = 6,

trunc.para = c(12.86, 0.19),

rate = 6,

nsim = 1e4, seed = 10)

#> $earlystop 0.2957

#> $reject 0.0841

#> $average.patients 36.45

#> $trial.duration 10.34

The full results for all six values of $S$ are summarised in Table 1.

The simulation confirms that, with $S_{\text{likely}}=2.28$ fixed, the average type I error stays below 0.10 for all six true $S$ values, and the power remains above 0.85. As the true separation moves from 2.0 to 2.5 months the power gradually declines, because a larger portion of non-separated follow-up time is included in the test statistic. Conversely, when the true separation occurs earlier than $S_{\text{likely}}$, the power increases modestly.

To more comprehensively assess the DTE-BOP2 design we evaluated four supplementary scenarios: (i) enforcing a minimum early-stopping probability of 0.40 under $H_{0}$; (ii) exploring alternative priors for $S$ and extending to a three-stage design; (iii) varying the accrual rate (slow–fast); and (iv) varying the user-specified $S_{\text{likely}}$ within $[2.0,2.5]$ instead of fixing it at 2.28 months. Detailed numerical results for all four scenarios appear in the on-line Supplementary Material. Below we highlight the main findings for the last two scenarios.

Sensitivity Analysis II: Impact of Accrual Rate

Table 4 (Supplement) summarises OCs for recruitment rates of 3, 6, 9 and 12 patients/arm/month. Key observations are:

• •

As the accrual rate increases, the early stopping probability under $H_{0}$ (PET($H_{0}$)) decreases substantially. For example, PET($H_{0}$) drops from 40.9% at rate = 3 to 14.0% at rate = 12 when $S=2$.

• •

Type I error remains stable across all accrual rates, consistently controlled within 8.2% to 9.3%.

• •

Power declines as the accrual rate increases. Compared to the rate of 6 (used in the main analysis), power decreases by approximately 3% at rate = 9 and 6% at rate = 12 (i.e., doubling the accrual rate), primarily due to reduced follow-up time for the delayed treatment effect to manifest.

• •

The gap between PET($H_{0}$) and PET($H_{1}$) narrows markedly with increasing accrual rates, from over 35% at rate = 3 to below 4% at rate = 12. This convergence reduces the discriminative utility of early stopping, especially when the treatment effect emerges late in follow-up (Liu et al., 2025; Horiguchi et al., 2019).

Overally, these results suggest that the design maintains favorable operating characteristics when the actual accrual rate does not deviate substantially from the planned rate.

Sensitivity Analysis III: Varying $S_{\text{likely}}$

We replaced the best-guessed $S_{\text{likely}}=2.28$ with three values (2.00, 2.25, 2.50 months) and re-calculated the two-stage sample size based on $S_{\text{likely}}=2.00$. The required per-arm sizes increase to (44, 63) with $S_{\text{likely}}=2.00$. Table 2 summarises OCs across all true $S$ and design-stage guesses:

With $n_{\max}=63$ per arm, the design controls the type I error at $\leq 0.10$ and achieves power $\geq 0.85$ for all combinations of the true $S$ and $S_{\text{likely}}$ within $[2.0,2.5]$. Thus, under the most conservative sample size strategy, the design is doubly robust to misspecification of $S_{\text{likely}}$ and the true unknown $S$. 2. 2.

A wider prior range $[L,U]$ inflates sample size, because power must be preserved even when the true separation is close to $U$. 3. 3.

Choice of $L,U$ should therefore reflect genuine expert knowledge; overly wide intervals exact a cost in sample size, echoing the recommendation of Ye and Yu (2019).

3.3 Comparison with Frequentist Approaches Incorporating Delayed Treatment Effects

We reuse the CheckMate 017 dataset introduced in previous section as our real-data template for all simulations in this subsection.

The log-rank test statistic, commonly used in survival analysis, is given by:

[TABLE]

where $D$ denotes the set of indices corresponding to observed event times. At each event time $t_{j}$, $d_{1j}$ and $d_{2j}$ represent the number of events in the standard of care (SOC) and experimental groups, respectively. Likewise, $n_{1j}$ and $n_{2j}$ indicate the number of patients at risk in each group just before $t_{j}$. Here, $d_{j}=d_{1j}+d_{2j}$, $n_{j}=n_{1j}+n_{2j}$, and the expected number of events in the SOC group under the null hypothesis is $e_{1j}=n_{1j}d_{j}/n_{j}$.

To account for delayed treatment effects (DTE), a piecewise weighted log-rank test has been proposed (Xu et al., 2017; Wu and Wei, 2019), given by:

[TABLE]

where $D_{2}$ includes only those event times that occur after the separation timepoint $S$.

Throughout this subsection, the clinical (overall) medians are fixed at $\bar{\mu}_{0}=2.8$ and $\bar{\mu}_{1}=3.5$ months, and the elicited range for the true separation time is $[L,U]=[2.0,2.5]$ months with best guess $S_{\text{likely}}=2.28$ months. Under the piecewise-exponential model, the experimental-arm post-separation median becomes $\tilde{\mu}_{1}=6.57$ months (Equation (8)), giving hazard rates

[TABLE]

All scenarios assume a 6-month follow-up for the last patient and an accrual rate of 6 patients per arm per month.

For comparison we consider four tests: the conventional log-rank, Xu’s piecewise weighted log-rank, Wu’s extension of that test, and DTE-BOP2. Xu’s formula is derived under a local-alternative assumption, whereas Wu’s handles arbitrary effect sizes; both require the design separation point $S$ to be preset. To create a favourable scenario for these frequentist competitors we supply them with the true $S$ in every simulation. Earlier work (Wu and Wei, 2019) shows Wu’s test to be the more powerful of the two when the hazard ratio is small.

The four methods are evaluated using two practical criteria:

• •

Fixed sample size ($N=40$ per arm): empirical power is estimated for true separation times $S=2.0,2.1,2.2,2.3,2.4,2.5$ months.

• •

Fixed operating characteristics ($\alpha=0.10$, $\beta=0.15$): the minimum per-arm sample size required by each method is determined.

Xu’s and Wu’s piece-wise weighted log-rank tests do not incorporate group-sequential monitoring, so we run DTE-BOP2 in a single-analysis mode for parity. With $N=40$ per arm, DTE-BOP2 still controls the type-I error below $0.10$ for every $S\in[2,2.5]$; its empirical power at this sample size can therefore be fairly compared with the frequentist alternatives.

We generated 10 000 simulated datasets for each true separation time $S\in\{2.0,2.1,\dots,2.5\}$ with a fixed sample size of $N=40$ patients per arm. Events in the SOC arm followed an exponential distribution with hazard $\lambda_{0}=\log 2/2.8$. Events in the experimental arm followed a piece-wise exponential distribution with the same hazard before $S$ and $\lambda_{1}=\log 2/6.57$ after $S$. For every dataset we computed: (i) a conventional log-rank $p$-value (15); (ii) a piecewise weighted log-rank $p$-value (16) using weight [math] for $t<S$ and $1$ for $t\geq S$ (the “optimal” choice in Wu and Wei (2019)); and (iii) the DTE-BOP2 posterior decision. Empirical power is summarised in Table 3.

DTE-BOP2 has 92 – 94% power across all $S$, exceeding the piece-wise weighted log-rank test by at least 15 percentages and the conventional log-rank by more than 40%, even though the latter two tests are supplied with the true separation point.

Sample-size comparison. For DTE-BOP2 we choose the per-arm sample size so that two-sided type-I error is controlled at $\alpha=0.10$ and the power is at least $1-\beta=0.85$ for every $S\in[L,U]$. Because we calibrate to the worst-case $S\in[L,U]$, the required sample size for DTE-BOP2 is the same (64/arm) for all $S$. For the conventional log-rank test, we search via simulation and obtain the minimum $N$ that yields empirical power $\geq 0.85$ at each fixed true $S$. For the weighted log-rank tests we apply the analytical formulas of Xu et al. (2017) and Wu and Wei (2019), giving them the true separation time, which represents an optimistic scenario for these methods. Table 4 summarises the required per-arm sample sizes.

DTE-BOP2 needs only 64 patients per arm – about 40% of the sample required by the weighted log-rank tests and less than one-third of that required by the conventional log-rank. The gap widens as the true separation time approaches the upper bound of the plausible range: Xu’s and Wu’s designs must inflate $N$ to compensate for the longer delay, whereas DTE-BOP2 already guards against this uncertainty at the design stage. The efficiency gain stems from modelling the delayed effect explicitly and basing the calculation on the post-delay median ratio $\tilde{\mu}_{1}/\tilde{\mu}_{0}$ rather than the attenuated overall ratio $\bar{\mu}_{1}/\bar{\mu}_{0}$.

4 Design Performance Evaluation via Simulation

While previous sections used simulation to evaluate the statistical power and sample size requirements under varying true values of $S$, this section focuses on evaluating the operating characteristics of the DTE-BOP2 design from other aspects. We assess its performance in terms of early stopping probability, trial duration, and sample size, and compare it with the original BOP2 design. Additional simulations are conducted to study type I error control across a range of $S$ and to evaluate robustness with respect to prior specification of $(L,U)$.

4.1 Comparison with BOP2

We first evaluate and compare the operating characteristics of the DTE-BOP2 design against the BOP2 design (Zhou et al., 2020). For all designs, the type I error rate was controlled at 0.1. Event times in the control arm were assumed to follow an exponential distribution, $\text{Exp}(\mu_{0})$, while those in the treatment arm were generated according to the density specified in Equation (1) , which characterizes delayed treatment effects through a piecewise exponential model with change-point at separation time $S$. Patient arrivals were modeled as a Poisson process with an intensity of $1/3$ per month per arm, corresponding to an average recruitment rate of three patients per month per arm. After the last patient was enrolled, all patients were followed for an additional six months to ensure sufficient observation of events. Each scenario was evaluated using 10,000 simulated trials.

The total sample size for each simulated trial was fixed at 80 patients, with equal randomization (1:1) between the experimental and control arms. An interim analysis was planned after 30 patients had been enrolled in each arm. The performance of each design was evaluated using four key metrics: the probability of rejecting the null (PRN), the probability of early termination (PET), the average sample size, and the total trial duration, as defined in Section 3.

For clarity we distinguish between two types of simulated data used in the comparison: calibration datasets for tuning design parameters and evaluation datasets for estimating operating characteristics.

• •

Calibration datasets (under $H_{0}$ and $H_{1}$):

To tune the design we assume a study wishes to test

[TABLE]

Under $H_{1}$, calibration datasets for DTE-BOP2 are drawn from the delayed-effect model in Equation (1), with the separation time $S$ sampled from the prior in Equation (2). For BOP2 the same datasets are generated from a single-exponential distribution with median $b$ (hazard $\log 2/b$). Under $H_{0}$, both designs use exponential data with median $a$ (hazard $\log 2/a$).

• •

Evaluation datasets: Once the designs are calibrated, new datasets are generated to evaluate PRN, PET, average sample size, and trial duration. Event times in the control arm follow $\text{Exp}(\log 2/\bar{\mu}_{0})$, whereas event times in the experimental arm follow Equation (1) with a fixed true separation time $S$.

Three delay scenarios were explored to cover a spectrum from no delay to substantial delay:

True $S=0$ with hypotheses $H_{0}:\bar{\mu}_{0}=3$ months and $H_{1}:\bar{\mu}_{1}=6$ months. 2. 2.

True $S=1$ with hypotheses $H_{0}:\bar{\mu}_{0}=3$ months and $H_{1}:\bar{\mu}_{1}=5$ months. 3. 3.

True $S=2.25$ with hypotheses $H_{0}:\bar{\mu}_{0}=3$ months and $H_{1}:\bar{\mu}_{1}=3.75$ months.

BOP2 parameters were tuned exactly as in Zhou et al. (2020). For DTE-BOP2, each pair $(\bar{\mu}_{0},\bar{\mu}_{1})$ and the true $S$ were first converted to post-delay medians $(\tilde{\mu}_{0},\tilde{\mu}_{1})$ using Equation (8). A single design was calibrated with $S_{\text{likely}}=2.25$ months–the worst-case (longest) delay–and the truncated-Gamma prior $S\sim\mathrm{Gamma}(1,1)\,I(2.2,2.5)$. With no firm prior knowledge about $S$, we set $s_{1}=s_{2}=1$, yielding an (almost) uniform prior on $(L,U)$ for small $U-L$. This “one-design-fits-all” approach allows us to test robustness across shorter delays.

For $\mu_{0}$ and $\mu_{1}$ we used weakly-informative priors $\mathrm{Inv\text{-}Gamma}(4,\,9/\log 2)$ and $\mathrm{Inv\text{-}Gamma}(4,\,18/\log 2)$, where the medians of the prior equal 3 and 6 months, respectively.

The simulation results are presented in Table 5, leading to the following observations:

1. (a)

When there is no delayed treatment effect ($S=0$), BOP2 and DTE-BOP2 perform similarly. 2. (b)

As the true $S$ increases, BOP2 shows a marked loss of power, whereas DTE-BOP2 retains high power. 3. (c)

DTE-BOP2 achieves comparable or smaller average sample size and shorter trial duration, while maintaining a lower PET under $H_{1}$, indicating earlier Go decisions for effective treatments.

Overall, DTE-BOP2 is robust to the magnitude of the delay and consistently outperforms the original BOP2 design once a non-negligible delay is present.

In summary, while both designs perform similarly when there is no delay in treatment effect, DTE-BOP2 substantially outperforms BOP2 in the presence of delay, offering notably higher power and more consistent performance across various delay severities. These results highlight the robustness and adaptability of the DTE-BOP2 design in handling time-to-event endpoints with potential delayed effects.

4.2 Type-I Error and Power as Functions of the Separation Time

To assess how reliably the calibrated design controls error across the entire prior range of the separation time, we investigated the type-I error and power curves of DTE-BOP2 as functions of the true $S$. Particular attention was paid to the effect of boundary control – that is, re-optimising the decision boundary $(\lambda,\gamma)$ so that the global type-I envelope rarely exceeds the nominal level – versus a no-control strategy that is tuned only for the average error.

The following cases were examined:

True $S=2.25$ with hypotheses $H_{0}:\bar{\mu}_{0}=3$ months and $H_{1}:\bar{\mu}_{1}=3.75$ months. 2. 2.

True $S=2.4$ with hypotheses $H_{0}:\bar{\mu}_{0}=3$ months and $H_{1}:\bar{\mu}_{1}=3.6$ months.

In both cases, we used $S_{\text{likely}}=2.25$ and a truncated-Gamma prior $S\sim\text{Gamma}(1,1)\,I(2.2,2.5)$. Non-informative priors were adopted for $\mu_{j}$ as described previously. Two nominal type-I error thresholds were considered: $\alpha=0.10$ and $\alpha=0.15$.

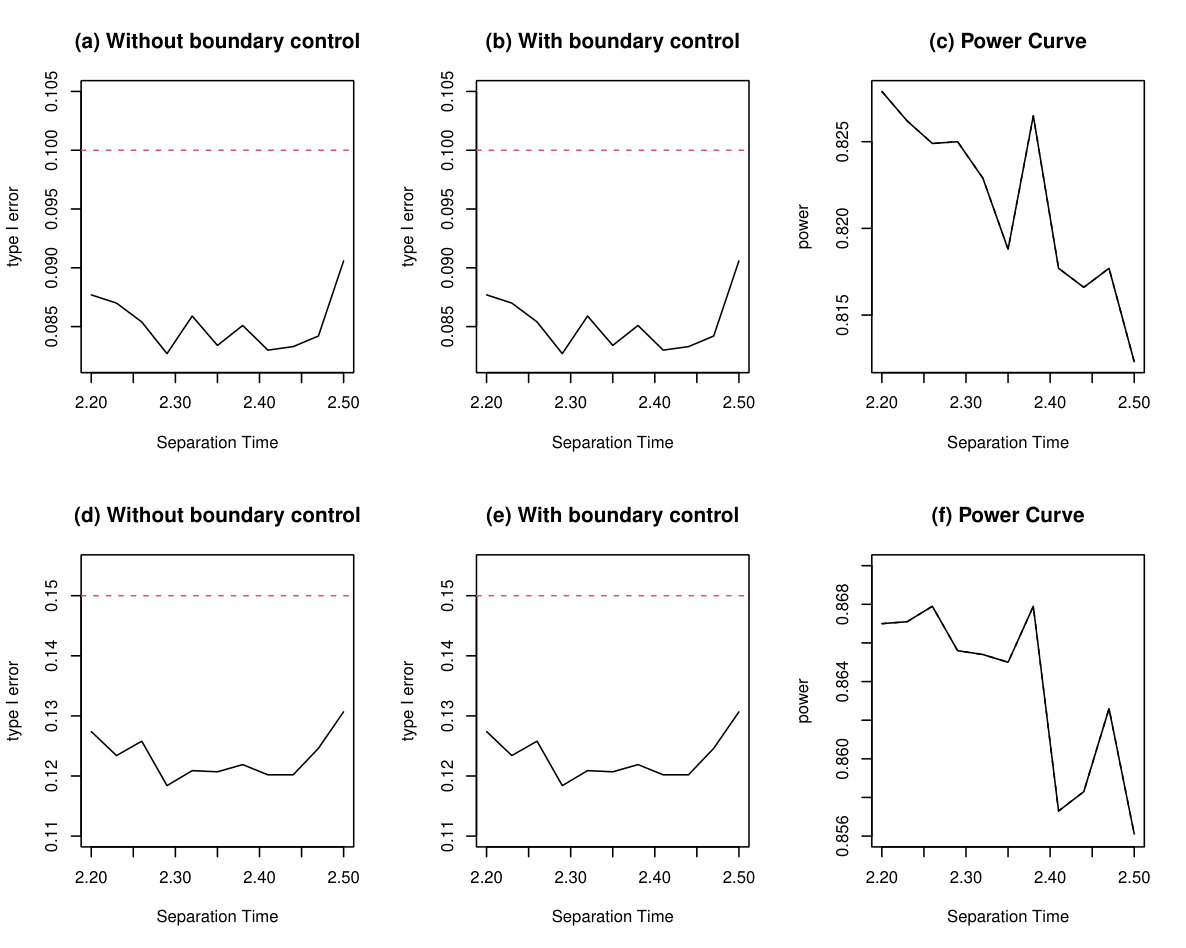

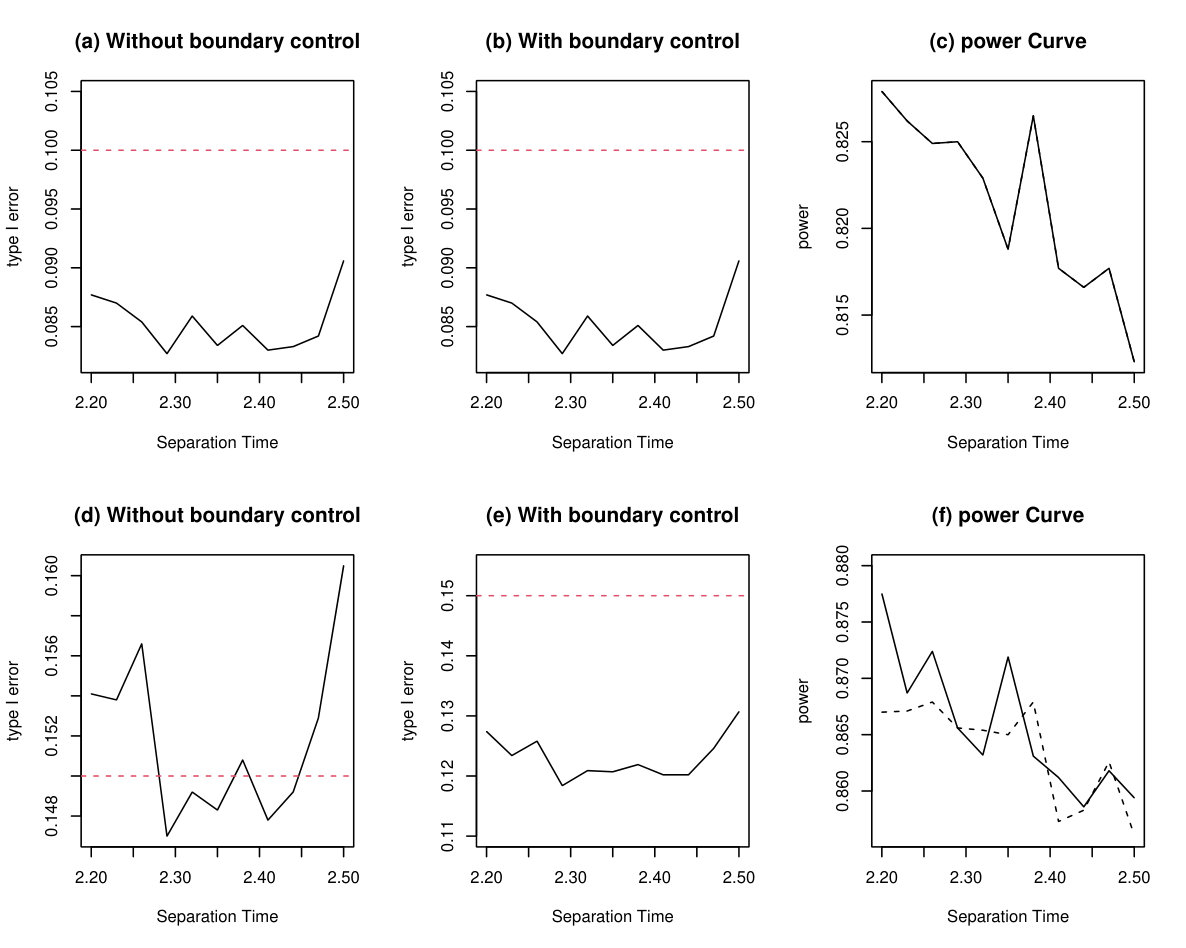

Figures 3 and 4 display the realised type-I error and power for a grid of true separation times $S\in[2.2,2.5]$. Each figure contains three sub-panels: (a)/(d) show the type-I error without boundary control; (b)/(e) show the type-I error with boundary control; (c)/(f) show the corresponding power curves (solid = no control, dashed = with control).

When the true $S$ equals the design value (Figure 3), the two calibration schemes coincide and both error curves lie comfortably below the nominal limits. When the true $S$ shifts to 2.4 (Figure 4), the no-control scheme exhibits local violations of the $\alpha=0.15$ boundary around $S\approx 2.45$, whereas the boundary-control scheme keeps the entire curve below the red dashed line. The safeguard costs no more than a 1 or 2% loss of power, a modest trade-off for uniform error protection.

These findings highlight the value of boundary control when strict type-I regulation is required across a plausible range of separation times, without materially compromising power.

4.3 Sensitivity Analysis of the Choice of $L$ and $U$

To assess the robustness of DTE–BOP2 to the specification of the prior interval for the separation time $S$, we varied the lower and upper bounds $(L,U)$ while keeping the prior shape fixed at $S\sim\text{Gamma}(1,1)\,I(L,U)$ as in Equation (2). The control– point tuning algorithm was used to select $(\lambda,\gamma)$; it maximises the average power subject to a global two-sided type-I error constraint of 0.10. Three interval widths, $U-L\in\{0.3,0.5,0.7\}$, were examined, each at three different locations, yielding nine scenarios in total.

The specific intervals were:

1. (1)

$U-L=0.3$: $(L,U)=(2.4,2.7),\;(2.0,2.3),\;(1.8,2.1)$; 2. (2)

$U-L=0.5$: $(2.4,2.9),\;(1.8,2.3),\;(1.6,2.1)$; 3. (3)

$U-L=0.7$: $(2.4,3.1),\;(1.8,2.5),\;(1.6,2.3)$.

For each interval, the best-guess separation time was set to the midpoint, $S_{\text{likely}}=(L+U)/2$. The resulting optimal parameters and average operating characteristics are summarised in Table 6.

Two representative intervals were chosen for a deeper look at how type-I error and power change with the true separation time $S$: a narrow prior $(U-L)=0.3$ and a wide prior $(U-L)=0.7$. Figure 5 displays the corresponding curves.

From Table 6 and Figure 5 we draw three conclusions:

Increasing the upper bound $U$ shifts prior mass toward larger delays and therefore lowers the average power and power for given $S$. 2. 2.

The optimal tuning parameters remain $(\lambda,\gamma)=(0.95,1)$ across all nine intervals, underscoring robustness to the choice of $(L,U)$. 3. 3.

When the same tuning parameters apply, the type-I error and power curves are nearly identical across intervals; only the overall power level drifts downward as $U$ grows.

A heuristic explanation for the power decline is provided in Appendix A: as $U$ increases, the quantile function in Equation (10) shrinks the effective post-delay information, reducing the signal-to-noise ratio. Practically, this insight suggests choosing the prior interval as tight as prior knowledge allows, provided that the true $S$ is believed to lie within $[L,U]$.

5 Discussion

We propose a comprehensive Bayesian decision framework for randomised phase-II survival trials in which the treatment effect is expected to emerge only after an unknown latency period. The design, termed DTE-BOP2, unifies four key ingredients: (i) an explicit piece-wise exponential likelihood that captures non-proportional hazards; (ii) a truncated-Gamma prior for the separation time $S$, encoding expert or empirical knowledge of plausible delays; (iii) an adaptive rejection boundary that guarantees family-wise type-I error control over the entire interval $S\in[L,U]$; and (iv) decision rules formulated on the ratio of the posterior of medians before and after separation time point, $\tilde{\mu}_{1}/\tilde{\mu}_{0}$, which is less sensitive to heavy-tailed posteriors than the classical overall median ratio $\bar{\mu}_{1}/\bar{\mu}_{0}$. Together, these components yield a time-driven design that simultaneously reduces sample size and preserves frequentist validity. The contributions of our work are as below:

Sample-size determination under delayed effects. To our knowledge, we provide the first closed-form algorithm for calibrating interim and final sample sizes in a two-stage Bayesian design under non-proportional hazards. Previous Bayesian proposals (e.g. Zhou et al. (2020)) left sample size to ad-hoc rules or relied on proportional-hazard assumptions. By optimising a weighted expected-sample-size criterion, DTE–BOP2 achieves near-minimal patient exposure under the null while maintaining high power under the alternative, and—importantly—retains these guarantees when the same boundary is embedded in designs with three or more looks. 2. 2.

Doubly robust to misspecification. When both the true delay $S$ and the design-stage guess $S_{\text{likely}}$ reside in $[L,U]$, our simulation results show that type-I error never exceeds $\alpha$, whereas the power remains above $1-\beta$ throughout if we use the most conservative sample size strategy. In contrast, methods that fix $S$ at a prespecified value–such as weighted log-rank tests or fixed-delay lag models–must conduct a post-hoc sensitivity analysis to assess vulnerability. DTE–BOP2 internalises that uncertainty at the design stage. 3. 3.

Software dissemination. To facilitate implementation, we developed the R package DTEBOP2111https://cran.r-project.org/package=DTEBOP2, which provides functions for sample size calculation, operating characteristic evaluation, and decision rule generation through concise syntax. The package also includes a vignette that reproduces all numerical studies presented in this paper, ensuring full reproducibility of results.

Despite these contributions, our approach has several limitation. First, our piecewise exponential assumption can be relaxed to a Weibull or semi-parametric baseline is ongoing work. Second, while we provided two-stage sample-size formulas, a fully optimal multi-stage allocation remains an open problem; dynamic programming or reinforcement-learning tools may offer computationally tractable solutions. In addition, incorporating covariate-adjusted hazards could further improve efficiency in biomarker-driven trials. These extensions will be explored in future research. Finally, uncertainty in patient accrual rates can materially affect operating characteristics. Explicitly modelling the accrual process–e.g., via a hierarchical prior on the enrollment intensity and propagating that uncertainty through the decision boundary–offers another promising route to further enhance the robustness of DTE–BOP2. Nevertheless, simulations based on a real-world example indicate that the operating characteristics remain acceptable even under plausible variability in accrual rates.

In summary, DTE–BOP2 delivers a conceptually transparent yet computationally efficient framework for phase II trials with delayed treatment effects. It combines uniform type-I error control with substantial sample-size savings, while its doubly robust decision rule confers protection against misspecification of the delay. Extensive simulations further demonstrate that the type I error remains stable across a wide range of separation times, while the power decreases monotonically as the separation time $S$ increases. This trend provides practical guidance for controlling the power when $S\in[L,U]$, where prior knowledge or historical data may inform plausible delay durations. Moreover, we find that the power is primarily governed by the ratio of the median survival times before and after the separation point, rather than their absolute values, offering robustness and interpretability across a range of clinical scenarios. These features, together with freely available software, make the design particularly attractive for contemporary oncology and immuno-oncology studies in which non-proportional hazards are the rule rather than the exception.

Appendix A Trend Analysis of Type I error and Power with Separation Time

To better understand the operating characteristics of our proposed design under delayed treatment effects, we conducted a comprehensive simulation study to evaluate the trends of type I error and power as a function of the separation time $S$. Our results reveal that the type I error remains robustly controlled across a wide range of $S$, consistently staying near the nominal level. In contrast, the power exhibits a monotonic decreasing trend as $S$ increases, reflecting the diminishing early treatment information available for interim and final analyses. Furthermore, we observe that the power of the design is primarily driven by the ratio between the median survival times before and after the separation time, rather than their absolute values. This insight highlights the relative nature of treatment effect accumulation in the presence of delayed onset and provides a more generalizable understanding of design behavior across scenarios with varying baseline hazards. To further support these findings, we provide an analytical explanation following the simulation results, which formalizes the observed relationships between separation time, median ratio, and power.

A.1 Simulation

Since the probability in Equation (10) is computed conditionally on the observed data, it represents a posterior probability that is itself a random quantity when the data are allowed to vary. Consequently, as we simulate datasets under different setting, this posterior probability induces a distribution, and it is natural to study its quantiles to assess its behavior under varying conditions. We investigate how the quantile of the probability

[TABLE]

varies with the separation time $S$. Under the null hypothesis $H_{0}$, we assume $\mu_{0}=\mu_{1}=\mu$. Conditional on observed data $\mathcal{D}_{n_{r}}$ and a fixed $S$, the posterior probability in (18) involves a Beta-distributed random variable $K\sim\text{Beta}(a_{0}+d_{0}+d_{01},a_{1}+d_{11})$. The threshold in the inequality depends on three components: $\text{TTOT}(I_{0},I_{1})$, $\text{TTOT}(I_{0},I_{2})=\text{TTOT}(I_{0},I_{1})+\text{TTOT}(I_{1},I_{2})$, and $\sum_{i=1}^{n_{r}}z_{i0}$.

Following the setup in Han et al. (2014), these components follow:

[TABLE]

where $\text{Gamma}(a,b)$ has mean $a/b$. Because $\text{TTOT}(I_{0},I_{1})$ and $\text{TTOT}(I_{1},I_{2})$ are independent, it follows that $\text{TTOT}(I_{0},I_{2})=\text{TTOT}(I_{0},I_{1})+\text{TTOT}(I_{1},I_{2})\sim\text{Gamma}(d_{01}+d_{11},\mu^{-1})$.

Under the alternative hypothesis $H_{1}$, we assume:

[TABLE]

To simplify the simulation setting, we ignore administrative censoring and interim analyses, assuming all deaths are observed, i.e., $n_{r}=N$, $d_{0}=n_{r}$, and $d_{01}+d_{11}=n_{r}$. We allow $d_{01}\in[0,n_{r}]$ to vary continuously to represent the effect of different separation times. This allows us to analyze how the probability in (18) changes as the number of events before separation increases. Fractional values of $d_{01}$ and $d_{11}$ are used for smooth trend estimation.

We discretize $d_{01}$ into 100 equally spaced values within $[0,n_{r}]$ to mimic the variation of $S$. For a fixed quantile level $B$, we compute the $B$th quantile of

[TABLE]

at each $d_{01}$, which serves as a proxy for $S$. This quantile can be interpreted as the type I error (under $H_{0}$) or power (under $H_{1}$). The procedure is as follows:

1. Step 1

Under $H_{0}$, for each value of $d_{01}$, simulate 10,000 samples of $\text{TTOT}(I_{0},I_{1})$, $\text{TTOT}(I_{1},I_{2})$, and $\sum z_{i0}$ using (19). Compute the probability in (18) for each sample. 2. Step 2

Compute the $B$th quantile of the 10,000 simulated probabilities. 3. Step 3

Repeat Steps 1-2 across all values of $d_{01}\in[0,n_{r}]$. 4. Step 4

Repeat Steps 1-3 under $H_{1}$, generating samples from (20).

We use parameters derived from the real-data example: $a_{0}=4$, $a_{1}=4$, $b_{0}=12.12$, $b_{1}=24.24$, $\mu_{0}=2.8/\log(2)$, and $\mu_{1}=6.57/\log(2)$ (under $H_{1}$). We consider sample sizes $n_{r}\in\{40,50,60,70\}$ and quantile levels $B\in\{0.025,0.05,0.1\}$.

To evaluate the sensitivity of the $B$th quantile in Equation (21) to the separation time $S$, we treat the parameter $d_{01}\in[0,n_{r}]$ as a proxy for $S$, with 100 equally spaced values used to approximate a continuous distribution. We then assess the range of quantile values over two specific subintervals of $d_{01}$: the interquartile range $[Q_{25},Q_{75}]$ the wider range $[Q_{10},Q_{90}]$. For each interval, we compute the minimum and maximum of the $B$th quantile, as well as the difference between them. Additionally, we calculate the Spearman correlation coefficient between the quantile values and the corresponding $d_{01}$ values within each interval to assess monotonicity. These metrics provide a comprehensive picture of how sensitive the probability in (21) is to the timing of the treatment effect onset, as represented by $S$. Results are reported in Table 7.

From these results, we observe the following:

• •

Under $H_{0}$, the $B$th quantile demonstrates limited variability across different values of $S$, with the difference between the maximum and minimum values consistently bounded within 0.05. This indicates that the average type I error serves as a robust summary measure, accurately reflecting its behavior over varying separation times.

• •

Under $H_{1}$, the Spearman correlation is consistently close to $-1$, revealing a nearly perfectly monotonic decline in power as the proportion of events occurring before the separation time increases.

To further illustrate the trends observed in our simulations, Figure 6 displays the $B=0.05$ quantile for $n_{r}=50$ and $n_{r}=60$. These plots confirm our earlier findings: the type I error remains stable across most values of $S$, while power exhibits a clear and consistent downward trend. We also explored different combinations of $\mu_{0}$ and $\mu_{1}$, and found that as long as the ratio $\mu_{1}/\mu_{0}$ remains constant, the overall patterns of type I error and power are essentially unchanged.

To provide a deeper understanding of this phenomenon, we now analyze the analytical form underlying the right-hand side of Equation (10). Under the default prior specification, where $a_{0}=a_{1}=4$, $b_{0}=3\mu_{0}$, and $b_{1}=6\mu_{0}$, the expression simplifies to:

[TABLE]

where $X\sim\text{Gamma}(d_{01},1)$, $Y\sim\text{Gamma}(d_{0},1)$, and $Z\sim\text{Gamma}(d_{11},1)$.

This formulation yields two key insights:

• •

The right-hand side of Equation (10) depends solely on the ratio $\mu_{1}/\mu_{0}=\tilde{\mu}_{1}/\tilde{\mu}_{0}$ and is invariant to the absolute magnitudes of $\tilde{\mu}_{0}$ and $\tilde{\mu}_{1}$.

• •

Consequently, for a fixed sample size and a given value of $\tilde{\mu}_{1}/\tilde{\mu}_{0}$, the qualitative behavior of both type I error and power remains consistent.
