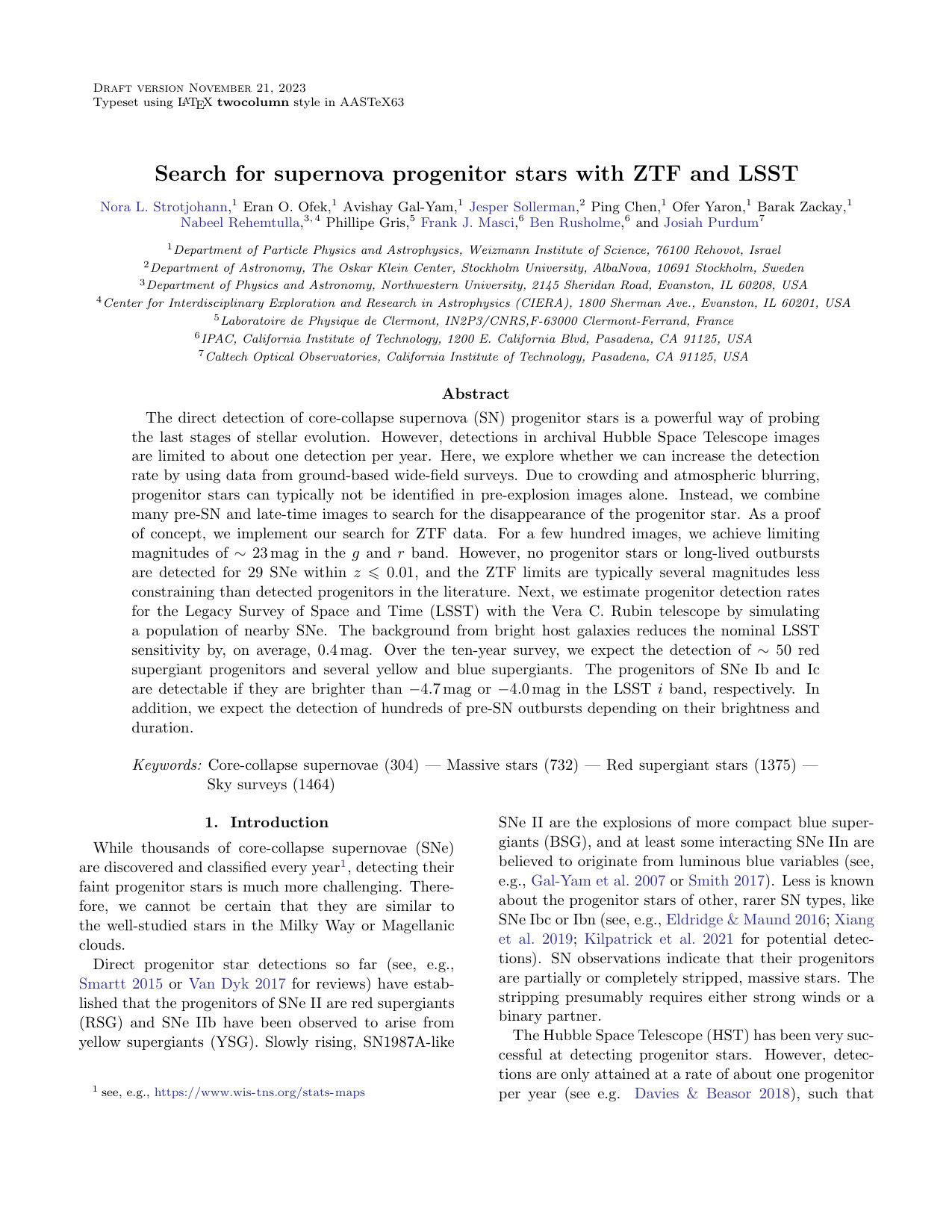

Direct detection of supernova progenitor stars with ZTF and LSST

TL;DR

This study investigates the potential of ground-based wide-field surveys like ZTF and LSST to directly detect supernova progenitor stars by combining multiple images, aiming to improve detection rates over traditional methods.

Contribution

It introduces a novel approach of combining pre- and post-explosion images from ground-based surveys to identify supernova progenitors, and estimates detection rates for LSST.

Findings

ZTF achieved limiting magnitudes of about 23 mag in g and r bands.

No progenitors detected in ZTF data for 29 SNe within z<0.01.

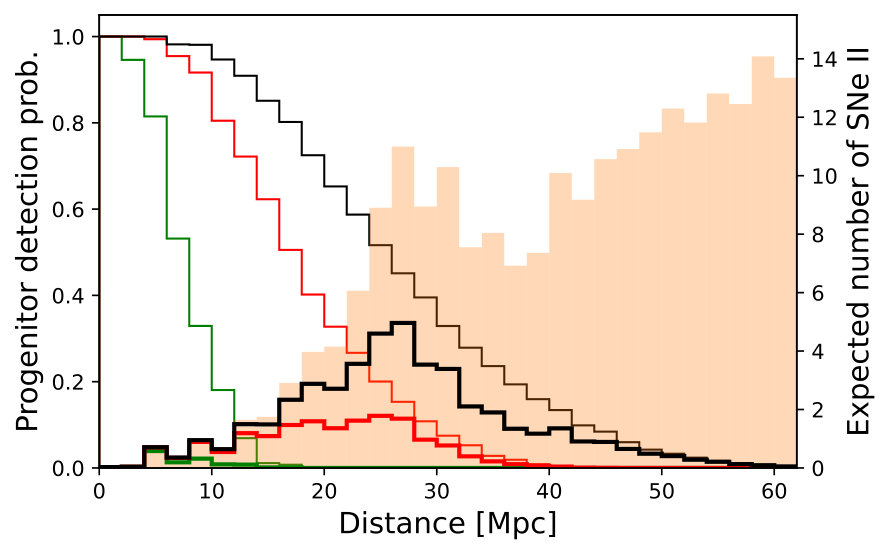

LSST is expected to detect about 50 red supergiant progenitors over ten years.

Abstract

The direct detection of core-collapse supernova (SN) progenitor stars is a powerful way of probing the last stages of stellar evolution. However, detections in archival Hubble Space Telescope images are limited to about one per year. Here, we explore whether we can increase the detection rate by using data from ground-based wide-field surveys. Due to crowding and atmospheric blurring, progenitor stars can typically not be identified in pre-explosion images alone. Instead, we combine many pre-SN and late-time images to search for the disappearance of the progenitor star. As a proof of concept, we implement our search for ZTF data. For a few hundred images, we achieve limiting magnitudes of about 23 mag in the g and r band. However, no progenitor stars or long-lived outbursts are detected for 29 SNe within z<0.01, and the ZTF limits are typically several magnitudes less constraining than detected progenitors in the literature. Next, we estimate progenitor detection rates for the Legacy Survey of Space and Time (LSST) with the Vera C. Rubin telescope by simulating a population of nearby SNe. The background from bright host galaxies reduces the nominal LSST sensitivity by, on average, 0.4 mag. Over the ten-year survey, we expect the detection of about 50 red supergiant progenitors and several yellow and blue supergiants. The progenitors of SNe Ib and Ic are detectable if they are brighter than -4.7 mag or -4.0 mag in the LSST i band, respectively. In addition, we expect the detection of hundreds of pre-SN outbursts depending on their brightness and duration.

Figures

Tables

Table 1. Table 1: Nearby BTS SNe

IAU name	ZTFID	R.A.	Dec.	Type	$t_0$	$t_{23}$	host	distance	progenitor det.
		(deg)	(deg)		(JD)	(days)		(Mpc)
SN 2020jfo	ZTF 20aaynrrh	185.460355	4.481697	SN II	2458974.7	569	M 61	14.7	$25.47\pm 0.07$ (F814W)a

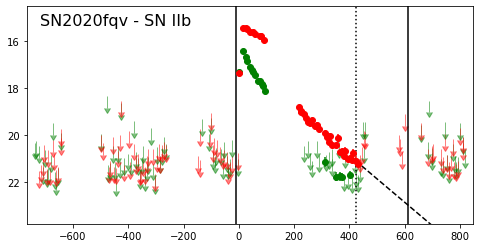

SN 2020fqv	ZTF 20aatzhhl	189.138575	11.231653	SN II	2458937.8	612	NGC 4568	14.9	$>24.8$ (F606W)b
SN 2018imf	ZTF 18acqsqrg	190.672493	13.265236	SN II	2458438.0	617	NGC 4639	15.0
SN 2019ehk	ZTF 19aatesgp	185.733956	15.826127	SN Ib (Ca rich)	2458602.7	517	NGC 4321	15.1	$>28.7$ (F555W)c
SN 2020oi	ZTF 20aaelulu	185.728855	15.823611	SN Ic	2458855.9	570	NGC 4321	15.1	bright clusterd
SN 2021gno	ZTF 21aaqhhfu	183.042900	13.249178	SN Ib (Ca rich)e	2459293.7	358	NGC 4165	15.1
SN 2018ivc	ZTF 18acrcogn	40.671990	$-0.008900$	SN II	2458447.9	565	NGC 1068	16.4	$>25.4$ (F606W)f
SN 2018hna	ZTF 18acbwaxk	186.550338	58.314126	SN II (BSG)g	2458420.9	751	UGC 07534	16.5

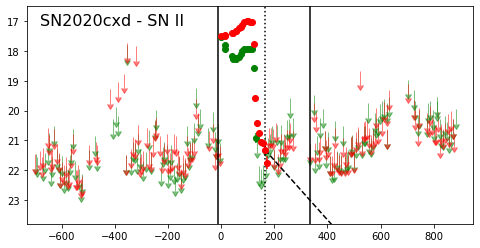

SN 2020cxd	ZTF 20aapchqy	261.621952	71.094062	SN II	2458898.0	333	NGC 6395	23.6
SN 2020dpw	ZTF 20aauhbvu	309.293939	66.102971	SN II	2458936.0	724	NGC 6951	26.1
SN 2020hvp	ZTF 20aavzffg	245.439146	$-2.289270$	SN Ib	2458962.9	561	NGC 6118	25.2
SN 2020mjm	ZTF 20abeohfn	217.372229	$-0.021626$	SN II	2459012.2	620	UGC 09299	28.3

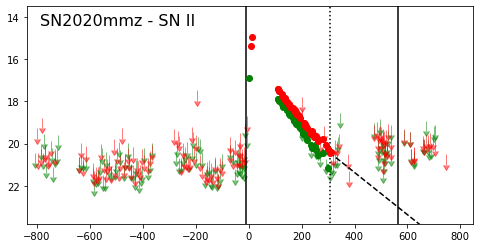

SN 2020mmz	ZTF 20abevbxv	140.298238	64.253968	SN II	2459012.7	563	NGC 2814	28.9
SN 2019yvr	ZTF 20aabqkxs	191.283891	$-0.459114$	SN Ib	2458846.0	772	NGC 4666	29.4	$24.9\pm 0.02$ (F635W)h
SN 2020vg	ZTF 20aafclxb	177.226830	$-4.681626$	SN II	2458860.0	536	NGC 3915	29.4
SN 2020abhs	ZTF 20actodrq	193.739146	$-13.541537$	SN II	2459174.0	359	–	31.2i

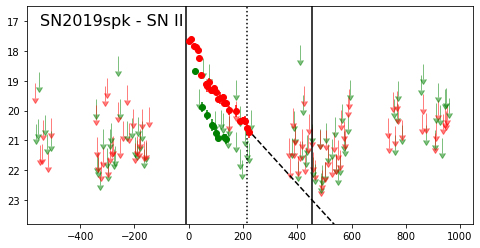

SN 2019spk	ZTF 19acecluy	150.726656	$-6.207211$	SN II	2458756.0	454	PGC 166103	32.6
SN 2021bug	ZTF 21aagydmn	188.594858	2.317296	SN II	2459249.9	305	NGC 4533	32.6
SN 2021bhd	ZTF 21aagbpvf	207.061475	68.089699	SN Ib	2459230.9	349	UGC 08737	33.2
SN 2019yz	ZTF 19aadttht	235.488760	0.710949	SN Ic	2458501.0	583	UGC 09977	34.6

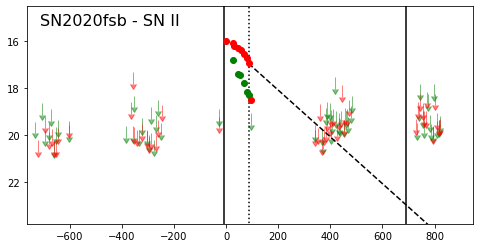

SN 2020fsb	ZTF 20aaunfpj	234.765872	$-25.974543$	SN II	2458936.9	692	ESO 515$-$G004	34.7
SN 2019bzd	ZTF 19aamwhat	221.883498	$-19.766047$	SN II	2458560.8	619	ESO 580$-$029	39.9
SN 2019pjs	ZTF 19abwztsb	271.168089	21.634511	SN II	2458730.7	610	UGC 11105	40.1
SN 2019enr	ZTF 19aatwvft	143.698711	10.286955	SN II	2458608.2	503	NGC 2919	40.6
SN 2018ebt	ZTF 18abjrbza	310.479145	64.214621	SN Ic	2458315.9	596	–	42.4
SN 2018gjx	ZTF 18abwkrbl	34.064926	28.591298	SN IIb	2458374.9	378	NGC 0865	43.2
SN 2019aai	ZTF 19aadtqcd	248.086436	19.840120	SN II	2458502.0	311	NGC 6181	43.2
SN 2019lkx	ZTF 19abgiwkt	55.262133	$34.652071$	SN II	2458677.9	645	–	44.6 i
SN 2020tkx	ZTF 20abzoeiw	280.037525	34.116527	SN Ic-BL	2459108.8	446	–	44.6 i

Table 2. Table 2: Unbinned ZTF forced-photometry light curves for 29 nearby SNe

SN name	JD	fcqfid	flux	flux error
	($2450000+$)		(${10}^{-9}\text{text}mgy$)	(${10}^{-9}\text{text}mgy$)
SN2020jfo	8199.80343	4730622	$-5.3$	$3.6$
SN2020jfo	8204.80090	4730621	$1.2$	$2.7$
SN2020jfo	8204.81700	4730621	$-1.2$	$2.5$
SN2020jfo	8210.80147	4730621	$-8.1$	$4.7$
SN2020jfo	8214.73870	4730622	$4.5$	$3.4$
…

Table 3. Table 3: Measured flux residuals

IAU name	band	FCQFID	$n_{\text{text}early}$	$n_{\text{text}late}$	host flux	scaling	flux	sig.	limmag	abs. limmag
					(${10}^{-10}$ mgy arcsec-2)		(${10}^{-10}$ mgy)		(mag)	(mag)
SN 2020jfo	$g$	4730621	149	65	$22.2\pm 0.6$	$1.8$	$-0.4\pm 2.7$	$-0.2$	22.2	$-8.6$
	$r$	4730622	191	76	$33.6\pm 0.8$	$1.5$	$-0.4\pm 2.2$	$-0.2$	22.4	$-8.4$
SN 2020fqv	$g$	5250521	168	109	$39.6\pm 0.9$	$1.0$	$-0.1\pm 1.1$	$-0.1$	23.1	$-7.8$
	$r$	5250522	203	120	$80.4\pm 2.0$	$1.6$	$3.6\pm 2.5$	$1.4$	22.3	$-8.6$
SN 2018imf	$g$	5261221	21	94	$4.7\pm 0.5$	$1.8$	$-3.2\pm 3.2$	$-1.0$	22.0	$-8.9$
	$r$	5261222	29	166	$6.1\pm 0.6$	$1.0$	$-1.0\pm 1.8$	$-0.6$	22.6	$-8.3$
SN 2021gno	$g$	5240911	200	22	$3.0\pm 0.5$	$1.2$	$-0.7\pm 2.5$	$-0.3$	22.3	$-8.6$
	$r$	5240912	242	23	$5.5\pm 0.7$	$1.1$	$-1.1\pm 2.5$	$-0.4$	22.3	$-8.6$
SN 2019ehk	$g$	5760331	108	145	$30.0\pm 0.9$	$1.4$	$-2.1\pm 1.5$	$-1.4$	22.8	$-8.1$
	$r$	5760332	148	218	$63.1\pm 2.0$	$1.2$	$-0.7\pm 1.7$	$-0.4$	22.7	$-8.2$
SN 2020oi	$r$	5760332	189	97	$560.4\pm 13.9$	$1.0$	$3.0\pm 1.6$	$1.8$	22.7	$-8.2$
SN 2018ivc	$g$	4021631	46	143	$298.9\pm 19.3$	$1.9$	$1.5\pm 3.0$	$0.5$	22.1	$-9.0$
SN 2018hna	$g$	7891311	116	146	$1.4\pm 0.5$	$1.0$	$-3.0\pm 1.3$	$-2.2$	22.9	$-8.1$
	$g$	7901611	126	101	$1.2\pm 0.5$	$1.2$	$-0.1\pm 1.9$	$-0.1$	22.6	$-8.5$
	$g$	8190141	101	157	$1.4\pm 0.5$	$1.1$	$-0.3\pm 1.3$	$-0.2$	23.0	$-8.1$
	$g$	8200431	128	113	$1.4\pm 0.4$	$1.6$	$0.2\pm 2.2$	$0.1$	22.4	$-8.7$
	$r$	7891312	123	176	$1.8\pm 0.6$	$1.7$	$-11.1\pm 3.1$	$-3.6$	22.0	$-9.0$
	$r$	7901612	121	156	$1.5\pm 0.4$	$1.2$	$-2.4\pm 1.4$	$-1.8$	22.9	$-8.2$
	$r$	8190142	88	167	$1.5\pm 0.6$	$1.1$	$0.3\pm 1.5$	$0.2$	22.8	$-8.3$
	$r$	8200432	115	142	$1.8\pm 0.5$	$1.2$	$-1.2\pm 1.7$	$-0.7$	22.6	$-8.4$
SN 2020cxd	$g$	8481121	564	232	$18.0\pm 1.6$	$1.1$	$8.1\pm 1.5$	$5.3$	22.8	$-9.1$
	$r$	8481122	478	234	$27.1\pm 1.8$	$1.0$	$0.2\pm 0.7$	$0.3$	23.6	$-8.3$
SN 2020dpw	$g$	8510431	262	24	$14.4\pm 0.5$	$1.0$	$-0.4\pm 4.7$	$-0.1$	21.6	$-10.5$
	$r$	8510432	266	33	$42.6\pm 1.0$	$1.0$	$-2.6\pm 4.3$	$-0.6$	21.7	$-10.4$
SN 2020mjm	$g$	4271631	130	33	$0.2\pm 0.3$	$1.2$	$-0.7\pm 1.8$	$-0.4$	22.6	$-9.7$
	$r$	4271632	341	36	$0.2\pm 0.4$	$1.0$	$-2.7\pm 2.0$	$-1.3$	22.5	$-9.8$
SN 2020mmz	$g$	8161431	290	39	$48.4\pm 2.1$	$1.0$	$-2.3\pm 2.1$	$-1.1$	22.4	$-9.9$
	$r$	8161432	316	58	$79.9\pm 1.5$	$1.2$	$-0.6\pm 1.9$	$-0.3$	22.6	$-9.7$
SN 2020hvp	$g$	4300941	66	30	$10.1\pm 0.7$	$1.0$	$-7.5\pm 3.9$	$-1.9$	21.8	$-10.5$
	$g$	4311231	67	31	$9.4\pm 0.5$	$1.2$	$-1.9\pm 4.1$	$-0.5$	21.7	$-10.6$
	$r$	4300942	107	33	$19.9\pm 0.6$	$1.4$	$-1.4\pm 4.1$	$-0.3$	21.7	$-10.6$
	$r$	4311232	119	35	$18.9\pm 0.9$	$1.5$	$0.1\pm 4.0$	$0.0$	21.7	$-10.6$
SN 2019yvr	$g$	4231531	43	29	$83.8\pm 1.6$	$1.3$	$-3.7\pm 3.2$	$-1.2$	22.0	$-10.3$
	$r$	4231532	79	22	$160.4\pm 3.4$	$1.0$	$-0.4\pm 2.7$	$-0.1$	22.2	$-10.2$
SN 2020abhs	$g$	3211411	49	19	$9.2\pm 0.7$	$1.1$	$-1.5\pm 3.3$	$-0.4$	21.9	$-10.5$
	$g$	3720441	66	21	$8.5\pm 0.9$	$1.3$	$-6.7\pm 4.3$	$-1.6$	21.7	$-10.8$
	$r$	3211412	50	31	$10.5\pm 0.9$	$1.1$	$0.9\pm 4.5$	$0.2$	21.6	$-10.8$
SN 2019spk	$g$	3661611	45	58	$0.6\pm 0.3$	$1.2$	$2.4\pm 3.1$	$0.8$	22.0	$-10.5$
	$g$	4170241	48	98	$0.6\pm 0.2$	$1.4$	$-0.7\pm 2.1$	$-0.3$	22.4	$-10.1$
	$r$	3661612	45	54	$0.6\pm 0.6$	$1.3$	$4.0\pm 3.3$	$1.2$	21.9	$-10.6$
	$r$	4170242	55	126	$0.9\pm 0.5$	$1.3$	$-1.3\pm 2.8$	$-0.5$	22.1	$-10.4$
SN 2021bug	$g$	4730111	171	69	$8.4\pm 0.5$	$1.2$	$2.3\pm 1.7$	$1.4$	22.7	$-9.9$
	$r$	4730112	228	75	$13.3\pm 0.6$	$1.1$	$-2.6\pm 1.9$	$-1.4$	22.6	$-10.0$
SN 2021bhd	$g$	8450841	555	42	$20.9\pm 0.7$	$1.1$	$-1.3\pm 1.4$	$-1.0$	22.9	$-9.7$
	$r$	8450842	506	50	$48.7\pm 1.4$	$1.1$	$2.8\pm 1.5$	$1.8$	22.8	$-9.8$
SN 2019yz	$g$	4291421	25	82	$7.7\pm 0.5$	$1.0$	$-2.3\pm 2.5$	$-0.9$	22.3	$-10.4$
	$r$	4291422	40	116	$14.1\pm 0.5$	$1.0$	$-2.6\pm 2.8$	$-0.9$	22.1	$-10.6$
SN 2020fsb	$g$	2770731	27	29	$46.8\pm 1.7$	$1.0$	$1.0\pm 6.8$	$0.2$	21.2	$-11.5$
	$r$	2770732	30	19	$78.5\pm 2.2$	$1.1$	$6.7\pm 6.1$	$1.1$	21.3	$-11.4$
SN 2019bzd	$g$	3250211	20	64	$30.2\pm 0.9$	$1.6$	$5.8\pm 5.3$	$1.1$	21.4	$-11.6$
	$r$	3250212	37	82	$60.0\pm 1.3$	$1.0$	$2.2\pm 2.8$	$0.8$	22.1	$-10.9$
SN 2019pjs	$g$	5881631	159	99	$0.8\pm 0.3$	$1.0$	$-0.1\pm 1.2$	$-0.1$	23.0	$-10.0$
	$r$	5881632	487	107	$1.5\pm 0.3$	$1.0$	$2.4\pm 1.1$	$2.1$	23.1	$-9.9$
SN 2019enr	$g$	5190631	39	114	$28.3\pm 0.8$	$1.1$	$-0.3\pm 1.8$	$-0.1$	22.6	$-10.5$
	$r$	5190632	219	164	$52.1\pm 1.2$	$1.7$	$0.3\pm 1.4$	$0.2$	22.9	$-10.1$
SN 2018ebt	$g$	8291531	18	233	$2.6\pm 0.8$	$1.1$	$0.5\pm 6.5$	$0.1$	21.2	$-11.9$
SN 2020vg	$g$	4210311	39	20	$34.5\pm 2.0$	$1.4$	$2.8\pm 3.5$	$0.8$	21.9	$-11.3$
	$r$	4210312	60	61	$50.6\pm 3.2$	$1.4$	$1.8\pm 3.0$	$0.6$	22.1	$-11.1$
SN 2019aai	$g$	5840931	35	361	$13.1\pm 1.3$	$2.1$	$-1.1\pm 4.0$	$-0.3$	21.7	$-11.4$
	$r$	5840932	63	457	$21.4\pm 1.3$	$1.5$	$-3.1\pm 2.2$	$-1.4$	22.4	$-10.8$
SN 2018gjx	$g$	6041331	29	291	$5.7\pm 0.7$	$1.2$	$-2.4\pm 1.7$	$-1.4$	22.7	$-10.5$
	$r$	6041332	50	493	$10.0\pm 0.9$	$1.8$	$-1.9\pm 2.2$	$-0.9$	22.4	$-10.8$
SN 2019lkx	$g$	6551021	59	43	$1.6\pm 0.5$	$1.1$	$7.2\pm 8.0$	$0.9$	21.0	$-12.3$
	$r$	6551022	73	156	$3.2\pm 0.4$	$1.1$	$0.6\pm 4.1$	$0.2$	21.7	$-11.5$
SN 2020tkx	$g$	6841241	737	37	$0.9\pm 0.4$	$1.4$	$0.2\pm 2.9$	$0.1$	22.1	$-11.1$
	$r$	6841242	968	47	$1.4\pm 0.4$	$1.3$	$-4.9\pm 1.6$	$-3.0$	22.7	$-10.5$

Table 4. Table 4: Properties of the ZTF BTS data (analyzed in Sect.  2 ) and assumed LSST properties (Sect.  3 )

	ZTF BTS	LSST
	($r$ band)
survey duration	$4.6\text{text}yrs$	$10\text{text}yrs$
surveyed area	$\mathrm{13\hspace{0.17em}000}\text{text}sqdeg$	$\mathrm{18\hspace{0.17em}000}\text{text}sqdeg$
number of visits	$110\text{text}y{r}^{-1}$	8/18/18$\text{text}y{r}^{-1}$ ($g$/$r$/$i$)
limiting mag. (single img.)	$20.9\text{text}mag$	$24.9$/$24.7$/$24\text{text}mag$ ($g$/$r$/$i$)
limiting mag. (1 yr)	$22-23\text{text}ma{g}^a$	$26.2/26.4/25.7\text{text}mag$ ($g$/$r$/$i$)
sky brightness	$20.2\text{text}mag\text{text}arcse{c}^{-2}$	$21.2\text{text}mag\text{text}arcse{c}^{-2}$ ($r$)
median seeing	$2\text{text}arcsec$	$0.65\text{text}arcsec$ ($r$)

Table 5. Table 5: Expected number of LSST detections for different progenitor types.

type	fraction	#SNe	progenitor lumi.	spectral type	# detections
			(magi)		$g$	$r$	$i$
RSG	0.56	273	LF	M4	$1.4$	$17$	$46$
				M2	$5.4$	$44$	$72$
YSG	0.09	44	$-5.4$	A5	$2.4$	$5.2$	$1.6$
BSG	0.02	9.8	$-5.6$	B2	$0.95$	$2.3$	$0.5$
SN Ib progenitor	0.12	56	$⩽-4.7$	F2	$⩾0.87$	$⩾1.0$	$⩾0.79$
SN Ic progenitor	0.14	66	$⩽-4.0$	A5	$⩾0.57$	$⩾1.0$	$⩾0.44$

Table 6. Table 6: Quality cuts for ZTF data.

	cut	discarded frac.	remaining obs.
	before cuts	–	35 120
1	flagged images	5.8%	33 081
2	bkg. std $>25\text{text}counts$	2.9%	32 106
3	bad pixels	0.1%	32 082
4	seeing $⩾4\text{text}arcsec$	2.5%	31 285
5	cloudiness parameter	1.4%	30 848
6	reference overwritten	2.8%	29 981
7	pre-SN images	2.3%	29 305

Table 7. Table 7: Limits and detections of RSG progenitor stars from the literature.

SN	dist. mod.	$E\left(B-V\right)$	band	mag	bol. mag	faded?	Ref.
	(mag)	(mag)		(mag)	(mag)
SN 1999an	$31.3$	$0.11$	$F606W$	$>24.78$	$>-9.11$	$-$	1, 2
SN 1999br	$30.8$	$0.02$	$F606W$	$>24.98$	$>-8.08$	$-$	1, 2
SN 1999em	$30.3$	$0.09$	$I_c$	$>23.42$	$>-7.66$	$-$	1, 2
SN 1999gi	$30.0$	$0.17$	$F606W$	$>24.98$	$>-7.74$	$-$	1, 2
SN 2001du	$31.3$	$0.16$	$F814W$	$>24.69$	$>-7.27$	$-$	1, 2
SN 2002hh	$29.4$	$1.36$	$i$	$>23.19$	$>-9.51$	$-$	1, 2, 3, 4
SN 2003gd (M3)	$29.8$	$0.14$	$F814W$	$24.44\pm 0.04$	$-5.96\pm 0.04$	yes	1,5
SN 2004A	$31.5$	$0.21$	$F814W$	$24.8\pm 0.12$	$-7.47\pm 0.12$	yes	1,5,6
SN 2004dg	$31.5$	$0.24$	$F814W$	$>25.44$	$>-6.86$	$-$	1
SN 2004et	$29.4$	$0.42$	$I_J$	$22.55\pm 0.12$	$-7.73\pm 0.12$	yes	1,2,4,7
SN 2005cs	$29.6$	$0.16$	$F814W$	$24.06\pm 0.07$	$-6.22\pm 0.07$	yes	1, 5
SN 2006bc	$30.8$	$0.21$	$F814W$	$>24.89$	$>-6.68$	$-$	1
SN 2006my	$31.7$	$0.49$	$F814W$	$25.3\pm 0.13$	$-7.64\pm 0.13$	yes	1, 5, 7
SN 2006ov	$30.5$	$0.08$	$F814W$	$>24.64$	$>-6.38$	$-$	1, 7
SN 2007aa	$31.6$	$0.03$	$F814W$	$>24.88$	$>-7.12$	$-$	1
SN 2008bk	$28.0$	$0.08$	$K$	$20.19\pm 0.03$	$-7.01\pm 0.03$	yes	1, 2, 5, 8
SN 2008cn	$32.6$	$0.33$	$F814W$	$25.57\pm 0.09$	$-7.97\pm 0.09$	no	1, 9
SN 2012A	$30.0$	$0.03$	$K$	$22.09\pm 0.13$	$-7.09\pm 0.13$	yes	1, 10
SN 2012aw	$30.0$	$0.43$	$K$	$21.36\pm 0.29$	$-7.97\pm 0.29$	yes	1, 11
SN 2012ec	$31.2$	$0.22$	$F814W$	$23.83\pm 0.08$	$-8.11\pm 0.08$	no	1
SN 2013ej (M2)	$29.8$	$0.14$	$F814W$	$23.09\pm 0.05$	$-7.07\pm 0.05$	yesa	1, 10
SN 2017eaw	$29.4$	$0.3$	$F606W$	$26.48\pm 0.05$	$-6.03\pm 0.05$	no	4, 12
SN 2018zd	$30.6$	$0.08$	$F814W$	$25.13\pm 0.15$	$-7.96\pm 0.15$	yes	10, 13
SN 2018aoq	$31.3$	$0.03$	$F814W$	$24.35\pm 0.02$	$-7.39\pm 0.02$	no	4
SN 2018ivc	$30.0$	$0.5$	$F606W$	$>25.48$	$>-8.13$	$-$	14
SN 2019mhm	$31.8$	$0.18$	$F814W$	$>24.53$	$>-8.01$	$-$	15
SN 2020fqv	$31.2$	$0.52$	$F606W$	$>24.8$	$>-10.04$	$-$	16
SN 2020jfo	$30.8$	$0.02$	$F814W$	$25.46\pm 0.07$	$-5.77\pm 0.07$	no	17

Table 8. Table 8: Detections of partially stripped progenitor stars from the literature.

SN	type	dist. mod.	$E\left(B-V\right)$	band	mag	bol. mag	faded?	Ref.
		(mag)	(mag)		(mag)	(mag)
SN 1987A	BSG	$18.5$	$0.16$	$V_j$	$12.36\pm 0.1$	$-5.91\pm 0.1$	yes	1
SN 1993J	YSG	$27.8$	$0.05$	$R_c$	$20.05\pm 0.11$	$-7.75\pm 0.11$	yes	2, 3
SN 2008ax	YSG	$29.4$	$0.3$	$F606W$	$23.94\pm 0.42$	$-5.54\pm 0.42$	yes	4, 5
SN 2011dh	YSG	$29.5$	$0.07$	$F814W$	$21.64\pm 0.03$	$-7.91\pm 0.03$	yes	5, 6, 7
SN 2013df	YSG	$31.1$	$0.09$	$F555W$	$24.51\pm 0.07$	$-6.51\pm 0.07$	no	5, 8
SN 2016gkg	YSG	$32.1$	$0.09$	$F606W$	$24.4\pm 0.18$	$-7.67\pm 0.18$	yes	9, 10
iPTF13bvn	SN Ib	31.8	0.045	$F814W$	$25.88\pm 0.24$	$-5.39\pm 0.24$	yes	11
SN 2019yvr	SN Ib	$30.8$	$0.51$	$F635W$	$24.90\pm 0.02$	$-6.09\pm 0.02$	no	12
SN 2017ein	SN Ic	$31.4$	$0.41$	$F555W$	$24.78\pm 0.11$	$-6.73\pm 0.11$	no	13

Equations

$$\frac{S}{N}=\sqrt{\sum {\left(\frac{n_{\text{sig,pix}}}{n_{\text{bg,pix}}}\right)}^2}=\frac{10^{0.4(ZP-m)}}{\sqrt{4\pi }(S/2.35){\sigma }_{\text{bg}}}$$

$$\Delta l=1.25\log 10\left(1+\frac{B_{\text{host}}}{B_{\text{sky}}}\right)$$

$$m_{\text{AB}}$$

$$\Delta m_{\text{AB}}$$

$$l_{\text{AB}}$$

Full text

Core-collapse supernovae (304) — Massive stars (732) — Red supergiant stars (1375) — Sky surveys (1464)

1 Introduction

While thousands of core-collapse supernovae (SNe) are discovered and classified every year111see, e.g., https://www.wis-tns.org/stats-maps, detecting their faint progenitor stars is much more challenging. Therefore, we cannot be certain that they are similar to the well-studied stars in the Milky Way or Magellanic clouds.

Direct progenitor star detections so far (see, e.g., Smartt 2015 or Van Dyk 2017 for reviews) have established that the progenitors of SNe II are red supergiants (RSG) and SNe IIb have been observed to arise from yellow supergiants (YSG). Slowly rising, SN1987A-like SNe II are the explosions of more compact blue supergiants (BSG), and at least some interacting SNe IIn are believed to originate from luminous blue variables (see, e.g., Gal-Yam et al. 2007 or Smith 2017). Less is known about the progenitor stars of other, rarer SN types, like SNe Ibc or Ibn (see, e.g., Eldridge & Maund 2016; Xiang et al. 2019; Kilpatrick et al. 2021 for potential detections). SN observations indicate that their progenitors are partially or completely stripped, massive stars. The stripping presumably requires either strong winds or a binary partner.

The Hubble Space Telescope (HST) has been very successful at detecting progenitor stars. However, detections are only attained at a rate of about one progenitor per year (see e.g. Davies & Beasor 2018), such that increasing the sample size substantially would require decades of observations. Archival HST observations are available for about 25% of the closest SNe (Smartt, 2015), and identifying a progenitor star securely requires both precise astrometry and additional late-time HST observations to verify that the progenitor candidate has indeed vanished (see, e.g., Crockett et al. 2011; Maund et al. 2014, 2015a; Van Dyk et al. 2023). This confirmation is crucial as some of the brightest progenitor candidates have turned out to be stellar clusters rather than single stars (e.g., Maund & Smartt 2009, Maund et al. 2015a, Van Dyk et al. 2023).

Smartt (2015) (and earlier Smartt et al. 2009) compile a sample of detected progenitor stars and compare their inferred masses to predictions by stellar models. Smartt (2015) find that all 26 RSG mass estimates and upper limits are fainter than $\log_{10}(L/L_{\odot})\leqslant 5.2$, corresponding to a bolometric magnitude of $-8.2\,\text{mag}$. Based on stellar evolution models, they conclude that all progenitors had initial masses of $<18\,\text{M}_{\odot}$, while they would expect that $30\%$ of the progenitors are more massive. This discrepancy, pointed out earlier by Li et al. (2006) and Kochanek et al. (2008), was coined the RSG problem, and Smartt (2015) suggests that the most massive stars collapse into black holes without producing a bright SN. Such failed SNe are also predicted by studies that simulate stellar cores (see, e.g., Patton & Sukhbold 2020 for a recent result), and a few candidates have been reported (Reynolds et al., 2015; Basinger et al., 2021; Neustadt et al., 2021).

However, the lack of bright SN progenitors was diagnosed based on sparse observations. SN progenitor stars are usually only detected in one or few HST observations, often in a single band. Thus, the star’s surface temperature and bolometric luminosity cannot be estimated reliably (see, e.g., Smartt 2015; Davies & Beasor 2018). Other uncertainties are induced by host extinction, circumstellar dust (e.g., Kochanek et al. 2012), uncertain SN distances, and the small number of progenitor detections (Davies & Beasor, 2018). Consequently, it is under debate whether the RSG problem is significant (e.g., Davies & Beasor 2018, 2020; Kochanek 2020; Rodríguez 2022).

An additional complication is that the impending core collapse might trigger mass-loss events that change the progenitor’s temperature and luminosity: Violent stellar eruptions are common prior to SNe IIn (Ofek et al., 2014; Strotjohann et al., 2021), and similar, but fainter, outbursts were also detected prior to SNe II (Jacobson-Galán et al., 2022a), SNe Ibn (Pastorello et al., 2007; Strotjohann et al., 2021), broad-lined SNe Ic (Ho et al., 2019), and potentially SNe IIb (Strotjohann et al., 2015). In addition, Margutti et al. (2017) and Sollerman et al. (2020) observed late-time interaction for three SNe Ib, which indicates a major mass-loss event shortly before the SN explosion. The spectra of young SNe indicate that a large fraction of them explode within a confined shell of circumstellar medium (Khazov et al., 2016; Bruch et al., 2021, 2022), which points to increased mass loss in the last years before the core collapse. Outbursts that inflate stellar envelopes have also been proposed to explain the fast rise times and hot temperatures of young SNe (Morozova et al., 2020; Förster et al., 2018). Mass-loss events can boost the progenitor luminosity, e.g., due to interaction of the ejected material. However, absorption or inflated envelopes can also redden the stellar spectrum and reduce the progenitor luminosity (Davies et al., 2022). Pre-SN outbursts can hence cause dimming or brightening in a single band.

Most of the described challenges could be mitigated by a larger sample of SN progenitors detected in several bands and epochs. Therefore, we explore here whether ground-based, large field-of-view surveys are sensitive enough to detect the closest SN progenitor stars. We consider two surveys: the Zwicky Transient Facility (ZTF; Bellm et al. 2019; Graham et al. 2019; Dekany et al. 2020) that has been running since 2018 and the planned, more sensitive Legacy Survey of Space and Time (LSST; Ivezić et al. 2019). Due to blurring by the atmosphere, stars in nearby galaxies are blended with each other, such that pre-SN data alone is usually not sufficient to pinpoint the progenitor. The angular resolution of ZTF observations is typically limited by the median seeing of $2\,\text{arcsec}$, while a median seeing of $0.65\,\text{arcsec}$ is expected for the LSST site (Ivezić et al., 2019). In contrast, the HST wide field camera 3 has a much smaller PSF width of $\sim 0.1\,\text{arcsec}$ in the infrared (Dressel & Marinelli, 2023). To detect the progenitor despite the lower resolution, we combine many images before the SN and after it has faded and search for a flux difference between these two time windows. The search does not require dedicated observations and can be done for any position monitored by a survey.

Ground-based, wide-field surveys have so far detected a few progenitor stars: The bright YSG progenitor of SN 2011dh was detected by the Palomar Transient Factory (PTF; Strotjohann et al. 2015), the Large Binary Telescope (Szczygieł et al., 2012), and the Nordic Optical Telescope (Ergon et al., 2015). Combining hundreds of PTF images before and after the SN confirmed that the progenitor of SN 2011dh had indeed disappeared. The same search was sensitive enough to disfavor a progenitor candidate for another SN IIb, SN 2012P, as it was still present after the SN had faded. In a more recent search, we detected the progenitor star of the IIn SN 2019cmy at a seemingly constant luminosity of $-14\,\text{mag}$ in the ZTF $g$ and $r$ bands in the last year before the SN explosion (Strotjohann et al., 2021). However, the star is fainter in earlier PTF observations (Soumagnac et al. in prep.); we hence likely observe a long-lasting outburst rather than a quiescent progenitor star. Progenitors in their quiescent state are many magnitudes fainter and the low temperatures of RSG make their detection in visible bands even more challenging.

In Sect. 2, we conduct a progenitor search for ZTF data as a proof of concept and compare the ZTF results to earlier progenitor detections. In Sect. 3, we quantify how sensitive LSST will be to progenitor stars and pre-SN outbursts and we conclude in Sect. 4.

2 Search for Progenitor stars in ZTF data

As a test, we implement our progenitor search for the closest SNe in ZTF data. Section 2.1 describes the sample selection, and Sect. 2.2 explains the details of the search. Results are presented in Sect. 2.3, and we compare to progenitor detections in literature in Sect. 2.4. Finally, in Sect. 2.5 we quantify whether the search is as sensitive as expected. A provides more details on the photometric pipeline and error sources, and we verify the sensitivity of the search by injecting faint, artificial sources into the images and quantifying their recoverability.

2.1 Sample selection

Our ZTF search is based on SNe detected by the Bright Transient Survey (BTS; Fremling et al. 2020; Perley et al. 2020). The ZTF pipeline (Masci et al., 2019) uses the ZOGY image subtraction algorithm (Zackay et al., 2016) and yields $>10^{6}$ potential detections per night (Patterson et al., 2019), but quality cuts reduce the number of SN candidates to $\sim 50$ per night (Perley et al., 2020). An on-duty astronomer searches the remaining candidates for genuine, SN-like transients that surpass the brightness threshold of $18.5\,\text{mag}$ in the $g$ or $r$ band. The selected objects are classified with the SEDM spectrograph on the P60 telescope (Blagorodnova et al., 2018; Rigault et al., 2019; Kim et al., 2022), and discoveries are reported to the Transient Name Server222https://www.wis-tns.org/ and the BTS sample explorer333https://sites.astro.caltech.edu/ztf/bts/explorer.php. For our search, we select 60 SNe that exploded between 2018 and 2021 within $z\leqslant 0.01$ or $45\,\text{Mpc}$.

The luminosity distances of nearby SNe are rather uncertain, and, if available, we use the more precise host galaxy redshift instead of the SN redshift. We here adopt the preferred redshift from the NASA/IPAC Extragalactic Database444https://ned.ipac.caltech.edu/ and convert it to the infall-corrected distance. For SN 2018ebt, we measure a host redshift of $z=0.0095$ from galaxy lines in a late-time spectrum. After refining the redshifts, we are left with 55 SNe within $45\,\text{Mpc}$.

Next, we download IPAC difference images (IRSA, 2022) 555Including data until August 2022. and calculate forced-photometry light curves for the remaining SNe as described in Appendix A.1. We inspect the light curves visually and, if necessary, correct the approximate explosion date, $t_{0}$, to ensure that the selected pre-SN observations do not contain any SN light. Conservatively, we only combine observations obtained more than ten days before $t_{0}$ to calculate the pre-explosion flux. IPAC produces a single ZTF reference image for each combination of ZTF field, filter, CCD number, and CCD quadrant Masci et al. (2019). In the following, we call each unique combination of these parameters a field and only compare difference images in the same field, i.e., that were produced with the same reference image. We require at least 15 pre-SN observations in the same field and discard three out of 55 SNe because they do not have enough pre-SN observations. We also use the selected pre-SN observations to do a baseline correction to ensure that the pre-SN light curve corresponds to zero flux and we scale up the error bars if they are too small to account for the observed scatter (details given in A.1).

\movetabledown

=40mm {rotatetable}

The expected sensitivity of our search is $\sim 23\,\text{mag}$, and we extrapolate the late-time SN light curves to determine when they have faded below this threshold. To gain sensitivity to the faint late-time fluxes, we combine the $g$- and $r$-band fluxes in 7-day-long bins as described in Appendix A.1. To avoid marginal detections, we select the second-last $r$-band detection and extrapolate it with a slope of $1\,\text{mag}$ per 100 days, the decay rate of ${}^{56}\text{Co}$. Two SNe, SN 2018ivc and SN 2018ebt, have no, or few, $r$-band observations that pass our quality cuts (described in Appendix A.1) and we extrapolate the $g$-band light curve instead but increase the flux by $0.5\,\text{mag}$ as SNe are typically brighter in the $r$ band at this time. We acknowledge that some SNe might fade more slowly at late times, e.g., due to the late-time interaction (Sollerman et al., 2020; Weil et al., 2020) or light echos (Maund, 2019) which might yield false non-detections. The best way to mitigate this is inspecting the late-time light curves carefully, and using several different time windows to calculate the late-time flux.

Of the 52 nearby SNe with pre-SN observations 29 have already faded below magnitude 23 and Table 1 lists their properties. Unbinned forced-photometry light curves are provided in Table 2. Figs. 1 and 1 show the forced-photometry light curves in 7-day-long bins. The orange shaded regions in the figures indicate the time when the SN is likely brighter than 23rd magnitude and we use the observations before and after to calculate the pre-SN and late-time fluxes, respectively. Our sample includes 18 SNe II or IIP. SN 2018hna (Singh et al., 2019) has an SN 1987A-like light curve and its progenitor is presumably a more compact BSG. The remaining 11 SNe originate from, at least partially, stripped progenitor stars: two are classified as SNe IIb, five are SNe Ib, three are SNe Ic, and one is a broad-lined SN Ic. The two closest SNe Ib in our sample belong to the subclass of low-energy, Calcium-rich SNe.

2.2 The progenitor search

The low spatial resolution of ground-based surveys like ZTF does not allow us to reliably identify the progenitor star in pre-SN images alone as each pixel contains the light from many stars. But the vanishing of the progenitor star reduces the flux at the SN position and we search for this flux residual by comparing pre-SN images to observations taken after the SN has faded.

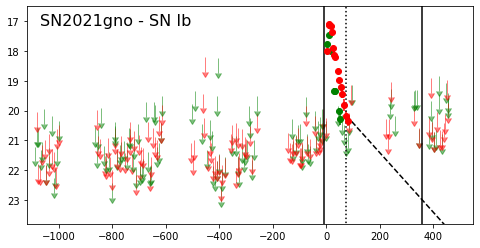

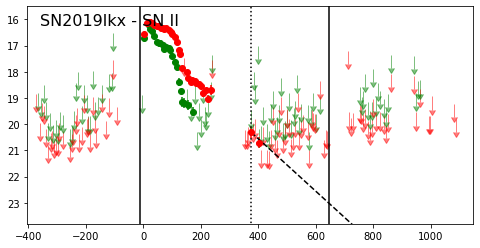

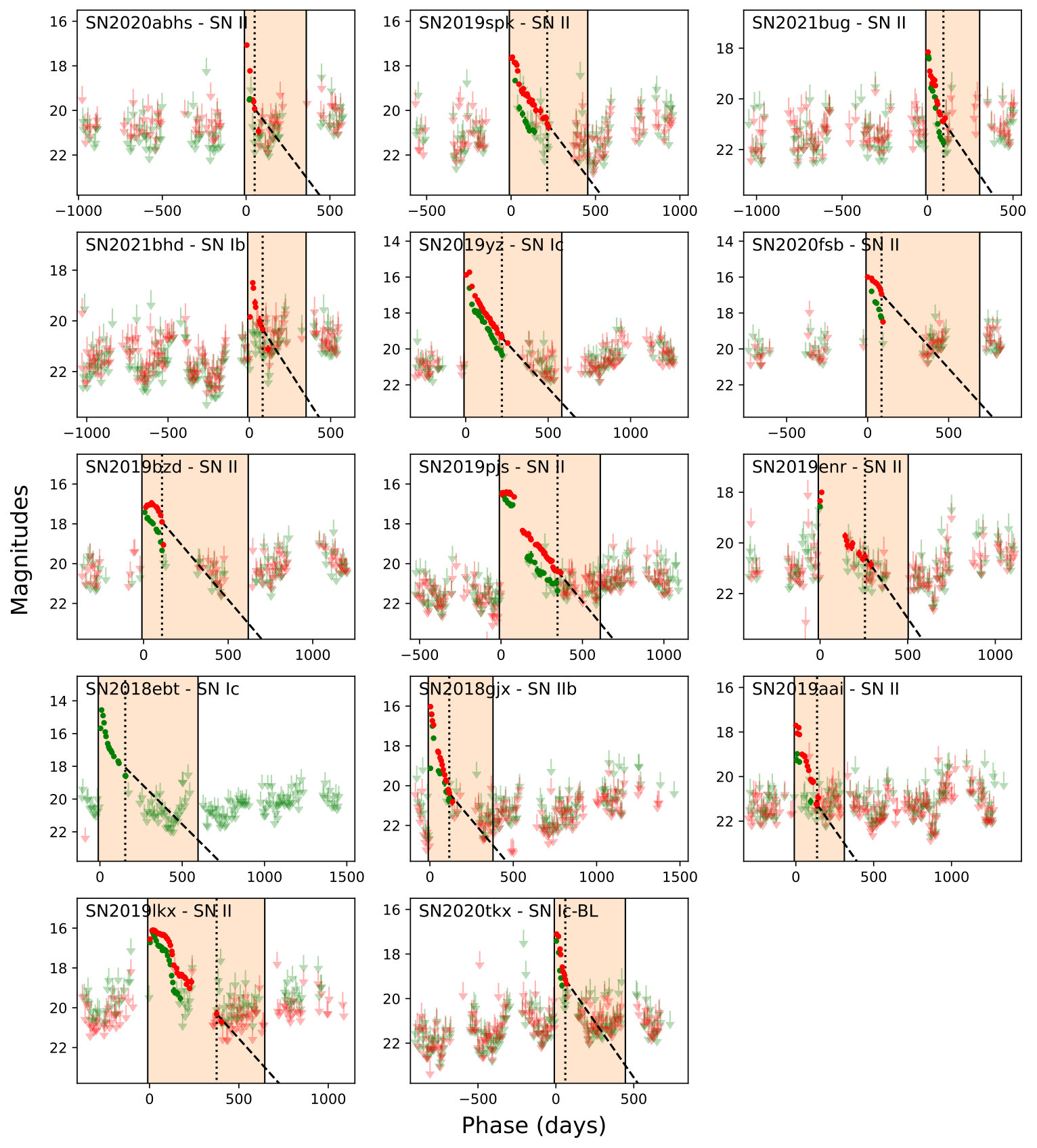

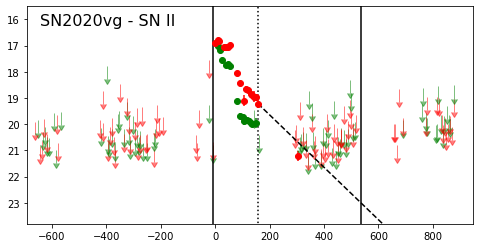

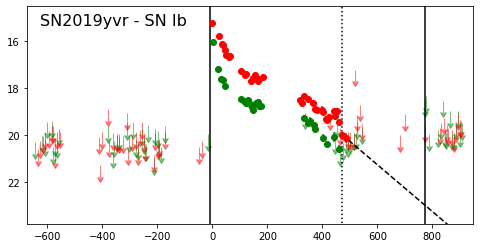

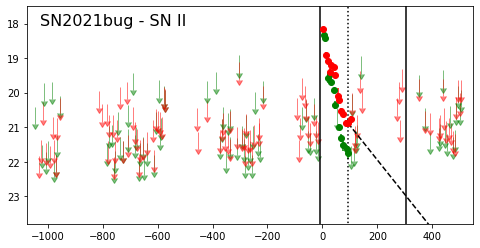

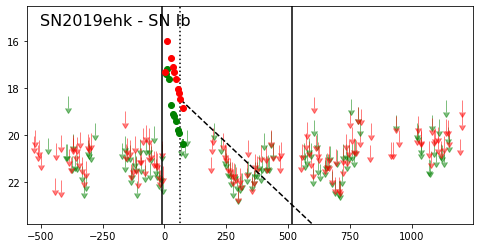

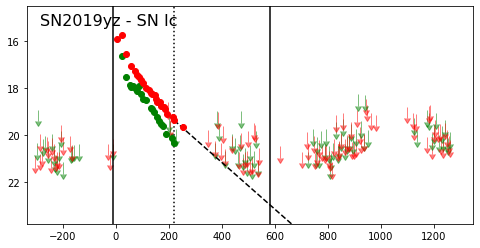

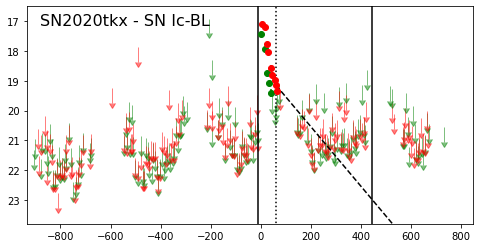

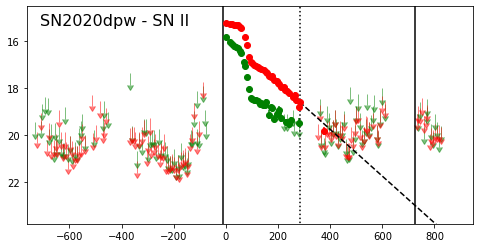

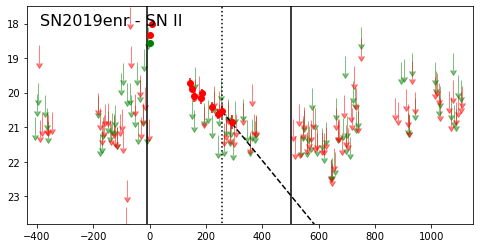

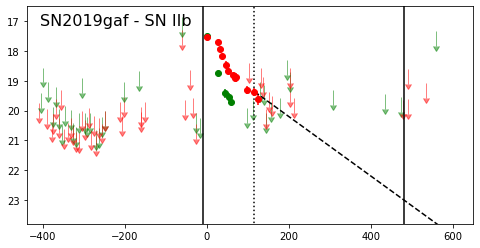

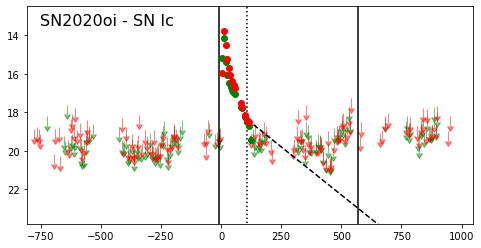

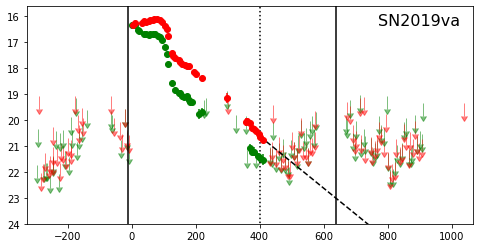

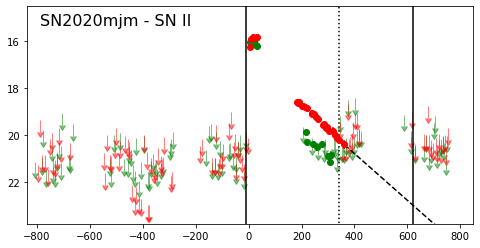

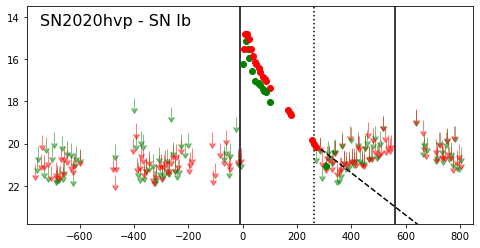

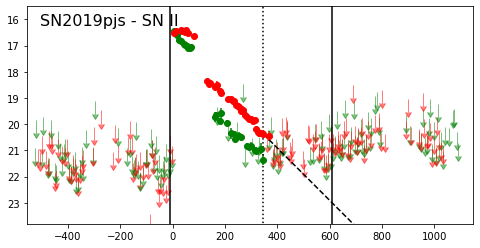

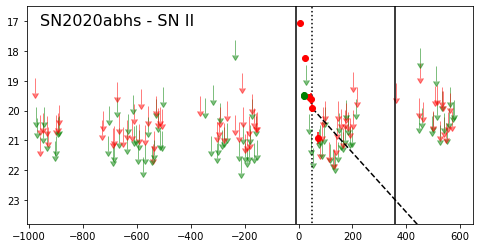

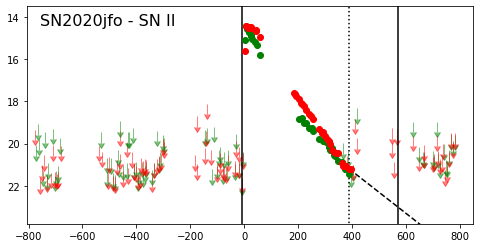

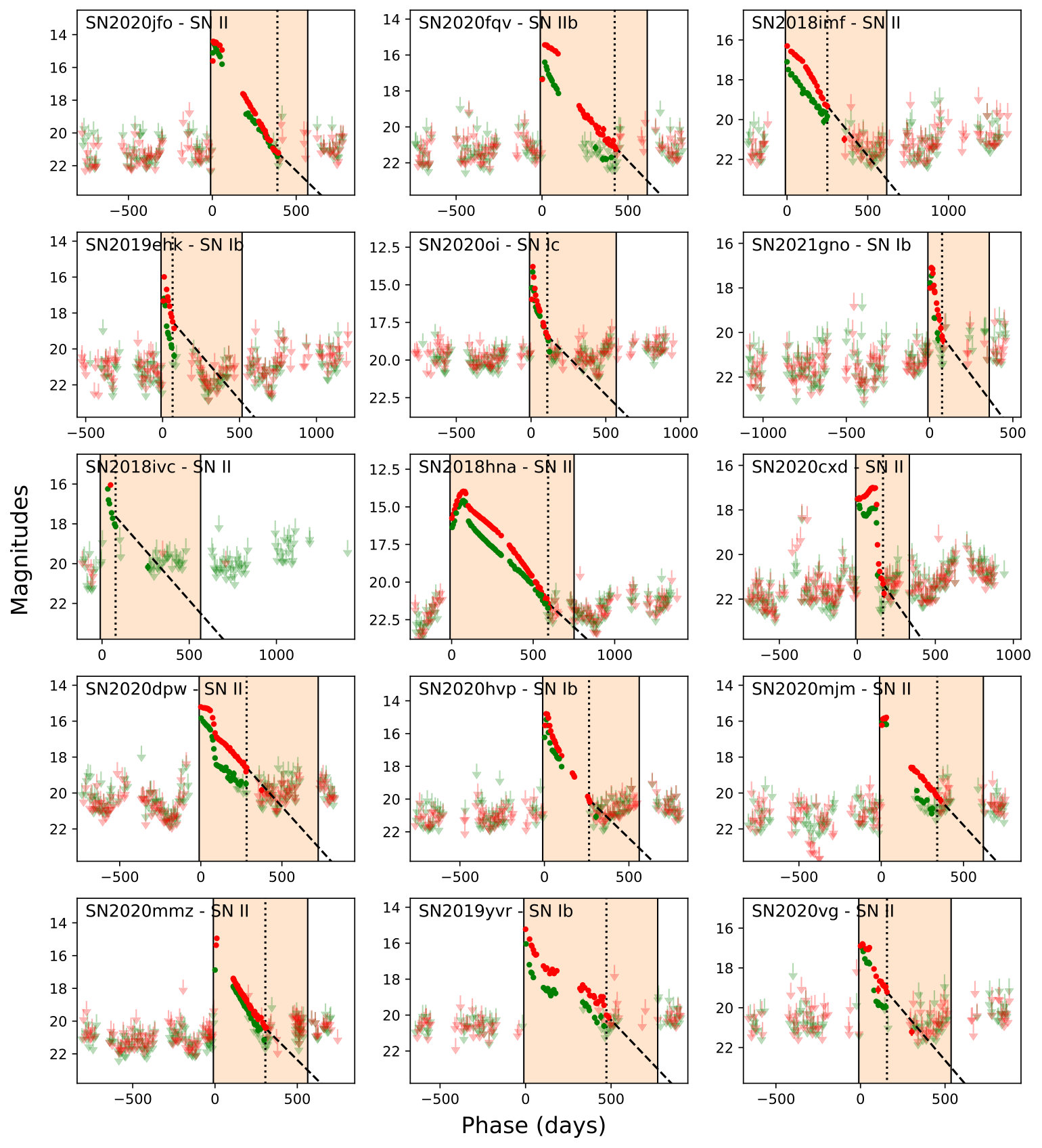

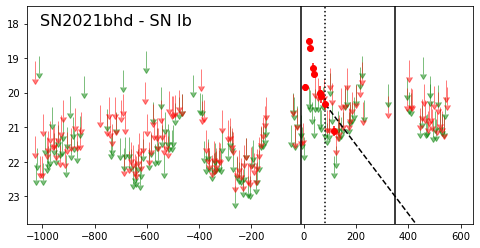

Table 3 lists all fields with at least 20 observations before and after the SN and their light curves are shown in Figs. 1 and 1. For each field, we calculate the mean flux, weighted according to the flux error bars, before and after the SN. We only compare observations that have the same reference image. We estimate the flux error with the bootstrap method (Efron, 1982) by resampling both the pre-SN and late-time fluxes while allowing for repetitions. For each randomized light curve we calculate the weighted mean flux before and after the SN and the difference between the two. The standard deviation of the resulting distribution of residuals is used as the error on the flux residual. The advantage of the bootstrap method is that the results are valid even if the flux errors are inaccurate or not Gaussian. By using the weighted mean, we assume, however, that the relative size of the error bars is correct.

Combining hundreds of observations reduces statistical fluctuations, therefore, our search might be limited by additional errors and systematics, such as residuals due to bright host galaxies, shallow reference images, a bias mismatch, or errors on the PSF. In Appendix A.2, we quantify the impact of these error sources empirically: We select 20 positions in the same images that have host fluxes similar to the SN position and perform a progenitor search at each position. For appropriately large error bars the standard deviation of these flux residuals should be close to one. If it is larger, the errors are likely underestimated, and we scale them up, i.e., we scale down the significance of the progenitor detection (see Appendix A.2 for details). The resulting scaling factors are given in the seventh column of Table 3. A few fields have scaling factors as large as two, sometimes due to a bright host, while in other cases, we cannot pinpoint what limits the sensitivity. However, most scaling factors are close to one, indicating that the sensitivity is determined by well-understood statistical fluctuations and that additional ZTF observations might improve the depth of the search.

\startlongtable

2.3 Results

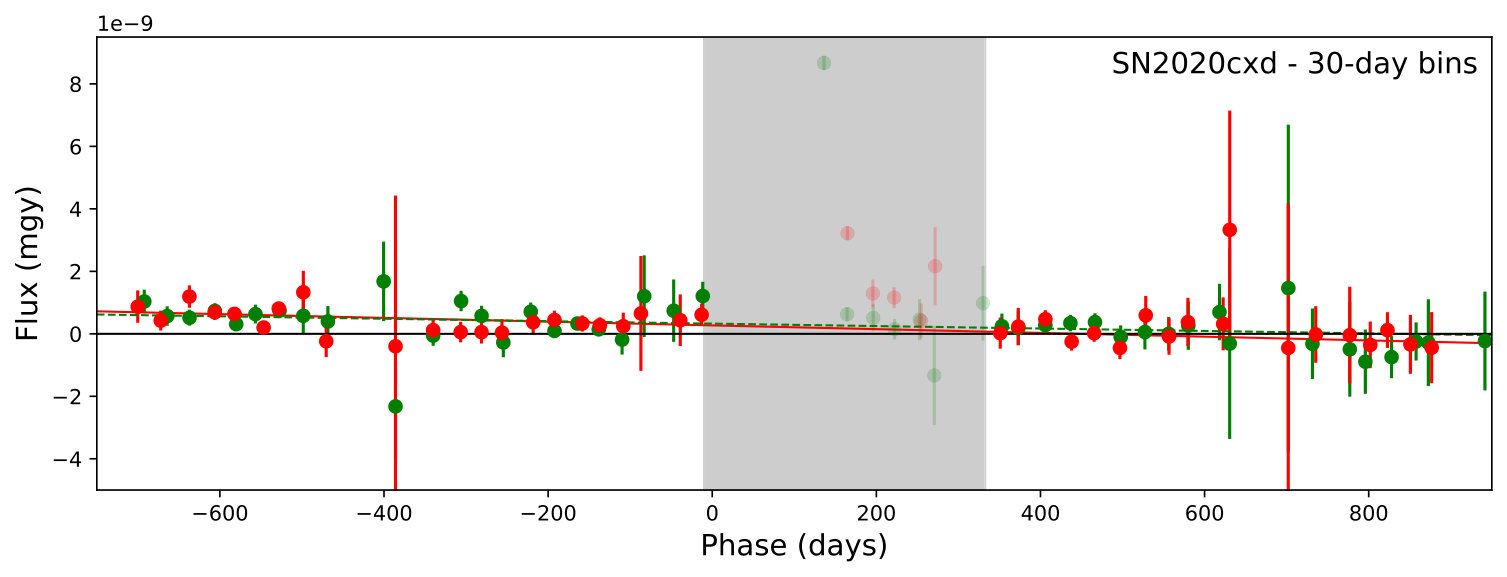

All flux residuals, their errors, and their significances are listed in Table 3. Our search yields a single $5\,\sigma$ detection: When combining the $g$-band observations of SN 2020cxd (Yang et al., 2021; Kozyreva et al., 2022; Valerin et al., 2022) we measure a flux residual of $22.7\pm 0.2\,\text{mag}$ (shown as a green data point in Fig. 2). We inspect the 30-day-bin light curve of SN 2020cxd, and Fig. 7 shows that both the $g$- and $r$-band flux are fading over the four years during which ZTF monitored the position. The trend seems to continue after the SN explosion, implying that it is either due to an unrelated background source or due to long-term changes in the calibration. We did not observe similar variability for any of the 20 background positions in the same galaxy, so it is likely a local effect. A single ZTF pixel covers $1.012\,\text{arcsec}$ in the sky, corresponding to $110\,\text{kpc}$ in the host galaxy NGC 6395. Therefore, it is possible that the fading originates from an unrelated source. We thus conclude that unrelated variable sources and progenitor outbursts are a potential contamination for our search. We do not find any genuine detections and the ZTF limiting magnitudes of our progenitor search are shown in Fig. 2.

2.4 SN progenitor detections in the literature

So far, progenitor searches in HST images have been published for six of the SNe in the ZTF sample (see Table 1). The closest object, SN 2020jfo, has a rather faint progenitor star with $25.47\pm 0.07\,\text{mag}$ or $-5.35\,\text{mag}$ in the F814W band (Sollerman et al., 2021). Moreover, the detection of an SN Ib progenitor was reported for SN 2019yvr (Kilpatrick et al., 2021) and the colors imply an F-type spectrum. Late-time observations will reveal, whether it is a single star, binary system, or dense stellar cluster (Sun et al., 2022). The progenitors of SN 2018ivc, SN 2019ehk, and SN 2020fqv remain undetected (see Bostroem et al. 2020, Jacobson-Galán et al. 2020, and Tinyanont et al. 2022), while a bright stellar cluster was detected at the position of SN 2020oi (Gagliano et al., 2022).

Samples of progenitor searches have, for example, been presented by Smartt (2015) and Van Dyk (2017) (for all SN types) and Davies & Beasor (2018) (for RSG progenitors). We update the Davies & Beasor (2018) and Davies & Beasor (2020) sample by adding more recent detections and limits and we discard three progenitor candidates that are not detected securely (SN 2009hd, SN 2009kr, and SN 2009md; Elias-Rosa et al. 2011; Maund et al. 2015a). We also compile a sample of detected, non-RSG progenitors in Table 8. Host extinction estimates are taken from the literature and, like the SN distance estimates, they are often uncertain (see, e.g., Maund 2017). We do not consider dust which might reduce the impact of extinction in some bands (Kochanek et al., 2012).

We aim to compare the ZTF limits to direct observations and not to derived quantities. Therefore, we look up the original progenitor observations in individual bands and convert them to ZTF $r$-band AB magnitudes as described in B. If the progenitor is detected in several bands, we pick the band that is closest to the ZTF $r$ band. We use filter profiles from the pyphot library666https://mfouesneau.github.io/pyphot/ if available or from the database of the Spanish Virtual Observatory777https://svo.cab.inta-csic.es and adopt the spectral shapes of giant or supergiant stars in the X-shooter Spectral Library (Verro et al., 2022).

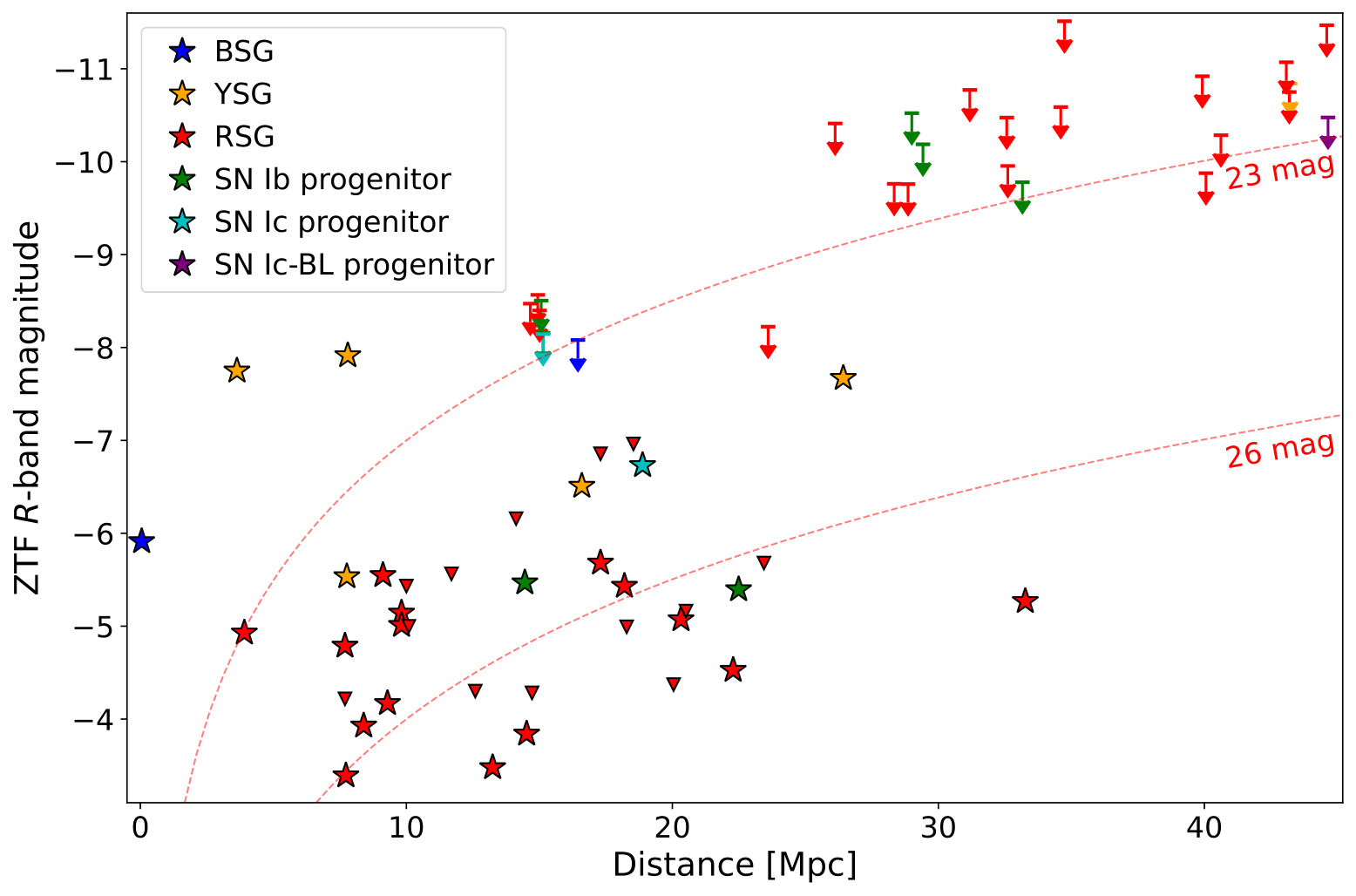

Figure 3 shows the ZTF upper limits compared to detections and upper limits reported in the literature (mostly from HST). The ZTF limits are several magnitudes less sensitive than most detected progenitor stars. The upper dashed red line indicates an apparent magnitude of $23\,\text{mag}$, the limiting magnitude that we obtained for ZTF fields with many observations (see Sect. 2.3 and Table 3). Only three detected progenitors have brighter apparent magnitudes in the $r$ band. The ZTF search would hence have a very rough detection rate of one progenitor per decade. It is sensitive to bright YSG progenitors out to $\sim 20\,\text{Mpc}$, BSG progenitors within $\sim 5\,\text{Mpc}$, and even closer RSGs.

One reason for the ZTF non-detections are the low RSG surface temperatures. If the adopted M4 spectral shape is typical, RSG progenitors are $\sim 1.5\,\text{mag}$ fainter in the $r$ band compared to the F814W band. ZTF also has an $i$ band, but the camera is less sensitive at these longer wavelengths (see Fig. 12 by Masci et al. 2019) and the $i$ band suffers from fringing. Furthermore, it is not used as often, and the small number of observations reduces the sensitivity even further. In conclusion, the ZTF $g$ and $r$ bands are not red enough to detect RSG progenitors, therefore the detection of hotter, less extended progenitors such as YSG or BSG stars is more likely even though they are rarer.

2.5 Expected ZTF sensitivity

Next, we check whether the progenitor search is as good as expected for the P48 telescope or whether we lose sensitivity due to unaccounted-for errors, such as registration errors or biases in the background estimation (see Appendix A.2).

We start by quantifying the sensitivity of single ZTF science images. For each science image, we look up the zeropoint, $ZP$, and seeing, $S$, and measure the standard deviation, $\sigma_{\text{bg}}$, of the sky background, $B$, from the image. For a source with magnitude $m$, the expected total number of signal counts is $n_{\text{signal}}=10^{0.4(ZP-m)}$. The standard deviation of the Gaussian PSF is $\sigma=S/2.35$. Based on Eq. 1 by Ofek & Ben-Ami (2020), the expected signal-to-noise ratio in a single image can hence be approximated as:

[TABLE]

where $n_{\text{sig,pix}}$ and $n_{\text{bg,pix}}$ are the number of signal and background counts per pixel. We obtain the last expression by integrating over all pixels assuming a Gaussian PSF. We verify Eq. 1 by injecting simulated sources and find that the signal-to-noise ratio is 22% lower because the PSF is not perfectly Gaussian. Except for this correction, Eq. 1 is a good measure for the sensitivity. To estimate the improvement when combining many images, we draw ZTF images randomly and add their signal-to-noise ratios in quadrature. The resulting ideal sensitivity as a function of the number of images is shown as a dashed red line in Fig. 2.

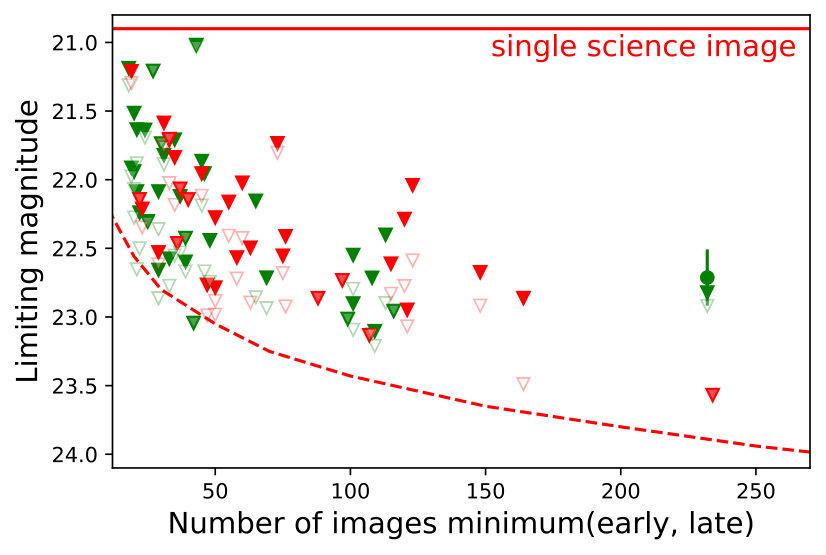

The triangles in Fig. 2 represent the limiting magnitudes of the progenitor search (also given in Table 3) and they show that the sensitivity of our search is sometimes close to the ideal sensitivity, but can be up to $1.5\,\text{mag}$ worse for other fields. The ideal sensitivity does not consider the host background which limits our search for SNe with bright hosts, such as SN 2020oi or SN 2018ivc (compare Appendix A.2). Moreover, we assume that the sensitivity is purely determined by the time window that contains the fewest observations. But if both time windows contain the same number of observations, the sensitivity would decrease by a factor of $\sqrt{2}$ or by $0.36\,\text{mag}$. We neglect all fields where either of these effects is relevant, but find that a discrepancy remains: On average, the ZTF search could be improved by $1\,\text{mag}$.

Reaching the ideal sensitivity would likely require custom image coaddition and subtraction as well as a more careful calibration that reduces the scatter between epochs and between different positions within the same image. If we reach the ideal sensitivity, we would expect limiting magnitudes of $24\,\text{mag}$ in the $r$ band for more than $250$ images in both time windows (see Fig. 2). However, this is not sufficient to detect progenitors on a regular basis, as shown in Sect. 2.4. Thus, detecting a sample of SN progenitors requires either a larger telescope, that detects more signal photons or a better site with a smaller seeing or darker sky (compare Eq. 1).

3 Prospects for direct progenitor detections with LSST

We explore here how many progenitor detections we expect with LSST. For this purpose, we simulate a population of nearby SNe in Sect. 3.1 and estimate the impact of bright host galaxies in Sect. 3.2. We calculate the expected number of progenitor detections in Sect. 3.3 and discuss pre-SN outbursts in Sect. 3.4. B shows the bolometric corrections that we use to convert between different spectral bands. Table 4 summarizes the LSST properties taken from Ivezić et al. (2019) and we compare them to the ZTF data analyzed in Sect. 2.

3.1 Simulating a population of nearby supernovae

To simulate a population of nearby SNe, we randomly draw a distance, explosion time, peak magnitude, fading time, progenitor magnitude, and the host background at the SN position.

The distances of very nearby SNe are determined by individual galaxies, as exemplified by SN 2019ehk and SN 2020oi, which exploded in the same host (see Table 1). We adopt the local galaxy distribution from the GLADE+ catalog (Dálya et al., 2022) and roughly select the part of the extragalactic sky that LSST can observe. We consider galaxies within $70\,\text{Mpc}$ and the catalog is approximately complete out to this distance (Dálya et al., 2022). The $B$-band flux of galaxies mostly originates from young, hot stars and is closely correlated with the star-formation and SN rate. We, therefore, draw the distances of the simulated SNe according to the $B$-band luminosity of galaxies in the GLADE+ catalog.

Conservatively, we only consider bright SNe with peak magnitudes of at least $18.5\,\text{mag}$, i.e., SNe that a survey similar to BTS would find and classify. For this purpose we draw absolute peak magnitudes from the $r$-band SN luminosity function presented by Perley et al. (2020), convert them to apparent magnitudes, and discard 22% of the simulated SNe that are fainter than $18.5\,\text{mag}$.

The SN fading time is crucial because the progenitor search requires late-time observations as we search for a vanishing source rather than trying to identify the progenitor in pre-SN images alone. In Sect. 2.1, we extrapolate the $r$-band light curves of 50 ZTF SNe. They fade to $23\,\text{mag}$ within 0.8 to 2.5 years with a median of 1.6 years. But when extrapolating to fainter magnitudes, slower radioactive decays might start to contribute. SN 1987A is one of few SNe with very-late-time detections (Seitenzahl et al., 2014) and we here assume that all light curves develop similarly after they have reached $23\,\text{mag}$. Compared to a pure 56Co decay, the slower 57Co decay only increases the median fading time to $27.5\,\text{mag}$ by 70 days. 44Ti starts to dominate the light curve at even later times and is not relevant to our search. Slower radioactive decays hence only have a very minor impact on the progenitor search, if the ratios between the isotopes are similar to the ones for SN 1987A. SNe fade to $27.5\,\text{mag}$ within 1.9 to 6 years with a median duration of 3 years.

We caution that some SNe might fade away more slowly especially in the optical bands: Most SNe in the sample by Rizzo Smith et al. (2023) did not fade below their progenitor magnitude for a decade. However, in infrared bands, where RSG progenitors are brighter the disappearance of progenitor stars has been confirmed for many SNe (see e.g. Van Dyk et al. 2023). Slower fading rates can for example be cause by late-time interaction with a circumstellar medium (see, e.g., Sollerman et al. 2020 for extreme examples, or Weil et al. 2020), light echos (Maund, 2019), or prolonged magnetar emission. The LSST candence will allow to monitor the SN fading rates at least as long as they are detectable in single images. Of all SNe that explode during the ten-year survey 80% fade to at least $24.7\,\text{mag}$ before the end of the survey, i.e., they are no longer detectable in single LSST images. Within the survey footprint, LSST is scheduled to collect 184 $r$- and $i$-band observations (Ivezić et al., 2019), while $80$ $g$-band visits are planned. SNe that are bright in the middle of the survey have 60 to 80 LSST $r$- and $i$-band images both before and after the SN. However, SNe that happen earlier or later have fewer observations in one of the time windows resulting in a lower sensitivity (compare Fig. 2). As a consequence, the average SN has 35 $r$- and $i$-band and $16$ $g$-band observations in the shorter time window.

Finally, we draw absorbed $i$-band magnitudes for RSG progenitors from the luminosity function by Davies & Beasor (2020) and convert the to the LSST $g$, $r$, and $i$-band magnitudes using the bolometric corrections given in B.

3.2 The impact of bright hosts on the LSST sensitivity

The design limiting magnitude of a single LSST visit is $24.7\,\text{mag}$ in the $r$ band (Table 1 of Ivezić et al. 2019) while the expected limiting magnitude after 10 years and 184 observations is $27.5\,\text{mag}$. Figure 2 by Ivezić et al. (2019) shows how the sensitivity improves when coadding several $r$-band observations. The improvement is similar for $g$- and $i$-band images, but $g$-band observations are $0.2\,\text{mag}$ deeper while $i$-band observations are $0.7\,\text{mag}$ less constraining (Ivezić et al., 2019). The LSST $z$ and $y$ bands can likely also be used for progenitor searches and RSGs are bright in these bands (see B). However, the SN fading times might be longer, e.g., due to dust formation, and we, therefore, do not consider these bands here.

However, the limiting magnitudes quoted by Ivezić et al. (2019) are only valid for isolated sources. In such locations, the background is dominated by the sky brightness of on average $21.2\,\text{mag}\,\text{arcsec}^{-2}$ in the LSST $r$ band (Table 2 by Ivezić et al. 2019) or $3.3\times 10^{-9}\,\text{maggies}\,\text{arcsec}^{-2}$. But many SNe explode on top of bright host galaxies. As shown in Eq. 1, the signal-to-noise ratio is proportional to $\sigma_{\text{bg}}^{-1}$ and the standard deviation of the sky background is $\sigma_{\text{bg}}=B^{-0.5}$ where $B$ is the sum of all relevant backgrounds at the SN position. The host background, therefore, degrades the limiting magnitude by:

[TABLE]

where $B_{\text{host}}$ and $B_{\text{sky}}$ are the host and sky background in counts per area.

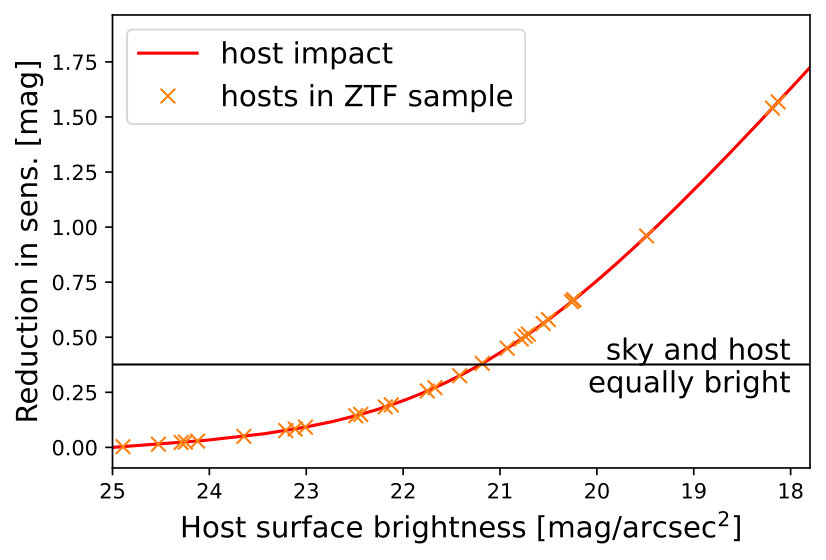

In Sect. 2.2, we measured the $r$-band host surface brightnesses at the positions of 29 ZTF SNe using late-time ZTF data (see Table 3; details on the calculation described in Appendix A.2). We assume that LSST SNe will explode in as bright galaxies and randomly draw host backgrounds from this distribution. To first order, the host surface brightness is independent of the distance: Nearby galaxies are brighter, but they are also more resolved, such that the number of photons per pixel is roughly preserved. We use Eq. 2 to calculate by how much these hosts would reduce the sensitivity of our search in LSST data. Figure 4 shows that 46% of the galaxies are brighter than the average LSST sky background, i.e., the host background reduces the limiting magnitude by more than $0.38\,\text{mag}$ and for 7% of the hosts the sensitivity is reduced by more than $1\,\text{mag}$.

Compared to LSST, ZTF is less affected by host backgrounds because the sky background is on average $1\,\text{mag}\,\text{arcsec}^{-2}$ brighter than at the LSST site. Nevertheless, the ZTF search is host-dominated for $14\%$ or four of the 29 SNe in our sample: the host backgrounds of SN 2019yvr, SN 2020oi, and SN 2020fqv are larger than the average sky background and the bright host of SN 2018ivc produces large residuals during image subtraction, such that quality cuts reject most $r$-band observations (compare Sect. A.2).

Even the brightest host galaxies are most likely not saturated in LSST images. For a seeing of $0.7\,\text{arcsec}$ and an exposure time of $15\,\text{s}$, a point source is saturated if it is brighter than $15.8\,\text{mag}$ in the $r$ band (Abell et al., 2009). For this seeing and the LSST pixel size (Ivezić et al., 2019) about $10\%$ of the photons fall on the brightest pixel. An extended source, like a galaxy, produces as many photons per pixel if it has a surface brightness of $14.8\,\text{mag}\,\text{arcsec}^{-2}$. In the ZTF sample, SN 2020oi has the brightest host background with $18.1\,\text{mag}\,\text{arcsec}^{-2}$, and is hence a factor of 20 fainter than the LSST saturation limit for extended sources.

3.3 Expected LSST progenitor detections

LSST is planning to monitor $18\,000\,\text{deg}^{2}$ of extragalactic sky over ten years in the $ugrizy$ filters (Ivezić et al., 2019). For an SN rate of $10^{-4}\,\text{Mpc}^{-3}\,\text{yr}^{-1}$ (Perley et al., 2020) and the distribution of nearby galaxies (Dálya et al., 2022), we expect in total $\sim 600$ SNe within $70\,\text{Mpc}$. Out of these, 490 have peak magnitudes brighter than $18.5\,\text{mag}$ in the $g$ or $r$ band and fade within the survey duration to at least $24.7\,\text{mag}$ in the $r$ band. 56% or about 270 of them are SNe II with RSG progenitors (Li et al., 2011).

Next, we convert the available number of LSST images, calculated in Sect. 3.1, to limiting magnitudes while also considering the impact of the host background as described in Sect. 3.2. The most constraining limits are $\sim 27.2\,\text{mag}$ in the $r$ band for SNe that have 70 LSST observations both before and after the SN. However, the median SN only has half as many observations in the shorter time window and the median limiting magnitude is, therefore, $26.2\,\text{mag}$ in the $r$ band and $25.9\,\text{mag}$ and $25.8\,\text{mag}$ in the $g$ and $i$ bands, respectively.

Figure 5 shows the distance distribution of the closest SNe (orange distribution) and their detection probability in the LSST $g$, $r$, and $i$ bands. For the $i$ band the detection probability is close to one out to $\sim 10\,\text{Mpc}$, i.e., even faint progenitor stars are detected within this distance. In the $g$ band, on the other hand, progenitors are so faint that they might remain undetected even for the closest SNe. The total expected number of RSG detections is given by the sum over the distribution: We expect about 46 RSG progenitor detections in the $i$ band, 17 in the $r$ band, and 1.4 in the $g$ band, if the stars have M4 spectra (see Table 5). Neglecting the host background (see Sect. 3.2) would have yielded 56 $i$-band detections, e.g., $\sim 30\%$ of the RSG progenitors remain undetected due to their bright host galaxies. For a less red M2 spectrum, we expect 72, 44, and 5 detections in the $i$, $r$, and $g$ bands, respectively. LSST is hence sensitive to the surface temperature and we expect more detections for slightly hotter progenitors.

Our search will also produce strong constraints for the high-luminosity end of the RSG luminosity function: The brightest detected RSG so far is SN 2012ec with a bolometric magnitude of $-8.11\,\text{mag}$ (compare Table 7), corresponding to an LSST $i$-band magnitude of $-7.28\,\text{mag}$. We expect that 100 LSST searches will be sensitive to as bright progenitor stars. These observations can help to establish whether a significant RSG problem is present.

LSST will also detect non-RSG progenitors. Table 5 lists the expected number of SNe within $70\,\text{Mpc}$ based on the volumetric SN fractions by Li et al. (2011) and Kleiser et al. (2011). The luminosity functions of these progenitor types are not well constrained, and we, therefore, assume that all YSGs are as bright as the progenitor of SN 2008ax (see Table 8), for BSGs we adopt the magnitude and spectrum of the progenitor of SN 1987A. The last three columns of Table 5 show that we expect the detection of $\sim 4$ YSG and $2$ BSG progenitors. In addition, we expect the detection of at least one SN Ib progenitor if they are brighter than $-4.7\,\text{mag}$ in the $i$ band, and SN Ic progenitors become detectable if they are at least as bright as $-4.0\,\text{mag}$.

3.4 LSST detection rates for pre-SN eruptions

The impending core collapse can trigger pre-SN outbursts. These eruptions are well observed for SNe IIn (Ofek et al., 2014; Strotjohann et al., 2021), but also happen prior to other Types of SNe (see e.g. Ho et al. 2019; Jacobson-Galán et al. 2022a). We here estimate rough LSST detection rates for outbursts that happen immediately before the SN explosion.

Bright outbursts can be detected even for distant SNe and we assume a homogeneous SN rate of $10^{-4}\,\text{Mpc}^{-3}\,\text{yr}^{-1}$ for distances larger than $70\,\text{Mpc}$ where the GLADE+ galaxy catalog is incomplete. As before, we only consider SNe with peak magnitudes brighter than $18.5\,\text{mag}$. Within the ten-year LSST survey, we expect the detection of $3\,300$ as bright core-collapse SNe and they are located at a median distance of $120\,\text{Mpc}$.

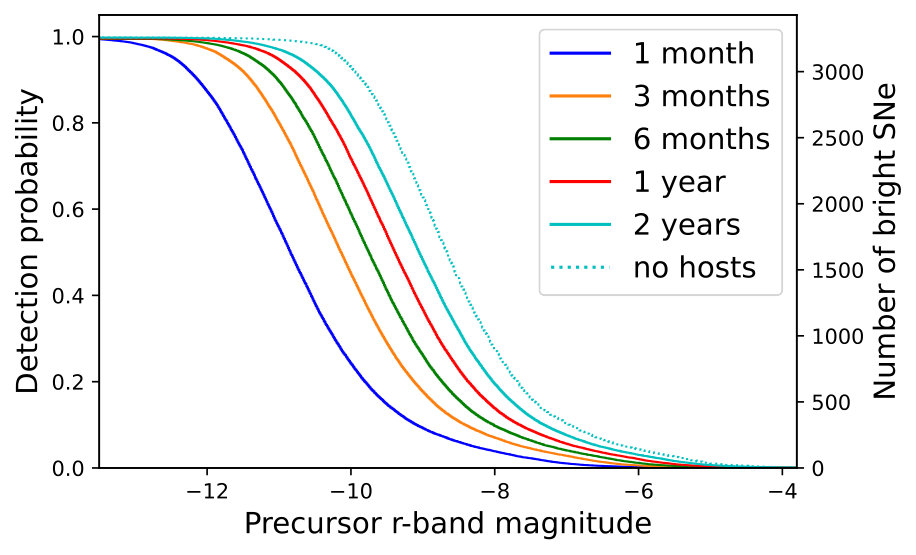

Figure 6 shows our sensitivity to precursor eruptions depending on the outburst magnitude and duration. One-month-long outbursts are typically only present in one or two LSST $r$-band images and LSST can detect half of them if they are brighter than an absolute magnitude of $-10.3\,\text{mag}$. Longer-lasting outbursts are observed several times and combining several epochs increases our sensitivity. We search for outbursts as described in Sect. 3.2. The only difference is that we compare observations obtained a few months or years before the SN to earlier pre-SN observations. and for For a two-year-long eruption, the median sensitivity improves to $-9.0\,\text{mag}$. The dotted, cyan line in Fig. 6 visualizes that the average host reduces our sensitivity by $0.4\,\text{mag}$ (see also Fig. 4).

SNe IIn make up about 9% of all core-collapse SNe (Perley et al., 2020) and LSST will detect $\sim 300$ SNe IIn with peak magnitudes brighter than $18.5\,\text{mag}$. Strotjohann et al. (2021) found that $25\%$ of the progenitors have outbursts brighter than $-13\,\text{mag}$ and Fig. 6 shows that as bright outbursts are detectable even in single LSST images. Therefore, we expect the detection of at least 75 such outbursts. A four-months-long outburst with a faint, absolute magnitude of $-11.3\,\text{mag}$ was detected prior to SN 2020tlf, an SN II with long-lasting flash-spectroscopy features (Jacobson-Galán et al., 2022a). We expect the detection of 1 800 bright SNe II and similar outbursts would be detectable for 90% of them. This large number of bright SNe will allow us to measure the rate, luminosity function, and timing of the outbursts which might contribute to revealing their triggering mechanism.

4 Conclusion

We propose searching for SN progenitor stars by combining a large number of images from ground-based, wide-field surveys to detect the star’s disappearance. The advantages of this approach are that the data is readily available, it is collected systematically for a large fraction of the sky, usually in several bands, and late-time data ensures that the progenitor star has indeed vanished.

We test the proposed method by searching for the progenitor stars of 29 ZTF SNe with redshift $z<0.01$ that have already faded sufficiently (see Sect. 2). We combine up to a few hundred observations before and after the SN and subtract the fluxes in these two time windows from each other. With the available amount of data, the background from host galaxies, and statistical and systematic errors in ZTF difference images, we reach limiting magnitudes down to $\sim 23\,\text{mag}$ in the $g$ and $r$ bands. We do not detect any progenitor stars or long-lasting outbursts and detections reported in the literature are typically several magnitudes fainter than our limits (see Sect. 2.4). We estimate that ZTF is sensitive to the brightest YSGs and to the closest RSGs within $5\,\text{Mpc}$, which yields a detection rate of approximately one per decade. Additional data would likely improve the limiting magnitude for some fields, while others seem limited by various errors. Our search is, on average, $1\,\text{mag}$ less sensitive than expected for a ZTF-like survey, in part presumably because we combined relatively shallow difference images instead of producing dedicated difference images. Our method hence requires precise photometric calibration, long-term stability, and potentially improved image co-addition and source detection methods.

In Sect. 3, we quantify the expected number of progenitor detections with the upcoming LSST survey, assuming that the survey reaches its design specifications. We carefully consider the increased background due to bright host galaxies, but presume that they do not create residuals or other systematic errors during image subtraction. We can mitigate such errors empirically, as done for ZTF in Sect. 2.3. However, this would reduce the sensitivity of our search.

We estimate that LSST will yield 50 to 70 RSG progenitor detections. For half of the RSG progenitors, $r-i$ colors will allow us to constrain the surface temperature and distinguish between M2 and M4 type stars, reducing the statistical and systematic errors on the RSG luminosity function. The larger sample of RSG progenitors with measured bolometric corrections might help to establish whether the RSG problem is significant (impact of bolometric corrections shown by Davies & Beasor 2018).

We also expect to detect several YSG and BSG progenitors (see Table 5), but the number of detections is highly uncertain due to the unknown luminosity functions and surface temperatures and due to statistical fluctuations. The detection of SNe Ib and Ic progenitors is possible if their LSST $i$-band magnitudes are brighter than $-4.7\,\text{mag}$ or $-4.0\,\text{mag}$, respectively. The progenitors of stripped-envelope SNe could either be stripped by binary partners, or they could be very massive stars with strong winds, and progenitor detections in several bands might allow us to distinguish between these two scenarios. Wu & Fuller (2022) predict that late nuclear burning stages trigger mass loss and brightening for stripped stars. Such events would boost the detection rate for these progenitors and offer direct information about processes in the stellar core.

LSST pre-SN light curves will be sensitive to precursor eruptions that could produce confined shells of material around the star (see, e.g., Tsuna et al. 2022). Increased mass-loss is required to explain both flash-spectroscopy features (see e.g., Bruch et al. 2022) and early SN light curves (Morozova et al., 2020; Förster et al., 2018), but it is so far unclear how the star produces this environment (see e.g., Davies et al. 2022). We expect the detection of more than $70$ bright outbursts prior to SNe IIn and many RSG outbursts if they are common and brighter than $-9\,\text{mag}$. In addition, low-amplitude variability or dimming events, for example observed by Szczygieł et al. 2012 and Rui et al. 2019, can be detected for the brightest progenitors.

In summary, we show that the planned LSST survey is well suited to detect both quiescent and flaring SN progenitor stars and might therefore provide answers to several open questions concerning the last evolutionary stages of massive stars.

We thank the anonymous referee, Schuyler Van Dyk, and Doron Kushnir for their comments on the manuscript. In addition, we are grateful to Morgan Fraser, Emma Beasor, Samantha Wu, Azalee Bostroem, Eva Laplace, and Dietrich Baade for helpful discussion. We would like to thank the organizers of the MIAPbP workshop on interacting supernovae. N.L.S. is funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) via the Walter Benjamin program – 461903330. This research was supported by the Munich Institute for Astro-, Particle and BioPhysics (MIAPbP) which is funded by the Deutsche Forschungsgemeinschaft under Germany’s Excellence Strategy – EXC-2094 – 390783311. E.O.O. is grateful for the support of grants from the Benozio center, Willner Family Leadership Institute, Ilan Gluzman (Secaucus NJ), Madame Olga Klein - Astrachan, Minerva foundation, Israel Science Foundation, BSF, Israel Ministry of Science, Yeda-Sela, and Weizmann-MIT. This work is based on observations obtained with the Samuel Oschin Telescope 48-inch and the 60-inch Telescope at the Palomar Observatory as part of the Zwicky Transient Facility project. ZTF is supported by the National Science Foundation under Grants No. AST-1440341 and AST-2034437 and a collaboration including current partners Caltech, IPAC, the Weizmann Institute of Science, the Oskar Klein Center at Stockholm University, the University of Maryland, Deutsches Elektronen-Synchrotron and Humboldt University, the TANGO Consortium of Taiwan, the University of Wisconsin at Milwaukee, Trinity College Dublin, Lawrence Livermore National Laboratories, IN2P3, University of Warwick, Ruhr University Bochum, Northwestern University and former partners the University of Washington, Los Alamos National Laboratories, and Lawrence Berkeley National Laboratories. Operations are conducted by COO, IPAC, and UW. This research has made use of the NASA/IPAC Extragalactic Database (NED), which is funded by the National Aeronautics and Space Administration and operated by the California Institute of Technology. This research has used the Spanish Virtual Observatory (https://svo.cab.inta-csic.es) project funded by MCIN/AEI/10.13039/501100011033/ through grant PID2020-112949GB-I00.

Appendix A ZTF search

A.1 Forced Photometry Pipeline and Quality Cuts

Instead of implementing our own image subtraction algorithm, we rely on difference images created by IPAC (Masci et al., 2019) based on the ZOGY algorithm (Zackay et al., 2016). IPAC difference images are based on relatively shallow reference images that were produced by coadding 15 to 20 images. We download the IPAC difference images, their associated point spread functions (PSFs), and reference images using the ztfquery package (Rigault, 2018) and calculate forced-photometry light curves for all SNe.

We first determine the exact SN position by calculating the median right ascension and declination of all ZTF alerts (Patterson et al., 2019) that were issued for the SN. Our forced-photometry pipeline is a modified version of the pipeline written by Yao et al. (2019), also used by Strotjohann et al. (2021). As demonstrated by Strotjohann et al. (2021) 50 MCMC walkers yield a sufficiently precise flux measurement. The results are similar to light curves produced by the ZTF forced-photometry service (Masci et al., 2019), but our pipeline returns additional parameters that we use for quality cuts.

After calculating the SN light curves, we reject less reliable data points according to the following criteria: (1) flagged images (i.e. the INFOBITS keyword in the header is not zero), (2) images with large residuals in the background region (a background standard deviation of $>25\,\text{counts}$), (3) images with bad pixels within the $7\times 7$ pixels around the SN position, (4) images with a seeing of $>4\,\text{arcsec}$, (5) images with intermittent clouds that are flagged in the IPAC metadata tables888As described in https://web.ipac.caltech.edu/staff/fmasci/ztf/extended_cautionary_notes.pdf. The flag is only present in the meta tables because the image headers are written earlier. (6) images based on deleted reference images. A few ZTF reference images were accidentally overwritten, such that later difference images are based on a new, different reference image. To avoid combining observations with different reference images we discard any difference images that were created earlier than the available reference image. All quality cuts and their impact on the amount of data are listed in Table 6 and the fluxes of all observations that pass our quality cuts are given in Table 2.

ZTF $i$-band observations are on average one magnitude less sensitive compared to the $g$ and $r$ bands and the images suffer from fringing. Therefore, we discard them here even though the $i$-band flux of RSGs are typically $\sim 1.5\,\text{mag}$ brighter than their $r$-band flux (see Sec. 2.4).

Like Yao et al. (2019), we use the zeropoints from the image headers to calculate fluxes $f$ in units of maggies. These are converted to asinh magnitudes (Lupton et al., 1999) via:

[TABLE]

with a softening parameter $b=10^{-10}$. If the calculated magnitude is smaller than the limiting magnitude, the source is detected at the $5\,\sigma$ level. Otherwise, we use the $5\,\sigma$ upper limit as a non-detection, and the magnitude does not have a physical meaning (Lupton et al., 1999).

In the following, we only consider objects with at least 20 pre-SN observations per field. For these sources, we do a baseline correction, to ensure that the weighted mean pre-SN flux is zero. This is done separately for each field or reference image, i.e., for observations with the same combination of ZTF field, CCD, quadrant, and filter. We use the baseline correction only to calculate the SN fading time in Sect. 2.1. When searching for progenitors in Sect. 2.2 we subtract late from early fluxes, such that the baseline correction cancels out.

To check whether the errors of the flux can account for the scatter of the pre-explosion light curve, we calculate the reduced $\chi^{2}$ relative to the zero-flux level. If the result is larger than one, the flux errors are likely underestimated and we scale them up such that the reduced $\chi^{2}$ reaches one. If the reduced $\chi^{2}$ is smaller than one, the error bars are potentially too large and we do not modify them. The corrections are generally small with factors close to one.

For the sample selection, described in Sect. 2.1, we bin light curves in 7-day-long bins and also combine fluxes with different reference images. We use the median observation time as the time of the binned data point. The flux per bin is the mean flux weighted by the flux errors and the error on the flux is calculated via error propagation because many bins do not contain enough data points to calculate bootstrap errors (Efron, 1982). We make sure that observations before and after the estimated explosion date are never combined in the same bin.

A.2 Additional error sources in ZTF images

One major error source for our analysis are bright host galaxies which can impact our search in several ways as image subtractions do not always work well for these environments: One effect is that the higher source noise increases the statistical errors in each pixel (as quantified in Sect. 3.2). This higher background results in larger errors when fitting the flux and is therefore considered automatically by the forced-photometry pipeline. SN 2020oi and SN 2018ivc have the brightest hosts (see Table 3) and Fig. 1 shows that the typical flux upper limits are less constraining compared to the other SNe in the sample.

In addition to increased source noise, bright hosts can cause photometric errors or residuals in difference images, that are harder to quantify. Both registration errors, i.e., misalignments by the fraction of a pixel, and errors on the gain are more severe in such locations as the large fluxes in the science and reference images are subtracted from each other. We find that our quality cuts are to some degree sensitive to these problems: For positions on top of a bright galaxy such as SN 2018ivc, most $r$-band observations are rejected, because they have poor PSF fits with a reduced $\chi^{2}>1.4$.

When searching for progenitor stars, we are comparing observations that were obtained several years apart and we observe for some sources that the residuals become larger due to long-term changes. This is also observed for SN 2020cxd (see Fig. 7) for which the background flux decreases both before and after the SN. We do not detect similar trends at other positions in the galaxy and it might be caused by a background source. Another error source are the rather shallow reference images. In the progenitor search, we are trying to detect sources that are potentially fainter than the limiting magnitude of the reference image. In our search, we only compare difference images that were produced with the same reference image, such that the reference’s impact cancels out to first order. However, when producing difference images the reference is convoluted with the PSF of the science image which could introduce residuals, e.g. if the average seeing is different in pre-explosion images compared to late-time images. To mitigate the impact of these errors empirically, we repeat the progenitor search for 20 positions in the field where the host is similarly bright and if the resulting residuals are larger than expected, we scale up the error bars.

First, we measure the host flux at the SN position. Some reference images contain SN light and, therefore, we measure the host flux in late-time science images instead. For each field, we download 25 science images, that are not flagged, have a limiting magnitude of more than $19.5\,\text{mag}$, and a seeing of $<4\,\text{arcsec}$. Then, we measure the sky background in a $600\times 600$ pixels large region around the SN position. We reject $2\,\sigma$ outliers to remove any sources in the image and calculate the median count rate for the remaining pixels. We then determine the host flux by calculating the median flux of the $7\times 7$ pixels around the SN position, the same pixels that are used for the PSF fit, and we subtract the sky background from it. To obtain a result in physical units, we convert the fluxes to maggies using the zeropoint from the image header (Masci et al., 2019) and we normalize it to a flux per arcsec2. In Table 3 we quote the median host flux of all 25 late-time images as the host flux and use the standard deviation as the uncertainty on the flux.

Next, we select positions within the same host galaxy that have similar fluxes. For this purpose, we take a cartesian grid of positions with separations of 7 pixels and 21 times 21 points. We estimate the host flux at each of these positions as described above and select the 20 positions with the flux that is closest to the flux at the SN position. Then, we obtain forced-photometry light curves for each position and run the progenitor search.

Each of the 20 background positions yields a flux residual, the early-time minus the late-time flux, and we calculate the standard deviation of these 20 residuals. If it is close to one the size of the error bars is appropriate, but if it is larger than one the residuals scatter more than expected and we scale up the error bars by the size of the standard deviation. All scaling factors are given in the seventh column of Table 3 and they are typically close to one. For SN 2018ivc, the scaling factor is close to two due to its bright host and a few other fields also have relatively high scaling factors, but we cannot identify an obvious reason.

A.3 Simulated sources

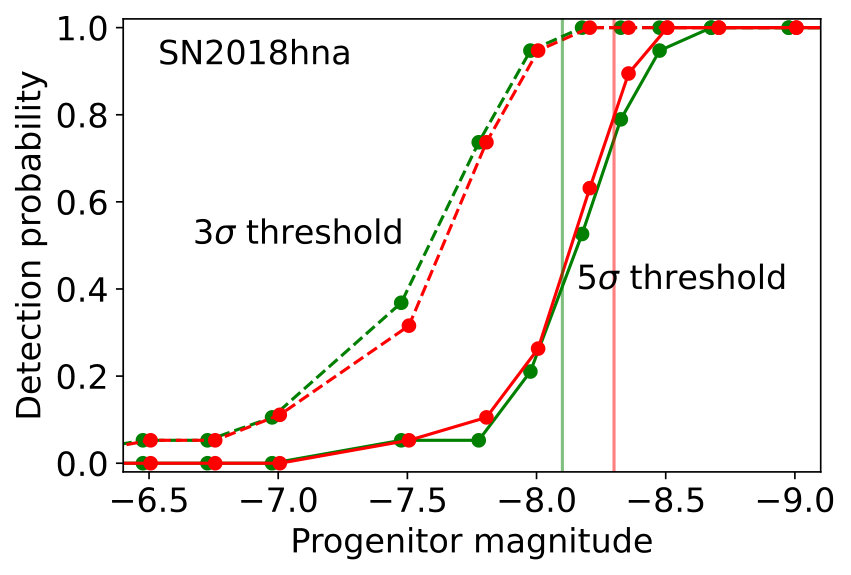

To verify our sensitivity we inject point sources into the ZTF images and rerun the search to check whether these sources are detected significantly. To save computational time, we do this test only for two fields that include SN 2018hna, 8190141 and 8190142, which yield deep limits in the $g$ and $r$ bands (see Table 3).

We simulate progenitors at the same 20 positions that we use to construct the background dataset in Sect. A.2. When simulating a point source with a certain magnitude in a given image, we first calculate the expected number of photons based on the zeropoint and exposure time and simulate a Gaussian with the width of the measured seeing. We also consider atmospheric scintillations which shift the point source by the fraction of a pixel (the root mean squared displacement is given by Eq. 51 by Zackay et al. 2016). We inject sources of various luminosities into the pre-explosion images, run the progenitor search, and check whether the simulated progenitors are detected with a significance of $5\,\sigma$.

Figure 8 shows that we obtain $5\,\sigma$-detections if the progenitor is brighter than $-7.5\,\text{mag}$ to $-8.25\,\text{mag}$ in the $g$ or $r$ band. At the actual SN position, we measured $5\,\sigma$ limiting magnitude of $-8.1\,\text{mag}$ and $-8.3\,\text{mag}$ in the $g$ and $r$ band, respectively (see also Table 3 and Sect. 2.3). The limit that the progenitor search returns is, hence, comparable to the magnitudes at which we can detect simulated sources in the same field. We, therefore, conclude that the quoted limiting magnitudes are realistic. The dashed lines in the figure show that $3\,\sigma$ limiting magnitudes would be $\sim 0.7\,\text{mag}$ more constraining. However, we here maintain the $5\,\sigma$ threshold to avoid false detections.

Appendix B Converting between different spectral bands

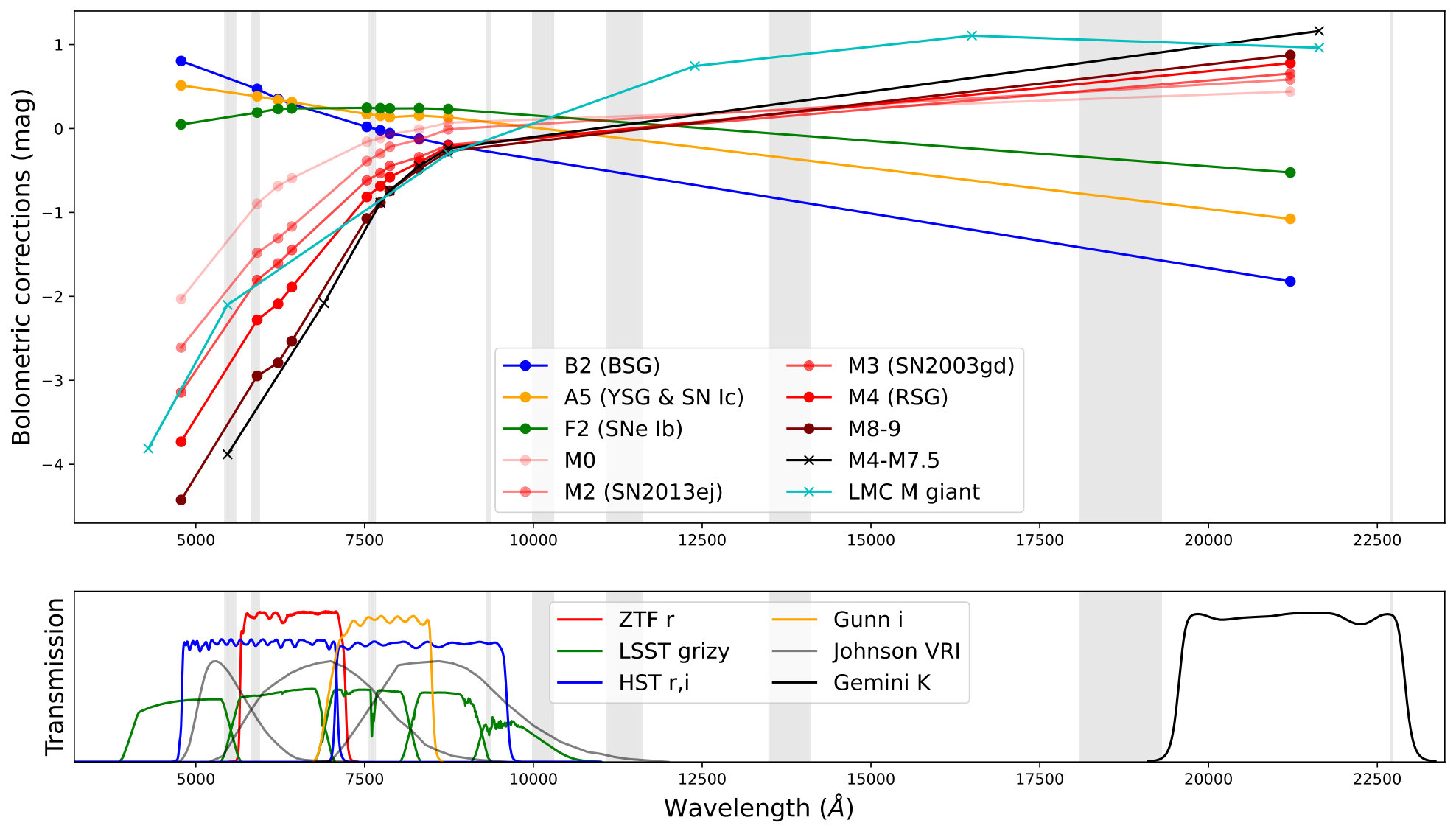

Converting between different spectral bands requires assuming a spectral shape. We use observed stellar spectra from the third data release of the X-shooter spectral library (XSL999http://xsl.u-strasbg.fr; Verro et al. 2022). We only select dereddened spectra that are corrected for slit losses and have data over the entire wavelength range. We interpolate over telluric bands and chip gaps (wavelength ranges given in Fig. A.3 of Lançon et al. 2021) with a quadratic spline function. Supergiant spectra are not available for the coolest RSGs (more evolved than type M5) and we use giant spectra instead. We calculate bolometric magnitudes by integrating the XSL spectra between $3500\,\text{\AA}$ and $24800\,\text{\AA}$ and single-band magnitudes by integrating over the spectrum multiplied with the filter profile. Figure 9 shows the resulting bolometric corrections for supergiant or giant stars of different spectral types.

We assume that blue supergiant (BSG) progenitors have spectra similar to B2 stars (Walborn et al., 1989). For YSG progenitors of SNe IIb we adopt an A5 star spectrum (Kilpatrick et al., 2022) and Kilpatrick et al. (2021) found the only detected SN Ic progenitor has a similar $V-I$ color. The progenitors of SNe Ib are assumed to be similar to F2 stars (Xiang et al., 2019). We caution that the true spectral shapes are largely unknown, such that the resulting bolometric corrections have large uncertainties.

Davies & Beasor (2018) carefully consider the temperatures of RSG progenitors and conclude that they are most similar to the reddest RSGs. Davies & Beasor (2018), therefore, adopt an average M4-M7.5 type spectrum. However, none of the M-type supergiants in the XSL is as red (compare Fig. 9). Instead of picking the reddest RSG in the catalog (shown as a dark red line in Fig. 9), we adopt the spectrum of a slightly hotter M4 star for all RSGs, except the progenitors of SN 2003gd and SN 2013ej for which we assume M3 and M2 spectra following Davies & Beasor (2018). The spread of the red lines in Fig. 9 illustrate the size of the uncertainty for the entire range of M-type giants. Most RSG progenitors are detected in the F814W band where the bolometric corrections differ by up to $0.5\,\text{mag}$ between M supergiants of different types. However, the impact of the unknown progenitor temperatures is much larger in the $r$ band, where the cooler M9 stars are $2\,\text{mag}$ fainter than M0 supergiants. As a consequence, RSG observations in the $r$ band, including the ZTF data analyzed in Sect. 2, have highly uncertain bolometric magnitudes.
