Numerical determination of monopole scaling dimension in parity-invariant three-dimensional non-compact QED

TL;DR

This paper uses Monte Carlo simulations to directly measure the scaling dimension of monopole operators in three-dimensional non-compact QED with various fermion flavors, providing insights into the theory's infrared behavior.

Contribution

It introduces a novel Monte Carlo method to determine monopole scaling dimensions directly in 3D QED, analyzing different flavor numbers and comparing with large-N predictions.

Findings

Scaling dimension for N=12 matches large-N value.

Deviations for N=2 and 4 are small and positive.

Higher order corrections are mildly significant for low N.

Abstract

We present a direct Monte-Carlo determination of the scaling dimension of a topological defect operator in the infrared fixed point of a three-dimensional interacting quantum field theory. For this, we compute the free energy to introduce the background gauge field of the $Q=1$ monopole-antimonopole pair in three-dimensional non-compact QED with $N=2,4$ and $12$ flavors of massless two-component fermions, and study its asymptotic logarithmic dependence on the monopole-antimonopole separation. We estimate the scaling dimension in the $N=12$ case to be consistent with the large-$N$ (free fermion) value. We find the deviations from this large-$N$ value for $N=2$ and $4$ are positive but small, implying that the higher order corrections in the large-$N$ expansion become mildly important for $N=2,4$.

Figures

Equations

$$⟨\mathcal{O}(x)\mathcal{O}(0)⟩\sim \frac{1}{|x{|}^{2\Delta }}.$$

$$Z(A^{Q\overline{Q}}(\tau ))\sim \frac{1}{{\tau }^{2{\Delta }_Q}},$$

$$Z=\left(\prod _{x,\mu }{\int }_{-\infty }^{\infty }d{\theta }_{\mu }(x)\right){\det }^{N/2}\left[/C^{†}(U)/C(U)\right]\times {\mathcal{W}}_{\mathrm{g}},$$

$$F_{\mu \nu }(x)={\nabla }_{\mu }{\theta }_{\nu }(x)-{\nabla }_{\nu }{\theta }_{\mu }(x);{\nabla }_{\mu }f(x)=f(x+\hat{\mu })-f(x).$$

$${\mathcal{W}}_{\mathrm{g}}\equiv e^{-{\sum }_x{S}_{\mathrm{nc}}(x)};S_{\mathrm{nc}}(x)=\frac{L}{\ell }\sum _{\mu >\nu }{F}_{\mu \nu }^2(x),$$

$${\mathcal{W}}_{\mathrm{g}}\equiv e^{-{\sum }_x{S}_{\mathrm{c}}(x)};S_{\mathrm{c}}(x)=\frac{2L}{\ell }\sum _{\mu >\nu }\left[1-\cos \left(F_{\mu \nu }(x)\right)\right],$$

$$Q(x)=\frac{1}{2}{ϵ}_{\mu \nu \rho }{\nabla }_{\mu }{N}_{\nu \rho }(x).$$

$${\mathcal{W}}_g\equiv \sum _{\{N_{\mu \nu }\}}{e}^{-{\sum }_x{S}_{\mathrm{v}}\left(x,\{N_{\mu \nu }\}\right)};S_{\mathrm{v}}(x)=\frac{L}{\ell }\sum _{\mu >\nu }{\left(F_{\mu \nu }(x)-2\pi N_{\mu \nu }(x)\right)}^2$$

$$N_{\mu \nu }(x)={\nabla }_{\nu }{n}_{\mu }(x)-{\nabla }_{\mu }{n}_{\nu }(x),$$

$$\frac{1}{2}{ϵ}_{\mu \nu \rho }{\nabla }_{\mu }{N}_{\nu \rho }^{Q\overline{Q}}(x)=Q{\delta }_{x,y}-Q{\delta }_{x,y^{\prime }}.$$

$$S_{\mathrm{v}}^{Q\overline{Q}}=\sum _{x,\mu <\nu }{\left(B_{\mu \nu }^{Q\overline{Q}}(x)-2\pi N_{\mu \nu }^{Q\overline{Q}}(x)\right)}^2;B_{\mu \nu }^{Q\overline{Q}}(x)={\nabla }_{\nu }{\mathcal{A}}_{\mu }^{Q\overline{Q}}(x)-{\nabla }_{\mu }{\mathcal{A}}_{\nu }^{Q\overline{Q}}(x),$$

$$Z_{Q}=\left(\prod_{x,\mu}\int_{-\infty}^{\infty}d\theta_{\mu}(x)\right){\det}^{N/2}\left[\not{C}^{\dagger}(U)\not{C}(U)\right]e^{-\frac{L}{\ell}\sum_{y,\mu>\nu}\big{[}F_{\mu\nu}(y)-B^{Q\overline{Q}}_{\mu\nu}(y)\big{]}^{2}}.$$

$$G_{\mathrm{B}}^{(Q)}(\tau ,\ell ,a)=\frac{Z_Q}{Z_0};\tau =T\frac{\ell }{L}.$$

$$N_{12}^{Q\overline{Q}}(0,0,x_3)=2\pi Q;1\le x_3\le T,$$

$$G_{\mathrm{B}}^{(Q)}(\tau ,\ell ,a)={⟨e^{\frac{L}{\ell }{\sum }_{y,\mu >\nu }{B}_{\mu \nu }^{Q\overline{Q}}(y)\left(2F_{\mu \nu }(y)-B_{\mu \nu }^{Q\overline{Q}}(y)\right)}⟩}_0,$$

$${\mathcal{F}}_{\mathrm{B}}^{(Q)}(\tau ,\ell ,a)\equiv -\log \left[G_{\mathrm{B}}^{(Q)}(\tau ,\ell ,a))\right]={\int }_0^{Q}d\zeta W(\zeta ),$$

$$W(\zeta)=\frac{-1}{Z_{\zeta}}\frac{\partial Z_{\zeta}}{\partial\zeta}=\frac{2L}{\ell}\bigg{\langle}\sum_{x}(F_{\mu\nu}(x)-\zeta B^{(1)}_{\mu\nu}(x))B^{(1)}_{\mu\nu}(x)\bigg{\rangle}_{\zeta}.$$

$$G_{\mathrm{B}}(\tau ,\ell ,a)=a^{2d}{G}_{\mathrm{R}}(\tau ,\ell );G_{\mathrm{R}}(\tau ,\ell )=\frac{1}{{\ell }^{2\Delta }}\mathcal{G}\left(\frac{\tau }{\ell }\right),\text{as}\tau ,\ell \to \infty .$$

$${\mathcal{F}}_{\mathrm{R}}(\ell )=-\log \left[G_{\mathrm{R}}(\rho \ell ,\ell )\right]=f_0(\rho )+2\Delta \log (\ell ),$$

$$f_{\mathrm{R}}(\ell )\equiv \frac{{\mathcal{F}}_{\mathrm{R}}(\ell )}{N}=f_0^{\prime }(\rho )+\frac{2\Delta }{N}\log (\ell ).$$

$$\frac{\Delta }{N}={\Delta }^{\infty }+\frac{k}{N}+\dots ,$$

$$G_{\mathrm{R}}(\rho \ell ,\ell )={\left(\frac{\ell }{L}\right)}^{-2d(L)}{G}_{\mathrm{B}}(\rho \ell ,\ell ,a),$$

$$\delta (\ell ;N,N^{\prime })=f_{\mathrm{R}}(\ell ;N)-f_{\mathrm{R}}(\ell ;N^{\prime }),$$

$$\delta (\ell ;N,N^{\prime })=2\left[\frac{\Delta (N)}{N}-\frac{\Delta (N^{\prime })}{N^{\prime }}\right]\log (\ell ),$$

$$\delta (\ell ;N,12)=\left(a_0+\frac{a_1}{L}\right)+2\left(b_0+\frac{b_1}{L}\right)\log (\ell ),$$

$$\frac{\Delta (2)}{2}-\frac{\Delta (12)}{12}$$

$$\frac{\Delta (4)}{4}-\frac{\Delta (12)}{12}$$

$$f_{\mathrm{R}}(\ell )=\left({\alpha }_0+\frac{{\alpha }_1}{L}\right)+2\left({\beta }_0+\frac{{\beta }_1}{L}\right)\log (\ell ),$$

Full text

I Introduction

Conformal field theories in three-dimensions, and renormalization group flows from one fixed point to another induced by the introduction of relevant operators at fixed points have been investigated over the last few years. This involves the computation of scaling dimensions, $\Delta$, of operators at the different fixed points. The operators ${\cal O}$ at a fixed point could be the usual composites of the field variables, and hence trivially local and amenable to the standard Monte Carlo computations of two-point functions of the local operator

[TABLE]

The operators could also be topological disorder operators Borokhov et al. (2002) which act as sources to topological conserved currents in the theory. Since such operators cannot be written as simple composites of the field variables, studying their scaling dimensions is a challenge, especially on the numerical side. In the case of theories with U$(1)$ global or gauged symmetry, the topological defects are the monopoles, $M_{Q}$, which create $Q$ units of flux surrounding it Borokhov et al. (2002), and hence serve as the sources of the otherwise trivially conserved U${}_{\rm top}(1)$ current, $j_{\mu}^{\rm top}=\epsilon_{\mu\nu\rho}F^{\nu\rho}/(4\pi)$. Three-dimensional QED, whose gauge group is U$(1)$ as opposed to ${\mathbf{R}}$, is one such theory where monopole defects can occur. Depending on whether monopoles are energetically allowed or disallowed in the continuum limit, the three-dimensional QED is classified as compact or non-compact respectively. The presence of two distinct theories, differing simply by the presence or absence of monopoles, offers theoretical and computational possibilities in understanding the emergence of mass-gap.

Pure-gauge compact QED in three-dimensions is a rare example in which the emergence of mass-gap could be understood through the dual superconductor mechanism where in the electric charges experience a linear confining potential due to the presence a plasma of magnetic monopoles Polyakov (1975, 1977). Coupling the compact QED3 (referred to as c-QED3) to many flavors, $N$, of massless two-component fermions (assumed to be even to preserve parity) gives a possibility to counter the emergent mass-gap Pufu (2014) — above certain critical flavor $N^{\rm C}_{c}$, the theory is expected to be conformal in the infra-red, whereas develops a mass-gap below $N^{\rm C}_{c}$. In a first exploratory study Hands et al. (2006) towards finding $N^{\rm C}_{c}$, a derivative of free-energy required to introduce a single monopole was computed on a lattice with open boundary conditions in the $N=8$ flavor compact QED3, and no convincing evidence for an infinite free-energy signalling monopole-confinement was found in the continuum limit. Thereby, this suggested a presence of monopole plasma and a consequent mass-gap in compact QED3 for $N\leq 8$. Understanding such infra-red quantum phases obtained by tuning parameters of the underlying QFT is an ongoing field of research (c.f., Wang et al. (2017)). Similar studies of the critical number of flavors, $N_{c}^{\rm NC}$, in non-compact QED3 (referred to as nc-QED3) is continued to be investigated through ab initio lattice simulations Hands et al. (2002, 2004); Raviv et al. (2014); Karthik and Narayanan (2016a, b) as well as through other approximation methods Di Pietro et al. (2016); Giombi et al. (2016); Kotikov et al. (2016); Gusynin and Pyatkovskiy (2016); Di Pietro and Stamou (2017); Herbut (2016). Unlike non-compact QED3, the presence of monopoles in the compact version even as the continuum limit is approached, is a technical challenge to numerical studies due to the presence of many small eigenvalues of the three-dimension Dirac operator Armour et al. (2011). An indirect feasible approach is to check whether the monopole operator is marginally relevant in the infrared fixed point of the $N$ flavor non-compact QED3 Pufu (2014). Crucial to this inference is that the monopoles in a gauge theory with $N$ massless fermions break ${\rm U}(N)$ global flavor symmetry to ${\rm U}(N/2)\times{\rm U}(N/2)$ symmetry Pufu (2014); Dyer et al. (2013); Chester et al. (2016). Such an approach further assumes that 1) both compact and non-compact QED3 flow to the same infrared fixed point for $N>N^{\rm C}_{c}$; 2) $N_{c}^{\rm NC}<N^{\rm C}_{c}$. At least in the $N\to\infty$ limit, the compact or non-compact action will be sub-dominant compared to the induced gauge action from the fermion, and hence, the infrared physics should be the same for both nc- and c-QED3. The stronger assumption is that this continues to remain so until $N=N^{\rm C}_{c}$. The second assumption is based more on numerical works Karthik and Narayanan (2016a, b) that strongly indicate that $N_{c}^{\rm NC}<2$. This also means that only the dressed, gauge-invariant monopole operators become relevant at $N=N^{\rm C}_{c}$ and other U$(N)$ symmetry breaking operator, such as the four-fermi operators, remain irrelevant Chester and Pufu (2016a). Therefore, a computation of scaling dimensions in nc-QED3 and a subsequent direct confirmation of $N^{\rm C}_{c}$ in c-QED3 is well motivated. Monopole operators also play similar role to understand quantum phase transitions in lattice systems with gauged U$(1)$ symmetry which was recently analyzed computationally in compact QED3 Xu et al. (2019); Wang et al. (2019), and in QED3-Gross-Neveu model Dupuis et al. (2019). In Song et al. (2018), analytical progress was made on monopoles in such lattice systems.

A practical method to determine the monopole scaling dimension $\Delta_{Q}$ analytically is by coupling the theory with the U$(1)$ symmetry to the classical, scale- and rotationally-invariant Dirac monopole background ${\cal A}^{Q}$ and study the response of the theory. Analytically, one computes the Casimir energy of the theory defined on $S^{2}$ with uniform $2\pi Q$ flux over it, which by state-operator correspondence is the same as the scaling dimension $\Delta_{Q}$ Murthy and Sachdev (1990); Metlitski et al. (2008); Pufu and Sachdev (2013). Such computations are usually perturbatively done order by order in $1/N$ (c.f., Gracey (2019)), and currently it is only up to $O(1/N)$. Non-perturbative conformal bootstrap has also been applied to QED3 to find the allowed region in the parameter space of scaling dimensions of $Q=1$ and 2 monopoles Chester and Pufu (2016b). Complementary to such bootstrap computations, it was demonstrated Karthik (2018) that a direct way to compute monopole scaling dimensions using lattice computation is to couple such theories to a background field ${\cal A}^{Q\overline{Q}}(x;\tau)={\cal A}^{Q}(x;x_{0})-{\cal A}^{Q}(x;x_{0}+\hat{t}\tau)$ that gives rise to a monopole at $x_{0}$ and an anti-monopole at $x_{0}+\hat{t}\tau$, which are separated by a distance $\tau$ and compute the scaling of the partition function

[TABLE]

as $\tau\to\infty$. It is the aim of this paper to apply this method and compute $\Delta_{Q}$ for $Q=1$ monopole in the infrared fixed points in $N$ flavor noncompact QED3. In particular, we compute the finite $N$ corrections to the large-$N$ scaling dimension for small enough values of $N$ where a nonperturbative computation becomes inevitable.

II c-QED3, nc-QED3 and monopole correlator in nc-QED3

In this section, we consider different versions of QED3 that one could construct on the lattice. We consider $L^{3}$ Euclidean lattices whose physical volume is $\ell^{3}$, with the lattice spacing being $\ell/L$. Let $\theta_{\mu}(x)\in{\mathbf{R}}$ be the lattice gauge fields which are related to the physical gauge fields $\theta_{\mu}(x)=A_{\mu}(x)\ell/L$. The notation is such that $x$,$y$ denote integer valued lattice coordinates. The two-component Dirac fermions in all the cases to be considered, are coupled to compact gauge-links, $U_{\mu}(x)=e^{i\theta_{\mu}(x)}$, through a UV regulated massless Dirac operator $\not{C}(U)$. In this work, $\not{C}(U)$ is the 1-HYP smeared Wilson-Sheikholeslami-Wohlert Dirac operator $\not{C}_{W}$ with the Wilson mass $m_{w}$ tuned to the massless point Karthik and Narayanan (2016a). In the parity-invariant QED3 with even number of flavors, $N/2$ of two-component fermions are coupled via $\not{C}(U)$ and the other $N/2$ via $\not{C}^{\dagger}(U)$. The partition function for QED3 can be written in general as

[TABLE]

where ${\cal W}_{g}$ is the Boltzmann weight from the pure gauge part. Since the fermionic determinant is invariant under $\theta_{\mu}(x)\to\theta_{\mu}(x)+2\pi n_{\mu}(x)$ for integer values $n_{\mu}(x)$, this part of the action respects the compactness of the U(1) gauge group. Independent of the choice of ${\cal W}_{g}$, we can always restrict the above integral over all $\theta_{\mu}(x)$ to be from $-\pi$ to $\pi$ by simply summing ${\cal W}_{g}$ over all possible $n_{\mu}(x)$ for different $x$ and $\mu$. In this way, the underlying gauge group is always U(1) owing to the usage of the compact links $U_{\mu}(x)$ in the Dirac operator, and hence magnetic monopoles are well defined in these theories. Depending on the form of ${\cal W}_{\rm g}$, one can study QED3 with or without monopoles as we elaborate below, and also discussed in Sulejmanpasic and Gattringer (2019).

All gauge actions will be functions of the fluxes on plaquettes where the flux on the plaquette in the $(\mu,\nu)$ plane with one corner at $x$ is

[TABLE]

The Boltzmann weight for the non-compact lattice gauge action,

[TABLE]

does not favor the presence of monopoles in the continuum limit since the flux on each plaquette is peaked around zero when one takes $L\to\infty$ at a fixed $\ell$. The compact Wilson gauge action,

[TABLE]

on the other hand, does not suppress monopoles in the continuum limit since the flux $F_{\mu\nu}(x)$ has multiples peaks around $2\pi N_{\mu\nu}(x)$ with integer values of $N_{\mu\nu}$ – monopoles are counted per cube DeGrand and Toussaint (1980) by writing $F_{\mu\nu}(x)=\bar{F}_{\mu\nu}(x)+2\pi N_{\mu\nu}(x)$ where $\bar{F}_{\mu\nu}(x)\in[-\pi,\pi)$ and $N_{\mu\nu}(x)$ are integers. The monopole charge inside a cube with one corner at $x$ is given by

[TABLE]

The Villain gauge action Villain (1975); Drouffe and Zuber (1983),

[TABLE]

is also a compact action but has the advantage that the integer part of the flux per plaquette is made explicit. We have introduced new degrees of freedom $N_{\mu\nu}(x)$ and one needs to sum over all integer values to define the partition function. This action is expected to be in the same universality class as the compact Wilson gauge action. The Villain action allows for all values of $Q(x)$ with the only condition that the sum over all $x$ in a finite lattice with periodic boundary conditions will be zero. The only coupling in all cases is $\ell$ which can be viewed as the dimensionless extent of the lattice and the lattice spacing is $a=\frac{\ell}{L}$.

One can only consider the part of the above Villain action restricted to the sector $Q(x)=0$ for all $x$. If the manifold is ${\mathbf{R}}^{3}$, then this automatically implies that

[TABLE]

for integers $n_{\mu}$. On $T^{3}$, as used in Monte Carlo simulations, the condition in Eq. (9) implies $Q(x)=0$ but further restricts the sum of $N_{\mu\nu}$ on any $(\mu\nu)$-plane to be zero. In particular, this disallows configurations with net constant flux $2\pi{\cal Q}$, for integer ${\cal Q}$, over any of the $(\mu\nu)$-plane in the continuum limit. However, such an extra restriction on $T^{3}$ cannot be important in the thermodynamic limit since any equal and opposite fluctuations in flux in different parts of the lattice are allowed. For values of $N_{\mu\nu}$ of the form in Eq. (9), one can change $\theta_{\mu}(x)\to\theta_{\mu}(x)-2\pi n_{\mu}(x)$ and annul the term $N_{\mu\nu}$. Therefore, the Villain path integral restricted to values of $N_{\mu\nu}$ of the type in Eq. (9) is the same as the standard non-compact QED3 path integral defined using Eq. (5). Similarly, one can constrain the integer valued flux $N_{\mu\nu}$ to take a particular value $N^{Q\overline{Q}}_{\mu\nu}$ defined via

[TABLE]

The above constraint corresponds to an insertion of flux $Q$ monopole at a lattice site $y$ and a flux $Q$ antimonopole at $y^{\prime}$, and this cannot be absorbed by a change of variable of the gauge fields. The monopole correlator in nc-QED3 can simply be defined as the ratio of path integrals subject to the constraint in Eq. (10) with $Q=1$ to that with $Q=0$ Peskin (1978). Instead, we find the gauge field background ${\cal A}^{Q\overline{Q}}_{\mu}(x)$ that minimizes

[TABLE]

and couple the theory to this classical background field in order to define

[TABLE]

The advantage of using $B^{Q\overline{Q}}_{\mu\nu}$ over using $2\pi N^{Q\overline{Q}}_{\mu\nu}$ is that background field coupling has no effect in pure gauge theory, and any effect that is observed in $Z_{Q}$ will arise only due to the presence of fermions. This follows from a simple change of variable $\theta_{\mu}(x)\to\theta_{\mu}(x)-{\cal A}^{Q\overline{Q}}_{\mu}(x)$ that eliminates ${\cal A}^{Q\overline{Q}}_{\mu}(x)$ only in the case of pure gauge path integral. As we already noted, $N^{Q\overline{Q}}_{\mu\nu}(x)$ cannot be written as a curl, and hence such a change of variable is not possible even in pure gauge theory. On ${\mathbf{R}}^{3}$, the resulting ${\cal A}^{Q\overline{Q}}$ is the field for a Dirac monopole-antimonopole pair. The advantage of minimizing Eq. (11) on toroidal lattice is to take care of both the lattice discretization as well as the periodicity correctly. We checked through a full fledged computation in the case of $N=2$ QED3 that the difference in $Z_{Q}/Z_{0}$ between the minimum on the torus as defined above and the discretized field of Dirac monopole-antimonopole pair as defined in Karthik (2018) is, however, marginal.

Lets denote the lattice distance between the monopole and antimonopole as $T=|y-y^{\prime}|$, which is related to the physical separation $\tau=Ta$. Then, the “bare” monopole-antimonopole correlation function in lattice units, $G^{(Q)}_{\rm B}$, is the ratio of partition functions with and without the flux $Q$ monopole-antimonopole insertion Peskin (1978):

[TABLE]

Our specific choice for the location of the monopole and anti-monopole in Eq. (10) is realized by

[TABLE]

and zero for all other directions and lattice points $(x_{1},x_{2},x_{3})$. The square tube with non-zero integer flux running between the monopole at $y=(0,0,0)$ and $y^{\prime}=(0,0,T)$ is the Dirac string. Any other configuration for this Dirac string that is simply connected to the above construction is related through appropriately chosen transformations $\theta(x)\to\theta(x)+2\pi n(x)$. The details pertaining to the construction of the background field ${\cal A}^{Q\overline{Q}}_{\mu}$ can be found in Karthik and Narayanan (2019).

III Method and simulation details

In a Monte-Carlo simulation, it is only possible to compute ensemble averages and not the partition function itself. A brute force way to implement the correlator in Eq. (13) is to compute the average

[TABLE]

where $\langle\cdots\rangle_{0}$ is the ensemble average with respect to $Z_{0}$ for $N$ flavor theory. The problem with such an approach is the absence of overlap between the configurations sampled by $Z_{0}$ and $Z_{Q}$. In order to avoid this overlap problem, we couple QED3 to the background gauge field $\zeta{\cal A}^{1\overline{1}}$ through a generalization of Eq. (12) to non-integer values of $Q$, where $\zeta$ is a tunable auxiliary variable Kajantie et al. (1999). Consistent with the previously introduced notation, the resulting partition function is $Z_{\zeta}$. From this, we can compute the lattice free-energy ${\cal F}^{(Q)}_{\rm B}(\tau,\ell,a)$ to introduce the monopole-antimonopole pair separated by physical distance $\tau$ in an $\ell^{3}$ torus at finite lattice spacing $a$ as,

[TABLE]

where,

[TABLE]

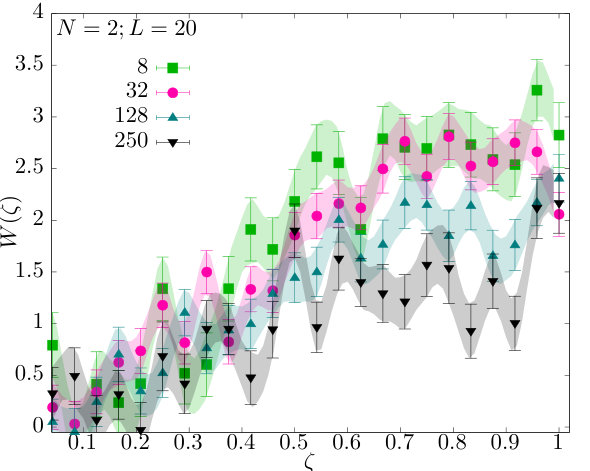

Thus, $W(\zeta)$ can be computed in the Monte-Carlo simulation of $Z_{\zeta}$ through the measurement of $F_{\mu\nu}(x)-\zeta B^{(1)}_{\mu\nu}(x)$ on the gauge fields that are sampled. In this paper, we will only study $Q=1$ monopoles and we drop labels for $Q$ henceforth.

A way to determine the correlator in Eq. (13) is to compute $G_{\rm B}(\tau,\ell,a)$ at different large values of $\tau$ in an $\ell^{3}$ box. At each fixed $\tau$, one should first convert the lattice correlator to a renormalized physical one, then take the continuum limit $L\to\infty$ at a fixed $\ell$, followed by the infinite volume limit $\ell\to\infty$. Finally, one can consider the asymptotic $\tau\to\infty$ limit to study its $\tau^{-2\Delta}$ scaling. However, such a method is not practical since it requires computations of multiple values of $\tau$ per Monte Carlo sample point in the parameter space, and further introduces unwanted systematic errors from the $\ell\to\infty$ extrapolations at fixed $\tau$. As was demonstrated in the case of monopole correlators Karthik (2018), a better method is to make use of scaling of correlators near the infrared fixed point. That is, one expects the scaling

[TABLE]

The conversion factor $a^{2d}$ takes the bare correlator to the renormalized correlator of the naive dimension $d$ monopole operator 111The symbol $d$ should not be confused with the Euclidean space-time dimension which is always 3 in this paper.. The subtle issues with this will be addressed in the next section. In addition, the leftmost expression is only true up to finite $a$, or equivalently finite $1/L$, corrections. Assuming, we have obtained the renormalized correlator, the second expression exhibits its scaling near the infrared fixed point. We do not have to make any further assumption about the form of ${\cal G}(\tau/\ell)$ if we fix $\tau/\ell=\rho$ as $\ell$ is varied. Here, we take $\rho=1/4$. Equivalently, the free energy to introduce a monopole-antimonopole pair separated by distance $\tau=\rho\ell$ would be

[TABLE]

up to higher-order corrections in $1/\ell$. Since we keep $\rho$ fixed in this paper, we keep its dependence implicit. It will be useful to consider the free-energy per two-component flavor as

[TABLE]

In the limit of $N\to\infty$, both $f^{\prime}_{0}(\rho)$ and $\Delta/N$ have well-defined limits. In $1/N$ expansion, one finds

[TABLE]

with $k<0$. The large-$N$ value $\Delta^{\infty}$ was computed using free fermion coupled to monopole background since it was argued that the fluctuations in dynamical gauge fields are suppressed by $1/\sqrt{N}$. Such an analysis gave $\Delta^{\infty}=0.265$ Borokhov et al. (2002); Pufu and Sachdev (2013); Karthik (2018). For the $Q=1$ monopole we consider here, the leading correction was computed to be $k=-0.0383$ Pufu (2014).

In the current work, we studied $N=2,4$ and 12 flavors of fermions — the idea being that we can use $N=12$ is to check for consistency with large-$N$ expectations, and use $N=2,4$ to study the effect of smaller $N$. We sampled configurations from $Z_{\zeta}$ using 50K trajectories of hybrid Monte-Carlo (HMC) simulation. For each value of $\ell$, $L$ and $N$, we simulated 24 different equally spaced values of $\zeta$ from 0 to 1. At each $\zeta$, we computed $W(\zeta)$ using Jack-knife analysis to take care of autocorrelation, and performed the numerical integration in Eq. (16) after smoothly interpolating the 24 data points for $W(\zeta)$. We used different values of $\ell$ ranging from $\ell=1$ to $\ell=250$ at each fixed values of $L$. To estimate the continuum limit of the $\ell$ dependence of the free energy, we used $L^{3}$ lattices with $L=16,20,24$ and 28. In Figure 1, we show $W(\zeta)$ as determined for $N=2$ at four different values of $\ell$ on $20^{3}$ lattice as a sample. The area under each of those curves gave the bare free energy ${\cal F}_{\rm B}=-\log G_{\rm B}$.

IV Results

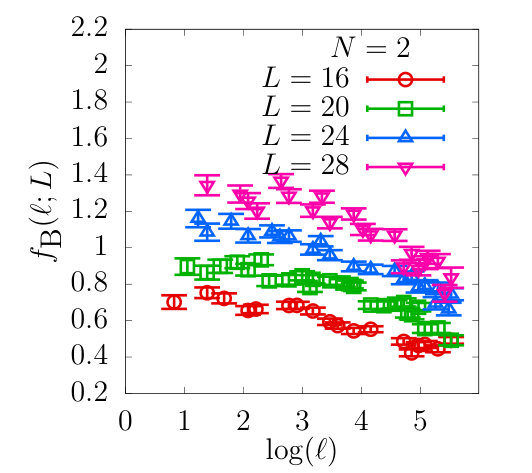

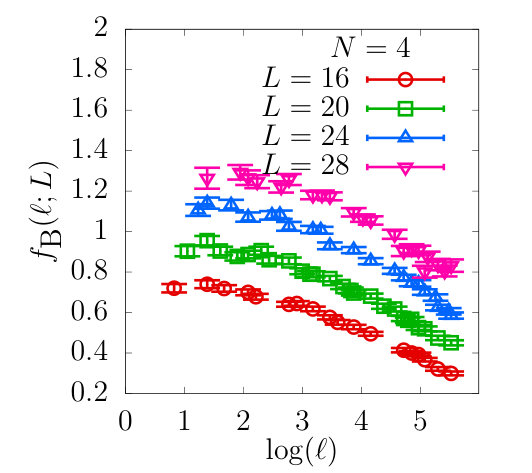

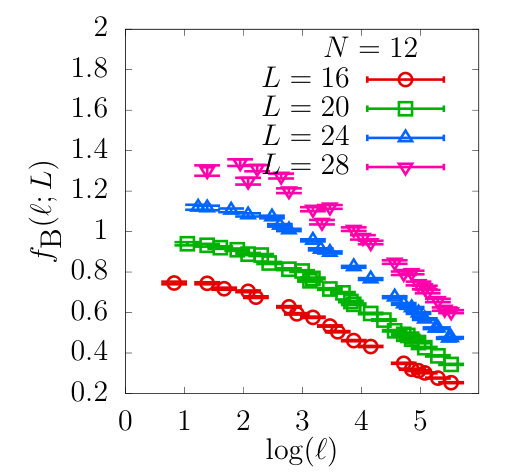

First, we show the dependence of the lattice free energy per flavor, $f_{\rm B}(\ell,L)=N^{-1}{\cal F}_{B}(\rho\ell,\ell,\ell/L)$, for introducing monopole-antimonopole pair at distance $\tau=\ell/4$ from each other on the box size $\ell$ in Figure 2 for different fixed values of $L$. The plots from left to right are for $N=2,4$ and 12 flavors of two-component fermions respectively. This dependence as computed using $L=16,20,24$ and 28 are shown as different colored symbols. As expected, the bare lattice free energy from different $L$ do not fall on a universal curve since the lattice spacing $a=\ell/L$ keeps changing as $\ell$ is varied at fixed $L$. In fact, as it stands the result seems unphysical — the free energy decreases with increasing $\ell$ at fixed $L$. Therefore, we have to first convert the lattice correlator $G_{\rm B}$ to the correlator in physical units, $G_{\rm R}$ by determining $d$ in Eq. (18). Since QED3 is super-renormalizable, $d$ for a local operator would simply be its naive dimension (e.g., the flavor triplet vector operator ${\cal O}_{V}$ with $d=2$). However, defining the monopole correlator through background field coupling is different at least in two ways — (A) Even at the Gaussian fixed point (i.e., $\ell=0$ at finite $L$), the monopole correlator defined in Eq. (13) scales as $L^{-2d}$ only asymptotically as $L\to\infty$. One needs to contrast this with the correlator of ${\cal O}_{V}$ at the Gaussian FP, which would scale as $L^{-4}$ for all $L$. In other words, the background field method singles out the scaling operator of lowest naive dimension only in the large-$L$ limit at the Gaussian FP. (B) The effective action for the background field is apparently non-local, and numerically showing that it can be renormalized by a simple $a^{2d}$ factor is non-trivial.

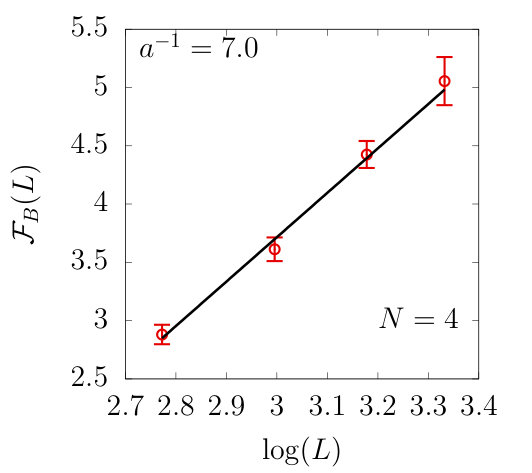

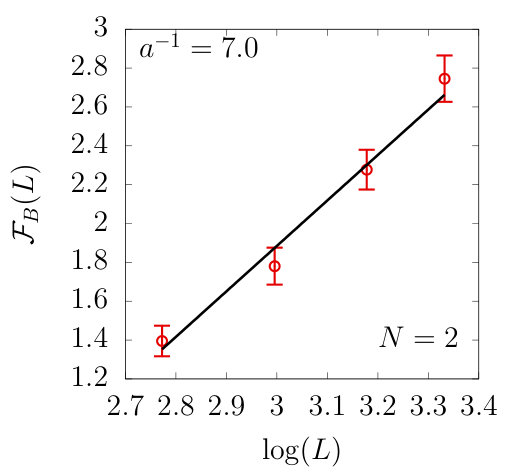

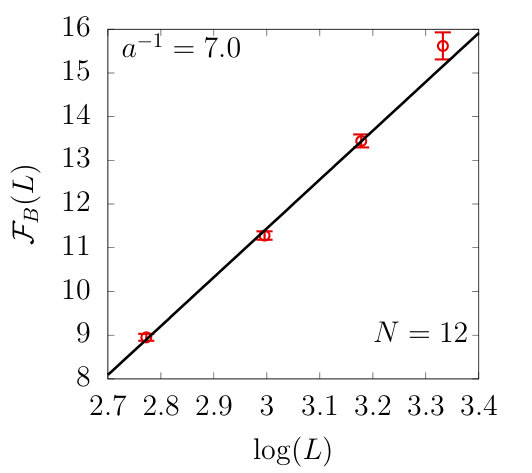

As discussed above, for the background field coupling at finite $L$ at $\ell=0$ (or $a=0$), one can only obtain an $L$-dependent effective value of the scaling dimension, $d(L)$, which we expect to approach the free fermion value $d$ in the limit of very large $L$ that are not feasible in the computation presented here. The value of $d(L)$ relevant in the range of $L$ studied here can be determined numerically via $L^{-2d(L)}$ fit to $G_{\rm B}(\rho La,La,a)$ in the limit of $a\to 0$ over a small range of $L$. With this $L$-dependent value of $d$ determined at the Gaussian fixed point, we can best approximate the renormalized correlator at other non-zero $\ell$ and $a$ by using

[TABLE]

which automatically ensures that the correlator $G_{\rm R}(\rho\ell,\ell)$ has no $L$ dependence for $\ell\approx 0$. For larger $\ell$, the residual $L$ dependence in $G_{\rm R}(\rho\ell,\ell)$ is a lattice artifact, which can be removed by $L\to\infty$ continuum extrapolations. To actually study QED3 in the strict $\ell\to 0$ limit at finite $L$, one needs to integrate the fermion determinant over the still unsuppressed constant modes of the gauge fields in all three directions of the torus. This is nontrivial to implement, and hence we consider the result from the fixed, small $a=\frac{1}{7}$ as an approximation of the strict $\ell=0$ results. In Figure 3, we have shown the $\log(L)$ dependence of the free energy ${\cal F}_{\rm B}(\rho La,La,a)$, simply denoted as ${\cal F}_{\rm B}(L)$, at this fixed $a=\frac{1}{7}$ over the range of $L$ used in this paper. This corresponds to changing $\ell=112$ at $L=16$ to $\ell=196$ at $L=28$ in each of the panels in Figure 2. It was possible to fit the data over the range of $L$ from 16 to 28 using $f_{0}+2d\log(L)$ and thereby obtain the value of $d(L)$ over this range of $L$. The fits are shown as the black straight lines in the three panels. We obtained the slope $2d(L)$ as 2.34(22), 3.81(21) and 11.17(48) for $N=2$,4 and 12 respectively, which correspond to $d(L)/N$ of 0.585(56), 0.476(53) and 0.465(20) respectively. Since the value of $G_{\rm B}$ at $\ell=0$ depends on the distribution of constant gauge fields in the three directions that are allowed at $\ell=0$ for any finite $N$, the value of $d(L)/N$ for intermediate $L$ can depend on $N$. Instead of the above method, where $\ell$ is varied at fixed $L$ thereby forcing us to construct $G_{\rm R}$ from $G_{\rm B}$, we could have instead studied $G_{\rm B}$ at fixed lattice spacing. However, achieving larger physical volumes at fixed small lattice spacing would become numerically prohibitive.

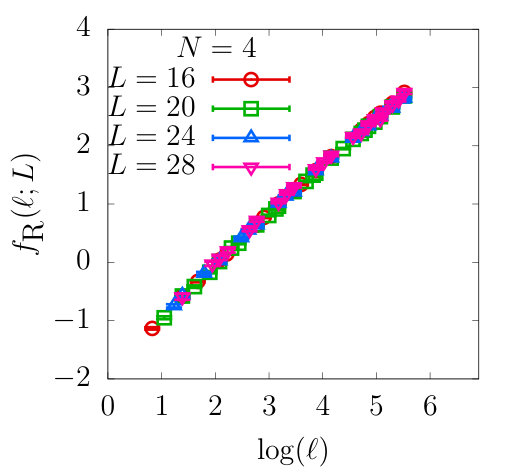

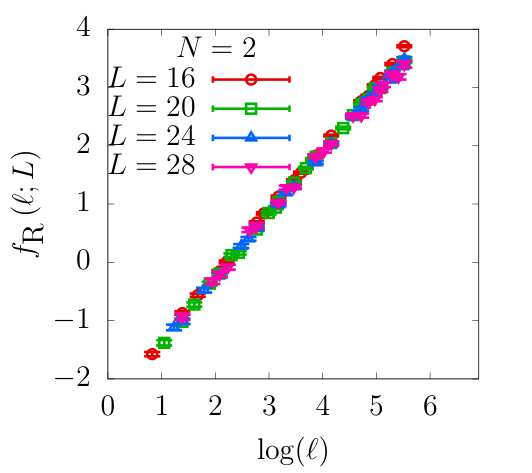

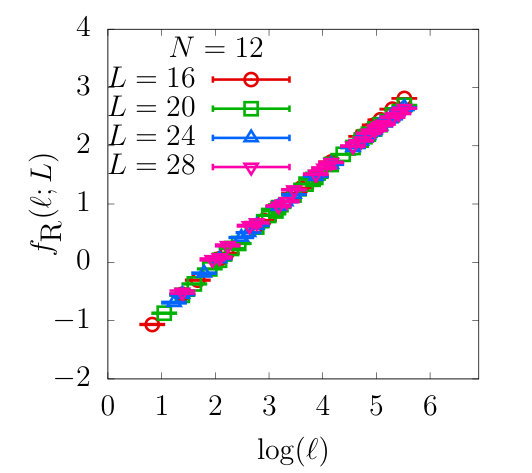

In Figure 4, we show the resulting free-energy per two-component flavor, $f_{\rm R}(\ell)=N^{-1}{\cal F}_{R}(\rho\ell,\ell)$. This was obtained by adding $2d(L)\log\left(\frac{\ell}{L}\right)$ to ${\cal F}_{\rm B}(\rho\ell,\ell,\ell/L)$ and then computing the resulting renormalized free energy per two component fermion. The three panels are for the three different values of $N$. The data from different $L$, made distinct by the colored symbols, now fall on near universal curves. This data collapse is quite non-trivial and supports the assumption that we have defined the correlator of an operator that has a local description in the continuum. Contrary to the behavior of the bare lattice free energy, the renormalized free energy starts increasing with $\ell$ as physically expected since one does not expect monopoles to be spontaneously created in non-compact QED3. For all $N$, including $N=2$, the dependence of $f_{\rm R}(\ell)$ shows no evidence of a linear $\ell$ dependent piece corresponding to an exponential fall, $G_{\rm R}(\ell)\sim\exp(-\mu\rho\ell)$, with a mass $\mu$ that could set the scale for a scale-broken theory. Assuming QED3 with $N=2,4,12$ flow to infrared fixed points as $\ell\to\infty$, the asymptotic values of slope in this linear-log plot would give the values of $2\Delta(N)$. As it can be seen, the slope changes with $\ell$ and extracting the value of $\Delta$ will require extrapolations. Therefore, first we focus on model-independent inferences from the data.

From the three panels in Figure 4, where we have kept the range of $\ell$ and $f_{\rm R}$ in the plots to be the same, we find the free energy per flavor $f_{\rm R}(\ell)$ for $N=12$ shows a weaker dependence on $\ell$ compared to $N=2,4$. To make this quantitative, in Figure 5, we show the difference

[TABLE]

between the free energy per flavor in $N$ and $N^{\prime}$ flavor theories 222The dependence on $N$ which is implicit in $f_{R}(\ell)$ is explicitly shown in the notation used in Eq. (23).. In the infra-red, we expect such a difference to be

[TABLE]

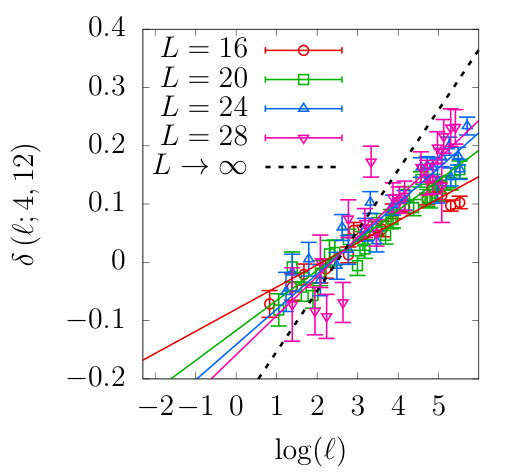

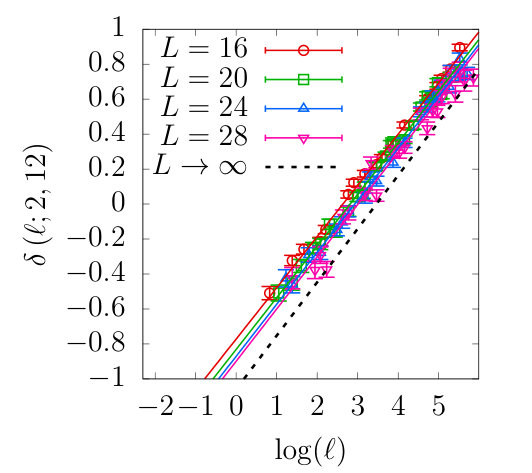

as $\ell\to\infty$. For $N^{\prime}$, we choose the largest value $N^{\prime}=12$, that we have. We have shown $\delta(\ell;2,12)$ in the left panel, and the difference $\delta(\ell;4,12)$ in the right panel as functions of $\log(\ell)$. At leading order in $1/N$, this difference vanishes. Instead, we find that both $\delta(\ell;2,12)$ and $\delta(\ell;4,12)$ increases with $\ell$ making it quite evident that $\Delta(N=2)/2$ and $\Delta(N=4)/4$ are larger than $\Delta(N=12)/12$. This effect is arising purely due to finite value of $N$. Quite surprisingly, $\delta(\ell;N,12)$ shows a logarithmic dependence on $\ell$ over the entire range of $\ell$ used. Perhaps, this is due to the finite $\ell$ corrections to the infrared scaling get approximately canceled between $f_{\rm R}$ at $N$ and $N^{\prime}$. Therefore, we performed a combined fit to the data for $\delta(\ell;N,12)$ at all $\ell$ from different $L$ using an ansatz,

[TABLE]

with $a_{0},a_{1},b_{0}$ and $b_{1}$ as fit parameters. The value of $b_{0}$ will then give us an estimate of the difference $\Delta(N)/N-\Delta(12)/12$ in the continuum limit $L\to\infty$. We find such a fit ansatz to describe the data for both $N=2$ and 4 well with $\chi^{2}/{\rm dof}<2$ with 81 data points in each fit. We find the best fit parameters $[a_{0},a_{1},b_{0},b_{1}]$ for $N=2$ and $N=4$ to be $[-1.067(77),4.7(1.4),0.1531(94),-0.11(18)]$ and $[-0.262(52),2.92(98),0.0529(61),-0.54(11)]$ respectively. The different $L$-dependence of the $N=2$ and 4 data is due to an empirical $N$-dependence of the coefficients $a_{1}$ and $b_{1}$ for the finite $1/L$ corrections. The resulting best fits as evaluated at $L=16$,20,24 and 28 are shown by the straight lines in the linear-log plots with the same colors as that of the corresponding data. The black dashed lines in the two panels are the estimates of the continuum limit of $\delta(\ell;N,12)$. We find from the value of $b_{0}$ that

[TABLE]

In the expansion in $1/N$ around the large-$N$ fixed point, the leading contribution to the difference is $\frac{\Delta(N)}{N}-\frac{\Delta(N^{\prime})}{N^{\prime}}=k\left(\frac{1}{N}-\frac{1}{N^{\prime}}\right)$ with $k=-0.0383$. Thus, to order $1/N$, the value of scaling dimension decreases at finite $N$ from the large-$N$ value, and the slope of $\delta(\ell;N,N^{\prime})$ as a function of $\log(\ell)$ should be negative at this order. Our numerical result for $N=2$ and 4 on the other hand, suggests the opposite behavior for the values of $N$ which are ${\cal O}(1)$. This implies that higher order terms in $1/N$ that are of opposite sign cannot be ignored, or perhaps a breakdown of the $1/N$-expansion. However, it is true that the corrections themselves are also small.

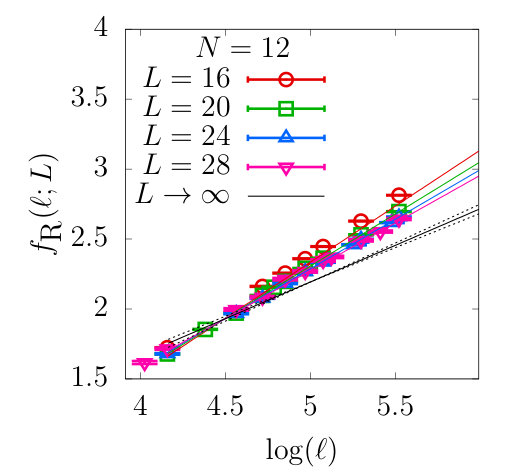

Now, it remains to be shown that for $N=12$, for which one might naively expect the large-$N$ expansion to hold, and hence the asymptotic value of the scaling dimension $\Delta(12)$ is consistent with large-$N$ expectation. Unlike the above conclusion about the correction to large-$N$ behavior, extraction of $\Delta(12)$ requires modeling and extrapolations since the free-energy does not exhibit a pure $\log(\ell)$ dependence over the entire range of $\ell$ used in this computation. In Figure 6, we focus only on values of $\ell>64$. By fitting a simple ansatz

[TABLE]

to the $N=12$ data for $f_{\rm R}(\ell)$ over the larger values of $\ell$ from different $L$, we estimate the value of $\Delta(12)/12$ as the best fit value of $\beta_{0}$. The best fit $\log(\ell)$ dependence for $L=16$, 20,24 and 28 are shown along with the data in Figure 6, that are described by $[\alpha_{0},\alpha_{1},\beta_{0},\beta_{1}]=[-0.42(18),-19(4),0.261(19),2.22(41)]$. Though the data seems to be well described by such an ansatz, the $\chi^{2}/{\rm dof}$ is about 3 due to the much smaller errors in the data for $N=12$. The black dashed line is the estimated $\log(\ell)$ dependence in the $L\to\infty$ limit. We estimate the slope of this continuum dependence as $\beta_{0}=0.26(2)$. For comparison, the value of $\Delta(12)/12$ from large-$N$ up to leading order in $1/N$ is 0.262. Our estimated value of $\Delta(12)$ is consistent with this value, and thereby lends further support for our numerical work. This implies that the monopole scaling dimension for $N=12$ is estimated to be 3.24(24). This is consistent with $N=12$ being the critical flavor where the $Q=1$ monopole operator becomes just marginally relevant in the infrared fixed point.

V Conclusion and discussion

In this paper, we presented an ab initio lattice computation of the monopole correlator in $N=2,4$ and 12 flavor massless QED3 by using the background field method. To avoid the overlap problem which would make the computation of ratio of partition functions with and without monopole-antimonopole background field, we slowly increased the value of monopole flux from from 0 to integer $Q$. One of noteworthy result in this paper is the feasibility of this approach itself, seen via the good signal to noise ratio of the monopole free-energy (which is the negative logarithm of the monopole correlator). This encourages the application of this method to other QFTs where monopole operators can be defined. We demonstrated empirically that the monopole correlator behaves like a local operator and can be simply “renormalized” by the factor $a^{2d}$ at lattice spacing $a$, where $d$ is the naive monopole dimension as obtained on $L^{3}$ lattice in the limit $a\to 0$. The key numerical result for the free-energy to introduce monopole-antimonopole pair in $N=2,4$ and 12 flavor QED3 is shown in Figure 4. Using this data, we demonstrated that the scaling dimension for $N=12$ QED3 is consistent with large-$N$ expectation and that $N=12$ is consistent with being the critical flavor where monopole scaling dimension takes the marginally relevant value of 3. By computing the differences in monopole free-energy between $N=2$ and 12, and between $N=4$ and 12, we found evidence for the deviation of the scaling dimension in $N=2,4$ theories from the $N=12$ theory to be positive. This is in contradiction to the $1/N$ analysis up to ${\cal O}(1/N)$. It remains to be seen if this tension can be resolved by inclusion of higher-order corrections in $1/N$ in the analytical expressions, or points to a breakdown of the $1/N$ framework itself where in the fixed point for smaller $N$ belongs to a different family than the one in large-$N$. In conclusion, the results in the paper along with slightly different analytical results from large-$N$ analysis supports the direct computation of $N$ flavor compact QED3 around $N\approx 12$, which however requires algorithmic development to deal with large number of near-zero Wilson-Dirac modes.

In the paper, we did not demonstrate in the lattice regularization framework that monopoles carry flavor quantum number and breaks the U$(N)$ flavor symmetry to U$(N/2)\times$U$(N/2)$ symmetry. Demonstrating this is not important to the computation presented in this paper, but central to the U$(N)$ flavor symmetry breaking in $N_{c}$ flavor compact QED3. In the continuum, one shows Dyer et al. (2013); Borokhov et al. (2002) this by noting that the ground-state of the Hamiltonian of massless fermion on $S^{2}$ with constant flux $2\pi Q$ has $QN$ zero modes. Thus, the gauge-invariant, CP-invariant vacua are obtained by filling the $QN$ zero modes with $QN/2$ fermions picked amongst $N/2$ flavors and $QN/2$ antiparticles picked amongst another $N/2$ flavors. Thus, the vacua with monopole background transform under the irreps of the U$(N)$ flavor symmetry. With the lattice regularized fermions on spherical monopole background, we do not have a similar derivation to study the flavor structure of the vacuum. A difficulty is defining the lattice fermion on $S^{2}$. Therefore, to gain an understanding of similar flavor symmetry breaking mechanism on the lattice, we consider a background field on $T^{3}$ corresponding to constant flux $2\pi Q$ on all $T^{2}$ spatial slices, as an analogue of constant flux background on $S^{2}\times R$ for the spherical monopole. It was shown Karthik and Narayanan (2015) that the two-dimensional transfer matrix for the two-component Wilson-Dirac operator, $\not{C}_{W}$, has $2L^{3}+Q$ eigenvalues greater than 1 and $2L^{3}-Q$ eigenvalues less than 1 for $m_{w}>0$; a consequence of gauge field topology in two dimensions. Thus the vacuum has total $Q$ fermions. Similarly, for $\not{C}^{\dagger}_{W}$ with $m_{w}<0$, the vacuum has total $Q$ anti-fermions. With $N/2$ fermions coupled via $\not{C}_{W}$ and another $N/2$ fermions coupled via $\not{C}^{\dagger}_{W}$, the vacuum has $N/2$ fermions from $N/2$ flavors and $N/2$ anti-fermions from the other $N/2$ flavors. This is very similar to the structure seen in a spherical monopole background. The flavor symmetry-breaking on this particular background is determined by the need to preserve parity: a choice of $N/2$ flavors coupling to $\not{C}_{W}$ and the other ones to $\not{C}^{\dagger}_{W}$. We expect similar mechanism to be true for massless Wilson-fermion on monopole background.
