On the contamination of the global 21~cm signal from polarized foregrounds

TL;DR

This paper studies how polarized foreground emissions, affected by Faraday rotation, can contaminate the global 21~cm signal measurements, potentially biasing results and explaining anomalies like the EDGES detection without exotic physics.

Contribution

It demonstrates that polarized foregrounds can significantly bias 21~cm signal extraction and may account for the EDGES anomaly, highlighting the importance of polarization considerations in experiments.

Findings

Polarized foregrounds can bias the amplitude and shape of the 21~cm signal.

Unaccounted polarization contamination can mimic the EDGES absorption profile.

Polarization effects can lead to overestimation of the signal amplitude by about 30%.

Abstract

Global (i.e. sky-averaged) $21$~cm signal experiments can measure the evolution of the universe from the Cosmic Dawn to the Epoch of Reionization. These measurements are challenged by the presence of bright foreground emission that can be separated from the cosmological signal if its spectrum is smooth. This assumption fails in the case of single polarization antennas as they measure linearly polarized foreground emission - which is inevitably Faraday rotated through the interstellar medium. We investigate the impact of Galactic polarized foregrounds on the extraction of the global 21~cm signal through realistic sky and dipole simulations both in a low frequency band from $50$ to $100$~MHz, where a 21~cm absorption profile is expected, and in a higher frequency band ($100-200$~MHz). We find that the presence of a polarized contaminant with complex frequency structure can bias the amplitude and the shape of the reconstructed signal parameters in both bands. We investigate if polarized foregrounds can explain the unexpected $21$~cm Cosmic Dawn signal recently reported by the EDGES collaboration. We find that unaccounted polarized foreground contamination can produce an enhanced and distorted $21$~cm absorption trough similar to the anomalous profile reported by Bowman et al. (2018), and whose amplitude is in mild tension with the assumed input Gaussian profile (at $\sim 1.5 \sigma$ level). Moreover, we note that, under the hypothesis of contamination from polarized foreground, the amplitude of the reconstructed EDGES signal can be overestimated by around $30\%$, mitigating the requirement for an explanation based on exotic physics.

Figures

Tables

Table 1. Table 1: Coefficients of the Galactic synchrotron spectrum model (from Bernardi et al., 2015 ) .

${\log }_{10}\left(p_0/K\right)$	$p_1$	$p_2$	$p_3$	$p_4$
3.58	-2.60	0.01	0.06	0.25

Equations

$$T({\hat{\mathbf{r}}}_0,\nu ,t)=\frac{{\int }_{\Omega }A({\hat{\mathbf{r}}}^{\prime },\nu )T_{\mathrm{sky}}({\hat{\mathbf{r}}}^{\prime },\nu ,t)d{\hat{\mathbf{r}}}^{\prime }}{{\int }_{\Omega }A({\hat{\mathbf{r}}}^{\prime },\nu )d{\hat{\mathbf{r}}}^{\prime }}+T_N(\nu ,t)$$

$${\bf e}(\hat{\boldsymbol{r}},\nu)=\big{[}{\bf J}(\hat{\boldsymbol{r}},\nu)\otimes{\bf J}^{*}(\hat{\boldsymbol{r}},\nu)\big{]}\,{\bf S}\,{\bf s}(\hat{\boldsymbol{r}},\nu),$$

$$\mathbf{S}=\frac{1}{2}\left(\begin{array}{cccc}1& 1& 0& 0\\ 0& 0& 1& i\\ 0& 0& 1& -i\\ 1& -1& 0& 0\end{array}\right).$$

$$\mathbf{J}=\left(\begin{array}{cc}{J}_x& 0\\ 0& 0\end{array}\right),$$

$$E_{xx}(\hat{\boldsymbol{r}},\nu)=\frac{1}{2}J_{x}^{2}(\hat{\boldsymbol{r}},\nu)\big{[}I(\hat{\boldsymbol{r}},\nu,t)+Q(\hat{\boldsymbol{r}},\nu,t)\big{]}.$$

$$E_{yy}(\hat{\boldsymbol{r}},\nu)=\frac{1}{2}J_{y}^{2}(\hat{\boldsymbol{r}},\nu)\big{[}I(\hat{\boldsymbol{r}},\nu,t)-Q(\hat{\boldsymbol{r}},\nu,t)\big{]}.$$

$$T_{xx}({\hat{\mathbf{r}}}_0,\nu ,t)=\frac{{\int }_{\Omega }{E}_{xx}({\hat{\mathbf{r}}}^{\prime },\nu )d{\hat{\mathbf{r}}}^{\prime }}{{\int }_{\Omega }{A}_x({\hat{\mathbf{r}}}^{\prime },\nu )d{\hat{\mathbf{r}}}^{\prime }}=T_f({\hat{\mathbf{r}}}_0,\nu ,t)+T_Q({\hat{\mathbf{r}}}_0,\nu ,t)+T_{21}(\nu )$$

$$T_{yy}({\hat{\mathbf{r}}}_0,\nu ,t)=\frac{{\int }_{\Omega }{E}_{yy}({\hat{\mathbf{r}}}^{\prime },\nu )d{\hat{\mathbf{r}}}^{\prime }}{{\int }_{\Omega }{A}_y({\hat{\mathbf{r}}}^{\prime },\nu )d{\hat{\mathbf{r}}}^{\prime }}=T_f({\hat{\mathbf{r}}}_0,\nu ,t)-T_Q({\hat{\mathbf{r}}}_0,\nu ,t)+T_{21}(\nu )$$

$${\bar{T}}_{xx}(\nu )=\frac{1}{N_m}\sum T_{xx}(t,\nu )={\bar{T}}_f(\nu )+{\bar{T}}_Q(\nu )+T_{21}(\nu )$$

$${\bar{T}}_{yy}(\nu )=\frac{1}{N_m}\sum T_{yy}(t,\nu )={\bar{T}}_f(\nu )-{\bar{T}}_Q(\nu )+T_{21}(\nu ),$$

$${\sigma }_{xx,yy}^N(\nu )=\frac{{\bar{T}}_{xx,yy}(\nu )}{\sqrt{\Delta t\Delta \nu }},$$

$$A(\theta ,\varphi ,\nu )=\sqrt{[p_E(\theta ,\nu )\cos \varphi {]}^2+[p_H(\theta ,\nu )\sin \varphi {]}^2},$$

$$p_i(\nu ,\theta )=\left[1-{\left(\frac{\theta }{\pi /2}\right)}^{{\alpha }_i(\nu )}\right](\cos \theta {)}^{{\beta }_i(\nu )}+{\gamma }_i(\nu )\left(\frac{\theta }{\pi /2}\right)(\cos \theta {)}^{{\delta }_i(\nu )}$$

$$T_{21,G}^{LF}(\nu )=A_{21}{e}^{-\frac{(\nu -{\nu }_{21}{)}^2}{2{\sigma }_{21}^2}},$$

$$T_{21,fG}^{LF}(\nu )=A_{21}\left(\frac{1-e^{-\tau e^B}}{1-e^{-\tau }}\right),$$

$$B=\frac{4(\nu -{\nu }_{21}{)}^2}{w^2}\log \left[-\frac{1}{\tau }\log \left(\frac{1+e^{-\tau }}{2}\right)\right].$$

$$T_{21}^{HF}(z)=a_{21}{x}_{HI}(z)\sqrt{\frac{1+z}{10}}$$

$$x_{\mathrm{HI}}(z)=\frac{1}{2}\left[\tanh \left(\frac{z-z_r}{\Delta z}\right)+1\right].$$

$${\log }_{10}{\bar{T}}_f(\nu )=\sum _{n=1}^N{p}_{n-1}{\left[{\log }_{10}\frac{\nu }{{\nu }_0}\right]}^{(n-1)}$$

$$\mathcal{L}(\bar{T}({\nu }_i)|\mathbf{\theta })=\frac{1}{\sqrt{2\pi {\sigma }_N^2({\nu }_i)}}\exp \left(-\frac{(\bar{T}({\nu }_i)-T_m({\nu }_i,\mathbf{\theta }){)}^2}{2{\sigma }_N^2({\nu }_i)}\right),$$

Full text

††pubyear: 2019††pagerange: On the contamination of the global 21 cm signal from polarized foregrounds–References

1 Introduction

The $21$ cm background arising from the spin-flip transition of neutral Hydrogen in the intergalactic medium is considered the most promising observable for the Cosmic Dawn and the subsequent Epoch of Reionization (EoR; e.g., Pritchard & Loeb, 2010). The $21$ cm signal is observable as a contrast against the Cosmic Microwave Background (CMB) temperature (Furlanetto et al., 2006). As soon as the first galaxies begin to appear, they produce Ly-$\alpha$ photons that couple the excitation temperature of the $21$ cm line (spin temperature) to gas kinetic temperature through the Wouthuysen-Field effect (WF, Wouthuysen, 1952; Field, 1958). As the gravitational collapse progresses, the spin temperature becomes eventually completely coupled to the gas temperature and driven well above the CMB temperature as consequence of the gas heating - most likely by an X-ray background (e.g., Venkatesan et al., 2001; Pritchard & Furlanetto, 2007; Mesinger et al., 2013). Observations of $21$ cm fluctuations from this era of interplay between the Ly-$\alpha$ coupling and the X-ray heating will require sensitivities only achievable with the Hydrogen Epoch of Reionization Array (DeBoer et al., 2017) and the upcoming Square Kilometre Array (Koopmans et al., 2015). The measurement of the global - i.e. sky averaged - $21$ cm signal can be, conversely, achieved by a single dipole antenna observing for a few tens to a few hundreds of hours (e.g., Shaver et al., 1999; Bernardi et al., 2015; Harker et al., 2016). The $21$ cm global signal at the Cosmic Dawn is expected to be a few hundred $\mathrm{mK}$ absorption trough depending on the offset between the WF coupling and the X-ray heating epochs (Pritchard & Loeb, 2010). It is sensitive to the formation of the first luminous structures in the universe (e.g., Furlanetto et al., 2006; Mirocha, 2014; Mesinger et al., 2016), as well as the thermal history of the intergalactic medium (Pritchard & Furlanetto, 2007; Mesinger et al., 2013).

At $z\lesssim 10-15$, the sustained galaxy formation produces an ultraviolet radiation background that eventually extinguishes the neutral Hydrogen, and therefore the $21$ cm signal. The $21$ cm signal therefore traces the evolution of the average neutral fraction, essentially timing cosmic reionization.

The Experiment to Detect the Global Epoch-of-Reionization Signatures (EDGES) team has recently reported the detection of a $21$ cm absorption profile, centered at $78$ MHz, with a $19$ MHz width and an amplitude of $520$ mK (Bowman et al., 2018a). This result is more than a factor two stronger than standard theoretical predictions and has triggered exotic explanations like interaction with dark matter (e.g., Barkana, 2018; Fraser et al., 2018) or Axion-Induced Cooling (e.g., Houston et al., 2018) and a debate on a possible low-frequency excess radio background (e.g., Ewall-Wice et al., 2018; Feng & Holder, 2018; Sharma, 2018). The unexpected EDGES result is awaiting for independent confirmation from the other ongoing global signal experiments. These experiments include the Large aperture Experiment to detect the Dark Ages (LEDA; Price et al. (2018)) that constrained at $95\%$ level the amplitude ($>-890$ mK) and the $1\sigma$ width ($>6.5$ MHz) for a Gaussian model for the trough (Bernardi et al., 2016); the “Sonda Cosmologica de las Islas para la Deteccion de Hidrogeno Neutro (SCI-HI; Voytek et al., 2014) that reported a $1$ K rms residual in the range $60-88$ MHz; the upgraded Shaped Antenna measurement of the background RAdio Spectrum (SARAS 3) that has already provided constraints in the $6<z<10$ range (Singh et al., 2017, 2018), the Probing Radio Intensity at high-Z from Marion (PRIZM) experiment (Philip et al., 2019), and the future Dark Ages Radio Explorer (DARE; Mirocha et al., 2015) is planning to measure the $21$ cm global signal. This would also allow to avoid not only terrestrial radio frequency interference, but also ionospheric corruption and solar radio emissions.

The key challenge to measure the 21 cm signal is the subtraction of the bright foreground emission and the consequent control of systematic effects. In presence of smooth-spectrum foregrounds, simulations show that the 21 cm signal can generally be extracted (Nhan et al., 2017; Sathyanarayana Rao et al., 2017; Singh et al., 2017, 2018; Tauscher et al., 2018), particularly using Bayesian techniques (e.g., Harker et al., 2012; Bernardi et al., 2015; Bernardi et al., 2016; Monsalve et al., 2017; Monsalve et al., 2018, 2019). This strategy has been employed by Bowman et al. (2018a) too, although their unusual findings have drawn the attention to their foreground modelling and separation method. Hills et al. (2018) have, for example, re-examined the EDGES data and questioned their detection pointing out that the extracted foreground model parameters are unphysical. The re-analysis by Singh & Subrahmanyan (2019), enforcing a maximally smooth foreground model, also found evidence for a different $21$ cm signal, substantially more in agreement with the standard predictions.

In this work, we investigate the effect that Galactic polarized foreground emission has on the measurement of the $21$ cm signal. Polarized foreground that are Faraday rotated through the interstellar medium can leak into total intensity because of imperfect calibration and can, therefore, violate the assumption of smooth spectrum foregrounds. This effect is an active subject of study for interferometric observations (e.g., Jelić et al., 2010; Bernardi et al., 2010; Moore et al., 2013; Martinot et al., 2018) but the case of global signal experiments has received very little attention so far (Switzer & Liu, 2014), in particular after the reported detection of the $21$ cm signal from the Cosmic Dawn.

The paper is organized as follow: in section 2 we describe the contamination from polarized foregrounds in observations carried out with single dipole antennas and outline the details of our simulations, in section 3 we describe the extraction of the 21 cm global signal from the simulated spectra and we conclude in section 4.

2 Simulations of global signal observations

An individual antenna provides a measurement of the beam-averaged sky brightness temperature $T(\hat{\boldsymbol{r}}_{0},\nu,t)$ at the time $t$ and direction $\hat{\boldsymbol{r}}_{0}$ (e.g., Bernardi et al., 2015):

[TABLE]

where $T_{\rm sky}$ is the sky brightness temperature, $A$ the antenna gain pattern and $T_{\rm N}$ the instrumental noise. As the sky drifts over the dipole, the sky brightness changes with time whereas the dipole pattern does not.

A single-polarization antenna inevitably measures polarized emission from the sky. If we call ${\bf s}$ the intrinsic sky brightness distribution towards a line of sight $\hat{\boldsymbol{r}}$ at the frequency $\nu$ in terms of the usual Stokes parameters ${\bf s}=(I,Q,U,V)^{T}$, the brightness observed by two orthogonal receptors ${\bf e}=(E_{xx},E_{xy},E_{yx},E_{yy})^{T}$ can be written as (e.g., Ord et al., 2010; Nunhokee et al., 2017):

[TABLE]

where ${\bf{J}}$ is the $2\times 2$ Jones matrix representing the polarized receptor response (i.e., the polarized dipole gain pattern), $\otimes$ is the outer product operator, ∗ denotes the complex conjugate and ${\bf{S}}$ is the matrix that relates the Stokes parameters to the orthogonal $x-y$ linear feed frame:

[TABLE]

The matrix {\bf A}(\hat{\boldsymbol{r}},\nu)\equiv\big{[}{\bf J}(\hat{\boldsymbol{r}},\nu)\otimes{\bf J}^{*}(\hat{\boldsymbol{r}},\nu)\big{]}{\bf S} can be seen as a mixing matrix between the intrinsic and the observed Stokes parameters (e.g., Nunhokee et al., 2017). A single polarization antenna is described by a Jones matrix of the form:

[TABLE]

and equation 2 leads to:

[TABLE]

Similarly, the orthogonal polarization would be:

[TABLE]

By renaming $A_{x,y}\equiv\frac{1}{2}J^{2}_{x,y}$, equation 1 can be re-written explicitly for both polarizations:

[TABLE]

where $T_{f}$ and $T_{Q}$ are the foreground contribution from intensity and polarization, respectively (examined in section 2.3 and 2.4) and $T_{21}$ is the contribution to the sky brightness coming from the pristine $21$ cm signal that we will discuss further in section 2.2. Note that we have here neglected the contribution from $21$ cm fluctuations as it essentially averages out over large sky areas.

Our goal is to simulate an observed spectrum ${\bar{T}}_{xx,yy}$ obtained by averaging $T_{xx,yy}$ over the observing time - i.e. the data product of a global signal experiment:

[TABLE]

where $N_{m}$ is the number of measurements over the observation duration.

We consider a dipole located at the Murchison Radio-astronomy Observatory in Western Australia, where EDGES is located, and that observes the $0^{\rm h}<{\rm LST}<8^{\rm h}$ hour range with a one minute cadence. We assume that the noise $T_{N}$ is given by the radiometer equation: it is uncorrelated in frequency and time, and, for each frequency channel, follows a Gaussian distribution with standard deviation

[TABLE]

where we consider a $\Delta\nu=1$ MHz channel width and a $\Delta t=400$ hours of total integration time. Like EDGES, we consider two separate bands, one covering the low frequency (LF) $50-100$ MHz range, and the second covering the higher frequency (HF) $100-200$ MHz range.

2.1 Antenna beam model

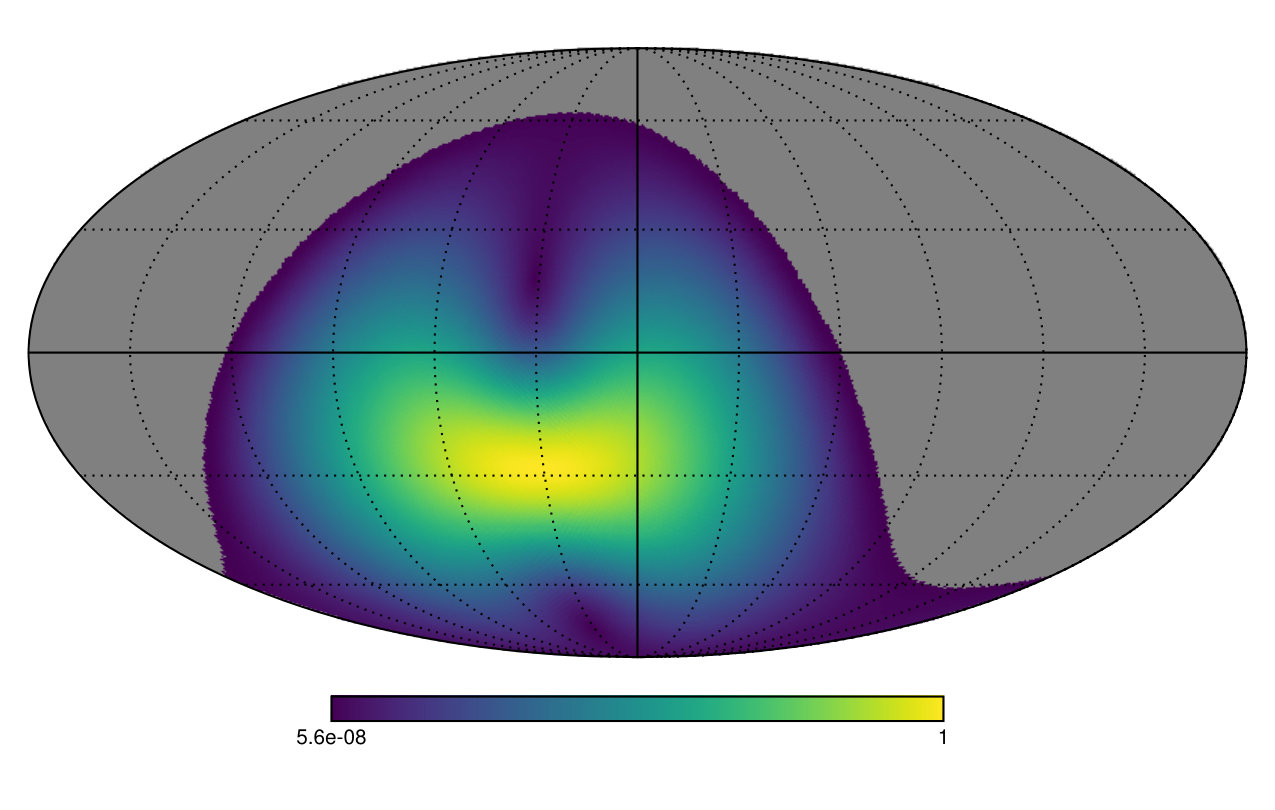

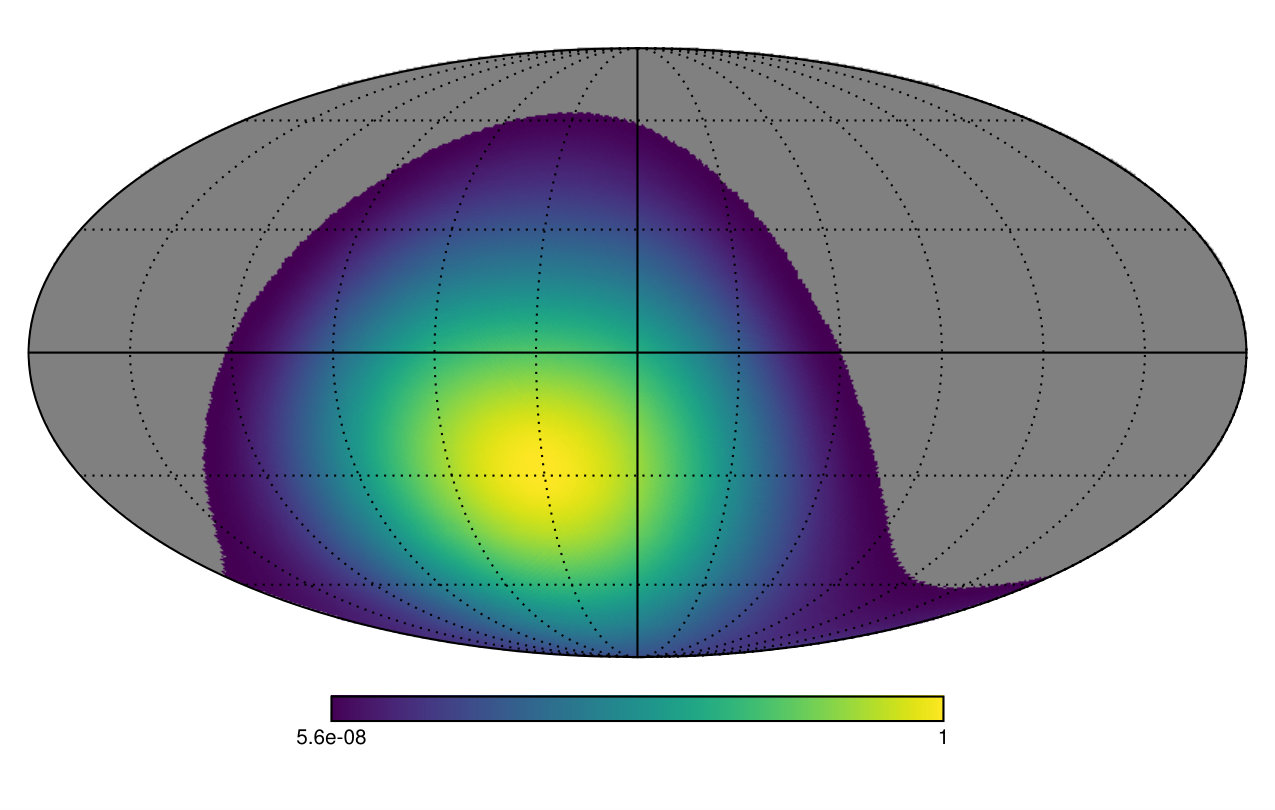

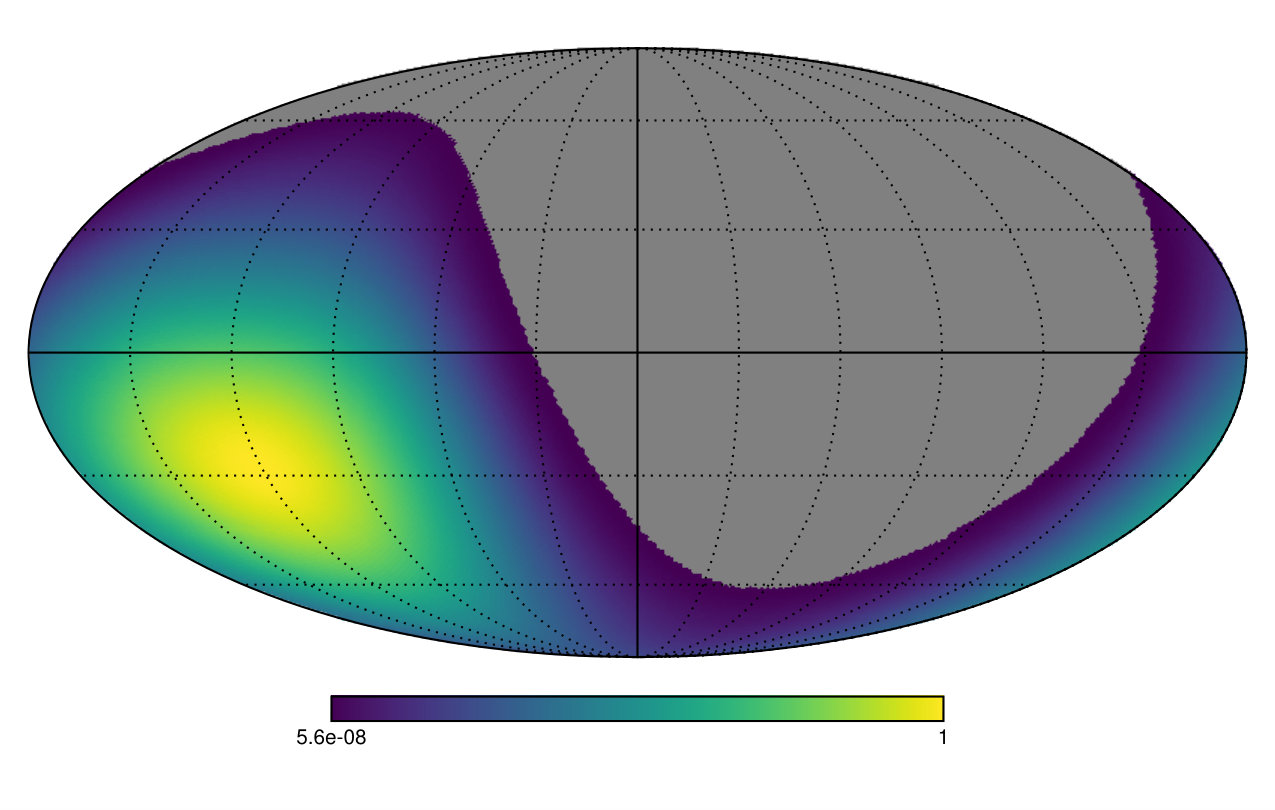

We used the analytic beam model of the Long Wavelength Array dipole (Taylor et al., 2012; Ellingson et al., 2013; Bernardi et al., 2015) in the LF band:

[TABLE]

where $E$ and $H$ are the two orthogonal polarizations of the dipole and

[TABLE]

where $i=E,H$. For the coefficient $[\alpha_{i},\beta_{i},\gamma_{i},\delta_{i}]$ we use the values tabulated in Dowell (2011) and interpolate them in the $50-90$ MHz range. The values of the coefficients are then extrapolated to $100$ MHz with a $3^{\rm rd}$-order polynomial. Figure 1 displays the beam model for the E-W ($xx$) orientation at $\mathrm{LST}=2^{\rm h}$, at 50 and 100 MHz respectively. For modelling the N-S (yy) orientation we switch the E and H terms.

In the absence of a publicly available beam model in the HF band, we directly scale our 100 MHz model linearly with frequency up to 200 MHz.

2.2 Global signal model

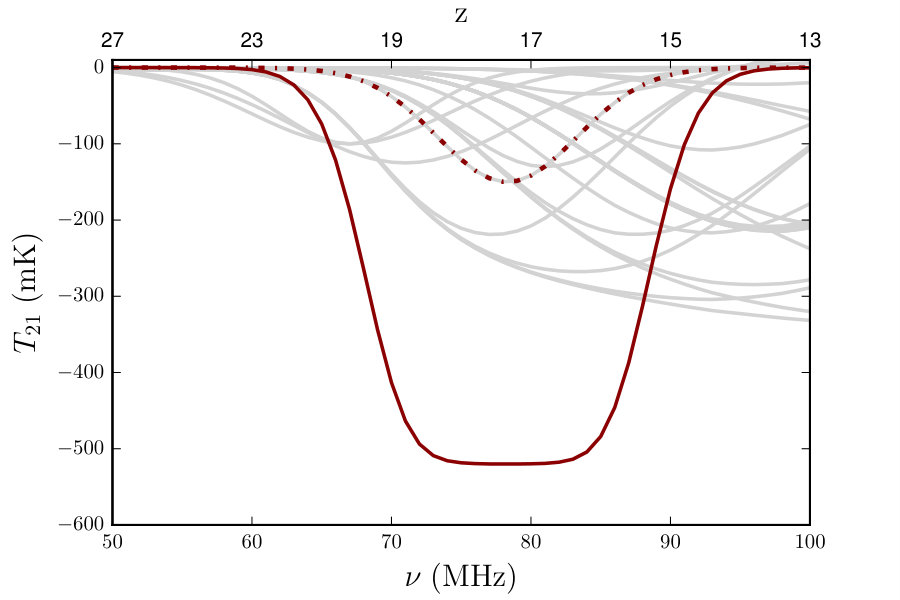

The evolution of $21$ cm global signal can be computed from physical model parameters via numerical or semi-analytical simulations (e.g., Mirocha, 2014; Mirocha et al., 2015; Cohen et al., 2016; Cohen et al., 2017; Mirocha et al., 2017), however, analytic expressions are useful approximation to be used in the evaluation of likelihood functions. In the LF band, the Cosmic Dawn signal has often been modelled as a Gaussian absorption profile (Bernardi et al., 2015; Presley et al., 2015; Bernardi et al., 2016; Monsalve et al., 2017):

[TABLE]

where $A_{21}$, $\nu_{21}$ and $\sigma_{21}$ are the amplitude, peak position and standard deviation of the $21$ cm trough, respectively. We consider this our fiducial model for the LF band. We also include the case of a flattened Gaussian profile adopted in the EDGES analysis (Bowman et al., 2018a):

[TABLE]

where

[TABLE]

The free parameters here are the amplitude $A_{21}$, the central frequency $\nu_{21}$, the full-width at half-maximum $w$ and the flattening factor $\tau$. Theoretical simulations that include standard physics predict a wide range of different global 21 cm signals (see, fore example, figure 2). The largest theoretical unknown is related to the nature of the first luminous sources (e.g., Furlanetto et al., 2006; Mirocha, 2014) and the efficiency of the IGM heating (Pritchard & Furlanetto, 2007; Fialkov & Loeb, 2013; Mesinger et al., 2013; Cohen et al., 2017). As shown in figure 2, not even models that predict the brightest absorption profiles are a close match to the EDGES result.

Our fiducial model in the HF band is an hyperbolic tangent, a widely used parameterization of the global signal during EoR (e.g., Pritchard & Loeb, 2010; Monsalve et al., 2017):

[TABLE]

where $a_{21}=28$ mK (Madau et al., 1997; Furlanetto et al., 2006) and

[TABLE]

The free parameters are here the redshift $z_{r}$ at which $x_{\rm HI}=0.5$ and the reionization duration, $\Delta z=(dx_{HI}/dz)^{-1}|_{x_{\rm HI}=0.5}$.

2.3 Total intensity foreground model

A total intensity all-sky map could be used to evaluate the observed foreground spectrum ${\bar{T}}_{f}$ via equation 2 and 2 as it was done, for example, in Bernardi et al. (2015). Rather than repeating a similar simulation, we directly calculated the total intensity foreground spectrum averaged over the duration of the observations, i.e. the left hand side of equation 2.

The Galactic foreground spectrum has often been modelled as a $N^{\rm th}$-order log-polynomial (e.g., Bowman & Rogers, 2010; Pritchard & Loeb, 2010; Harker et al., 2012; Bernardi et al., 2015; Presley et al., 2015; Bernardi et al., 2016):

[TABLE]

with $\nu_{0}=60$ MHz. In earlier works, the foreground spectrum was modelled with few frequency components (e.g., Pritchard & Loeb, 2010), but more recent simulations suggest that, due to the coupling between the antenna beam pattern and the sky brightness, $N$ should likely take higher values (Harker et al., 2012; Bernardi et al., 2015; Bernardi et al., 2016; Mozdzen et al., 2016). Here we used the best fit coefficients derived from simulations in (Bernardi et al., 2015), with a $N=4$ log-polynomial (see Table 1), a case similar to the analysis in Bowman et al. (2018a).

2.4 Polarized foreground model

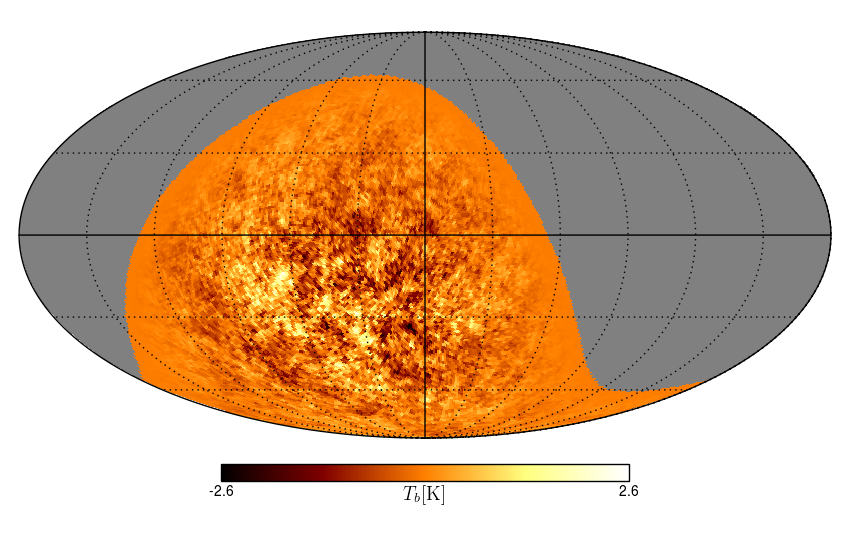

We use the simulations in Spinelli et al. (2018, hereafter S18) to produce Stokes $Q$ and $U$ full sky maps in the 50-200 MHz range with 1 MHz frequency resolution. The S18 full sky simulations are based on the interferometric observations that sample up to degree angular scales (Bernardi et al., 2013) that were extrapolated up to tens of degrees scales, relevant for global signal observations. They are constructed from rotation measure synthesis data that measure the polarized intensity as a function of Faraday depth $\phi$ (Burn, 1966; Brentjens & de Bruyn, 2005). Figure 3 displays an example of a Stokes $Q$ map observed through the dipole beam (equation 2). We generate two sets of polarized foreground spectra $\bar{T}_{Q}(\nu)$:

one that uses S18 simulations with the full range of $\phi$ values from the data. We will refer to this simulation as the “all $\phi$" case; 2. 2.

a second one where high values of the Faraday depth $\phi$ ($\phi>5$ rad/m2) are excluded from the S18 simulations. The motivation behind this choice is to create a more realistic model in the LF band. Observations indicate that Galactic polarized emission has a more local origin with decreasing frequency (e.g., Haverkorn et al., 2004; Bernardi et al., 2009; Lenc et al., 2016) and, therefore, very little emission at high Faraday depth values. We will refer to this simulation as the “low $\phi$" case (i.e. $\phi<5$ rad/m2).

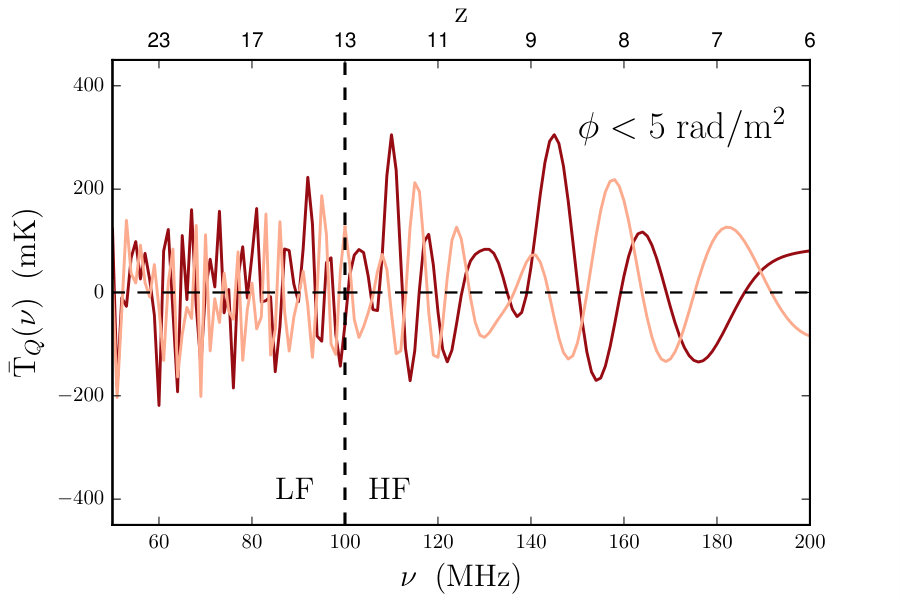

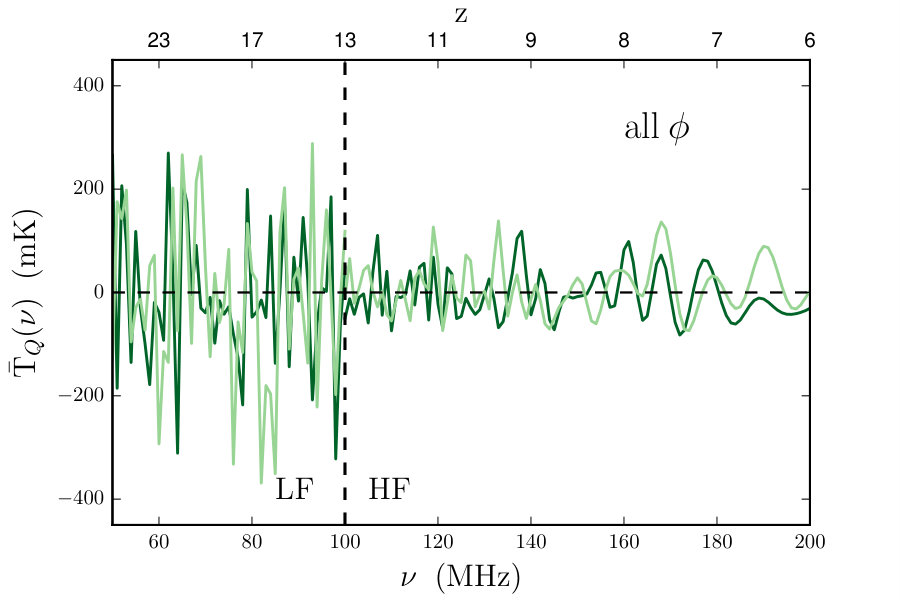

The combination of the integrated effect of the beam and the complex Faraday structure result in spectra like the one shown in figure 4, where two representative realizations of both sets of simulations for both the LF and HF band are displayed. In the LF band, the “all $\phi$" simulation leads to a considerable more complex spectral structure and higher contamination with respect to the “low $\phi$" case - as expected. The oscillatory behaviour becomes smoother in the HF band for both cases but, although there are fewer peaks, the contamination is more prominent for the “low $\phi$" case.

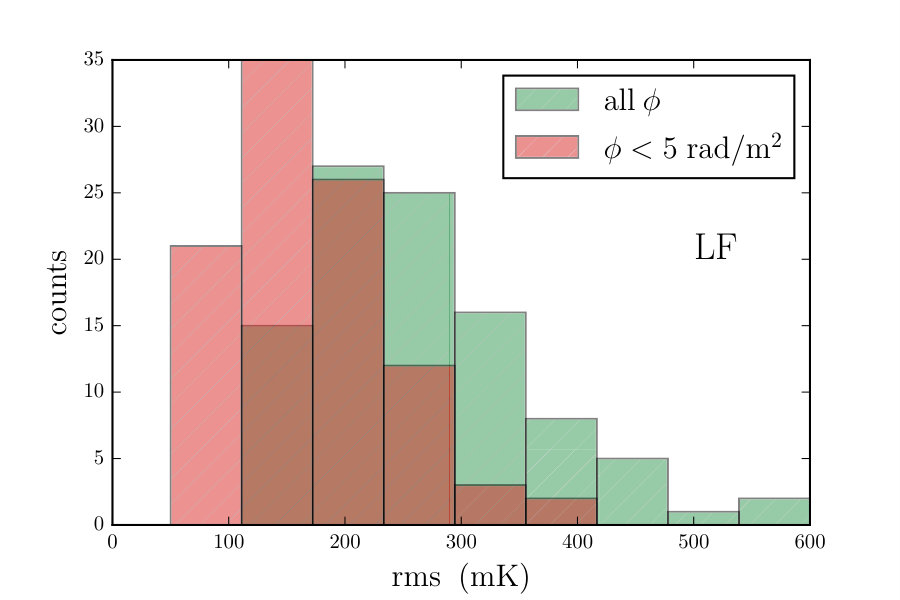

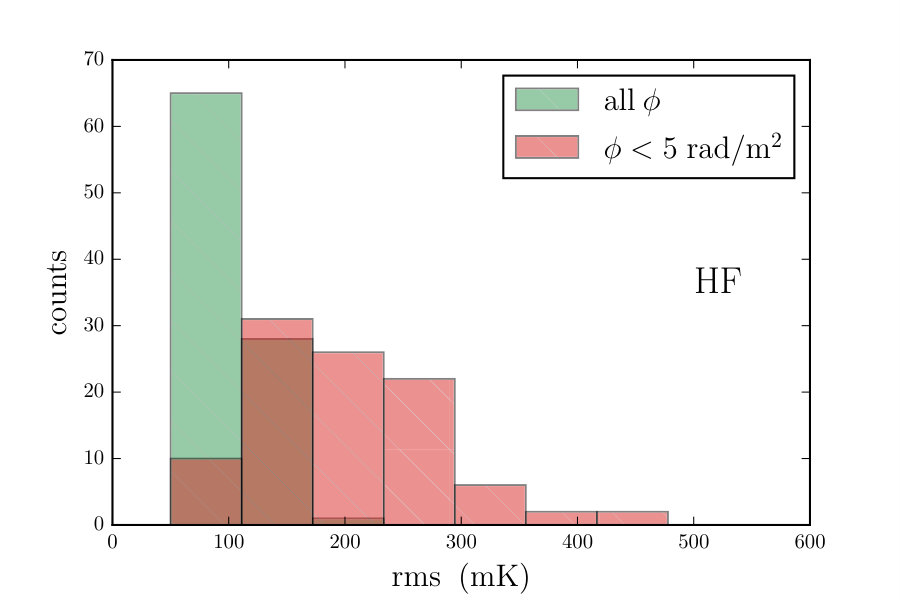

We calculated the rms of $\bar{T}_{Q}(\nu)$ for every realization and plot its distribution in figure 5. In the LF band, the average rms contamination is $\sim 250$ mK for the “all $\phi$" case, with an extended tail at high values. The average contamination is smaller in the other case, peaking around $\sim 150$ mK. The situation is opposite in the HF band, where the “all $\phi$" simulation has an average rms contamination smaller than $\sim 100$ mK whereas the “low $\phi$" case spans a much broader range of values with an extended tail up to $\sim 400$ mK. It is worth noticing that the estimated rms contamination is generally higher or comparable with the expected $21$ cm signal, although our simulations likely represent a worst case scenario as they do not account for time of frequency dependent depolarization effects. Time variable electron density and variations of the magnetic fields across the field of view both depolarize the signal when integrated over long observations. Simulations by Martinot et al. (2018) estimated the depolarization to be a factor of four or more when averaging over days and over a $\sim 10^{\circ}$ sky patch. The effect can be even more pronounced for global signal observations. Frequency dependent polarization arises when emitting clouds are Faraday thick, i.e. synchrotron emission and Faraday rotation are co-located within the cloud (Burn, 1966; Tribble, 1992). Its magnitude depends upon the detailed physics of the interstellar medium and therefore it is fairly uncertain. We note, however, that polarized fluctuations at 350 MHz are of the order of a few Kelvin that, extrapolated at 150 MHz with a fiducial spectral index $\beta=-2.6$ would lead to polarized signals at the level of a few tens of Kelvin. Polarized fluctuations remain at the $10-20$ K level in the $150-200$ MHz range (e.g., Bernardi et al., 2013; Lenc et al., 2016), implying that part of the emission happens in Faraday thick regions and it is Faraday depolarized at low frequencies. In order to empirically account for these effects, we also considered a more optimistic case where the magnitude of the polarized spectrum is reduced to a $10\%$ of the current simulation value. This choice is in qualitative agreement with the magnitude of the residual rms in the Bowman et al. (2018a) observations.

The final product of our simulations is a sky spectrum $\bar{T}(\nu)$ that is the sum of four different components: a $21$ cm signal $T_{21}(\nu)$ as described in section 2.2; a total intensity foreground spectrum that follows a $N^{th}$-order log polynomial (see section 2.3); a polarized foreground spectrum $\bar{T}_{Q}(\nu)$ (section 2.4) and a noise realization drawn from a Gaussian distribution (equation 7). The next section describes the extraction of the $21$ cm signal from the simulated spectra.

3 Signal extraction

In order to extract the global $21$ cm signal from the simulated spectra we use the hibayes code (Bernardi et al., 2016; Zwart et al., 2016), a fully Bayesian framework where the posterior probability distribution is explored through the multinest sampler (Feroz & Hobson, 2008; Feroz et al., 2009) using an MPI-enabled python wrapper (Buchner et al., 2014). The likelihood $\mathcal{L}_{i}$ of the simulated spectra can be written as:

[TABLE]

where $\boldsymbol{\theta}$ is the vector of model parameters, $\sigma_{N}$ is the noise standard deviation (equation 7) and $T_{m}(\nu_{i},\boldsymbol{\theta})$ is the model spectrum. We impose uniform prior on the signal parameters assuming the signal is present within the observed band. For the HF band this translates into a limit for the middle point of reionization i.e. $6<z_{r}<13$ and for the reionization duration i.e. $0<\Delta z<13$. In the LF band we set the priors to be $40<\nu_{21}<100$ MHz, $0<\sigma_{21}<50$ MHz and, solely to reduce the computational load, $-1<A_{21}<0$ K. We use uniform priors for all the foreground parameters but for the $p_{n=0}$ case where we use a flat logarithmic prior.

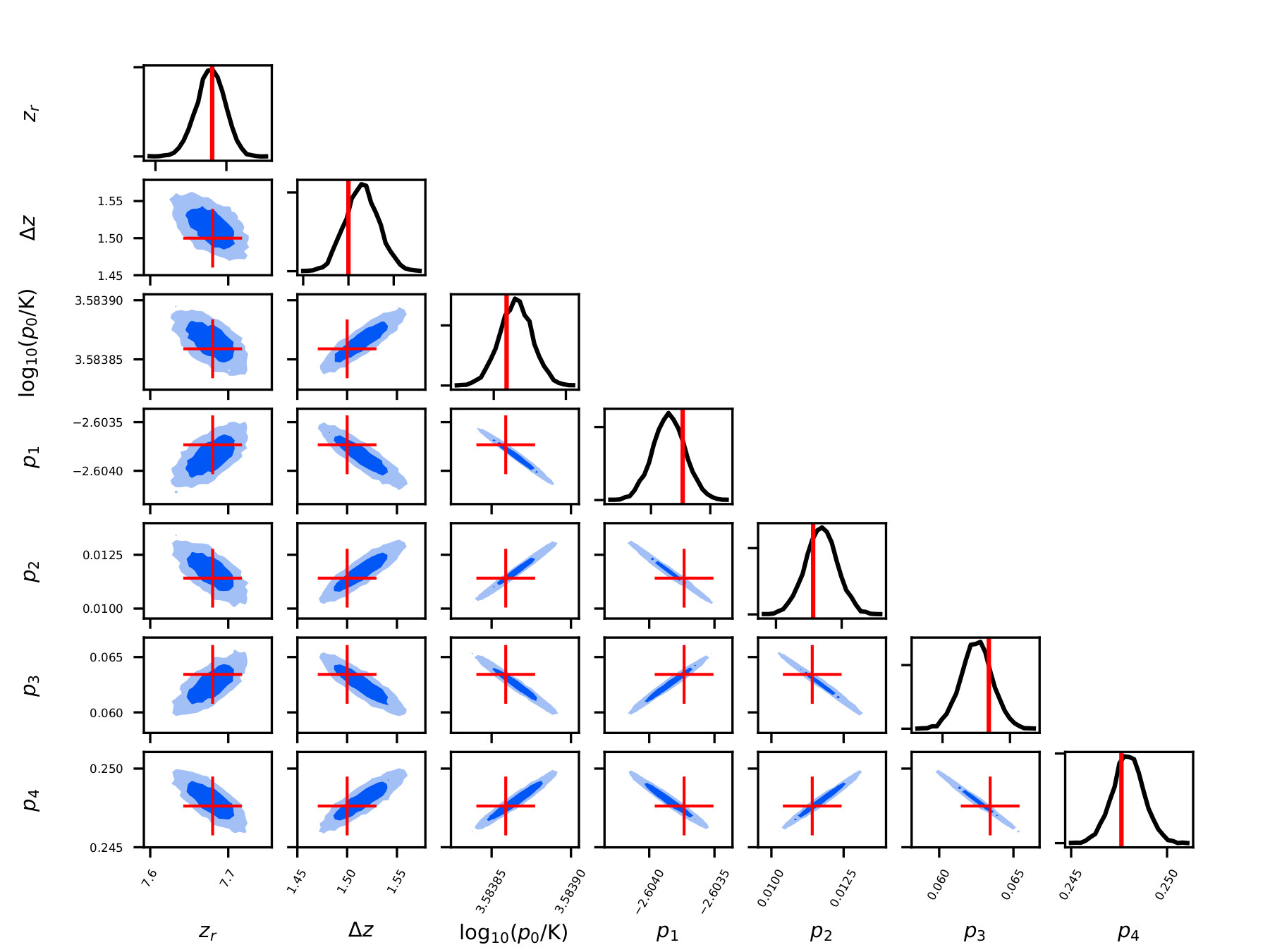

As a test case similar to the simulations carried out in Harker et al. (2012) and Bernardi et al. (2016), we show in figure 6, the recovery of the global $21$ cm signal in the HF band (equation 12) with $z_{r}=7.68$ and $\Delta z=1.50$, in agreement with Planck Collaboration XIII (2016) and in the analysis by Monsalve et al. (2017).

We then add the simulated polarized spectrum to the total intensity one. We simulate both equation 3 and 4, i.e. both the $xx$ and $yy$ polarization. We extract the $21$ cm signal from three different simulated cases:

• •

the 21 cm signal in the LF band is a flattened-Gaussian with $A_{21}=-520$ mK, $\nu_{21}=78.3$ MHz, $w=20.7$ MHz and the flattening parameter $\tau=7$, i.e. the EDGES best fit model (Bowman et al., 2018a). The model spectrum used in the likelihood function is $T_{m}={\bar{T}}_{f}+T_{21,fG}^{\rm LF}$.

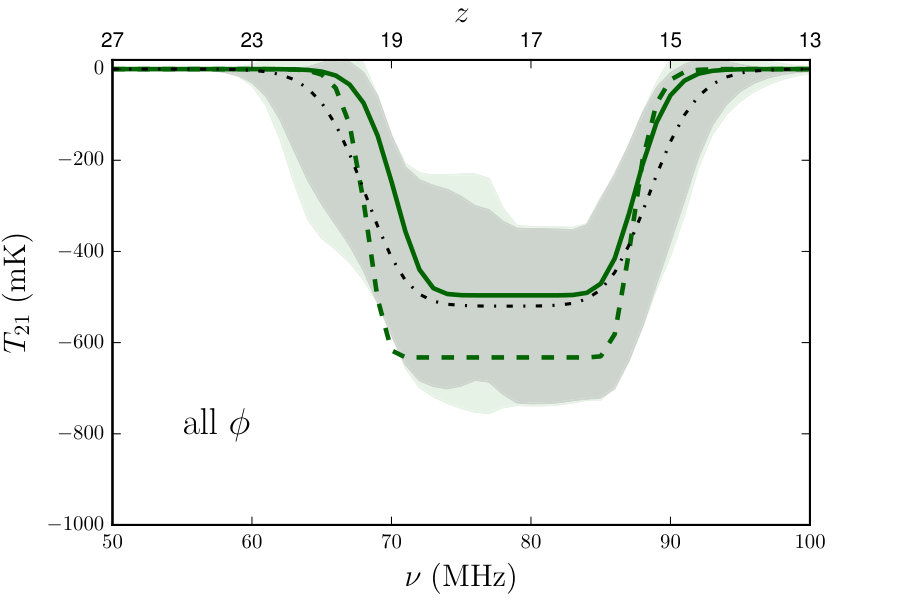

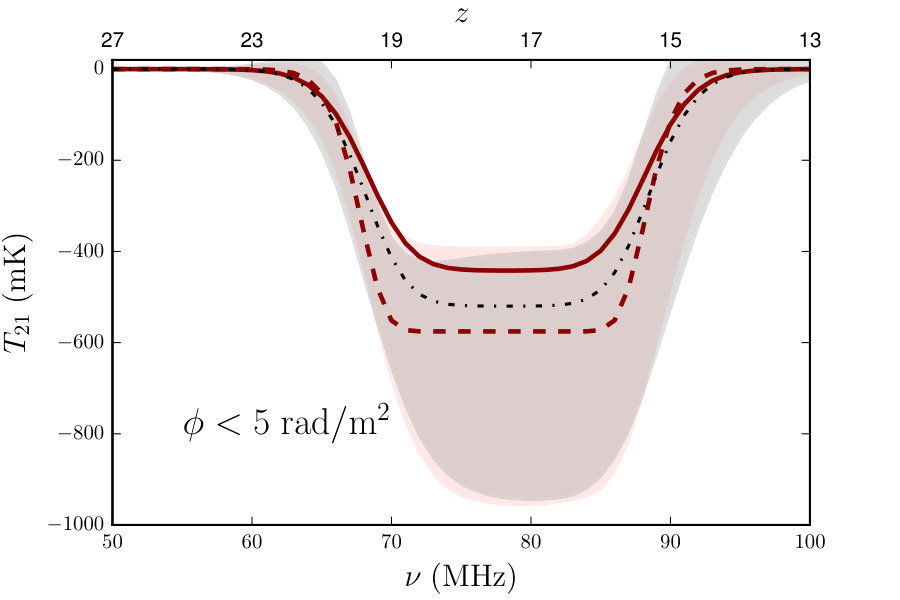

We generated 50 different realizations of the polarized foreground spectra and reconstruct $T_{21}(\nu)$ from the best fit parameters of the posterior distribution for each of them. We discard the cases where our reconstructed signal is localized at high frequency ($>90$ MHz) as the presence of an absorption signal in the EDGES High-Band has been excluded at $\gtrsim 2\sigma$ (Monsalve et al., 2017). After this selection, we are left with $\sim 80\%$ of the total number of simulations. The mean and variance of the reconstructed 21 cm profiles are computed separately for the $xx$ and $yy$ polarizations and displayed as a shaded region in figure 7.

Due to the unmodelled polarized component, the residual spectra obtained after subtracting the best fit model, have relatively high rms values, at the $90-150$ mK level. In the “all $\phi$" case, the presence of an unmodelled polarized foreground introduces a bias in both the amplitude and the width of the reconstructed signal. In the “low $\phi$" case the bias is mainly in the amplitude although the reconstructed flattening parameter is often different between the two polarization cases. Figure 7 shows that the reconstructed amplitude is up to $\sim 40\%$ different than the input signal, at $1\sigma$ confidence level.

• •

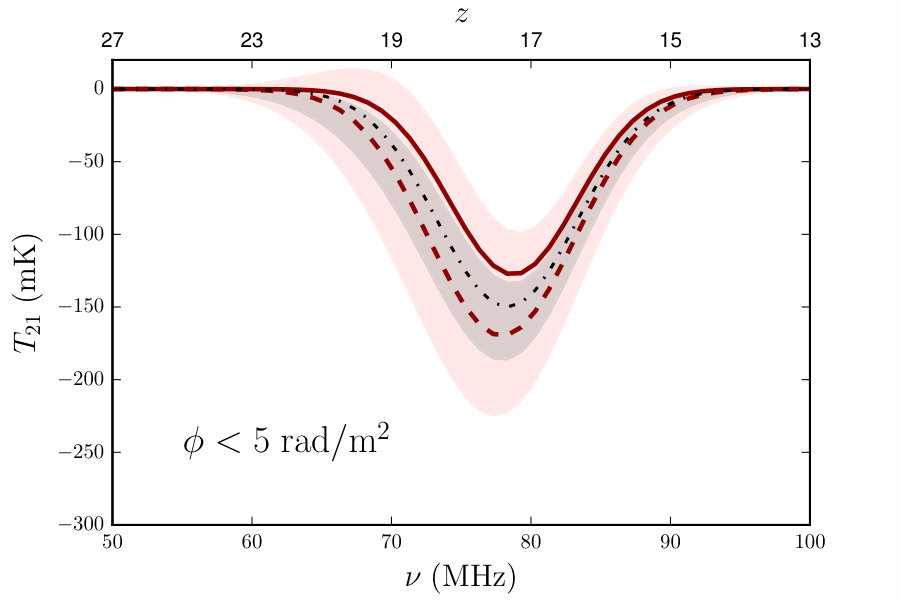

the $21$ cm signal in the LF band is a Gaussian with $A_{21}=-150$ mK, $\nu_{21}=78.3$ MHz and $\sigma_{21}=5$ MHz, i.e. the fiducial signal expected from standard theoretical models (e.g., Pritchard & Loeb, 2010; Mirocha et al., 2015). We first model this signal using a flattened Gaussian shape in order to test whether or not the unusual shape reported by Bowman et al. (2018b) can be due to the contamination from polarized foregrounds, i.e. $T_{m}={\bar{T}}_{f}+T_{21,fG}^{\rm LF}$.

We find that the polarized contamination is significant and, in many realizations, prevents the convergence within the prior range or leads to reconstructed profiles with a high frequency trough that are, again, discarded from the analysis. Note that we retain a reconstructed profile if these criteria are satisfied by both polarizations. In the “all-$\phi$" case, we discard almost all realizations, concluding that the level of contamination of the simulation is too high for this scenario. On the contrary, using the “low $\phi$" simulations, it is possible to select a meaningful sub-sample of realizations. Indeed, in this case, we retain the reconstructed profile in both polarizations for $\sim 30\%$ of the cases (figure 8). As discussed in Section 2.4, we also consider a more optimistic case with a magnitude of the polarized spectrum reduced to a $10\%$ value of the current simulations. Even at this reduced level of contamination, the reconstruction remains biased in a way similar to what is shown in figure 8.

We eventually extract the $21$ cm signal using a Gaussian model $T_{m}={\bar{T}}_{f}+T_{21,G}^{\rm LF}$, i.e. the same functional form used for the simulation input. The magnitude of the polarized contamination prevents the extraction of the 21 cm signal in virtually all the simulated cases. We find, instead, convergence for all cases when the contamination is reduced to the $10\%$ level (figure 9). The effect of the polarized leakage is, again, a bias similar to the one in figure 7;

• •

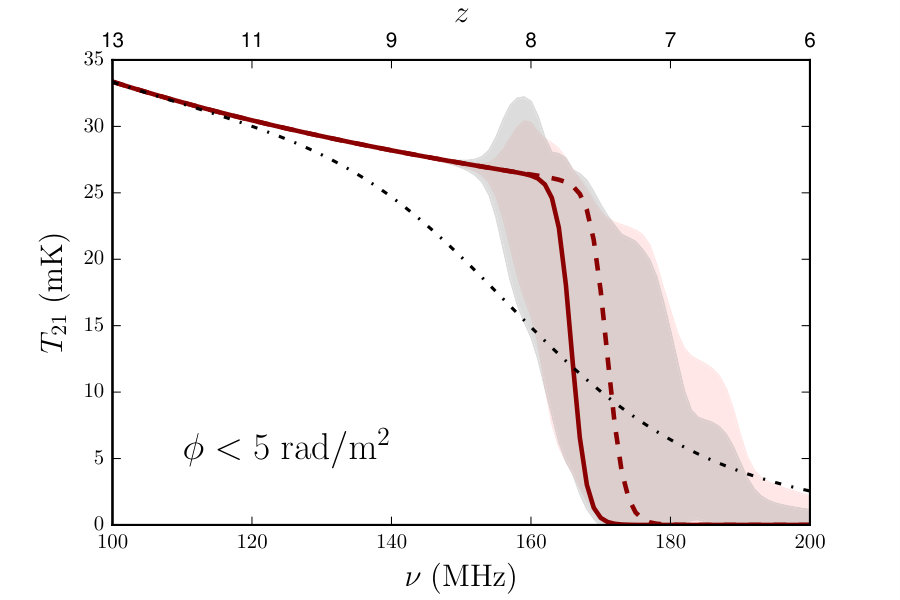

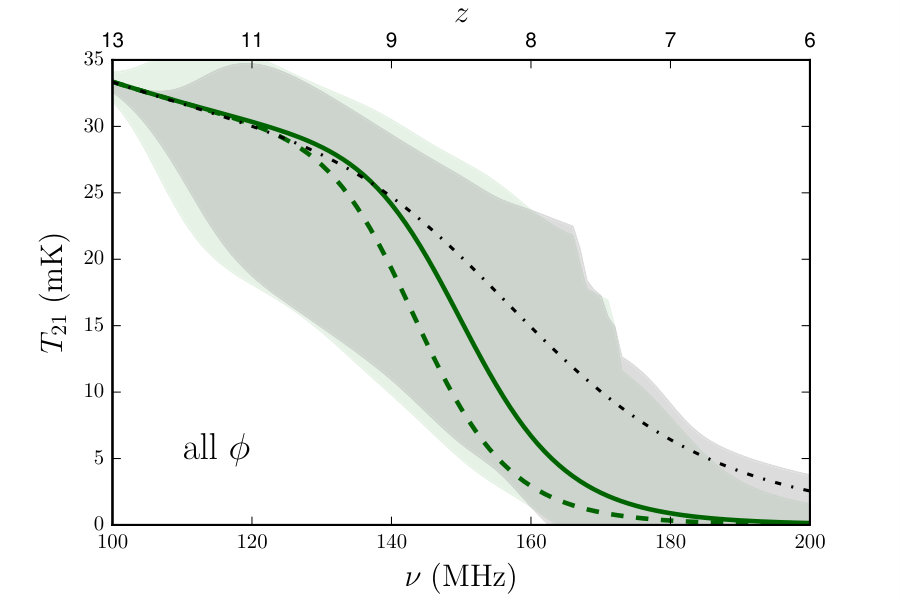

the 21 cm signal is the fiducial HF band model (section 2.2). The contamination derived from our simulations is significantly higher than the $21$ cm signal, preventing the convergence of the extraction algorithm to a physically meaningful solution for $\Delta z$, the reionization duration. When we consider the case of a $10\%$ contamination we find that the extraction is possible, although the recovered signal is noticeably biased (figure 10). As already noticed in section 2.4, the bias is stronger in the “low $\phi$" case (up to 10%), where $\Delta z$ systematically tends to lower values. The bias is still present in the “all $\phi$" case, but less pronounced.

4 Discussion and Conclusions

In this paper we have studied the impact of polarized foregrounds on the measurement of the $21$ cm global signal. We simulated realistic observations taken with a zenith-pointing dipole, spanning an $8$ hour range with a $1$ minute cadence. Simulations include the all-sky polarized foreground template maps from Spinelli et al. (2018) and a realistic dipole beam in order to generate polarized spectra. We also include a different polarized template where the contamination is reduced to low Faraday depth values, i.e. $\phi<5$ rad/m2. We simulate two antenna orientations ($xx$ and $yy$) separately, using the corresponding beam models. We also consider a more optimistic case where the amplitude is $10\%$ of the template maps in order to empirically account for depolarization effects not included in the Spinelli et al. (2018) model. Total intensity foregrounds are directly modelled through their spectra, as a 4th-order log-polynomial function.

We included three different 21 cm global signal models: a fiducial EoR $\tanh$ model in the $100-200$ MHz (HF) range, a fiducial Gaussian and a flattened Gaussian (Bowman et al., 2018a) absorption profile in the $50-100$ MHz range (LF). We performed a Bayesian extraction of the global $21$ cm signal from the simulated spectra.

We draw a few main conclusions from our work. We find that, generally, the contamination from our polarized foreground model has a magnitude and frequency behaviour that prevents the extraction of the 21 cm fiducial signal both in the HF and LF bands. In order to detect the signal, the contamination needs to be fainter: at the $\sim 10\%$ magnitude level, the extraction of the $21$ cm signal in both bands is possible, but is significantly biased. In the HF band, the middle point of reionization is biased up to the $10\%$ level and the duration of reionization is poorly recovered, underestimated by a factor up to $10$. In the LF band, the bias affects the amplitude of the fiducial Cosmic Dawn Gaussian signal at the $20\%$ level.

The contamination from polarization leakage can be mitigated by the subtraction of the two orthogonal polarizations observed by a dual polarization antenna. Asymmetries in the beam pattern as well as errors in the relative calibration of the two polarizations can still, however, introduce polarization contamination at some level. By reducing the magnitude of the polarized signal to the $10\%$ level, we mimic this case too and show that the contamination may not be negligible even in dual polarization observations, in particular for the fiducial EoR model. For example, Monsalve et al. (2017) find a periodic residual signal at the 30 mK level that could be consistent with polarization contamination.

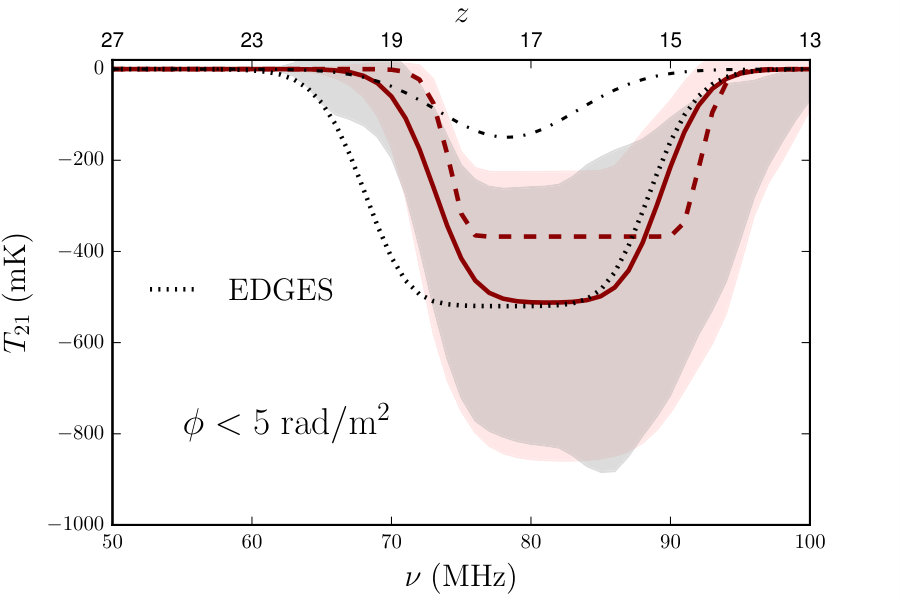

In the light of the detection of the Cosmic Dawn signal reported by Bowman et al. (2018a), we include their flattened Gaussian absorption model in our simulations. We test a case where the simulation input is the fiducial Cosmic Dawn Gaussian absorption that we, however, model as a flattened Gaussian profile in the extraction. We find that in this case the signal extraction is possible even at the level of polarized intensity predicted by our simulations, if we consider the “low $\phi$" (i.e. $\phi<5$ rad/m2) realizations. We find that the polarization contamination tends to introduce a bias in the recovered $21$ cm signal, increasing both its amplitude and width for both polarization orientations, leading to a profile similar to what Bowman et al. (2018a) observed. Due to the modeling uncertainties, the bias evidence remains statistically weak, i.e. in tension with the input fiducial Gaussian signal only at the $\sim 1.5\sigma$ level.

In order to exclude the contamination from polarized foregrounds, Bowman et al. (2018a) carried out two measurements where the dipole antenna was rotated by $90^{\circ}$. The best fit signal was consistent in both cases, with a $10-20\%$ difference in amplitude (see Figure 2 in Bowman et al., 2018a). We find that the difference between the $21$ cm signal extracted from $xx$ and $yy$ polarization orientations is at a similar level in our simulated cases. This result indicates that measurements with a rotated antenna do not necessarily exclude the polarized contamination and implies that the use of a dual polarization antenna would not automatically remove the problem of polarized foregrounds.

We also simulate the case with a flattened Gaussian profile as both simulation input and model in the extraction. We find that the signal extraction is possible in the $80\%$ of runs for both the “all $\phi$" and the “low $\phi$" (i.e. $\phi<5$ rad/m2) cases, as the input $21$ cm signal is brighter than the polarized foreground. The amplitude of the extracted $21$ cm profile, however, has an amplitude bias at the $\sim 20-30\%$ level that changes with the polarization orientation which is, again, qualitatively comparable with the difference shown by Bowman et al. (2018a) when the two polarizations are rotated by $90^{\circ}$. A polarized contamination, enhancing the reconstructed signal, could mitigate the need to explain the anomalously high amplitude in term of exotic physics.
