Presaturation phase with no dipolar order in a quantum ferro-antiferromagnet

TL;DR

This study uncovers a novel quantum bond-nematic phase in BaCdVO(PO$_4$)$_2$ that appears in high magnetic fields without dipolar magnetic order, revealed through comprehensive experimental techniques.

Contribution

It reports the discovery of a new quantum bond-nematic phase in a ferro-antiferromagnet, characterized by the absence of dipolar order and identified via multiple experimental methods.

Findings

Identification of a new thermodynamic phase at high magnetic fields

Absence of dipolar magnetic long-range order in the phase

Evidence supporting a quantum bond-nematic state

Abstract

Magnetization, magnetocaloric, calorimetric, neutron and X-ray diffraction and inelastic neutron scattering measurements are performed on single crystals of BaCdVO(PO$_4$)$_2$. The low-temperature crystal structure is found to be of a lower symmetry than previously assumed. The result is a more complicated model spin Hamiltonian, which we infer from measurements of the spin wave dispersion spectrum. The main finding is a novel spin state which emerges in high magnetic fields after antiferromagnetic order is terminated at $H_{c1}\simeq 4.0$ T. It is a distinct thermodynamic phase with a well-defined phase boundary at $H_{c2}\simeq 6.5$ T and is clearly separate from the fully saturated phase. Yet, it shows no conventional (dipolar) magnetic long range order. We argue that it is fully consistent with the expectations for a quantum bond-nematic state.

Figures

Full text

Conventional long range order in spin systems is represented by a static, usually periodically modulated magnetization. It breaks both rotational and time-reversal symmetries of the underlying Heisenberg Hamiltonian. Spin nematic order, as first envisioned by M. Blume Blume and Hsieh (1969) and generalized by A. F. Andreev Andreev and Grishchuk (1984), breaks rotational but not time reversal symmetries. Spins continue to fluctuate, but these fluctuations spontaneously become anisotropic. From a theorist’s perspective such exotic quantum states are robust and not particularly rare, often realized in partially magnetized systems with competing antiferromagnetic (AF) and ferromagnetic (FM) interactions Sudan et al. (2009); Zhitomirsky and Tsunetsugu (2010); Balents and Starykh (2016). For example, the simple next-nearest-neighbor (nnn) Heisenberg AF on a square lattice with nearest-neighbor (nn) FM coupling is predicted to always be a spin nematic in some range of applied magnetic fields just below full polarization (FP) Shannon et al. (2006); Ueda (2015). Finding an experimental realization of even this relatively unconstrained model is a formidable challenge. The only known potential host compounds are layered vanadophosphates of type $AA^{\prime}$VO(PO4)2 Tsirlin and Rosner (2009); Tsirlin et al. (2009). Until recently, no unambiguous signatures of spin nematic phases have been found in any of them. The main obstacle has been a lack of single crystal samples. Indeed, powder data are notoriously difficult to interpret. In applied magnetic fields, where each crystallite experiences a priori different conditions, phase transitions and other anomalies that may be indicative of the nematic state become washed out. Thus, single crystal experiments are key.

In our recent paper Povarov et al. (2019) we reported the first thermodynamic evidence of a novel presaturation quantum phase in small single crystals of BaCdVO(PO4)2, one of the most promising host materials Smerald et al. (2015). Powder magnetometric and neutron diffraction studies by other authors Skoulatos et al. (2019) seemingly supported the notion of the new phase being the elusive spin nematic state, but, as argued below, may otherwise be misleading. In the present work we settle this issue decisively. We report combined neutron and X-ray diffraction, inelastic neutron scattering, Faraday balance magnetometry, calorimetry and magnetocaloric(MCE) studies on appropriate size BaCdVO(PO4)2 single crystals. We first show that the low-temperature crystallographic structure is of a lower symmetry than previously assumed. Consequently, the spin wave spectrum is quite different from that of a simple square lattice. Despite that, the putative pre-saturation nematic phase exists and persists over a surprisingly wide range of applied magnetic fields. It has distinct thermodynamic phase boundaries, but its polarization is almost complete, over 98% of full saturation.

At room temperature BaCdVO(PO4)2 has an orthorhombic $P_{bca}$ ($D^{15}_{2h}$, No. $61$) structure with 8 V4+ ions per unit cell Meyer et al. (1997) forming an approximate $S=1/2$ square lattice in the $(a,b)$ plane. If what is known about the structurally similar Pb2VO(PO4)2 is any guidance Bettler et al. (2019), magnetic interactions are in the these planes, with negligible inter-layer coupling. The nn and nnn in-plane exchange constants for BaCdVO(PO4)2 have been previously estimated from powder data as $J_{1}=-0.31$ and $J_{2}=0.28$ meV Nath et al. (2008). There is also a weak easy-axis anisotropy that manifests in a spin flop transition (SF) around $\mu_{0}H_{\text{SF}}\simeq 0.5$ T for $\mathbf{H}\parallel\mathbf{a}$ Povarov et al. (2019).

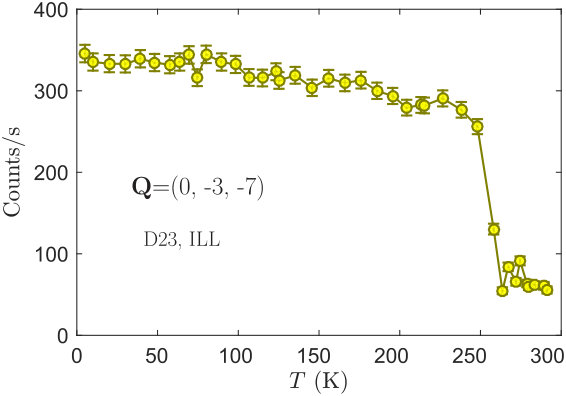

Long range magnetic order in zero applied field is of a peculiar “up-up-down-down” type, propagation vector $(0,1/2,0)$, and appears below $T_{N}=1.05$ K  Skoulatos et al. (2019). It is incompatible with the simple $J_{1}$-$J_{2}$ model and was attributed to additional 3rd-nearest neighbor (3nn) interactions in the V4+ layers Skoulatos et al. (2019); Sindzingre et al. (2009); Sindzingre_JPConf_2010_J1J2J3final. There is, however, a more natural explanation. It turns out that BaCdVO(PO4)2 undergoes a structural phase transition at $T\sim 250$ K. It was detected by tracking the temperature dependence of the $(0,-3,-7)$ neutron Bragg reflection with CRG-D23 diffractometer at ILL. This Bragg reflection is forbidden in $P_{bca}$ but becomes visible below the transition point (see supplementary material). At low temperature the compound remains orthorhombic with the reduced space group $P_{ca}2_{1}$ ($C^{5}_{2v}$, No. $29$). The structure was solved at $T=120$ K from $14519$ Bragg peak intensities collected in a single crystal X-ray diffraction experiment using a Bruker APEX-II diffractometer. Details of the crystallographic refinement are reported in the supplement. The $P_{ca}2_{1}$ structure, with two inequivalent V4+* positions, allows for as many as 4 nn and 4 nnn interactions within each V4+ layer as shown in the inset of Fig. 1. In particular, unlike at room temperature, there is a possibility of alternating nn and nnn interactions along the crystallographic $b$ axis. This naturally explains the $(0,1/2,0)$ magnetic propagation vector without invoking 3nn coupling, which would have to span over an unrealistic $8$ Å distance.

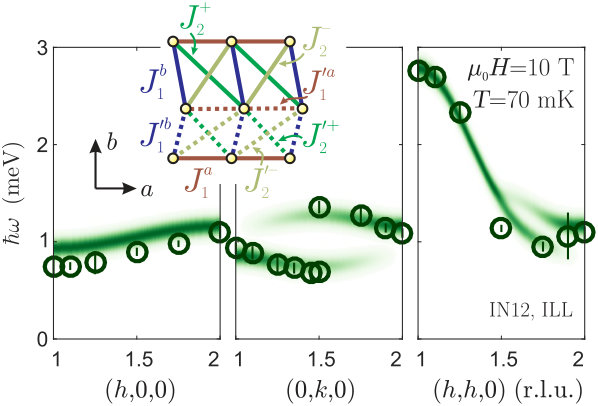

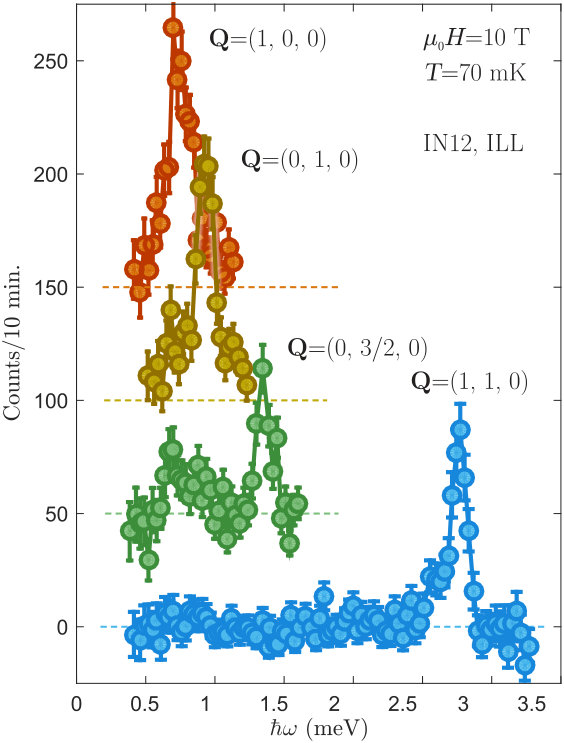

To elucidate the effect of lowered crystal symmetry on the coupling constants in BaCdVO(PO4)2 we performed preliminary inelastic neutron scattering measurements of the spin wave (SW) dispersion in the fully saturated phase. The data were collected at $T=70$ mK on the IN12 cold neutron 3-axis spectrometer at CRG-ILL in an $\mu_{0}H=10$ T magnetic field applied along the crystallographic $c$ axis. We co-aligned two crystals of total mass 320 mg and a combined mosaic of $10^{\circ}$ full width at half height grown using 98.8% isotropically enriched 144Cd to reduce neutron absorption. A series of constant-$\mathbf{Q}$ scans performed with $3.5$ meV final energy neutrons (see supplement) reveal the dispersion relations plotted in Fig. 1 (symbols). It was analyzed using linear spin wave theory (SpinW package Toth and Lake (2015)). The entire set of eight exchange constants can not be uniquely determined from the three sets of measured dispersion curves. However, we find that without an alternation of $J$s along the $b$ direction the two distinct spin wave branches clearly visible in the data can not be accounted for. With such an alternation, even a restricted minimal model reproduces the measured spectrum reasonable well with $J_{1}^{a}=J_{1}^{{}^{\prime}a}=J_{1}^{b}=-0.42$, $J_{1}^{{}^{\prime}b}=-0.34$, $J^{+}_{2}=J_{2}^{-}=0.16$ and $J_{2}^{{}^{\prime}+}=J_{2}^{{}^{\prime}-}=0.38$ meV. The corresponding calculated scattering intensities Toth and Lake (2015) are shown as a false color plot in Fig. 1. Further measurements will be needed to uniquely determine the Hamiltonian, but it is already clear that for BaCdVO(PO4)2 the simple $J_{1}$-$J_{2}$ model is inadequate and that an alternation of exchange constants plays a crucial role.

We now turn to the main focus of the present paper, which is the putative low-temperature nematic phase (LT) in applied fields. It emerges at $\mu_{0}H_{c1}\simeq 4$ T in either a first- or second-order transition for $\mathbf{H}\parallel\mathbf{a}$ and $\mathbf{H}\parallel\mathbf{b}$, respectively Povarov et al. (2019). The problem with the nematic order parameter is that it is not directly accessible to any experimental technique 111In principle, it can be probed with resonant magnetic X-ray diffraction. Unfortunately, this technique is incompatible with the high magnetic fields and mK temperatures at which the nematic state occurs in BaCdVO(PO4)2.. The only way to identify it is thus by a combination of complementary measurements. Figures 2 and 3 show such data for two sample geometries, with the magnetic field applied parallel and perpendicular to the magnetic easy axis, respectively. All these measurements are carried out at base temperatures of 3He-4He dilution refrigerators ($100$ mK or lower) on single crystals grown as described in Ref. Povarov et al. (2019).

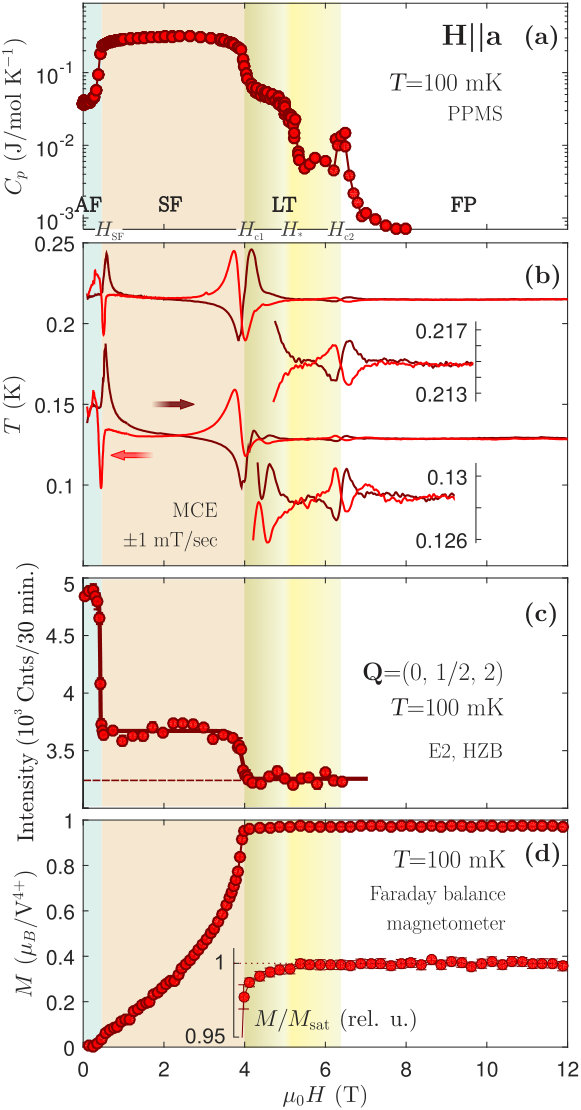

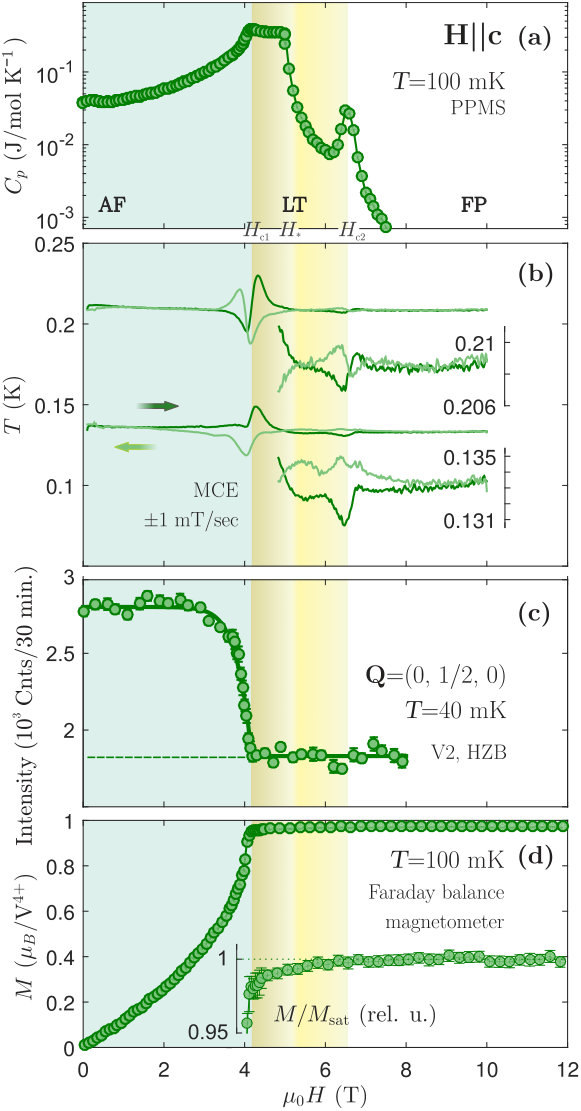

Exhibit one (top panels in Figs. 2 and 3) is heat capacity measured vs. applied magnetic field using a commercial Quantum Design PPMS relaxation calorimetry setup on a $2.3$ mg crystal of BaCdVO(PO4)2. As described in detail in Ref. Povarov et al. (2019), for $\mathbf{H}\parallel\mathbf{a}$, the discontinuous spin flop transition at $\mu_{0}H_{\text{SF}}$ and another one at $\mu_{0}H_{c1}=4.00(5)$ T are marked by sharp steps in the heat capacity. For $\mathbf{H}\parallel\mathbf{c}$ there is no spin flop transition and the specific heat exhibits a strong divergence approaching $\mu_{0}H_{c1}=4.08(5)$ T. In both cases, fluctuations persist above $\mu_{0}H_{c1}$, marking the novel pre-saturation state. In all the orientations the specific heat plateau above $\mu_{0}H_{c1}$ visibly collapses around a crossover field $\mu_{0}H_{\ast}\simeq 5.5$ T. This pronounced change in the resulting specific heat stems from an onset of “temperature arrest” kind of behavior in the relaxation curves. We interpret it as a hint of the phase separation taking place in the sample Rößler et al. (2011); Ueda and Momoi (2013). At any orientation at still higher field $\mu_{0}H_{c2}\simeq 6.5$ T there clearly is an additional lambda anomaly, albeit a weak one 222In both orientations the relaxation curves for $H>H_{*}$ were taken with $\sim 30$ sec. pulse length and interpreted within a simple exponential relaxation (single $\tau$) model..

The transition at $H_{c2}$ is even more obvious in exhibit two [panels (b) in Figs. 2 and 3]. These are magnetocaloric measurements on the same sample using a constant field sweep rate of $1$ mT/sec. Up and down sweeps are shown as darker and lighter lines, respectively. For $\mathbf{H}\parallel\mathbf{a}$ at around $130$ mK, $H_{\text{SF}}$ and $H_{c1}$ are both marked by asymmetric anomalies, characteristic of discontinuous transitions Kohama et al. (2010). For $\mathbf{H}\parallel\mathbf{c}$ the lowest-temperature magnetocaloric sweeps the anomaly at $H_{c1}$ is also asymmetric. At the same time, a weak but clear magnetocaloric anomaly is also present at $H_{c2}$ for all the orientations. At slightly elevated temperatures [$T\simeq 210$ mK set of curves in Figs. 2(b) and 3(b)] the main anomaly at $H_{c1}$ turns symmetric, indicative of a continuous phase transition Kohama et al. (2010). In both geometries, at slightly elevated temperatures the transition at $H_{c2}$ is clearly continuous as well.

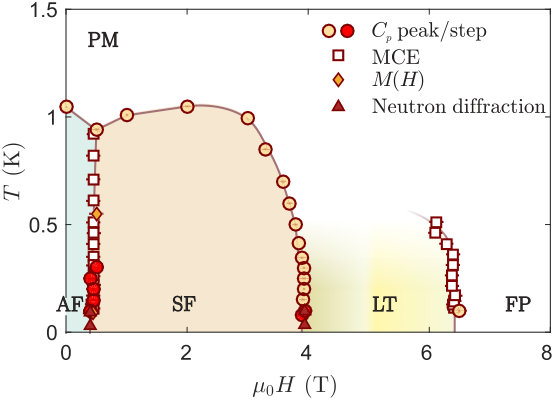

Additional magnetocaloric effect scans at different temperatures allow us to trace the $H_{c2}$ phase boundary vs. temperature and reconstruct the $H-T$ phase diagram. The transition can be followed up to about $500$ mK. Up to $350$ mK it barely shifts and shows no sign of broadening: only its magnitude decreases. Above $350$ mK the left shoulder of the magnetocaloric anomaly vanishes and it turns into a broad peak. This peak becomes indiscernible in the data noise above $500$ mK. Fig. 4 shows the phase boundaries deduced from MCE, magnetization, neutron diffraction, and specific heat Povarov et al. (2019). Very similar temperature-dependent behavior was observed for $\mathbf{H}\parallel\mathbf{c}$ and $\mathbf{H}\parallel\mathbf{b}$ (not shown). The measured phase diagram for BaCdVO(PO4)2 shows certain similarities to the one recently reported for volbortite, a very complicated frustrated magnet that is to some extent equivalent to a $S=1/2$ model on a frustrated square lattice and also expected to host a spin nematic phase Kohama et al. (2019).

Which of the transitions observed in BaCdVO(PO4)2 corresponds to a destruction of conventional long range order? This is clarified by exhibit 3 [panels (c) in Figs. 2 and 3], which shows the field dependence of the magnetic Bragg peaks $(0,1/2,2)$ and $(0,1/2,0)$ measured via neutron diffraction. These data were taken on the V2 [Fig. 3(c)] and E2 [Fig. 2c] instruments at the BER reactor at HZB using $2.74$ meV and $14.2$ meV neutrons and $142$ and $24$ mg 144Cd-enriched single crystals, respectively. In both geometries the disappearance of conventional magnetic order exactly coincides with $\mu_{0}H_{c1}$. That no magnetic structure with a different propagation vector exists in higher fields is clear from powder diffraction experiments of Ref. Skoulatos et al. (2019). We thus identify the region $H>H_{c2}$ as fully saturated and the field range $H_{c1}<H<H_{c2}$ as corresponding to the potential spin-nematic phase.

Of course, this interpretation implies that for $H_{c1}<H<H_{c2}$ the system does not achieve full polarization. Exhibit 4 (inset of panels (d) in Figs. 2 and 3) puts this supposition to the test. These are direct Faraday force measurements of magnetization at $T=100$ mK from a $0.8$ mg sample. A small diamagnetic linear contribution was inferred from measurements above 8 T and subtracted from the data shown. For both geometries, the data show a divergent magnetic susceptibility at $H_{c1}$, seemingly followed by a complete saturation above. The blow-up of the high-field region shown in the insets in Figs. 2 and 3 reveal a different story. In order to reduce noise, the data for $\mu_{0}H>4$ T were binned together in $0.25$ T intervals. Between $\mu_{0}H_{c1}$ and at least $5.5$ T the magnetization visibly lies below the average value for all data above $8$ T (dashed line). The effect is small but clearly outside of the measurement uncertainty represented by the error bars.

Incomplete polarization at high field could in principle stem from the small magnetic anisotropy present in the system Hagemans et al. (2005); Chernyshev (2005). However, this scenario can be excluded. The effect would have to be absent in the axial geometry, and in all cases confined to a much narrower field range, comparable to the spin flop field value Chernyshev (2005). The high field phase is indeed not fully saturated. At the same time its polarization is in all cases over 98%. Can such a highly polarized state support nematic order? Arguably it can, since the latter involves transverse spin components Shannon et al. (2006); Smerald et al. (2015). As a reference, consider a classical AF at 99% saturation. Despite being almost fully polarized it will still have an angle of as much as $16^{\circ}$ between consecutive spins, sufficient for AF order of transverse spin components. Similarly, such proximity to saturation leaves ample room for nematic correlations in the transverse channel.

There are stark discrepancies between our results and the powder measurements of Ref. Skoulatos et al. (2019). In that work the magnetization curves were obtained by integrating AC susceptibility data. The one corresponding to the lowest experimental temperature $T=200$ mK is considerably less inflected below $H_{c1}$ than our curves shown in Figs. 2(d) and 3(d) or even those previously measured at $T=550$ mK Povarov et al. (2019). The inflection point that the authors take for the analogue of $H_{c1}$ doesn’t correspond to any features in our data for any field geometry. The reported value $\mu_{0}H_{c1}=3.78$ T is considerably lower than $\mu_{0}H_{c1}\gtrsim 4.0$ T observed in single crystals for all geometries. The huge reduction of magnetization in the high-field phase concluded in Ref.  Skoulatos et al. (2019) is most certainly due to $H_{c1}$ being underestimated.

The upper boundary assigned to the nematic phase in Ref. Skoulatos et al. (2019) does not correspond to any thermodynamic anomalies in single crystals. Counter-intuitively it moves out to higher fields with increased temperature. As is quite obvious from previously published single crystal data  Povarov et al. (2019), this simply indicates a broadening of the cusp in magnetization due to finite temperature. Our present data instead suggest that the upper phase boundary is more or less parallel to the lower one, as one would expect. We cannot speculate on the origin of these discrepancies, except to note the intrinsic limitations of powder experiments in applied field and the difficulties of dealing with a dissipative component in AC susceptibility admitted by the authors of Ref. Skoulatos et al. (2019).

In summary, BaCdVO(PO4)2 is not a square lattice model material as it was advertised to be. Instead, it has significantly alternating interactions along the $b$ direction. Nevertheless, it features strong FM-AFM frustration, the main ingredient for a pre-saturation bond-nematic phase. While the corresponding order parameter is fundamentally inaccessible to direct measurements, at the lowest temperatures, in a wide field range between $\mu_{0}H_{c1}\simeq 4.0$ T and $\mu_{0}H_{c2}\simeq 6.5$ T we find a novel almost fully polarized thermodynamic phase. It does not support conventional (dipolar) magnetic order but is fully consistent with our expectations for a quantum bond-nematic.

This work was supported by the Swiss National Science Foundation, Division II. The instrument beamtime at D23 and IN12 was supported by the Swiss State Secretariat for Education, Research and Innovation (SERI) through a CRG Grant. We would like to acknowledge Dr. M. Reehius at HZB for his help with checking single crystals quality as well as the sample environment team of the ILL facility for their help with our experiments.
