Sub-millimetric ultra-low-field MRI detected in situ by a dressed atomic magnetometer

TL;DR

This paper demonstrates sub-millimetric ultra-low-field MRI using a dressed atomic magnetometer with in situ detection, overcoming gradient compatibility issues and enabling high-resolution imaging in a compact setup.

Contribution

It introduces a magnetic-dressing technique that restores atomic magnetometer operation in MRI gradients, enabling in situ, high-resolution ULF MRI with a compact device.

Findings

Achieved sub-millimetric resolution MRI with a dressed atomic magnetometer.

Demonstrated in situ unidimensional imaging of magnetized samples.

Showed potential for 3D imaging and multi-sensor extensions.

Abstract

Magnetic Resonance Imaging (MRI) is universally acknowledged as an excellent tool to extract detailed spatial information with minimally invasive measurements. Efforts toward ultra-low-field (ULF) MRI are made to simplify the scanners and to reduce artefacts and incompatibilities. Optical Atomic Magnetometers (OAMs) are among the sensitive magnetic detectors eligible for ULF operation, however they are not compatible with the strong field gradients used in MRI. We show that a magnetic-dressing technique restores the OAMs operability despite the gradient, and we demonstrate sub-millimetric resolution MRI with a compact experimental setup based on an in situ detection. The proof-of-concept experiment produces unidimensional imaging of remotely magnetized samples with a dual sensor, but the approach is suited to be adapted for 3-D imaging of samples magnetized in loco. An extension to multi-sensor architectures is also possible.

Figures

Equations

$${\nu }_D=J_0\left(\frac{{\gamma }_{\mathrm{Cs}}{B}_D}{2\pi f}\right){\nu }_0,$$

$$B_D(x,t)=\frac{{\mu }_0}{2\pi }\frac{m(t)}{(x_0+x{)}^3}=B_{D0}(x)\cos (2\pi ft),$$

$${\nu }_D(x)=\frac{{\gamma }_{\mathrm{Cs}}}{2\pi }\left(B_0+Gx\right)J_0\left(\frac{{\gamma }_{\mathrm{Cs}}{B}_{D0}(x)}{2\pi f}\right),$$

$$\begin{array}{rl}{\nu }_D(x)& ={\nu }_D(0)+{\nu }_D^{\prime }(0)x+O(x^2)\\ & \approx \frac{{\gamma }_{\mathrm{Cs}}}{2\pi }\left(B_0{J}_0(\alpha )+\left[\frac{3B_0\alpha J_1(\alpha )}{x_0}+G{J}_0(\alpha )\right]x\right),\end{array}$$

$$-3\frac{B_0}{x_0}\frac{\alpha J_1(\alpha )}{J_0(\alpha )}=G.$$

$$\delta B=|{\vec{B}}_0-\delta \vec{B}|\approx \frac{{\vec{B}}_0\cdot \delta \vec{B}}{B_0}=\delta B_{\parallel }.$$

$$s(t)=A{e}^{i[{\omega }_{M}t+\phi (t)]}.$$

$$\dot{\phi }=-{\gamma }_{\mathrm{Cs}}\delta B(t)-\Gamma \phi ,$$

$$W(t)=\exp (t/T){\left[1-\tanh \left(\beta (t-t_{\mathrm{cut}})\right)\right]}^2,$$

Full text

††preprint: AIP/123-QED

Isidor Rabi was awarded the Nobel Prize in Physics in 1944 for his seminal research, which, in 1938, demonstrated the phenomenon of nuclear magnetic resonance (NMR) in a molecular beam Rabi et al. (1938). Felix Bloch and Edward Purcell were awarded the Noble Prize for their independent contributions to NMR (dated 1946) Bloch, Hansen, and Packard (1946); Purcell, Torrey, and Pound (1946) in 1952, the same year in which Robert Gabillard, in his PhD thesis, studied the NMR in the presence of magnetic field gradients (a crucial step in view of encoding spatial information in the precessing nuclei). It took two additional decades to realize that the potential of NMR to record spatial distribution of precessing nuclei could be exploited as a medical diagnostic tool, as proposed by Raymond Damadian Damadian (1971). The applicability of that idea was then demonstrated by Peter Mansfield and Paul Lauterbur Lauterbur (1973), which thirty years after were awarded the Nobel Prize.

The attractiveness of MRI in medicine relies on its accurateness and on its substantially non-invasive nature. The latter feature is shared with ultrasonography Merritt (1989), whose development occurred almost simultaneously with MRI. Both methodologies are spreadly used and constitute favourite choices with respect to more invasive imaging techniques based on ionizing radiation.

The great impulse impressed to the development of the MRI technology, led to fast and impressive progresses in the methodologies used to generate, detect, and analyze MRI signals. These advances were facilitated by the parallel progresses achieved in some related technologies, such as electronics, computer science and cryogenics.

Most of MRI and, more generally, NMR advances followed the straightforward direction of enhancing strength and homogeneity of the magnetic field (or accurate control of its gradients) as well as increasing the signal-to-noise ratio (SNR) of the detection stage. Cryogenics and superconductor technologies constituted an obvious opportunity for this evolution.

At the same time, cryogenics –allowing the development of innovative detectors (superconducting quantum interference devices, SQUIDs) with unrivaled sensitivity– made available alternative (non inductive) sensors, and opened the perspective of performing NMR and MRI at much lower precession frequencies, that is at low and ultra-low field strengths Kraus et al. (2014).

The ULF-NMR dates about three decades, similarly to ULF-MRI Sepponen, Sipponen, and Sivula (9859), for which intense progresses started, however, less than two decades ago McDermott et al. (2004); Mössle et al. (2005).

MRI in the ULF regime comes with several valuable advantages Kraus et al. (2014). The ultimate spatial resolution of MRI is determined by the NMR spectral resolution, that depends on the * absolute* field inhomogeneity. At ULF, a modest * relative* field homogeneity turns out to be excellent on an absolute scale: very narrow NMR lines with a high SNR can be recorded in ULF regime, using relatively simple and unexpensive field generators McDermott et al. (2002); Matlachov et al. (2004); Burghoff et al. (2005). The encoding gradients necessary for MRI can be generated by simple and low-power coil systems, as well McDermott et al. (2004); Zotev et al. (2007a). Further important advantages brougth to MRI by ULF regime include the minimization of susceptibility Lee et al. (2004) and conductance Matlachov et al. (2004); Mößle et al. (2006) artefacts. Other delicate instrumentation (not compatible with strong and/or fast-varying magnetic fields) can be used in conjunction with ULF-MRI in more complex setups. In addition, the non-conventional magnetic detectors used in ULF-MRI can be used to record low-frequency magnetic signals originating not only from the precessing nuclei, but also from other (e.g. biomagnetic) sources. Hybrid instrumentation enabling multimodal MRI and magneto-encephalo-graphic measurements in medical applications has been demonstrated Vesanen et al. (2012); Matlachov et al. (2005) (see also Chap.5 in Ref.Kraus et al. (2014)).

While in conventional NMR and MRI, the premagnetization and precession are typically induced by one field, the two functions are often distinguished in ULF apparatuses. Here, the precession field can be extremely weak, and the homogeneity of the (strong) premagnetization field is not a critical parameter. It is worth mentioning that schemes of no-magnet NMR, with zero precession field and alternative premagnetization methods have been proposed Theis et al. (2011).

Direct coupling of SQUID sensors with strong premagnetization fields in not feasible. Successful attempts to overcome this problem are based on using flux dams Koch et al. (1995) or finely designed SQUID coils, with gradiometric sensitivity and very high rejection of the common mode term Matlachov et al. (2005), while another possible approach is based on using OAMs as alternative highly sensitive non-inductive detectors Tayler et al. (2017). Beside robustness, OAMs bring the advantage of not requiring cryogenics, so to be a favourite choice whenever ULF systems are designed in view of building up simpler and low-cost apparatuses. Despite their simplicity, OAMs –in some implementations– may compete with SQUIDs in terms of sensitivity. In facts, the literature reports successful ULF-MRI experiments using both SQUIDs and OAMs as highly sensitive, non-inductive sensors Zotev et al. (2007b); Savukov and Karaulanov (2013a).

OAMs operate on the basis of paramagnetic atoms in which an atomic magnetic resonance (AMR) is induced using resonant light as a polarization tool (modern laser spectroscopy methodologies provide very effective instrumentation to this end) Budker and Romalis (2007). The sensitivity of OAMs relies on the narrow spectral width of the AMR. The important field gradients necessary for MRI applications would broaden severely the AMR. As matter of fact, the ULF-MRI experiments reported so far with OAM detection are based on ex-situ measurements: the magnetic signal produced by the precessing nuclei is coupled to the sensor via flux transformers Savukov and Karaulanov (2013b), eventually resulting in remote-detection techniques Xu et al. (2006).

In this letter we demonstrate that an approach based on an inhomogeneous magnetic dressing of the precessing atoms Bevilacqua et al. (2019a) can be used to record in situ MRI signals by means of OAM, achieving sub-millimetric resolution. The described proof-of-concept experiment makes use of a dual sensor, but paves the way to multi-sensor detection, with the potential of improving the spatial resolution, enhancing the allowed sample size, and speeding up the acquisition.

The described setup performs MRI of samples premagnetized in strong field and subsequently transferred to the detection region, however the robustness of OAMs to strong magnetic fields would enable MRI of samples premagnetized in the same position where the NMR signal is detected, so to obtain a fully static operation.

A synthetic description of the apparatus is reported here below, referring to pertinent bibliography for its specific parts. The core of the setup (see Fig.1) is a dual channel OAM working in a Bell and Bloom configuration Bevilacqua et al. (2016a).

The strength and the first-order gradient of the field in which the OAM operates are numerically controlled and optimized. Namely, eight numerically controlled current sources Biancalana et al. (2017) supply the field and field-gradient coils. Automated procedures enable the nulling of the gradient terms and guarantee the field alignment along a fixed direction.

The dual sensor detector produces two magnetometric signals which contain the measurement of field variations due to both far-located and close-located sources. The first contribution is dominant and appears with the same sign on the two sensors. The second term appears with opposite signs, provided that the close-located source is opportunely displaced with respect to the sensors.

The two signals are recombined to extract their common mode (CM) term and difference-mode (DM) term: far-located sources (which in our measurement constitute a disturbance) contribute to the CM only, while the MRI signal appears in the DM one.

Compensating the CM term has a twofold advantage: (i) the disturbances and drifts of the field which would affect the nuclear precession are removed; (ii) unavoidable imperfections of the differential system (a limited CM-rejection ratio) let the CM appear residually with the DM term, thus a preliminary reduction of the CM term improves the DM signal-to-noise ratio.

To this aim, while extracting the MRI signal from the DM term, the CM term is used to feed a self-optimized closed loop system Bevilacqua et al. (2019b) to actively compensate the external disturbances, which are strongly present due to the unshielded nature of the set-up.

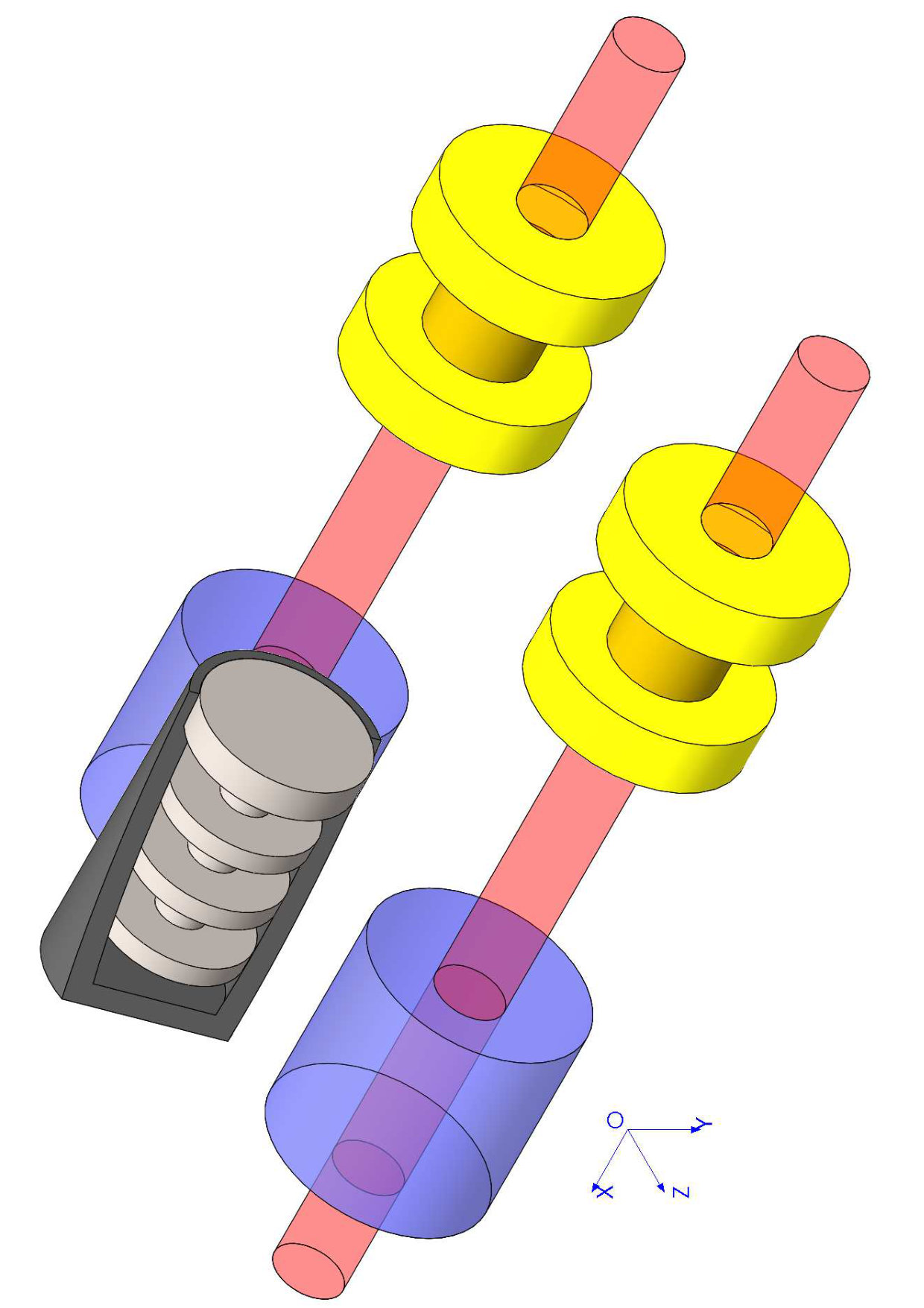

As represented in Fig.1, both the Cs atoms and the sample protons precess around a static (stabilized) field $B_{z}$ oriented transversely with respect to the beam propagation axis ($x$). The field $B_{z}$ is made dependent on the position $x$ to the purpose of performing MRI frequency-encoding. Its gradient $G=\partial B_{z}/\partial x$ is set by permanent magnets arranged in a quadrupolar configuration: $B_{z}=B_{0}+Gx$, where $B_{0}$ is the field at the center of the cell. The proton and Cs Larmor frequencies set by $B_{z}$ are thus position dependent along the optical axis $x$. Typical values of G amount to tens of nT/cm, which would broaden the AMR width from few tens up to several hundred Hz, degrading and eventually destroying the OAM operativity.

Based on the IDEA method described in Ref.Bevilacqua et al. (2019a), an inhomogeneous magnetic dressing technique is applied to recover the OAM operativity. The presence of a dressing field, makes the time evolution of the atomic magnetization $\vec{M}$ more complicated than a simple precession around the static field $B_{z}$. In particular, a strong $B_{D}$ field oscillating along $x$ at a frequency $f$ much larger than $\gamma_{\mathrm{Cs}}B_{z}$ (let $\gamma_{\mathrm{Cs}}=2\pi 3.5~{}\mathrm{Hz/nT}$ be the gyromagnetic factor of Cs ground state ) makes the $M_{y}$ and $M_{z}$ components follow a deeply modified trajectory on the Bloch sphere.

In contrast, the $M_{x}$ component –the polarimetrically measured quantity that provides the magnetometer output– keeps oscillating harmonically Bevilacqua et al. (2012). The effect of $B_{D}$ on the $M_{x}$ evolution is just a reduction of its oscillation frequency. The reduced frequency $\nu_{D}$ depends on the strength of the dressing field $B_{D}$ and on $f$, according to

[TABLE]

where $J_{i}$ is the $i$th order Bessel function of the first kind and $\nu_{0}=\gamma_{\mathrm{Cs}}B_{z}/2\pi$ is the precession frequency in absence of dressing field Haroche et al. (1970).

An inhomogeneous dressing can compensate for the detrimental effects of the field gradient used for MRI frequency encoding. As described in Ref.Bevilacqua et al. (2019a), if the strength of $B_{D}$ has an appropriate dependence on $x$, the dressing can compensate the position-dependent AMR frequency shift caused by the gradient of $B_{z}$ and the AMR width can be restored.

To this end, each sensor is coupled to an electromagnetic $B_{D}$ source (a coil wound on a hollow-cylinder ferrite, with the laser beams passing across the hole).

In a dipole approximation, at a distance $x$ from the center of the cell, the dressing field $B_{D}$ is

[TABLE]

where $\mu_{0}$ is the vacuum permittivity, $m(t)=m_{0}\cos(2\pi ft)$ is the oscillating dipole momentum, and $x_{0}$ is the distance of the dipole from the cell center.

Taking into account the dependence on $x$ of both the static and the dressing fields, $M_{x}$ oscillates harmonically at a frequency

[TABLE]

in a first-order Taylor approximation,

[TABLE]

where $\alpha=(\mu_{0}/4\pi^{2})(\gamma_{\mathrm{Cs}}m_{0})/(fx_{0}^{3})$, so that the condition for compensating the effect of the gradient $G$ reduces to

[TABLE]

Under this condition, the OAM performance is recovered, so to guarantee the sensitivity necessary to detect MRI signals. It is worth noting that the dressing effect is negligible for protons, because of their much smaller gyromagnetic factor: $\gamma_{\mathrm{H}}\ll\gamma_{\mathrm{Cs}}$, which makes $J_{0}(\gamma_{\mathrm{H}}B_{D}/2\pi f)\approx 1$.

Differing from the case studied in Ref.Bevilacqua et al. (2019a), here two distinct Cs cells are used, each of them equipped with a dressing dipole: an arrangement that increases the NMR signal improving the MRI performance. With this feature, the present results demonstrate that a multiple-sensor arrangement can be built, with one oscillating IDEA dipole for each sensor. It is possible to maintain cross-talking between dressed sensors at a negligible level.

The NMR sample is made of water protons contained in a polymeric cartridge having the structured shape shown in Figs.1 and 2(a): it is a cylinder –19 mm in diameter, 32 mm in length– that contains three disks –2 mm in thickness– separated by 5 mm from each other, the water (in hydrogel) is confined in the four complementary disks. Care is taken to avoid ferromagnetic contamination of the container Bevilacqua et al. (2019c).

The setup includes an Halbach permanent-magnet assembly to premagnetize the sample at 1 T and a pneumatic shuttle system Biancalana, Dancheva, and Stiaccini (2014) to move it cyclically to the measurement region (see Refs.Bevilacqua et al. (2016b, 2017) for additional details).

The cartridge position along $x$ slightly changes shot-by-shot. At each measurement, a camera monitors such sample positioning with respect to the sensors. An automated image analysis provides a localization $x_{C}$ (with respect to a fixed origin of the camera abscissa) with an uncertainty of 0.08 mm. The $x_{C}$ data are registered together with the corresponding NMR traces to be used in post processing.

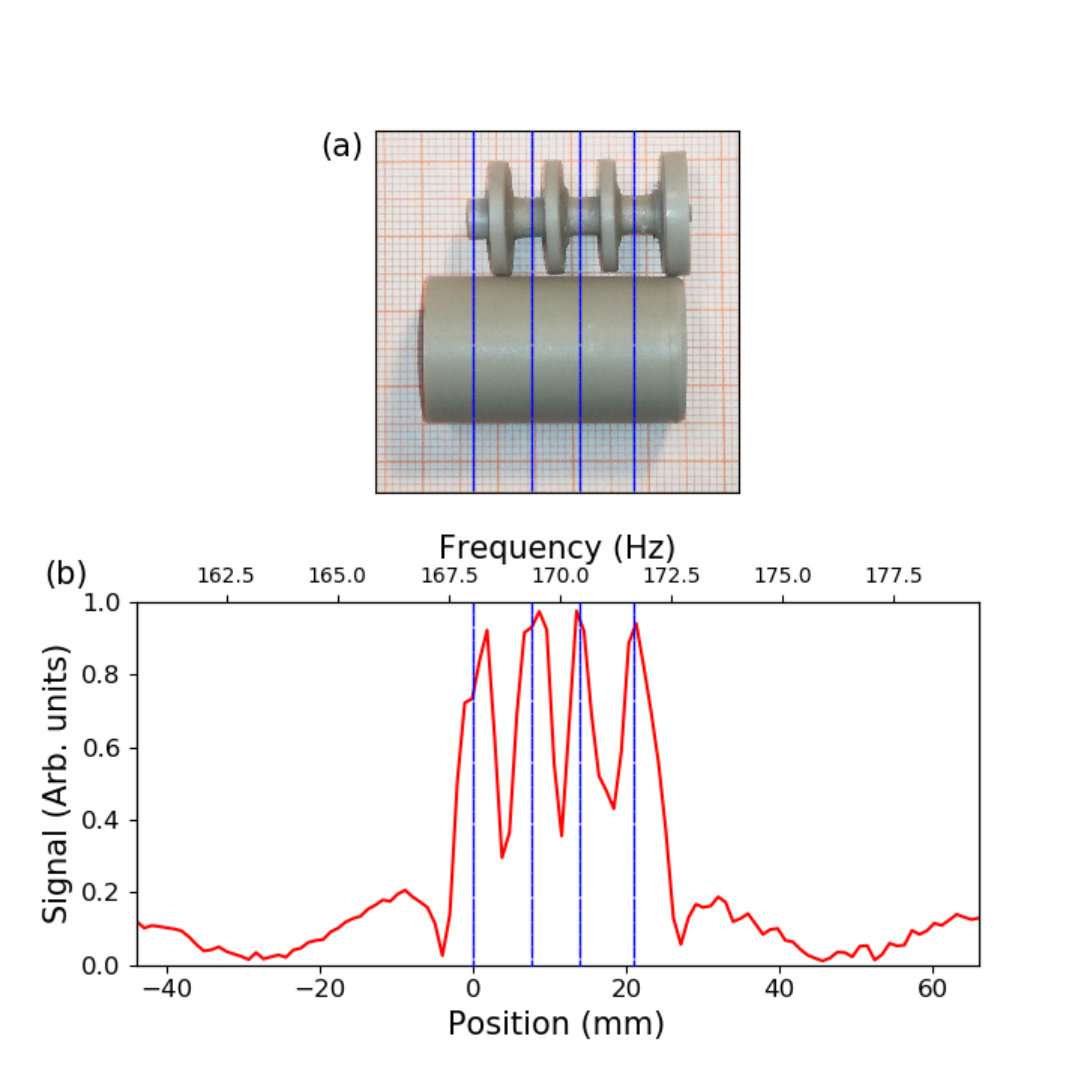

Correspondingly to the cartridge internal structure shown in Fig.2(a), a 1-D MRI profile is reported in Fig.2(b). That profile is obtained by averaging over 300 traces. The latter are selected on the basis of the measured $x_{C}$ values, which in this case fall within a 0.08 mm interval. The 1-D image clearly shows the four peaks corresponding to the hydrogel disks. Such plot is directly obtained as real part of the average-trace Fourier transform: just minor additional data manipulation is performed. The spatial resolution is set by the NMR intrinsic and instrumental linewidth, which –in absence of field gradient– amounts to 1.5 Hz: its effect is only partially compensated in the spectral analyses used in this paper.

For an alternative evaluation of the MRI spatial resolution, we use a set of traces collected in more than 2000 shots. Subsets of traces corresponding to narrow $x_{C}$ intervals in the statistic distribution of $x_{C}$ are averaged to produce MRI profiles. The profile displacements are then compared with the $x_{C}$ variations.

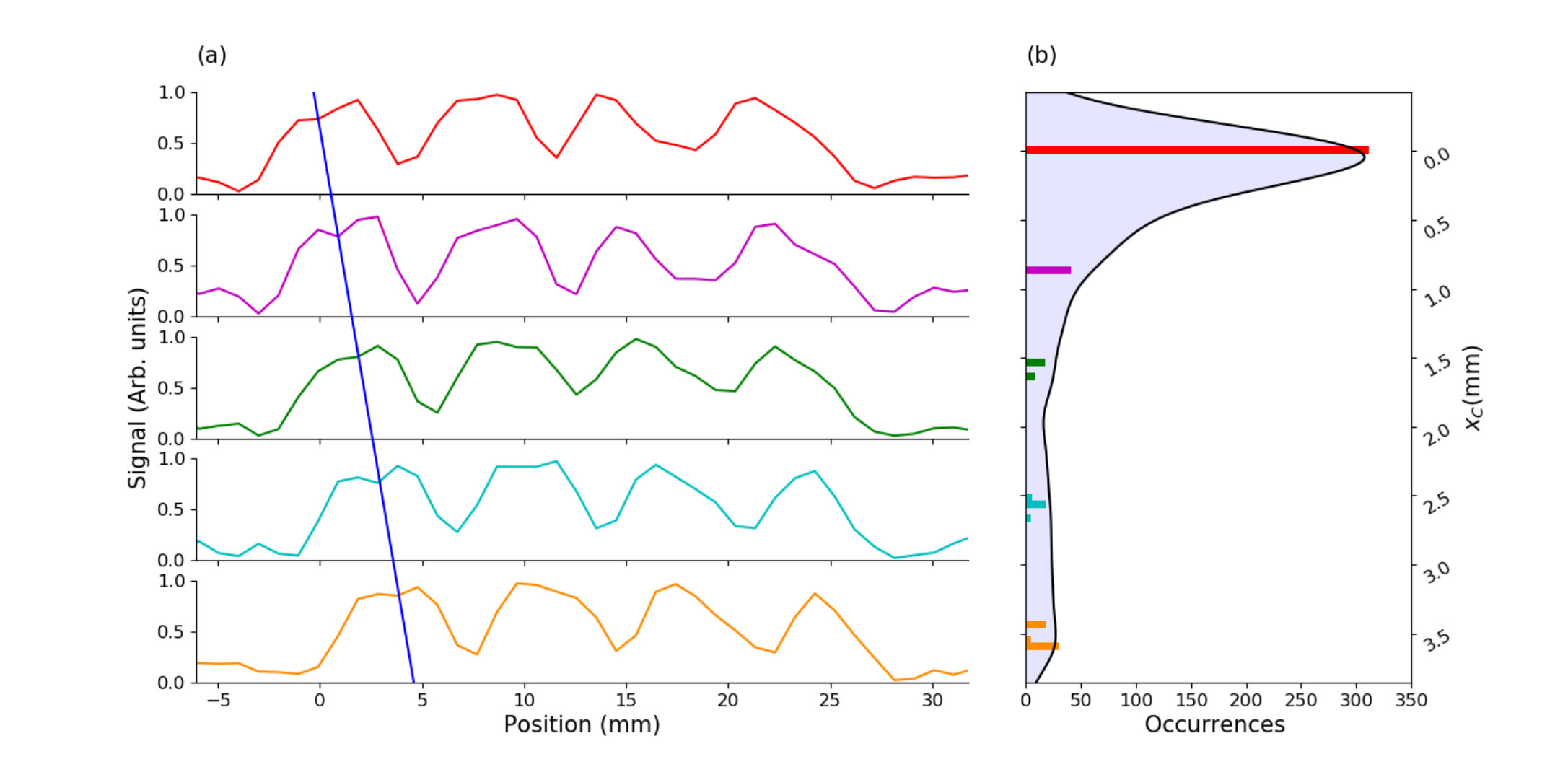

In Fig.3, the panel (b) shows the histogram of $x_{C}$ positions and five subsets extracted to produce the average time-traces that finally result in the MRI profiles shown in (a). The four-peaks profile shifts progressively in accordance with the $x_{C}$, with submillimetric accuracy.

In conclusion, this work demonstrates that the IDEA method enables the construction of submillimetric ULF-MRI setups with a dual-sensor NMR detection, based on Bell and Bloom OAMs, even operating in an unshielded environment. Despite their lower SNR compared to SQUIDs, the OAMs bring the advantage of an intrinsic robustness with respect to the temporary application of strong magnetic fields, such as those necessary for spin premagnetization and manipulation. The described setup does not include ferromagnetic shielding, which would facilitate a rearrangement devoted to apply a strong premagnetization field in the proximity of the sensors, so to build a fully static, in-situ experiment. The achieved sensitivity and the residual magnetic noise make our sensors about one order of magnitude less performing compared to typical SQUID and SERF-OAM devices: an aspect which would require progresses in view of practical applications. Further steps of our research foresee further improvements of the active field compensation system and the implementation of a in-loco premagnetization coil. In the perspective of real-world applications, it is worth mentioning that our two-sensor arrangement demonstrates the possibility of extending the method to multi-sensor setups: more complex sensor arrays can exploit the IDEA concept, and have the potential of improving the sensitivity, accelerating the measurement and enabling ULF-MRI of larger-size samples.
