Bolometric corrections of stellar oscillation amplitudes as observed by the Kepler, CoRoT, and TESS missions

TL;DR

This paper derives bolometric correction factors for stellar oscillation amplitudes observed by Kepler, CoRoT, and TESS, improving the accuracy of amplitude measurements across different missions and stellar parameters.

Contribution

It provides new power-law and polynomial relations for bolometric corrections based on stellar temperature and metallicity, considering realistic spectral models.

Findings

TESS amplitudes are ~0.83-0.84 times Kepler's in black-body approximation.

Realistic spectra can alter bolometric corrections by up to 30% at low temperatures.

Bolometric correction depends strongly on metallicity, affecting amplitude and metallicity studies.

Abstract

A better understanding of the amplitudes of stellar oscillation modes and surface granulation is essential for improving theories of mode physics and the properties of the outer convection zone of solar-like stars. A proper prediction of these amplitudes is also essential for appraising the detectability of solar-like oscillations for asteroseismic analysis. Comparisons with models, or between different photometric missions, are enabled by applying a bolometric correction, which converts mission-specific amplitudes to their corresponding bolometric (full light) values. We derive the bolometric correction factor for amplitudes of radial oscillation modes and surface granulation as observed by the Kepler, CoRoT, and TESS missions. The calculations are done assuming a stellar spectrum given by a black-body as well as by synthetic spectral flux densities from 1D model atmospheres. We derive a power-law and polynomial relations for the bolometric correction as a function of temperature from the black-body approximation and evaluate the deviations from adopting a more realistic spectrum. Across the full temperature range from 4000 - 7500 K, the amplitudes from TESS are in the black-body approximation predicted to be a factor ~0.83 - 0.84 times those observed by Kepler. We find that using more realistic flux spectra over the black-body approximation can change the bolometric correction by as much as ~30% at the lowest temperatures, but with a change typically within ~5 - 10% around a $T_{\rm eff}$ of 5500 - 6000 K. We find that after $T_{\rm eff}$, the bolometric correction most strongly depends on [M/H], which could have an impact on reported metallicity dependencies of amplitudes reported in the literature.

Figures

Tables

Table 1. Table 1: Parameters from the fits of Equations  3.1 ( α , T o 𝛼 subscript 𝑇 𝑜 \alpha,T_{o} ) and 3.2 ( a n , T o subscript 𝑎 𝑛 subscript 𝑇 𝑜 a_{n},T_{o} ) to the numerically calculated c P − bol subscript 𝑐 𝑃 bol c_{P\rm-bol} values from Equation  2.2 against T eff subscript 𝑇 eff T_{\rm eff} (Figure  2 ). Corrections are given for Kepler , CoRoT, and TESS. The quality of the fits are quantified by the root-mean-square-error σ rms subscript 𝜎 rms \sigma_{\rm rms} .

Model	$T_o$	$\alpha$	$a_0$	$a_1$	$a_2$	${\sigma }_{\mathrm{rms}}$
name	$\left(K\right)$		$\left(K\right)$	$\left(K^{-1}\right)$	$\left(K^{-2}\right)$
$c_{K-\mathrm{bol}}\left(T_{\mathrm{eff}}\right)$ from B11
$K_1$	$5934$	$0.80$	$\cdots$	$\cdots$	$\cdots$	$1.05\times {10}^{-3}$
$K_2$	$5934$	$\cdots$	1	$1.349\times {10}^{-4}$	$-3.120\times {10}^{-9}$	$7.24\times {10}^{-5}$
$c_{C-\mathrm{bol}}\left(T_{\mathrm{eff}}\right)$
$C_1$	$5816$	$0.74$	$\cdots$	$\cdots$	$\cdots$	$1.36\times {10}^{-3}$
$C_2$	$5816$	$\cdots$	$1.001$	$1.295\times {10}^{-4}$	$-3.288\times {10}^{-9}$	$3.81\times {10}^{-5}$
$c_{T-\mathrm{bol}}\left(T_{\mathrm{eff}}\right)$
$T_1$	$4714$	$0.81$	$\cdots$	$\cdots$	$\cdots$	$3.07\times {10}^{-3}$
$T_2$	$4714$	$\cdots$	$9.995\times {10}^{-1}$	$1.784\times {10}^{-4}$	$-6.127\times {10}^{-9}$	$1.05\times {10}^{-4}$

Equations

$$A_{\mathrm{bol}}=c_{P-\mathrm{bol}}{A}_P.$$

$$c_{P-\mathrm{bol}}=\frac{4\int {\tau }_P(\lambda )F(\lambda ,\cdot )\mathrm{d}\lambda }{T_{\mathrm{eff}}\int {\tau }_P(\lambda )\frac{\partial F(\lambda ,\cdot )}{\partial T_{\mathrm{eff}}}\mathrm{d}\lambda }.$$

$$B(\lambda ,T_{\mathrm{eff}})=\frac{2\pi h{c}^2}{{\lambda }^5\left(e^{\frac{hc}{\lambda k_{\mathrm{B}}{T}_{\mathrm{eff}}}}-1\right)}\left[\mathrm{erg}\mathrm{c}{\mathrm{m}}^{-3}{\mathrm{s}}^{-1}\right],$$

$$\frac{\partial B(\lambda ,T_{\mathrm{eff}})}{\partial T_{\mathrm{eff}}}=\frac{2\pi h^2{c}^3{e}^{\frac{hc}{\lambda k_{\mathrm{B}}{T}_{\mathrm{eff}}}}}{{\lambda }^6{k}_{\mathrm{B}}{T}_{\mathrm{eff}}^2{\left(e^{\frac{hc}{\lambda k_{\mathrm{B}}{T}_{\mathrm{eff}}}}-1\right)}^2}\left[\mathrm{erg}\mathrm{c}{\mathrm{m}}^{-3}{\mathrm{s}}^{-1}{\mathrm{K}}^{-1}\right].$$

$${\tau }_P(\lambda )={\mathcal{S}}_{\lambda }/E_{\lambda }\left[\mathrm{er}{\mathrm{g}}^{-1}\right],$$

$$c_{P-\mathrm{bol}}(T_{\mathrm{eff}})\approx {\left(\frac{T_{\mathrm{eff}}}{T_o}\right)}^{\alpha },$$

$$c_{P-\mathrm{bol}}(T_{\mathrm{eff}})\approx \sum _{i=0}^4{a}_i(T_{\mathrm{eff}}-T_o{)}^i,$$

$$c_{K-T}(T_{\mathrm{eff}})=\frac{c_{K-\mathrm{bol}}(T_{\mathrm{eff}})}{c_{T-\mathrm{bol}}(T_{\mathrm{eff}})}.$$

$$F_{\lambda }=F_{0,\lambda }\times 10^{-0.4A_{\lambda }}.$$

$$A_{K-\mathrm{bol},\mathrm{S}}=A_{K-\mathrm{bol},\mathrm{P}}\frac{c_{K-\mathrm{bol},\mathrm{S}}}{c_{K-\mathrm{bol},\mathrm{P}}},$$

$$R_{SN}\equiv \frac{S/N_{c_{K-T}=0.85}}{S/N_{c_{K-T}}}\approx {\left(\frac{0.85}{c_{K-T}}\right)}^2\frac{b_{\mathrm{inst}}+(c_{K-T}{)}^2{P}_g}{b_{\mathrm{inst}}+(0.85{)}^2{P}_g},$$

Full text

††pagerange: Bolometric corrections of stellar oscillation amplitudes as observed by the Kepler, CoRoT, and TESS missions–1††pubyear: 2019

1 Introduction

The study of the physical processes underlying the interaction between pulsations and convection (Houdek & Dupret, 2015) requires observed values of oscillation mode amplitudes. Space-based missions such as Kepler have lead to a large number of such amplitude measurements, including derivations of amplitude relations as a function of fundamental stellar parameters, such as luminosity and effective temperature (see, e.g., Huber et al., 2011; Mosser et al., 2012; Corsaro et al., 2013, for such relations from Kepler observations).

However, the general use of the measured oscillation mode amplitudes requires a conversions between what is observed with a given spacecraft to the corresponding bolometric (full light) value. This conversion is given by the bolometric correction $c_{P\rm-bol}$ for radial ($l=0$) modes of oscillation, which can also be applied to estimate the bolometric intensity fluctuation from granulation (see Kallinger et al., 2014). Such a bolometric correction was calculated by Ballot et al. (2011) (hereafter B11) and Michel et al. (2009) (hereafter M09) for the observing band-pass of the Kepler (Van Cleve & Caldwell, 2016) and CoRoT (Auvergne et al., 2009) missions.

The bolometric correction is thus also essential for applying amplitude relations derived for one mission to another. Such a use is especially important for predicting the detectability of solar-like oscillations and thereby guide the target selection strategy for a mission such as TESS (Chaplin et al., 2011; Campante et al., 2016a; Schofield et al., 2019).

In this paper we calculate the bolometric correction $c_{P\rm-bol}$ for the photometric missions Kepler, CoRoT, and TESS (Ricker et al., 2014). In Section 2 we outline the procedure for the calculation. The calculations of $c_{P\rm-bol}$ are presented in Section 3, both from using a Planck spectrum in Section 3.1 and from adopting synthetic model flux spectra in Section 3.2. In Section 4 we discuss the potential impact from changes to the bolometric correction, and conclude in Section 5.

2 Bolometric correction $c_{P\rm-bol}$

The bolometric correction $c_{P\rm-bol}$ is defined such that it gives the conversion factor between bolometric amplitudes and those observed through a given band-pass ‘$P$’:

[TABLE]

Throughout, when referring specifically to either the Kepler, CoRoT, or TESS band-pass we shall replace ‘$P$’ by ‘$K$’, ‘$C$’, or ‘$T$’ respectively. Hence, the bolometric correction for TESS reads ‘$c_{T\rm-bol}$’.

Following the derivation by B11 and M09 (see also Berthomieu & Provost, 1990) for the Kepler and CoRoT missions, $c_{P\rm-bol}$ may be approximated as111This relates to the response function $R_{g}$ of M09 as $c_{P\rm-bol}=4/R_{g}$.:

[TABLE]

Here, $F(\lambda,\cdot)$ is the representation of the stellar spectral flux density; $F(\lambda,\cdot)$ can be given by the true (or simulated) spectral flux density, in which case it will depend on several parameters, e.g., $F(\lambda,\cdot)=F(\lambda,T_{\rm eff},\log g,\rm[Fe/H],\cdot)$, or be represented by a black-body (Planck) function, i.e., $F(\lambda,\cdot)=B(\lambda,T_{\rm eff})$ (as done in B11). In this work the bolometric corrections from both of these options are calculated. For reference, $B(\lambda,T_{\rm eff})$ in flux density units is given as:

[TABLE]

where $\lambda$ gives the wavelength, $h$ is Planck’s constant, $c$ is the speed of light, and $k_{\rm B}$ is Boltzmann’s constant. We note the added value of $\pi$ to convert from spectral radiance to spectral flux density. The temperature derivative of the black-body function is given as:

[TABLE]

In Equation 2.2, $\tau_{P}(\lambda)$ is the instrumental transfer function for the band-pass ‘$P$’ given as:

[TABLE]

where $E_{\lambda}=hc/\lambda$ is the photon energy at wavelength $\lambda$, and $\mathcal{S}_{\lambda}$ is the spectral response function (SRF) defining the band-pass throughput.

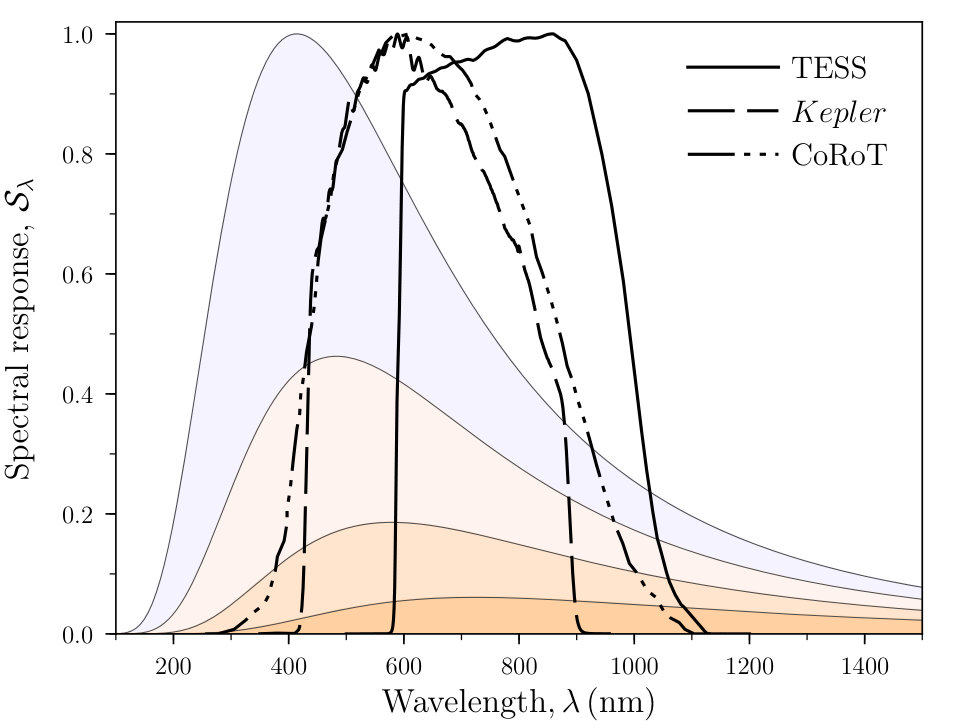

In Figure 1 we show the SRFs for Kepler, CoRoT, and TESS as a function of $\lambda$. The TESS SRF can be seen as the product of a long-pass filter transmission at short wavelengths and the quantum efficiency (QE) of the detector at long wavelengths. The TESS band-pass is roughly centred on the Johnson-Cousins $I_{C}$ filter at ${\sim}800$ nm (Ricker et al., 2014; Sullivan et al., 2015), and it is redder than that of Kepler, the latter being is closer to the $R_{C}$ filter (Koch et al., 2010). The CoRoT band-pass is very similar to that of Kepler, but slightly wider, especially towards long wavelengths.

3 $c_{P\rm-bol}$ relations

3.1 $c_{P\rm-bol}$ from a black body approximation

Figure 2 (left panel) shows calculated values for $c_{P\rm-bol}$ (Equation 2.2) for the three missions as a function of $T_{\rm eff}$ in the range from $4000-7500$ K. The numerical integration of the components of Equation 2.2 were computed using a tanh-sinh quadrature scheme as implemented in the Python module mpmath (Johansson et al., 2013). Like B11, we fitted two types of parameterizations to the calculated values, viz., a power-law:

[TABLE]

and a polynomial:

[TABLE]

which we fitted including 2 orders. The coefficients from the different fits are provided in Table 1 along with the root-mean-square error ($\sigma_{\rm rms}$) to indicate the ‘goodness-of-fit’. For TESS the power-law model ($T_{1}$; Equation 3.1) is found to perform worse than the corresponding for Kepler and CoRoT, but still reproduces the $c_{T\rm-bol}$ values with residuals within $\pm 3\times 10^{-3}$. The polynomial parameterizations have residuals within about $\pm 1\times 10^{-4}$.

To estimate the conversion factor between amplitudes observed in Kepler, TESS, and CoRoT one can use the rational function $\mathcal{R}(T_{\rm eff})$, given by the ratio between the relations describing $c_{P\rm-bol}(T_{\rm eff})$ for the different missions. For Kepler versus TESS, $\mathcal{R}(T_{\rm eff})$ thus provides an approximate relation for:

[TABLE]

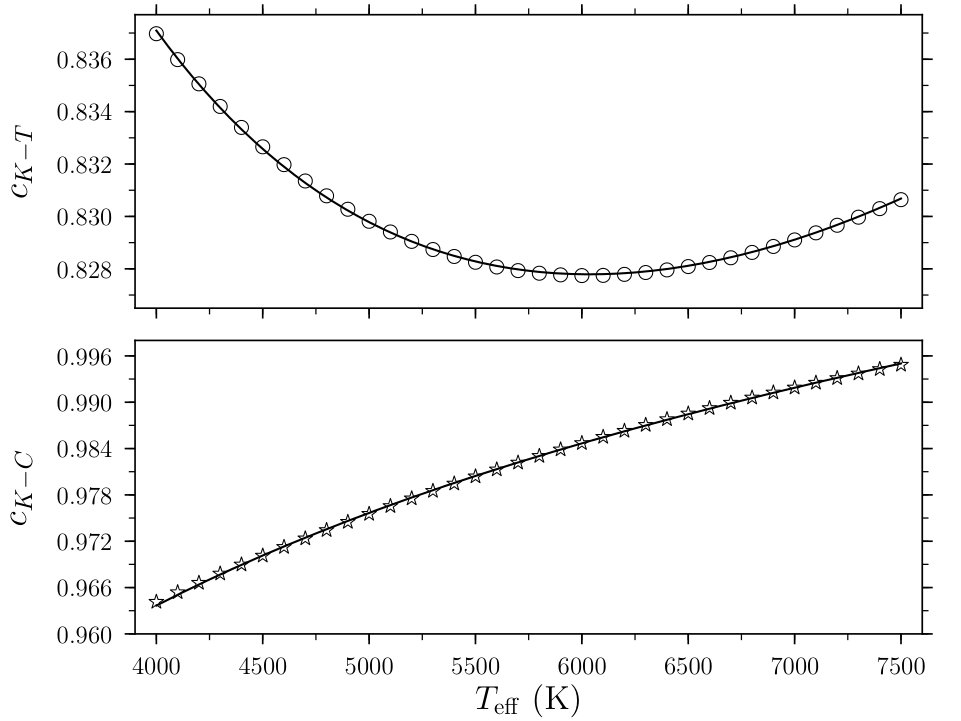

Figure 2 (right panel) shows the calculated values of $c_{K-T}(T_{\rm eff})$ and $c_{K-C}(T_{\rm eff})$ together with the rational functions $\mathcal{R}(T_{\rm eff})=K_{2}/T_{2}$ and $\mathcal{R}(T_{\rm eff})=K_{2}/C_{2}$. As seen, for TESS the conversion factor ranges between ${\sim}0.83$ and ${\sim}0.84$ in the temperature range considered, thus on average the amplitudes observed by TESS will be ${\sim}83-84\%$ that observed in Kepler. For CoRoT the amplitudes are very similar to those of Kepler, as one might expect from the very similar spectral response functions (Figure 1), ranging between ${\sim}0.966$ and ${\sim}0.996$.

3.2 $c_{P\rm-bol}$ from synthetic spectra

To investigate the impact from using the simplistic representations for the stellar flux density given by the Planck spectrum, we computed $c_{P\rm-bol}$ values using a grid of ATLAS9444http://wwwuser.oats.inaf.it/castelli/grids.html model fluxes. All spectra are computed with updated opacity distribution functions (ODFNEW; Castelli & Kurucz, 2003), without overshoot, assuming a mixing length of $\ell/H_{p}=1.25$, a microturbulence of $2\,\rm km/s$, and adopting the Grevesse & Sauval (1998) reference for the solar metal content.

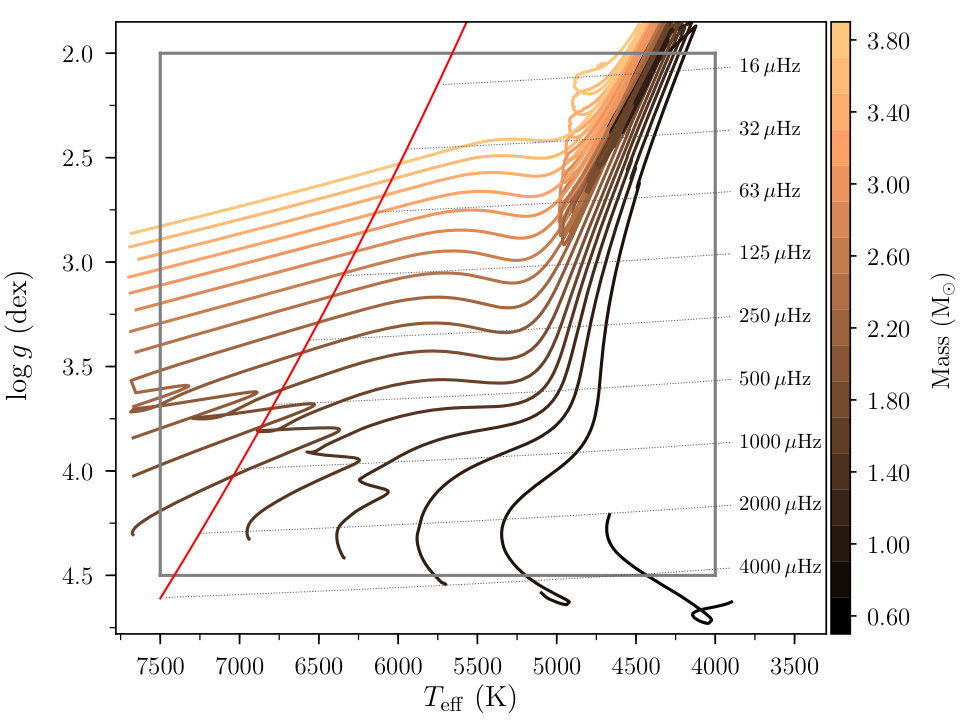

For these calculations of $c_{P\rm-bol}$ we used spectra with temperatures from $4000-7500\,\rm K$ in steps of $250\,\rm K$. For each temperature we further adopted surface gravity ($\log\,g$) values from $2.0$-$4.5$ in steps of $0.5$ dex, and metallicities of $\rm[M/H]=-1,0,+0.2$ and $+0.5$ dex. For all combinations of the above we further adopt two different values for the $\alpha$-enhancement, namely, $\rm[\alpha/M]=0$ and $\rm[\alpha/M]=+0.4$. Figure 3 illustrates in a Kiel-diagram the region covered by the calculations. As seen, some combinations covered by the calculation will not be realistic for a real star or correspond to stars showing solar-like oscillations. The calculations do, however, cover most regions populated by detected solar-like oscillators from the Kepler and CoRoT missions (see, e.g., Huber et al., 2011; Chaplin & Miglio, 2013).

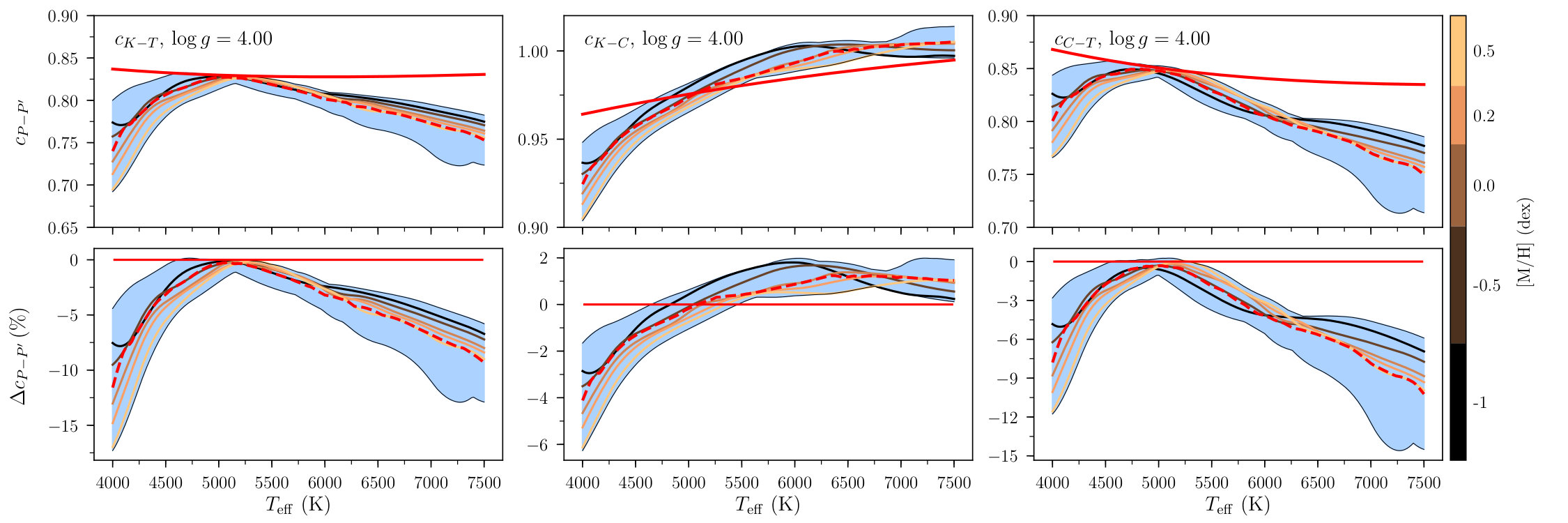

Figure 4 shows examples of the calculated $c_{P\rm-bol}$ values for the TESS missions for a given $\log g$ in combination with all $\rm[M/H]$ (top row), and for a given $\rm[M/H]$ in combination with all $\log g$ values (middle row). From these examples it is evident that (1) differences in $c_{P\rm-bol}$ are mainly a function of metallicity, while $\log g$ has little impact; (2) the values computed using more realistic flux densities are typically lower than those obtained using the simple Planck spectrum; (3) the best agreement between the two $c_{P\rm-bol}$ estimates is typically found around $T_{\rm eff}$ values of $5500-6500$ K. For TESS the absolute deviations from the Planck estimates (Figure 4; bottom row) reaches at the lowest temperatures and highest metallicities up to ${\sim}30\%$. Figure 5 shows the resulting rational functions for the different missions (top row) and percentage deviation from the Planck spectrum rational functions (bottom row). Because the spectrum-derived $c_{P\rm-bol}$ for the different missions overall follow the same behaviour with $T_{\rm eff}$, $\log g$, and $\rm[M/H]$, the ratio between two such values shows a smaller difference to the Planck-derived ratio than does the individual $c_{P\rm-bol}$ values. The absolute difference to the Planck rational function reaches up to ${\sim}15\%$.

There is furthermore a dependence on the $\alpha$-enhancement of the star (see Section A), following the same tendency as $\rm[M/H]$, i.e., that an increased $\alpha$-enhancement decreases the $c_{P\rm-bol}$-value. For most $T_{\rm eff}$ this would increase the difference to the Planck-derived values.

In the online material of this paper we provide the full table of calculated $c_{P\rm-bol}$-values. The table is accompanied by a small piece of Python code that allows for an easy interpolation in the $c_{P\rm-bol}$ grid.

We also tried calculating $c_{P\rm-bol}$ using the high resolution synthetic spectra from the library of Husser et al. (2013)555http://phoenix.astro.physik.uni-goettingen.de/ using the PHOENIX code (Allard & Hauschildt, 1995). However, the results from these spectra showed an erratic behaviour with fluctuations in $c_{P\rm-bol}$ of up to $\pm 50\%$ from the Planck values in $T_{\rm eff}$ spans of ${\sim}100$ K, and with the position in $T_{\rm eff}$ and amplitude of these fluctuations varying with $\log g$ and $\rm[Fe/H]$. We could trace the variability back to strong fluctuations in the $T_{\rm eff}$-derivative of the spectral flux at a given wavelength. Until this behaviour is better understood we provide only results from ATLAS9, and caution that the choice of model atmosphere used for calculating $c_{P\rm-bol}$ can have an impact on the results.

3.3 Effects of interstellar extinction

Interstellar extinction from dust and gas along the line-of-sight will reduce the amount of stellar flux received, hence change the shape of the stellar spectrum. The extinction affect the spectrum differently at different wavelengths, with shorter wavelengths being more affected than longer ones (Trumpler, 1930), thereby causing a reddening (see Draine (2003) for a review). To test the impact on $c_{P\rm-bol}$ from reddening we use the $A_{\lambda}/E(B-V)$ relation from Fitzpatrick (1999) for the Galactic average value of $R_{V}=3.1\,[\equiv E(B-V)/A_{V}]$ (Cardelli et al., 1989; Bastiaansen, 1992; Fitzpatrick & Massa, 2007). The range of wavelengths covered by either the Kepler, CoRoT, or TESS spectral responses cover a range of wavelengths where $A_{\lambda}$ changes fairly smoothly, and agree well with most determinations from other authors. We note that the value of $R_{V}$ will depend on the specific line-of-sight to the star, but for the wavelength range covered here the dependence of $A_{\lambda}/E(B-V)$ on $R_{V}$ is quite modest and should not be a main source of uncertainty.

For a given $E(B-V)$ we apply the extinction to the flux, $F_{0,\lambda}$, from the stellar spectra as

[TABLE]

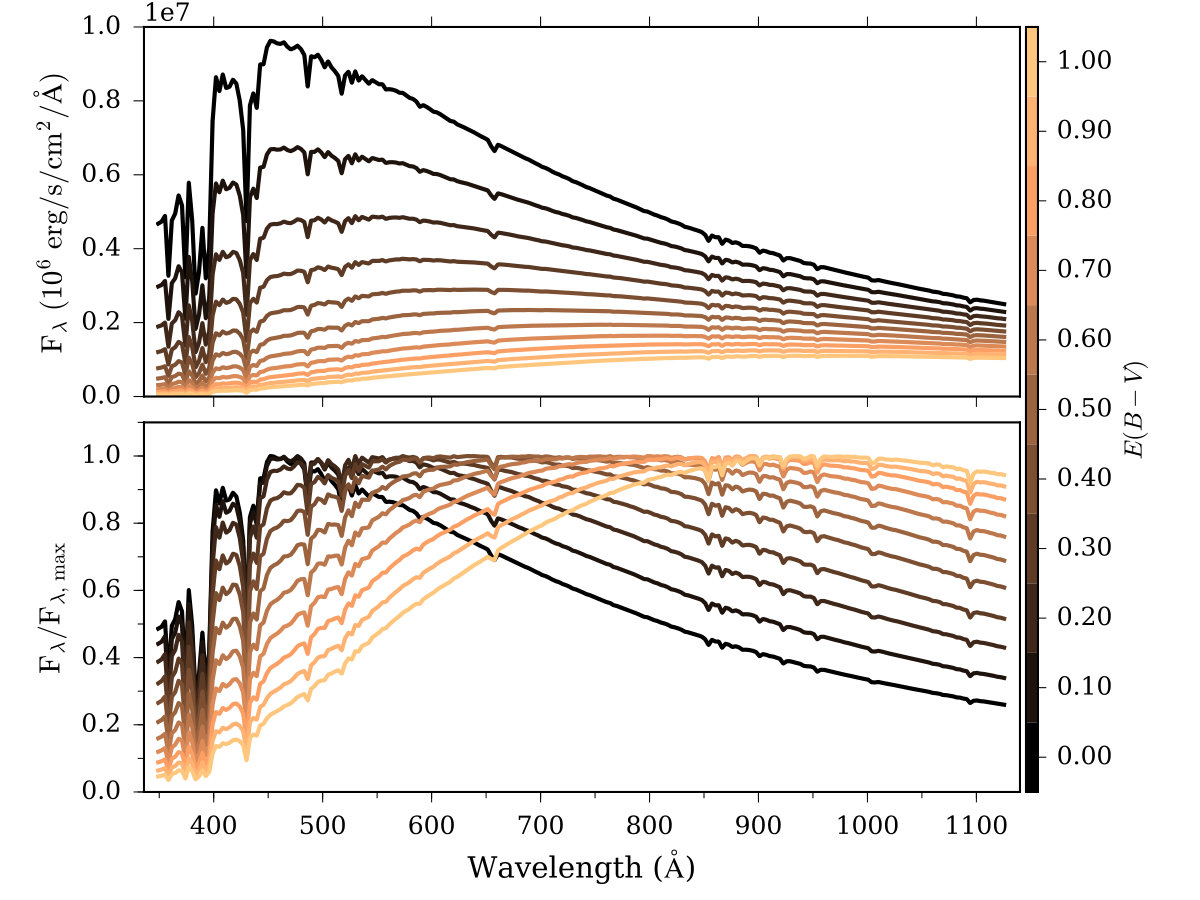

The left panel of Figure 6 shows the effect of applying the wavelength-dependent extinction from a range of $E(B-V)$ reddening values to the spectrum of a $T_{\rm eff}=5700$ K, $\log g=4.5$ dex, and $\rm[M/H]=0$ dex star. The overall reddening (i.e., move to longer wavelengths) is seen, and also indicate that stars of different $T_{\rm eff}$ should be affected to different extents, with a larger relative change the bluer (hotter) the star. Any effect should therefore also be larger for the Kepler/CoRoT band-pass as compared to that of TESS, because the former is slightly bluer (see Figure 1).

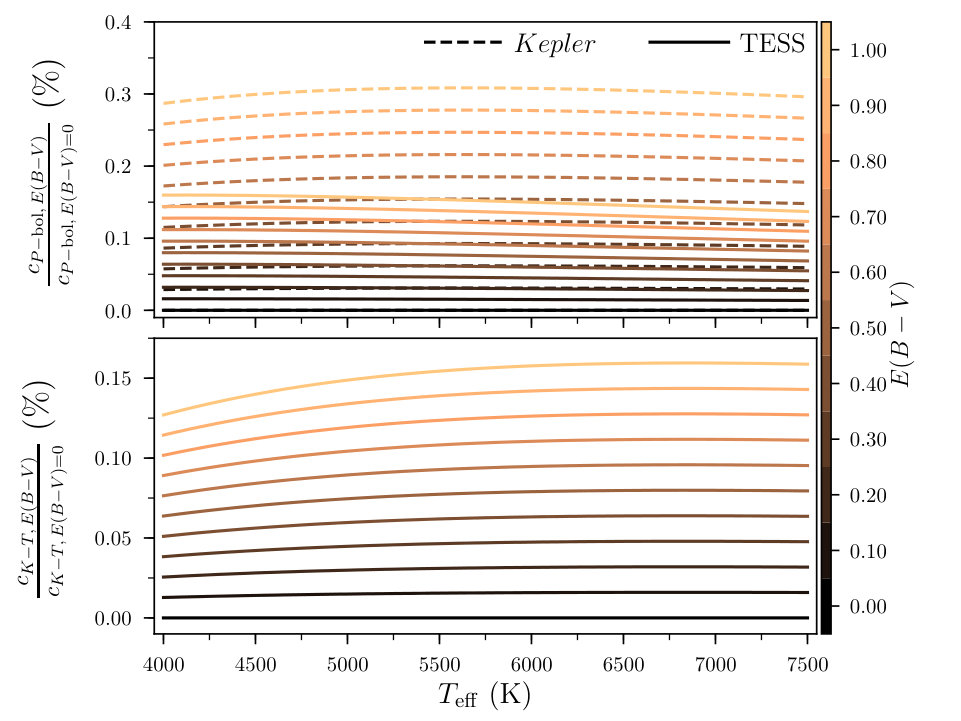

The right panel of Figure 6 shows the relative change in $c_{P\rm-bol}$ from adopting different values of $E(B-V)$. While the impact from reddening follows expectations in terms of $T_{\rm eff}$ and band-pass, it is seen that the impact is very modest and at the sub-percent level. This can be understood by the fact that the influence on the spectrum also cause a change in the spectrum derivative, resulting in only a small net effect on the integral of their ratio in Equation 2.2. So, in addition to having a negligible effect on measured oscillation amplitudes in a given band-pass, interstellar extinction is also of little importance in the conversion to bolometric amplitudes and can largely be ignored.

3.4 Effects of stellar parameter uncertainties

When using a bolometric correction on observed amplitudes it is naturally important to propagate any uncertainty in parameters upon which $c_{P\rm-bol}$ depends. For the corrections based on Planck spectra only the $T_{\rm eff}$ uncertainty needs to be taken into account. Figure 7 (left panel) give contours for the relative uncertainty on $c_{T\rm-bol}$ as a function of $T_{\rm eff}$ and its relative uncertainty. As seen, the contours for the relative uncertainty on $c_{T\rm-bol}$ are nearly horizontal in the plot, i.e., it is nearly constant for a given relative uncertainty on $T_{\rm eff}$. It is however slightly smaller – this is expected given the reasonable representation of the $c_{T\rm-bol}$ dependence on $T_{\rm eff}$ by a simple power-law (Equation 3.1), in which case the relative uncertainties should scale simply with the exponent ($\alpha$) of the power-law.

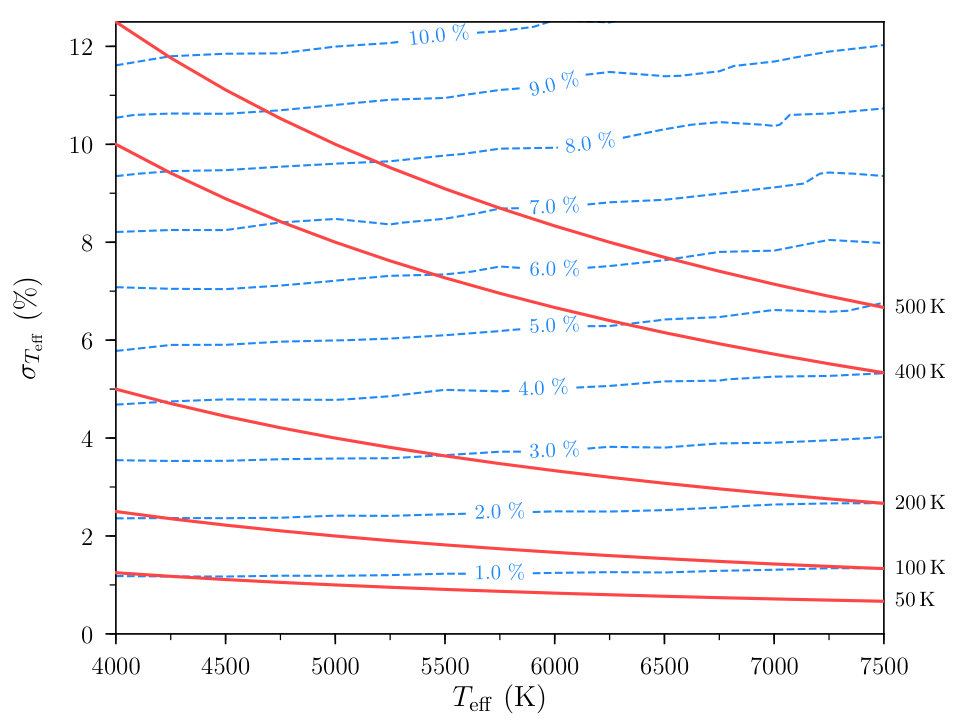

In terms of which parameterization to use for the Planck calculated values (Eqs. 3.1-3.2; Table 1), it is useful to take the effect of the temperature uncertainty into consideration. Taking the example of a star with temperature $T_{\rm eff}=5777\pm 80$ K, the corresponding bolometric correction for TESS would be $c_{T\rm-bol}=1.18\pm 0.01$. The uncertainty on the temperature of $\pm 80$ K thus gives an uncertainty on $c_{T\rm-bol}$ that is a factor of ${>}4$ times larger than the $\sigma_{\rm rms}$ for the simplest $T_{1}$ parameterization (Equation 3.1). Hence, even for the simple $T_{1}$ model, any bias will typically be well below the uncertainty on $c_{T\rm-bol}$ from $T_{\rm eff}$ alone.

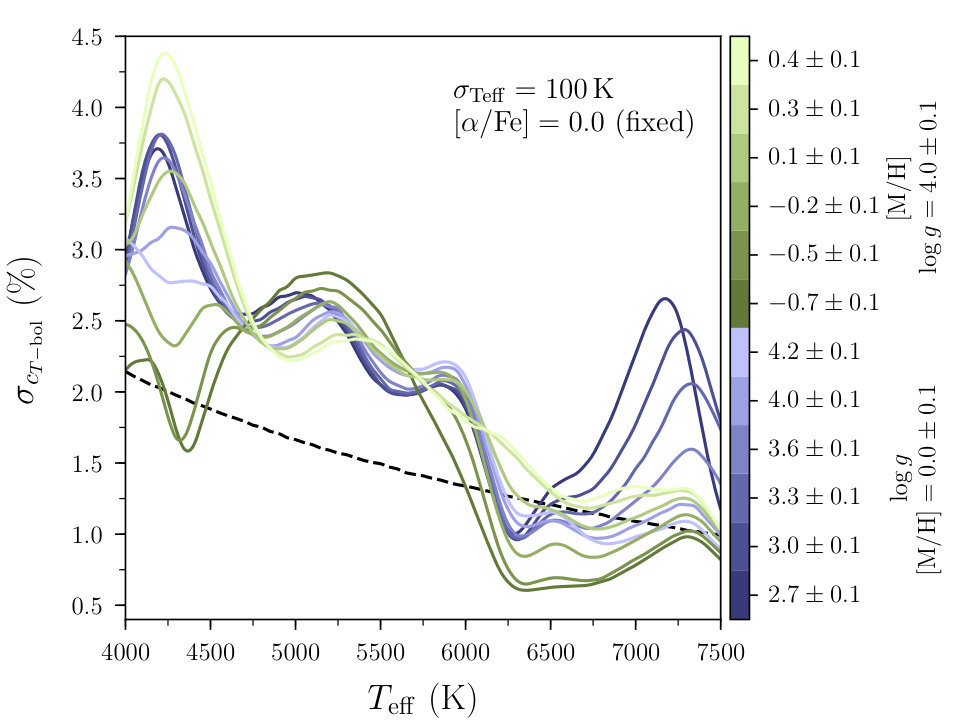

To appraise the impact on the uncertainty of $c_{T\rm-bol}$ from having dependencies on $\log g$ and $\rm[M/H]$ we performed a Monte Carlo sampling in the grid of calculated $c_{T\rm-bol}$ values, including normally distributed uncertainties on $T_{\rm eff}$, $\log g$, and $\rm[M/H]$. The sampling was done by first tessellating the $c_{T\rm-bol}$ grid using a Delaunay triangulation, followed by a linear barycentric interpolation on the triangulation simplices. Figure 7 (right panel) shows the derived relative uncertainty from this exercise when adopting an uncertainty on $T_{\rm eff}$ of $100\,\rm K$. As expected, the dependence of the relative uncertainty on $T_{\rm eff}$ shows more structure, but generally follow the same trend as the corresponding Planck-derived uncertainty. In any case, a calculation of the uncertainty on $c_{P\rm-bol}$ should be derived following an approach as the one described above for any specific use. The code accompanying the online grid of $c_{P\rm-bol}$ values allows for such a calculation.

4 Discussion

4.1 Scaling relations

To date many empirical relations exist to describe either amplitudes of solar-like oscillation modes (Kjeldsen & Bedding, 1995; Huber et al., 2011; Stello et al., 2011; Corsaro et al., 2013) or the surface granulation (see, e.g., Mathur et al., 2011; Kallinger et al., 2014).

If such a scaling relation is intended to enable a precise representation of amplitudes for a given photometric mission, then the bolometric correction is of little importance and the dependencies of the amplitude (with $T_{\rm eff}$, $\log g$, $\rm[M/H]$, etc.) caused by the specific band-pass can be incorporated in the representation (see, e.g., Yu et al., 2018).

A proper description of $c_{P\rm-bol}$ becomes important, however, if the scaling relation is meant to enable a comparison of measured amplitudes with theory and to uncover dependencies on fundamental stellar parameters of the driving of solar-like oscillations. The important point is, that if scaling relations are derived for bolometric values, i.e., based on values converted from the measured and band-pass specific values, then one should be careful in interpreting any dependency with stellar fundamental parameters as an actual properties of the underlying driving mechanism if the dependencies belonging to the conversion itself have not been accounted for. The same goes for relations describing the dependence of granulation amplitudes on stellar parameters.

Conversion to bolometric amplitudes for Kepler data for generating scaling relations and testing dependencies on, e.g., metallicity, have so far made use of the Ballot et al. (2011) conversion (see, e.g., Huber et al., 2011; Mosser et al., 2012; Corsaro et al., 2013; Kallinger et al., 2014; Vrard et al., 2018), as have some comparisons with theory (e.g. Samadi et al., 2013). In addition to generally resulting in underestimated uncertainties on the bolometric amplitudes, this conversion also neglect correction-specific dependencies on metallicity and surface-gravity.

In recent years several authors have addressed the dependence of oscillation and granulation amplitudes on metallicity, a dependence that has been suggested by theoretical studies such as Houdek et al. (1999) and Samadi et al. (2010). Vrard et al. (2018) investigated the metallicity dependence of bolometric oscillation amplitudes obtained from Kepler and found a higher-than-20$\%$ change in amplitude from a 1 dex change in metallicity. This is in qualitative agreement with earlier findings from Mosser et al. (2012), who like Vrard et al. (2018) adopted the Ballot et al. (2011) conversion. Corsaro et al. (2017) looked at amplitudes of meso-granulation as measured in the Kepler band-pass and found a significant dependence on metallicity. However, by working with Kepler-specific amplitudes, rather than bolometric values, the measured dependence on metallicity will be a combination of the star and the band-pass dependencies, rather than being solely from the star.

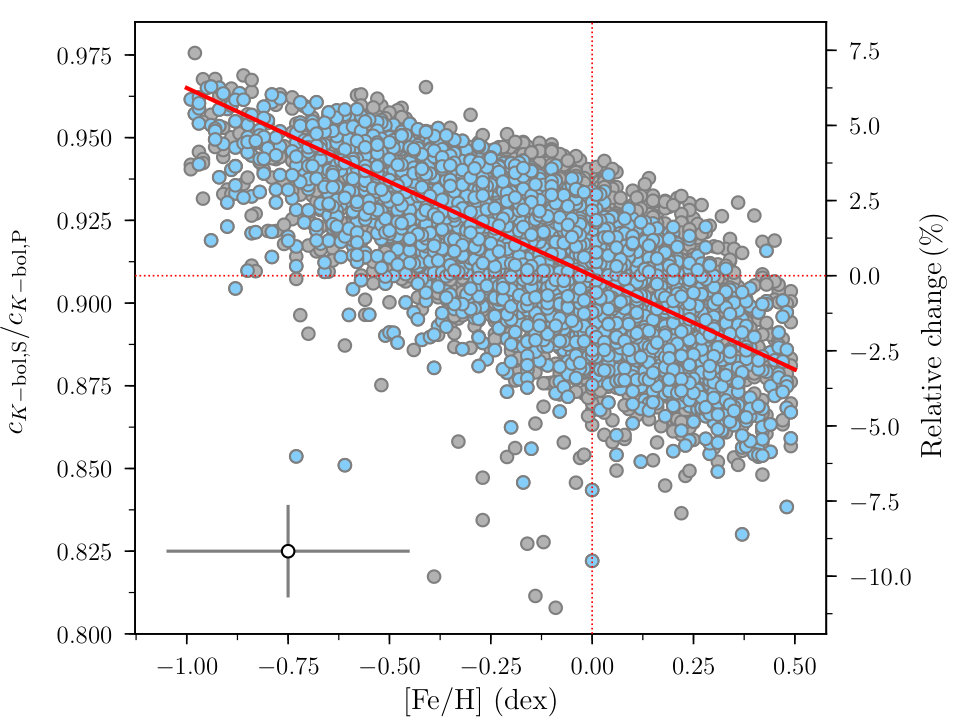

It is beyond the scope of this paper to assess the detailed impact on the reported dependencies of, especially, metallicity on oscillation and granulation amplitudes. However, to get a feel for the potential scale of the impact we considered the sample of amplitudes from Yu et al. (2018), with values for $T_{\rm eff}$ and $\rm[Fe/H]$ adopted from Mathur et al. (2017). We can write bolometric amplitudes obtained from using $c_{P\rm-bol}$ values from synthetic spectra in terms of those from using the Planck correction as (here for Kepler):

[TABLE]

hence, any dependence of $A_{K\rm-bol,S}$ on $\rm[Fe/H]$ would be given by the dependence of $A_{K\rm-bol,P}$ on $\rm[Fe/H]$ (e.g. Vrard et al., 2018), but modified by the $\rm[Fe/H]$ dependence of the ratio of $c_{P\rm-bol}$ values. We may therefore simply look at the $\rm[Fe/H]$ dependence of the $c_{P\rm-bol}$ ratio. For the calculation of $c_{P\rm-bol}$ values we use the MC method described in Section 3.4. Rather than using the value for $\log g$ provided by Yu et al. (2018) we re-calculate these (using the same method as Yu et al. (2018)) to include the inherent correlation between the $\log g$ and $T_{\rm eff}$ values from this method. To limit the range of $\log g$ values we further restrict the sample to stars in their Helium burning phase with $\log g$ from 2.35 to 2.45. Figure 8 shows the dependence of the calculated ratios with $\rm[Fe/H]$. As seen from the fitted relation (red line) the ratios decrease by ${\sim}6.25\%$ from a 1 dex increase in $\rm[Fe/H]$. From Equation 4.1 we see that such a decrease in the $c_{P\rm-bol}$ ratio with $\rm[Fe/H]$ would act against the increase in $A_{K\rm-bol,P}$ with $\rm[Fe/H]$ seen, e.g., by Vrard et al. (2018).

This exercise is by no means meant to suggest that dependencies of bolometric amplitudes reported in the literature are incorrect. We do, however, caution that part of the observed dependencies may be caused by applying a bolometric correction that neglects the dependencies under study. For comparisons with theoretical predictions we recommend either adopting a bolometric correction incorporating $\rm[Fe/H]$ and $\log g$ dependencies, or even better, to apply the spectral response of the given mission of comparison to the theoretical calculations (see, e.g., Mathur et al., 2011).

4.2 Detectability prediction

The importance of $c_{P\rm-bol}$ enters if one requires a conversion from one band-pass to another. A direct implication from a change of the bolometric correction in this respect comes when predicting the detectability of solar-like oscillations. When preparing target-lists for observations in a photometric mission, such as TESS, the detectability of solar-like oscillations is assessed and targets reaching a certain likelihood of detection are proposed for observations. For TESS, targets that require observations with a 2-min cadence must be proposed, while targets that can be studied with the long-cadence option (currently a 30-min cadence) will be observed in any case from the TESS full-frame images. In the detectability calculation an estimate is needed for the amplitude of the oscillation modes (see, e.g., Chaplin et al., 2011), which is typically obtained from scaling relations (see, e.g., Kjeldsen & Bedding, 1995; Huber et al., 2011; Stello et al., 2011; Corsaro et al., 2013).

For solar-like stars to be observed with TESS, Campante et al. (2016b) performed a detectability study following the procedures of Chaplin et al. (2011). In their calculations an average amplitude conversion factor from Kepler to TESS ($c_{K-T}$; Equation 3.3) of 0.85 was adopted, and this is also used for generating the actual target proposal list (Schofield et al., 2019) – while being slightly larger, this corresponds roughly to the level found here from the Planck-spectrum calculations (see Figure 2). To estimate the potential impact of changing the value of $c_{K-T}$, we can use the ratio of the signal-to-noise ratios ($S/N$; oscillation power over the stellar and instrumental noise background) from a specific $c_{K-T}$ value compared to the value of $0.85$:

[TABLE]

where $b_{\rm inst}$ gives the instrumental noise, and $P_{g}$ gives the power level from the granulation background. Given that $c_{K-T}$ calculated from synthetic spectra in all cases are below $0.85$ (see Figure 5), $R_{SN}$ will maximally reach a value of $(0.85/c_{K-T})^{2}$. If we adopt a value of $c_{K-T}\approx 0.8$, which corresponds to the value for a star with a temperature of ${\sim}6500\,\rm K$ and in general one of the lowest $c_{K-T}$ values for stars that will be observed in short-cadence ($2$-min) mode. Using a description of $b_{\rm inst}$ following Sullivan et al. (2015) and $P_{g}$ following Kallinger et al. (2014) (in the form used in Campante et al. (2016b)) we find that for a star with a value of $\nu_{\rm max}$ of ${\sim}800\,\rm\mu Hz$, $R_{SN}$ reaches the maximum value of ${\sim}1.13$, which then decrease as a function of TESS magnitude.

The current target selection strategy is somewhat conservative in the sense of including, with low priority, some stars that are not expected to show oscillations. The up-to ${\sim}13\%$ overestimate of the predicted $S/N$ from using a fixed $c_{K-T}=0.85$ is unlikely to cause any significant change to the targets selected.

4.3 Other considerations

There are a number of effect that can impact the effective band-pass of the observations, hence the bolometric correction. While these effect are typically expected to be of little importance they are worth keeping in mind when processing photometric data for the sake of measuring amplitudes. We will not attempt a quantitative assessment of the potential impact of these effect. Below we will focus on effects particular to the TESS mission.

• •

The backside-illuminated CCDs of TESS are at the bottom equipped with high-conductivity “straps” for a fast frame-transfer. The conductive straps have a wavelength-dependent reflectively which takes effect in the IR (above ${\sim}800\,\rm nm$) where photons can pass through the entire silicon layer of the CCD. This effectively increase the QE, hence the SRF (Figure 1), of the pixels affected by the straps with an intensity rise of $0.5-14\%$ over wavelengths from $825-1050$ nm (see Krishnamurthy et al., 2017). For more information on the conducting (and other types of) straps we refer to the TESS Instrument Handbook (Vanderspek et al., 2018).

• •

The QE of the TESS CCDs is mildly sensitive to temperature (see Krishnamurthy et al., 2017). While this is likely a negligible effect it could introduce a systematic change in the bolometric correction with a change in the CCD temperature, e.g., when the Earth is in/near the FOV.

• •

The Point Spread Function (PSF) of stars observed with TESS will include both off-axis and chromatic aberrations arising both from the refractive elements of the TESS camera and from the deep-depletion CCDs, absorbing redder photons deeper in the silicon (Woods et al., 2016). It has also been observed that for some saturated stars diffuse vertical and horizontal image extensions appear, known as “mustaches”. These originate from reflections of long-wavelength light within the bulk silicon of the CCDs and will be made of photons with wavelengths ${>}950$ nm (Vanderspek et al., 2018). With these effects in mind it is important to use apertures that capture the full light from the star.

5 Conclusion

We have calculated the bolometric correction factor $c_{P\rm-bol}$ for the Kepler, CoRoT, and TESS missions, enabling the conversion of measured amplitudes for radial ($l=0$) oscillation modes and granulation to bolometric values. The numerical calculations followed the prescription set forth by Ballot et al. (2011) and Michel et al. (2009) for the Kepler and CoRoT missions.

The bolometric correction was computed using both a Planck spectrum and synthetic model flux spectra from ATLAS9 as representations for the stellar spectral flux density. For the $c_{P\rm-bol}$ values adopting a Planck spectrum (Section 3.1) we derived simple power-law (Equation 3.1) and polynomial parameterizations (Equation 3.2) as a function of $T_{\rm eff}$ (Figure 2), the coefficients of which are provided in Table 1. For the $c_{P\rm-bol}$ calculations adopting synthetic spectra (Section 3.2) we provide online tables of the values as a function of $T_{\rm eff}$, $\log g$, $\rm[Fe/H]$, and $\alpha$-enhancement (Section A).

We find that adopting synthetic model spectra can change the bolometric correction by as much as $30\%$ at the lowest temperatures ($4000$ K), while the difference typically lie within ${\sim}5-10\%$ around a $T_{\rm eff}$ of $5500-6000$ K. After $T_{\rm eff}$, the metallicity has the strongest influence on $c_{P\rm-bol}$, followed by $\log g$. We find that amplitude comparisons between the missions included in this study can be off by up to $15\%$ when assuming a black-body spectrum over a more realistic flux spectrum.

The conversion of measured amplitudes to bolometric ones enabled by the $c_{P\rm-bol}$ values can be used to explore dependencies of amplitudes on fundamental stellar parameters for a better understanding of the turbulent convection driving the excitation. We find that part of the dependence of stellar oscillations amplitudes on $\rm[Fe/H]$ reported in the literature may be caused by adopting $c_{P\rm-bol}$ values that neglect this dependence (Section 4.1).

The $c_{P\rm-bol}$ values can similarly be used for conversion of amplitudes observed by different photometric missions — this can be used to assess the detectability yield of solar-like oscillations for a mission like TESS given amplitude relations from Kepler, hence help guide the target selection. For the TESS mission, we find that a change of the adopted $c_{P\rm-bol}$ values from the current ones assuming a stellar black-body spectrum would only make the target selection strategy more conservative (Section 4.2).

The use of synthetic spectra from 1D model atmospheres provide an improvement over the Planck spectrum in terms of appreciating dependencies on parameters other than $T_{\rm eff}$. They are, however, still limited by neglecting potential influences from spectral line formation in non-local thermodynamic equilibrium, and effects from a non-stationary 3D time-dependent modelling of the convective flows in the stellar atmosphere. A future advancement would be to compute $c_{P\rm-bol}$ values from the grid 3D model atmospheres from, for instance, the Stagger project (Collet et al., 2011; Magic et al., 2013).

In this study we tried also computing $c_{P\rm-bol}$ using a spectral library adopting the PHOENIX code. The results from this were very erratic and will not be provided until the cause is better understood. We caution that the choice of model atmosphere will likely have some influence on the derived results, as was found for oscillation mode visibilities by Ballot et al. (2011).

We will in a future work apply the same synthetic spectra used for the bolometric correction to the calculation of oscillation mode visibilities (see Ballot et al., 2011, for such calculations for Kepler). Once the TESS mission has observed the Kepler field during its second year of operation, we will test the values provided in this work by comparing amplitudes measured by both missions. The empirical determination of the $c_{P\rm-bol}$-ratios between Kepler and TESS will also be important to test different 1D atmosphere models, different implementations of model physics, and potential improvements from 3-D model atmospheres.

Acknowledgments

We thank the referee Jérôme Ballot for comments that helped improve the paper. We thank William J. Chaplin and Guy R. Davies for useful comments on the paper, and Roland Vanderspek for discussions on the spectral response function of TESS. We thank Andrea Miglio and Ennio Poretti for supplying the CoRoT spectral response function. MNL acknowledges the support of The Danish Council for Independent Research | Natural Science (Grant DFF-4181-00415), and support from the ESA PRODEX programme. MNL is grateful to the School of Physics and Astronomy at the University of Birmingham for their hospitality during parts of the study. Funding for the Stellar Astrophysics Centre is provided by The Danish National Research Foundation (Grant agreement no.: DNRF106).

Appendix A $\alpha$-enhancement

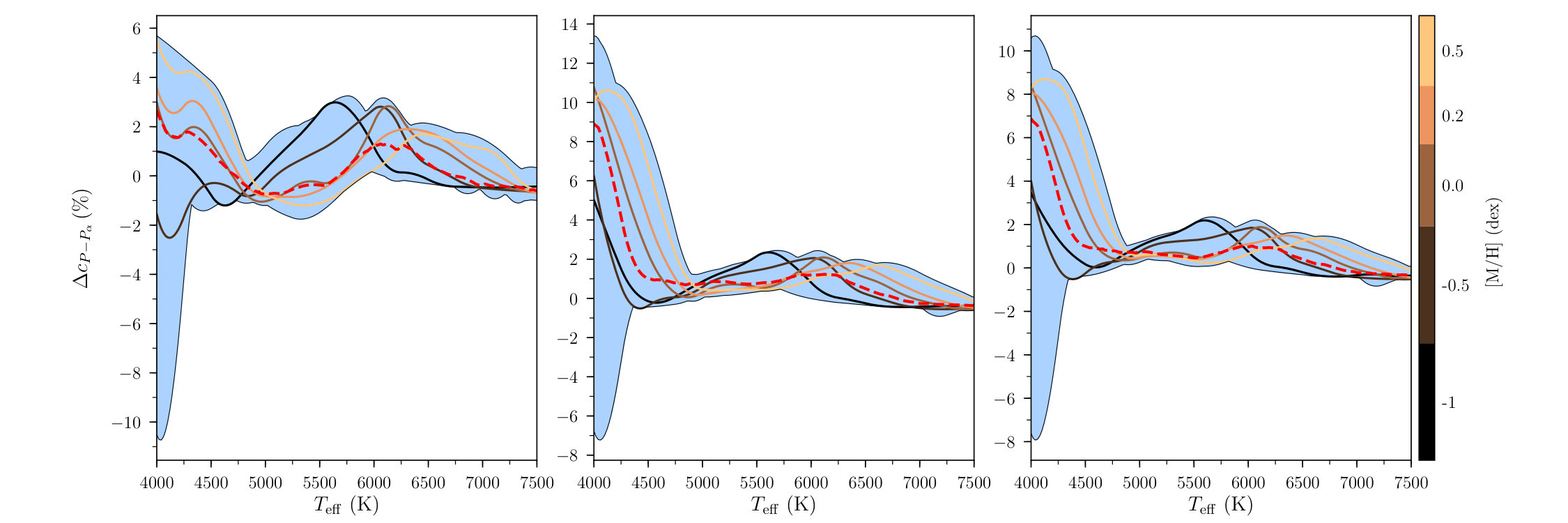

The dependence of $c_{P\rm-bol}$ on $\alpha$-enhancement is exemplified in Figure 9, which shows the percentage difference from adopting an $\alpha$-enhancement of $+0.4$ as compared to a value of [math] (used for Figure 4). As seen the effect is generally largest towards low $T_{\rm eff}$ and high $\rm[M/H]$, and overall the $c_{P\rm-bol}$ values for the $\alpha$-enhanced case are lower than the non-enhanced – this would for most $T_{\rm eff}$ values increase the disagreement to the Planck-spectrum value.

Appendix B Relation parameters

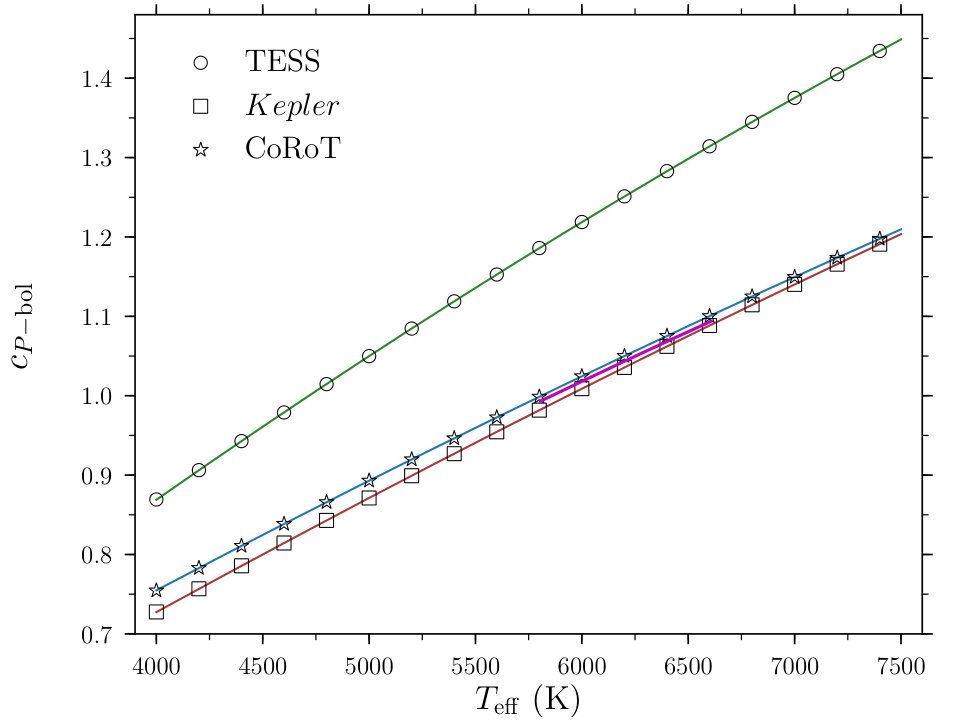

Table 1 provides coefficients for the power-law (Equation 3.1; $\alpha,T_{o}$) and polynomial relations (Equation 3.2; $a_{n},T_{o}$) describing $c_{P\rm-bol}$ from assuming a Planck function as a function of $T_{\rm eff}$.
