HR 10: A main-sequence binary with circumstellar envelopes around both components. Discovery and analysis

TL;DR

This study reveals HR 10 is a binary star system with circumstellar shells around each component, explaining observed spectral variability without invoking transient exocometary events, and provides detailed orbital and stellar parameters.

Contribution

The paper presents the first detailed analysis confirming HR 10 as a binary with circumstellar shells, clarifying the origin of spectral variability and providing comprehensive orbital and stellar parameters.

Findings

HR 10 is a binary star system.

Spectral variability is due to binarity, not exocometary activity.

Each star has its own circumstellar shell, no circumbinary envelope.

Abstract

This paper is framed within a large project devoted to studying the presence of circumstellar material around main sequence stars, and looking for exocometary events. The work concentrates on HR 10 (A2 IV/V), known for its conspicuous variability in the circumstellar narrow absorption features of Ca II K and other lines, so far interpreted as $\beta$ Pic-like phenomena, within the falling evaporating body scenario. The main goal of this paper is to carry out a thorough study of HR 10 to find the origin of the observed variability, determine the nature of the star, its absolute parameters, and evolutionary status. Interferometric near-infrared (NIR) observations, multi-epoch high-resolution optical spectra spanning a time baseline of more than 32 years, and optical and NIR photometry, together with theoretical modelling, were used to tackle the above objectives. Our results reveal that HR 10 is a binary. The narrow circumstellar absorption features superimposed on the photospheric Ca II K lines -- and lines of other species -- can be decomposed into two or more components, the two deep ones tracing the radial velocity of the individual stars, which implies that their origin cannot be ascribed to transient exocometary events, their variability being fully explained by the binarity of the object. There does not appear to be transient events associated with potential exocomets. Each individual star holds its own circumstellar shell and there are no traces of a circumbinary envelope. The combined use of the interferometric and radial velocity data leads to a complete spectrometric and orbital solution for the binary, the main parameters being: an orbital period of 747.6 days, eccentricities of the orbits around the centre of mass 0.25 (HR 10-A), 0.21 (HR 10-B) and a mass ratio of q=M$_{\rm B}$/M$_{\rm A}$=0.72-0.84. The stars are slightly off the main sequence, the binary being $\sim530$ Myr old.

Figures

Tables

Table 1. Table 1: PIONIER observations of HR 10.

Date	2014-09-02	2017-09-23	2018-08-07	2018-09-05
Starting time [UT]	06:13:06	02:55:38	09:15:56	07:50:37
BJD [TDB] mid observation	2456902.7803	2458019.6773	2458337.8991	2458366.8422
Programme	093.C-0712(B)	099.C-2015(A)	0101.C-0182(B)	0101.C-0182(B)
VLTI array	D0-G1-H0-I1	A0-B2-C1-D0	A0-G1-J2-J3	A0-G1-J3-K0
# SCI observationsa	3	4	2	2
Significance in $cp$	1435	50	283	247
Significance in $V^2$	8271	1378	1623	4948
Significance combined	1038	963	1046	654
Separation [mas]	15.98$\pm$0.35	2.94$\pm$0.56	6.34$\pm$0.16	11.43$\pm$0.27
Position angle [deg]b	39.3$\pm$1.2	77.7$\pm$2.5	32.1$\pm$0.3	37.0$\pm$2.7
Contrast (%)	32.0$\pm$1.5	35$\pm$13	31.9$\pm$3.9	31.9$\pm$2.8
Notes: $\left(a\right)$ Number of observations (observing blocks) executed on the science target and bracketed by observations of
calibrators. $\left(b\right)$ The position angle is measured east of north, i.e. counterclockwise from the north.

Table 2. Table 2: Spectroscopic observations of HR 10.

Dedicated spectroscopic campaigns.
Dates		N		Resolution		Spectral range		Telescope / Observatory
						(nm)		Spectrograph
2015-09    04-07		17						1.2-m Mercator Telescope / La Palma
2015-12    20-23		8		$\mathrm{85\hspace{0.17em}000}$		377 – 900		High Efficiency & Resolution Mercator Echelle Spectrograph (HERMES)
2016-07    12		1
2015-10    22-23		3		$\mathrm{48\hspace{0.17em}000}$		350 – 920		2.2-m ESO-MPIA Telescope / La Silla
								Fibre-fed Extended Range Optical Echelle Spectrograph (FEROS)
2017-10-05   to		10		$\mathrm{67\hspace{0.17em}000}$		370 – 910
2018-01-03								2.5-m Nordic Optical Telescope (NOT) / La Palma
2018-11-23   to		12						FIbre-fed Echelle Spectrograph (FIES)
2019-01-08
2017-10-06   to		21		$\mathrm{115\hspace{0.17em}000}$		383 – 693		3.6-m Telescopio Nazionale Galileo (TNG) / La Palma
2018-01-02								High Accuracy Radial velocity Planet Searcher North (HARPS-N)
Note: Dates of the specific nights of the campaigns are given in Table 3

Table 3. Table 3: Radial velocities and velocity dispersions ( b 𝑏 b ) of the deep ‘D’ and shallow ‘S’ components of the CS Ca ii K absorptions. For those cases when a four-Gaussian fit was feasible, the parameters of the weak ‘d’ and ‘s’ components that appear redshifted with respect to D and S, respectively, are also given.

						Component
Date		N		BJD (TDB)		D			S			d			s			Instrument
				(days)		RV	$b$		RV	$b$		RV	$b$		RV	$b$
						(km/s)	(km/s)		(km/s)	(km/s)		(km/s)	(km/s)		(km/s)	(km/s)
1986-08-15		1		2446657.5000		$-8.66\pm 2.00$	10.1		$+9.38\pm 2.00$	9.0								CES
1988-10-15		1		2447449.5000		$-4.49\pm 2.00$	9.8		$+5.83\pm 2.00$	10.3								CES
1996-11-30($†$)		1		2450417.5022		$-10.40\pm 2.00$	2.1		$+7.40\pm 2.00$	3.8								UHRF
1997-06-20($†$)		1		2450619.5011		$+9.20\pm 2.00$	3.0		$-16.60\pm 2.00$	2.6		$+16.20\pm 2.00$	4.5					UHRF
1998-10-25		1		2451112.4652		$-16.03\pm 2.00$	10.0		$+10.00\pm 2.00$	10.0		$-6.51\pm 3.00$	13.7		$+20.01\pm 3.00$	9.8		UES
1999-01-28		1		2451207.3363		$-8.78\pm 2.00$	10.0											UES
2004-08-28		2		2453246.3741		$-17.33\pm 2.00$	8.5:		$+13.80\pm 2.00$	7.9:								CS21
2004-08-29
2004-10-19		1		2453297.7801		$-14.77\pm 2.00$												CS21
2005-06-15		1		2453537.3058		$-2.10\pm 2.00$	12.3:											UHRF
2005-09-15		1		2453628.8717		$+9.32\pm 2.00$	14.7		$-17.38\pm 2.00$	16.3:					$-4.43\pm 2.00$	7.4		CS21
2007-06-28		14		2454279.8221		$-0.59\pm 1.50$	7.8		$-4.40\pm 1.50$	7.0								UVES
2007-07-11		6		2454292.8971		$+0.31\pm 1.50$	6.2		$-6.04\pm 1.50$	4.6								UVES
2007-07-15		14		2454296.9144		$+0.91\pm 1.50$	6.4		$-6.07\pm 1.50$	6.0								UVES
2007-07-26		34		2454307.7830		$+1.27\pm 1.50$	7.5		$-8.96\pm 1.50$	8.0								UVES
2007-07-27		6		2454308.7539		$+2.18\pm 1.50$	8.0		$-7.82\pm 1.50$	8.0								UVES
2010-09-01		1		2455441.1252		$-14.33\pm 1.50$	10.5		$+14.05\pm 1.50$	9.8		$-4.01\pm 2.00$	8.4		$+18.73\pm 2.00$	10.4		HIRES
2011-12-08		1		2455903.7969		$+15.17\pm 1.50$	8.0		$-24.10\pm 1.50$	10.4		$+23.67\pm 2.00$	10.2		$-4.97\pm 2.00$	8.0		HIRES
2015-01-18		1		2457041.4530		$-14.41\pm 1.50$	8.2		$+14.05\pm 1.50$	11.0		$-4.00\pm 2.00$	9.4		$+24.10\pm 2.00$	9.8		HARPS
2015-01-19		2		2457042.4529		$-14.45\pm 1.50$	8.0		$+14.15\pm 1.50$	11.4		$-6.24\pm 2.00$	10.2		$+23.30\pm 2.00$	10.0		HARPS
2015-01-20		1		2457043.4527		$-14.41\pm 1.50$	8.8		$+13.65\pm 1.50$	11.0		$-1.99\pm 2.00$	11.0		$+23.28\pm 2.00$	9.7		HARPS
2015-01-21		2		2457044.4527		$-14.58\pm 1.50$	8.4		$+14.22\pm 1.50$	11.0		$-3.99\pm 2.00$	10.3		$+23.03\pm 2.00$	11.0		HARPS
2015-09-04		17		2457271.0769		$+0.08\pm 1.50$	9.4		$-7.36\pm 1.50$	13.1		$+10.31\pm 2.00$	15.8		$+5.95\pm 2.00$	11.1		HERMES
2015-09-07
2015-10-22		3		2457318.1488		$+5.41\pm 1.50$	9.2		$-14.88\pm 1.50$	9.4		$+14.78\pm 2.00$	19.9:		$-3.22\pm 2.00$	19.7:		FEROS
2015-10-23
2015-12-20		3		2457377.3295		$+12.22\pm 1.50$	10.5		$-19.22\pm 1.50$	11.9		$+24.37\pm 2.00$	10.2		$-3.02\pm 2.00$	13.0		HERMES
2015-12-22		2		2457379.3572		$+13.03\pm 1.50$	9.5		$-22.19\pm 1.50$	13.6		$+25.85\pm 2.00$	11.0		$-4.11\pm 2.00$	8.8		HERMES
2015-12-23		3		2457380.3501		$+13.12\pm 1.50$	9.6		$-21.28\pm 1.50$	10.0		$+27.98\pm 2.00$	11.0		$-5.80\pm 2.00$	14.0		HERMES
2016-07-12		1		2457581.7080		$-0.63\pm 1.50$	7.1		$-5.95\pm 1.50$	6.1								HERMES
2017-10-05		1		2458031.5276		$+1.84\pm 1.50$	9.0		$-6.05\pm 1.50$	19.4								FIES
2017-10-06		1		2458032.5772		$+1.80\pm 1.50$	7.7		$-6.36\pm 1.50$	13.3								HARPS-N
2017-10-12		2		2458038.5469		$+2.07\pm 1.50$	7.9		$-7.69\pm 1.50$	11.5								HARPS-N
2017-10-17		1		2458043.5495		$+3.00\pm 1.50$	9.9		$-9.46\pm 1.50$	14.5								FIES
2017-10-23		2		2458050.4980		$+3.18\pm 1.50$	4.8		$-9.12\pm 1.50$	13.2		$+15.99\pm 2.00$	15.7		$+4.14\pm 2.00$	12.1		HARPS-N
2017-10-24
2017-10-29		1		2458056.3919		$+4.40\pm 1.50$	9.5		$-9.74\pm 1.50$	15.5								FIES
2017-10-29		2		2458056.4748		$+4.26\pm 1.50$	5.4		$-9.57\pm 1.50$	17.0:		$+16.02\pm 2.00$	20.5:		$+4.47\pm 2.00$	16.1:		HARPS-N
2017-11-09		1		2458067.4778		$+5.15\pm 1.50$	11.9		$-11.31\pm 1.50$	13.9								FIES
2017-11-18		2		2458076.3180		$+6.38\pm 1.50$	9.6		$-15.05\pm 1.50$	13.2		$+20.01\pm 2.00$	14.1		$-5.61\pm 2.00$	10.0		HARPS-N
2017-11-28		1		2458086.4462		$+8.32\pm 1.50$	10.4		$-14.88\pm 1.50$	11.4		$+20.62\pm 2.00$	10.0		$-2.61\pm 2.00$	12.1		FIES
2017-12-01		1		2458089.4417		$+8.48\pm 1.50$	9.2		$-15.91\pm 1.50$	10.5		$+18.97\pm 2.00$	13.2		$-2.84\pm 2.00$	13.8		FIES
2017-12-03		2		2458091.3887		$+8.71\pm 1.50$	9.1		$-15.84\pm 1.50$	11.0		$+20.45\pm 2.00$	11.3		$-3.97\pm 2.00$	9.6		HARPS-N
2017-12-06		1		2458094.4387		$+9.46\pm 1.50$	10.9		$-15.10\pm 1.50$	12.2		$+23.01\pm 2.00$	10.0		$-3.00\pm 2.00$	10.9		FIES
2017-12-09		2		2458097.3047		$+8.99\pm 1.50$	7.9		$-16.55\pm 1.50$	13.6		$+19.03\pm 2.00$	10.4		$-1.95\pm 2.00$	11.8		HARPS-N
2017-12-15		2		2458103.3163		$+10.29\pm 1.50$	9.5		$-17.72\pm 1.50$	10.8		$+22.45\pm 2.00$	11.0		$-3.09\pm 2.00$	11.5		HARPS-N
2017-12-18		1		2458106.3321		$+10.02\pm 1.50$	9.0		$-17.03\pm 1.50$	12.9		$+18.61\pm 2.00$	13.1		$-1.62\pm 2.00$	11.4		FIES
2017-12-21		2		2458109.3041		$+10.67\pm 1.50$	9.0		$-19.01\pm 1.50$	11.6		$+21.65\pm 2.00$	7.0		$-4.00\pm 2.00$	8.5		HARPS-N
2017-12-22		1		2458110.3674		$+11.18\pm 1.50$	9.8		$-16.14\pm 1.50$	15.8		$+20.87\pm 2.00$	9.8		$-0.36\pm 2.00$	12.3		FIES
2017-12-27		2		2458115.3078		$+11.39\pm 1.50$	7.2		$-19.69\pm 1.50$	11.2		$+20.05\pm 2.00$	12.2		$-6.82\pm 2.00$	7.0		HARPS-N
2018-01-02		2		2458121.3055		$+12.71\pm 1.50$	7.3		$-21.15\pm 1.50$	12.1		$+21.05\pm 2.00$	10.1		$-2.91\pm 2.00$	9.0		HARPS-N
2018-01-03		1		2458122.3461		$+12.85\pm 1.50$	9.6		$-18.89\pm 1.50$	10.5		$+22.02\pm 2.00$	10.0		$-7.52\pm 2.00$	10.0		FIES
2018-11-23		1		2458446.4436		$-15.08\pm 1.50$	10.0		$+12.90\pm 1.50$	12.5		$-3.00\pm 2.00$	10.1		$+20.49\pm 2.00$	10.0		FIES
2018-11-26		1		2458449.3208		$-14.90\pm 1.50$	10.0		$+14.01\pm 1.50$	8.0		$-5.88\pm 2.00$	10.0		$+24.75\pm 2.00$	7.8		FIES
2018-12-01		1		2458454.3734		$-14.82\pm 1.50$	9.8		$+13.23\pm 1.50$	14.5		$-6.21\pm 2.00$	10.2		$+21.79\pm 2.00$	8.7		FIES
2018-12-07		1		2458460.3696		$-15.12\pm 2.00$	10.3:		$+12.52\pm 2.00$	17.3:					$+21.66\pm 3.00$	21.7:		FIES
2018-12-10		1		2458463.4205		$-15.29\pm 1.50$	10.0		$+14.43\pm 1.50$	8.0		$-4.01\pm 2.00$	10.0		$+22.01\pm 2.00$	10.0		FIES
2018-12-22		1		2458475.3701		$-15.09\pm 1.50$	10.7		$+14.35\pm 1.50$	8.1					$+22.37\pm 2.00$	10.6		FIES
2018-12-24		1		2458477.3687		$-14.26\pm 1.50$	10.7:											FIES
2018-12-26		1		2458479.3677		$-14.69\pm 1.50$	10.1		$+14.39\pm 1.50$	8.0		$-2.37\pm 2.00$	10.9		$+22.01\pm 2.00$	9.0		FIES
2018-12-27		1		2458480.3449		$-15.53\pm 1.50$	10.0		$+15.27\pm 1.50$	9.3		$-5.03\pm 2.00$	10.5		$+22.25\pm 2.00$	8.9		FIES
2019-01-02		1		2458486.3505		$-14.80\pm 1.50$	9.6		$+16.06\pm 1.50$	8.2		$-5.28\pm 2.00$	10.0		$+24.16\pm 2.00$	8.0		FIES
2019-01-06		1		2458490.3547		$-14.84\pm 1.50$	9.8		$+17.04\pm 1.50$	8.5		$-5.48\pm 2.00$	12.4		$+22.01\pm 2.00$	8.1		FIES
2019-01-08		1		2458492.3427		$-14.15\pm 1.50$	9.6		$+13.04\pm 1.50$	7.9		$-4.20\pm 2.00$	9.9		$+22.95\pm 2.00$	8.0		FIES
Notes: ‘N’ is the number of spectra. ($†$): Radial velocities and velocity dispersions ($b$) for these two dates have been taken from Welsh et al. (1998), since the observations
were not available for direct measurements following the same method used in this work. (:) Noisy spectra.

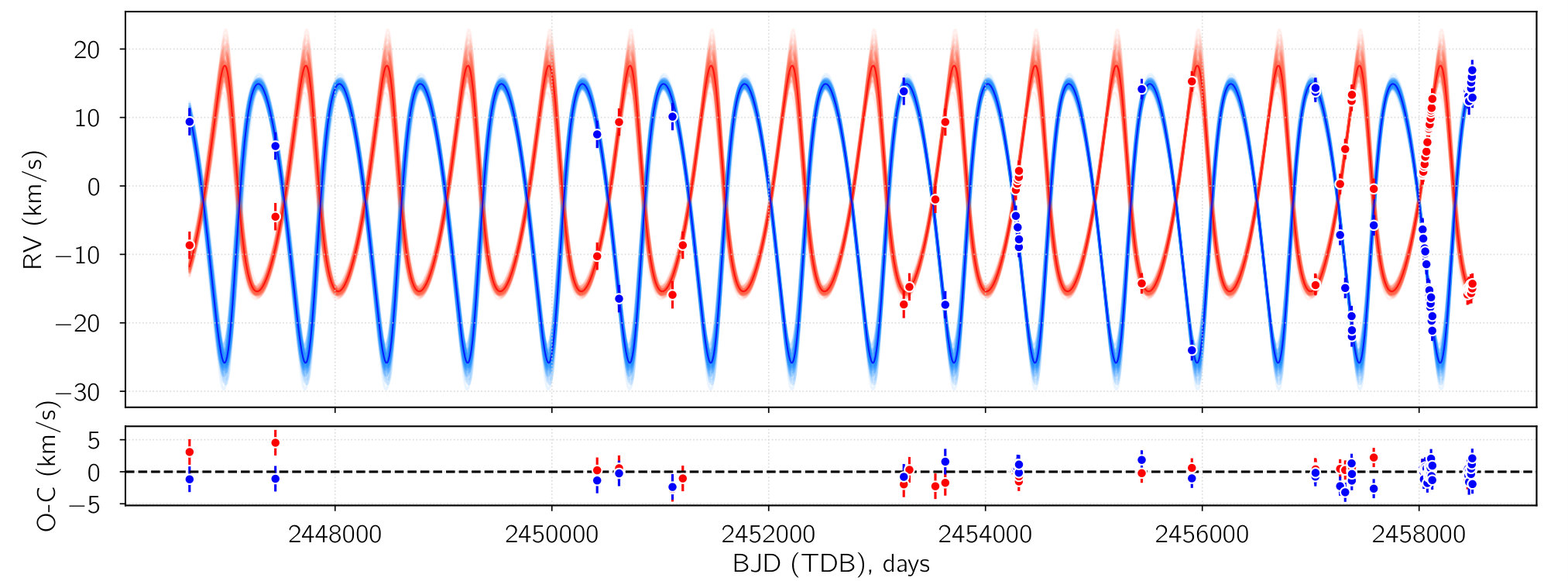

Table 4. Table 4: Median and 68.7% confidence intervals for the RV parameters analysed in Sect. 6.2 . Prior distributions are also given.

Parameter	Prior	Posterior
$V_{\mathrm{sys}}$ [km/s]	$𝒰(-30.0,30.0)$	$-{2.18}_{-0.31}^{+0.34}$
$P_{\mathrm{orb}}$ [days]	$𝒢(747.0,20.0)$	${747.60}_{-0.70}^{+0.61}$
$T_{c,A}$ [BJD-2400000]	$𝒢(57562.4,20.0)$	${57563.5}_{-7.2}^{+8.0}$
$K_A$ [km/s]	$𝒰(0.0,40.0)$	${16.45}_{-0.79}^{+0.76}$
$e_A$	$𝒰(0.0,0.9)$	${0.254}_{-0.039}^{+0.036}$
${\omega }_A$ [∘]	$𝒰(-180.0,180.0)$	${38.0}_{-4.0}^{+4.0}$
$T_{c,B}$ [BJD-2400000]	$𝒰(57562.0,58309.0)$	${58022.3}_{-8.6}^{+6.4}$
$K_B$ [km/s]	$𝒰(0.0,40.0)$	${20.35}_{-0.72}^{+0.69}$
$e_B$	$𝒰(0.0,0.9)$	${0.209}_{-0.026}^{+0.030}$
Note: $𝒰(a,b)$ stands for uniform prior between $a$ and $b$, while
$𝒢(\mu ,\sigma )$ represents a Gaussian prior with mean $\mu$ and standard
deviation $\sigma$.

Table 5. Table 5: Median and 68.7% confidence intervals for the orbital parameters analysed in Sect. 6.3 . Prior distributions are also displayed

Parameter	Prior	Posterior
$P_{\mathrm{orb}}$ [days]	$𝒢(747.58441074,0.67)$	${747.36}_{-0.64}^{+0.67}$
$T_0$ [BJD-2400000]	$𝒰(57200.0,57600.0)$	${57453}_{-44}^{+22}$
$a_{\mathrm{tot}}$ [mas]	$𝒰(10.0,50.0)$	${10.58}_{-0.37}^{+0.60}$
${\Omega }_A$ [∘]	$𝒰(0,360)$	${137.65}_{-0.84}^{+0.83}$
${\omega }_A$ [∘]	$𝒰(-180.0,180.0)$	${17}_{-22}^{+11}$
$i$ [∘]	$𝒰(90.0,100.0)$	${93.34}_{-0.63}^{+0.60}$
$e_A$	$𝒢(0.24,0.03)$	${0.242}_{-0.012}^{+0.017}$
$e_B$	$𝒢(0.207,0.03)$	${0.208}_{-0.011}^{+0.015}$
Note: $𝒰(a,b)$ stands for uniform prior between $a$ and $b$, while
$𝒢(\mu ,\sigma )$ represents a Gaussian prior with mean $\mu$ and standard
deviation $\sigma$.

Table 6. Table 6: HR 10: Optical and NIÉRR photometry.

Magnitude	${\lambda }_{\mathrm{eff}}$ [nm]	Filter
6.33	440.0	$B$ Johnson/Bessell
6.25	477.6	PAN-STARRS/PS1.$g$
6.230	550.0	$V$ Johnson/Bessell
6.328	612.9	PAN-STARRS/PS1.$r$
6.434	748.5	PAN-STARRS/PS1.$i$
6.507	865.8	PAN-STARRS/PS1.$z$
6.539	960.3	PAN-STARRS/PS1.$y$
$5.858\pm 0.019$	1235.0	2MASS $J$
$5.831\pm 0.033$	1662.0	2MASS $H$
$5.747\pm 0.027$	2159.0	2MASS $K_s$

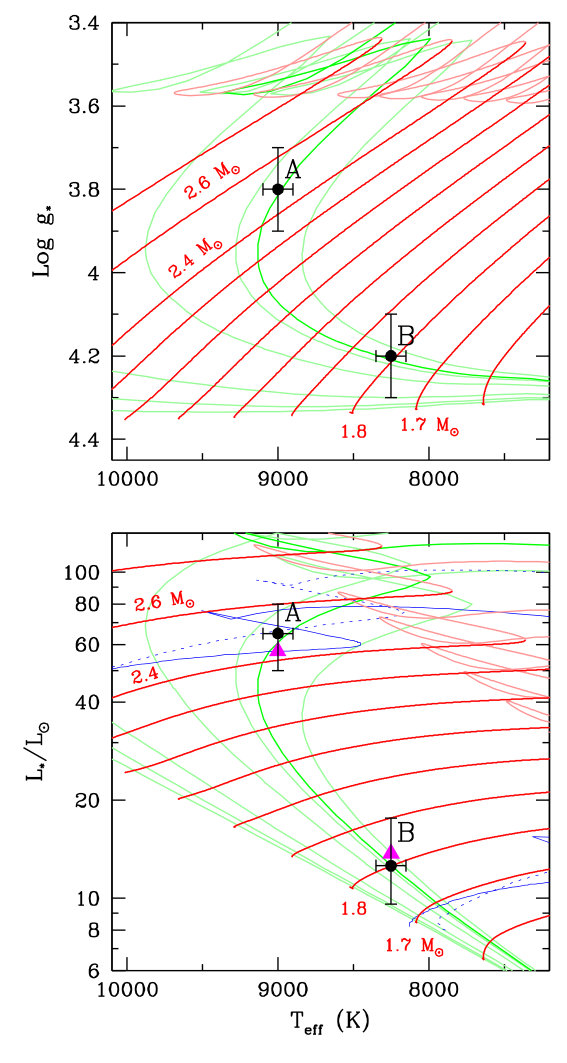

Table 7. Table 7: HR 10: Stellar parameters and colours.

Parameters of the individual components
Parameter	Star A	Star B
$T_{\mathrm{eff}}$ [K]	$9000\pm 100$	$8250\pm 100$
$\log g_{\ast }$ [cgs]	$3.8\pm 0.1$	$4.2\pm 0.1$
$L/L_{\odot }$ [from tracks]	$64.9\pm 10.0$	$12.6\pm 4.0$
$L/L_{\odot }$ [from SED fit]	$57.3\pm 2.0$	$13.7\pm 0.5$
$M/M_{\odot }$ [from tracks]	$2.5\pm 0.1$	$1.8\pm 0.1$
$M/M_{\odot }$ [from eq. (2)]	$1.94\pm 0.15$	$1.62\pm 0.13$
$v\sin i$ [km/s]	$294\pm 9$	$200\pm 20$
Age [Myr]	$530\pm 50$
$E\left(B-V\right)$	0.10	0.05
Observed and synthetic colours
Colour	Observed	Synthetic (A+B)
$B-V$	$+0.10\pm 0.04$	$+0.13\pm 0.04$
$V-H$	$+0.40\pm 0.04$	$+0.40\pm 0.04$
$J-H$	$+0.03\pm 0.04$	$+0.06\pm 0.04$
$J-K_s$	$+0.11\pm 0.04$	$+0.08\pm 0.04$

Equations

$$\begin{array}{rl}{V}_{\mathrm{rad}\mathrm{A}}=& V_{\mathrm{sys}}+K_{\mathrm{A}}\left[\cos ({\nu }_{\mathrm{A}}+{\omega }_{\mathrm{A}})+e_{\mathrm{A}}\cos ({\omega }_{\mathrm{A}})\right]\\ V_{\mathrm{rad}\mathrm{B}}=& V_{\mathrm{sys}}+K_{\mathrm{B}}\left[\cos ({\nu }_{\mathrm{B}}+{\omega }_{\mathrm{A}}+\pi )+e_{\mathrm{B}}\cos ({\omega }_{\mathrm{A}}+\pi )\right],\end{array}$$

$$M_{\mathrm{A}(\mathrm{B})}{\sin }^{3}i=\frac{P_{\mathrm{orb}}}{2\pi G}(1-e_{\mathrm{A}(\mathrm{B})}^2{)}^{3/2}(K_{\mathrm{A}}+K_{\mathrm{B}}{)}^2{K}_{\mathrm{B}(\mathrm{A})}.$$

Full text

*Aims. *The main goal of this paper is to carry out a thorough study of HR 10 to find the origin of the observed variability, determine the nature of the star, its absolute parameters, and evolutionary status.

*Methods. *Interferometric near-infrared (NIR) observations, multi-epoch high-resolution optical spectra spanning a time baseline of more than 32 years, and optical and NIR photometry, together with theoretical modelling, were used to tackle the above objectives.

*Results. *Our results reveal that HR 10 is a binary. The narrow circumstellar absorption features superimposed on the photospheric Ca ii K lines – and lines of other species – can be decomposed into two or more components, the two deep ones tracing the radial velocity of the individual stars, which implies that their origin cannot be ascribed to transient exocometary events, their variability being fully explained by the binarity of the object. There does not appear to be transient events associated with potential exocomets. Each individual star holds its own circumstellar shell and there are no traces of a circumbinary envelope. Finally, the combined use of the interferometric and radial velocity data leads to a complete spectrometric and orbital solution for the binary, the main parameters being: an orbital period of 747.6 days, eccentricities of the orbits around the centre of mass 0.25 (HR 10-A), 0.21 (HR 10-B) and a mass ratio of $q\!=M_{\rm B}/M_{\rm A}\!=0.72-0.84$. The stars are slightly off the main sequence, the binary being $\sim\!530$ Myr old.

1 Introduction

Once a star has undergone the pre-main sequence phase and the protoplanetary – primordial – disc evolves, experiencing gas dispersal and grain growth (see e.g. Armitage 2015), the surrounding circumstellar (CS hereafter) material, namely comets, minor bodies, dusty debris discs, and gas in shells or envelopes, is as important as planets for providing clues to the early history of the solar system, and by analogy, of exoplanetary systems.

While exoplanets (see e.g. Beuther et al. 2014, and references therein) and debris discs (see e.g. Matthews et al. 2014) are now routinely studied, little is known about comets and other minor bodies around other stars. Their own nature, that is their small size and lack of an atmosphere, makes them elusive to any direct detection, but indirect methods, such as the detection of certain features originated by dust and gas, provide evidence of and information about the presence and properties of this kind of solid-phase CS material.

Dust features offer hints about the properties of $\mu$m-sized grains in debris discs that result from collisions of planetesimals (e.g. Olofsson et al. 2012). Circumstellar CO emission around some AF-type main sequence (MS) stars (e.g. Moór et al. 2015; Marino et al. 2016) has been interpreted as being the result of outgassing produced by comet collisions (Zuckerman & Song 2012). A cometary origin of warm (Mennesson et al. 2014; Ertel et al. 2018) and hot (Absil et al. 2006, 2013; Ertel et al. 2014), exozodiacal dust has also been suggested (Faramaz et al. 2017).

On the other hand, spectroscopic monitoring of transient absorption events in CS metallic lines – the Ca ii K line being particularly sensitive and prominent (Welsh & Montgomery 2015) – can provide more direct information on the dynamics and composition of exocomets. The best-known examples are the variable absorption features observed in the spectra of $*β*$ Pic (Hobbs et al. 1985), that are interpreted as the result of gas being released by the sublimation of exocomets grazing or falling onto the star (Ferlet et al. 1987; Kiefer et al. 2014, and references therein), driven into its vicinity by the perturbing action of a larger body, for example a planet. This scenario is the so-called falling evaporating body model (FEB; Beust et al. 1990, 1991). Variable absorption features of this kind have also been observed toward several A-type stars (e.g. Redfield et al. 2007; Roberge & Weinberger 2008; Welsh & Montgomery 2015); another example is the discovery and analysis by Grady et al. (2018) of infalling gas in HD 172555, in ultraviolet resonant transitions of Si iii and iv, C ii and iv, and O i.

Since September 2015 we have been carrying out a high-resolution spectroscopic project aiming at detecting and monitoring narrow, variable metallic absorption lines that are attributed to transient exocometary events around MS stars, mainly of A-type. Around 1600 spectra of more than 100 stars have been obtained (Rebollido et al. 2019). The first results of this project are the study of the variations of the CS Ca ii HK lines of the A5 V star $*φ*$ Leo (Eiroa et al. 2016), and the co-existence of hot and cold gas in debris discs (Rebollido et al. 2018).

In the context of this project, and in order to contribute to the understanding of the properties of CS material around MS or early post-MS stars, we have focused this work on HR 10 (A2 IV/V), a shell star showing very interesting spectroscopic behaviour linked to its CS material (see Sect. 2). The star has been treated so far as a single object; this fact has biased the interpretation of its observed spectroscopic variability towards scenarios that must be totally revised after the discovery, reported in this paper, that HR 10 is actually a binary.

In Sect. 2 we summarise what is known about this star and relevant to this work; in Sect. 3 we describe and analyse the PIONIER/VLTI observations that lead to the discovery that HR 10 is a binary; in Sect. 4 we describe the high-resolution spectroscopic observations, both from our own campaigns and from archives or the literature, that have been used to characterise the properties and measure the radial velocities (RVs) of the CS narrow absorption features superimposed on the photospheric lines. Section 5 shows details and properties of those CS absorption features. In Sect. 6 we give quantitative details about the RVs, the orbital solution from the interferometric and spectroscopic RV data, and derive the stellar parameters of the individual components of HR 10. In Sect. 7 we present a discussion of the results. Finally, in Sect. 8 we summarise the main conclusions of this work.

2 Previous work on HR 10

HR 10 (HD 256, HIP 602) is a bright “shell star” ($V\!=\!6.23$) (Cheng et al. 1991; Jaschek et al. 1991), also labelled as a “disc star” by Abt (2008) under the assumption that due to the large rotation velocity, the CS Ti ii lines must originate in a disc. The spectral type classification of the object in the literature varies from A0 to A6, and luminosity classes IV or V. The current most accepted classification is A2 IV/V (see e.g. Wright et al. 2003, VizieR catalogue III/231). The spectrum of HR 10 resembles that of a rapidly rotating early A star ($v\sin i$=294 km/s, Mora et al. 2001).

Observations taken since the late 1980s show high spectroscopic variability in the narrow absorption components superimposed on the photospheric Ca ii K line. Lagrange-Henri et al. (1990) and Welsh et al. (1998) interpreted those variations within the FEB model, which is similar to that devised for $\beta$ Pic.

Redfield et al. (2007) carried out a detailed study of the presence of narrow components superimposed on the photospheric Ca ii and Na i lines, and their potential short- and long-term variability. The origin of the narrow Ca ii K absorption was attributed to CS material, with no interstellar contribution, the variability being caused by the closeness of the gas to the star. No significant absorption was detected in Na i after water vapour lines were removed.

Abt (2008) pointed out the singularity of HR 10 as the only star in a sample of 20 objects analysed showing double Ti ii narrow absorptions in the doublet around 376.0 nm. The redshifted components were interpreted as being caused by infalling material onto the star.

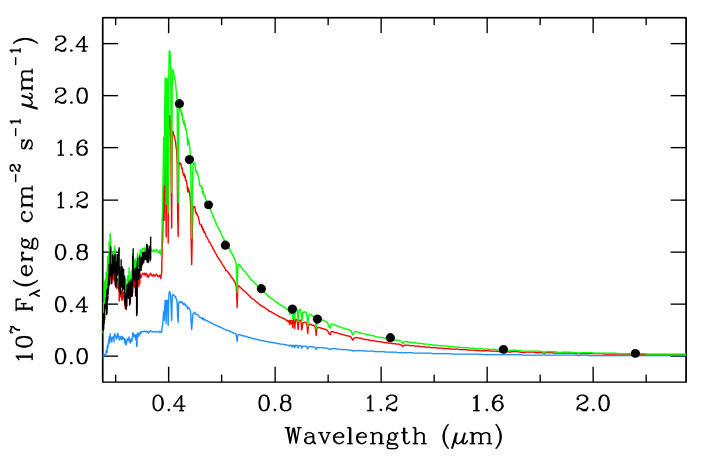

Concerning the spectral energy distribution (SED), Cheng et al. (1991) reported a weak IR excess at 12 and 25 $\mu$m from Infrared Astronomical Satellite (IRAS) data, whereas Redfield et al. (2007) did not detect any significant IR excess in Spitzer Infrared Array Camera (IRAC), Multiband Imaging Photometer (MIPS), or Infrared Spectrograph (IRS) measurements. An upper limit of $L_{\rm IR}/L_{*}\!<\!6.1\times\!10^{-6}$ (consistent with the Spitzer upper limits at the longest IR wavelengths) was given by these latter authors, a value to be compared with $L_{\rm IR}/L_{*}\!\simeq\!3.0\times\!10^{-3}$ (Backman & Paresce 1993), or $\simeq\!2.4\times\!10^{-3}$ (Heinrichsen et al. 1999) for $\beta$ Pic. There are no traces of accretion or emission lines in the spectra, and therefore the star is most likely not in the pre-MS phase.

So far, HR 10 has been treated in the literature as a single object. In retrospect, this fact has been a tight constraint not only in interpreting the observed variability, but also in determining its absolute parameters and its position in the HR diagram. The single-star assumption yielded some controversial results; the $V$ magnitude, and the Gaia DR2 distance, $\varpi\!=\!6.8882\pm 0.1184$ mas, $d\!=\!145.18^{+2.54}_{-2.45}$ pc (Gaia Collaboration 2018), respectively, imply an absolute magnitude of $M_{V}\!\simeq\!+0.42$, which would put the star closer to luminosity class $\sim$III/IV; Redfield et al. (2007) found a value $L_{*}/L_{\odot}\!=\!63.8$ which corresponds to a typical $\sim$A2 III (Aller et al. 1982), both results being in contrast with the spectral classification IV/V. Montesinos et al. (2009) estimated the stellar gravity from the width of the wings of the Balmer lines and derived the mass and age from a $\log g_{*}$– $\log T_{\rm eff}$ HR diagram and evolutionary tracks, and then the luminosity from the corresponding point in the $\log L_{*}/L_{\odot}$–$\log T_{\rm eff}$ HR diagram; the fact that the Balmer lines – and the whole spectrum – are actually the composite of profiles from two stars invalidates the initial measurement of $\log g_{*}$ and then the set of parameters derived. The discovery of the binarity of HR 10 makes a complete reassessment of the stellar parameters compulsory.

3 PIONIER/VLTI observations

Interferometric observations of HR 10 were first performed in September 2014 as part of a search for hot exozodiacal dust (see details of the programme in Ertel et al. 2014, 2016) and three more times in September 2017, and August-September 2018, for a total of four epochs. The Precision Integrated Optics Near-Infrared ExpeRiment (PIONIER, Le Bouquin et al. 2011) on the Very Large Telescope Interferometer (VLTI) was used. PIONIER is a four-telescope beam combiner allowing the user to simultaneously obtain squared visibility ($V^{2}$) measurements on six baselines and closure phase ($cp$) measurements on four telescope triplets. A log of the observations is provided in Table 1.

PIONIER operates in $H$ band; the light was dispersed over three (in 2014) and six spectral channels (later) across this band. Chains of alternating observations of a calibration star (CALs) and the science target (SCI) were executed in order to characterise the interferometric transfer function (TF) and calibrate the $V^{2}$ and $cp$ measurements of the science target. Each chain started and ended with a CAL, and various CALs were used within a chain in order to minimise the impact of imperfect knowledge of the calibration stars (e.g. uncertain stellar diameters or unknown companions).

Data reduction and calibration were performed with the PIONIER pipeline pndrs (Le Bouquin et al. 2011) version 3.79 using standard parameters. In particular, we calibrated a whole sequence of CAL and SCI observations at once using the smooth TF interpolation method provided by the pipeline.

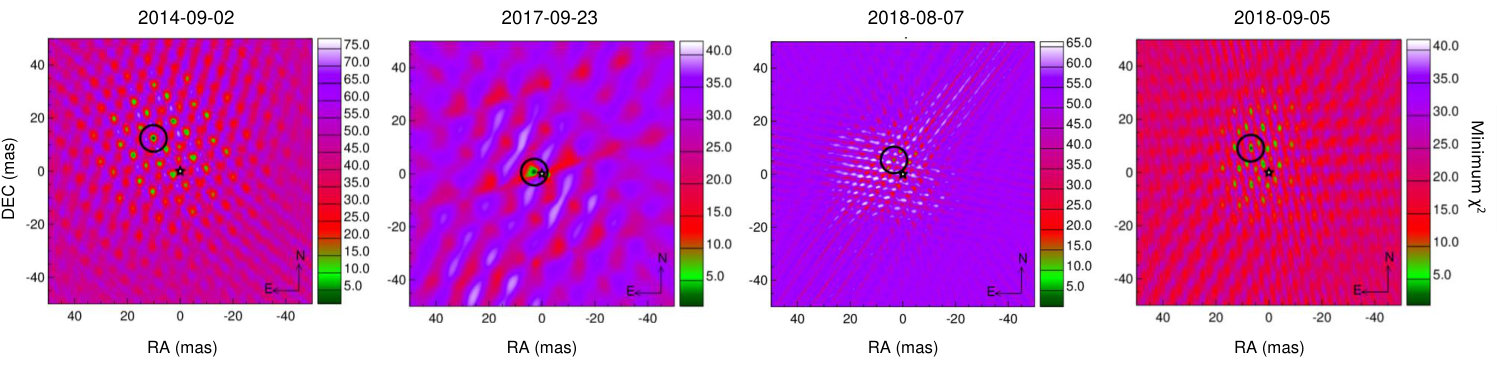

The binary signature is obvious in both the calibrated and uncalibrated $V^{2}$ and $cp$ data, making for a strong detection with each observation. In order to extract the astrometric information (separation and position angle) and contrast (secondary-to-primary flux ratio) of the binary, we follow the method outlined by Absil et al. (2011) and Marion et al. (2014). We compute the $\chi^{2}$ goodness of fit to the $V^{2}$ and $cp$ data, both separately and jointly, for a series of binary star models with a range of positions and flux ratios. The resulting $\chi^{2}$ cubes (one for the $V^{2}$, one for the $cp$, and one for the combination of both) were used to identify the best-fit model and evaluate the significance of the detection. The results are listed in Table 1. Figure 1 shows the normalised $\chi$-square maps of the combined $cp\!+\!V^{2}$ for the four PIONIER/VLTI observations of HR 10.

4 Spectroscopic observations

In this section we describe the sets of high-resolution spectroscopic observations of HR 10 that have been used in this work to analyse the CS narrow absorption features superimposed on the photospheric lines, decompose their complex profiles, and measure the corresponding RVs of the components. We built a historical record covering the period 1986–2019 in order to complete what is to date the most comprehensive study of the CS variability of this object.

4.1 Dedicated campaigns

Table 2 (upper block) summarises the information of the campaigns coordinated by our team since September 2015 to observe HR 10, among other stars, looking for transient exocometary events around MS stars, and campaigns targeted exclusively at HR 10. Signal-to-noise ratios (S/Ns) of the spectra at the bottom of the Ca ii K line were always above 100. The spectra used in this work come from the corresponding reduction pipelines.

4.2 Archival and published data

In Table 2 (lower block) we give the relevant information for the observations obtained prior to September 2015, when we started our own monitoring campaigns. The data come from the literature, were provided by one of the authors (Prof. Seth Redfield), or were taken from observatory archives. Direct measurements on the reduced spectra, corrected for barycentric velocity, were done for the observations obtained with UES/WHT, CS21/2.7-m HJS, UVES/VLT, HIRES/Keck, and HARPS/3.6-m La Silla, and on the spectrum taken on 15 Jun 2005 with UHRF/3.6-m AAO. The spectra from Lagrange-Henri et al. (1990) were not available in readable format, and were therefore scanned from the paper itself and digitized. The data on radial velocities from the observations obtained on 30 Nov 1996 and 20 Jun 1997 were taken directly from the work by Welsh et al. (1998).

5 The circumstellar absorption features

5.1 The Ca ii K line

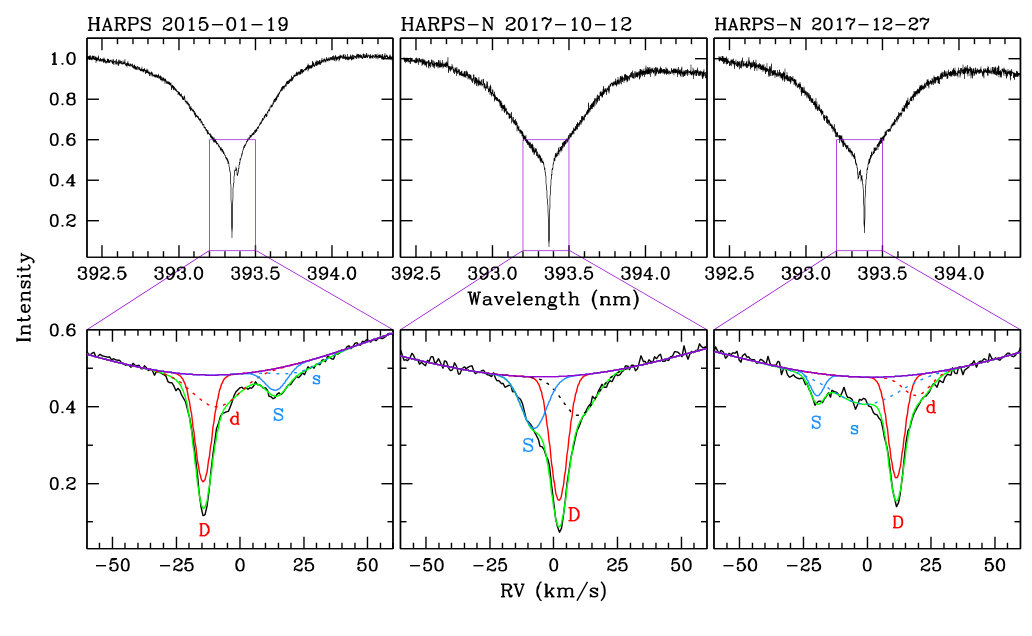

Figure 2 (top) shows the profiles of the broad photospheric Ca ii K line of spectra of HR 10 obtained on 19 Jan 2015, 12 Oct 2017, and 27 Dec 2017. Superimposed on the lower part of the lines, narrow absorption features are remarkably conspicuous. The insets delimited with purple boxes are blown up and plotted in velocity space at the bottom row; ${\rm RV}\!=\!0$ km/s corresponds to the rest wavelength of the Ca ii K line, namely, 393.368 nm.

These three observations are representative of what we see in the whole set of spectra analysed in this work. The decomposition of the profiles in Gaussian components was carried out using the Emission Line Fitting (ELF) package of dipso, a spectrum analysis program developed by the Starlink Project (Howarth et al. 2004). The common feature of all the narrow absorptions is the presence of two main components: one deep and one shallow, hereafter plotted as red and blue solid lines, respectively, when the absorption is decomposed into Gaussian functions and labelled ‘D’ and ‘S’. The origin of these narrow absorption features is clearly CS, their variability being attributed in previous works to $\beta$ Pic-like phenomena (see Sect. 2), however the interpretation of their dynamical behaviour, as we see below, when analysing the RV series over a long time span turns out to be related to the binarity of HR 10 rather than to transient phenomena.

The profiles of the observations taken on 19 Jan 2015 and 27 Oct 2017 (left and right panels of Fig. 2) show two cases where the D and S components appear well separated, whereas the observation taken on 12 Oct 2017, plotted in the middle, shows a case where the separation in radial velocity between D and S is small. The pattern observed during the $\sim\!32$ years of observations collected is that component D moves to the blue (red), as component S moves to the red (blue), crossing each other at certain times.

When the profile was such that the two main components appeared well separated, a four-Gaussian fit was needed to reproduce the whole narrow absorption. The two additional components, plotted as dotted red and blue lines, are placed to the red side of the main D and S components, respectively; these latter have been labelled as ‘d’ and ‘s’, to stress the fact that each one seems to be associated with D and S. When the profile showed an appearance similar to that plotted in the middle graph of Fig. 2, a three-Gaussian fit was accurate enough to reproduce the absorption. Whereas in the four-Gaussian fittings the d and s components, redshifted with respect to D and S, seem to have a physical relationship with their corresponding main component, in the case of three-Gaussian fits, the parameters of the additional component probably embed the contribution of the two dotted components of the four-Gaussian decomposition. In Fig. 2 the pseudocontinuum tracing the bottom of the broad photospheric line is plotted in purple and the fit to the whole profile is plotted in green. For the three-Gaussian fit the additional component has been plotted as a dotted black line.

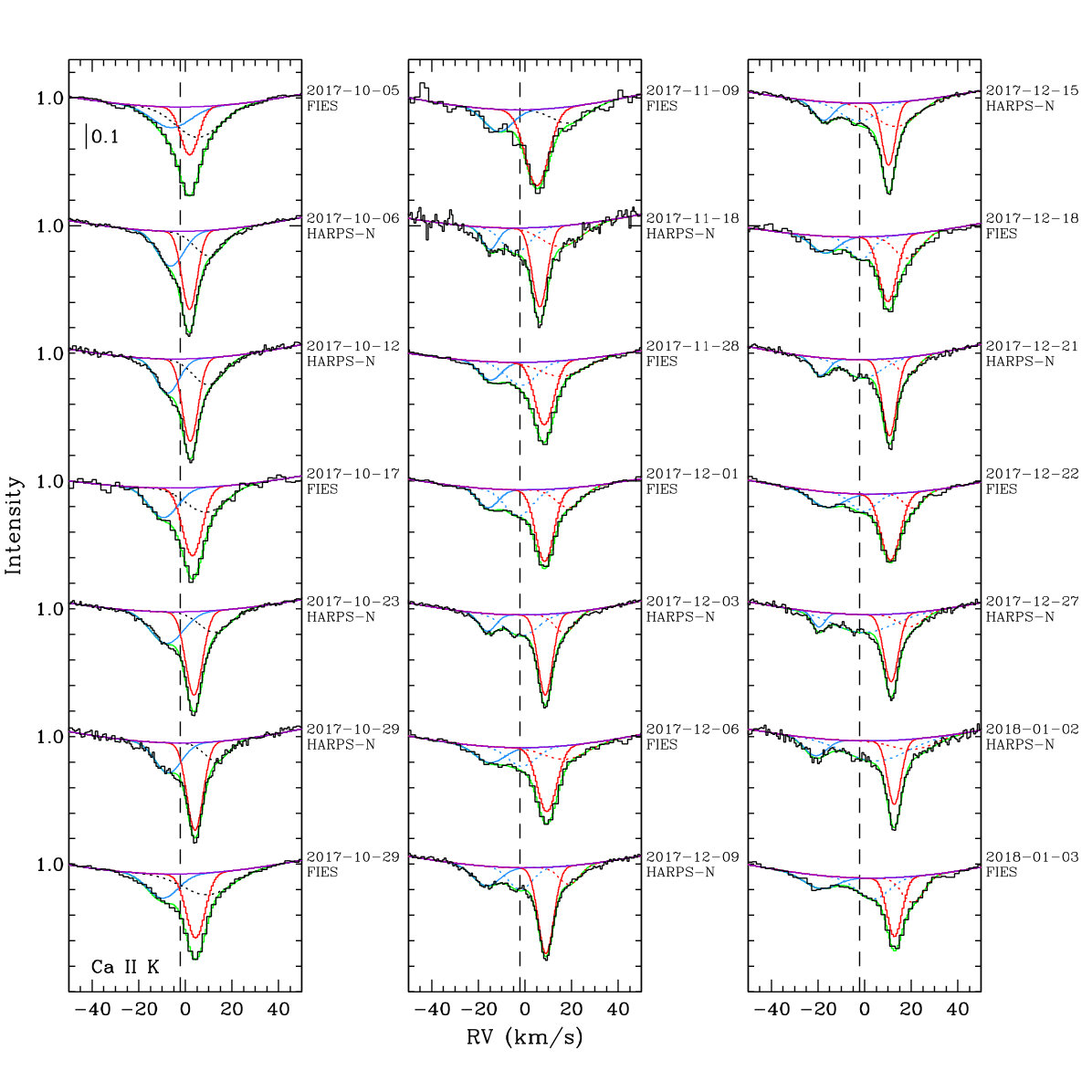

Figure 3 shows the results of a well-sampled monitoring carried out between 5 Oct 2017 and 3 Jan 2018 (21 spectra obtained with FIES/NOT and HARPS-N/TNG), where the gradual dynamical evolution of D and d moving to the red, and S and s moving to the blue, is very clear. The colour code is the same as in Fig. 2.

We quantitatively analyse the behaviour of all these components in Sects. 6.1 and 7.1.

5.2 Circumstellar absorption features in other photospheric lines

In this work we concentrate on the analysis of the Ca ii K line for two main reasons: the first one is that this line is the most important and clear tracer of CS activity, as has been proved in $\beta$ Pic and other stars (see references in the Introduction); the second is that for some of the early spectroscopic observations, which have been crucial for the completion this study, only data for this particular line were available. However, HR 10 presents narrow CS absorption features superimposed on many other photospheric lines.

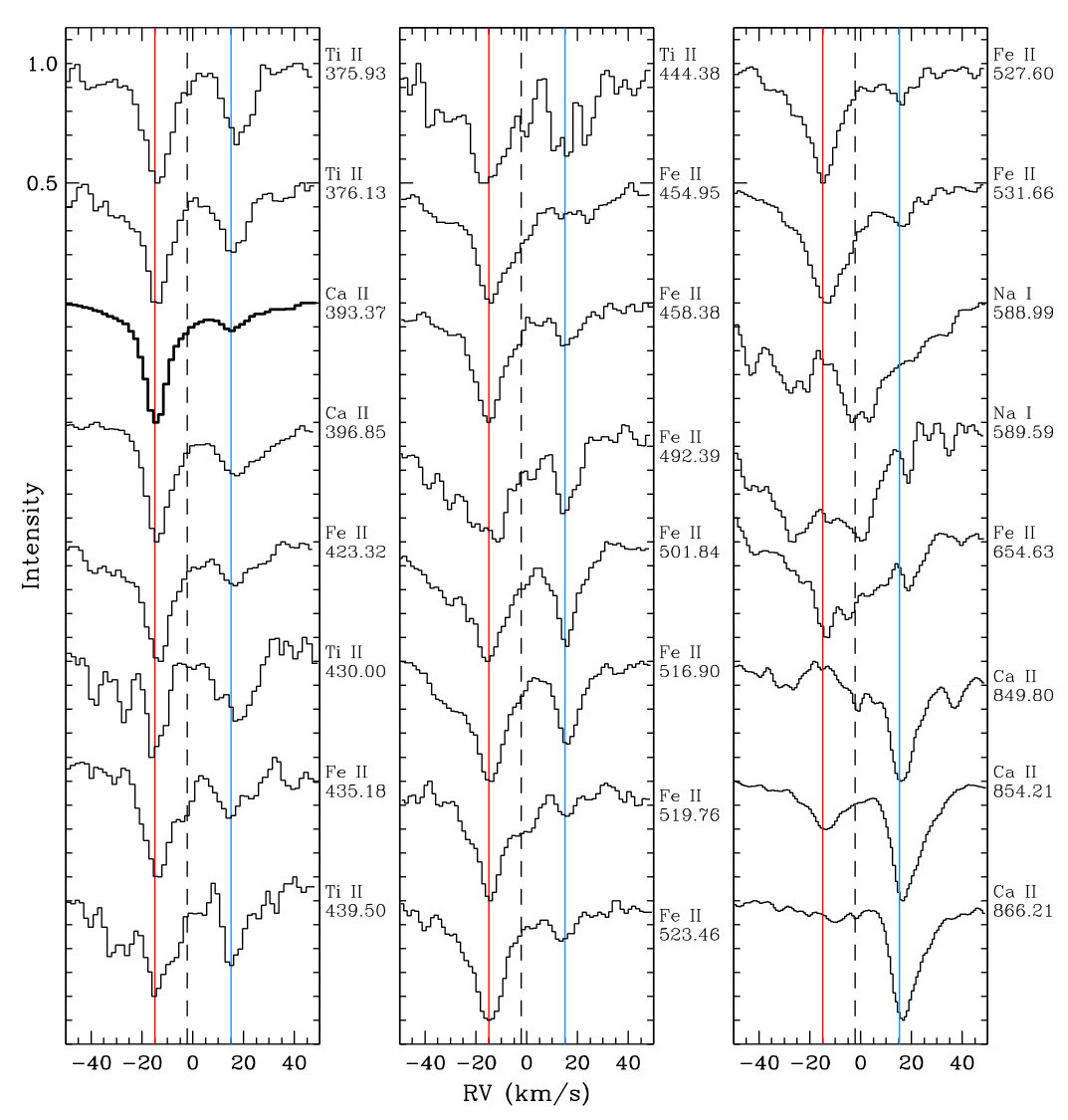

Figure 4 shows the CS components superimposed on 24 photospheric lines of the spectrum of HR 10. Since some of these components are fairly weak, in order to increase the S/N, five FIES/NOT spectra – those taken between 26 Dec 2018 and 8 Jan 2019, see Table 3 – were averaged. These were chosen because the separation in RVs of the Ca ii K narrow absorption features is large, almost 30 km/s, and therefore the CS components present in other lines would appear well separated. The photospheric profile of each line has been subtracted and the residual narrow absorption features have been scaled between intensities 0.5 and 1.0. The red and blue solid lines are the average RVs of the D and S components of the Ca ii K absorption, and the dashed line marks the RV of the system. The Ca ii K CS absorption is plotted with a thicker line type.

In most cases, the CS narrow absorption features follow the same pattern of intensity as in Ca ii K, with the remarkable exception of the IR Ca ii triplet, where a strong component is seen in the three lines at the velocity of the shallow component of the Ca ii K absorption. Conversely, a weak absorption at the velocity of the Ca ii K strong component is clearly visible in the central and most intense line of the triplet (854.21 nm), but does not appear in the other two. On the other hand, the appearance of the absorption features at the Na i D doublet is complex due to the many telluric lines in that spectral range; these were removed using the package MOLECFIT111http://www.eso.org/sci/software/pipelines/skytools/molecfit (Smette et al. 2015; Kausch et al. 2015).

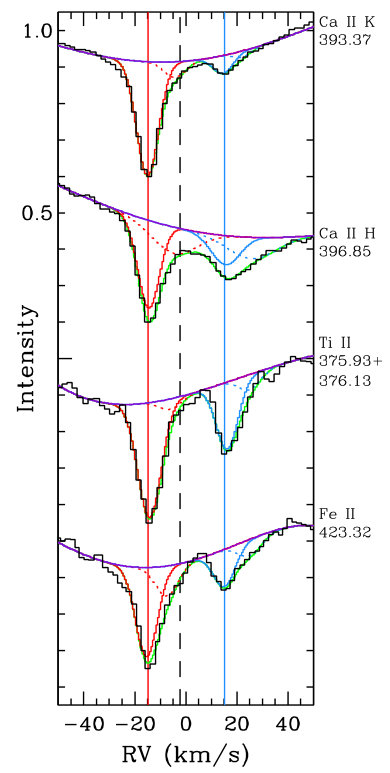

Figure 5 shows the narrow CS components superimposed on the photospheric Ca ii K and H lines, the Ti ii 375.93 + 376.13 nm and the Fe ii 423.32 nm lines; in the case of the Ti ii doublet, the profiles of the two CS absorptions of the two lines, in velocity space, were merged and converted into a single profile. Colour codes and the meaning of the vertical lines are the same as in Figs. 2, 3, and 4. It is remarkable that components s and d, which appear in the Gaussian decomposition of the Ca ii K narrow absorptions, are also present in other species.

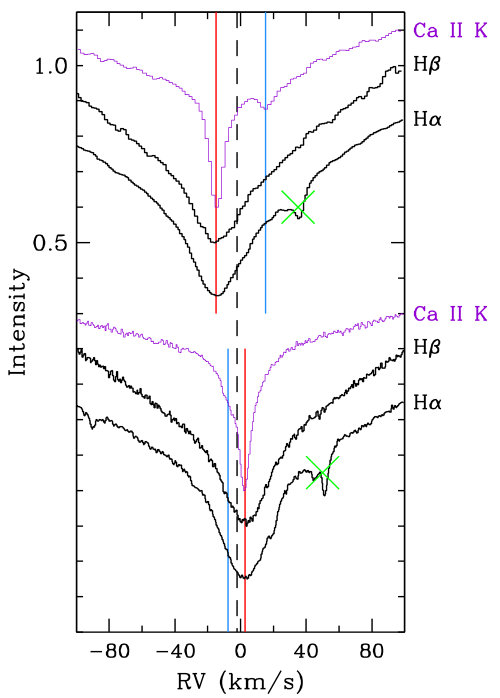

Figure 6 shows the bottom of the photospheric Balmer lines H$\alpha$ and H$\beta$ for two situations with the D and S components of Ca ii K – plotted in purple as a reference – appear well separated (top) and blended (bottom). The profiles at the top correspond to the same spectra used in Fig. 4, whereas the profiles at the bottom are extracted from an average of the HARPS-N spectra obtained on 6 Oct 2017 and 24 Oct 2017. The vertical red and blue lines mark the RVs of components D and S and the dashed black line marks the RV of the system; three telluric features on the H$\alpha$ profiles are marked by green crosses. It is very clear that the minima of the Balmer profiles are located at the RV of component D. The profiles at the top are clearly asymmetric. In the following section it becomes clear why this happens, the binarity being the origin of the variable shape and position of the bottom of these lines.

We defer to a forthcoming paper a more detailed analysis of the CS absorption features in lines other than Ca ii K, and also of the Balmer lines.

6 Results

6.1 Radial velocities and velocity dispersions.

Table 3 shows the RVs and velocity dispersions, $b$, of the deep, D, and shallow, S, components of the narrow CS absorption features superimposed on the bottom of the photospheric Ca ii K line, measured for all spectra. In those cases where a four-Gaussian fit was feasible, the same results for the d and s components are listed. The RVs correspond to the minimum of the main Gaussian components of the absorption (see Sect. 5) and the dispersion velocities are the full widths of the Gaussian profiles. All the values correspond to spectra obtained on individual nights; only in three cases were the measurements carried out over averaged spectra obtained on consecutive nights, namely 28-29 Aug 2004 (CS21), 4 to 7 Sep 2015 (HERMES), and 23-24 Oct 2017 (HARPS-N), to increase the S/N of the profile.

Uncertainties were assigned in a very conservative way taking into account those provided by the ELF package after the Gaussian decomposition of the profiles, and the effect of potential offsets between the wavelength calibrations provided by the pipelines of the different instruments. The quantitative effects of these offsets can be estimated by measuring the position of the telluric lines in spectra from the different spectrographs; differences in velocities were found to be less than $\sim\!0.2$ km/s.

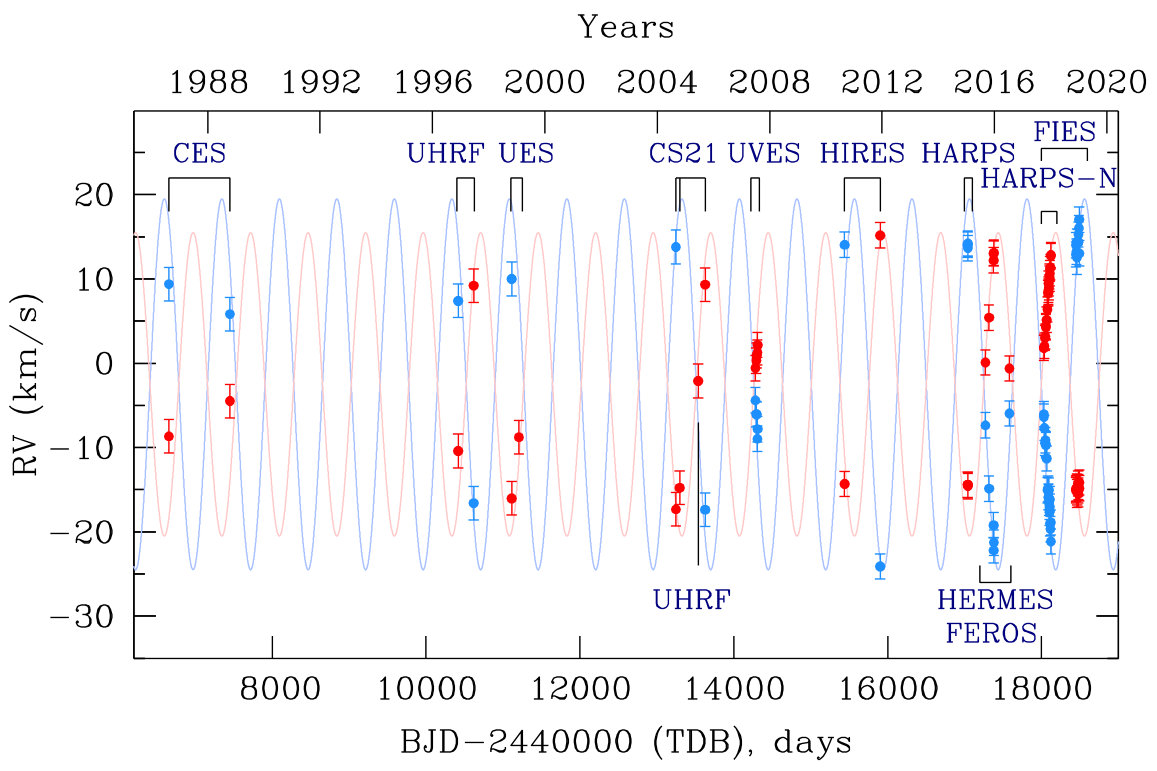

Figure 7 shows a plot of the whole set of RVs for the D (red) and S (blue) components given in Table 3 with the corresponding error bars. With the only purpose of guiding the eye, we have included in the graph two sinusoidal curves, plotted in pale red and blue, without any quantitative physical meaning, to show that the behaviour of the RV of each component seems to follow a periodic pattern over decades. The most plausible scenario is that each component, D and S, traces the orbit of each individual star in the binary. In the following sections we prove, by means of robust calculations of a spectrometric binary solution (Sect. 6.2) and an orbital solution (Sect. 6.3), that this hypothesis is consistent.

6.2 Spectrometric binary solution

In this section we derive the spectrometric solution for the binary under the assumption mentioned in the last paragraph. We assign component D to HR 10-A, and component S to HR 10-B, the reason for this being, as we show in the following, that component D originates in the more massive of the two stars (component A) as it displays a smaller amplitude in the RV variation than component S.

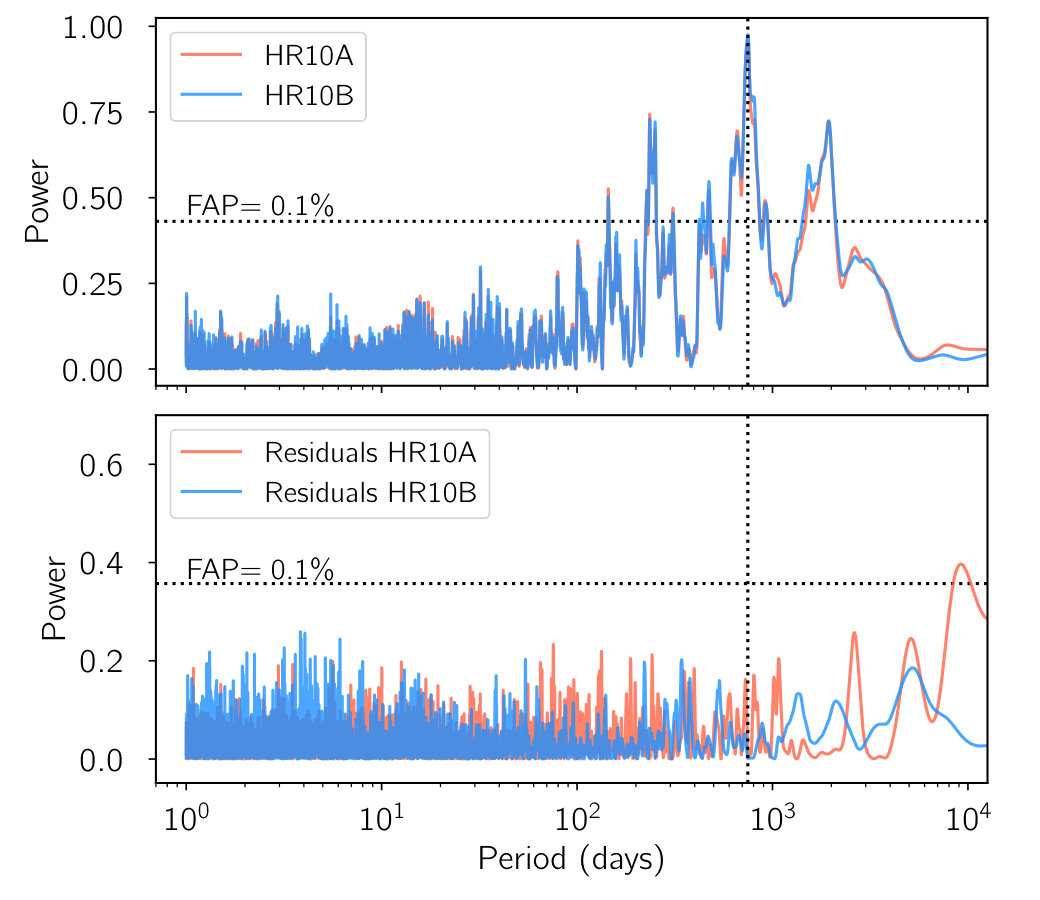

We first computed the Lomb-Scargle periodogram of the measured RVs for each star using the astroml package (Ivezić et al. 2014) based on the methodology described in Zechmeister & Kürster (2009). This periodogram is shown in the upper panel of Fig. 8. The result clearly shows a common peak above the 0.1% false-alarm probability (FAP) corresponding to a periodicity of $\approx\!747$ days, indicating that both are gravitationally bound. Although the periodogram shows other peaks above the 0.1% FAP level, we attribute their origin to the different offsets between the many different instruments used, which are not taken into account in this periodogram computation but are in the modelling of the RV.

We analyse the RV sets obtained from each component, D and S, – corresponding to stars A and B – by modelling the whole system. The model includes two Keplerian orbits described by

[TABLE]

where $V_{\rm sys}$ is the systemic velocity of the binary system, $\omega$ is the argument of the periastron of star A, $e_{\rm A}$ and $e_{\rm B}$ are the eccentricities of the orbits of stars A and B, respectively, and $\nu_{\rm A}$ and $\nu_{\rm B}$ are the true anomalies of each star, which implicitly include the times of conjunction $T_{\rm c,A}$ and $T_{\rm c,B}$. We used uninformative priors for all the parameters except for the orbital period, $P_{\rm orb}$, and the conjunction passage. For $P_{\rm orb}$, we used a normal distribution around the highest peak of the RV periodogram. The prior for the conjunction passage was set after a first exploration with an uninformative prior. The boundaries of the priors for all parameters are specified in Table 4. Additionally, we included $N_{\rm inst}$-1 additional parameters to account for RV offsets between the different instruments, with $N_{\rm inst}$ being the number of instruments used. We set uninformative priors for these parameters between $-1$ and $+1$ km/s. In total, 19 parameters were explored.

In order to sample the posterior probability distribution of each of those parameters, we used the implementation of Goodman & Weare’s affine invariant Markov chain Monte Carlo (MCMC) ensemble sampler emcee developed by Foreman-Mackey et al. (2013). We used 50 walkers and 5000 steps per walker. This turned out to be enough due to the quick convergence of the chains. In order to compute the final posterior distributions, we discarded the first half of the chains and combined the second half to build the marginalised posteriors, finally composed of $1.25\times 10^{5}$ steps. The median and 68.7% confidence intervals for each parameter are shown in Table 4. The results of the final fitting are displayed in Fig. 9 showing the whole time span and Fig. 10 showing the phase-folded RV curves; this figure also includes the RVs of components d and s, the behaviour of which is described in Sect. 7.1.

6.3 Orbital solution

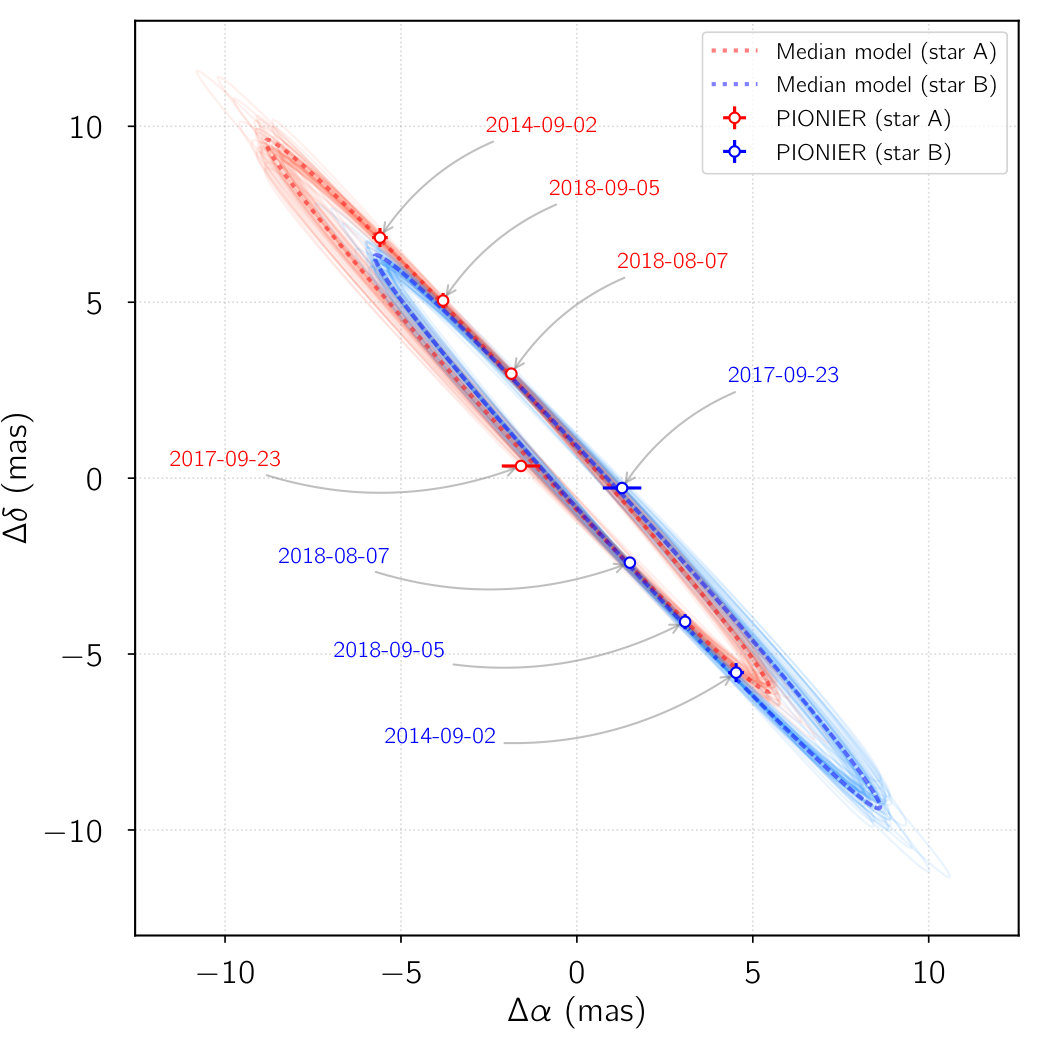

The four PIONIER astrometric positions of the two stellar components of the binary system were analysed following the equations of motion described in Mede & Brandt (2017, see their Eqs. 7-15). Given the low number of epochs, we assumed Gaussian priors on the orbital period, $P_{\rm orb}$, and the eccentricities of the two orbits, $e_{\rm A}$ and $e_{\rm B}$, as obtained from the RV analysis. For the rest of the parameters (namely the argument of the periastron of star A, $\omega_{\rm A}$, the longitude of the ascending node of star A, $\Omega_{\rm A}$, orbital inclination, $i$, time of periapsis $T_{0}$, and the total semi-major axis, $a_{\rm tot}\!=\!a_{\rm A}+a_{\rm B}$, we used uninformative priors as stated in Table 5. The posterior distribution of these parameters was explored using again the emcee code. We used 20 walkers and 10 000 steps per walker to widely explore the parameter space and then ran a second exploration in a smaller parameter space centred on the maximum likelihood set of parameters as obtained from the first phase. In this second run, we used 20 walkers and 5 000 steps. The first 20% of the steps for each walker were removed and the posterior distributions were built from a total of 80 000 steps. All chains converged nicely into the values presented in Table 5, including the median and 68.7% confidence intervals. As an example, the result for the argument of the periastron obtained from this analysis is in perfect agreement (within 2$\sigma$) with the result from the RV analysis (see Table 4). Figure 11 shows the positions of the stars in the plane of the sky according to the four PIONIER/VLTI observations, and the solutions for the projected orbits of HR 10-A (red) and HR 10-B (blue) around the centre of mass.

6.4 Stellar parameters

In order to compute a consistent set of stellar parameters, the observed photometry, spectra, and some of the quantities extracted from the binary solution, must be matched by the combination of the individual synthetic photometry and spectra of each component. The following inputs have been used:

High-resolution optical spectra. 2. 2.

Low-resolution ultraviolet spectra: HR 10 was observed with the International Ultraviolet Explorer (IUE, Kondo & Wamsteker 1987). A merged spectrum covering the interval 115.0–332.0 nm was built from spectra SWP38943 and LWP18015 extracted from the IUE Newly Extracted Spectra (INES) database222http://sdc.cab.inta-csic.es/ines/. 3. 3.

Photometry: Optical and NIR photometry of HR 10 collected from several sources is given in Table 6. Johnson $BV$ are from the SIMBAD database, and PAN-STARSS DR1 $grizy$ and 2MASS $JHK_{\rm s}$ are taken from VizieR catalogues II/349/ps1 (Chambers et al. 2016) and II/246 (Cutri et al. 2003), respectively. The calibration from magnitudes into fluxes was carried out using the zero points from Bessell (1979) and Cohen et al. (2003) for $BV$ and $JHK_{\rm s}$, respectively; $grizy$ are AB magnitudes and a value of $F_{0}\!=\!3631.0$ Jy has been adopted. The effective wavelength, $\lambda_{\rm eff}$, for each filter is provided. An uncertainty of 0.02 mag was assigned to the optical magnitudes, since no value is given in the corresponding catalogues. 4. 4.

Relative brightness of the stars constrained by the contrast in $H$-band ($F_{H}({\rm B})/F_{H}({\rm A})\simeq\!0.32$) from the PIONIER observations (see Table 1). 5. 5.

Masses derived from the binary solution: Provided the inclination of the system is known, the individual masses of the components can be estimated with the following expression:

[TABLE]

Using the data in Tables 4 and 5 we obtain $M_{\rm A}\!=\!1.94\pm 0.15$, and $M_{\rm B}\!=\!1.62\pm 0.13$ ${\rm M}_{\odot}$.

The starting point of the estimation of the stellar parameters is a one-model fitting of the optical high-resolution spectrum, using Kurucz synthetic models; the method is described in Rebollido et al. (2018); the programmes synthe and atlas (Kurucz 1993) fed with models describing the stratification of the stellar atmospheres (Castelli & Kurucz 2003) have been used for the spectral synthesis. Since the computation of the effective temperature hinges on the match of the depth of the photospheric Ca ii K profile, we derived a model that slightly underestimates that depth, measured on a spline fitted to the line profile, avoiding the CS components. The reason for this is that the final fit will be composed of two models, therefore the addition of the synthetic Ca ii K profiles of both stars should match the observed profile. The spectral fit was made on observations obtained with the stars almost in conjunction, to avoid large shifts between the spectral lines of both components. After some iterations, the result is $T_{\rm eff}\!=\!9000\pm 100$ K, $\log g_{*}\!=\!3.8\pm 0.1$; the model was broadened with $v\sin i\!=\!294$ km/s (Mora et al. 2001). We make the initial hypothesis that the parameters of star A are close to these ones; this hypothesis is tested at the end of the fitting process.

Since the contrast in $H$-band between the two components is 0.32, it is trivial to deduce that $\Delta H({\rm A}\!-\!{\rm B})\!=\!-1.24$. Magnitudes $B_{\rm A}$, $V_{\rm A}$, $J_{\rm A}$, $H_{\rm A}$ and $K_{\rm s,A}$ for star A, with $T_{\rm eff}$(A)=9000 K and $\log g_{*}$(A)=3.8 have been computed. In order to estimate the parameters of star B, a grid of magnitudes $B_{\rm B}$, $V_{\rm B}$, $J_{\rm B}$, $H_{\rm B}$ and $K_{\rm s,B}$ was created, covering a range of $T_{\rm eff}$ from 7500 to 9000 K (step 50 K), and $\log g_{*}$ from 3.8 to 4.3 (step 0.1 dex). The empirical colour–temperature calibration by Worthey & Lee (2011) and the code mash3.f provided by these authors were used333http://astro.wsu.edu/models/. The sets of magnitudes were computed from the corresponding colours keeping $\Delta H({\rm A}\!-\!{\rm B})\!=\!-1.24$.

Combined colours $B\!-\!V$, $V\!-\!H$, $J\!-\!H$ and $J\!-\!K_{\rm s}$ were computed using the magnitudes of both stars and reddened with values of $E(B\!-\!V)$ between 0.0 and 0.2; the coefficients $A_{\lambda}/A_{V}$ were taken from Wang & Chen (2019, Table 3); independent extinctions were allowed for each star in order to take into account potential differences caused by the individual CS envelopes. These synthetic colours are compared with the observed ones, this process yielding a subset of solutions [9000 K, 3.8] + [$T_{\rm eff}$(B), $\log g_{*}$(B)] for which the observed and synthetic colours are in agreement, within the uncertainties.

In order to break the degeneracies and further constrain the parameters for star B, the observed SED, which includes the available photometry and the IUE spectrum, is compared with composite Kurucz low-resolution models, built as the sum of the model for star A, [9000 K, 3.8], and those for [$T_{\rm eff}$(B), $\log g_{*}$(B)] obtained in the previous step. The models for stars A and B, reddened with the corresponding values of $E(B\!-\!V)_{\rm A}$ and $E(B\!-\!V)_{\rm B}$ are scaled so that $F_{H}({\rm B})/F_{H}({\rm A})\!=\!0.32$ at the $H$-band, and the sum is normalized to the observed SED.

A further constraint can be obtained from the HR diagram, by imposing that the point [$T_{\rm eff}$(B), $\log g_{*}$(B)] falls on the same isochrone as the point [9000 K, 3.8]. PARSEC V2.1s evolutionary tracks and isochrones444https://people.sissa.it/~sbressan/parsec.html (Bressan et al. 2012) with solar metallicity, $Z\!=\!0.017$, were used.

Once all these requirements are taken into account and fulfilled, a solution for each star is found. Table 7 shows the parameters of the individual stars, and the observed colours compared with the synthetic ones. The synthetic magnitudes of the combined pair A+B, computed by imposing $H\!=\!5.83\pm 0.03$, are $B\!=\!6.35\pm 0.06$, $V\!=\!6.22\pm 0.05$, $J\!=\!5.89\pm 0.05$, and $K_{\rm s}\!=\!5.81\pm 0.06$; both these magnitudes and the synthetic colours are in excellent agreement with the observed photometry (see Table 6).

Two sets of values for the masses and luminosities of the stars are given in Table 7. Regarding the masses, those labelled “from tracks” were derived by locating the points [$T_{\rm eff}$, $\log g_{*}$], [9000 K, 3.8] (A), and [8750, 4.2] (B), which are direct results of the above analysis, on the HR diagram $\log g_{*}$ – $T_{\rm eff}$, whereas those labelled “from eq. (2)” are computed using that equation, which contains parameters obtained from the binary solution. The corresponding mass ratios are $0.72\pm 0.05$ and $0.84\pm 0.09$, which agree with each other within the uncertainties; there is however a discrepancy between the two values of the mass for star A, the reason could be the strong dependence of the stellar mass on $\sin^{3}i$ (see eq. 2).

Regarding the luminosities, the first set of values is found by ‘translating’ the points [9000 K, 3.8] (A) and [8750 K, 4.2] (B) into the tracks in the $L_{*}/L_{\odot}$ – $T_{\rm eff}$ HR diagram. Figure 12 shows the HR diagrams $\log g_{*}$ (top) and $L_{*}/L_{\odot}$ (bottom) – $T_{\rm eff}$ with the positions of the individual components of HR 10, plotted as black dots with the corresponding error bars. The PARSEC V2.1s evolutionary tracks and isochrones are plotted in red and green, respectively. The stretch of the tracks plotted in a more intense red tone correspond to the time span where hydrogen is actively burning in the core.

The estimate of the age of the system is derived from the position of the stars in the HR diagram. Below, we give details about the second set of values for the luminosities in Table 7, and those shown as magenta triangles in the bottom panel of Fig. 12.

Figure 13 shows the SED of HR 10 composed of the ultraviolet IUE spectrum and the photometry converted into fluxes together with the composite model solution A+B (green) and the individual Kurucz models for stars A (red) and B (blue) reddened with values of $E(B\!-\!V)$ 0.10 and 0.05, and scaled so that $F_{H}({\rm B})/F_{H}({\rm A})\!=\!0.32$. The plot shows the contribution of each star to the total SED very clearly. Individual luminosities for each component have been computed by dereddening each model, integrating – which provides values of $F_{\rm obs}\,({\rm erg}\,{\rm cm}^{-2}\,{\rm s}^{-1})$ at Earth – and converting the results into luminosities using the expression $L_{*}\!=\!4\,\pi\,F_{\rm obs}\,d^{2}$ where $d\!=\!145.18^{+2.54}_{-2.45}$ pc (Gaia DR2). These luminosities are shown as two magenta triangles at the bottom HR diagram of Fig. 12. The agreement between the values of the two sets of luminosities is excellent.

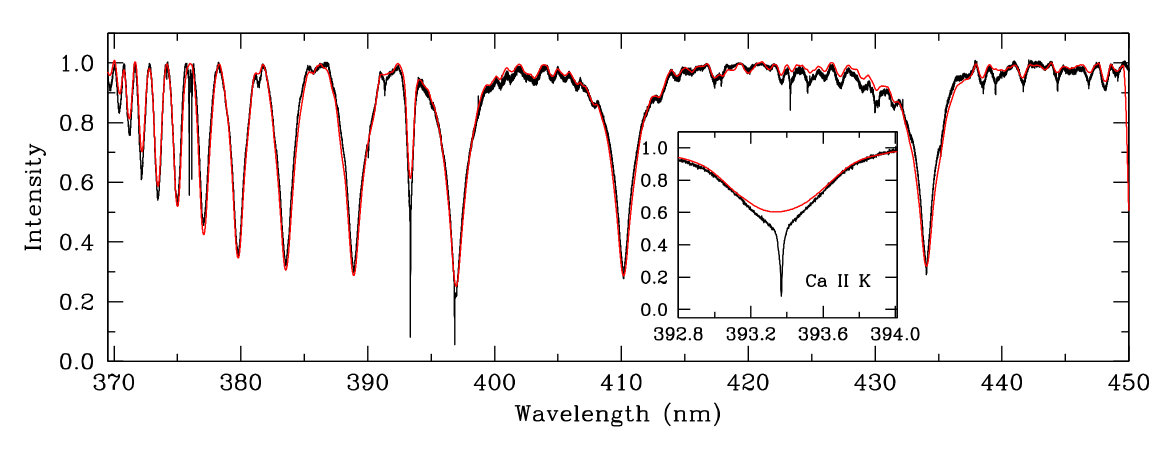

Figure 14 shows the comparison of the observed high-resolution spectrum of HR 10 with the composite synthetic model. The spectrum is the median of 14 UVES/VLT spectra obtained on 2007-06-28, and three HARPS-N spectra obtained on 2017-10-06 and 2017-10-23/24. These spectra were selected because the radial velocities of the stars are small (see Table 3), and therefore we can consider that the stars are almost in conjunction, and no substantial broadenings of the lines due to large differences between the RVs of the stars are present. Model for star A [9000 K, 3.8] was rotationally broadened with $v\sin i\!=\!294$ km/s (Mora et al. 2001). The projected rotational velocity of 200 km/s used for star B has been assigned after some iterations and comparison with some observed photospheric features, although this value has to be taken with caution because there is no formal way to obtain a more robust result. The depth and full width at half depth of the photospheric Ca ii K profile, measured on a spline traced on the observed line are $0.40\pm 0.02$ and 484 km/s, respectively, whereas the values in the composite A+B model are $0.39\pm 0.02$ and 465 km/s. It is interesting to point out that the bottom of the Balmer lines shows a profile that cannot be reproduced by the synthetic spectrum, that yields a slightly more rounded shape as a consequence of the high values of the projected rotational velocities of the stars.

Given the excellent agreement between the observed quantities and those extracted during the above thorough analysis, we can consider that the initial hypothesis made about the parameters $T_{\rm eff}$ and $\log g_{*}$ for star A being close to the first estimate is consistent.

7 Discussion

7.1 Interpretation of the D, S, d, and s profiles

We have shown that the RVs of the D and S narrow absorption features trace the movements of the primary and secondary components, HR 10-A and -B. The important result that immediately comes out of this is that both stars hold individual CS envelopes. Should the star have a unique, circumbinary shell, we would only observe a single narrow absorption.

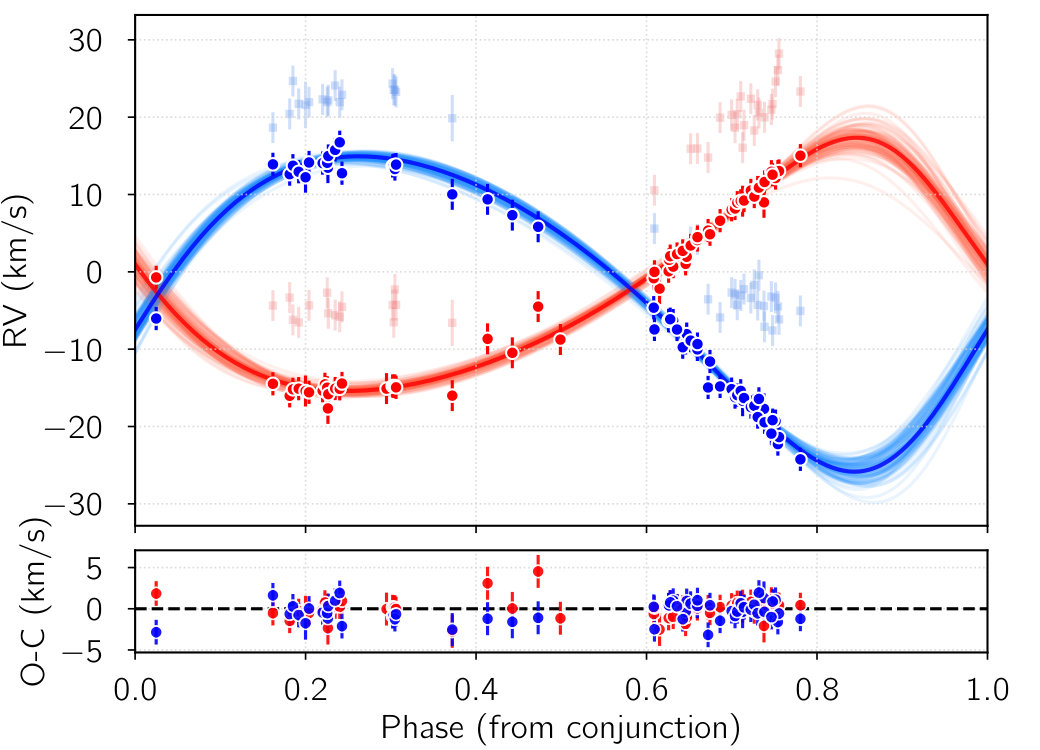

In Fig. 10, already described in Sect. 6.2, we have included the RVs of components d and s, plotted as pale red and blue squares. As mentioned above, these components appear redshifted with respect to D and S, and do not seem to be transient phenomena, since they are clearly apparent at any time when the difference in RVs between D and S is large enough. In addition, we show (see Fig. 5) that these weak components are also present in the CS narrow absorptions of species other than Ca ii.

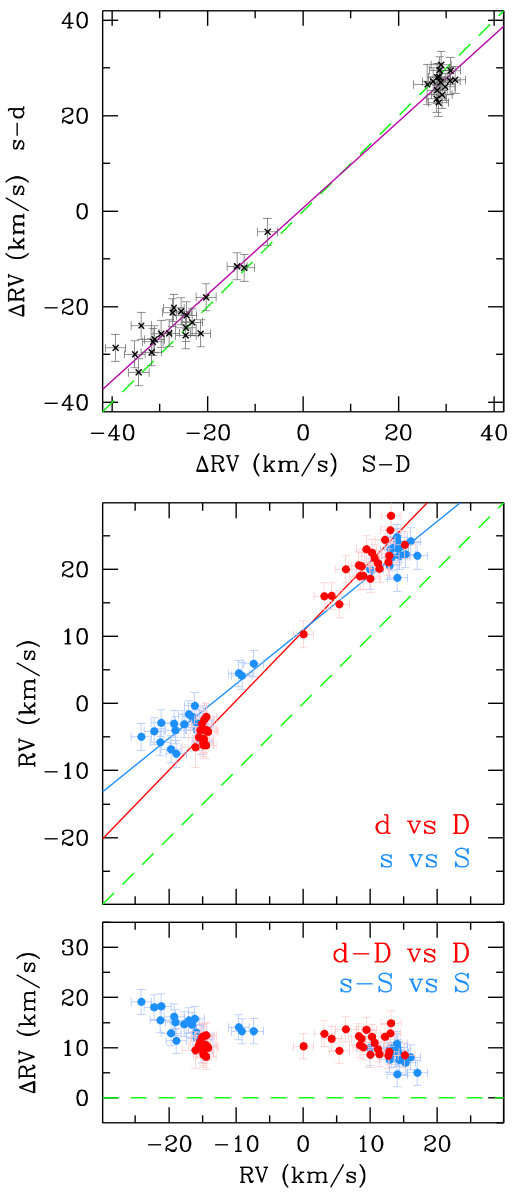

In what follows we carry out a quantitative analysis of components d and s for the narrow CS absorptions of the Ca ii K line. Figure 15 shows the behaviour of the RVs of D, S, d, and s for all the observations where a four-Gaussian decomposition was feasible555To avoid a tedious notation, we use the nomenclature S – D, s – d, d – D, and s – S to express the differences in radial velocities RV(S) – RV(D), RV(s) – RV(d), RV(d) – RV(D) and RV(s) – RV(S), respectively.. The issue is to ascertain whether or not there is a physical link between the main components D and S, and the redshifted components d and s.

The upper panel of Fig. 15 shows s – d plotted against S – D, that is, the difference between the radial velocities of the weak components, compared with the same quantity for the main ones. The diagonal of the diagram is plotted as a dashed green line whereas a linear fit, plotted in purple, yields a slope $0.91\!\pm\!0.02$ (an orthogonal fit, giving both variables a symmetric treatment, was chosen, Isobe et al. 1990). This shows that, on average, the differences in RVs between the weak components s – d and the main components S – D behave quantitatively in the same way.

Some differences are apparent when individually analysing the behaviour of components d and s with respect to D and S. In the middle panel of Fig. 15 the RVs of d (s) are plotted against the RVs of D (S) in red (blue), the slopes of the linear fits being $1.04\!\pm\!0.02$ and $0.81\!\pm\!0.02$, respectively. As a general feature, components d and s are always redshifed with respect to the main components D and S; however it is interesting to note that whereas for the whole range of RVs of component D, the distance d – D is always within a narrow range of $10.72\!\pm\!1.72$ km/s (see lower panel of Fig. 15), in the case of component S, the mean distance s – S is $8.29\!\pm\!1.79$ for positive values of S and $14.18\!\pm\!2.47$ for negative values; the overall trend seems to be a decrease of s – S as the RV of component S increases.

After this quantitative analysis, the physical link between D, S, d, and s seems fairly clear, but once the transient nature of the phenomenon is discarded, the real origin of the weak components is uncertain.

7.2 Evolutionary status of HR 10

In Fig. 12 it can be seen that the components of HR 10 lie on the stretches of the tracks starting at the beginning of the MS and ending at the first turning point, where almost all hydrogen in the core is totally exhausted. During that time span, the stars are actively burning hydrogen. According to the individual PARSEC V2.1s track models, the ratio H/He (by mass) is $\sim\!0.34$ for HR 10-A and $\sim\!1.36$ for HR 10-B; the initial ratio being $\sim\!2.51$. The stars lie on the $\sim\!530$-Myr isochrone, whereas the turning points occur at $\sim 630$ Myr and $\sim 1.6$ Gyr for A and B, respectively, away in both cases of the red giant branch phase, especially for star B. Taking all this into account, HR 10-A would be in an evolutionary stage close to subgiant, where HR 10-B is still very close to the MS. Since a star remains on the main sequence as long as there is hydrogen in the core that it can fuse into helium, we can consider that HR 10 is still in the MS, although speaking more precisely, it would be a very early post-MS binary.

7.3 Binarity and shell/discs

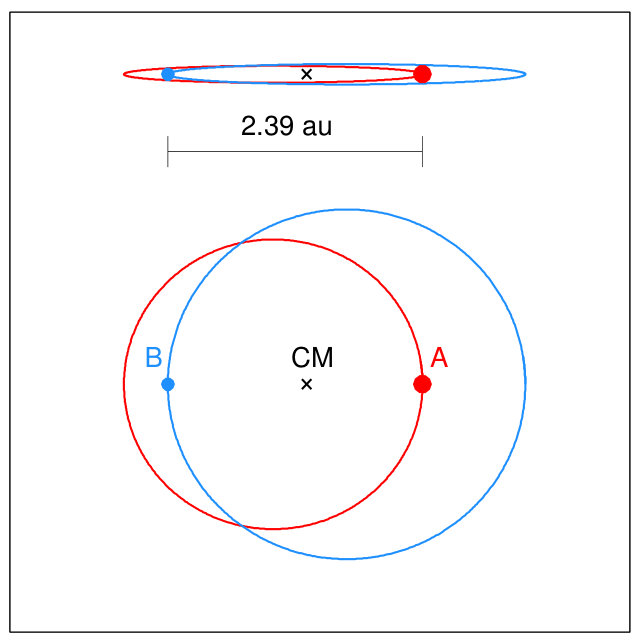

The value of $a_{\rm tot}$ (10.58 mas, Table 5) at the distance to HR 10 (145.18 pc) is equivalent to $\sim\!3.08$ au, which implies, according to the value of the masses and eccentricities, a minimum separation between the stars – when both components are at the corresponding pericentres – of $\sim\!2.39$ au. The simple sketch of Fig. 16 illustrates that particular configuration, showing the orbits of HR 10-A and -B around the centre of mass as they are observed and seen pole-on, deprojecting the orbits using the inclination, $i$ (93.34∘, Table 5). That minimum separation is a small value, and leaving aside a dynamical and evolutionary study of the binary, which is out of the scope of this paper, it is remarkable to point out that i) both stars maintain their individual envelopes or shells, and ii) the absence of a stable narrow absorption component at the systemic velocity of the system implies that no circumbinary envelope is present. Some studies on binarity and discs have been carried out in other contexts; for example, Herbig AeBe stars (see e.g. Duchêne 2015), T Tauri stars (Harris et al. 2012), and debris discs around solar-type and intermediate-mass stars (Rodriguez & Zuckerman 2012). However, to the best of our knowledge, there have been no studies devoted to the MS or early post-MS binary systems with shells. Therefore, this system is the first of its class to be discovered and studied.

7.4 TESS photometry: rotation and pulsations

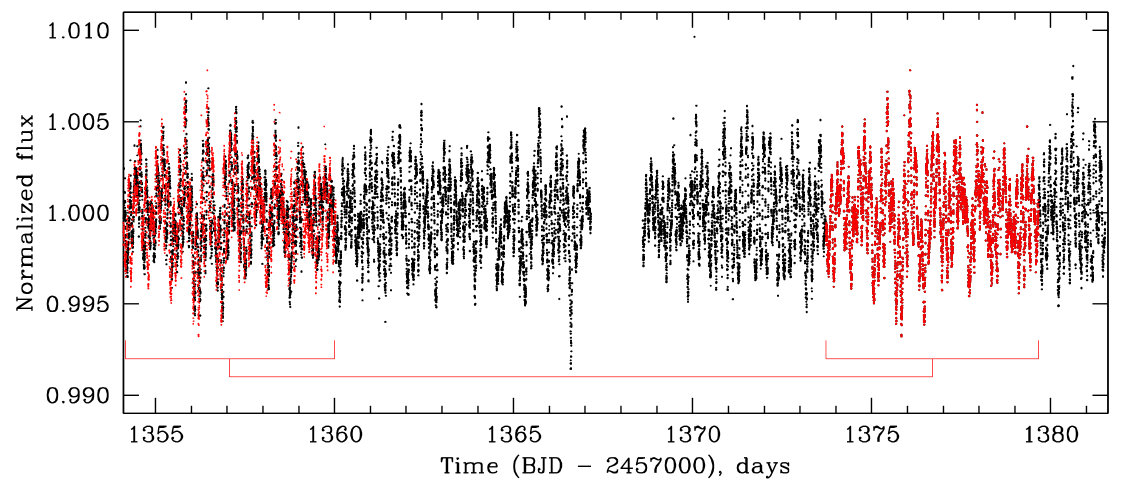

For the sake of completeness, we would like to mention the observations of HR 10 obtained by the Transit Exoplanet Survey Satellite mission (TESS) during Sector 2 in Camera 1 and CCD 3 (TIC 289592423). The photometric observations span a total of 27.4 days with a short cadence of 2.15 min. The data were downloaded from the Mikulski Archive for Space Telescopes666http://archive.stsci.edu (MAST), including the extracted light curve by the Science Processing Operations Center (SPOC) pipeline. The median photometric uncertainty per datapoint for the pre-search data conditioning simple aperture photometry (known as PDCSAP) is 140 parts per million. Given the large pixels and apertures used to extract the light curve, the binary system is not resolved by TESS. In Fig. 17 the light curve shows clear periodic photometric variations with $\sim$5 mmag semi-amplitude. As an example of how the variability pattern repeats itself, the observations corresponding to $\sim\!6$ days at the end of the observing window – highlighted in red – have been shifted in time by $\sim\!-19.630$ days and superimposed on the original data at the beginning of the observing run, fine-tuning the shift and causing the maxima and minima to coincide. The residuals between the shifted and the original data are less than $5.0\times 10^{-3}$, the average of the absolute values being $1.0\times 10^{-3}$. The analysis of these data, which include effects of rotation, pulsation, and gravitational darkening from the two components of HR 10, will be presented in another paper (Barceló-Forteza et al., in preparation).

7.5 Caveats

Finally, we would like to point out explicitly some caveats that must be taken into account when using and interpreting the results presented here.

The projected rotational velocities of the stars are large, and therefore they must produce geometrical distortions which imply an oblateness of the objects, which in turn results in a larger (smaller) gravity and temperature at the poles (equator), the so-called gravitational darkening. Further phenomena, such as differential rotation, prevent us from assigning a single temperature, gravity, or rotation velocity to the stars (see e.g. Zorec et al. 2017, and references therein).

Even if each component can be characterized by a single magnitude and colour, its position in colour–magnitude diagrams, and hence in the HR diagram, when translating magnitudes and colours into luminosities and temperatures, can be altered by rotation (see e.g. Bastian & de Mink 2009).

The PARSEC V2.1s tracks used during the computation of the stellar parameters do not include rotation. For comparison purposes we plotted the evolutionary tracks with no rotation (rotation) for stars with 1.7 and 2.5 $M_{\odot}$ and $Z\!=\!0.014$ from Ekström et al. (2012) as solid (dotted) blue lines in the lower HR diagram of Fig. 12. This grid only includes models for stars with 1.5, 1.7, 2.0, and 2.5 $M_{\odot}$, in the range of interest for this work, an overly scarce sampling for our purposes, and are computed for rotation velocities that do not correspond to those of HR 10. Therefore, we were not able to use them for the analysis. In any case the deviation with respect to the PARSEC V2.1s tracks does not seem to be dramatic.

8 Conclusions

Here we present a complete analysis of the star HR 10 in the context of a large programme aimed at detecting and monitoring variable metallic features superimposed on the photospheric lines that could be attributed to exocometary events (Rebollido et al. 2019). HR 10 was singled out because of its peculiar variability, the availability of a large amount of high-resolution spectra in archives and publications, and the hints of a first interferometric PIONIER/VLTI observation obtained in 2014 that suggested that HR 10 could be a binary. Dedicated campaigns, both with that instrument and with spectrographs in several telescopes, together with all the archival material have allowed us to carry out a thorough study whose main results can be summarised as follows.

Four interferometric PIONIER/VLT observations have provided solid evidence that HR 10 is a binary, the contrast between the components being $\sim\!32$% in $H$-band. 2. 2.

The analysis of more that 32 years of high-resolution spectroscopic observations from archives, publications, and since 2015, from our dedicated campaigns, shows that narrow CS absorption features are present in at least 24 metallic lines of Ca ii, Ti ii, and Fe ii. 3. 3.

Particular attention has been paid in this work to the strong Ca ii K CS narrow absorption features, which can be decomposed into two main components, labelled ‘D’ and ‘S’ – for ‘deep’ and ‘shallow’. These components show a periodic behaviour, with component D moving to the blue (red) as component S moves to the red (blue), crossing each other at certain times; this pattern being kept over decades. 4. 4.

In those situations where the separation in RVs of components D and S is large, two additional weaker components, labelled ‘d’ and ‘s’ are very apparent, each one to the red side of components D and S, respectively. These weaker d and s absorption features seem to accompany the main D and S in their periodic movements and not only appear in the Ca ii K narrow absorptions, but also in lines of other species, like Ti ii and Fe ii. 5. 5.

Each star holds its individual shell or envelope. The detailed analysis of the time evolution of components D and S shows that they trace the orbit of each individual star in the binary. This is strongly confirmed by the spectrometric binary solution. The orbital period is $P_{\rm orb}\!=\!747.6$ days, the mass ratio $q\!=\!M_{\rm B}/M_{\rm A}\!\simeq\!0.72-0.84$, and the eccentricity of the orbits is $e\!\simeq\!0.23$. 6. 6.

The complete orbital solution was obtained using the results of the RV analysis and the four PIONIER/VLTI astrometric points. This allowed us to compute the inclination of the system, $i\!=\!93.34^{\circ}$ and the total semimajor axis, $a_{\rm tot}\!=\!a_{\rm A}+a_{\rm B}\!=\!10.58$ mas, which at the distance to HR 10 (145.18 pc) is equivalent to $\sim\!3.08$ au; this implies a minimum distance between the stars – when both are located at their pericentre – of $\sim\!2.39$ au, a remarkably small value. 7. 7.

Stellar parameters for HR 10-A and -B were estimated making use of observable quantities – photometry, optical and ultraviolet spectra, and the constraint imposed by the PIONIER observations – and synthetic low- and high-resolution spectra and evolutionary tracks. 8. 8.

To our knowledge, this is the first case studied of a (slightly off)-MS binary where both components have individual envelopes or shells. The current analysis does not show any variability in the CS components that could be attributed to exocometary events. The absence of a narrow absorption component at the systemic velocity rules out the presence of a circumbinary envelope.

As a final remark, we would like to explicitly mention the fact that there is a chance that other stars that exhibit variability attributed to FEB phenomena might actually be binaries and behave in a way qualitatively similar to HR 10. Marion et al. (2014) estimated that when using interferometry and single-aperture imaging, about half the population of nearby A-type stars could be resolved as binaries, and suggested that a number of them remain undetected. In the case of HR 10, the key point that drove the whole analysis presented in this paper was the first PIONIER observation obtained in 2014 that showed strong evidence that the star was a binary.

In a generic case, should the interferometric observations not be feasible, spectroscopy alone would be able to unveil the binarity, provided that observations obtained during a well-sampled and long time interval can be collected; the binarity would show up in the structure of the photospheric lines provided the projected rotation velocity of the stars were low enough, and/or in the periodic shifts of the narrow absorption component (components), if it (they) were present and found to show a similar shape during timescales long enough to rule out the FEB scenario. Otherwise, if the orbital period of the binary is of the order of months or years, the analysis of the variability of the narrow absorptions during shorter intervals (days or weeks) can be misinterpreted as originating from an exocometary event.

Acknowledgements.

We are grateful to Prof. Barry Welsh, who refereed this paper, for his report and comments. The authors also acknowledge Prof. Lynne Hillenbrand for her valuable suggestions, scientific discussion, and for coordinating the reduction of the HIRES archival spectra, and Prof. René Oudmaijer, Dr Antonio Garufi, and Dr Sebastià Barceló for their comments; we also thank Dr Valentin Christiaens for obtaining the 2014 PIONIER observations, Daniela Paz Iglesias for covering the FEROS 2015 campaign, and Dr Trifon Trifonov for his advice during the reduction of some spectroscopic data. This work is partially based on observations made with the Nordic Optical Telescope (NOT), operated by the Nordic Optical Telescope Scientific Association (NOTSA), the Italian Telescopio Nazionale Galileo (TNG), operated by the Fundación Galileo Galilei of the Istituto Nazionale di Astrofisica (INAF), and the Mercator Telescope, operated by the Flemmish Community; all three located at the Spanish Observatorio del Roque de los Muchachos of the Instituto de Astrofísica de Canarias on the island of La Palma; also on observations obtained with the MPIA-ESO/2.2-m telescope operated at La Silla Observatory by the Max-Planck-Institut für Astronomie, and observations collected at the European Southern Observatory with the Very Large Telescope Interferometer (VLTI) operated at Cerro Paranal, under ESO programmes 093.C-0712(B), 099.C-2015(A) and 0101.C-0182(B). This paper also includes data taken with the 2.7-m Harlan J. Smith Telescope at McDonald Observatory of The University of Texas at Austin; we thank David Doss at McDonald Observatory for his valuable assistance in obtaining the high resolution spectra. Data acquired at the Anglo-Australian Telescope (AAT) have been also used; we acknowledge the traditional owners of the land on which the AAT stands, the Gamilaraay people, and pay our respects to elders past and present; we thank Stuart Ryder for his assistance at the AAT. Data from the ESO Science Archive Facility, programmes 079.C-0789 and 094.C-0946, have been used. This research has made use of the Keck Observatory Archive (KOA), which is operated by the W. M. Keck Observatory and the NASA Exoplanet Science Institute (NExScI), under contract with the National Aeronautics and Space Administration; data from programmes U101Hr (PI G. Marcy) and C328Hr (PI J. Johnson) were used. CE, GM, BM, IR, and EV are supported by Spanish grant AYA 2014-55840-P; HC acknowledges funding from the ESA Research Fellowship Programme; JJEK acknowledges support from the Academy of Finland grant 295114, and thanks the Universidad Autónoma de Madrid staff for their hospitality; the research of IM is funded by a Talento Fellowship (2016-T1/TIC-1890, Government of Comunidad Autónoma de Madrid, Spain). This work has made use of data from the European Space Agency (ESA) missions International Ultraviolet Explorer (IUE) (archive http://sdc.cab.inta-csic.es/ines/), and Gaia (https://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, https://www.cosmos.esa.int/web/gaia/dpac/consortium). This research has made use of the SIMBAD database, operated at CDS, Strasbourg, France.
