Controllable freezing of the nuclear spin bath in a single-atom spin qubit

TL;DR

This paper demonstrates that the coherence time of a single-atom spin qubit in enriched silicon can be significantly extended by controllably freezing the nuclear spin bath, revealing new strategies to improve quantum coherence.

Contribution

It shows that the nuclear spin dynamics can be controllably frozen in a single-atom qubit, enhancing coherence times beyond previous expectations.

Findings

Longer $T_2^*$ times due to nuclear spin freezing

Nearly parameter-free modeling of nuclear spin dynamics

Back-action of electron spin influences nuclear bath behavior

Abstract

The quantum coherence and gate fidelity of electron spin qubits in semiconductors is often limited by noise arising from coupling to a bath of nuclear spins. Isotopic enrichment of spin-zero nuclei such as $^{28}$Si has led to spectacular improvements of the dephasing time $T_2^*$ which, surprisingly, can extend two orders of magnitude beyond theoretical expectations. Using a single-atom $^{31}$P qubit in enriched $^{28}$Si, we show that the abnormally long $T_2^*$ is due to the controllable freezing of the dynamics of the residual $^{29}$Si nuclei close to the donor. Our conclusions are supported by a nearly parameter-free modeling of the $^{29}$Si nuclear spin dynamics, which reveals the degree of back-action provided by the electron spin as it interacts with the nuclear bath. This study clarifies the limits of ergodic assumptions in analyzing many-body spin-problems under conditions of strong, frequent measurement, and provides novel strategies for maximizing coherence and gate fidelity of spin qubits in semiconductors.

Figures

Equations

$$H_{\text{HF}}=\sum _j{A}_j{I}_j^z{S}^z,$$

$${\sigma }_{\omega }^2=\frac{2}{(T_{2\infty }^{\ast }{)}^2}=\frac{I(I+1)}{3}\sum _j{A}_j^2.$$

$$F(\omega;N,T)\approx\biggl{[}1-\frac{\sin(N\omega T)}{2N\sin(\omega T/2)}\biggr{]},$$

$${\sigma }_B^2=2{\left(\frac{1}{T_2^{\ast }}\right)}^2={\int }_0^{\infty }\frac{d\omega }{2\pi }{S}_B(\omega )F(\omega ;N,T).$$

$$S_B(\omega )=\frac{4{\sigma }_0^2}{{\tau }_c}\frac{1}{1+(\omega {\tau }_C{)}^2}.$$

$$\frac{1}{(T_{2}^{*})^{2}}=2\sigma_{0}^{2}\biggl{[}1-\frac{e^{-T/\tau_{c}}}{N}\frac{1-\exp(-NT/\tau_{c})}{1-\exp(-T/\tau_{c})}\biggr{]}.$$

$$S_B(\omega )=\frac{2\pi K^2}{{\omega }_0}{\left[\frac{{\omega }_0}{{\omega }_1}{\tan }^{-1}\left(\frac{{\omega }_1}{\omega }\right)\right]}^{\alpha },$$

$$H=H_{\text{dipolar}}+n(t)H_{\text{HF}}-n(t)g{\mu }_B{B}^z{S}^z-\sum _k\hslash \gamma B^z{I}_k^z.$$

$$H_{\text{dipolar}}=\frac{{\mu }_0}{4\pi }(\hslash \gamma {)}^2\sum _{j<k}\frac{1-3{\cos }^2{\theta }_{jk}}{2r_{jk}^3}({\text{I}}_j\cdot {\text{I}}_k-3I_j^z{I}_k^z),$$

$$P_{\pm }=\frac{1}{2}\pm \frac{1}{2}\cos \left\{\left[\Delta {\omega }_{\text{e}}+\delta {\omega }_{\text{e}}\right]\tau \right\}.$$

$$\begin{gathered} U_{\text{dephase}}= \\ {e}^{-i(T_{\text{load}}-t_1){⟨-1/2|}_e{H}_{\text{HF}}{|-1/2⟩}_e-i{t}_2{⟨m|}_e{H}_{\text{HF}}{|m⟩}_e}, \end{gathered}$$

$$U_{\text{evolve}}=\exp (-i{H}_{nn}{T}_{\text{wait}}).$$

$$R(t;\tau )=A+B\cos \left({\omega }_0\tau +{\int }_t^{t+\tau }d{t}^{\prime }x(t^{\prime })\right).$$

$$\frac{1}{N}\sum_{n=1}^{N}R(t_{n};\tau)\approx A+B\cos[(\omega+\bar{x})\tau]\times\\ \exp\left[-\frac{\tau^{2}}{2}\int_{0}^{\infty}\frac{d\omega}{2\pi}\text{sinc}^{2}\biggl{(}\frac{\omega\tau}{2}\biggr{)}S_{x}(\omega)\right],$$

$$\bar{x}=\frac{1}{N}\sum _{n=1}^{N}x(t_n).$$

$$⟨\frac{1}{N}\sum _{n=1}^N\cos [(\omega +x_n)t]⟩=\cos [(\omega +\bar{x})\tau ]e^{-⟨y_n^2⟩{\tau }^2/2},$$

$$y_n=x_n-\bar{x}.$$

$$\langle y_{n}^{2}\rangle=\frac{1}{N}\sum_{n}\langle y_{n}^{2}\rangle=\frac{1}{N^{2}}\sum_{nm}\biggl{[}\langle x_{n}^{2}\rangle-\langle x_{n}x_{m}\rangle\biggr{]}.$$

$$\begin{gathered} ⟨y_n^2⟩=\frac{1}{N}\sum _{m=0}^{N-1}{\int }_0^{\infty }\frac{d\omega }{2\pi }{S}_x(\omega )[1-\cos (\omega mT)] \\ ={\int }_0^{\infty }\frac{d\omega }{2\pi }F(\omega ;N,T)S_x(\omega ), \end{gathered}$$

$$F(\omega ;N,T)=\frac{(2N-1)\sin (\omega T/2)-\sin [(2N-1)\omega T/2]}{2N\sin (\omega T/2)}.$$

Full text

I Introduction

Electron spin qubits in semiconductors are prominent candidates for building blocks of scalable quantum computers, thanks to a combination of small physical size, long quantum coherence times, and potential manufacturability using industry-standard processes Hanson et al. (2007); Zwanenburg et al. (2013). Demonstrating a universal set of quantum gates with fidelities beyond the fault-tolerance threshold remains the main focus of current research in the field.

Microscopically, one of the main sources of decoherence and gate errors is the coupling between the electron spin qubit and the mesoscopic bath of nuclear spins present in the host semiconductor material. The fluctuating polarization of the nuclear spin bath produces an effective magnetic field noise, which results in a random component of the instantaneous value of the qubit resonance frequency. This randomness affects the qubit coherence time, since the precise rate of phase accumulation is no longer accurately known, and the quantum gate fidelities, since the frequency of the classical control fields may be off-resonance with the instantaneous precession frequency of the spin qubit.

Silicon — the material underpinning all of the modern microelectronic industry — also has the key property of possessing a large natural abundance of the spin-zero nuclear isotope 28Si, with only 4.7% 29Si nuclei carrying a spin $I=1/2$. Isotopic enrichment methods compatible with wafer-scale fabrication have provided 29Si concentrations of order 500 – 800 ppm Itoh and Watanabe (2014); Sabbagh et al. (2018). As was known for decades Gordon and Bowers (1958), and more recently studied in detail in ensemble experiments on 31P donors in silicon Tyryshkin et al. (2003, 2012), the electron spin coherence (as measured by a Hahn echo) in such enriched 28Si substrates is significantly improved from the values found in natural silicon. There is excellent agreement between measurements of electron spin Hahn echo decay in donor ensembles, and their predicted behavior based on the theoretical description of 29Si nuclear spin dynamics Witzel et al. (2007, 2010).

A series of experiments has been carried out in recent years on single-donor ion-implanted spin qubit devices in enriched silicon with 800 ppm residual 29Si. These experiments have qualitatively confirmed that the enrichment of spin-zero isotopes improves spin coherence times Muhonen et al. (2014) and quantum gate fidelities Muhonen et al. (2015); Dehollain et al. (2016). The Hahn echo decay time, $T_{2}^{\rm Hahn}\approx 200$ $\mu$s in natural silicon Pla et al. (2012), was shown to increase by a factor of $\sim 5$ in enriched 28Si Muhonen et al. (2014). However, the “pure dephasing” time $T_{2}^{*}$ of single-donor electron spins went from $T_{2}^{*}\approx 55$ ns in natural silicon, to $T_{2}^{*}\approx 270$ $\mu$s in 800 ppm material — an improvement of over three orders of magnitude. Strikingly, this surpasses by nearly two orders of magnitude what would be predicted assuming an ergodic behavior of the spin polarization of the residual 29Si nuclei.

In electron spin qubit systems in GaAs and Si/SiGe, a reasonably good prediction for the $T_{2}^{*}$ value is obtained by the following simple consideration Van Vleck (1948); Coish and Loss (2004). Suppose that, over a sequence of experiments on an electron spin qubit, the system samples with equal probability every possible configuration of the nuclear spins coupled to the qubit. The total electron-nuclear interaction is described by the Hamiltonian

[TABLE]

where $A_{j}$ is the hyperfine interaction (dominated by the Fermi contact term) between the electron and the $j$-th nucleus, $I_{j}^{z}$ is the $z$-component of the spin operator for nucleus $j$, and $S^{z}$ is the $z$-component of the spin operator for the electron. In a semiclassical picture, the hyperfine Hamiltonian above can be thought of resulting in a longitudinal magnetic field $B_{\rm HF}$ coupling to the electron (Overhauser field). This Hamiltonian assumes a large applied magnetic field $B_{0}$ in the $z$-direction, which allows neglecting the terms which do not conserve Zeeman energy. If we presume a sufficiently long averaging time to ensure that the fluctuations in nuclear bath eventually lead the system to sample all possible nuclear spin configurations, then the variance of the Overhauser field $B_{\rm HF}$ is found as the sum of the variances of equal binomial random variables for each nuclear spin, giving a total variance $\sigma_{\omega}$ in the Larmor frequency $\omega_{e}$ of the electron spin:

[TABLE]

As a result, electron coherences will decay as $\exp[-(\sigma_{\omega}t)^{2}/2]$. The ergodic limit for $T_{2}^{*}$, here notated $T_{2\infty}^{*}$, is therefore $\sqrt{2}/\sigma_{\omega}$ according to Eq. (2). The effect of the fluctuating nuclear bath can be captured by describing it via spin-diffusion from the dipole-dipole interaction, leading to a local power spectral density proportional to $1/\omega^{2}$ Abragam (1961); Reilly et al. (2008); Witzel et al. (2014).

In the case of a 31P donor in silicon, the hyperfine constants $A_{j}$ are well-known and tabulated in Ref. Ivey and Mieher (1975). Using these tabulated values and evaluating a large ensemble of random 29Si placements at 800 ppm concentration, we find that $\sigma_{\omega}^{2}$ is log-normal distributed as $10^{0.4\pm 0.7}$ (rad/sec)2. The probability of a random placement of nuclear spins providing $T_{2\infty}^{*}>200$ $\mu$s is therefore less than 1 in 50 million. This begs the question as to why observed dephasing times are two orders of magnitude larger than a reasonable value for $T_{2\infty}^{*}$. The question is particularly pressing in view of the fact that, also in the case of pure dephasing times (or its inverse, the inhomogenous linewidth) theory and experiments agree very well in the case of spin ensembles Abe et al. (2010). It is also pressing because the fidelity of 2-qubit logic operations, or their control resources for noise compensation, depend more crucially on the pure dephasing time than on the Hahn echo time Huang et al. (2019).

Understanding the microscopic reason why the single-spin experimental results consistently deviate from the ergodic model is the aim of this work. We present a simple experiment, designed to provide a clear insight into what freezes the dynamics of the 29Si spin bath. The experiment also shows the ability to control the dynamics of the nuclear bath, and in turn approaches the spin dephasing values expected from an ergodic assumption. We then provide a detailed and nearly parameter-free theoretical model that puts our observation in a quantitative framework, and reveals important details on the interplay between qubit measurement and nuclear bath dynamics. By using the 31P donor system in 800 ppm enriched silicon, the small (of order 10) number of 29Si nuclei involved allows us to treat the problem in a brute-force, numerically accurate way.

Importantly, our work provides insights into decoherence processes that could not, even in principle, be obtained from experiments on spin ensembles. By definition, the local Overhauser field averaged over a large spin ensemble will exhibit statistics that reflect the distribution of all possible 29Si nuclear spin configurations (unless some hyperpolarization method is applied). Therefore, only a single-spin experiment can unveil the precise statistics and timescales over which the Overhauser field actually explores the whole range allowed by the nuclear spin concentration. Additionally, our theoretical model includes explicitly the back-action on the nuclear bath of the electron spin used by measurement. This turned out to be a key ingredient to fully describe the qubit and bath dynamics, also unavailable from ensemble magnetic resonance experiments.

II Results

II.1 Experimental evidence of nuclear freezing by hyperfine interactions

The design of our experiment aims at testing the “nuclear freezing” hypothesis, which postulates the existence of a “frozen core” of nuclear spins close to the electron spin Khutsishvili (1962); Guichard et al. (2015). The dynamics of such nuclear spins is frozen by the presence of electron-nuclear hyperfine interactions which vary strongly at each lattice site, causing the nuclei to have significantly different energy splittings. As a consequence, energy-conserving nuclear flip-flop processes are strongly suppressed, since the nuclear dipole-dipole interaction is much weaker than the energy difference caused by the local variation of hyperfine couplings. Some aspects of the physics of nuclear freezing have been studied with ensemble NMR experiments in the context of nuclear spin diffusion Wald et al. (1992), and signatures of these effects appear in combined optical and magnetic resonance studies of single defects Bradley et al. (2019), but here we aim at providing direct evidence of the impact of nuclear freezing on the dephasing of an electron spin qubit using controlled electron occupation.

The key novelty of our experiment is the deliberate use of our ability to ionize single phosphorus donors in gated nanostructures Pla et al. (2013), in order to “unfreeze" nuclear spins on demand. Figures 1a and 1e show the basic schematic of the experimental protocol, in which we perform measurements of $T_{2}^{*}$ using the Ramsey technique while maintaining the donor in different ionization states. First, the donor system is initialized in the ground electron $\left|\downarrow\right\rangle$ state. The 31P nuclear spin is set in the $\left|\Uparrow\right\rangle$ state and remains unchanged during the entire duration of the experiment. From here onwards the 31P nucleus will be ignored, since it plays no role other than providing a constant hyperfine frequency shift, i.e. causing the nominal electron spin Larmor frequency to be $\omega_{\rm e}=\gamma_{e}B_{0}+A_{\rm P}/2$, where $\gamma_{\rm e}/2\pi\approx 28$ GHz/T is the electron gyromagnetic ratio, and $A_{\rm P}/2\pi\approx 97$ MHz is the hyperfine coupling to the 31P nucleus Laucht et al. (2015); Muhonen et al. (2017). Then, a microwave electron-spin-resonance (ESR) $\pi/2$ pulse at frequency $\omega_{\rm MW}$ establishes an electron-spin coherence of the form $(\left|\downarrow\right\rangle+e^{i\phi_{0}}\left|\uparrow\right\rangle)/\sqrt{2}$ (we can set $\phi_{0}=0$ as the result of the first pulse). This coherence evolves freely for a time $\tau$, after which a second $\pi/2$ pulse is applied. If the electron Larmor frequency had been exactly $\omega_{\rm MW}$ during the free evolution time $\tau$, the initial superposition state $(\left|\downarrow\right\rangle+\left|\uparrow\right\rangle)/\sqrt{2}$ would remain unchanged when observed in the rotating frame of microwave source, and the final state of the spin will be simply $\left|\uparrow\right\rangle$, verifiable by a subsequent single-shot measurement of the electron spin. We use a single-electron-transistor (SET) charge sensor to projectively measure a single electron spin via its Zeeman-selective tunneling to a cold electron reservoir, as described in Ref. Morello et al. (2010).

Including now the effect of the bath nuclear spins, described in a simple picture by the fluctuating Overhauser field $B_{\rm HF}(t)$, the actual electron Larmor frequency becomes $\omega_{\rm e}+\delta\omega_{\rm e}(t)$, where $\delta\omega_{\rm e}(t)=\gamma_{\rm e}B_{\rm HF}(t)$. After the free evolution time $\tau$, the electron coherence becomes $(\left|\downarrow\right\rangle+e^{i\phi_{\tau}}\left|\uparrow\right\rangle)/\sqrt{2},$ where the accumulated phase for the shot at time $t$ is $\phi_{\tau}=\int_{t}^{t+\tau}dt^{\prime}\delta\omega_{\rm e}(t^{\prime})$. This accumulated phase determines the final state after the second $\pi/2$ pulse: for example, if $\phi_{\tau}=\pi$, the second pulse has the effect of flipping the electron spin back to $\left|\downarrow\right\rangle$.

At each value of $\tau$, 100 single-shot measurements are averaged to yield the electron spin-up fraction $P_{\uparrow}(\tau)$, and the experiment is repeated for 100 different values of $\tau$. Choosing the microwave frequency with a deliberate detuning from the Larmor frequency, $\Delta\omega=\omega_{\rm e}-\omega_{\rm MW}$, causes the appearance of Ramsey fringes due to the phase accumulation $\phi_{\tau}=\Delta\omega\cdot\tau$, which is reflected in the oscillatory behavior of $P_{\uparrow}(\tau)=\cos^{2}(\phi_{\tau}/2)$. As long as $\Delta\omega$ (and therefore $B_{\rm HF}$) is constant, however, the amplitude of the Ramsey fringes does not decay with $\tau$. This would be true even in the presence of an a-priori unknown, but constant, Overhauser field. What causes Ramsey decay is the time-dependent fluctuations of $\delta\omega_{\rm e}(t)$ between individual experimental runs. If $B_{\rm HF}(t)$ changes from run to run, so does $P_{\uparrow}(\tau)$ in each run. When the range of variation of $B_{\rm HF}$ causes $P_{\uparrow}(\tau)$ to take any possible value between 0 and 1, the Ramsey fringes decay to a constant value of $P_{\uparrow}=0.5$. The $1/e$ decay time of the Ramsey fringes as a function of $\tau$ is used as the definition of $T_{2}^{*}$.

The key novelty in our protocol is the insertion of a wait time $T_{\rm wait}$ prior to each Ramsey sequence. We perform two sets of identical Ramsey experiments but, in one case, the wait time is spent with the donor in the neutral charge state, while in the other case the donor is kept ionized. This protocol intends to test the hypothesis that, while the donor is in the neutral state, its nuclear spin bath is “frozen” by the presence of the electron. The extra wait time is thus unlikely to cause a change in the Overhauser field between runs. In the ionized case, instead, the absence of the electron allows the bath nuclear spins to undergo energy-conserving flip-flop dynamics mediated by their mutual magnetic dipole interaction. Once the electron is reintroduced to take the next run of Ramsey experiment, it is likely to find the bath in a different state from the previous run. This is expected to lead to a significant reduction in the observed $T_{2}^{*}$.

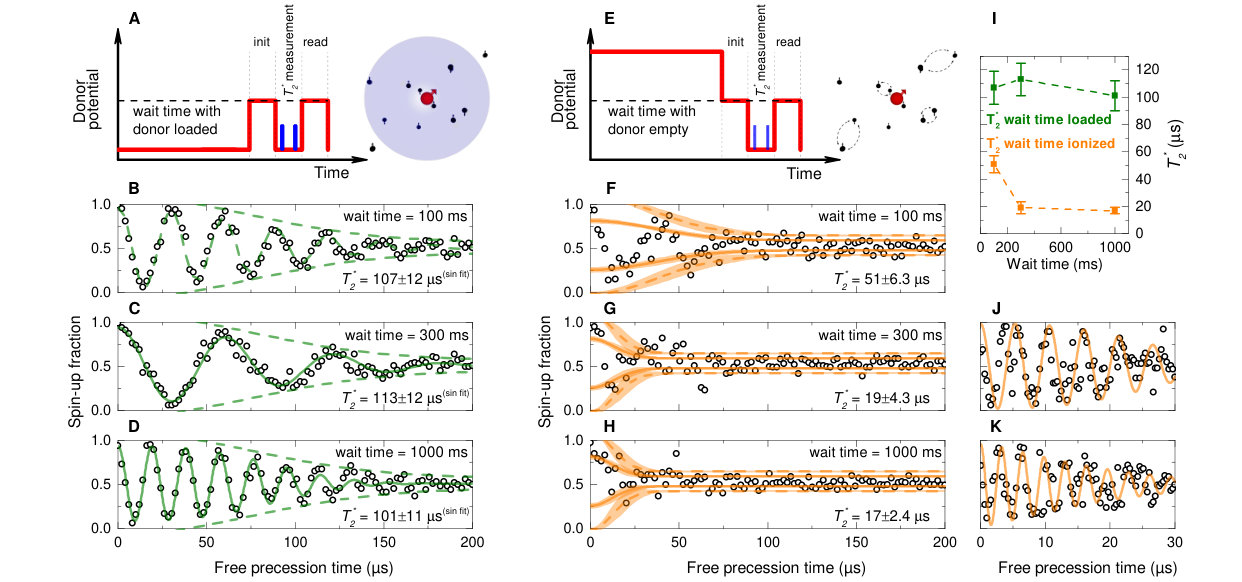

We repeated the protocol for 3 different wait times $T_{\rm wait}=100,300,1000$ ms. The results shown in Fig. 1 qualitatively confirm our hypothesis: with donor in neutral state during the wait time, the dephasing time remained constant at around $T_{2}^{*}\approx 100$ $\mu$s, whereas the donor ionization caused $T_{2}^{*}$ to drop to $51,19,17$ $\mu$s for $T_{\rm wait}=100,300,1000$ ms, respectively.

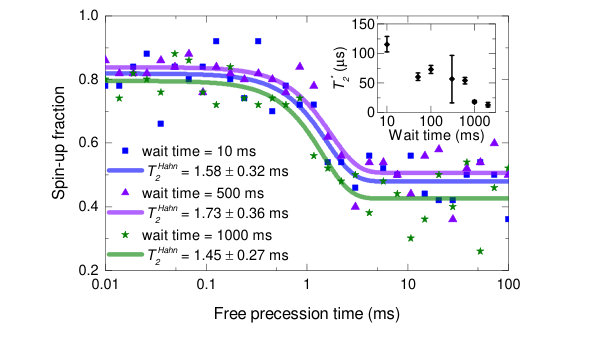

The hypothesis of nuclear freezing by hyperfine interactions can be further cross-checked by replacing the Ramsey experiment with a Hahn echo sequence. The Hahn echo includes a refocusing $\pi$ pulse between the two $\pi/2$ pulses, which has the effect of canceling out the effect of the static randomness of the instantaneous Larmor frequency. This is because the phase accumulated during the first half of the free evolution, $\phi_{\tau/2}$, is unwound during the second half after application of the $\pi$-pulse, resulting in a final state that has always $\phi_{\tau}=0$ unless the phase accumulated between $\tau/2$ and $\tau$ is different from the one accumulated between [math] and $\tau$. The decay of the Hahn echo signal thus reveals the presence of random variations of $B_{\rm HF}$ within one run. Therefore, introducing a wait time with ionized donor before the echo sequence should make no difference for the Hahn echo decay. Figure 2 confirms this expectation: the Hahn echo decay time $T_{2}^{\rm Hahn}$ remains approximately constant (within the experimental errors) around $T_{2}^{\rm Hahn}\approx 1.6$ ms, regardless of the length of ionized wait time introduced before each run.

II.2 Parameter-free numerical model of nuclear freezing and unfreezing

We now address whether the reduction of $T_{2}^{*}$ agrees quantitatively with reasonable models for nuclear dipole-dipole dynamics. Since the number of 29Si nuclei within the target 3 nm core is typically fewer than 10, we are able to calculate exactly the evolution of this small spin bath under magnetic dipole-dipole interactions. To do so, we generate baths of randomly located 29Si nuclei at 800 ppm concentration for a simulated set of single phosphorus impurities. We use the bulk values Ivey and Mieher (1975) for the hyperfine coupling constants $A_{j}$ and closely mimic the timing of the experiment. The evolution is then interrupted by a simulated measurement, which is modeled as the sudden appearance of a spin-down electron spin sometime during the load period (chosen from an exponential distribution with a random tunnel-in lifetime at average 2 ms), and the sudden disappearance of a spin during the ionization period, either as a result of a spin-down measurement or for subsequent ionization for the wait period of the next cycle. Millisecond-scale timing details of the pulsing and tunneling have no discernible impact on our simulation results, and so do not need to track the experiment exactly; the important physics in the simulation is the random, multi-millisecond hyperfine interaction with the electron. The projected spin is logged as a perfect single-shot measurement, and the averaged results are fit to Gaussian decay, just as in the experiment. Further detail appears in the Materials and Methods section.

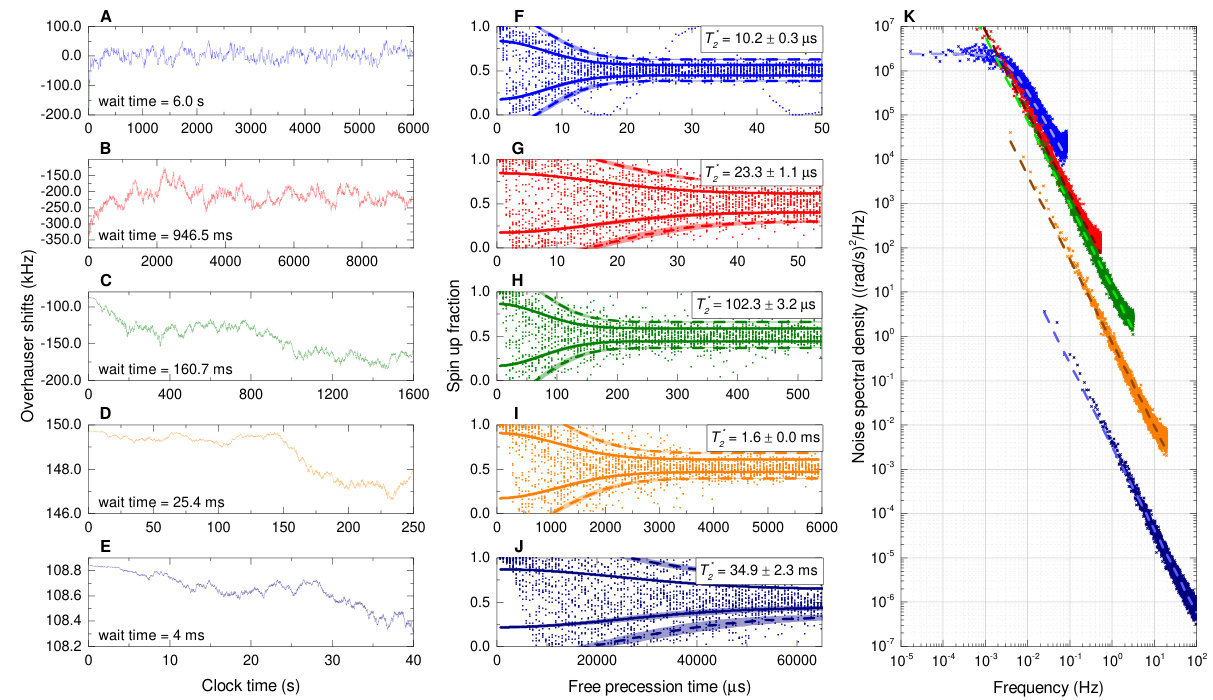

Figures 3a-e show sample simulated noise traces of the drifting Overhauser shift, defined as $\delta\omega_{\rm e}(t)=\sum_{j}A_{j}\langle I_{j}^{z}(t)\rangle$. Note that, although the instantaneous electron spin resonance frequency can in principle be measured Pla et al. (2012), the present experiment does not attempt to do so. As a result of this drift, simulated Ramsey experiments show varying $T_{2}^{*}$ decay timescales depending on the wait-time $T_{\rm wait}$ preceding the Ramsey sequence. Example fits for five simulated wait-times are shown in Figs. 3f-j.

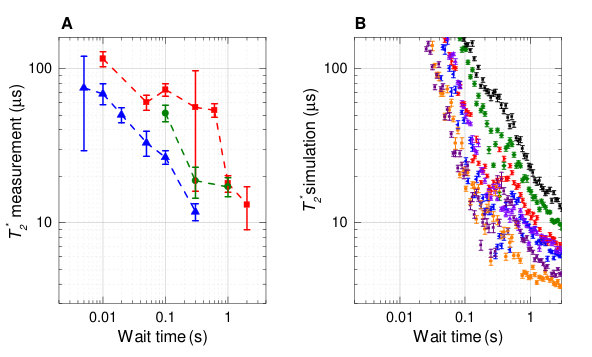

Figure 4 summarizes the values of $T_{2}^{*}$ obtained experimentally in three different devices (a) with the numerical simulations (b) obtained for six different random placements of 29Si nuclei. Both experiment and theory include a wait time with an ionized donor. The qualitative and even quantitative trend of $T_{2}^{*}$ as a function of $T_{\rm wait}$ shows good agreement between theory and model, especially for long $T_{\text{wait}}$ where the nuclear spin dynamics provide the dominant source of dephasing. This is rather remarkable, considering that the model is essentially parameter-free. The main source of uncertainty in the model — and also in experimental results obtained from different samples — is simply the random placement of the 29Si nuclei.

While our model captures key elements of the frozen-core hypothesis and its experimental test, it omits some factors that can have an impact on the experimental results, most notably the ensemble of nuclear spins outside the inner electron core, and other magnetic noise arising from the superconducting solenoid that produces the $B_{0}$ field Muhonen et al. (2014). The latter leads to discrepancies especially at short wait times, and is likely to be the main contribution to the finite $T_{2}^{*}$ in the case of wait time with a neutral donor, since the model predicts a completely frozen nuclear bath when the electron is present.

The simulation also provides a glimpse into the plausible low-frequency noise spectrum of nuclear hyperfine interactions of the donor. Five example noise power spectral densities (PSDs) of the variance of the frequency shift $\delta\omega_{e}(t)$ caused by Overhauser fields for one isotopic configuration are shown in Fig. 3k. With frequent electron interactions (short $T_{\text{wait}}$), the spectrum approaches a $1/f^{2}$ power law; in this case the noise is dominated by a Brownian random walk due to “ionization shock,” Pla et al. (2013); Hile et al. (2018), i.e. the sudden change in effective magnetic field seen by each nuclear spin due to the diabatic appearance or disappearance of the neutralizing electron. When making infrequent measurements, the spectrum has a reduced slope approaching a $1/f$ power law, reminiscent of noise in spin glasses Weissman (1993). Note that these spectra as shown in Fig. 3k are not samples of one large, measurement-insensitive spectral density. In fact, the amplitude and exponent for the noise varies drastically depending on how often electron interactions interrupt coherent dipole-dipole evolution, indicating that a kind of measurement back-action plays a key role in determining the noise properties for this system. This is a critical feature, as it indicates strong deviations from a classical, Markovian model; since we must interact the electron with the nuclear bath to measure it, and that interaction strongly perturbs the nuclear bath, the noise spectrum depends critically on our measurement of it.

III Discussion

III.1 Classical Noise Model for Qubit Optimization

For silicon spin qubits, the dynamics of Overhauser shifts are important for optimized operation. At finite isotopic purification, there will be some finite Overhauser shift, and meeting fidelities required for fault tolerant quantum computation will almost certainly require compensating for these shifts via calibration or the use of compensating gate sequences. The key challenge is the time-varying random drift of the Overhauser shift. While we have shown here that this drift rate may vary by orders of magnitude depending on the amount of time a donor stays ionized or neutral, a detailed model for this drift is key for optimizing how often qubit frequency recalibration can occur or what order compensation is needed to account for it. We cite as examples recent works where dynamical recalibration and compensation sequences have effectively lengthened $T_{2}^{*}$ and reduced randomized benchmarking error in exchange-coupled quantum dots amongst both the much larger Overhauser shifts in GaAs Shulman et al. (2014); Cerfontaine et al. (2019), and in isotopically purified silicon Huang et al. (2019); Yang et al. (2019).

Optimization models for recalibration and gate compensation will be key to operational quantum processors and will require models for nuclear dipolar dynamics, but it may be impractical to do such optimization using detailed dipolar and hyperfine simulations such as those employed in the discussion above. We therefore may ask what classical noise models may serve as a suitable approximation to these dipolar dynamics. For this, we employ the language of filter functions, in which the application of control pulses to the electron spin qubit is likened to applying a filter to an independent noise process that couples to the qubit Cywiński et al. (2008); Biercuk et al. (2011). The precise spectral properties of the filter depend on the sequence and timing of the control pulses. The filter function for a Ramsey experiment typically only considers the noise between the $\pi/2$ pulses, and is mostly sensitive to the “zero-frequency” component of the noise spectral density, which is often modeled under ergodic, “quasi-static" assumptions as some shot-to-shot variation in a static frequency offset. However, when we abandon assumptions of ergodicity, we must ask how the process of averaging over many repetitions (for total duration of several seconds) introduces sensitivity to very low frequency noise components. A derivation provided in the Materials and Methods section yields an approximate filter function for $N$ averages with wait time $T$ between measurements as

[TABLE]

for which the variance of the observed magnetic field noise should be estimated for an input noise spectral density of local magnetic field $S_{B}(\omega)$ as

[TABLE]

Following Ref. Witzel et al., 2014, the simplest noise model we may use is the Ohrenstein-Uhlenbeck (OU) process, which likens nuclear drift to Brownian motion with friction and hence provides a Gaussian, Markovian, stationary process characterized by a simple exponential autocorrelation function with correlation time $\tau_{c}$. Hence the model for the power spectral density of the noise, integrating to a total noise power $\sigma_{0}^{2}$, would in this case be

[TABLE]

Integrated against Eq. 3, the anticipated $T_{2}^{*}$ measured as a function of the varying experiment time, $T\approx T_{\text{wait}}$, would be

[TABLE]

This shape is consistent with the experimental data of Fig. 4a, and using $N=100$ for the number of single shots, fits to that data provide correlation times varying between half a second and half an hour for the three samples. If we fit to our simulated measurements of $T_{2}^{*}$, Fig. 4b, we also find values of $\tau_{c}$ varying from seconds to hours. This is consistent with Ref. Witzel et al., 2014, which uses cluster expansion techniques to similarly simulate bath dynamics in six different nuclear configurations, fitting the autocorrelation functions to exponentials, and finding a broad range of correlation times.

However, Eq. 6 is not a particularly strong fit to the numerically simulated data of Fig. 4b, and this should not be surprising for two key reasons: first, the noise source is not independent of measurement, as we have indicated, and second, when measurement is infrequent, the Overhauser noise power spectral densities of Fig. 3k poorly match Eq. 5, appearing instead to follow a more general $1/f^{\alpha}$ power low with low frequency roll-off. We may instead characterize the simulated noise using the function

[TABLE]

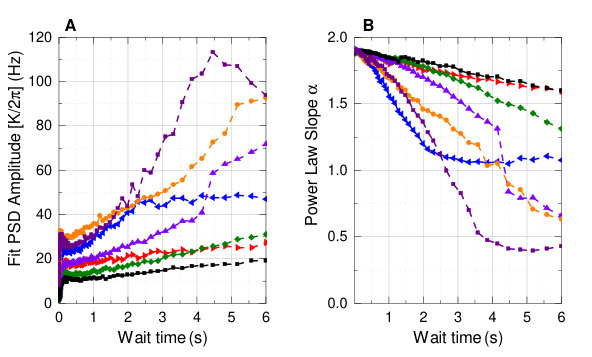

and find an effective amplitude $K$, slope $\alpha$, and low-frequency roll-off $\omega_{1}$ by fitting to the simulated PSD functions. The parameter $\omega_{0}$ is taken as $2\pi$ rad/sec to maintain units of sec*-1* for $K$. Sample fits are shown in Fig. 3k, and fit values of $K$ and $\alpha$ for six simulated samples over a range of $T_{\text{wait}}$ is shown in Fig. 5. We note the low-frequency roll-off $\omega_{1}$ occurs in our simulations largely due to the finite number of nuclei considered, leading to a finite lower bound to the dipolar Hamiltonian, and likely does not well inform the case of a real donor in an extended crystal with thousands of weakly coupled 29Si. If we numerically integrate Eq. 7 with Eq. 4, we find a $T_{2}^{*}$ varying with $T_{\text{wait}}$ in good correspondence with the simulated measurements, indicating that treating the underlying Overhauser fluctuations as a classical noise bath with general $1/f^{\alpha}$ power law provides a useful model, but noting that $K$ and $\alpha$ depend sensitively on how often the nuclei interact with the measuring electron spin.

Of course, $1/\omega^{\alpha}$ noise from the 29Si nuclear bath cannot persist at frequencies higher than allowed by the dipole-dipole dynamics driving the noise. Already at a kHz, the noise must roll-off, and a dynamical decoupling experiment such as Hahn echo should be insensitive to this wait-time-dependent drift, as confirmed by the experimental data in Fig. 2. The echo decay at rate $T_{2}^{\rm Hahn}$ is dominated by residual noise in the kHz range. Here, ensemble experiments Tyryshkin et al. (2003) (and supporting theory Witzel et al. (2010)) show that the intrinsic $T_{2}^{\rm Hahn}$ for this 29Si concentration is tens of milliseconds. The much shorter $T_{2}^{\rm Hahn}\approx 1.5$ ms reported here and in other single-donor experiments Muhonen et al. (2014) suggests that other sources of noise, not accounted in our present simulations, must be responsible for the observed Hahn echo decay.

III.2 Comparison to other physical systems

The experimentally-consistent simulation of $1/f^{\alpha}$ noise, with $\alpha<2$, is in contrast to standard, diffusive models of spin diffusion with $\alpha=2$ Abragam (1961); Reilly et al. (2008); Witzel et al. (2014). Such “pink" noise has been observed in other silicon nuclear systems; in particular direct observations of $1/f$ nuclear noise in isotopically enriched Si/SiGe quantum dots Eng et al. (2015). In those experiments, the dots are empty or contain two hyperfine-inactive singlet electrons during most of the experiment, allowing free nuclear dipole-dipole interaction for the duration of the experiment. In this case $T_{2}^{*}$ times are — unlike the case of the neutral donor shown here — close to the ergodic limit. Spectral drift due to nuclear spins in isotopically enriched MOS dots also shows $1/f^{\alpha}$ spectral characteristics Huang et al. (2019), suggesting that this is common behavior in silicon, where the nuclear spins appear in a dilute, disordered lattice, in contrast to widely studied dense nuclear spin crystals such as GaAs or CaF2. Theoretical validation of $1/f$ dipolar dynamics in larger quantum dot systems requires further numeric study, requiring less brute-force simulation techniques such as coupled cluster expansions Witzel et al. (2014).

The main impact of generalizing models of nuclear drift to $1/f^{\alpha}$ noise will be on how one determines the rate at which a qubit is likely to drift away from the allowed frequency band of dynamical decoupling and dynamically compensating gates. Finding an optimum recalibration schedule is beyond the scope of the present work, as it also depends on critical assumptions of the cost of a recalibration sequence to a quantum processor and the effectiveness of any dynamic compensation techniques, but such optimizations will be critical to maintain the high fidelity operation required of fault tolerant quantum information processing. Hence we believe our explorations into the very-low-frequency character of nuclear-nuclear dipole dynamics in single phosphorus impurities may assist the engineering of high quality silicon qubits in future quantum processors.

IV Materials and Methods

IV.1 Experiment

More details on the fabrication and operation of our single-donor SET device may be found in Refs. Morello et al., 2010 and Muhonen et al., 2014. All experiments occur in an external magnetic field $B_{0}=1.4$ T; the large electron Zeeman energy ensures that the eigenstates of the system are simple tensor products of the basis electron ($\left|\downarrow\right\rangle,\left|\uparrow\right\rangle$) and 31P nuclear ($\left|\Downarrow\right\rangle,\left|\Uparrow\right\rangle$) states.

Although the Ramsey experiment we have described in the Results section is a common procedure, detailed results depend not only on averaging times and wait times, but also on the method chosen for curve fitting. For both the experiment and the theory, finite averaging effects result in notable variation in $T_{2}^{*}$ depending on how the decaying sinusoidal Ramsey fringes are fit. One option for fitting is to attempt a direct nonlinear fit to the decay function $P_{\uparrow}(\tau)=C_{0}+C_{1}\cos(\Delta\omega\cdot\tau)\exp[-(\tau/T_{2}^{*})^{2}]$, which is employed in Figs. 1a-c and 1j-k, but for large variation of the average detuning $\delta\omega_{\rm e}(t)$, this fit may easily fail. A more robust option when focusing on $T_{2}^{*}$ is to ignore oscillations in the data and rather fit the envelope of the observed decay. This is done for both experimental and simulated fits throughout the present study by taking multiple traces of the Ramsey oscillation curve, finding a least-squares estimate between the data at each delay $\tau$ and a normal distribution of standard deviation $\sigma(\tau)$, constrained so that $\sigma(\tau)$ follows an offset Gaussian decay $\sigma(\tau)=\sigma_{0}+\sigma_{1}\exp[-(\tau/T_{2}^{*})^{2}]$. In Figs. 1e-h and 3f-j, the fit outcome $\sigma(\tau)$ and $2\sigma(\tau)$ are shown, shaded according to a confidence interval using the $1-\sigma$ standard error resulting from the Levenberg-Marquardt nonlinear least squares algorithm. This fitting procedure is also insensitive to errors due to imperfect initialization and measurement visibility.

Notably, the parameter $T_{2}^{*}$ in this and most other studies tracks the decay of an averaged sinusoid but discards the information of the sinusoid’s center frequency. This loss of the information of the mean center frequency puts an effective resilience to the lowest frequency drifts in the system, and hence provides, in conjunction with the full experiment averaging time, the effective low-frequency cut-off of the noise spectrum to which the experiment is sensitive. We find that capturing this effective low-frequency cut-off is best done by simulation, as analysis is confounded by the nonlinear process of the curve-fitting algorithm. The filter function analysis in the Discussion section should therefore be considered approximate; it never exactly captures simulation results.

IV.2 Simulations

The complete Hamiltonian of the simulated model is

[TABLE]

The latter two terms here are the Zeeman terms, which we may subsume into a rotating frame. The secular term of the nuclear-nuclear dipolar interaction in this rotating frame Abragam (1961) is then

[TABLE]

where $\text{{I}}_{k}$ is the spin operator for the $k$th spin-1/2 29Si nucleus, $\gamma/(2\pi)=-8.5$ MHz/T is the 29Si gyromagnetic ratio, $\theta_{jk}$ is the angle between the vector connecting nuclear spins $j$ and $k$ and the applied magnetic field, and $r_{jk}$ is the distance between those spins. The coupling constants here range from a few mHz to about a Hz. The secular hyperfine interaction was discussed in the Introduction as Eq. 1; we notate its modulation via ionization as $n(t)$, the electron occupancy of the donor.

We simulate the experiment in which a Ramsey fringe experiment is performed, but between each single-spin measurement, the donor is biased so as to be ionized ($n(t)=0$) for a time ${T}_{\textnormal{wait}}$. During this time, the nuclear spins undergo free evolution according to ${H}_{\textnormal{\text{dipolar}}}$. Then, the donor is loaded ($n(t)=1$) for measurement. Each simulated Ramsey measurement subroutine includes the following components:

• •

Calculation of the Overhauser shift pulls $\delta\omega_{\text{e}}=\sum_{k}A_{k}\left\langle\psi\right|I_{k}^{z}\left|\psi\right\rangle$ directly from the simulation data. There is not yet any nuclear back-action from this computation as it does not correspond to a physical process.

• •

The electron spin measurement probability distribution for a Ramsey experiment is calculated as

[TABLE]

The fixed detuning $\Delta\omega_{\text{e}}$ includes a deliberate offset from the Larmor frequency and any initial Overhauser shift from the start of the simulation; using sufficient $\Delta\omega_{\text{e}}$ to see fringe contrast assists curve-fitting, but we find that the precise value of it has no discernible impact on our results.

• •

The simulated single-shot readout result is randomly chosen by drawing a binomial random variable according to $P_{\pm}$; we notate the random result as $m$.

• •

To determine a dephasing operator, we note that the principle source of randomness is not the measurement, but rather the uncertain duration of time the electron occupies the donor between tunnel events to and from the reservoir. For this process we draw a random load time $t_{1}$ for an electron to occupy the donor. This random time $t_{1}$ is drawn from cumulative distribution function (CDF) $1-\exp(-t/{t_{1}}_{\textnormal{load}}),$ for which we use ${t}_{\textnormal{load}}=2$ ms. The time of the two ESR pulses and the Ramsey evolution is treated as negligible to nuclear dynamics. More importantly, the electron remains on the donor for a time $t_{2}$, which may be one of two choices, depending on $m$. If $m=-1/2$, $t_{2}$ is a tunneling time again drawn from CDF $1-\exp(-t/{t}_{\textnormal{unload}})$. If $m=+1/2$, $t_{2}$ is a random tunnel time in addition to the measurement time, $T_{\text{meas}}$. We also use ${t}_{\textnormal{unload}}=2$ ms, and the timing durations $T_{\text{load}}$ and $T_{\text{meas}}$ mimic the experiment at 100 ms. The back-action on the nuclear spins for this process is then captured by applying the dephasing operator

[TABLE]

where $t_{1}$, $t_{2}$, and $m$ are random numbers from shot-to-shot, hence causing phase scrambling within the nuclear ensemble. We have verified that our results do not depend critically on the $m$-dependence of the model; these spin-projection details are in place to mimic the experiment, but a simpler model that only captures a random electron interaction time could be used to obtain similar results, allowing simpler analytic approximations.

This simulated measurement subroutine is repeated $N_{\text{meas}}$ times at each of $N_{\tau}$ values; it is embedded into the full nuclear simulation as follows:

Randomly populate a sphere of unstrained silicon lattice sites about 3 nm around a donor with random 29Si nuclei at 800 ppm density. 2. 2.

Choose a random nuclear spin state $\left|\psi\right\rangle$ via coin-flipping. 3. 3.

Choose a ${T}_{\textnormal{wait}}$ value and calculate

[TABLE] 4. 4.

For $N_{\tau}\times{N}_{\textnormal{meas}}$ cycles, incrementing the value of $\tau$ every ${N}_{\textnormal{meas}}$ cycles,

1. (a)

Apply ${U}_{\textnormal{evolve}}$ to $\left|\psi\right\rangle$. 2. (b)

Simulate the Ramsey Experiment, as described above. 3. (c)

Record the average of those ${N}_{\textnormal{meas}}$ single-shot measurements. 5. 5.

Curve-fit the average measurements at each $\tau$ to Gaussian decay to extract $T_{2}^{*}$.

This whole process is then repeated ${N}_{\textnormal{ens}}$ different times for several different wait times ${T}_{\textnormal{wait}}$. The independent ensemble members use the same configuration of nuclei, but different initial nuclear spin states (and independent statistics for simulating single-shot measurements).

IV.3 Filter Function Across Many Averages

In this section, we consider in general the problem of measuring the frequency of a signal when that frequency drifts significantly over a timescale much slower than the duration of single measurement but faster than the overall time it takes to make an ensemble of measurements. We approach the problem using a filter-function formalism.

Consider generally a zero-mean angular frequency shift $x$ (e.g. an Overhauser shift) which we seek to measure via a Ramsey-like measurement, meaning an ensemble of measurements in which a probe (e.g. a spinning electron) oscillates at drifting frequency $\omega_{0}+x(t)$ for a varying time $\tau$, generating a single-shot measurement probability

[TABLE]

Here $A$ and $B$ are irrelevant linear scale parameters, capturing measurement details not presently of interest. If our random frequency shift $x(t)$ were stationary, then after “sufficient" averaging we would ignore the absolute time $t$ and assume that after averaging some $N\gg 1$ measurements at different times $t_{n}$,

[TABLE]

where $S_{x}(\omega)$ is the noise spectral density of $x(t)$ and the sampled mean-value of $x(t)$ would be

[TABLE]

The integral in the decay in Eq. (13) exhibits the standard filter function, $\text{sinc}^{2}(\omega\tau/2)$, for a Ramsey-type frequency measurement. This filter is sharply peaked at $\omega=0$, suggesting that this measurement is sensitive to the “noise at DC," which is ill-defined. Here, we consider the case that $x(t)$ fluctuates much slower than any relevant value of $\tau$; i.e. that most of the weight of $S(\omega)$ is “at DC," meaning simply frequencies much less than $1/\tau$. In this case the Ramsey filter function is effectively a $\delta$-function at $\omega=0$, or at some arbitrary “low-frequency cut-off" which is not well defined under the assumptions above.

To make a more appropriate filter in this slow-drift scenario, we focus on the notion that each individual measurement queries $x(t)$ at same absolute time $t_{n}$ for sampling instance $n$; abbreviate $x(t_{n})=x_{n}$. We essentially assume $x_{n}$ is constant but random during a Ramsey experiment; this is sometimes referred to as the “quasistatic" limit. However, $x_{n}$ is not fully randomized from shot-to-shot; rather it undergoes drifts according to a random process which the experiment seeks to study.

The key to our analysis is that the extraction of the mean, $\bar{x}$ according to Eq. (14), provides the low-frequency cut-off to the filter. Our averaging process measures, under an assumption of Gaussian noise,

[TABLE]

where

[TABLE]

Our critical assumption is that although $x_{n}$ is not stationary, the deviation $y_{n}$ from the sampled mean $\bar{x}$, may be considered as such. Our assumption of a stationary $y_{n}$ means that this variance should be equal to its average over each of the $n$ measurements, i.e.

[TABLE]

This assumption assures that the lowest frequency components of the fluctuations of $x(t)$ have been “absorbed" into the non-stationary mean $\bar{x},$ which is an experimental outcome of the experiment, possibly ignored. Hence we may estimate the anticipated $T_{2}^{*}$ measurement via $\sqrt{2}/\langle y_{n}^{2}\rangle$ by examining the difference between the total noise power of our slow drift process and the averaged autocorrelation across all ensemble measurements.

We may now cast this simple characterization as a filter function by introducing again the noise spectral density of $x(t)$ via the Wiener-Khintchine theorem and the assumption that the time between sampling $x_{n}$ and $x_{m}$ is $T\times(m-n)$ for single-measurement time $T$, giving the variance

[TABLE]

where

[TABLE]

We have hence derived a “filter function" $F(\omega;N,T)$ for the long-time diffusion in this experiment. Usually, we choose $N\gg 1$, in which case it simplifies to Eq. 3 of the main text. This equation effectively describes a high-pass filter, with the stop-band at frequencies below $1/NT$. This may be added to a decay function employing the standard $\tau$-dependent Ramsey filter function $\text{sinc}^{2}(\omega\tau/2)$, but with an appropriately chosen low-frequency cut-off for the noise.
